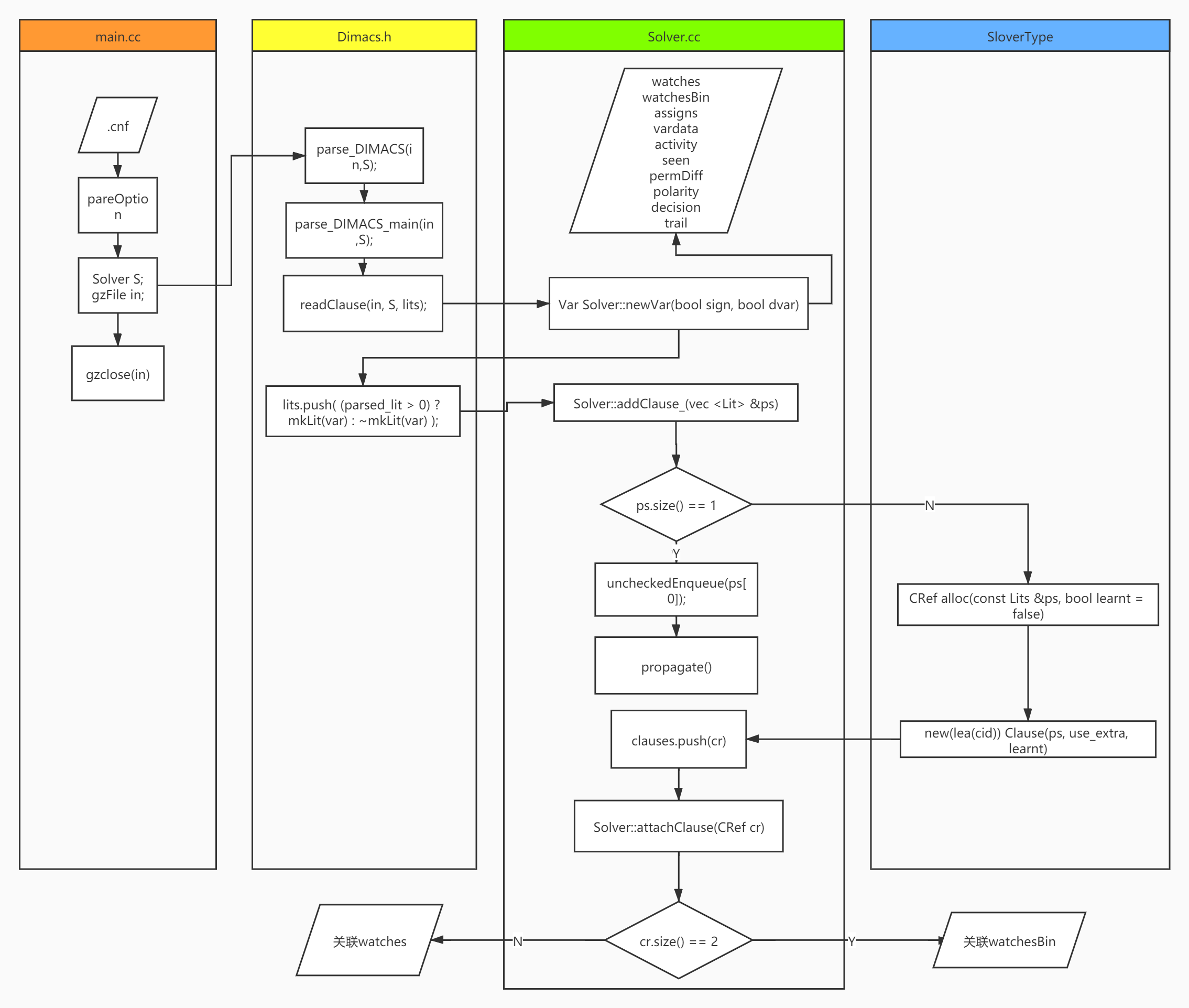

解析cnf文件流程图

        IntOption verb("MAIN", "verb", "Verbosity level (0=silent, 1=some, 2=more).", 1, IntRange(0, 2));
        BoolOption mod("MAIN", "model", "show model.", false);
        IntOption vv("MAIN", "vv", "Verbosity every vv conflicts", 10000, IntRange(1, INT32_MAX));
        IntOption cpu_lim("MAIN", "cpu-lim", "Limit on CPU time allowed in seconds.\n", INT32_MAX,
                          IntRange(0, INT32_MAX));
        IntOption mem_lim("MAIN", "mem-lim", "Limit on memory usage in megabytes.\n", INT32_MAX,
                          IntRange(0, INT32_MAX));

        parseOptions(argc, argv, true);

        Solver S;

        S.verbosity = verb;
        S.verbEveryConflicts = vv;
        S.showModel = mod;

        solver = &S;

        parse_DIMACS(in, S);

        gzclose(in);

static void parse_DIMACS(gzFile input_stream, Solver& S) {
    StreamBuffer in(input_stream);
    parse_DIMACS_main(in, S); }

static void parse_DIMACS_main(B& in, Solver& S) {
    vec<Lit> lits;
    int vars    = 0;
    int clauses = 0;
    int cnt     = 0;
    //读取cnf
    for (;;){
        skipWhitespace(in);
        if (*in == EOF) break;
        else if (*in == 'p'){
            if (eagerMatch(in, "p cnf")){
                vars    = parseInt(in);
                clauses = parseInt(in);
                // SATRACE'06 hack
                // if (clauses > 4000000)
                //     S.eliminate(true);
            }else{
                printf("PARSE ERROR! Unexpected char: %c\n", *in), exit(3);
            }
        }
        else if (*in == 'c' || *in == 'p')
            skipLine(in);
        else{
            cnt++;
            readClause(in, S, lits);
            S.addClause_(lits); }
    }
    if (vars != S.nVars())
        fprintf(stderr, "WARNING! DIMACS header mismatch: wrong number of variables.\n");
    if (cnt  != clauses)
        fprintf(stderr, "WARNING! DIMACS header mismatch: wrong number of clauses.\n");
}

bool Solver::addClause_(vec <Lit> &ps) {
    //决策层为0添加
    assert(decisionLevel() == 0);
    if (!ok) return false;

    // Check if clause is satisfied and remove false/duplicate literals:
    sort(ps);

    vec <Lit> oc;
    oc.clear();

    Lit p;
    int i, j, flag = 0;
    if (certifiedUNSAT) {
        for (i = j = 0, p = lit_Undef; i < ps.size(); i++) {
            oc.push(ps[i]);
            // 如果找到与条款集一致的部分分配，则为“ l_True”。
            // 如果所有变量都是决策变量，则这意味着子句集是可满足的。
            // 如果子句集不令人满意，则为“ l_False”。
            // 如果达到冲突数量的界限，则为“ l_Undef”。
            // Lit p = lit_Undef (-2)        -2 ^ 1 = -1
            if (value(ps[i]) == l_True || ps[i] == ~p || value(ps[i]) == l_False)
                flag = 1;
        }
    }

    for (i = j = 0, p = lit_Undef; i < ps.size(); i++)
        // 如果找到与条款集一致的部分分配，则为“ l_True”。
        // 如果所有变量都是决策变量，则这意味着子句集是可满足的。
        // 如果子句集不令人满意，则为“ l_False”。
        // 如果达到冲突数量的界限，则为“ l_Undef”。
        // Lit p = lit_Undef (-2)        -2 ^ 1 = -1
        if (value(ps[i]) == l_True || ps[i] == ~p)
            return true;
        else if (value(ps[i]) != l_False && ps[i] != p)
            ps[j++] = p = ps[i];
    ps.shrink(i - j);

    if (flag && (certifiedUNSAT)) {
        for (i = j = 0, p = lit_Undef; i < ps.size(); i++)
            fprintf(certifiedOutput, "%i ", (var(ps[i]) + 1) * (-2 * sign(ps[i]) + 1));
        fprintf(certifiedOutput, "0\n");

        fprintf(certifiedOutput, "d ");
        for (i = j = 0, p = lit_Undef; i < oc.size(); i++)
            fprintf(certifiedOutput, "%i ", (var(oc[i]) + 1) * (-2 * sign(oc[i]) + 1));
        fprintf(certifiedOutput, "0\n");
    }

    if (ps.size() == 0)
        return ok = false;
    else if (ps.size() == 1) {
        uncheckedEnqueue(ps[0]);
        return ok = (propagate() == CRef_Undef);
    } else {
        CRef cr = ca.alloc(ps, false);
        clauses.push(cr);
        attachClause(cr);
    }

    return true;
}

void Solver::attachClause(CRef cr) {
    const Clause &c = ca[cr];

    assert(c.size() > 1);
    if (c.size() == 2) {
        watchesBin[~c[0]].push(Watcher(cr, c[1]));
        watchesBin[~c[1]].push(Watcher(cr, c[0]));
    } else {
        watches[~c[0]].push(Watcher(cr, c[1]));
        watches[~c[1]].push(Watcher(cr, c[0]));
    }
    if (c.learnt()) learnts_literals += c.size();
    else clauses_literals += c.size();
}



        template<class Lits>
        CRef alloc(const Lits &ps, bool learnt = false) {
            assert(sizeof(Lit) == sizeof(uint32_t));
            assert(sizeof(float) == sizeof(uint32_t));
            bool use_extra = learnt | extra_clause_field;

            CRef cid = RegionAllocator<uint32_t>::alloc(clauseWord32Size(ps.size(), use_extra));
            new(lea(cid)) Clause(ps, use_extra, learnt);

            return cid;
        }
