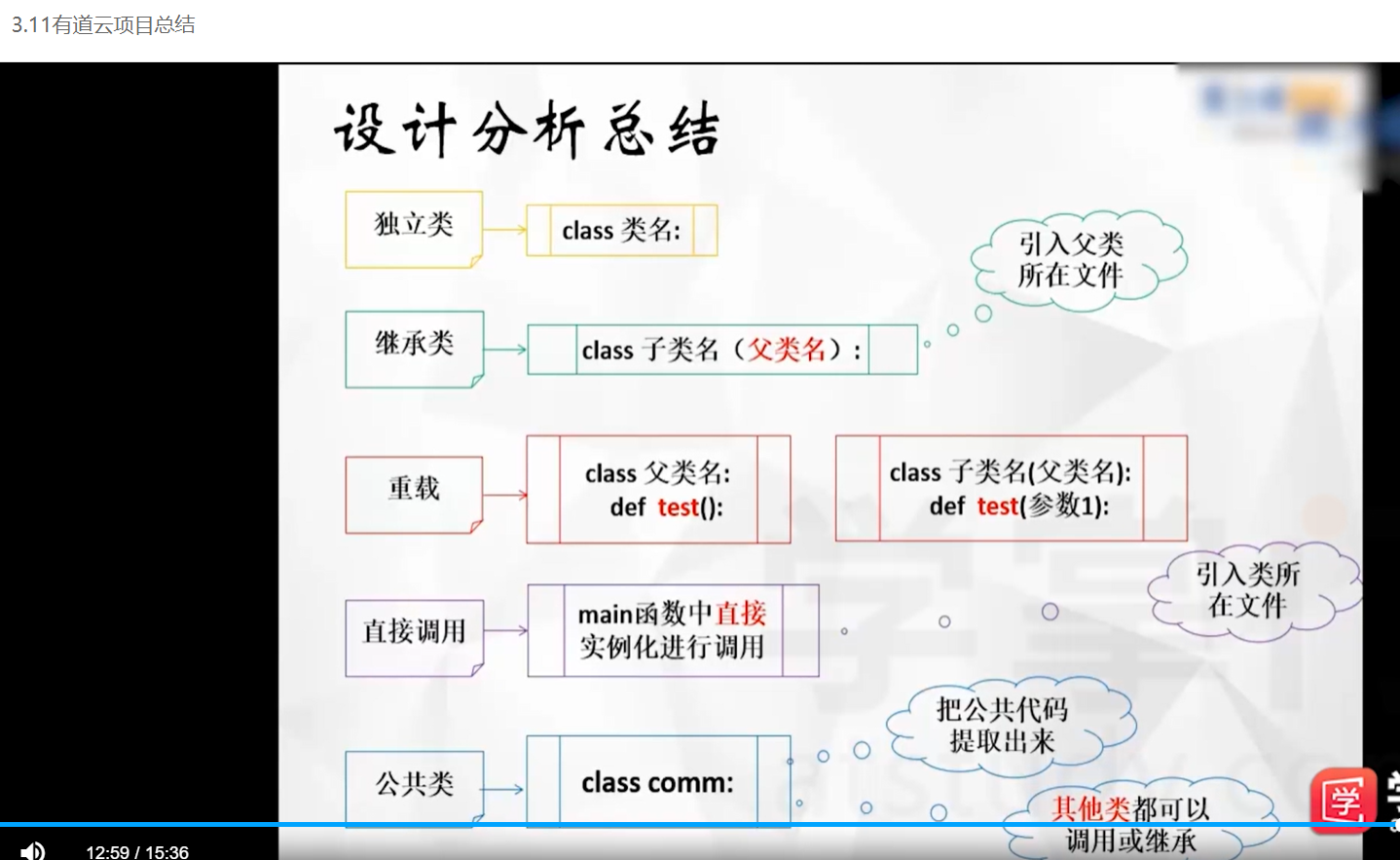

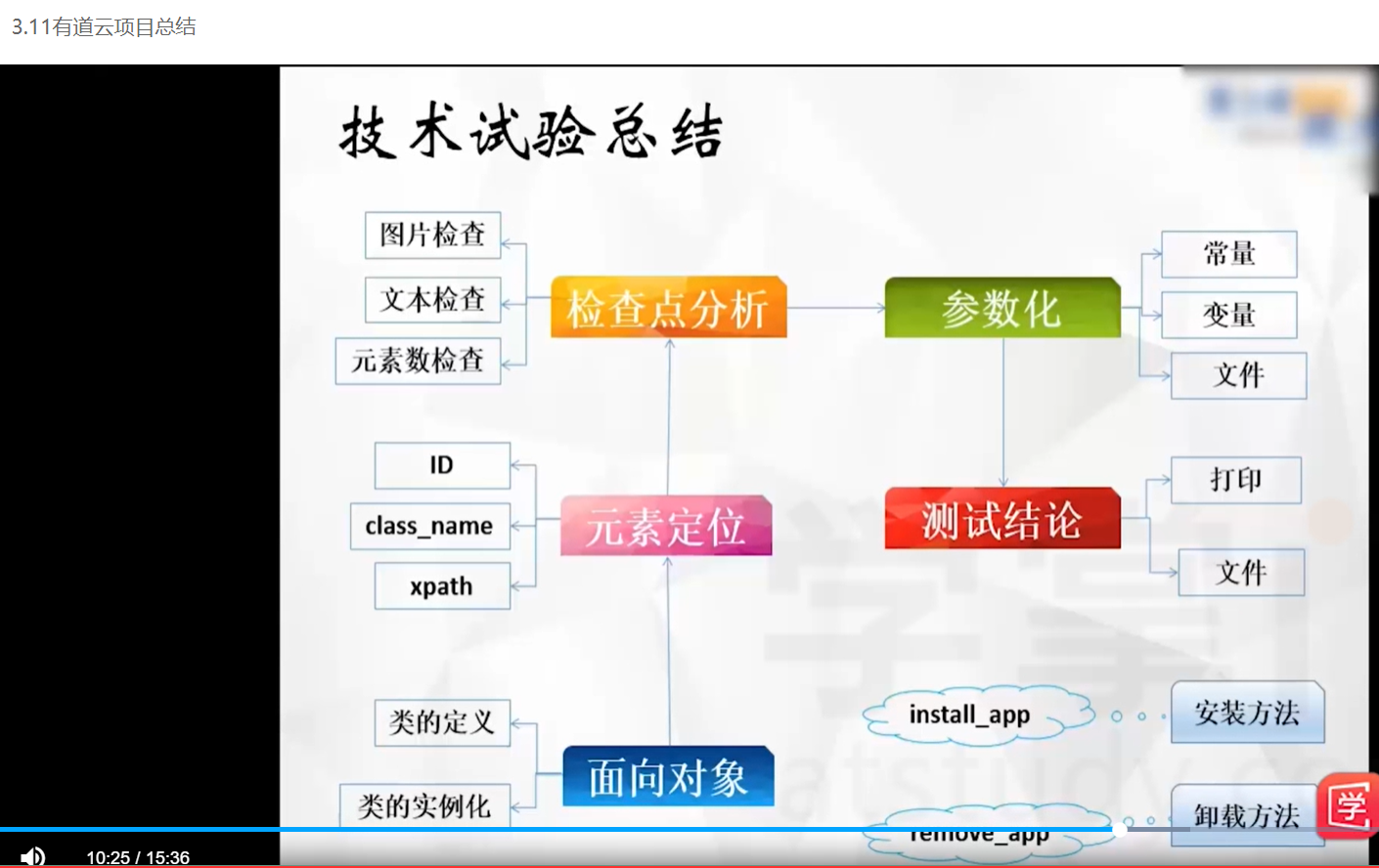

【5】有道云测试任务3--查询，修改删除及总结















































 work3_searchnote.py

#进行查询功能的测试
# # 导入appium类库
from appium.webdriver.webdriver import WebDriver
import time

class yd_searchnote():
    def __init__(self):
        # self.caps = {}
        # self.caps['automationName']='UiAutomator2'
        # self.caps['platformName']='Android'
        # self.caps['platformVersion']='6.0'
        # self.caps['deviceName']='192.168.141.101:5555'
        # self.caps['appPackage']='com.youdao.note'
        # self.caps['appActivity']='.activity2.MainActivity t362'
        #
        # self.driver=WebDriver('http://127.0.0.1:4723/wd/hub',self.caps)
        # self.driver.implicitly_wait(10)
        pass

    def test_searchnote(self):
        #点击搜索按钮
        self.driver.find_element_by_id('com.youdao.note:id/search').click()
        #输入搜索关键字
        self.driver.find_element_by_id('com.youdao.note:id/search_edit_view').send_keys("test")
        #点击搜索按钮
        self.driver.find_element_by_id('com.youdao.note:id/clear_search_text_btn').click()
        self.driver.get_screenshot_as_file('searchnote.png')
        time.sleep(3)

    def test_searchnote_flow(self,driver):
        # 点击搜索按钮
        driver.find_element_by_id('com.youdao.note:id/search').click()
        # 输入搜索关键字
        driver.find_element_by_id('com.youdao.note:id/search_edit_view').send_keys("test")
        # 点击搜索按钮
        driver.find_element_by_id('com.youdao.note:id/clear_search_text_btn').click()
        #抓取查询结果对应的界面图
        driver.get_screenshot_as_file('searchnote.png')
        time.sleep(3)

work4_editnote.py

#进行修改功能的测试
from appium.webdriver.webdriver import WebDriver
from youdaoproject.common_class import comm_class
import time

class yd_editnote():
    def __init__(self):
        # self.caps = {}
        # self.caps['automationName']='UiAutomator2'
        # self.caps['platformName']='Android'
        # self.caps['platformVersion']='6.0'
        # self.caps['deviceName']='192.168.141.101:5555'
        # self.caps['appPackage']='com.youdao.note'
        # self.caps['appActivity']='.activity2.MainActivity t362'
        #
        # self.driver=WebDriver('http://127.0.0.1:4723/wd/hub',self.caps)
        # self.driver.implicitly_wait(10)
        pass

    def test_editnote(self):
        self.driver.find_element_by_id('com.youdao.note:id/title').click()
        self.driver.find_element_by_id('com.youdao.note:id/edit').click()
        # 修改内容
        self.driver.find_element_by_xpath(
            "//*[@resource-id='com.youdao.note:id/note_content']/android.widget.EditText").send_keys('editcon')

        # 输入标题
        self.driver.find_element_by_id('com.youdao.note:id/note_title').send_keys('editt')
        # 点击完成
        self.driver.find_element_by_class_name('android.support.v7.widget.LinearLayoutCompat').click()
        # driver.find_element_by_class_name('android.widget.ImageButton').click()
        time.sleep(3)

    def test_editnote_flow(self,driver):
        driver.find_element_by_id('com.youdao.note:id/title').click()
        driver.find_element_by_id('com.youdao.note:id/edit').click()
        # 修改内容
        driver.find_element_by_xpath(
            "//*[@resource-id='com.youdao.note:id/note_content']/android.widget.EditText").send_keys('editcon')

        # 输入标题
        driver.find_element_by_id('com.youdao.note:id/note_title').send_keys('editt')
        # 点击完成
        driver.find_element_by_class_name('android.support.v7.widget.LinearLayoutCompat').click()
        # driver.find_element_by_class_name('android.widget.ImageButton').click()
        #获取修改后的标题
        rtitle=driver.find_element_by_id('com.youdao.note:id/note_title').text
        print(rtitle)
        if(rtitle=="editt"):
            print("修改成功")
        else:
            print("修改失败")

        time.sleep(3)

if __name__ == '__main__':

    editobj=yd_editnote()

work5_deletenote.py

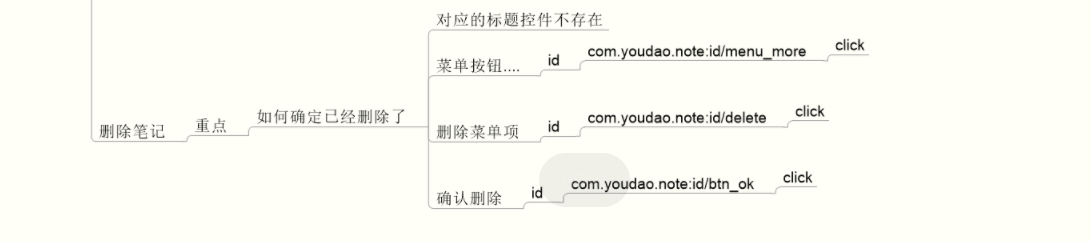

#删除笔记测试

class yd_deletenote:

    def __init__(self):
        # self.caps = {}
        # self.caps['automationName']='UiAutomator2'
        # self.caps['platformName']='Android'
        # self.caps['platformVersion']='6.0'
        # self.caps['deviceName']='192.168.141.101:5555'
        # self.caps['appPackage']='com.youdao.note'
        # self.caps['appActivity']='.activity2.MainActivity t362'
        #
        # self.driver=WebDriver('http://127.0.0.1:4723/wd/hub',self.caps)
        # self.driver.implicitly_wait(10)
        pass

    def test_deletenote(self):
        self.driver.find_element_by_id('com.youdao.note:id/menu_more').click()
        self.driver.find_element_by_id('com.youdao.note:id/delete').click()
        self.driver.find_element_by_id('com.youdao.note:id/btn_ok').click()

    def test_deletenote_flow(self,driver):
        driver.find_element_by_id('com.youdao.note:id/menu_more').click()
        driver.find_element_by_id('com.youdao.note:id/delete').click()
        driver.find_element_by_id('com.youdao.note:id/btn_ok').click()
        num=driver.find_elements_by_class_name('android.widget.LinearLayout')
        print(num)
        if len(num)>0:
            print("删除不成功")
            driver.get_screenshot_as_file('deleteerror.png')
        else:
            print("删除成功")
            driver.get_screenshot_as_file('deletesucc.png')

work6_testflow.py

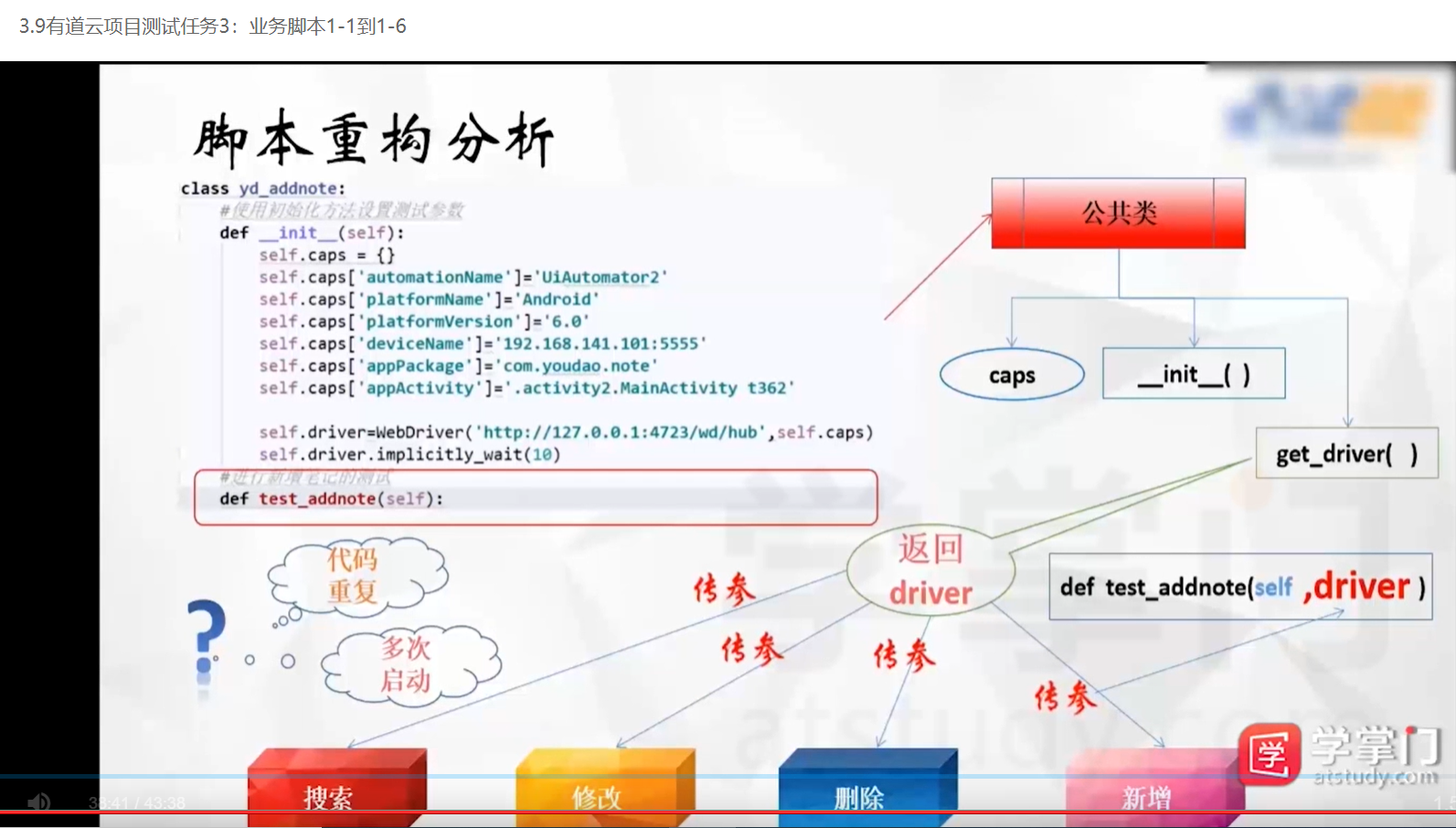

#进行业务场景的测试（新增—>查询—>修改—>删除）
# # 导入appium类库
from appium.webdriver.webdriver import WebDriver
import time
from selenium import webdriver
from selenium.webdriver.support.wait import WebDriverWait
from youdaoproject.work2_addnote import yd_addnote
from youdaoproject.work3_searchnote import yd_searchnote
from youdaoproject.common_class import comm_class
from youdaoproject.work4_editnote import yd_editnote
from youdaoproject.work5_deletenote import yd_deletenote

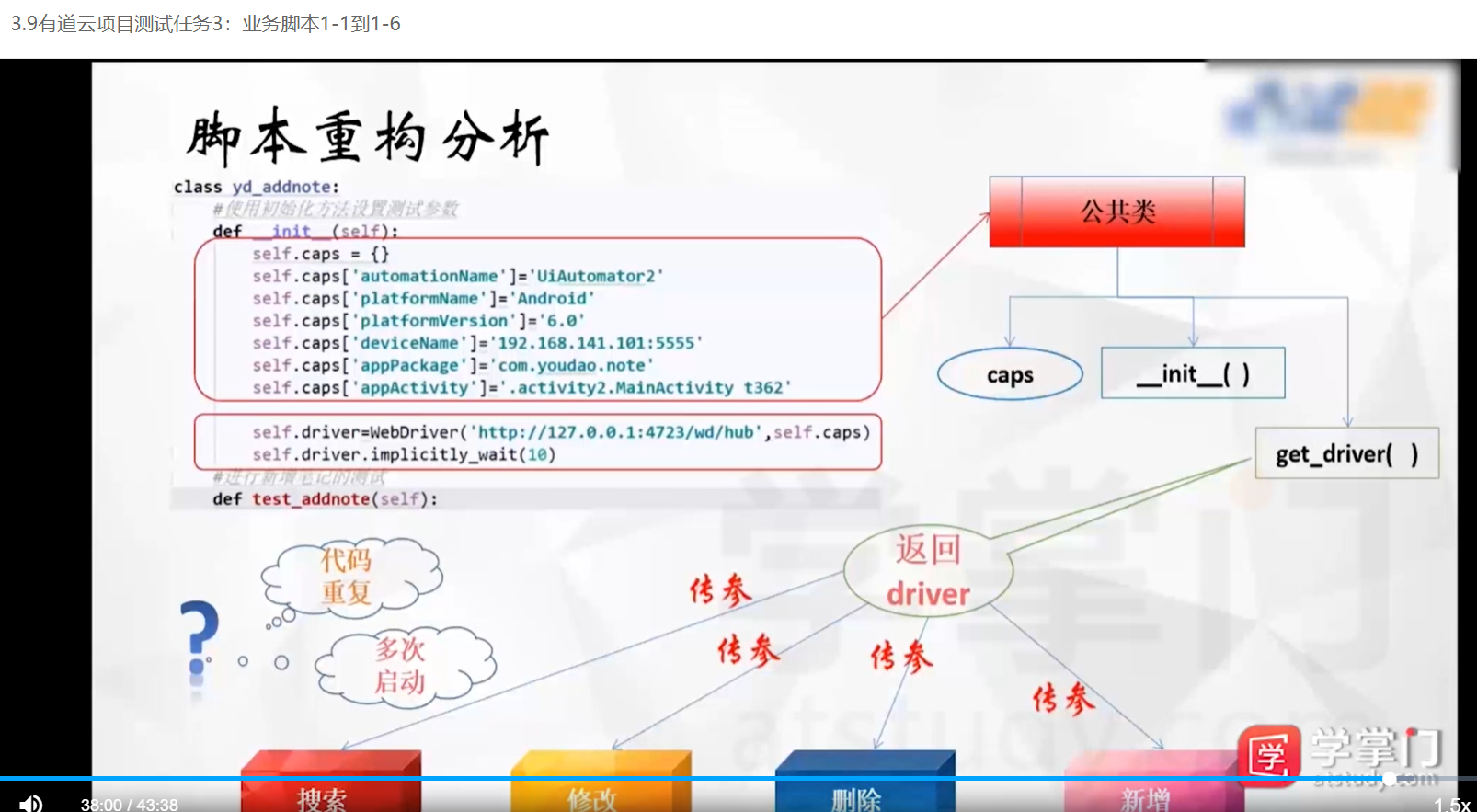

#加入新增功能脚本测试
if __name__ == '__main__':
    #实例化公共类，进行参数设置，返回driver
    comobj=comm_class()
    driver=comobj.get_driver()
    #进行对象的实例化
    addobj=yd_addnote()
    searchobj=yd_searchnote()
    editobj=yd_editnote()
    deletobj=yd_deletenote()
    #进行功能测试
    addobj.test_addnote_flow(driver)
    searchobj.test_searchnote_flow(driver)
    editobj.test_editnote_flow(driver)
    deletobj.test_deletenote_flow(driver)

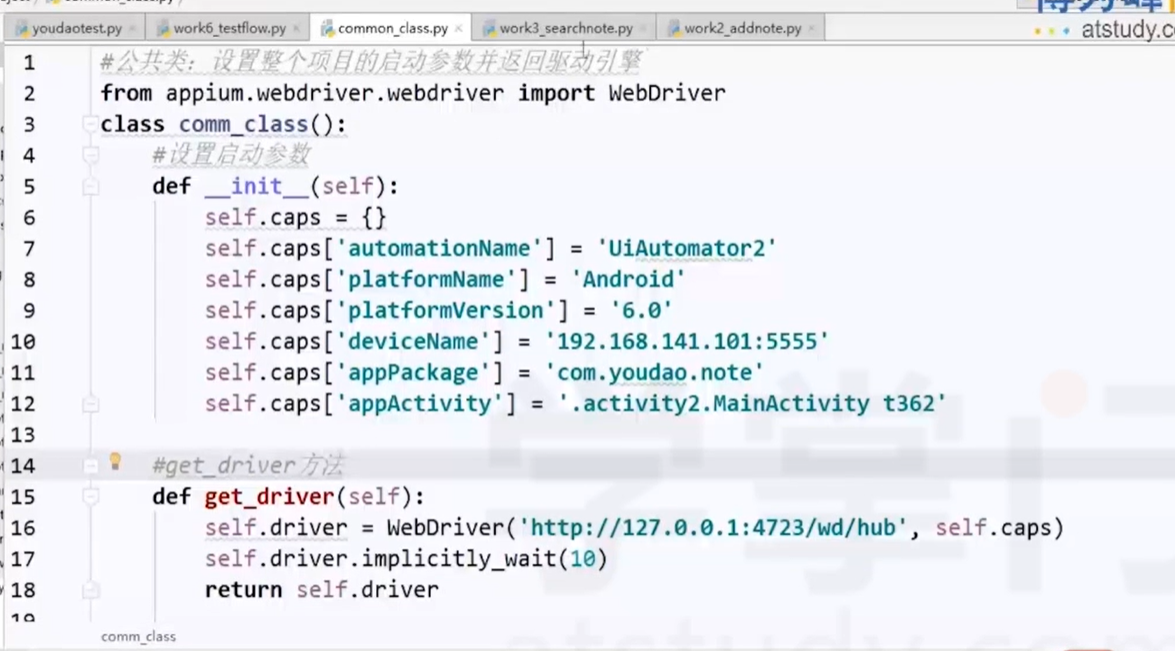

common_class.py
