springboot实现发布与订阅(fanout)模式

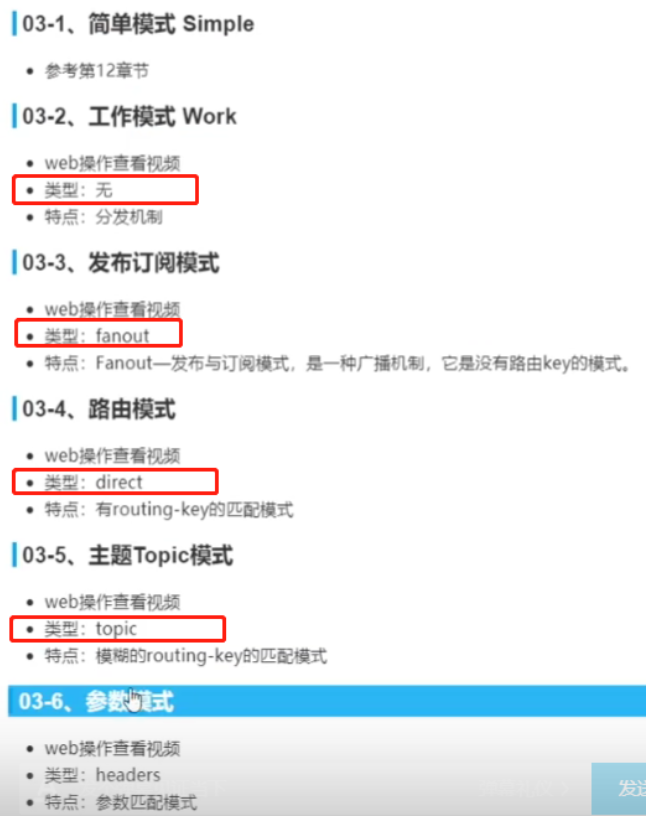

支持的消息模式





消息发送者

application.yml rabbitmq配置文件

# 服务端口号
server:
  port: 8080
# 创建MQ服务连接
spring:
  rabbitmq:
    host: 192.168.43.213
    port: 5672
    username: admin
    password: admin
    virtual-host: /

config交换机与队列绑定类

package com.zhang.rabbitmq.springbootrabbitmqproducer.config;
​
import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.FanoutExchange;
import org.springframework.amqp.core.Queue;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
​
/**
 * 绑定交换机与队列
 */
@Configuration
public class ConfigurationProducer {
​
    // 1：声明MQ交换机
    @Bean
    public FanoutExchange fanoutExchange(){
        return new FanoutExchange("fanout-order-exchange", true,false);
    }
    // 2：声明队列 sms.fanout.queue  email.fanout.queue  duanxin.fanout.queue
    @Bean
    public Queue smsQueue(){
        return new Queue("sms.fanout.queue",true);
    }
    @Bean
    public Queue emailQueue(){
        return new Queue("email.fanout.queue", true);
    }
    @Bean
    public Queue duanxinQueue(){
        return new Queue("duanxin.fanout.queue",true);
    }
    // 3：绑定队列与交换机
    @Bean
    public Binding smsBinding(){
        return BindingBuilder.bind(smsQueue()).to(fanoutExchange());
    }
    @Bean
    public Binding emailBinding(){
        return BindingBuilder.bind(emailQueue()).to(fanoutExchange());
    }
    @Bean
    public Binding duanxinBinding(){
        return BindingBuilder.bind(duanxinQueue()).to(fanoutExchange());
    }
}
​

service消息发送类（消息生产者）

package com.zhang.rabbitmq.springbootrabbitmqproducer.service;
​
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
​
import java.util.UUID;
​
/**
 * 消息生产者
 */
@Service
public class OrderService {
​
    //引入mq模板
    @Autowired
    private RabbitTemplate rabbitTemplate;
​
    /**
     * 模拟下单
     */
    public void morikOrder(String userId, String producerId, int number){
        // 1:查询商品是否充足
        String orderId = UUID.randomUUID().toString();
        System.out.println("生成订单号：" + orderId);
        // 2:创建交换机与路由key
        String exchangeName = "fanout-order-exchange";
        String routingKey = "";
        // 3:发送消息
        rabbitTemplate.convertAndSend(exchangeName,routingKey,orderId);
    }
}
​

test 测试类

package com.zhang.rabbitmq.springbootrabbitmqproducer;
​
import com.zhang.rabbitmq.springbootrabbitmqproducer.service.OrderService;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
​
@SpringBootTest
class SpringbootRabbitmqProducerApplicationTests {
​
    @Autowired
    private OrderService orderService;
​
    @Test
    void contextLoads() {
        orderService.morikOrder("1","2",20);
    }
​
}
​



消息接收者

application.yml rabbitmq配置文件

# 服务端口号
server:
  port: 8081
# 创建MQ服务连接
spring:
  rabbitmq:
    host: 192.168.43.213
    port: 5672
    username: admin
    password: admin
    virtual-host: /

消息接收者一

package com.zhang.rabbitmq.springbootrabbitmqconsumer.service.fanout;
​
import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Service;
​
/**
 * sms 消费者
 */
@RabbitListener(queues = {"sms.fanout.queue"})
@Service
public class SMSFanoutConsumer {
​
    @RabbitHandler
    public void revierMessage(String message) {
        System.out.println("sms fanout--接收到的订单信息是-->" + message);
    }
}
​

消息接收者二

package com.zhang.rabbitmq.springbootrabbitmqconsumer.service.fanout;
​
import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Service;
​
/**
 * email 消费者
 */
@RabbitListener(queues = {"email.fanout.queue"})
@Service
public class EmailFanoutConsumer {
​
    @RabbitHandler
    public void reviceMessage(String message){
        System.out.println("email fanout--接收到了订单信息-->" + message);
    }
}
​

消息接收者三

package com.zhang.rabbitmq.springbootrabbitmqconsumer.service.fanout;
​
import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Service;
​
/**
 * duanxin 消费者
 */
@RabbitListener(queues = {"duanxin.fanout.queue"})
@Service
public class DuanxinFanoutConsumer {
​
    @RabbitHandler
    public void reviceMessage(String message) {
        System.out.println("duanxin fanout--接收到得订单信息是-->" + message);
    }
}
