SSM高级整合_Maven方式
简介： 使用Maven方式整合SSM， 用到的框架： Spring5.2.5， MyBatis3.5.5， C3P0 0.9.5.2， Jdbc8.1.8， Jstl1.2， Junit4+Spring5.2.5Test单元测试， log4j1.2.7（mybatis项目配置log4j打印sql语句）

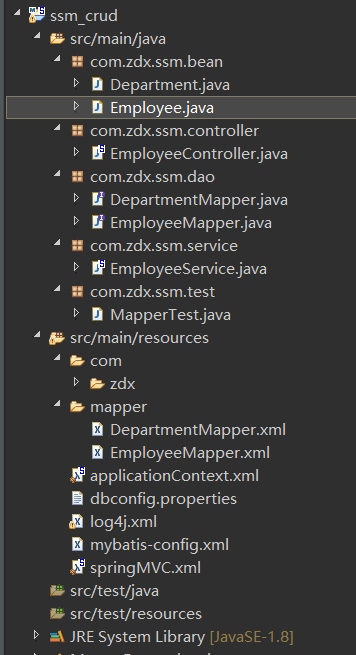

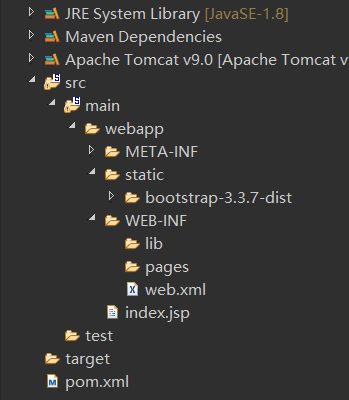

一， 结构目录
1，pom.xml
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.zdx.ssm</groupId> <artifactId>ssm_crud</artifactId> <version>0.0.1-SNAPSHOT</version> <packaging>war</packaging> <!-- 增加依赖的Jar --> <dependencies> <!-- spring, spring mvc --> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-webmvc</artifactId> <version>5.2.5.RELEASE</version> </dependency> <!-- spring-jdbc --> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-jdbc</artifactId> <version>5.2.5.RELEASE</version> </dependency> <!-- spring-aspects --> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-aspects</artifactId> <version>5.2.5.RELEASE</version> </dependency> <!-- Mybatis --> <dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis</artifactId> <version>3.5.5</version> </dependency> <!-- mybatis-spring 整合包 --> <dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis-spring</artifactId> <version>2.0.5</version> </dependency> <!-- c3p0 --> <dependency> <groupId>com.mchange</groupId> <artifactId>c3p0</artifactId> <version>0.9.5.2</version> </dependency> <!-- mysql8 驱动 --> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>8.0.18</version> </dependency> <!-- Jstl --> <dependency> <groupId>jstl</groupId> <artifactId>jstl</artifactId> <version>1.2</version> </dependency> <!-- servlet-api --> <dependency> <groupId>javax.servlet</groupId> <artifactId>servlet-api</artifactId> <version>2.5</version> <scope>provided</scope> </dependency> <!-- Junit4 --> <dependency> <groupId>junit</groupId> <artifactId>junit</artifactId> <version>4.12</version> </dependency> <!-- Spring test 单元测试 --> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-test</artifactId> <version>5.2.5.RELEASE</version> </dependency> <!-- mybatis项目配置log4j打印sql语句 --> <dependency> <groupId>log4j</groupId> <artifactId>log4j</artifactId> <version>1.2.17</version> </dependency> </dependencies> </project>
2， web.xml
<?xml version="1.0" encoding="UTF-8"?> <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd" id="WebApp_ID" version="4.0"> <display-name>ssm_crud</display-name> <!-- needed for ContextLoaderListener --> <context-param> <param-name>contextConfigLocation</param-name> <param-value>classpath:applicationContext.xml</param-value> </context-param> <!-- 在servlet初始化之前引导根web应用程序上下文 --> <listener> <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class> </listener> <!-- 这个Spring Web应用程序的前端控制器，负责处理所有应用程序请求 --> <servlet> <servlet-name>dispatcherServlet</servlet-name> <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class> <init-param> <param-name>contextConfigLocation</param-name> <param-value>classpath:springMVC.xml</param-value> </init-param> <load-on-startup>1</load-on-startup> </servlet> <!-- 将所有请求映射到DispatcherServlet进行处理 --> <servlet-mapping> <servlet-name>dispatcherServlet</servlet-name> <url-pattern>/</url-pattern> </servlet-mapping> <!-- 字符集过滤器 --> <filter> <filter-name>dharacterEncodingFilter</filter-name> <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class> <init-param> <param-name>forceRequestEncoding</param-name> <param-value>true</param-value> </init-param> <init-param> <param-name>forceResponseEncoding</param-name> <param-value>true</param-value> </init-param> </filter> <filter-mapping> <filter-name>dharacterEncodingFilter</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> <!-- 使用Rest风格的URL --> <filter> <filter-name>hiddenHttpMethodFilter</filter-name> <filter-class>org.springframework.web.filter.HiddenHttpMethodFilter</filter-class> </filter> <filter-mapping> <filter-name>hiddenHttpMethodFilter</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> </web-app>
3， springMVC.xml
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context" xmlns:mvc="http://www.springframework.org/schema/mvc" xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.3.xsd http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd"> <!-- 配置自动扫描的包， 只扫描@Controller注解的包 --> <context:component-scan base-package="com.zdx.ssm" use-default-filters="false"> <context:include-filter type="annotation" expression="org.springframework.stereotype.Controller" /> </context:component-scan> <!-- 配置视图解析器 --> <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver"> <property name="prefix" value="/WEB-INF/pages/"></property> <property name="suffix" value=".jsp"></property> </bean> <!-- 两个标准配置 --> <!-- 将SpringMVC不能处理的静态资源交能Tomcat Servlet处理 --> <mvc:default-servlet-handler/> <!-- 能支持SpringMVC更高级的一些功能，如JSR303校验，快捷的Ajax，映射动态的请求 --> <mvc:annotation-driven/> </beans>
4， applicationContext.xml
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop" xmlns:context="http://www.springframework.org/schema/context" xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:tx="http://www.springframework.org/schema/tx" xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.3.xsd http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.3.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.3.xsd"> <!-- 管理所有业务Bean，数据源，事务 --> <!-- 配置扫描的包，除@Controller注解的之外的包 --> <context:component-scan base-package="com.zdx.ssm"> <context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller" /> </context:component-scan> <!-- 引入外部文件 --> <context:property-placeholder location="classpath:dbconfig.properties" /> <!-- 数据源 连接池 --> <bean id="pooledDataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource"> <property name="driverClass" value="${jdbc.driver}" /> <property name="jdbcUrl" value="${jdbc.url}" /> <property name="user" value="${jdbc.username}" /> <property name="password" value="${jdbc.password}" /> </bean> <!-- 配置与MyBatis整合 --> <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean"> <property name="dataSource" ref="pooledDataSource" /> <!-- 指定Mybatis全局配置文件 --> <property name="configLocation" value="classpath:mybatis-config.xml" /> <!-- 指定mybatis mapper文件位置 --> <property name="mapperLocations" value="classpath:mapper/*.xml" /> </bean> <!-- 配置扫描器，将mybatis接口的实现类加入到IOC容器中 --> <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer"> <!-- 扫描所有Dao接口的实现 --> <property name="basePackage" value="com.zdx.ssm.dao" /> </bean> <!-- 事务控制配置 --> <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager"> <!-- 数据源 --> <property name="dataSource" ref="pooledDataSource" /> </bean> <!-- 开启配置的事务注解 --> <aop:config> <!-- 切入点表达式 --> <aop:pointcut expression="execution(* com.zdx.ssm.service..*(..))" id="txPoint" /> <!-- 配置事务增强 --> <aop:advisor advice-ref="txAdvice" pointcut-ref="txPoint" /> </aop:config> <!-- 配置事务增加，事物如何切入 --> <tx:advice id="txAdvice" transaction-manager="transactionManager"> <tx:attributes> <!-- 所有的方法都是事务方法 --> <tx:method name="*" /> <!-- 以get开头的所有方法 务 --> <tx:method name="get*" read-only="true" /> </tx:attributes> </tx:advice> </beans>
5， mybatis-config.xml
<?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd"> <configuration> <settings> <!-- 开启驼峰命名自动映射 --> <setting name="mapUnderscoreToCamelCase" value="true"/> <!-- mybatis项目配置log4j打印sql语句 --> <setting name="logImpl" value="LOG4J"/> <!--显式的指定每个我们需要更改的配置的值，即使他是默认的。防止版本更新带来的问题 --> <setting name="cacheEnabled" value="true" /> <setting name="lazyLoadingEnabled" value="true" /> <setting name="aggressiveLazyLoading" value="false" /> </settings> <!-- 类别名 --> <typeAliases> <package name="com.zdx.ssm.bean"/> </typeAliases> </configuration>
6， dbcpconfig.properties
jdbc.driver=com.mysql.cj.jdbc.Driver jdbc.url=jdbc:mysql://localhost:3306/ssm_crud?useUnicode=true&characterEncoding=utf-8&useSSL=false&serverTimezone=GMT%2B8 jdbc.username=root jdbc.password=123456
7， log4j.xml
<?xml version="1.0" encoding="UTF-8" ?> <!DOCTYPE log4j:configuration SYSTEM "log4j.dtd"> <log4j:configuration xmlns:log4j="http://jakarta.apache.org/log4j/"> <appender name="STDOUT" class="org.apache.log4j.ConsoleAppender"> <param name="Encoding" value="UTF-8" /> <layout class="org.apache.log4j.PatternLayout"> <param name="ConversionPattern" value="%-5p %d{MM-dd HH:mm:ss,SSS} %m (%F:%L) \n" /> </layout> </appender> <logger name="java.sql"> <level value="debug" /> </logger> <logger name="org.apache.ibatis"> <level value="info" /> </logger> <root> <level value="debug" /> <appender-ref ref="STDOUT" /> </root> </log4j:configuration>

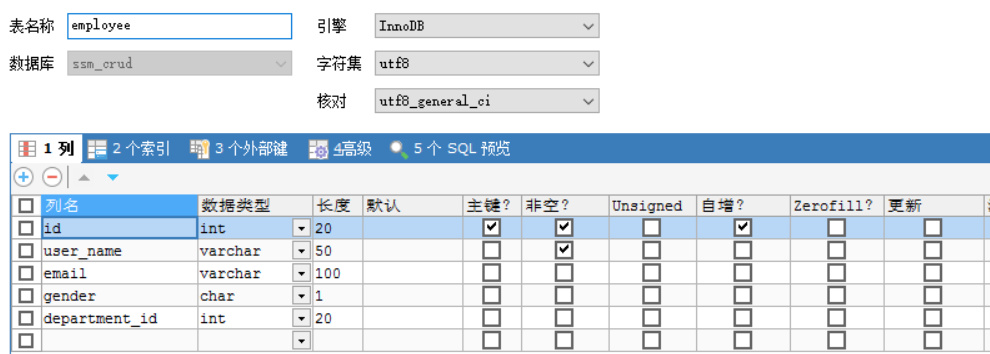

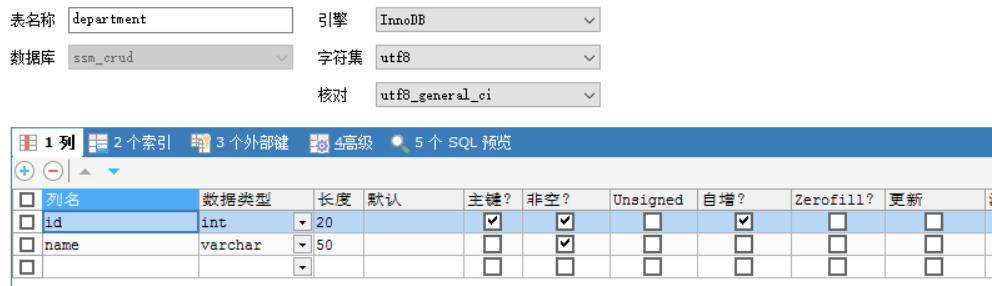

二， 数据库结构
三， Bean
Employee
public class Employee { private Integer id; private String userName; private String email; private String gender; private Department department; ｝
Department
public class Department { private Integer id; private String name; private List<Employee> employees; ｝
四，Dao
EmployeeMapper
public interface EmployeeMapper { List<Employee> getEmployees(); List<Employee> getEmployeesWithDepatment(); List<Employee> getEmployeesByDepartmentId(Integer departmentId); Employee getEmployeeById(Integer id); int add(Employee employee); }
DepartmentMapper
public interface DepartmentMapper { List<Department> getDepartments(); Department getDepartmentById(Integer id); Department getDepartmentsWithEmployee(Integer id); }
五， 映射文件
EployeeMapper.xml
<?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd"> <mapper namespace="com.zdx.ssm.dao.EmployeeMapper"> <!-- 查询所有员工 --> <select id="getEmployees" resultType="com.zdx.ssm.bean.Employee"> SELECT * FROM employee </select> <!-- 根据部门Id查询所有员工 --> <select id="getEmployeesByDepartmentId" resultType="employee" > select * from employee where department_id = #{departmentId} </select> <!-- 增加员工 --> <insert id="add" parameterType="employee"> INSERT INTO employee (user_name, email, gender) VALUES (#{userName}, #{email}, #{gender}) </insert> <!-- 带部门信息查询 --> <!-- 一，级联属性封装结果集 --> <!-- <resultMap type="employee" id="employeeWithDepartment"> <id column="id" property="id" /> <result column="user_name" property="userName" /> <result column="email" property="email" /> <result column="gender" property="gender" /> <result column="id" property="department.id" /> <result column="name" property="department.name" /> </resultMap> <select id="getEmployeesWithDepatment" resultMap="employeeWithDepartment"> SELECT e.id, e.user_name, e.email, e.gender, d.id did, d.name FROM employee e, department d WHERE e.`department_id`=d.`id` </select> --> <!-- 二，使用association定义关联的单个对象的封装规则 --> <!-- <resultMap type="employee" id="employeeWithDepartment"> <id column="id" property="id" /> <result column="user_name" property="userName" /> <result column="email" property="email" /> <result column="gender" property="gender" /> <association property="department" javaType="department"> <id column="id" property="id" /> <result column="name" property="name" /> </association> </resultMap> <select id="getEmployeesWithDepatment" resultMap="employeeWithDepartment"> SELECT e.id, e.user_name, e.email, e.gender, d.id did, d.name FROM employee e, department d WHERE e.`department_id`=d.`id` </select> --> <!-- 三，使用association 分步查询：可以使用延迟加载 --> <resultMap type="employee" id="employeeWithDepartment"> <!-- property="department" 对应Employee Bean中属性 private Department department; --> <!-- column="id" 传递的参数 --> <association property="department" select="com.zdx.ssm.dao.DepartmentMapper.getDepartmentById" column="id" fetchType="lazy" /> </resultMap> <select id="getEmployeesWithDepatment" resultMap="employeeWithDepartment"> SELECT * FROM employee </select> </mapper>
DepartmentMapper.xml
<?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd"> <mapper namespace="com.zdx.ssm.dao.DepartmentMapper"> <!-- 查询所有部门 --> <select id="getDepartments" resultType="com.zdx.ssm.bean.Department"> SELECT * FROM department </select> <!-- 根据Id查询部门 --> <select id="getDepartmentById" resultType="com.zdx.ssm.bean.Department"> SELECT * FROM department WHERE id = #{id} </select> <!-- 带员工列表的查询 根据Id查询部门和员工 --> <!-- 一，嵌套结果集的方式，使用collection标签定义关联的集合类型的属性封装规则 --> <!-- ofType:指定集合里面元素的类型 --> <!-- <resultMap type="department" id="departmentWithEmployee"> <id column="id" property="id"/> <result column="name" property="name"/> <collection property="employees" ofType="employee"> <id column="id" property="id"/> <result column="user_name" property="userName"/> <result column="email" property="email"/> <result column="gender" property="gender"/> </collection> </resultMap> <select id="getDepartmentsWithEmployee" resultMap="departmentWithEmployee"> SELECT d.id, d.name, e.user_name, e.email, e.gender FROM department d LEFT JOIN employee e ON d.id = e.department_id WHERE d.id = #{id} </select> --> <!-- 二，分步式查询: 可以使用延迟加载 --> <resultMap type="department" id="departmentWithEmployee"> <!-- property="employees" 对应Department Bean中属性 private List<Employee> employees; --> <!-- column="id" 传递的参数，如果有多个写法column="{key1=column1,key2=column2}" --> <collection property="employees" select="com.zdx.ssm.dao.EmployeeMapper.getEmployeesByDepartmentId" column="id" fetchType="lazy"> </collection> </resultMap> <select id="getDepartmentsWithEmployee" resultMap="departmentWithEmployee"> SELECT * FROM department where id = #{id} </select> </mapper>
六， Spring Test + Junint4 测试
package com.zdx.ssm.test; import java.util.List; import org.junit.Test; import org.junit.runner.RunWith; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.test.context.ContextConfiguration; import org.springframework.test.context.junit4.SpringJUnit4ClassRunner; import com.zdx.ssm.bean.Department; import com.zdx.ssm.bean.Employee; import com.zdx.ssm.dao.DepartmentMapper; import com.zdx.ssm.dao.EmployeeMapper; @RunWith(SpringJUnit4ClassRunner.class) @ContextConfiguration(locations = { "classpath:applicationContext.xml" }) public class MapperTest { @Autowired private EmployeeMapper employeeMapper; @Autowired private DepartmentMapper departmentMapper; @Test public void testgetDepartmentById() { Department department = departmentMapper.getDepartmentById(1); System.out.println(department); } @Test public void testGetDepartmentsWithEmployee() { Department department = departmentMapper.getDepartmentsWithEmployee(1); System.out.println(department + ", employees==>" + department.getEmployees()); } // ========================================================= @Test public void testCRUD() { Employee employee = new Employee("zhangq", "zhangq@qq.com", "M"); int i = employeeMapper.add(employee); System.out.println("add=>" + i); } @Test public void testGetEmployees() { List<Employee> employees = employeeMapper.getEmployees(); System.out.println(employees); } @Test public void testGetEmployeesByDepartmentId() { List<Employee> employees = employeeMapper.getEmployeesByDepartmentId(2); for (int i = 0; i < employees.size(); i++) { System.out.println(employees.get(i)); } } @Test public void testGetEmployeesWithDepartment() { List<Employee> employees = employeeMapper.getEmployeesWithDepatment(); for (int i = 0; i < employees.size(); i++) { System.out.println(employees.get(i).getEmail() + "-" + employees.get(i).getDepartment().getName()); } } }
