SSM整合_Spring5.3+MyBatis3.5.6+C3P0连接池
简介： 整合SSM， 用到的技术Spirng5.3, MyBatis3.5.6, C3P0 0.9.5.2（连接池）, Jstl，Jdbc8.0.18，Junit5（单元测试）， log4j（mybatis项目配置log4j打印sql语句 ）

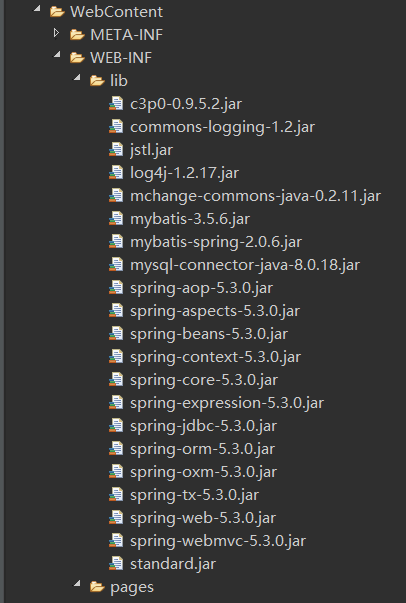

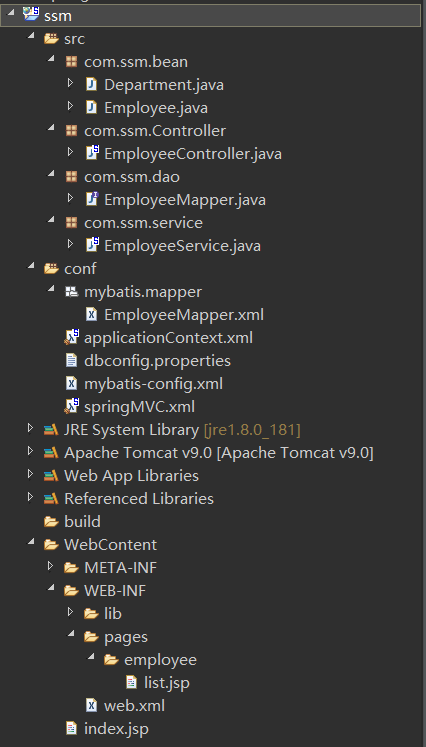

1. 项目结构
2. web.xml
<?xml version="1.0" encoding="UTF-8"?> <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd" id="WebApp_ID" version="4.0"> <display-name>ssm</display-name> <welcome-file-list> <welcome-file>index.jsp</welcome-file> </welcome-file-list> <!-- 配置SpringIOC容器随Web.xml一起启动 --> <!-- ContextLoaderListener所需 --> <context-param> <param-name>contextConfigLocation</param-name> <param-value>classpath:applicationContext.xml</param-value> </context-param> <!-- 在servlet初始化之前引导根web应用程序上下文 --> <listener> <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class> </listener> <!-- 配置SpringMVC --> <!-- 这个Spring Web应用程序的前端控制器，负责处理所有应用程序请求 --> <servlet> <servlet-name>springDispatcherServlet</servlet-name> <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class> <init-param> <param-name>contextConfigLocation</param-name> <param-value>classpath:springMVC.xml</param-value> </init-param> <load-on-startup>1</load-on-startup> </servlet> <!-- 将所有请求映射到DispatcherServlet进行处理 --> <servlet-mapping> <servlet-name>springDispatcherServlet</servlet-name> <url-pattern>/</url-pattern> </servlet-mapping> <!-- 将POST请求转发为PUT和DELETE请求 --> <filter> <filter-name>HiddenHttpMethodFilter</filter-name> <filter-class>org.springframework.web.filter.HiddenHttpMethodFilter</filter-class> </filter> <filter-mapping> <filter-name>HiddenHttpMethodFilter</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> </web-app>
3. springMVC.xml
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:context="http://www.springframework.org/schema/context" xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.3.xsd http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd"> <!-- SpringMVC 控制页面逻辑跳转 --> <!-- 配置自动扫描包，仅扫描@Controller注解 --> <context:component-scan base-package="com.ssm" use-default-filters="false"> <context:include-filter type="annotation" expression="org.springframework.stereotype.Controller" /> </context:component-scan> <!-- 配置视图解释器 --> <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver"> <property name="prefix" value="/WEB-INF/pages/" /> <property name="suffix" value=".jsp" /> </bean> <!-- 配置静态资源处理 --> <mvc:annotation-driven></mvc:annotation-driven> <mvc:default-servlet-handler/> </beans>
4 applicatonContext.xml
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop" xmlns:context="http://www.springframework.org/schema/context" xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:tx="http://www.springframework.org/schema/tx" xmlns:mybatis-spring="http://mybatis.org/schema/mybatis-spring" xsi:schemaLocation="http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.3.xsd http://mybatis.org/schema/mybatis-spring http://mybatis.org/schema/mybatis-spring-1.2.xsd http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.3.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.3.xsd"> <!-- Sring管理所有业务逻辑组件 --> <!-- 配置自动扫描的包，扫描所有非@Controller的注解 --> <context:component-scan base-package="com.ssm"> <context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller" /> </context:component-scan> <!-- 引入外部文件 --> <context:property-placeholder location="classpath:dbconfig.properties" /> <!-- 配置数据源 Spring数据源 --> <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource"> <property name="driverClass" value="${jdbc.driver}" /> <property name="jdbcUrl" value="${jdbc.url}" /> <property name="user" value="${jdbc.username}" /> <property name="password" value="${jdbc.password}" /> </bean> <!-- 配置数据源 Spring数据源 不使用外部文件 &需要用转义字符 & --> <!-- <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource"> <property name="driverClass" value="com.mysql.cj.jdbc.Driver" /> <property name="jdbcUrl" value="jdbc:mysql://localhost:3306/mybatis?useUnicode=true&characterEncoding=utf-8&useSSL=false&serverTimezone=GMT%2B8" /> <property name="user" value="root" /> <property name="password" value="123456" /> </bean> --> <!-- 配置Spring事务管理 --> <bean id="dataSourceTransactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager"> <property name="dataSource" ref="dataSource" /> </bean> <!-- 开启基于注解的事务 --> <tx:annotation-driven transaction-manager="dataSourceTransactionManager" /> <!-- 整合MyBatis --> <!-- 创建SqlSessionFactory对象 --> <bean id="sqlSessionFactoryBean" class="org.mybatis.spring.SqlSessionFactoryBean"> <!-- 注入数据源 --> <property name="dataSource" ref="dataSource" /> <!-- 配置 configLocation指定全局配置文件的位置 --> <property name="configLocation" value="classpath:mybatis-config.xml" /> <!-- 配置 mapperLocations: 指定mapper文件的位置 --> <property name="mapperLocations" value="classpath:mybatis/mapper/*.xml"></property> </bean> <!--配置一个可以进行批量执行的sqlSession --> <bean id="sqlSession" class="org.mybatis.spring.SqlSessionTemplate"> <constructor-arg name="sqlSessionFactory" ref="sqlSessionFactoryBean"></constructor-arg> <constructor-arg name="executorType" value="BATCH"></constructor-arg> </bean> <!-- 扫描所有的mapper接口的实现，让这些mapper能够自动注入； base-package：指定mapper接口的包名 --> <mybatis-spring:scan base-package="com.ssm.dao" /> <!-- 老版本的mapper扫描接口实现，可以自定义更多的配置 --> <!-- <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer"> <property name="basePackage" value="com.ssm.dao" /> </bean> --> </beans>
5 dbconfig.properties
jdbc.driver=com.mysql.cj.jdbc.Driver jdbc.url=jdbc:mysql://localhost:3306/mybatis?useUnicode=true&characterEncoding=utf-8&useSSL=false&serverTimezone=GMT%2B8 jdbc.username=root jdbc.password=123456
6 mybatis-config.xml
<?xml version="1.0" encoding="UTF-8" ?> <!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd"> <configuration> <!-- 全局设置 --> <settings> <!-- 开启驼峰命名规则 --> <setting name="mapUnderscoreToCamelCase" value="true" /> <!-- Oracle数据库 Null（Other）转 NULL --> <setting name="jdbcTypeForNull" value="NULL" /> <!--显式的指定每个我们需要更改的配置的值，即使他是默认的。防止版本更新带来的问题 --> <setting name="cacheEnabled" value="true" /> <setting name="lazyLoadingEnabled" value="true" /> <setting name="aggressiveLazyLoading" value="false" /> </settings> <databaseIdProvider type="DB_VENDOR"> <property name="MySQL" value="mysql" /> <property name="Oracle" value="oracle" /> <property name="SQL Server" value="sqlserver" /> </databaseIdProvider> </configuration>
7 EmployeeMapper.xml
<?xml version="1.0" encoding="UTF-8" ?> <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd"> <mapper namespace="com.ssm.dao.EmployeeMapper"> <select id="getEmployees" resultType="com.ssm.bean.Employee"> select * from employee </select> </mapper>
