SSM整合

创建Maven选1.8jdk　　　　　　　　　　　　　

　导入ssm依赖jar包

<dependencies> <!--mybatis核心jar包--> <dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis</artifactId> <version>3.5.2</version> </dependency> <!--spring的核心容器jar包--> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-context</artifactId> <version>5.1.9.RELEASE</version> </dependency> <!--Druid数据源--> <dependency> <groupId>com.alibaba</groupId> <artifactId>druid</artifactId> <version>1.1.20</version> </dependency> <!--mysql数据库驱动--> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>5.1.47</version> </dependency> <!--spring的jdbc操作数据库的jar包，包含spring自带数据源，jdbcTemplate--> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-jdbc</artifactId> <version>5.1.9.RELEASE</version> </dependency> <!--spring整合junit的jar包--> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-test</artifactId> <version>5.1.9.RELEASE</version> </dependency> <!--Junit测试--> <dependency> <groupId>junit</groupId> <artifactId>junit</artifactId> <version>4.12</version> <scope>compile</scope> </dependency> <!--mybatis整合spring的jar包--> <dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis-spring</artifactId> <version>2.0.1</version> </dependency> <dependency> <groupId>org.slf4j</groupId> <artifactId>slf4j-log4j12</artifactId> <version>1.6.1</version> </dependency> <!--事务管理器jar包--> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-tx</artifactId> <version>5.1.9.RELEASE</version> </dependency> <!--aop切面--> <dependency> <groupId>org.aspectj</groupId> <artifactId>aspectjweaver</artifactId> <version>1.9.2</version> </dependency> <!--日志开始--> <!--引入日志的门脸--> <dependency> <groupId>org.slf4j</groupId> <artifactId>slf4j-log4j12</artifactId> <version>1.6.1</version> </dependency> <!-- 日志工具包 --> <dependency> <groupId>org.apache.logging.log4j</groupId> <artifactId>log4j-api</artifactId> <version>2.10.0</version> </dependency> <!--日志核心包--> <dependency> <groupId>org.apache.logging.log4j</groupId> <artifactId>log4j-core</artifactId> <version>2.10.0</version> </dependency> <!--web相关的功能包--> <dependency> <groupId>org.apache.logging.log4j</groupId> <artifactId>log4j-web</artifactId> <version>2.9.1</version> </dependency> <!--为java做简单的日志记录--> <dependency> <groupId>org.slf4j</groupId> <artifactId>slf4j-api</artifactId> <version>1.7.25</version> </dependency> <!--slf4j的log4j实现类--> <dependency> <groupId>org.apache.logging.log4j</groupId> <artifactId>log4j-slf4j-impl</artifactId> <version>2.9.1</version> </dependency> <!--程序运行的时候检测用了哪种日志实现类--> <dependency> <groupId>org.apache.logging.log4j</groupId> <artifactId>log4j-jcl</artifactId> <version>2.9.1</version> </dependency> <!--日志结束--> <!--springmvc的核心包--> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-webmvc</artifactId> <version>5.1.9.RELEASE</version> </dependency> <!-- JSTL标签库 --> <dependency> <groupId>jstl</groupId> <artifactId>jstl</artifactId> <version>1.2</version> </dependency> <dependency> <groupId>taglibs</groupId> <artifactId>standard</artifactId> <version>1.1.2</version> </dependency> <!--servlet-api ：引入servlet的功能--> <dependency> <groupId>javax.servlet</groupId> <artifactId>servlet-api</artifactId> <version>2.5</version> <scope>provided</scope> </dependency> <!--jsp-api: jsp页面的功能包 --> <dependency> <groupId>javax.servlet.jsp</groupId> <artifactId>jsp-api</artifactId> <version>2.2</version> <scope>provided</scope> </dependency> <!-- 文件上传 --> <dependency> <groupId>commons-fileupload</groupId> <artifactId>commons-fileupload</artifactId> <version>1.3.1</version> </dependency> <dependency> <groupId>com.fasterxml.jackson.core</groupId> <artifactId>jackson-core</artifactId> <version>2.9.0</version> </dependency> <dependency> <groupId>com.fasterxml.jackson.core</groupId> <artifactId>jackson-databind</artifactId> <version>2.9.0</version> </dependency> <dependency> <groupId>com.fasterxml.jackson.core</groupId> <artifactId>jackson-annotations</artifactId> <version>2.9.0</version> </dependency> </dependencies>

插件Tomcat

<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.2</version>
<configuration>
<source>1.7</source>
<target>1.7</target>
<encoding>UTF-8</encoding>
<showWarnings>true</showWarnings>
</configuration>
</plugin>
<plugin>
<groupId>org.apache.tomcat.maven</groupId>
<artifactId>tomcat7-maven-plugin</artifactId>
<configuration>
<port>9999</port>
<path>/</path>
</configuration>
<version>2.2</version>
</plugin>
</plugins>

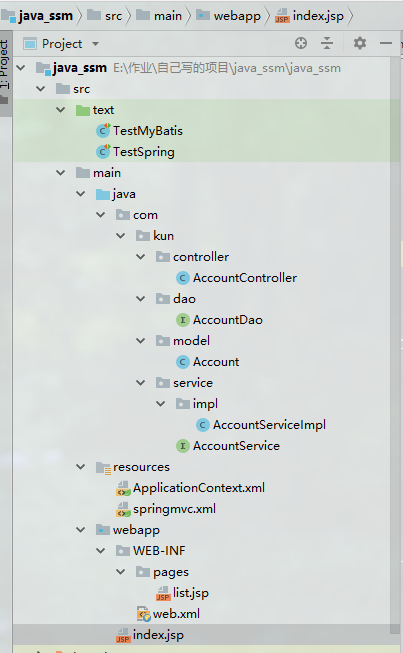

项目结构
　　　　　　

　　　　　编写实体类domain

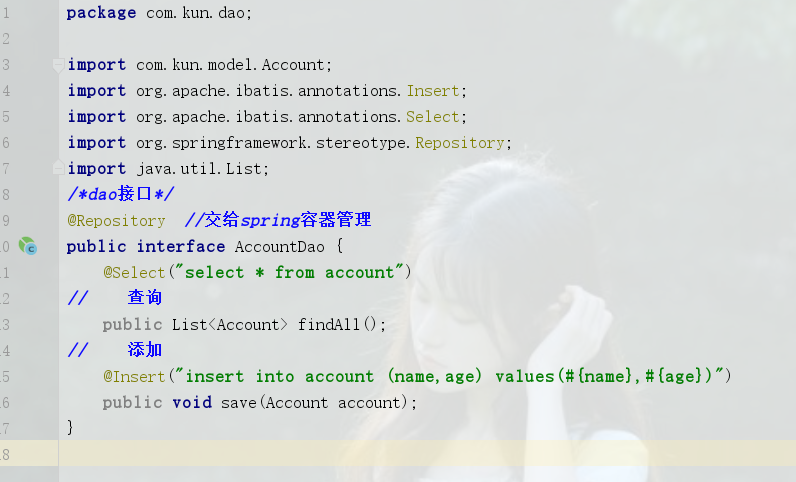

　　　　　编写dao接口

　　　　　　　　

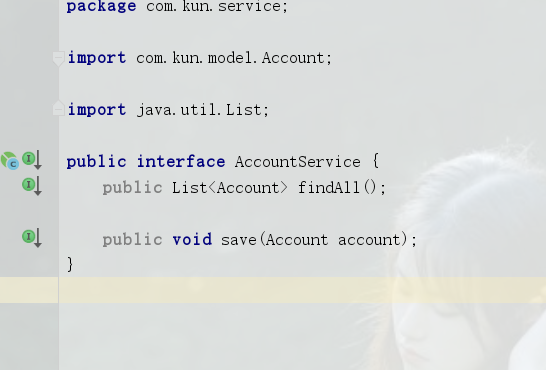

　编写service

　　　　　　　　

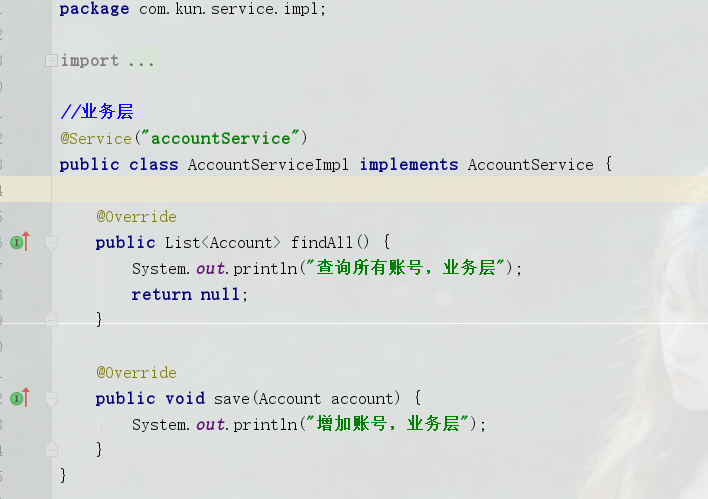

 编写实现ServiceImpl

　　　　　　　　　　　　　

ApplicationContext.xml

<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx" xmlns:aop="http://www.springframework.org/schema/aop" xsi:schemaLocation=" http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd "> <!--开启注解的扫描,希望处理service和dao，Controller不需要Spring处理--> <context:component-scan base-package="com.kun"> <!--配置哪些注解不扫描--> <context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/> </context:component-scan> </beans>

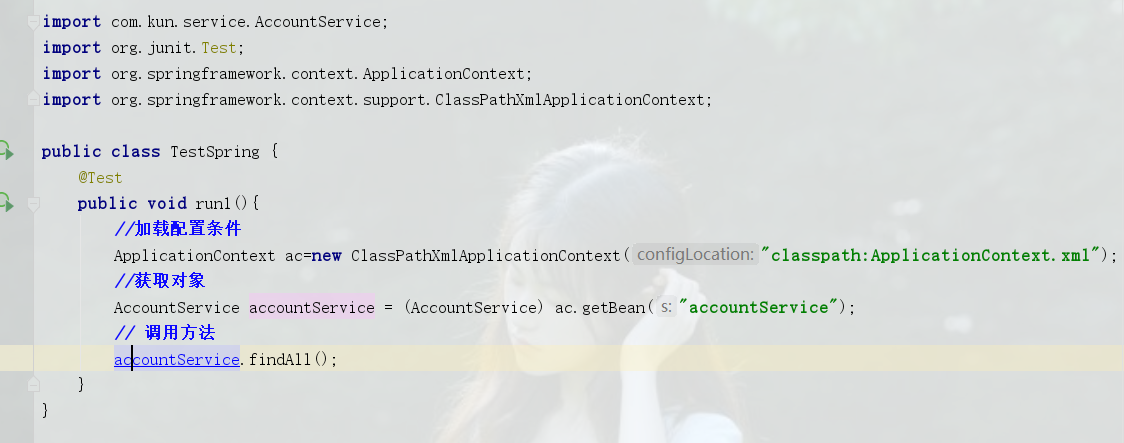

　　测试Spring

　　　　　　　　　　　　　　　　　　　　　　　　　　

web.xml

<!DOCTYPE web-app PUBLIC "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN" "http://java.sun.com/dtd/web-app_2_3.dtd" > <web-app> <display-name>Archetype Created Web Application</display-name> <!--配置spring的监听器，默认只加载WEB-INF目录下的applicationContext.xml配置文件--> <listener> <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class> </listener> <!--设置配置文件的路径--> <context-param> <param-name>contextConfigLocation</param-name> <param-value>classpath:ApplicationContext.xml</param-value> </context-param> <!--配置前端控制器--> <servlet> <servlet-name>dispatcherServlet</servlet-name> <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class> <!--加载springmvc.xml配置文件--> <init-param> <param-name>contextConfigLocation</param-name> <param-value>classpath:springmvc.xml</param-value> </init-param> <!--启动服务器 该servlet--> <load-on-startup>1</load-on-startup> </servlet> <servlet-mapping> <servlet-name>dispatcherServlet</servlet-name> <url-pattern>/</url-pattern> </servlet-mapping> <!--解决中午乱码的过滤器--> <filter> <filter-name>characterEncodingFilter</filter-name> <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class> <init-param> <param-name>encoding </param-name> <param-value>UTF-8</param-value> </init-param> </filter> <filter-mapping> <filter-name>characterEncodingFilter</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> </web-app>

springmvc.xml

<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context" xmlns:mvc="http://www.springframework.org/schema/mvc" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd "> <!--开启注解扫描，只扫描Controller注解--> <context:component-scan base-package="com.kun"> <!--只扫描Controller注解--> <context:include-filter type="annotation" expression="org.springframework.stereotype.Controller"></context:include-filter> </context:component-scan> <!--配置的视图解析器对象--> <bean id="internalResourceViewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver"> <property name="prefix" value="/WEB-INF/pages/"/> <property name="suffix" value=".jsp"/> </bean> <!--过滤静态资源--> <mvc:resources mapping="/css/**" location="/css/"/> <mvc:resources mapping="/images/**" location="/images/"/> <mvc:resources mapping="/js/**" location="/js/"/> <!--开启SpringMVC注解支持--> <mvc:annotation-driven/> </beans>

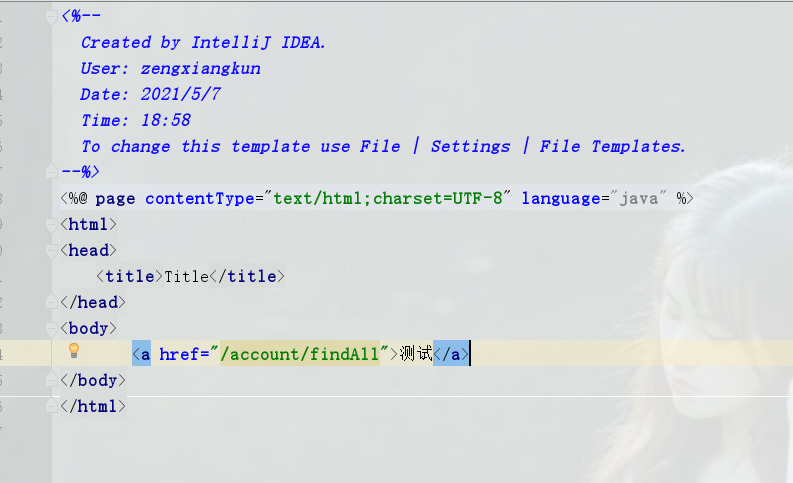

　　　　　　　　　　　　　　　　　　　　　　在index.jsp里面写测试index.jsp

　　　　　　　　　　　　　　　　　　　　　　　　

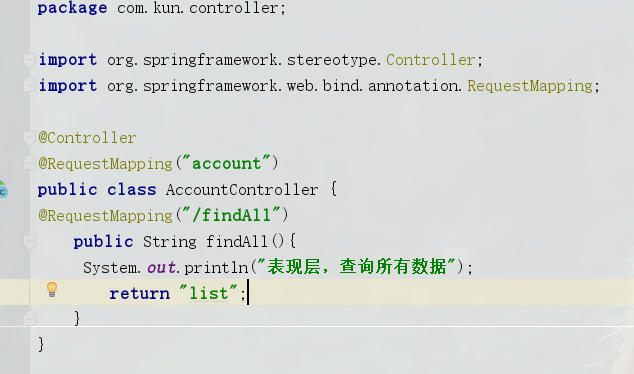

编写controller

　　　　　　　　　　

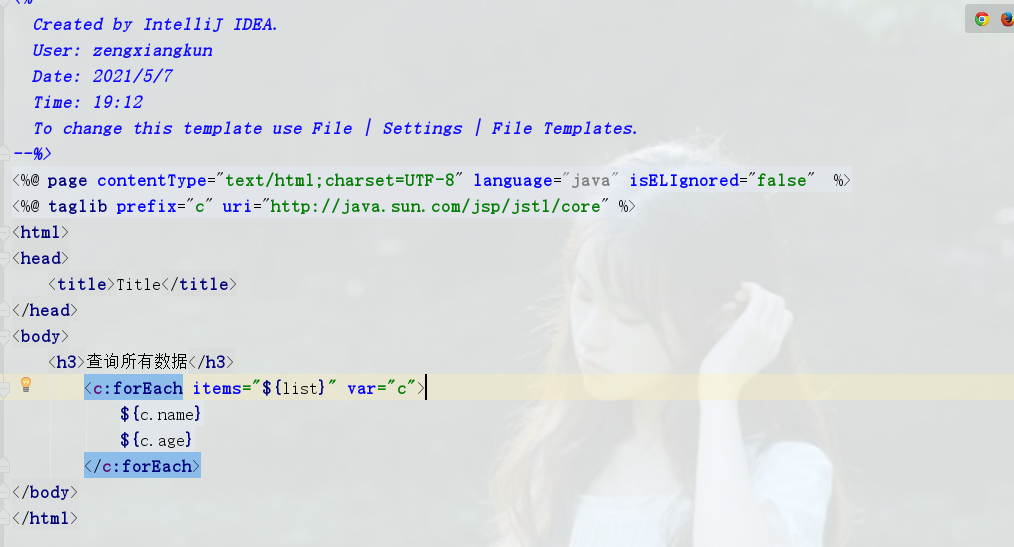

 　　　　　　然后在WEB-INF创建pages再创建list.jsp

　　　　　　　　





 　　　　在controller里面添加@Autowired　　

 　　　　　　

　　　　这里就完成了spring 和springmvc的整合

　　　　进行Mybatis编写

　　　　　　　　　　　　　　　　　　　创建Mybatis核心配置文件SqlMapConfig.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPEconfiguration
PUBLIC"-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
   <!--配置环境-->
<environments default="development">
        <environment id="development">
            <transactionManager type="JDBC"/>
            <dataSource type="POOLED">
                <property name="driver" value="com.mysql.jdbc.Driver"/>
                <property name="url" value="jdbc:mysql://127.0.0.1:3306/ssm?characterEncoding=utf8"/>
                <property name="username" value="root"/>
                <property name="password" value="1234"/>
            </dataSource>
        </environment>
    </environments>
<!--引入映射文件-->
<mappers>
       <package name="com.kun.dao"></package>
    </mappers>
</configuration>

　　

 　　　　　　　　　　　　　　　　接下来进行测试

　　　　　　　　　　　　　　　　　　　　　　　　TestMybatis

import com.kun.dao.AccountDao;
import com.kun.model.Account;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.junit.Test;

import java.io.IOException;
import java.io.InputStream;
import java.util.List;


public class TestMyBatis {
    @Test
//    测试查询
public void run1() throws IOException {
//        加载配置文件、
InputStream in = Resources.getResourceAsStream("SqlMapConfig.xml");
        //创建SqlSessionFactory对象
SqlSessionFactory factory = new SqlSessionFactoryBuilder().build(in);
//        创建SqlSession对象
SqlSession session = factory.openSession();
//        获取到代理对象
AccountDao dao = session.getMapper(AccountDao.class);
//        查询所有数据
List<Account> list = dao.findAll();
        for (Account account : list) {
            System.out.println(account);
        }
//        关闭资源
session.close();
        in.close();

    }

    @Test
//    测试添加
public void run2() throws IOException {
        //加载配置文件
InputStream in = Resources.getResourceAsStream("SqlMapConfig.xml");
//       创建SqlSessionFactory
SqlSessionFactory factory = new SqlSessionFactoryBuilder().build(in);
//        创建SqlSession对象
SqlSession session = factory.openSession();
//        获取代理对象
AccountDao dao = session.getMapper(AccountDao.class);
        Account account = new Account();
        account.setName("小孩");
        account.setAge(38);
        dao.save(account);
//        提交数据
session.commit();
//        关闭资源
session.close();
        in.close();
    }
}



　　　　测试完成功后在ApplicationContext.xml添加下面的Mybatis连接池，工厂，配置AccountDao接口所在包　　

<!--spring整合MyBatis框架-->
<!--配置连接池-->
<!--数据源-->
<bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
    <property name="driverClassName" value="com.mysql.jdbc.Driver"/>
    <property name="url" value="jdbc:mysql:///ssm"/>
    <property name="username" value="root"/>
    <property name="password" value="1234"/>
</bean>
<!--配置SqlSessionFactory工厂-->
<bean id="sessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
    <property name="dataSource" ref="dataSource"></property>
</bean>
<!--配置AccountDao接口所在包-->
<bean id="mapperSanner" class="org.mybatis.spring.mapper.MapperScannerConfigurer">
    <property name="basePackage" value="com.kun.dao"/>
</bean>


<!--spring配置申明事务管理-->

<!--配置事务管理器-->
<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
    <property name="dataSource" ref="dataSource"/>
</bean>
<!--配置事务通知-->
<tx:advice  id="txAdvice " transaction-manager="transactionManager">
    <tx:attributes>
        <tx:method name="find*" read-only="true"/>
        <tx:method name="*" isolation="DEFAULT"/>
    </tx:attributes>
</tx:advice>
<!--配置aop增强-->
<aop:config>
    <aop:advisor advice-ref="txAdvice " pointcut="execution(* com.kun.service.impl.AccountServiceImpl.*(..))"/>
</aop:config>

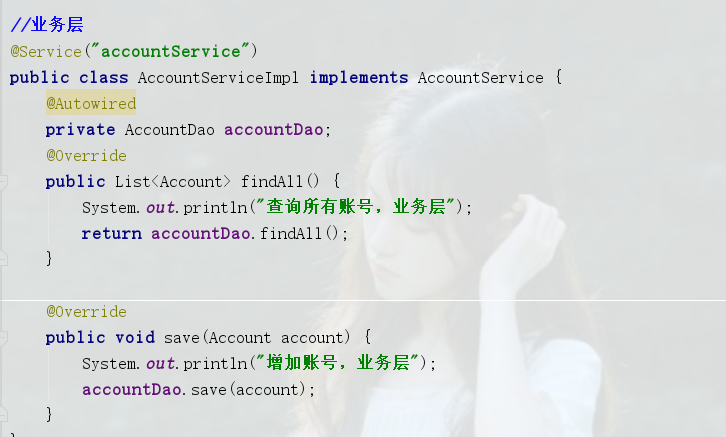

下一步在AccountServiceImpl在添加@Autowired





 到这里spring和Mysbatis整合完成
