实验5：开源控制器实践——POX

基本要求

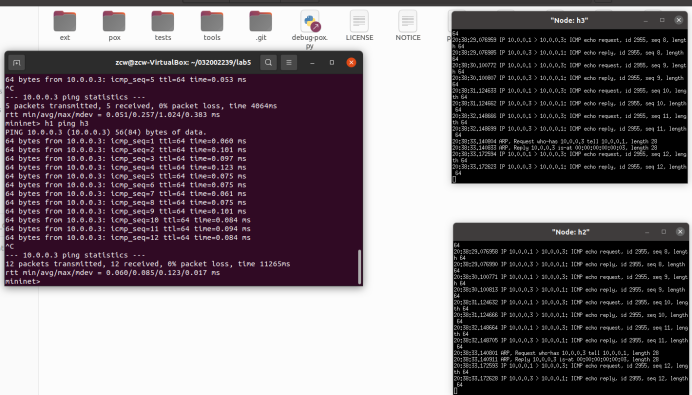

1.使用 tcpdump 验证Hub模块的抓包结果截图

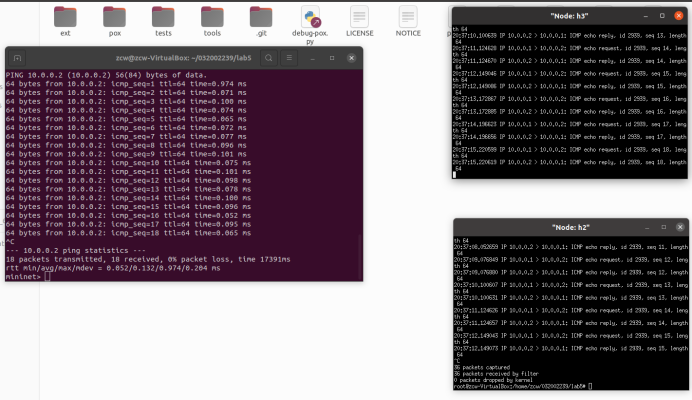

h1 ping h2,h3主机同样收到icmp报文

h1 ping h3,h2主机同样收到icmp报文

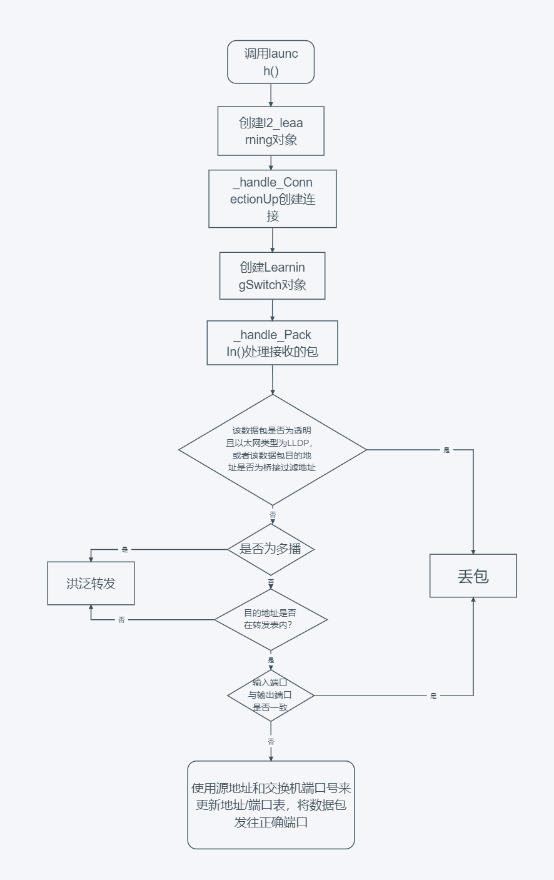

2、L2_learning程序流程图

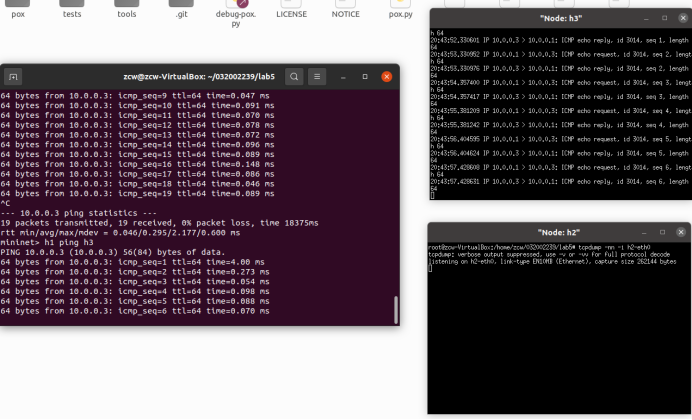

3、使用 tcpdump 验证Switch模块的抓包结果截图
h1 ping h2，只有h2能收到icmp报文

h1 ping h3，只有h3能收到icmp报文

进阶要求1

编写Python程序自定义一个POX模块SendFlowInSingle3

from pox.core import core
import pox.openflow.libopenflow_01 as of

class SendFlowInSingle3(object):
    def __init__ (self):
        core.openflow.addListeners(self)
    def _handle_ConnectionUp(self, event):
        msg = of.ofp_flow_mod()
        msg.priority = 1
        msg.match.in_port = 1
        msg.actions.append(of.ofp_action_output(port=2))
        msg.actions.append(of.ofp_action_output(port=3))
        event.connection.send(msg)
        msg = of.ofp_flow_mod()
        msg.priority = 1
        msg.match.in_port = 2
        msg.actions.append(of.ofp_action_output(port=1))
        msg.actions.append(of.ofp_action_output(port=3))
        event.connection.send(msg)
        msg = of.ofp_flow_mod()
        msg.priority = 1
        msg.match.in_port = 3
        msg.actions.append(of.ofp_action_output(port=1))
        msg.actions.append(of.ofp_action_output(port=2))
        event.connection.send(msg)
def launch():
    core.registerNew(SendFlowInSingle3)

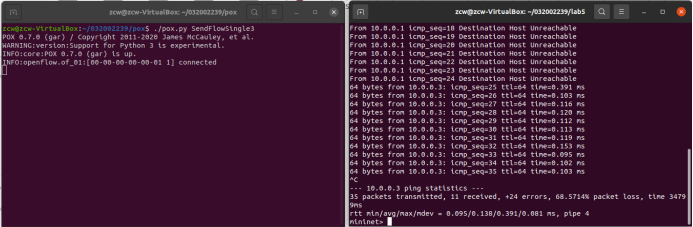

将拓扑连接至SendFlowInSingle3（默认端口6633），实现向s1发送流表规则使得所有主机两两互通

进阶要求2

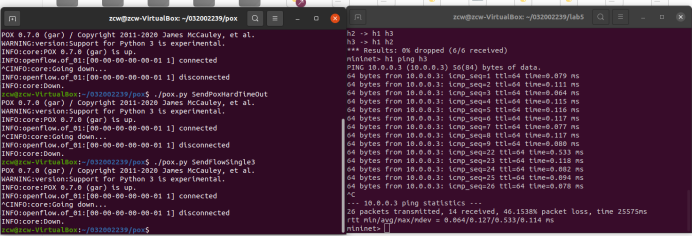

完成ODL实验的硬超时功能

from pox.core import core
import pox.openflow.libopenflow_01 as of

class SendFlowInSingle3(object):
    def __init__(self):
        core.openflow.addListeners(self)
    def _handle_ConnectionUp(self, event):
        msg = of.ofp_flow_mod()  # 使用ofp_flow_mod()方法向交换机下发流表
        msg.priority = 1
        msg.match.in_port = 1
        msg.actions.append(of.ofp_action_output(port=2))
       # msg.actions.append(of.ofp_action_output(port=3))
        event.connection.send(msg)

        msg = of.ofp_flow_mod()
        msg.priority = 1
        msg.match.in_port = 2
        msg.actions.append(of.ofp_action_output(port=1))
        msg.actions.append(of.ofp_action_output(port=3))
        event.connection.send(msg)

        msg = of.ofp_flow_mod()
        msg.priority = 1
        msg.match.in_port = 3
       # msg.actions.append(of.ofp_action_output(port=1))
        msg.actions.append(of.ofp_action_output(port=2))
        event.connection.send(msg)

def launch():
    core.registerNew(SendFlowInSingle3)

个人总结

本次实验使我能够理解 POX 控制器的工作原理；通过验证POX的forwarding.hub和forwarding.l2_learning模块，初步掌握POX控制器的使用方法；能够运用 POX控制器编写自定义网络应用程序，进一步熟悉POX控制器流表下发的方法。
难点:
无法将SendFlowInSingle3.py放入pox目录下或直接在pox目录下创建，这时需要“sudo cp SendFlowInSingle3.py ../pox”将py文件复制到pox目录下
