构建ceph的17.2.9镜像用于cephadm升级

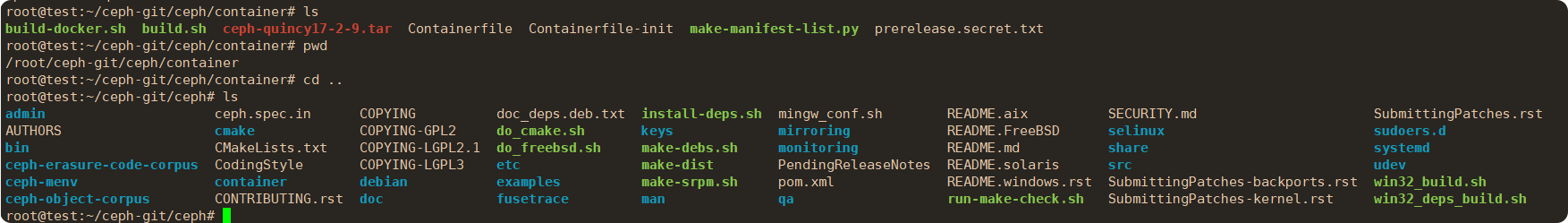

拉取官方git库，拉取完后如下

进入到构建目录

使用如下命令进行构建

podman build --build-arg FROM_IMAGE="quay.io/centos/centos:stream9" --build-arg CEPH_REF="quincy" --build-arg OSD_FLAVOR="default" --build-arg CI_CONTAINER="false" --build-arg CEPH_GIT_REPO="https://github.com/ceph/ceph.git" --build-arg CEPH_SHA1=$(git rev-parse quincy 2>/dev/null || echo "quincy") -t ceph-quincy:17.2.9 -f Containerfile .

# 进入容器目录
cd ~/ceph-git/ceph/container

# 直接构建
podman build \
    --build-arg FROM_IMAGE="quay.io/centos/centos:stream9" \
    --build-arg CEPH_REF="quincy" \
    --build-arg OSD_FLAVOR="default" \
    --build-arg CI_CONTAINER="false" \
    --build-arg CEPH_GIT_REPO="https://github.com/ceph/ceph.git" \
    --build-arg CEPH_SHA1=$(git rev-parse quincy 2>/dev/null || echo "quincy") \
    -t ceph-quincy:17.2.9 \
    -f Containerfile .

构建的dockerfile Containerfile内容如下：使用的阿里云镜像库的17.2.9的版本

# 修改第15步的RUN命令
RUN set -ex && \
    rpm --import 'https://download.ceph.com/keys/release.asc' && \
    ARCH=$(arch); if [ "${ARCH}" == "aarch64" ]; then ARCH="arm64"; fi && \
    IS_RELEASE=1 && \
    REPO_URL="https://mirrors.aliyun.com/ceph/rpm-17.2.9/el9/" && \
    rpm -Uvh "${REPO_URL}/noarch/ceph-release-1-${IS_RELEASE}.el9.noarch.rpm" && \
    sed -i 's|baseurl=https://download.ceph.com/|baseurl=https://mirrors.aliyun.com/ceph/|g' /etc/yum.repos.d/ceph.repo && \
    sed -i 's|gpgkey=https://download.ceph.com/keys/release.asc|gpgkey=https://mirrors.aliyun.com/ceph/keys/release.asc|g' /etc/yum.repos.d/ceph.repo && \
    dnf clean expire-cache

下面是完整的文件

root@test:~/ceph-git/ceph/container# cat Containerfile
ARG FROM_IMAGE="quay.io/centos/centos:stream9"
FROM $FROM_IMAGE

# allow FROM_IMAGE to be visible inside this stage
ARG FROM_IMAGE

# Ceph branch name
ARG CEPH_REF="main"

# Ceph SHA1
ARG CEPH_SHA1

# Ceph git repo (ceph-ci.git or ceph.git)
ARG CEPH_GIT_REPO

# (optional) Define the baseurl= for the ganesha.repo
ARG GANESHA_REPO_BASEURL="https://mirror.stream.centos.org/SIGs/\$releasever-stream/storage/\$basearch/nfsganesha-4/"

# (optional) Set to "crimson" to install crimson packages.
ARG OSD_FLAVOR="default"

# (optional) Should be 'true' for CI builds (pull from shaman, etc.)
ARG CI_CONTAINER="true"


RUN /bin/echo -e "\
FROM_IMAGE: ${FROM_IMAGE}\n\
CEPH_REF: ${CEPH_REF}\n\
GANESHA_REPO_BASEURL: ${GANESHA_REPO_BASEURL} \n\
OSD_FLAVOR: ${OSD_FLAVOR} \n\
CI_CONTAINER: ${CI_CONTAINER}"

# Other labels are set automatically by container/build github action
# See: https://github.com/opencontainers/image-spec/blob/main/annotations.md
LABEL org.opencontainers.image.authors="Ceph Release Team <ceph-maintainers@ceph.io>" \
      org.opencontainers.image.documentation="https://docs.ceph.com/"

LABEL \
FROM_IMAGE=${FROM_IMAGE} \
CEPH_REF=${CEPH_REF} \
CEPH_SHA1=${CEPH_SHA1} \
CEPH_GIT_REPO=${CEPH_GIT_REPO} \
GANESHA_REPO_BASEURL=${GANESHA_REPO_BASEURL} \
OSD_FLAVOR=${OSD_FLAVOR}


#===================================================================================================
# Install ceph and dependencies, and clean up
# IMPORTANT: in official builds, use '--squash' build option to keep image as small as possible
#   keeping run steps separate makes local rebuilds quick, but images are big without squash option
#===================================================================================================

# Pre-reqs
RUN dnf install -y --setopt=install_weak_deps=False epel-release jq

# Add NFS-Ganesha repo
RUN \
    echo "[ganesha]" > /etc/yum.repos.d/ganesha.repo && \
    echo "name=ganesha" >> /etc/yum.repos.d/ganesha.repo && \
    echo "baseurl=${GANESHA_REPO_BASEURL}" >> /etc/yum.repos.d/ganesha.repo && \
    echo "gpgcheck=0" >> /etc/yum.repos.d/ganesha.repo && \
    echo "enabled=1" >> /etc/yum.repos.d/ganesha.repo

# ISCSI repo
RUN set -ex && \
    curl -s -L https://shaman.ceph.com/api/repos/tcmu-runner/main/latest/centos/9/repo?arch=$(arch) -o /etc/yum.repos.d/tcmu-runner.repo && \
    case "${CEPH_REF}" in \
        quincy|reef) \
            curl -fs -L https://download.ceph.com/ceph-iscsi/3/rpm/el9/ceph-iscsi.repo -o /etc/yum.repos.d/ceph-iscsi.repo ;\
            ;;\
        main|*) \
            curl -fs -L https://shaman.ceph.com/api/repos/ceph-iscsi/main/latest/centos/9/repo -o /etc/yum.repos.d/ceph-iscsi.repo ;\
            ;;\
    esac

# Ceph repo
#RUN --mount=type=secret,id=prerelease_creds set -ex && \
#    rpm --import 'https://download.ceph.com/keys/release.asc' && \
#    ARCH=$(arch); if [ "${ARCH}" == "aarch64" ]; then ARCH="arm64"; fi ;\
#    IS_RELEASE=0 ;\
#    if [[ "${CI_CONTAINER}" == "true" ]] ; then \
#        # TODO: this can return different ceph builds (SHA1) for x86 vs. arm runs. is it important to fix?
#        REPO_URL=$(curl -fs "https://shaman.ceph.com/api/search/?project=ceph&distros=centos/9/${ARCH}&flavor=${OSD_FLAVOR}&ref=${CEPH_REF}&sha1=latest" | jq -r .[0].url) ;\
#    else \
#        IS_RELEASE=1 ;\
#        source /run/secrets/prerelease_creds; \
#        REPO_URL="https://${PRERELEASE_USERNAME}:${PRERELEASE_PASSWORD}@download.ceph.com/prerelease/ceph/rpm-${CEPH_REF}/el9/" ;\
#    REPO_URL="https://mirrors.aliyun.com/ceph/rpm-17.2.9/el9/" ;\
#    fi && \
#    rpm -Uvh "$REPO_URL/noarch/ceph-release-1-${IS_RELEASE}.el9.noarch.rpm" ; \
#    if [[ "$IS_RELEASE" == 1 ]] ; then \
#        #sed -i "s;http://download.ceph.com/;https://${PRERELEASE_USERNAME}:${PRERELEASE_PASSWORD}@download.ceph.com/prerelease/ceph/;" /etc/yum.repos.d/ceph.repo ; \
#    sed -i 's|baseurl=https://download.ceph.com/|baseurl=https://mirrors.aliyun.com/ceph/|g' /etc/yum.repos.d/ceph.repo && \
#    sed -i 's|gpgkey=https://download.ceph.com/keys/release.asc|gpgkey=https://mirrors.aliyun.com/ceph/keys/release.asc|g' /etc/yum.repos.d/ceph.repo
#
#        dnf clean expire-cache ; \
#    fi

RUN set -ex && \
    rpm --import 'https://download.ceph.com/keys/release.asc' && \
    ARCH=$(arch); if [ "${ARCH}" == "aarch64" ]; then ARCH="arm64"; fi && \
    IS_RELEASE=1 && \
    REPO_URL="https://mirrors.aliyun.com/ceph/rpm-17.2.9/el9/" && \
    rpm -Uvh "${REPO_URL}/noarch/ceph-release-1-${IS_RELEASE}.el9.noarch.rpm" && \
    sed -i 's|baseurl=https://download.ceph.com/|baseurl=https://mirrors.aliyun.com/ceph/|g' /etc/yum.repos.d/ceph.repo && \
    sed -i 's|gpgkey=https://download.ceph.com/keys/release.asc|gpgkey=https://mirrors.aliyun.com/ceph/keys/release.asc|g' /etc/yum.repos.d/ceph.repo && \
    dnf clean expire-cache

# Copr repos
# scikit for mgr-diskprediction-local
# ref: https://github.com/ceph/ceph-container/pull/1821
RUN \
    dnf install -y --setopt=install_weak_deps=False dnf-plugins-core && \
    dnf copr enable -y tchaikov/python-scikit-learn

# Update package mgr
RUN dnf update -y --setopt=install_weak_deps=False

# Define and install packages
# General
RUN echo "ca-certificates" > packages.txt
# Ceph
# TODO: remove lua-devel and luarocks once they are present in ceph.spec.in
#       ref: https://github.com/ceph/ceph/pull/54575#discussion_r1401199635
RUN echo \
"ceph-common \
ceph-exporter \
ceph-grafana-dashboards \
ceph-immutable-object-cache \
ceph-mds \
ceph-mgr-cephadm \
ceph-mgr-dashboard \
ceph-mgr-diskprediction-local \
ceph-mgr-k8sevents \
ceph-mgr-rook \
ceph-mgr \
ceph-mon \
ceph-osd \
ceph-radosgw lua-devel luarocks \
ceph-volume \
cephfs-mirror \
cephfs-top \
kmod \
libradosstriper1 \
rbd-mirror" \
>> packages.txt

# Optional crimson package(s)
RUN if [ "${OSD_FLAVOR}" == "crimson" ]; then \
    echo "ceph-crimson-osd" >> packages.txt ; \
fi

# Ceph "Recommends"
RUN echo "nvme-cli python3-saml smartmontools" >> packages.txt
# NFS-Ganesha
RUN echo "\
dbus-daemon \
nfs-ganesha-ceph \
nfs-ganesha-rados-grace \
nfs-ganesha-rados-urls \
nfs-ganesha-rgw \
nfs-ganesha \
rpcbind \
sssd-client" >> packages.txt

# ISCSI
RUN echo "ceph-iscsi tcmu-runner python3-rtslib" >> packages.txt

# Ceph-CSI
# TODO: coordinate with @Madhu-1 to have Ceph-CSI install these itself if unused by ceph
#       @adk3798 does cephadm use these?
RUN echo "attr ceph-fuse rbd-nbd"  >> packages.txt

# Rook (only if packages must be in ceph container image)
RUN echo "systemd-udev" >> packages.txt

# Util packages (should be kept to only utils that are truly very useful)
# 'sgdisk' (from gdisk) is used in docs and scripts for clearing disks (could be a risk? @travisn @guits @ktdreyer ?)
# 'ps' (from procps-ng) and 'hostname' are very valuable for debugging and CI
# TODO: remove sg3_utils once they are moved to ceph.spec.in with libstoragemgmt
#       ref: https://github.com/ceph/ceph-container/pull/2013#issuecomment-1248606472
RUN echo "gdisk hostname procps-ng sg3_utils e2fsprogs lvm2 gcc" >> packages.txt

# scikit
RUN echo "python3-scikit-learn" >> packages.txt

RUN echo "=== PACKAGES TO BE INSTALLED ==="; cat packages.txt
RUN echo "=== INSTALLING ===" ; \
dnf install -y --setopt=install_weak_deps=False --setopt=skip_missing_names_on_install=False --enablerepo=crb $(cat packages.txt)

# XXX why isn't this done in the ganesha package?
RUN mkdir -p /var/run/ganesha

# Disable sync with udev since the container can not contact udev
RUN \
    sed -i -e 's/udev_rules = 1/udev_rules = 0/' \
           -e 's/udev_sync = 1/udev_sync = 0/' \
           -e 's/obtain_device_list_from_udev = 1/obtain_device_list_from_udev = 0/' \
        /etc/lvm/lvm.conf && \
    # validate the sed command worked as expected
    grep -sqo "udev_sync = 0" /etc/lvm/lvm.conf && \
    grep -sqo "udev_rules = 0" /etc/lvm/lvm.conf && \
    grep -sqo "obtain_device_list_from_udev = 0" /etc/lvm/lvm.conf

# CLEAN UP!
RUN set -ex && \
    dnf clean all && \
    rm -rf /var/cache/dnf/* && \
    rm -rf /var/lib/dnf/* && \
    rm -f /var/lib/rpm/__db* && \
    # remove unnecessary files with big impact
    rm -rf /etc/selinux /usr/share/{doc,man,selinux} && \
    # don't keep compiled python binaries
    find / -xdev \( -name "*.pyc" -o -name "*.pyo" \) -delete && \
    rm -f /etc/yum.repos.d/{ceph,ganesha,tcmu-runner,ceph-iscsi}.repo

# Verify that the packages installed haven't been accidentally cleaned, then
# clean the package list and re-clean unnecessary RPM database files
RUN rpm -q $(cat packages.txt) && rm -f /var/lib/rpm/__db* && rm -f *packages.txt

#
# Set some envs in the container for quickly inspecting details about the build at runtime
ENV CEPH_IS_DEVEL="${CI_CONTAINER}" \
    CEPH_REF="${CEPH_REF}" \
    CEPH_OSD_FLAVOR="${OSD_FLAVOR}" \
    FROM_IMAGE="${FROM_IMAGE}"

使用镜像升级，上传镜像到自定义仓库，使用cephadm升级

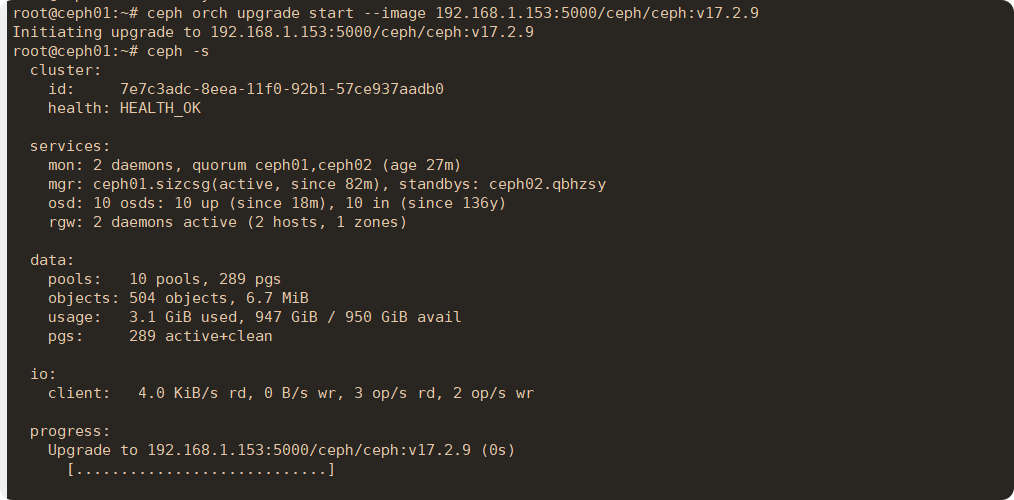

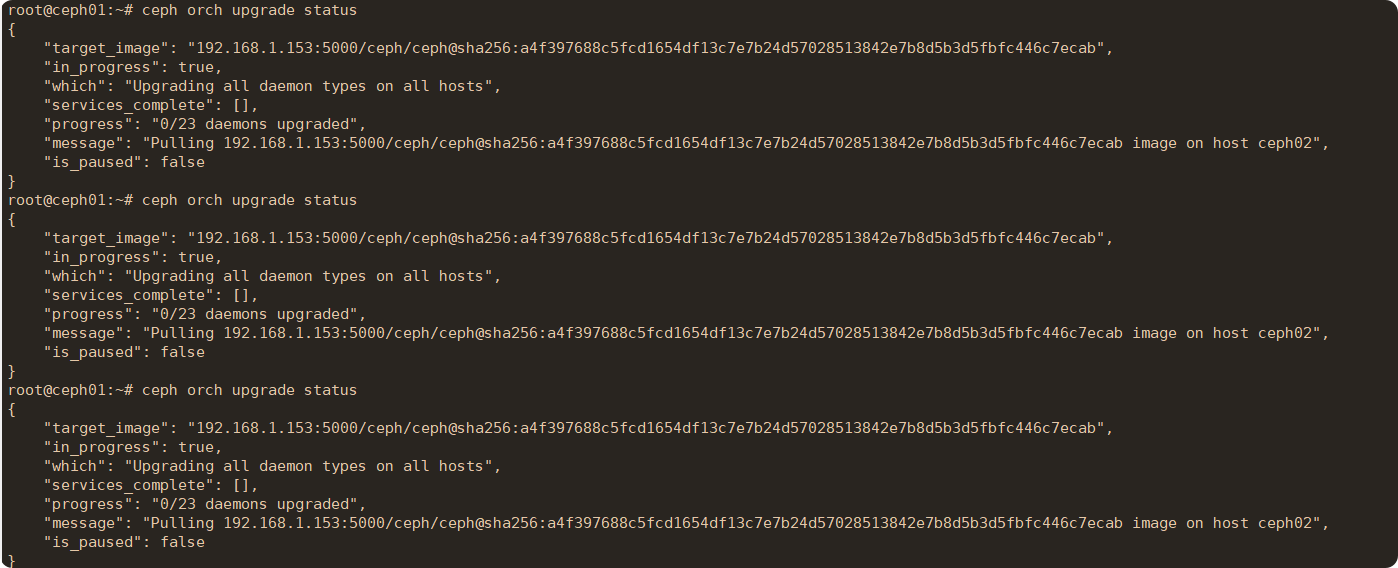

开始升级

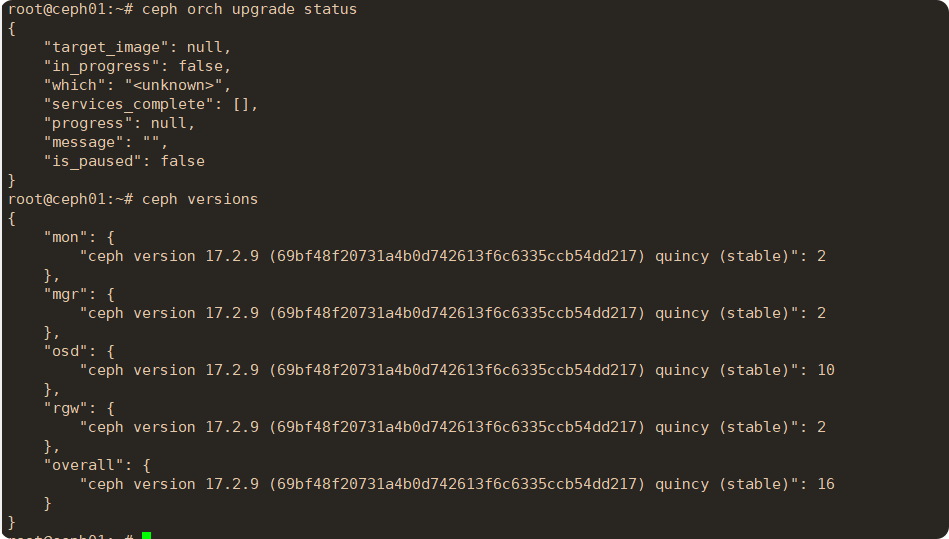

升级完成

升级过程中，ceph -s会有警告warn，不用管，因为在更替服务

镜像已经上传到dockerhub可自取

https://hub.docker.com/r/moxnz/ceph:v17.2.9
