elastic单机多节点集群搭建

在一台主机上部署多个elastic node

部署步骤

1.设置主机名

echo 192.168.19.199 instance >> /etc/hosts

2.设置系统参数

echo vm.max_map_count=262144 >> /etc/sysctl.conf && sysctl -p

3.创建相关目录

mkdir -p /data/elasticsearch/{node1,node2,node3}
chown -R admin:admin /data/elasticsearch

mkdir -p /var/log/elasticsearch/{node1,node2,node3}
chown -R admin:admin /var/log/elasticsearch/

配置文件目录创建

cp -r /data/elastic/elasticsearch-7.8.0/config /data/elastic/elasticsearch-7.8.0/config/node1
cp -r /data/elastic/elasticsearch-7.8.0/config /data/elastic/elasticsearch-7.8.0/config/node2
cp -r /data/elastic/elasticsearch-7.8.0/config /data/elastic/elasticsearch-7.8.0/config/node3

1.修改配置文件elasticsearch.yml

cluster.name: multi-node-cluster
node.name: node-1
path.data: /data/elasticsearch/node1
path.logs: /var/log/elasticsearch/node1
network.host: 0.0.0.0
http.port: 9200
transport.port: 9300
discovery.seed_hosts: ["192.168.19.199:9300","192.168.19.199:9301","192.168.19.199:9302"]
cluster.initial_master_nodes: ["node-1", "node-2", "node-3"]
xpack.license.self_generated.type: basic
xpack.security.enabled: true
xpack.security.http.ssl.enabled: true
xpack.security.http.ssl.key: /data/elastic/certs/instance/instance.key
xpack.security.http.ssl.certificate: /data/elastic/certs/instance/instance.crt
xpack.security.http.ssl.certificate_authorities: /data/elastic/certs/ca/ca.crt
xpack.security.transport.ssl.enabled: true
xpack.security.transport.ssl.verification_mode: certificate
xpack.security.transport.ssl.key: /data/elastic/certs/instance/instance.key
xpack.security.transport.ssl.certificate: /data/elastic/certs/instance/instance.crt
xpack.security.transport.ssl.certificate_authorities: /data/elastic/certs/ca/ca.crt

node1/elasticsearch.yml

cluster.name: multi-node-cluster
node.name: node-2
path.data: /data/elasticsearch/node2
path.logs: /var/log/elasticsearch/node2
network.host: 0.0.0.0
http.port: 9201
transport.port: 9301
discovery.seed_hosts: ["192.168.19.199:9300","192.168.19.199:9301","192.168.19.199:9302"]
cluster.initial_master_nodes: ["node-1", "node-2", "node-3"]
xpack.license.self_generated.type: basic
xpack.security.enabled: true
xpack.security.http.ssl.enabled: true
xpack.security.http.ssl.key: /data/elastic/certs/instance/instance.key
xpack.security.http.ssl.certificate: /data/elastic/certs/instance/instance.crt
xpack.security.http.ssl.certificate_authorities: /data/elastic/certs/ca/ca.crt
xpack.security.transport.ssl.enabled: true
xpack.security.transport.ssl.verification_mode: certificate
xpack.security.transport.ssl.key: /data/elastic/certs/instance/instance.key
xpack.security.transport.ssl.certificate: /data/elastic/certs/instance/instance.crt
xpack.security.transport.ssl.certificate_authorities: /data/elastic/certs/ca/ca.crt

node2/elasticsearch.yml

cluster.name: multi-node-cluster
node.name: node-3
path.data: /data/elasticsearch/node3
path.logs: /var/log/elasticsearch/node3
network.host: 0.0.0.0
http.port: 9202
transport.port: 9302
discovery.seed_hosts: ["192.168.19.199:9300","192.168.19.199:9301","192.168.19.199:9302"]
cluster.initial_master_nodes: ["node-1","node-2","node-3"]
xpack.license.self_generated.type: basic
xpack.security.enabled: true
xpack.security.http.ssl.enabled: true
xpack.security.http.ssl.key: /data/elastic/certs/instance/instance.key
xpack.security.http.ssl.certificate: /data/elastic/certs/instance/instance.crt
xpack.security.http.ssl.certificate_authorities: /data/elastic/certs/ca/ca.crt
xpack.security.transport.ssl.enabled: true
xpack.security.transport.ssl.verification_mode: certificate
xpack.security.transport.ssl.key: /data/elastic/certs/instance/instance.key
xpack.security.transport.ssl.certificate: /data/elastic/certs/instance/instance.crt
xpack.security.transport.ssl.certificate_authorities: /data/elastic/certs/ca/ca.crt

node3/elasticsearch.yml

证书生成配置

./elasticsearch-certutil cert --ip 192.168.19.199 --days 3650 --pem

把生成的certificate-bundle.zip拷贝到/data/elastic/certs/ 并且解压

chown -R admin:admin /data/elastic/

所有的node共同使用/data/elastic/certs/ca/ca.crt证书

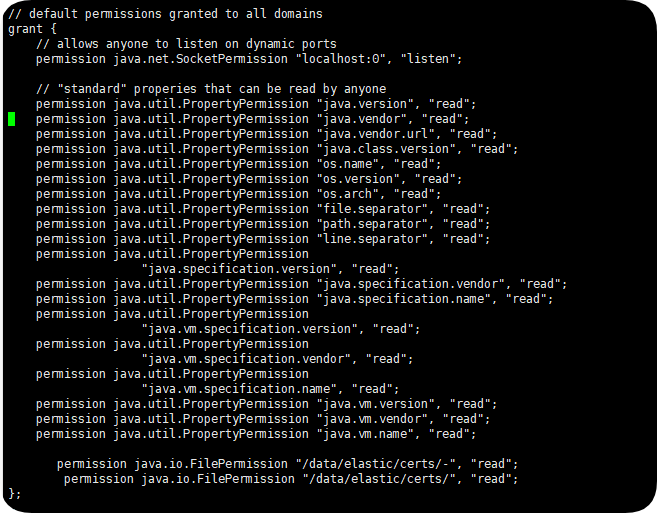

java安全策略文件的修改

修改elasitc使用的jdk目录下的java.policy && vi /data/elastic/elasticsearch-7.8.0/jdk/conf/security/java.policy

permission java.io.FilePermission "/data/elastic/certs/-", "read";
permission java.io.FilePermission "/data/elastic/certs/", "read";

把这两行加入到grant {}中

启动node服务

source /etc/profile && ES_PATH_CONF=/data/elastic/elasticsearch-7.8.0/config/node1 /data/elastic/elasticsearch-7.8.0/bin/elasticsearch

source /etc/profile && ES_PATH_CONF=/data/elastic/elasticsearch-7.8.0/config/node2 /data/elastic/elasticsearch-7.8.0/bin/elasticsearch

source /etc/profile && ES_PATH_CONF=/data/elastic/elasticsearch-7.8.0/config/node3 /data/elastic/elasticsearch-7.8.0/bin/elasticsearch

ES_PATH_CONF=/data/elastic/elasticsearch-7.8.0/config/node1 nohup /data/elastic/elasticsearch-7.8.0/bin/elasticsearch &

ES_PATH_CONF=/data/elastic/elasticsearch-7.8.0/config/node2 nohup /data/elastic/elasticsearch-7.8.0/bin/elasticsearch &

ES_PATH_CONF=/data/elastic/elasticsearch-7.8.0/config/node3 nohup /data/elastic/elasticsearch-7.8.0/bin/elasticsearch &

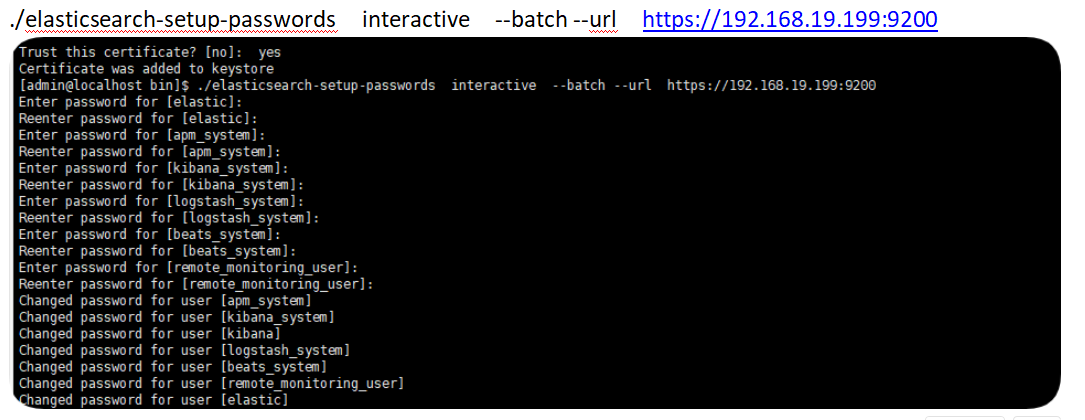

创建用户名密码

./elasticsearch-setup-passwords interactive --batch --url https://192.168.19.199:9200

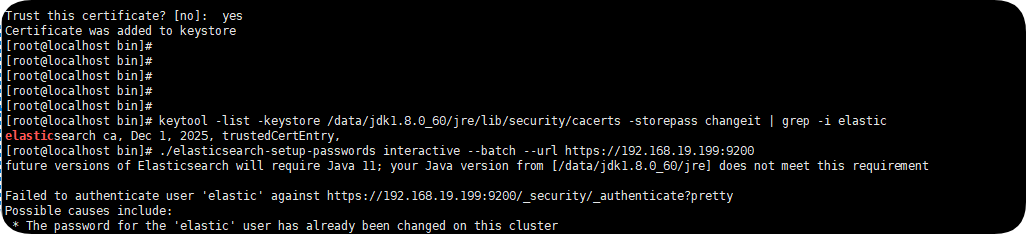

错误处理

09:38:53.388 [main] WARN org.elasticsearch.common.ssl.DiagnosticTrustManager - failed to establish trust with server at [instance]; the server provided a certificate with subject name [CN=instance] and fingerprint [efaa15984c348a693711fe29ce37d4079209f204]; the certificate has subject alternative names [IP:192.168.19.199]; the certificate is issued by [CN=Elastic Certificate Tool Autogenerated CA] but the server did not provide a copy of the issuing certificate in the certificate chain; this ssl context ([(shared)]) is not configured to trust that issuer
sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target

keytool -importcert -file "/data/elastic/certs/ca/ca.crt" -keystore "/data/elastic/elasticsearch-7.8.0/jdk/lib/security/cacerts" -alias "Elasticsearch CA"
keytool -list -keystore /data/elastic/elasticsearch-7.8.0/jdk/jre/lib/security/cacerts -storepass changeit
keytool -list -keystore /data/elastic/elasticsearch-7.8.0/jdk/jre/lib/security/cacerts -storepass changeit | grep -i elastic
keytool -delete -alias "Elasticsearch CA" -keystore /data/elastic/elasticsearch-7.8.0/jdk/jre/lib/security/cacerts -storepass changeit

java证书链管理

keytool -importcert -file "/data/elastic/certs/ca/ca.crt" -keystore "/data/elastic/elasticsearch-7.8.0/jdk/lib/security/cacerts" -alias "Elasticsearch CA"
