docker部署minio +nginx代理

1.拉取镜像

2.启动镜像

docker run -itd --restart=always --name minio-tmp -p 9000:9000 -p 9001:9001 \
  -v /data/minio:/data -e MINIO_ROOT_USER=minioadmin -e MINIO_ROOT_PASSWORD=minioadmin \
  minio/minio:RELEASE.2023-01-02T09-40-09Z server /data --console-address ":9001"

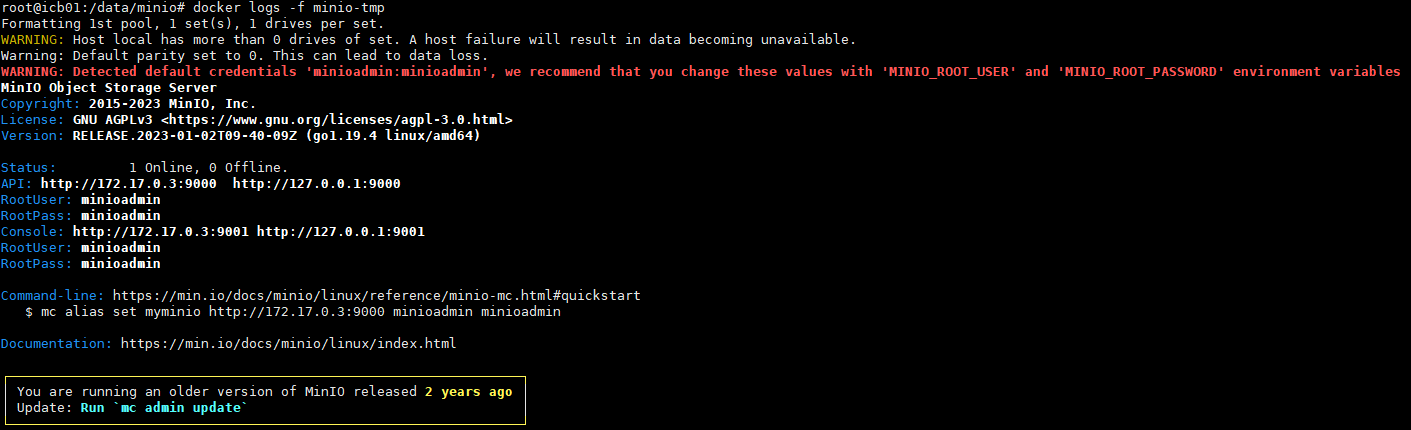

3.查看日志是否启动成功

API: http://172.17.0.3:9000 http://127.0.0.1:9000 #minio的接口地址
RootUser: minioadmin
RootPass: minioadmin
Console: http://172.17.0.3:9001 http://127.0.0.1:9001 #minio的管理后台地址
RootUser: minioadmin
RootPass: minioadmin

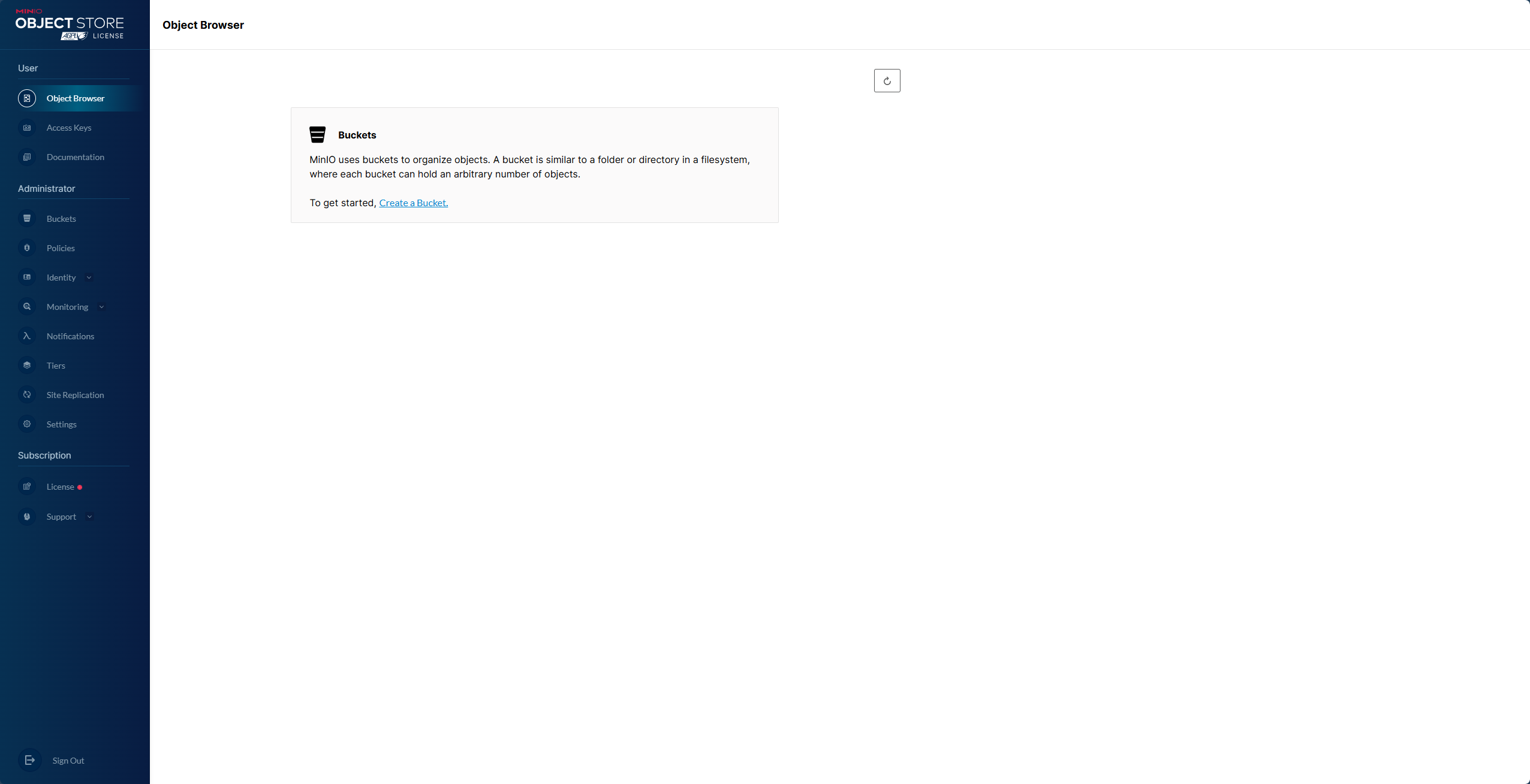

4访问地址

5.配置minio+nginx代理

upstream minio_s3 {
   least_conn;
   server 10.0.0.136:9017;
}

upstream minio_console {
   least_conn;
   server 10.0.0.136:9018;
}

server {
   listen       8501 ssl;
   server_name  minio-test.sjdit.com;
   # SSL 证书配置
   ssl_certificate /etc/nginx/cert/_.sjdit.com.crt;
   ssl_certificate_key /etc/nginx/cert/_.sjdit.com.key;
   ssl_protocols TLSv1.2 TLSv1.3;
   ssl_ciphers HIGH:!aNULL:!MD5;

   #proxy_redirect off;
   #proxy_ssl_verify off;
   proxy_buffering off;
   proxy_request_buffering off;


   #location /s3 {
   #   proxy_pass http://minio_s3/;
   #   proxy_set_header Host $http_host;
   #   proxy_set_header X-Real-IP $remote_addr;
   #   proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
   #   proxy_set_header X-Forwarded-Proto $scheme;
   #   add_header 'Access-Control-Allow-Origin' '*';
   #   add_header 'Access-Control-Allow-Methods' 'GET, POST, PUT, DELETE, OPTIONS';
   #   add_header 'Access-Control-Allow-Headers' 'Authorization, Content-Type, Accept';
   #   if ($request_method = OPTIONS) {
   #      return 204;
   #   }
   #}

   location / {
      client_max_body_size 1G;
      proxy_pass http://minio_s3/;
      proxy_set_header Host $http_host;
      proxy_set_header X-Real-IP $remote_addr;
      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
      proxy_set_header X-Forwarded-Proto $scheme;
      proxy_set_header X-NginX-Proxy true;

      # This is necessary to pass the correct IP to be hashed
      real_ip_header X-Real-IP;

      # To support websockets in MinIO versions released after January 2023
      proxy_http_version 1.1;
      proxy_set_header Upgrade $http_upgrade;
      proxy_set_header Connection "upgrade";
      chunked_transfer_encoding off;

      proxy_hide_header Access-Control-Allow-Origin;
      proxy_hide_header Access-Control-Allow-Methods;
      proxy_hide_header Access-Control-Allow-Headers;
      add_header 'Access-Control-Allow-Origin' '*';
      add_header 'Access-Control-Allow-Methods' 'GET, POST, PUT, DELETE, OPTIONS';
      add_header 'Access-Control-Allow-Headers' 'Authorization, Content-Type, Accept';
   }
}

server {
   listen       8501 ssl;
   server_name  minio-console-test.sjdit.com;
   # SSL 证书配置
   ssl_certificate /etc/nginx/cert/_.sjdit.com.crt;
   ssl_certificate_key /etc/nginx/cert/_.sjdit.com.key;
   ssl_protocols TLSv1.2 TLSv1.3;
   ssl_ciphers HIGH:!aNULL:!MD5;

   #ignore_invalid_headers off;
   #client_max_body_size 0;
   proxy_buffering off;      #关闭响应缓存
   #proxy_request_buffering off;

   proxy_redirect off;  关闭请求缓存
   proxy_ssl_verify off;


   location / {
      client_max_body_size 1G;
      proxy_pass http://minio_console;
      proxy_set_header Host $http_host;         #MinIO 签名 / 预签名 URL 必须
      proxy_set_header X-Real-IP $remote_addr;        #
      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
      proxy_set_header X-Forwarded-Proto $scheme;
      proxy_set_header X-NginX-Proxy true;

      # This is necessary to pass the correct IP to be hashed
      real_ip_header X-Real-IP;

      # To support websockets in MinIO versions released after January 2023
      proxy_http_version 1.1;
      proxy_set_header Upgrade $http_upgrade;
      proxy_set_header Connection "upgrade";
      #chunked_transfer_encoding off;
      #CORS 处理隐藏 MinIO 原有 CORS  防止重复 / 冲突
      proxy_hide_header Access-Control-Allow-Origin;
      proxy_hide_header Access-Control-Allow-Methods;
      proxy_hide_header Access-Control-Allow-Headers;

      #Nginx 强制返回 CORS  允许前端跨域访问
      add_header 'Access-Control-Allow-Origin' '*';
      add_header 'Access-Control-Allow-Methods' 'GET, POST, PUT, DELETE, OPTIONS';
      add_header 'Access-Control-Allow-Headers' 'Authorization, Content-Type, Accept';
   }

}

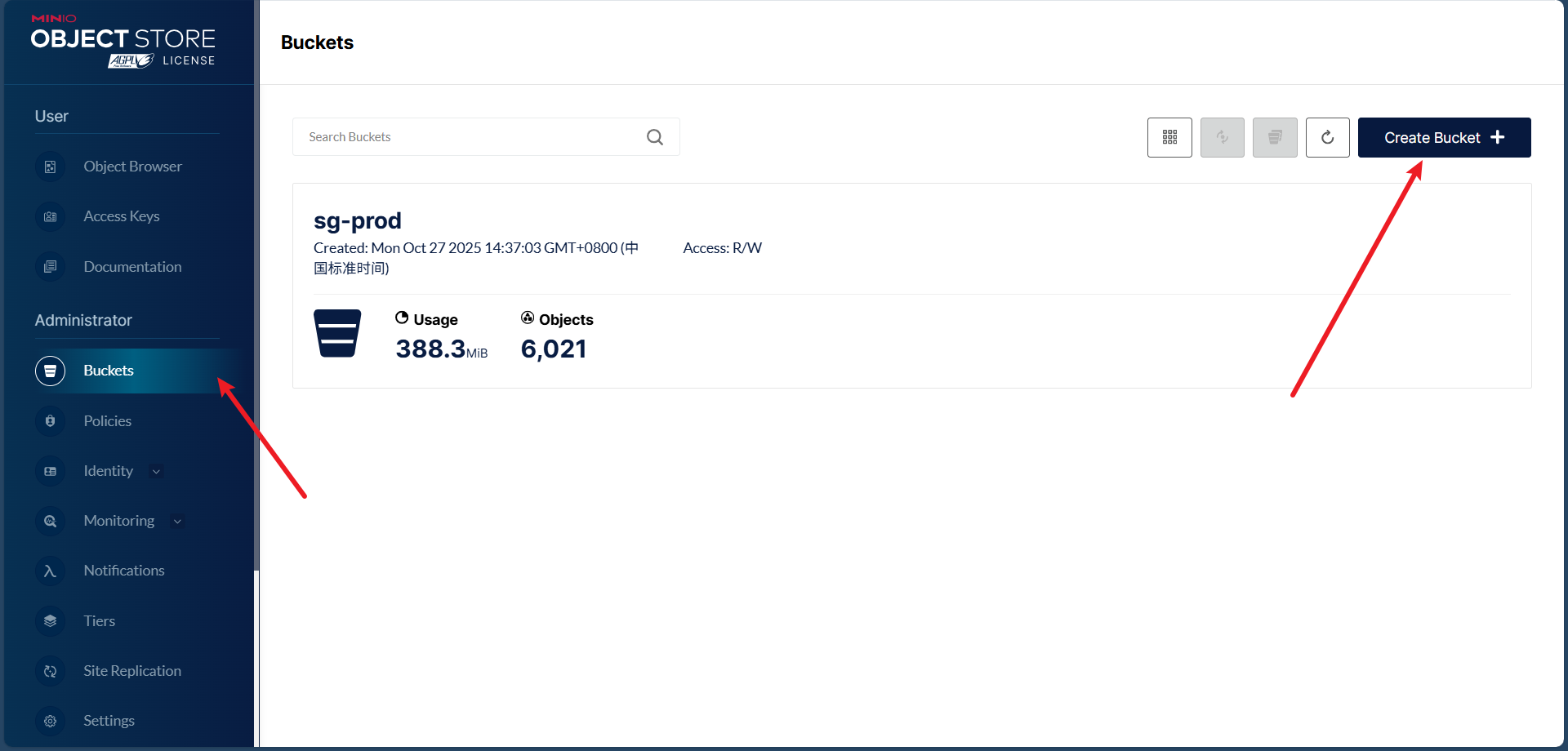

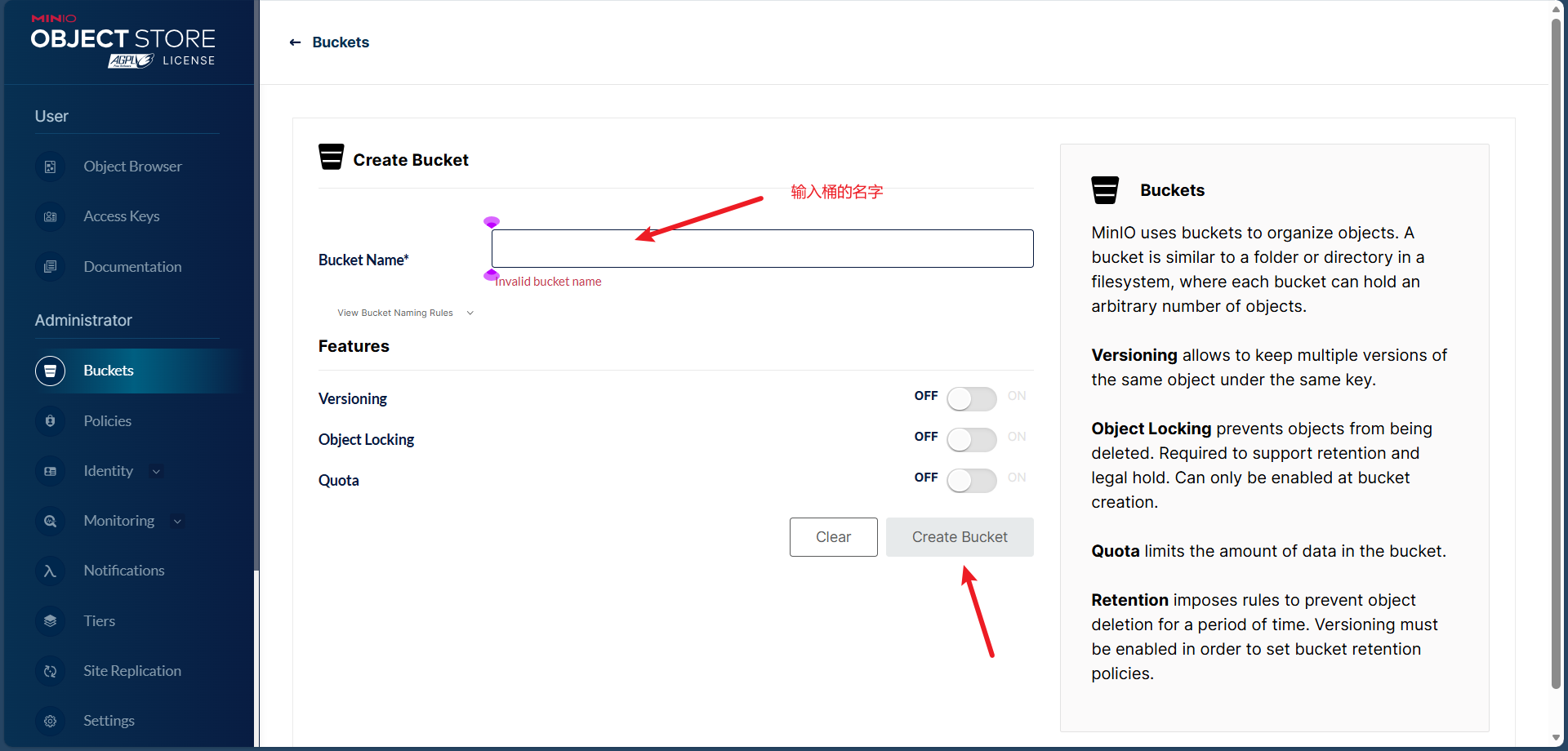

6.创建桶

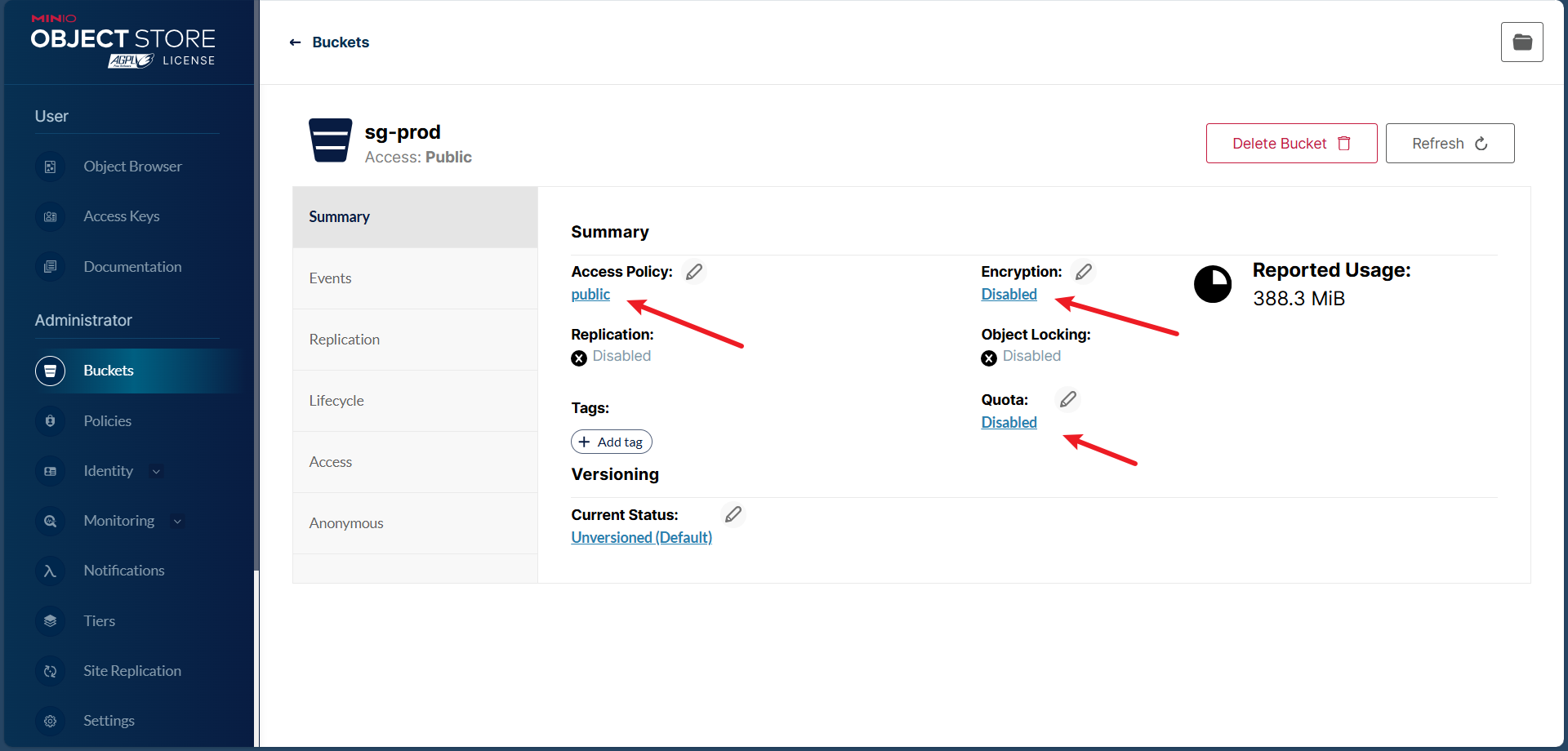

7.配置桶的参数

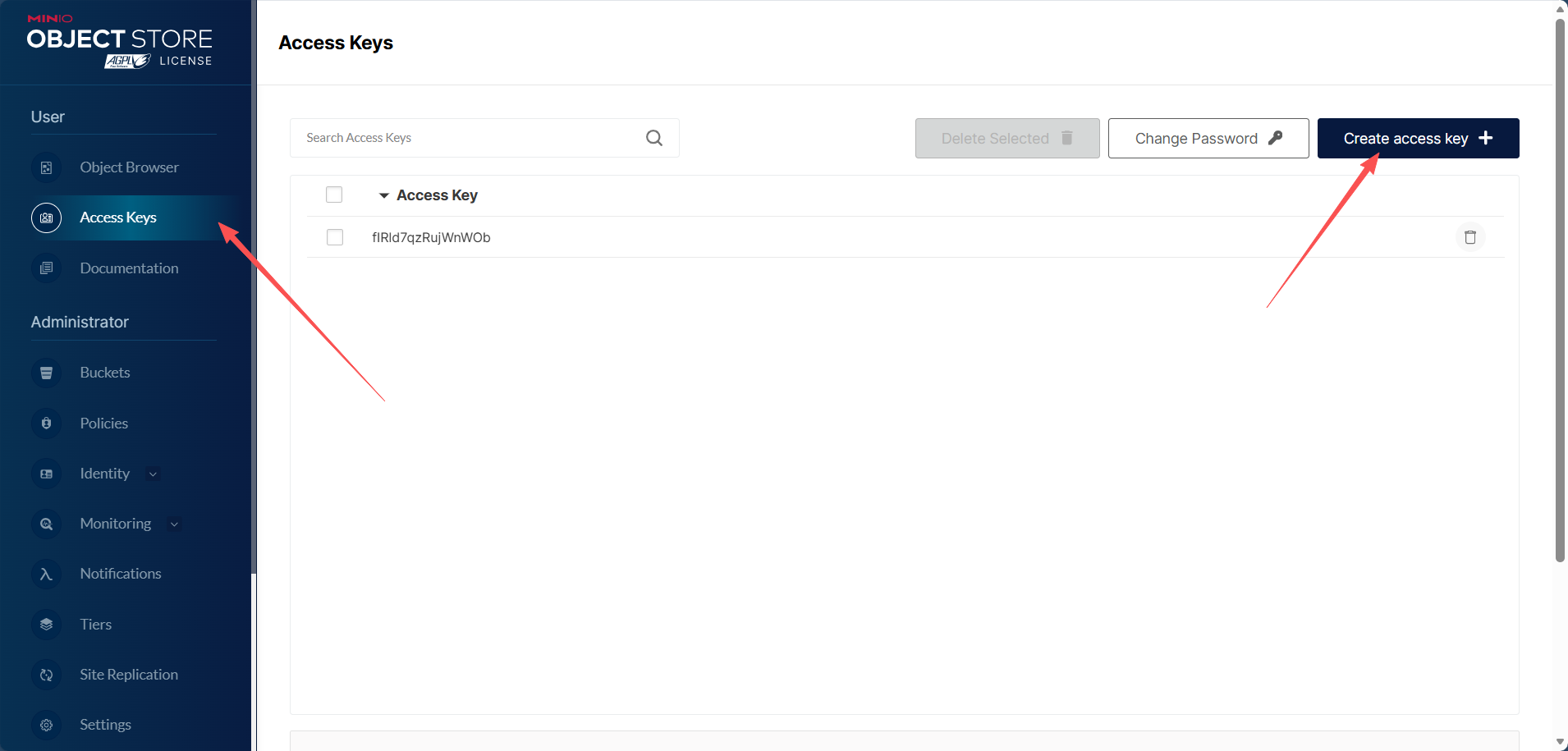

8.创建ak和sk

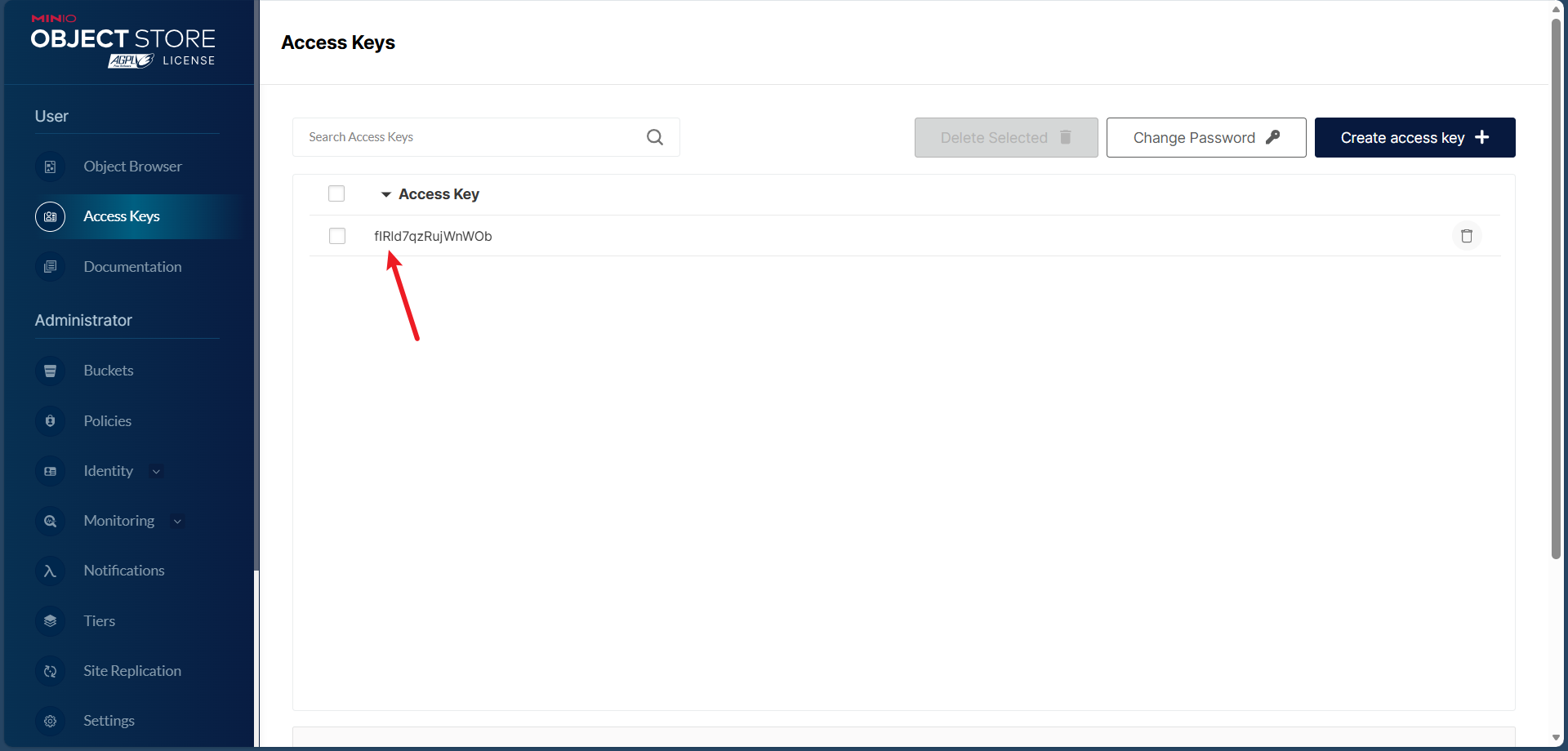

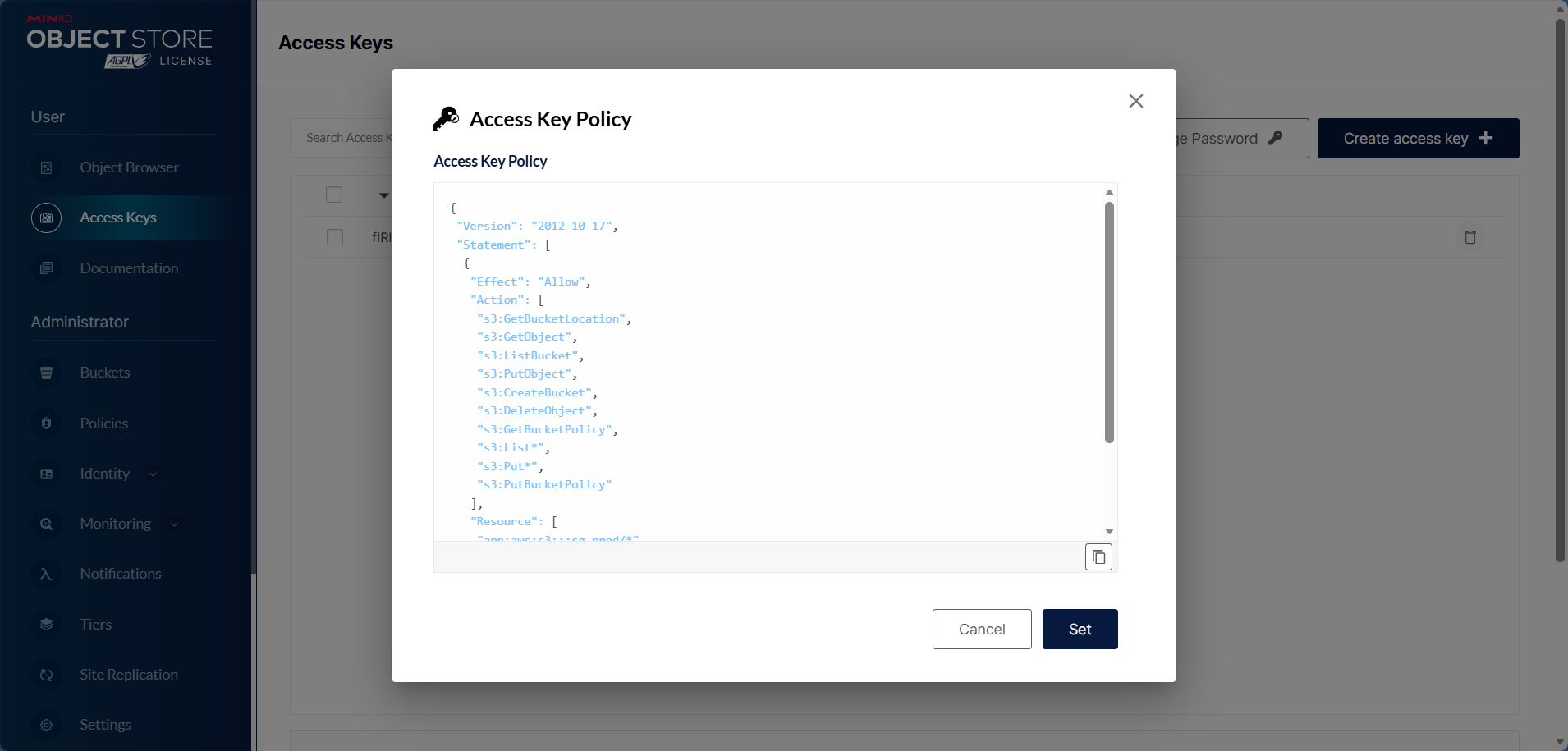

9.创建好之后点击账号，配置账号和桶的权限

{
 "Version": "2012-10-17",
 "Statement": [
  {
   "Effect": "Allow",
   "Action": [
    "s3:GetBucketLocation",
    "s3:GetObject",
    "s3:ListBucket",
    "s3:PutObject",
    "s3:CreateBucket",
    "s3:DeleteObject",
    "s3:GetBucketPolicy",
    "s3:List*",
    "s3:Put*",
    "s3:PutBucketPolicy"
   ],
   "Resource": [
    "arn:aws:s3:::sg-prod/*",
    "arn:aws:s3:::sg-prod"
   ]
  }
 ]
}

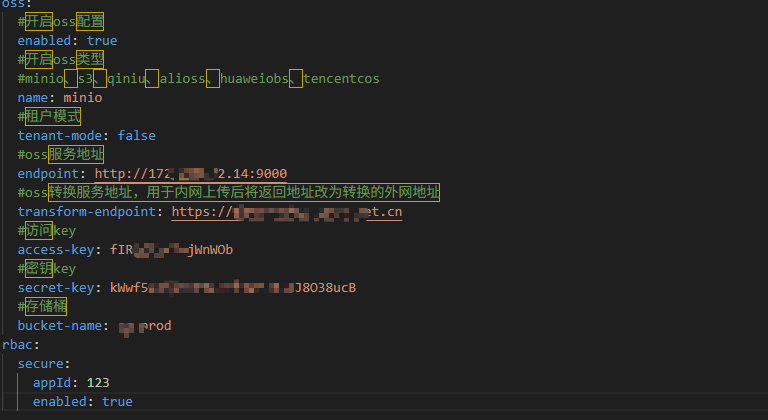

10.后端yml文件

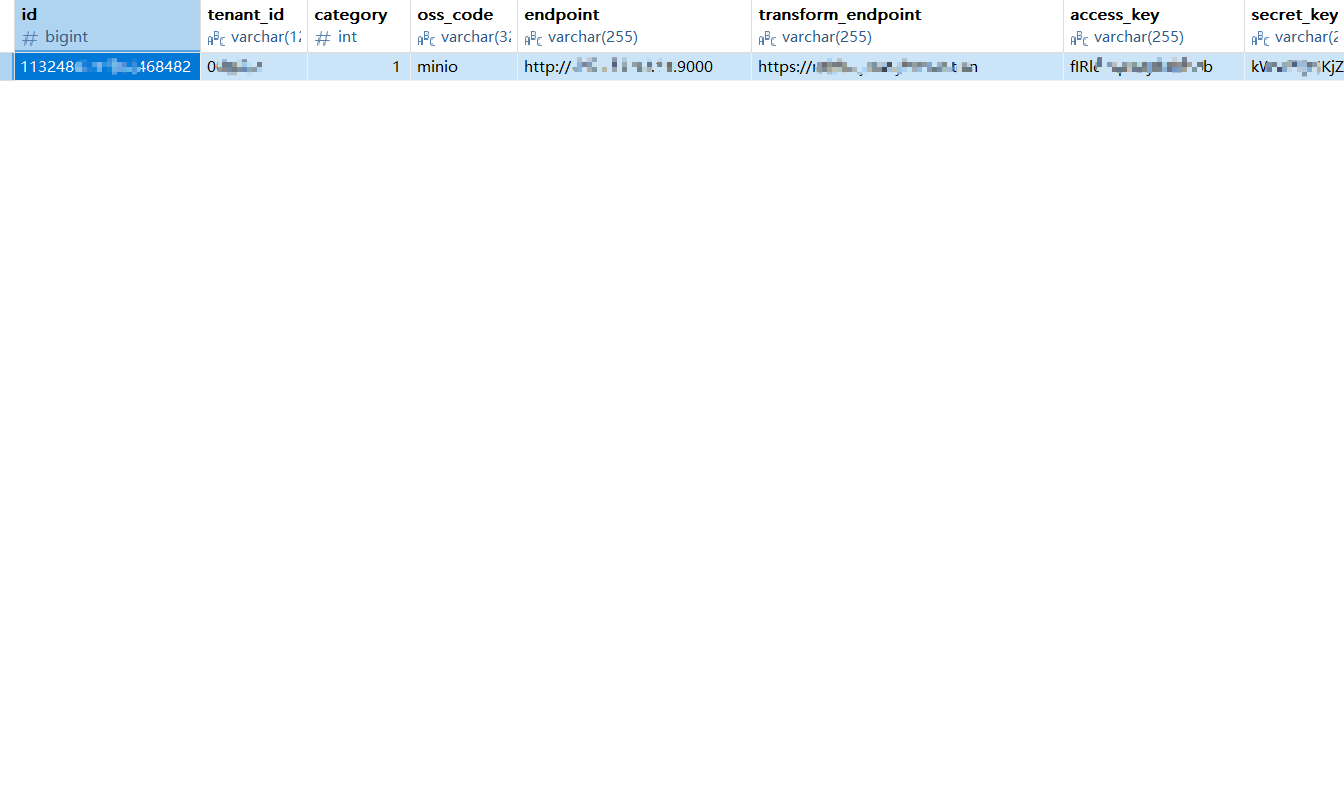

11.数据库配置
