基于REST API的SDN北向应用实践

一、实验目的

1. 能够编写程序调用OpenDaylight REST API实现特定网络功能；
2. 能够编写程序调用Ryu REST API实现特定网络功能。

二、实验环境

1. 下载虚拟机软件Oracle VisualBox或VMware；
2. 在虚拟机中安装Ubuntu 20.04 Desktop amd64，并完整安装Mininet、OpenDaylight（Carbon版本）、Postman和Ryu；

三、实验要求

（一）基本要求

1. 编写Python程序，调用OpenDaylight的北向接口实现以下功能

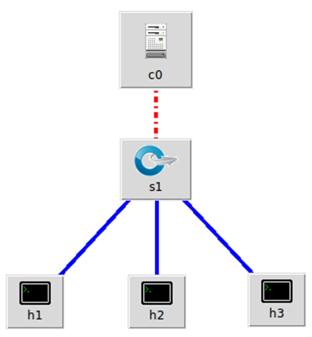

   （1） 利用Mininet平台搭建下图所示网络拓扑，并连接OpenDaylight；
   （2） 下发指令删除s1上的流表数据。
   （3） 下发硬超时流表，实现拓扑内主机h1和h3网络中断20s。
   （4） 获取s1上活动的流表数。

2. 编写Python程序，调用Ryu的北向接口实现以下功能
   （1） 实现上述OpenDaylight实验拓扑上相同的硬超时流表下发。
   （2） 参考Ryu REST API的文档，基于VLAN实验的网络拓扑，编程实现相同的VLAN配置。
   提示：拓扑生成后需连接Ryu，且Ryu应能够提供REST API服务

VLAN_ID	HOSTs
0	h1 h3
1	h2 h4

（二）进阶要求

1. OpenDaylight或Ryu任选其一，编程实现查看前序VLAN实验拓扑中所有节点（含交换机、主机）的名称，以及显示每台交换机的所有流表项。

（三）实验报告
OpenDaylight

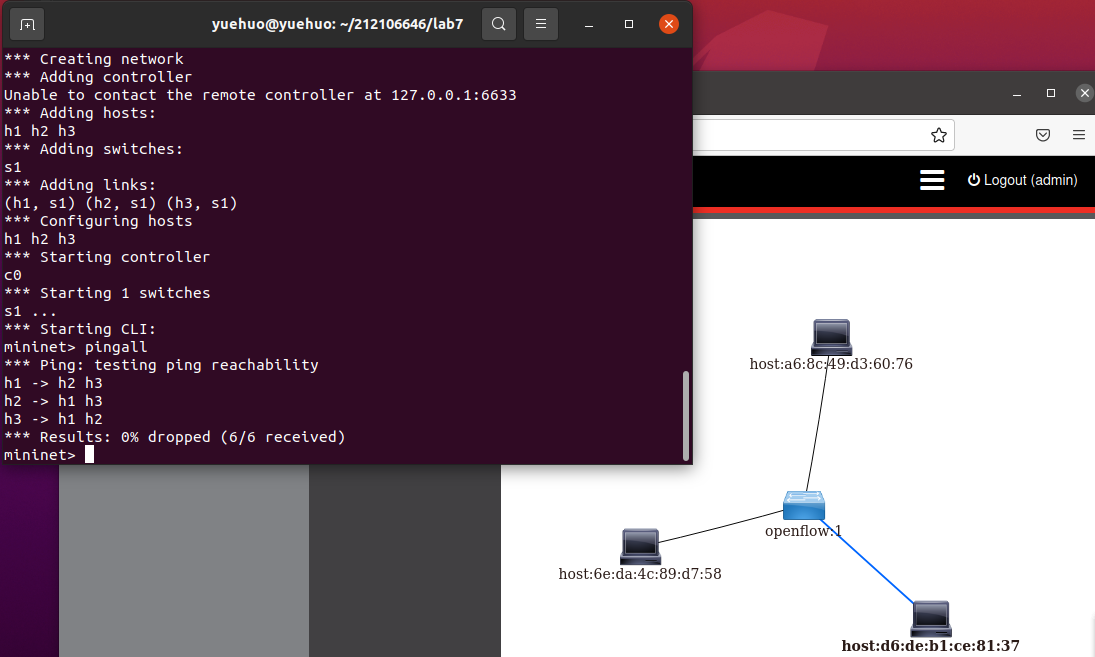

1. 利用Minnet搭建拓扑，并连接OpenDaylight

2. 删除s1上的流表

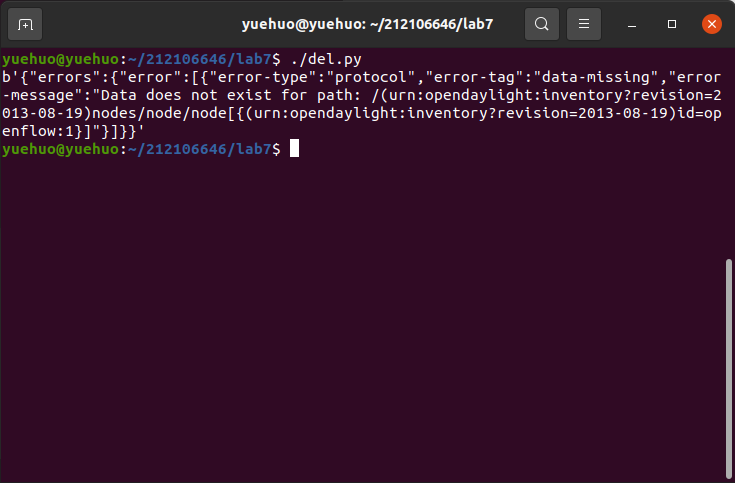

#!/usr/bin/python
import requests
from requests.auth import HTTPBasicAuth
if __name__ == "__main__":
    url = 'http://127.0.0.1:8181/restconf/config/opendaylight-inventory:nodes/node/openflow:1/'
    headers = {'Content-Type': 'application/json'}
    res = requests.delete(url, headers=headers, auth=HTTPBasicAuth('admin', 'admin'))
    print (res.content)

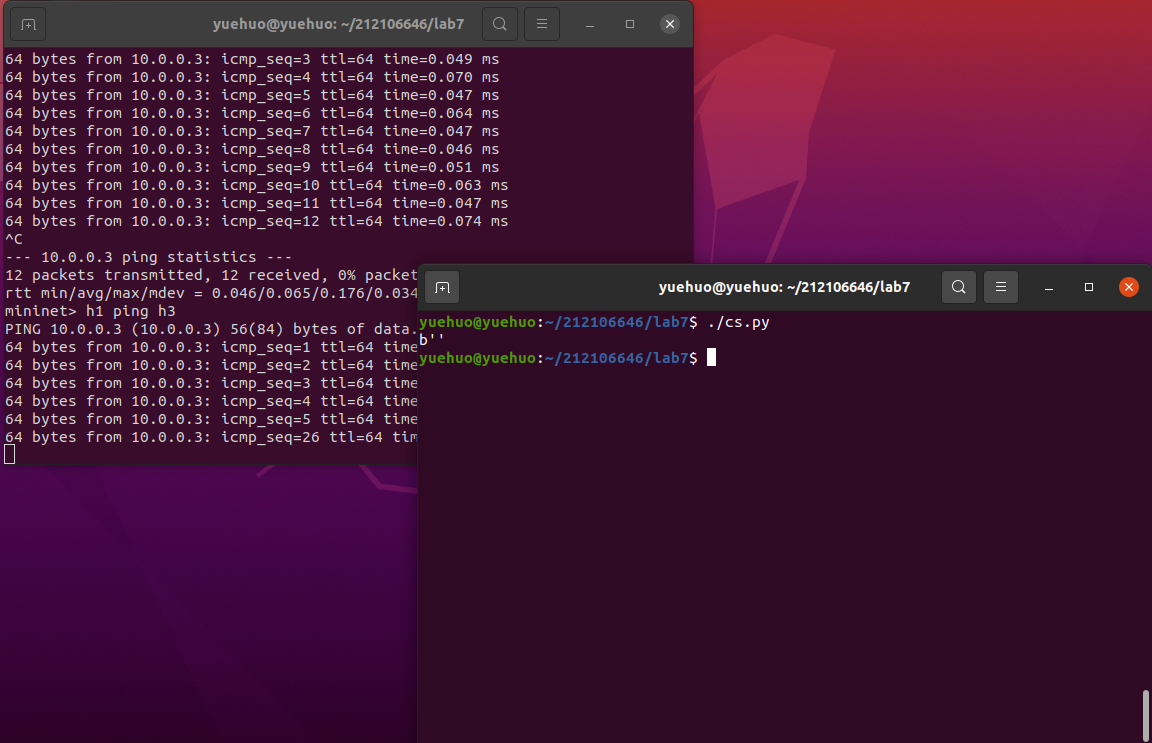

3. 硬超时

#!/usr/bin/python
import requests
from requests.auth import HTTPBasicAuth
if __name__ == "__main__":
    url = 'http://127.0.0.1:8181/restconf/config/opendaylight-inventory:nodes/node/openflow:1/flow-node-inventory:table/0/flow/1'
    with open("./flowtimeout.json") as file:
        str = file.read()
    headers = {'Content-Type': 'application/json'}
    res = requests.put(url, str, headers=headers, auth=HTTPBasicAuth('admin', 'admin'))
    print (res.content)

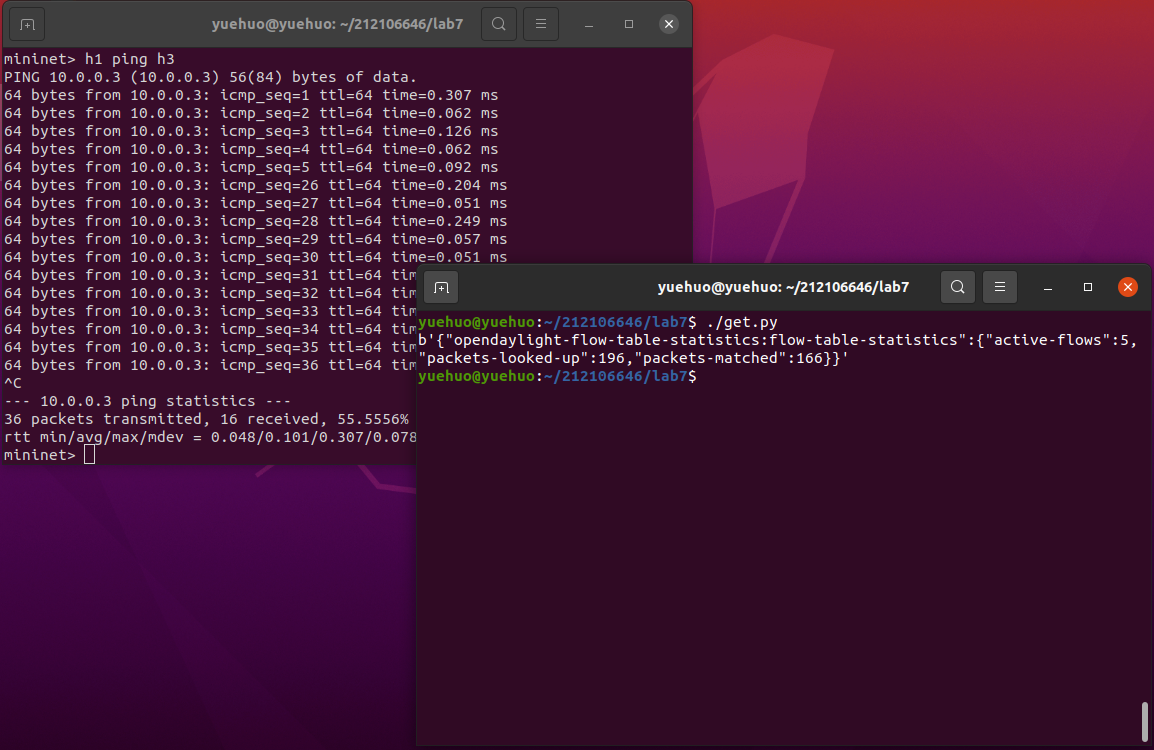

4. 获取s1上的流表数量

#!/usr/bin/python
import requests
from requests.auth import HTTPBasicAuth
if __name__ == "__main__":
    url = 'http://127.0.0.1:8181/restconf/operational/opendaylight-inventory:nodes/node/openflow:1/flow-node-inventory:table/0/opendaylight-flow-table-statistics:flow-table-statistics'
    headers = {'Content-Type': 'application/json'}
    res = requests.get(url,headers=headers, auth=HTTPBasicAuth('admin', 'admin'))
    print (res.content)

Ryu

#!/usr/bin/python
import requests
if __name__ == "__main__":

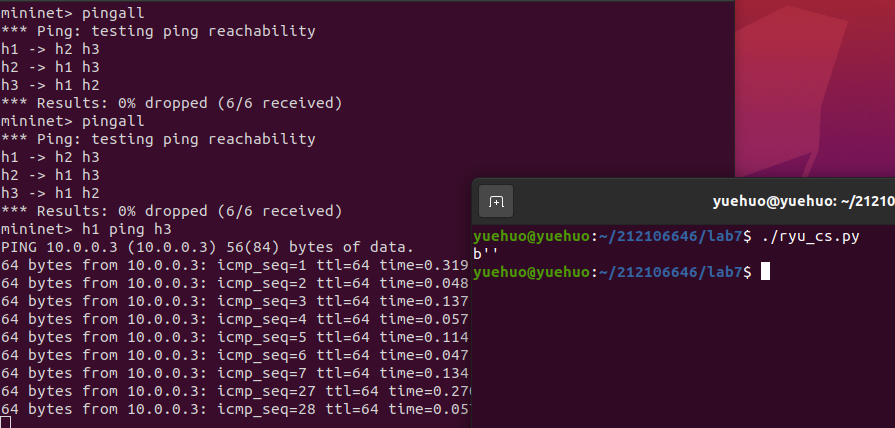

    url = 'http://127.0.0.1:8080/stats/flowentry/add'
    with open("./ryu_cs.json") as file:
        str = file.read()
    headers = {'Content-Type': 'application/json'}
    res = requests.post(url, str, headers=headers)
    print (res.content)

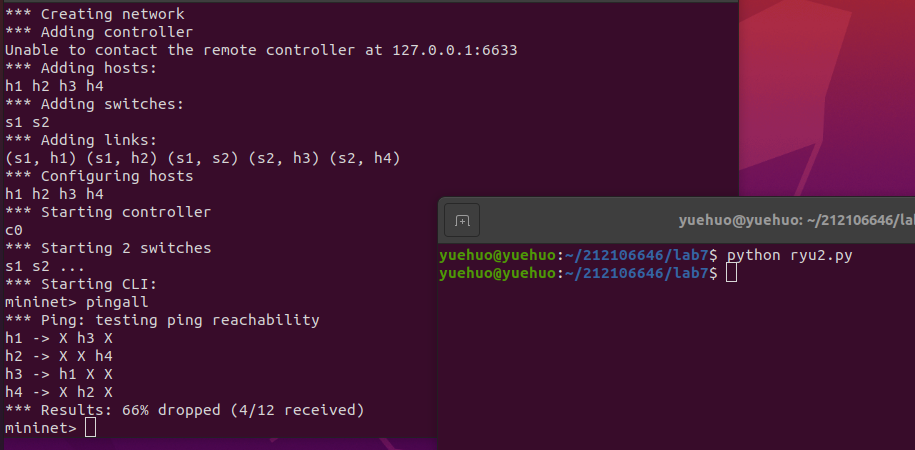

2.

import json

import requests

if __name__ == "__main__":
    url = 'http://127.0.0.1:8080/stats/flowentry/add'
    headers = {'Content-Type': 'application/json'}
    flow1 = {
        "dpid": 1,
        "priority": 1,
        "match":{
            "in_port": 1
        },
        "actions":[
            {
                "type": "PUSH_VLAN",
                "ethertype": 33024
            },
            {
                "type": "SET_FIELD",
                "field": "vlan_vid",
                "value": 4096
            },
            {
                "type": "OUTPUT",
                "port": 3
            }
        ]
    }
    flow2 = {
        "dpid": 1,
        "priority": 1,
        "match":{
            "in_port": 2
        },
        "actions":[
            {
                "type": "PUSH_VLAN",
                "ethertype": 33024
            },
            {
                "type": "SET_FIELD",
                "field": "vlan_vid",
                "value": 4097
            },
            {
                "type": "OUTPUT",
                "port": 3
            }
        ]
    }
    flow3 = {
        "dpid": 1,
        "priority": 1,
        "match":{
            "vlan_vid": 0
        },
        "actions":[
            {
                "type": "POP_VLAN",
                "ethertype": 33024
            },
            {
                "type": "OUTPUT",
                "port": 1
            }
        ]
    }
    flow4 = {
        "dpid": 1,
        "priority": 1,
        "match": {
            "vlan_vid": 1
        },
        "actions": [
            {
                "type": "POP_VLAN",
                "ethertype": 33024
            },
            {
                "type": "OUTPUT",
                "port": 2
            }
        ]
    }
    flow5 = {
        "dpid": 2,
        "priority": 1,
        "match": {
            "in_port": 1
        },
        "actions": [
            {
                "type": "PUSH_VLAN",
                "ethertype": 33024
            },
            {
                "type": "SET_FIELD",
                "field": "vlan_vid",
                "value": 4096
            },
            {
                "type": "OUTPUT",
                "port": 3
            }
        ]
    }
    flow6 = {
        "dpid": 2,
        "priority": 1,
        "match": {
            "in_port": 2
        },
        "actions": [
            {
                "type": "PUSH_VLAN",
                "ethertype": 33024
            },
            {
                "type": "SET_FIELD",
                "field": "vlan_vid",
                "value": 4097
            },
            {
                "type": "OUTPUT",
                "port": 3
            }
        ]
    }
    flow7 = {
        "dpid": 2,
        "priority": 1,
        "match": {
            "vlan_vid": 0
        },
        "actions": [
            {
                "type": "POP_VLAN",
                "ethertype": 33024
            },
            {
                "type": "OUTPUT",
                "port": 1
            }
        ]
    }
    flow8 = {
        "dpid": 2,
        "priority": 1,
        "match": {
            "vlan_vid": 1
        },
        "actions": [
            {
                "type": "POP_VLAN",
                "ethertype": 33024
            },
            {
                "type": "OUTPUT",
                "port": 2
            }
        ]
    }
    res1 = requests.post(url, json.dumps(flow1), headers=headers)
    res2 = requests.post(url, json.dumps(flow2), headers=headers)
    res3 = requests.post(url, json.dumps(flow3), headers=headers)
    res4 = requests.post(url, json.dumps(flow4), headers=headers)
    res5 = requests.post(url, json.dumps(flow5), headers=headers)
    res6 = requests.post(url, json.dumps(flow6), headers=headers)
    res7 = requests.post(url, json.dumps(flow7), headers=headers)
    res8 = requests.post(url, json.dumps(flow8), headers=headers)
