plantuml组件图

Color Description

Exists Function
Doing Function
Future Function

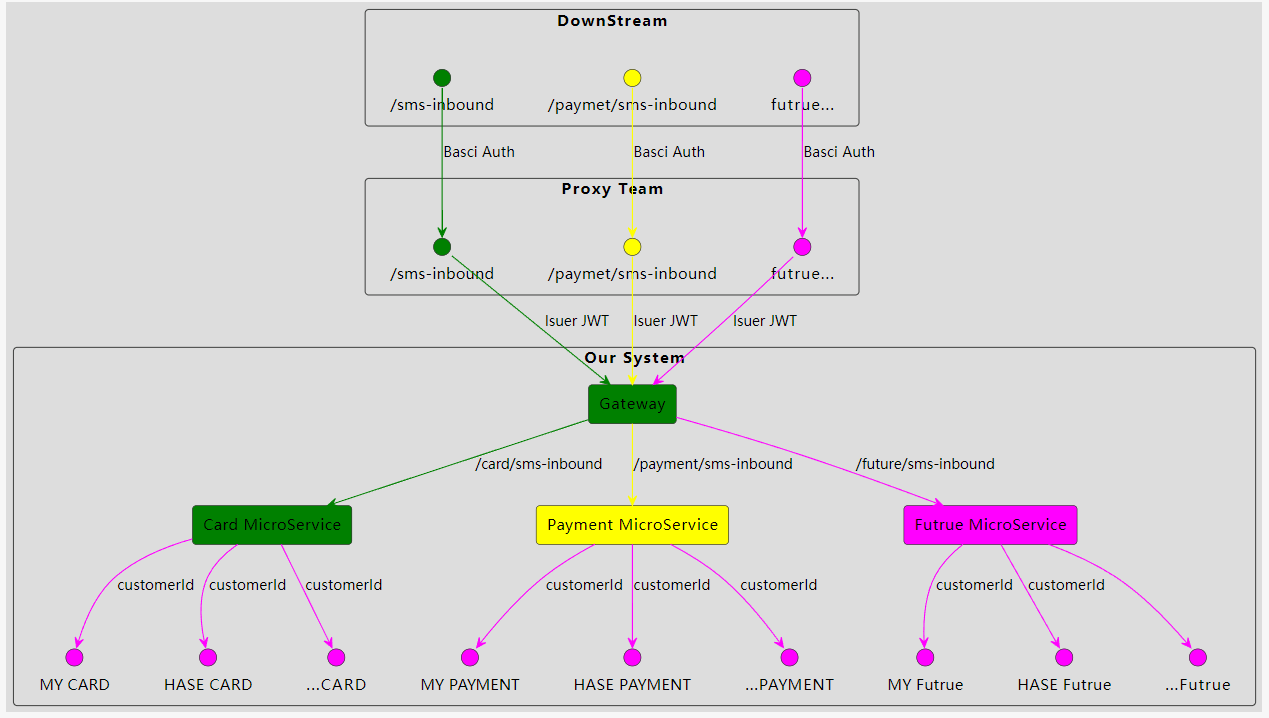

Case1:if Proxy Team can

效果图

plantuml代码

点击查看代码
@startuml
!theme toy
skinparam componentStyle rectangle

skinparam interface {
 backgroundColor Magenta
}

component "DownStream" {
  () "/sms-inbound" as SalesForce1 #Green
  () "/paymet/sms-inbound" as SalesForce2 #Yellow
  interface "futrue..." as SalesForceFutrue
}

component "Proxy Team" {
  () "/sms-inbound"as HAP1 #Green
  () "/paymet/sms-inbound" as HAP2  #Yellow
  interface "futrue..." as HAPFutrue
}

SalesForce1 -down->HAP1 #Green :Basci Auth
SalesForce2 -down->HAP2 #Yellow :Basci Auth
SalesForceFutrue-down->HAPFutrue #Magenta :Basci Auth


component "Our System" {
  component Gateway as gateway  #Green
  component "Card MicroService" as card #Green
  component "Payment MicroService"as payment #Yellow
  component  "Futrue MicroService" as AFISPFutrue #Magenta

    interface "MY CARD"
    interface "HASE CARD"
    interface "...CARD"

    interface "MY PAYMENT"
    interface "HASE PAYMENT"
    interface "...PAYMENT"
  interface "MY Futrue"
  interface "HASE Futrue"
  interface "...Futrue"
}

HAP1 -down->gateway #Green :Isuer JWT
HAP2 -down->gateway #Yellow :Isuer JWT
HAPFutrue -down->gateway #Magenta:Isuer JWT

gateway -down->card #Green :/card/sms-inbound
gateway -down->payment #Yellow :/payment/sms-inbound
gateway -down->AFISPFutrue #Magenta :/future/sms-inbound

card-down->"MY CARD" #Magenta :customerId
card-down->"HASE CARD" #Magenta :customerId
card-down->"...CARD" #Magenta :customerId

payment-down->"MY PAYMENT" #Magenta :customerId
payment-down->"HASE PAYMENT" #Magenta :customerId
payment-down->"...PAYMENT" #Magenta :customerId

AFISPFutrue-down->"MY Futrue" #Magenta :customerId
AFISPFutrue-down->"HASE Futrue" #Magenta :customerId
AFISPFutrue-down->"...Futrue"  #Magenta
@enduml

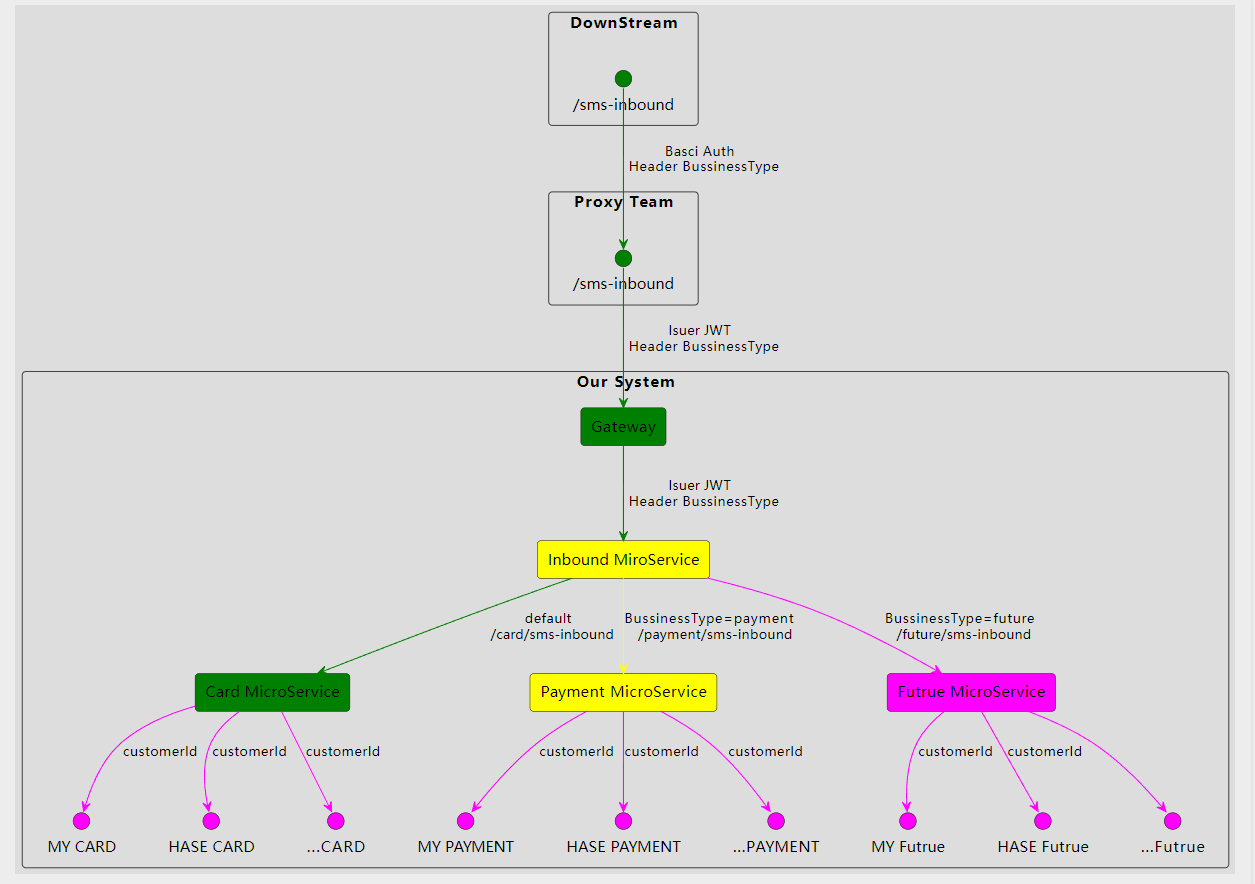

Case2:if Proxy Team can't

效果图

plantuml代码

点击查看代码
@startuml
!theme toy
skinparam componentStyle rectangle

skinparam interface {
 backgroundColor Magenta
}

component "DownStream" {
  () "/sms-inbound" as SalesForce1 #Green
  () "/paymet/sms-inbound" as SalesForce2 #Yellow
  interface "futrue..." as SalesForceFutrue
}

component "Proxy Team" {
  () "/sms-inbound"as HAP1 #Green
  () "/paymet/sms-inbound" as HAP2  #Yellow
  interface "futrue..." as HAPFutrue
}

SalesForce1 -down->HAP1 #Green :Basci Auth
SalesForce2 -down->HAP2 #Yellow :Basci Auth
SalesForceFutrue-down->HAPFutrue #Magenta :Basci Auth


component "Our System" {
  component Gateway as gateway  #Green
  component "Card MicroService" as card #Green
  component "Payment MicroService"as payment #Yellow
  component  "Futrue MicroService" as AFISPFutrue #Magenta

    interface "MY CARD"
    interface "HASE CARD"
    interface "...CARD"

    interface "MY PAYMENT"
    interface "HASE PAYMENT"
    interface "...PAYMENT"
  interface "MY Futrue"
  interface "HASE Futrue"
  interface "...Futrue"
}

HAP1 -down->gateway #Green :Isuer JWT
HAP2 -down->gateway #Yellow :Isuer JWT
HAPFutrue -down->gateway #Magenta:Isuer JWT

gateway -down->card #Green :/card/sms-inbound
gateway -down->payment #Yellow :/payment/sms-inbound
gateway -down->AFISPFutrue #Magenta :/future/sms-inbound

card-down->"MY CARD" #Magenta :customerId
card-down->"HASE CARD" #Magenta :customerId
card-down->"...CARD" #Magenta :customerId

payment-down->"MY PAYMENT" #Magenta :customerId
payment-down->"HASE PAYMENT" #Magenta :customerId
payment-down->"...PAYMENT" #Magenta :customerId

AFISPFutrue-down->"MY Futrue" #Magenta :customerId
AFISPFutrue-down->"HASE Futrue" #Magenta :customerId
AFISPFutrue-down->"...Futrue"  #Magenta
@enduml
