Java学习教程之定时任务全家桶
这篇文章主要给大家介绍了关于Java学习教程之定时任务全家桶的相关资料，文中通过示例代码介绍的非常详细，对大家的学习或者工作具有一定的参考学习价值，需要的朋友们下面随着小编来一起学习学习吧！
定时任务应用非常广泛，Java提供的现有解决方案有很多。
本次主要讲schedule、quartz、xxl-job、shedlock等相关的代码实践。
一、SpringBoot使用Schedule
核心代码:
1 @Component 2 public class ScheduleTask { 3 4 private Logger logger = LoggerFactory.getLogger(ScheduleTask.class); 5 6 @Scheduled(cron = "0/1 * * * * ? ") 7 public void one() { 8 9 logger.info("one:" + new Date()); 10 } 11 12 @Scheduled(cron = "0/1 * * * * ? ") 13 public void two() { 14 15 logger.info("two:" + new Date()); 16 } 17 18 19 @Scheduled(cron = "0/1 * * * * ? ") 20 public void three() { 21 22 logger.info("three:" + new Date()); 23 } 24 }
运行效果如下:
除此之外还可以这样实现，核心代码:
1 @PropertySource(value = { 2 "classpath:task.properties", 3 }, encoding = "utf-8") 4 @Component("scheduleTask") 5 public class ScheduleTask implements SchedulingConfigurer { 6 7 8 @Value("${TEST_JOB_TASK_CRON}") 9 private String cron; 10 11 @Override 12 public void configureTasks(ScheduledTaskRegistrar scheduledTaskRegistrar) { 13 14 scheduledTaskRegistrar.addTriggerTask(new Runnable() { 15 16 @Override 17 public void run() { 18 System.out.println("执行任务:" + DateUtil.date()); 19 20 21 } 22 23 }, new Trigger() { 24 @Override 25 public Date nextExecutionTime(TriggerContext triggerContext) { 26 return new CronTrigger(cron).nextExecutionTime(triggerContext); 27 } 28 }); 29 } 30 31 public void setCron(String cron) { 32 this.cron = cron; 33 } 34 }
有朋友或许很疑惑，为什么要写这么一大堆，这个与前面的代码又有何区别呢？
区别是多线程并行。其实多线程并行也可以不用这么写，只需写一段核心配置类代码即可。
定时任务多线程配置类:
1 @Configuration 2 public class ScheduleConfig implements SchedulingConfigurer { 3 4 public void configureTasks(ScheduledTaskRegistrar scheduledTaskRegistrar) { 5 scheduledTaskRegistrar.setScheduler(Executors.newScheduledThreadPool(5)); 6 } 7 }

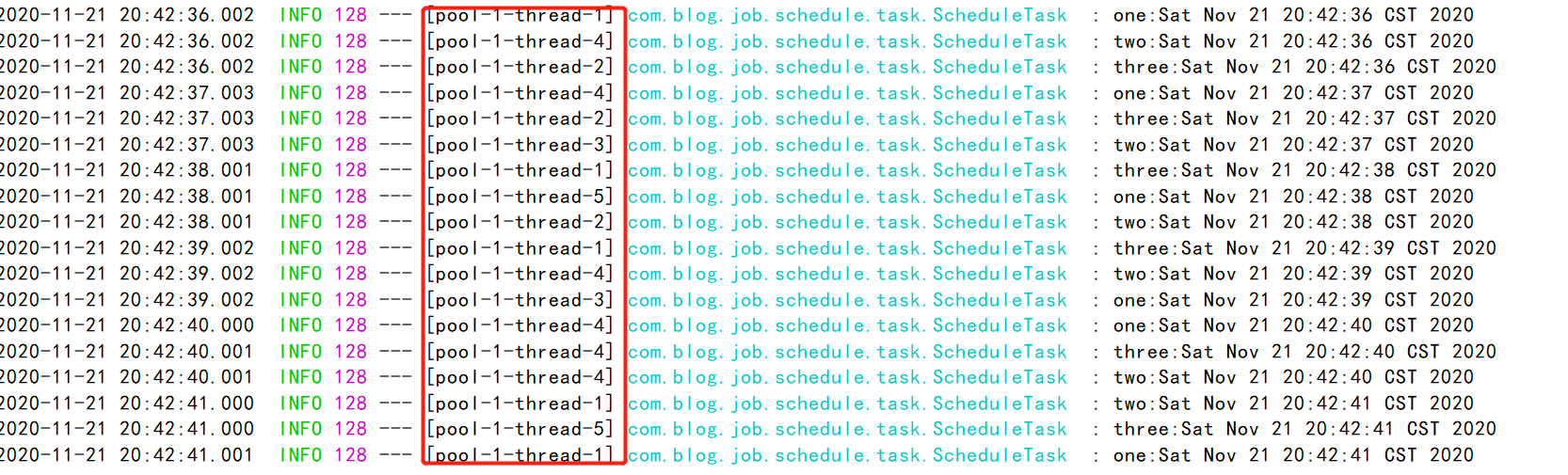

再次启动，查看效果，如下:
由此看出走不同的线程执行，不同的线程执行的好处是，如果某一个线程挂掉后，并不会阻塞导致其它定时任务无法执行。
另外如果要想并发执行，前面的配置可以不要，直接用SpringBoot提供的现成注解即可，核心代码如下:
1 @Component 2 @EnableAsync 3 public class ScheduleAsyncTask { 4 5 private Logger logger = LoggerFactory.getLogger(ScheduleAsyncTask.class); 6 7 @Scheduled(cron = "0/1 * * * * ? ") 8 @Async 9 public void one() { 10 11 logger.info("one Async:" + new Date()); 12 } 13 14 @Scheduled(cron = "0/1 * * * * ? ") 15 @Async 16 public void two() { 17 18 logger.info("two Async:" + new Date()); 19 } 20 21 22 @Scheduled(cron = "0/1 * * * * ? ") 23 @Async 24 public void three() { 25 26 logger.info("three Async:" + new Date()); 27 } 28 }
除此外，还有基于schedule动态定时任务(所谓动态只不过是指cron表达式放在对应的数据表里)，简单示例代码:
1 @Configuration 2 public class DynamicScheduleTask implements SchedulingConfigurer { 3 4 @Autowired 5 @SuppressWarnings("all") 6 CronMapper cronMapper; 7 8 @Mapper 9 public interface CronMapper { 10 @Select("select cron from cron limit 1") 11 public String getCron(); 12 } 13 14 /** 15 * 执行定时任务. 16 */ 17 public void configureTasks(ScheduledTaskRegistrar taskRegistrar) { 18 19 taskRegistrar.addTriggerTask( 20 //1.添加任务内容(Runnable) 21 () -> System.out.println("执行动态定时任务: " + LocalDateTime.now().toLocalTime()), 22 //2.设置执行周期(Trigger) 23 triggerContext -> { 24 //2.1 从数据库获取执行周期 25 String cron = cronMapper.getCron(); 26 //2.2 合法性校验. 27 if (StringUtils.isEmpty(cron)) { 28 // Omitted Code .. 29 } 30 //2.3 返回执行周期(Date) 31 return new CronTrigger(cron).nextExecutionTime(triggerContext); 32 } 33 ); 34 } 35 36 37 38 }
核心配置文件(application.yml):
1 spring: 2 datasource: 3 url: jdbc:mysql://127.0.0.1:3306/test 4 username: root 5 password: 1234
SQL脚本:
1 DROP DATABASE IF EXISTS `test`; 2 CREATE DATABASE `test`; 3 USE `test`; 4 DROP TABLE IF EXISTS `cron`; 5 CREATE TABLE `cron` ( 6 `cron_id` varchar(30) NOT NULL PRIMARY KEY, 7 `cron` varchar(30) NOT NULL 8 ); 9 INSERT INTO `cron` VALUES ('1', '0/5 * * * * ?');

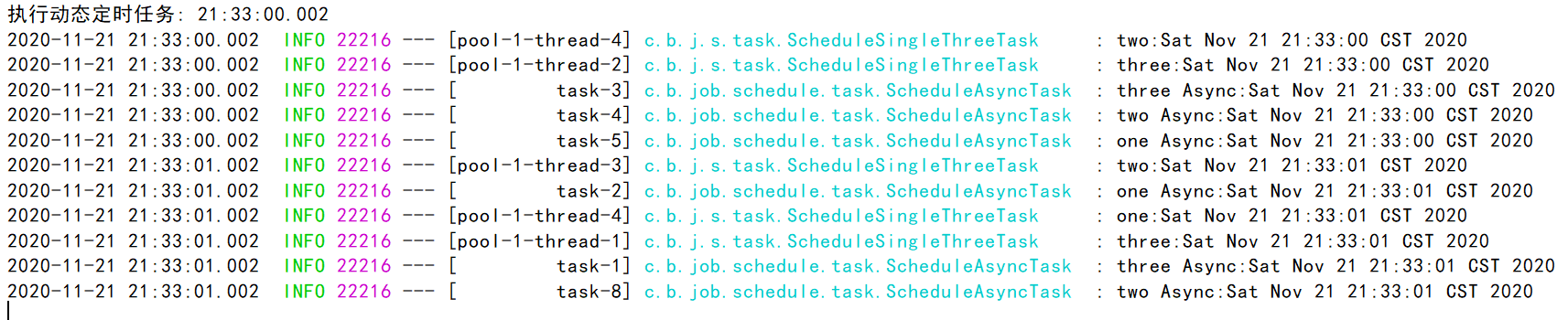

运行效果如下:
二、SpringBoot使用Quartz
1.Maven依赖
|
1
2
3
4
5
|
<!--引入quartz定时框架--><dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-quartz</artifactId></dependency> |
2.配置文件
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
|
spring: quartz: #相关属性配置 properties: org: quartz: scheduler: instanceName: clusteredScheduler instanceId: AUTO jobStore: class: org.quartz.impl.jdbcjobstore.JobStoreTX driverDelegateClass: org.quartz.impl.jdbcjobstore.StdJDBCDelegate tablePrefix: QRTZ_ isClustered: true clusterCheckinInterval: 10000 useProperties: false threadPool: class: org.quartz.simpl.SimpleThreadPool threadCount: 10 threadPriority: 5 threadsInheritContextClassLoaderOfInitializingThread: true #数据库方式 job-store-type: jdbc #初始化表结构 jdbc: initialize-schema: always datasource: url: jdbc:mysql://127.0.0.1:3306/test username: root password: 1234 |
3.启动类
|
1
2
3
4
5
6
7
8
9
10
|
@SpringBootApplication@EnableSchedulingpublic class BlogQuartzApplication { public static void main(String[] args) { SpringApplication.run(BlogQuartzApplication.class, args); }} |
4.配置类
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
|
@Configurationpublic class QuartzConfiguration { // 使用jobDetail包装job @Bean public JobDetail myCronJobDetail() { return JobBuilder.newJob(CouponTimeOutJob.class).withIdentity("couponTimeOutJob").storeDurably().build(); } // 把jobDetail注册到Cron表达式的trigger上去 @Bean public Trigger CronJobTrigger() { CronScheduleBuilder cronScheduleBuilder = CronScheduleBuilder.cronSchedule("0/1 * * * * ?"); return TriggerBuilder.newTrigger() .forJob(myCronJobDetail()) .withIdentity("CouponTimeOutJobTrigger") .withSchedule(cronScheduleBuilder) .build(); }} |
5.定时任务类
|
1
2
3
4
5
6
|
public class CouponTimeOutJob extends QuartzJobBean { @Override protected void executeInternal(JobExecutionContext jobExecutionContext) throws JobExecutionException { System.out.println("定时任务执行"); }} |
6.启动成功不报错

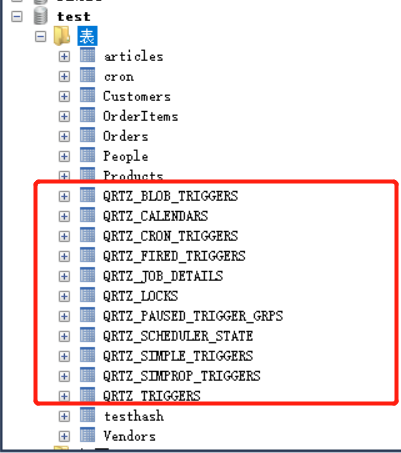

(1)对应的数据库会生成定时任务相关的数据表

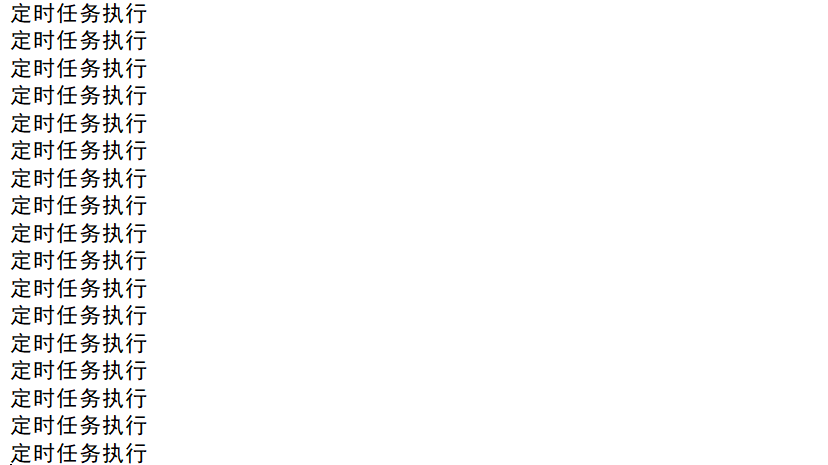

(2)控制台不断输出定时任务执行日志
三、SpringBoot使用xxl-job
之前写过一样的例子，如今简化了下。
关于xxl-job使用详情，可以参考我的这篇文章:
1.Maven依赖
|
1
2
3
4
5
|
<dependency> <groupId>com.xuxueli</groupId> <artifactId>xxl-job-core</artifactId> <version>2.2.0</version></dependency> |
2.配置类
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
|
@Configurationpublic class XxlJobConfig { private Logger logger = LoggerFactory.getLogger(XxlJobConfig.class); @Value("${xxl.job.admin.addresses}") private String adminAddresses; @Value("${xxl.job.executor.appname}") private String appName; @Value("${xxl.job.executor.ip}") private String ip; @Value("${xxl.job.executor.port}") private int port; @Value("${xxl.job.accessToken}") private String accessToken; @Value("${xxl.job.executor.logpath}") private String logPath; @Value("${xxl.job.executor.logretentiondays}") private int logRetentionDays; @Bean(initMethod = "start", destroyMethod = "destroy") public XxlJobSpringExecutor xxlJobExecutor() { logger.info(">>>>>>>>>>> xxl-job config init."); XxlJobSpringExecutor xxlJobSpringExecutor = new XxlJobSpringExecutor(); xxlJobSpringExecutor.setAdminAddresses(adminAddresses); xxlJobSpringExecutor.setAppname(appName); xxlJobSpringExecutor.setIp(ip); xxlJobSpringExecutor.setPort(port); xxlJobSpringExecutor.setAccessToken(accessToken); xxlJobSpringExecutor.setLogPath(logPath); xxlJobSpringExecutor.setLogRetentionDays(logRetentionDays); return xxlJobSpringExecutor; }} |
3.配置文件内容
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
|
# web portserver.port=8081# no web#spring.main.web-environment=falsexxl.job.admin.addresses=http://127.0.0.1:8080/xxl-job-admin### xxl-job, access tokenxxl.job.accessToken=### xxl-job executor appnamexxl.job.executor.appname=blog-job-xxl-job### xxl-job executor registry-address: default use address to registry , otherwise use ip:port if address is nullxxl.job.executor.address=### xxl-job executor server-infoxxl.job.executor.ip=xxl.job.executor.port=8888### xxl-job executor log-pathxxl.job.executor.logpath=/data/applogs/xxl-job/jobhandler### xxl-job executor log-retention-daysxxl.job.executor.logretentiondays=30 |
4.定时任务类
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
|
@Componentpublic class XxlJobTaskExample { @XxlJob("blogJobHandler") public ReturnT<String> blogJobHandler(String param) throws Exception { System.out.println("执行"); XxlJobLogger.log("XXL-JOB, Hello World."); for (int i = 0; i < 5; i++) { XxlJobLogger.log("beat at:" + i); TimeUnit.SECONDS.sleep(2); } return ReturnT.SUCCESS; }} |

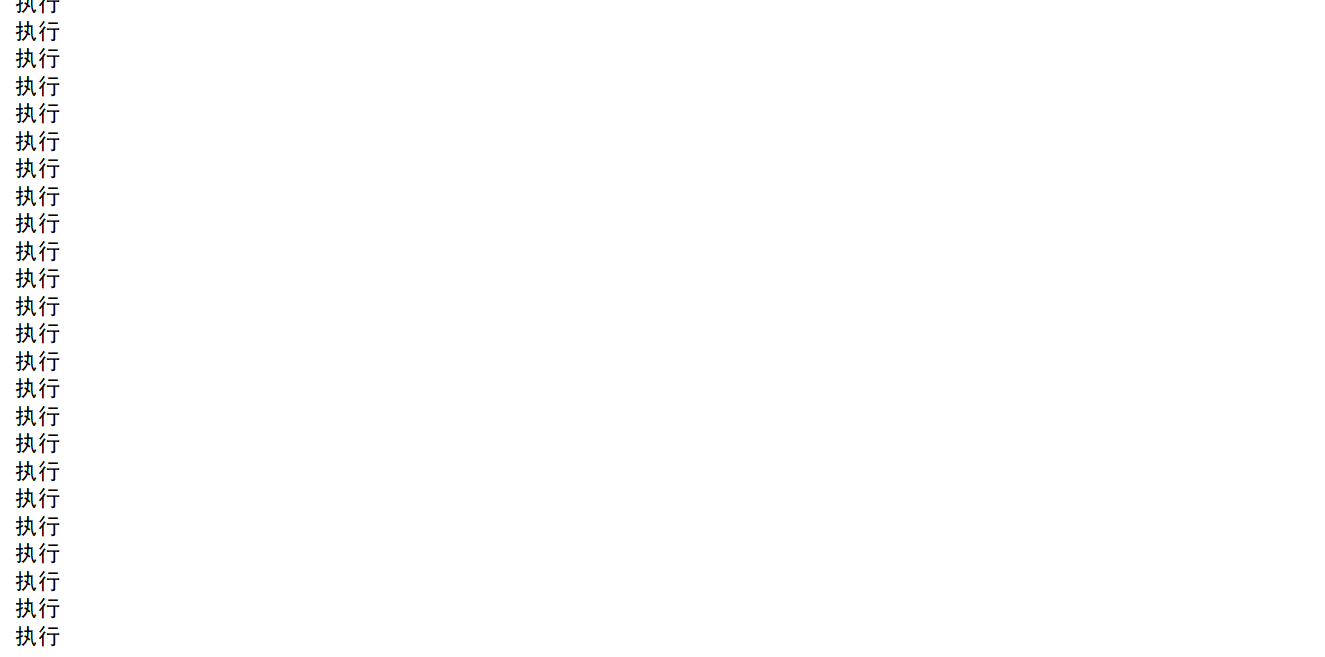

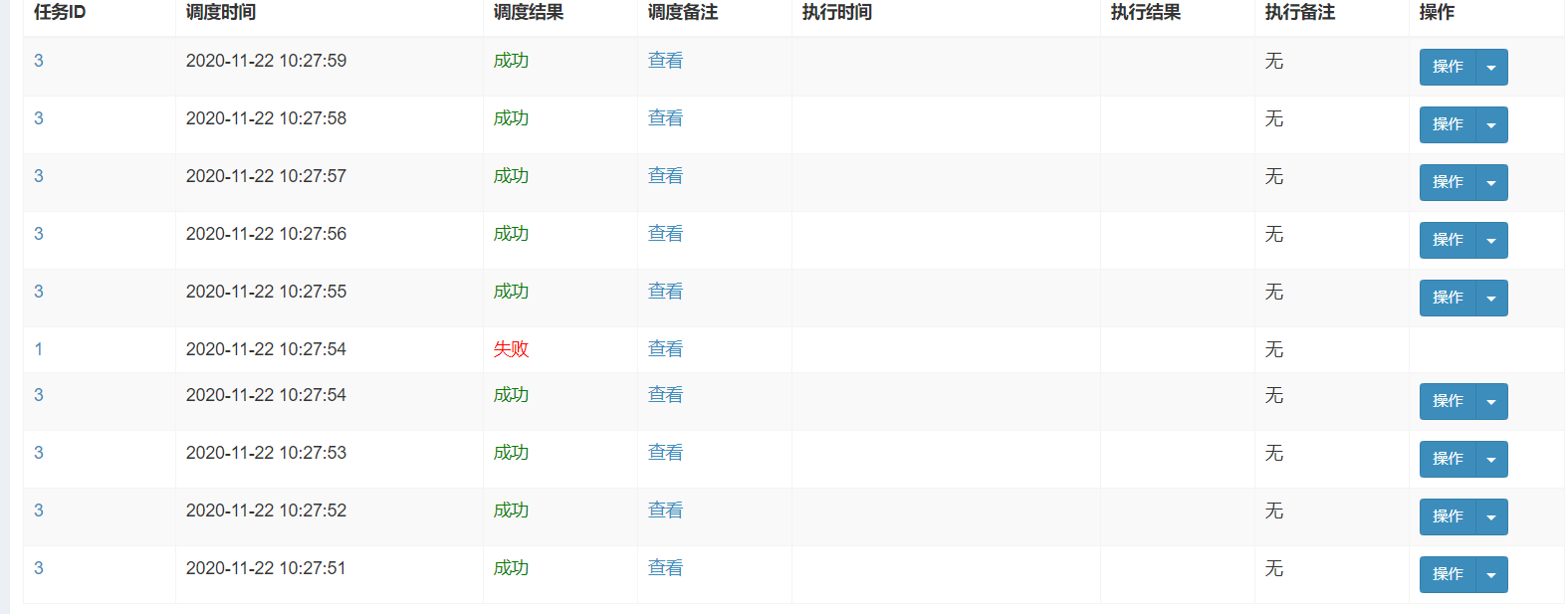

5.执行效果
分别如下所示:
四、SpringBoot使用ShedLock
1.导入Maven依赖
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
|
<!-- 分布式定时任务锁 --> <!-- https://mvnrepository.com/artifact/net.javacrumbs.shedlock/shedlock-spring --> <dependency> <groupId>net.javacrumbs.shedlock</groupId> <artifactId>shedlock-spring</artifactId> <version>4.0.4</version> </dependency> <!-- 使用redis做分布式任务 --> <dependency> <groupId>net.javacrumbs.shedlock</groupId> <artifactId>shedlock-provider-redis-spring</artifactId> <version>2.5.0</version> </dependency> <!-- redis组件 --> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-data-redis</artifactId> </dependency> |
2.编写配置类
|
1
2
3
4
5
6
7
8
9
10
11
|
@Configuration@EnableSchedulerLock(defaultLockAtMostFor = "PT30M")public class ShedLockConfig { @Bean public LockProvider lockProvider(RedisTemplate redisTemplate) { return new RedisLockProvider(redisTemplate.getConnectionFactory()); }} |
3.编写具体的定时任务
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
|
@Componentpublic class TaskSchedule { /** * 每分钟执行一次 * [秒] [分] [小时] [日] [月] [周] [年] */ @Scheduled(cron = "1 * * * * ?") @SchedulerLock(name = "synchronousSchedule") public void SynchronousSchedule() { System.out.println("Start run schedule to synchronous data:" + new Date()); }} |
4.编写启动类
|
1
2
3
4
5
6
7
|
@SpringBootApplication@EnableSchedulingpublic class ShedLockRedisApplication { public static void main(String[] args) { SpringApplication.run(ShedLockRedisApplication.class); }} |
5.配置文件
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
|
server: tomcat: uri-encoding: UTF-8 max-threads: 1000 min-spare-threads: 30 port: 8083spring: redis: database: 0 host: localhost port: 6379 password: # 密码（默认为空） timeout: 6000ms # 连接超时时长（毫秒） jedis: pool: max-active: 1000 # 连接池最大连接数（使用负值表示没有限制） max-wait: -1ms # 连接池最大阻塞等待时间（使用负值表示没有限制） max-idle: 10 # 连接池中的最大空闲连接 min-idle: 5 # 连接池中的最小空闲连接 |
6.测试
我之所以用shedlock是因为确保在集群环境下各微服务的定时任务只执行一个，而不是全部都运行相同的定时任务。

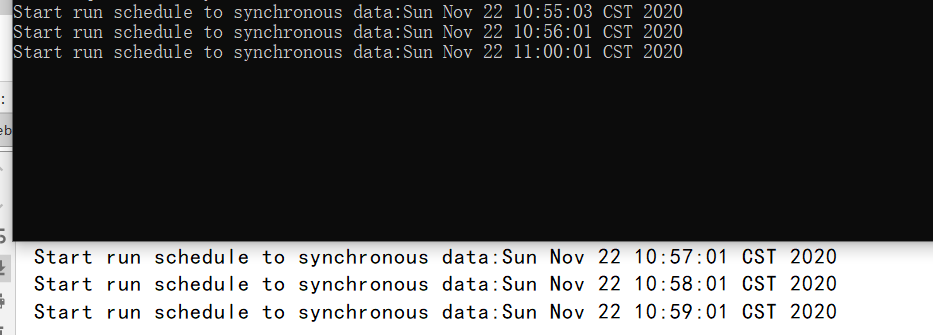

本次测试效果如下:
