012、索引及压力测试实验
索引分类介绍
B+树索引分为：聚集索引(可以理解为主键)和辅助索引(普通索引)。
聚集索引：可以理解为主键，索引和数据是在一起的，所以经常讲，innodb表数据即索引，索引即数据。
辅助索引又分为：单列索引、多列联合索引、全文索引、前缀索引。
辅助索引：也叫非聚集索引，叶子级别不包含行的全部数据，叶节点除了包含索引本身键值以外，每个叶级别中的索引行中还包含一个书签，该书签就是相应行数据的聚集索引键，数据查找会根据聚集索引键去聚集索引查找数据。
联合索引：是指对表上的多个列作索引，可以更好的缩短段池的范围，更快的检索到数据，在使用过程中，要遵循最左前缀原则。
但是不管是聚集索引还是非聚集索引，其内部都是B+树的，即高度是平衡的，叶子节点存放着所有的数据。聚集索引与非聚集索引不同的是：叶子节点存放的是否是一整行的信息。
innodb存储引擎表是索引组织表(IOT表)，即表中数据按照主键顺序存放，而聚集索引就是按照每张表的主键构造一棵B+树，并且叶子节点中存放着整张表的行记录数据，因此也让聚集索引的页节点成为数据页。聚集索引的这个特性决定了索引组织表中数据也是索引的一部分。
聚集索引对于主键的排序查找和范围查找速度非常快。主键的选择原则上选择与业务无关的列作为主键，一般是ID列。
主键的特性：非空not null，唯一性，自增属性。
myisam存储引擎：没有聚集索引，它是堆栈表，myisam的普通索引和主键索引在结构上没有任何区别。
索引的创建和删除

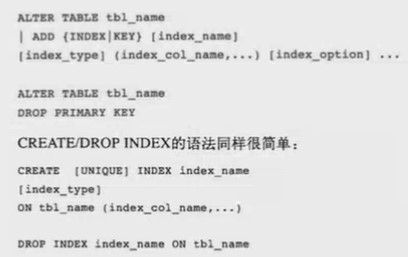

B+树索引的创建和删除可以通过两种方法：
- alter table
- create/drop index
构造数据
1、创建实验表
mysql> use test;
Database changed
mysql> create table su(
-> id int unsigned not null auto_increment,
-> c1 int not null default '0',
-> c2 int not null default '0',
-> c3 int not null default '0',
-> c4 int not null default '0',
-> c5 timestamp not null,
-> c6 varchar(200) not null default '',
-> primary key(id)
-> );
Query OK, 0 rows affected (0.09 sec)2、编写存储过程
mysql> delimiter $$
mysql> drop procedure if exists `insert_su` $$
Query OK, 0 rows affected (0.00 sec)
mysql> create procedure `insert_su`(in row_num int)
-> begin
-> declare i int default 0;
-> while i < row_num do
-> insert into su(c1,c2,c3,c4,c5,c6) values(floor(rand()*row_num),floor(rand()*row_num),floor(rand()*row_num),floor(rand()*row_num),now(),repeat('su',floor(rand()*20)));
-> set i = i+1;
-> end while;
-> end$$
Query OK, 0 rows affected (0.00 sec)
mysql> delimiter ;3、调用存储过程插入数据
mysql> call insert_su(50000);
Query OK, 1 row affected (8 min 40.95 sec)
mysql> select count(*) from su;
+----------+
| count(*) |
+----------+
| 50000 |
+----------+
1 row in set (0.01 sec)查看执行计划
1、运行sql语句
mysql> select * from su a,(select c2 from su where id=10) b where a.c2=b.c2; --括号中的部分会先执行
+-------+-------+-------+-------+-------+---------------------+----------------------------------+-------+
| id | c1 | c2 | c3 | c4 | c5 | c6 | c2 |
+-------+-------+-------+-------+-------+---------------------+----------------------------------+-------+
| 10 | 45855 | 15814 | 41507 | 10093 | 2021-04-14 16:23:57 | susususususususususu | 15814 |
| 25642 | 20821 | 15814 | 16607 | 35591 | 2021-04-14 16:28:22 | sususususususususususu | 15814 |
| 34191 | 40308 | 15814 | 8147 | 43293 | 2021-04-14 16:29:53 | susususususususususususususususu | 15814 |
+-------+-------+-------+-------+-------+---------------------+----------------------------------+-------+
3 rows in set (0.04 sec)
--这个sql是自连接查询，含义是：将所有与(id为10的c2列)值相同的记录筛选出来2、查看一张表有什么索引
mysql> show index from su;
+-------+------------+----------+--------------+-------------+-----------+-------------+----------+--------+------+------------+---------+---------------+
| Table | Non_unique | Key_name | Seq_in_index | Column_name | Collation | Cardinality | Sub_part | Packed | Null | Index_type | Comment | Index_comment |
+-------+------------+----------+--------------+-------------+-----------+-------------+----------+--------+------+------------+---------+---------------+
| su | 0 | PRIMARY | 1 | id | A | 49919 | NULL | NULL | | BTREE | | |
+-------+------------+----------+--------------+-------------+-----------+-------------+----------+--------+------+------------+---------+---------------+
1 row in set (0.00 sec)3、查看sql语句的执行计划
用explain/desc 来查看sql的执行计划，sql本身并没有执行，只是看plan：
mysql> desc select * from su a,(select c2 from su where id=10) b where a.c2=b.c2;
+----+-------------+------------+--------+---------------+---------+---------+-------+-------+-------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+------------+--------+---------------+---------+---------+-------+-------+-------------+
| 1 | PRIMARY | <derived2> | system | NULL | NULL | NULL | NULL | 1 | NULL |
| 1 | PRIMARY | a | ALL | NULL | NULL | NULL | NULL | 49919 | Using where |
| 2 | DERIVED | su | const | PRIMARY | PRIMARY | 4 | const | 1 | NULL |
+----+-------------+------------+--------+---------------+---------+---------+-------+-------+-------------+
3 rows in set (0.00 sec)
mysql> explain select * from su a,(select c2 from su where id=10) b where a.c2=b.c2;
+----+-------------+------------+--------+---------------+---------+---------+-------+-------+-------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+------------+--------+---------------+---------+---------+-------+-------+-------------+
| 1 | PRIMARY | <derived2> | system | NULL | NULL | NULL | NULL | 1 | NULL |
| 1 | PRIMARY | a | ALL | NULL | NULL | NULL | NULL | 49919 | Using where |
| 2 | DERIVED | su | const | PRIMARY | PRIMARY | 4 | const | 1 | NULL |
+----+-------------+------------+--------+---------------+---------+---------+-------+-------+-------------+
3 rows in set (0.00 sec)4、执行计划的查看要点
- 先看type列，当type列出现all这样的关键字的时候，代表全表扫描
- 再看key列，然后看rows（行数）一般情况下，rows的值不应超过5000行。
- 最后看Extra，额外信息池。Using filesort 代表磁盘排序，Using index 证明使用到了覆盖索引。
在where条件后面的字段，可以尝试创建索引，需要考虑该字段合适不合适来作为索引。
查看索引的选择性：select count(distinct(column))/count(*) from table_name;
mysql> select count(distinct c2)/count(*) from su;
+-----------------------------+
| count(distinct c2)/count(*) |
+-----------------------------+
| 0.6314 |
+-----------------------------+
1 row in set (0.03 sec)值越接近于1，选择性越高，越适合建立索引。
创建索引
B+树索引的创建和删除可以通过两种方法：
- alter table
- create/drop index
1、创建单列索引
mysql> alter table su add index idx_c2(c2);
Query OK, 0 rows affected (0.25 sec)
Records: 0 Duplicates: 0 Warnings: 0或者：
mysql> create index idx_c2 on su(c2);
Query OK, 0 rows affected (0.14 sec)
Records: 0 Duplicates: 0 Warnings: 0查看表结构：
mysql> show create table su \G;
*************************** 1. row ***************************
Table: su
Create Table: CREATE TABLE `su` (
`id` int(10) unsigned NOT NULL AUTO_INCREMENT,
`c1` int(11) NOT NULL DEFAULT '0',
`c2` int(11) NOT NULL DEFAULT '0',
`c3` int(11) NOT NULL DEFAULT '0',
`c4` int(11) NOT NULL DEFAULT '0',
`c5` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
`c6` varchar(200) NOT NULL DEFAULT '',
PRIMARY KEY (`id`),
KEY `idx_c2` (`c2`)
) ENGINE=InnoDB AUTO_INCREMENT=50001 DEFAULT CHARSET=utf8
1 row in set (0.00 sec)查看表su有哪些索引：
mysql> show index from su;
+-------+------------+----------+--------------+-------------+-----------+-------------+----------+--------+------+------------+---------+---------------+
| Table | Non_unique | Key_name | Seq_in_index | Column_name | Collation | Cardinality | Sub_part | Packed | Null | Index_type | Comment | Index_comment |
+-------+------------+----------+--------------+-------------+-----------+-------------+----------+--------+------+------------+---------+---------------+
| su | 0 | PRIMARY | 1 | id | A | 49919 | NULL | NULL | | BTREE | | |
| su | 1 | idx_c2 | 1 | c2 | A | 49919 | NULL | NULL | | BTREE | | |
+-------+------------+----------+--------------+-------------+-----------+-------------+----------+--------+------+------------+---------+---------------+
2 rows in set (0.00 sec)2、再次查看执行计划
mysql> explain select * from su a,(select c2 from su where id=10) b where a.c2=b.c2;
+----+-------------+------------+--------+---------------+---------+---------+-------+------+-------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+------------+--------+---------------+---------+---------+-------+------+-------+
| 1 | PRIMARY | <derived2> | system | NULL | NULL | NULL | NULL | 1 | NULL |
| 1 | PRIMARY | a | ref | idx_c2 | idx_c2 | 4 | const | 3 | NULL |
| 2 | DERIVED | su | const | PRIMARY | PRIMARY | 4 | const | 1 | NULL |
+----+-------------+------------+--------+---------------+---------+---------+-------+------+-------+
3 rows in set (0.00 sec)可以看到key列已经使用了索引，rows减少了很多。
覆盖索引：
查找的字段，作为检索条件的时候又是索引。不回表直接可以从索引中，找到我想要的数据。
mysql> explain select c2 from su where c2=111;
+----+-------------+-------+------+---------------+--------+---------+-------+------+-------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+-------+------+---------------+--------+---------+-------+------+-------------+
| 1 | SIMPLE | su | ref | idx_c2 | idx_c2 | 4 | const | 2 | Using index |
+----+-------------+-------+------+---------------+--------+---------+-------+------+-------------+
1 row in set (0.08 sec)2、建立联合索引
联合索引必须满足最左前缀原则（a,b,c），语法如下：
mysql> create index idx_c3_c4 on su(c3,c4);
Query OK, 0 rows affected (0.31 sec)
Records: 0 Duplicates: 0 Warnings: 0
mysql> show index from su;
+-------+------------+-----------+--------------+-------------+-----------+-------------+----------+--------+------+------------+---------+---------------+
| Table | Non_unique | Key_name | Seq_in_index | Column_name | Collation | Cardinality | Sub_part | Packed | Null | Index_type | Comment | Index_comment |
+-------+------------+-----------+--------------+-------------+-----------+-------------+----------+--------+------+------------+---------+---------------+
| su | 0 | PRIMARY | 1 | id | A | 49919 | NULL | NULL | | BTREE | | |
| su | 1 | idx_c2 | 1 | c2 | A | 49919 | NULL | NULL | | BTREE | | |
| su | 1 | idx_c3_c4 | 1 | c3 | A | 49919 | NULL | NULL | | BTREE | | |
| su | 1 | idx_c3_c4 | 2 | c4 | A | 49919 | NULL | NULL | | BTREE | | |
+-------+------------+-----------+--------------+-------------+-----------+-------------+----------+--------+------+------------+---------+---------------+
4 rows in set (0.00 sec)查看以下几种模式下的执行计划：
以c3为where条件进行查询：
mysql> desc select * from su where c3=40680;
+----+-------------+-------+------+---------------+-----------+---------+-------+------+-------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+-------+------+---------------+-----------+---------+-------+------+-------+
| 1 | SIMPLE | su | ref | idx_c3_c4 | idx_c3_c4 | 4 | const | 1 | NULL |
+----+-------------+-------+------+---------------+-----------+---------+-------+------+-------+
1 row in set (0.00 sec)以c4为条件进行查询：
mysql> desc select * from su where c4=40680;
+----+-------------+-------+------+---------------+------+---------+------+-------+-------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+-------+------+---------------+------+---------+------+-------+-------------+
| 1 | SIMPLE | su | ALL | NULL | NULL | NULL | NULL | 49919 | Using where |
+----+-------------+-------+------+---------------+------+---------+------+-------+-------------+
1 row in set (0.00 sec)以c3为条件查询，并按照c4排序：
mysql> desc select * from su where c3=40680 order by c4;
+----+-------------+-------+------+---------------+-----------+---------+-------+------+-------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+-------+------+---------------+-----------+---------+-------+------+-------------+
| 1 | SIMPLE | su | ref | idx_c3_c4 | idx_c3_c4 | 4 | const | 1 | Using where |
+----+-------------+-------+------+---------------+-----------+---------+-------+------+-------------+
1 row in set (0.00 sec)以c4为条件查询，按照c3排序：
mysql> desc select * from su where c4=40680 order by c3;
+----+-------------+-------+------+---------------+------+---------+------+-------+-----------------------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+-------+------+---------------+------+---------+------+-------+-----------------------------+
| 1 | SIMPLE | su | ALL | NULL | NULL | NULL | NULL | 49919 | Using where; Using filesort |
+----+-------------+-------+------+---------------+------+---------+------+-------+-----------------------------+
1 row in set (0.00 sec)查询c3或者c4：使用or的查询，无法使用索引，除非建立两个单列索引在c3、c4列上。
mysql> desc select * from su where c3=40680 or c4=40680;
+----+-------------+-------+------+---------------+------+---------+------+-------+-------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+-------+------+---------------+------+---------+------+-------+-------------+
| 1 | SIMPLE | su | ALL | idx_c3_c4 | NULL | NULL | NULL | 49919 | Using where |
+----+-------------+-------+------+---------------+------+---------+------+-------+-------------+
1 row in set (0.00 sec)查询c3和c4：
mysql> desc select * from su where c3=40680 and c4=40680;
+----+-------------+-------+------+---------------+-----------+---------+-------------+------+-------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+-------+------+---------------+-----------+---------+-------------+------+-------+
| 1 | SIMPLE | su | ref | idx_c3_c4 | idx_c3_c4 | 8 | const,const | 1 | NULL |
+----+-------------+-------+------+---------------+-----------+---------+-------------+------+-------+
1 row in set (0.00 sec)结论：查询条件满足最左前缀原则会使用索引。建议：联合索引的建立，其中一个字段用于检索，另外的字段用于排序，这样可能会避免磁盘排序（Using filesort）。order by后的字段，最好也创建索引。
查询语句中，只能用到一个(索引)index。用到两个索引的情况：or语句中两个列都建立了索引，type：index_merge（索引合并）。
mysql> drop index idx_c3_c4 on su;
Query OK, 0 rows affected (0.09 sec)
Records: 0 Duplicates: 0 Warnings: 0
mysql> create index idx_c3 on su(c3);
Query OK, 0 rows affected (0.27 sec)
Records: 0 Duplicates: 0 Warnings: 0
mysql> create index idx_c4 on su(c4);
Query OK, 0 rows affected (0.13 sec)
Records: 0 Duplicates: 0 Warnings: 0
mysql> desc select * from su where c3=40680 or c4=40680;
+----+-------------+-------+-------------+---------------+---------------+---------+------+------+-----------------------------------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+-------+-------------+---------------+---------------+---------+------+------+-----------------------------------------+
| 1 | SIMPLE | su | index_merge | idx_c3,idx_c4 | idx_c3,idx_c4 | 4,4 | NULL | 2 | Using union(idx_c3,idx_c4); Using where |
+----+-------------+-------+-------------+---------------+---------------+---------+------+------+-----------------------------------------+
1 row in set (0.00 sec)or子句如何优化：
- 我们可以在or前后字段加两个单列索引；
- 把or子句，改成union al；
3、建立全文索引
InnoDB引擎对FULLTEXT索引的支持是MySQL5.6新引入的特性，之前只有MyISAM引擎支持FULLTEXT索引。对于FULLTEXT索引的内容可以使用MATCH()…AGAINST()语法进行查询。
mysql> create fulltext index idx_c6 on su(c6);
Query OK, 0 rows affected, 1 warning (1.78 sec)
Records: 0 Duplicates: 0 Warnings: 1查看执行计划：
mysql> explain select * from su where match(c6) against('sususu');
+----+-------------+-------+----------+---------------+--------+---------+------+------+-------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+-------+----------+---------------+--------+---------+------+------+-------------+
| 1 | SIMPLE | su | fulltext | idx_c6 | idx_c6 | 0 | NULL | 1 | Using where |
+----+-------------+-------+----------+---------------+--------+---------+------+------+-------------+
1 row in set (0.00 sec)4、前缀索引
创建索引时，只取字段值的前n个字母或者字符就可以确定该字段的值，不需要给整个字段创建索引。
--create index idx_name on table_name (name(5));
mysql> create index idx_c6 on su(c6(5));
Query OK, 0 rows affected (0.37 sec)
Records: 0 Duplicates: 0 Warnings: 0查看执行计划：
mysql> explain select * from su where c6='ab';
+----+-------------+-------+------+---------------+--------+---------+-------+------+-------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+-------+------+---------------+--------+---------+-------+------+-------------+
| 1 | SIMPLE | su | ref | idx_c6 | idx_c6 | 17 | const | 1 | Using where |
+----+-------------+-------+------+---------------+--------+---------+-------+------+-------------+
1 row in set (0.00 sec)索引对null值的处理
建立测试表：
mysql> create table tb_1(
-> id int unsigned not null auto_increment,
-> c1 varchar(200) default null,
-> c2 int not null,
-> primary key(id)
-> );
Query OK, 0 rows affected (0.18 sec)插入数据：
mysql> insert into tb_1(c1,c2) values(null,1),(1,2),(null,3);
Query OK, 3 rows affected (0.01 sec)
Records: 3 Duplicates: 0 Warnings: 0查询：
mysql> select * from tb_1;
+----+------+----+
| id | c1 | c2 |
+----+------+----+
| 1 | NULL | 1 |
| 2 | 1 | 2 |
| 3 | NULL | 3 |
+----+------+----+
3 rows in set (0.00 sec)
mysql> select count(c1),count(*),count(1),count(c2),count(id) from tb_1;
+-----------+----------+----------+-----------+-----------+
| count(c1) | count(*) | count(1) | count(c2) | count(id) |
+-----------+----------+----------+-----------+-----------+
| 1 | 3 | 3 | 3 | 3 |
+-----------+----------+----------+-----------+-----------+
1 row in set (0.00 sec)结论：索引不包含null值。
删除tb_1表，修改sql，重新创建：
mysql> drop table tb_1;
Query OK, 0 rows affected (0.05 sec)
mysql> create table tb_1(
-> id int unsigned not null auto_increment,
-> c1 varchar(200) default '',
-> c2 int not null,
-> primary key(id)
-> );
Query OK, 0 rows affected (0.15 sec)插入测试数据：
mysql> insert into tb_1(c1,c2) values('',1),(1,2),('',3);
Query OK, 3 rows affected (0.09 sec)
Records: 3 Duplicates: 0 Warnings: 0查看结果：
mysql> select count(c1),count(*),count(1),count(c2),count(id) from tb_1;
+-----------+----------+----------+-----------+-----------+
| count(c1) | count(*) | count(1) | count(c2) | count(id) |
+-----------+----------+----------+-----------+-----------+
| 3 | 3 | 3 | 3 | 3 |
+-----------+----------+----------+-----------+-----------+
1 row in set (0.00 sec)结论：在索引中，不保存null值，但是保存空字符串的值。所以，创建表，字段上面有索引时，定义字段默认值时，修改default null为default '' 取代null.
另外，where条件中，函数不使用索引：select * from su where YEAR(adddate)<2007;
建议符号左边不要进行函数运算，将函数放在符号右侧。
索引优点：
提高检索效率，提高聚合函数的效率（max，min，avg），提高排序效率，表连接。
使用不到索引的情况：
- 通过索引扫描的记录数超过30%，变成全表扫描 *
- 联合索引中，第一个索引列使用范围查询，所谓范围查询就是查询一个区间的值，比如：BETWEEN
- 联合索引中，第一个查询条件不是最左索引列
- 模糊查询条件列最左以通配符 % 开始
- 内存表(HEAP 表)使用HASH索引时，使用范围检索或者ORDER BY
- 两个独立索引，其中一个用于检索，一个用于排序
- 使用了不同的 ORDER BY 和 GROUP BY 表达式
书写压力测试报告
新业务上线之前，需要对数据库进行压力测试。目的是为反映出数据库能处理的事务量和数据库能处理的请求数（TPS，QPS的值）。
- 介绍新上线业务系统的名称；
- 介绍数据库的基础信息：数据库架构(主从、主主、主从从)、DB的相关参数(主要是重要参数，innodb_buffer_pool，redo log的刷新机制，binlog的刷新机制，脏页page的刷新机制)；
- 介绍操作系统的信息(CPU核数、是否做超线程，内存大小，swap大小，磁盘类型、磁盘阵列，CPU是否最大性能模式)；
通过测试工具sysbench反应出数据库（TPS，QPS的值）。
安装sysbench
1、上传软件包，并解压：
[root@localhost soft]# pwd
/u01/soft
[root@localhost soft]# ls
sysbench-0.4.8.tar.gz
[root@localhost soft]# gunzip sysbench-0.4.8.tar.gz
[root@localhost soft]# ls
sysbench-0.4.8.tar
[root@localhost soft]# tar -xvf sysbench-0.4.8.tar2、编译，指定MySQL的lib库
[root@localhost sysbench-0.4.8]# pwd
/u01/soft/sysbench-0.4.8
[root@localhost sysbench-0.4.8]# ls
acinclude.m4 autogen.sh config configure.ac doc install-sh Makefile.in mkinstalldirs scripts TODO
aclocal.m4 ChangeLog configure COPYING INSTALL Makefile.am missing README sysbench编译过程中如果报错，可能是lib包不全，使用yum安装libtool之后再进行编译。
[root@localhost ~]# yum install libtool
[root@localhost sysbench-0.4.8]# ./configure --with-mysql-includes=/usr/local/mysql/include --with-mysql-libs=/usr/local/mysql/lib3、安装
[root@localhost sysbench-0.4.8]# pwd
/u01/soft/sysbench-0.4.8
[root@localhost sysbench-0.4.8]# ls
acinclude.m4 ChangeLog config.status COPYING install-sh Makefile.am mkinstalldirs sysbench
aclocal.m4 config configure doc libtool Makefile.in README TODO
autogen.sh config.log configure.ac INSTALL Makefile missing scripts
[root@localhost sysbench-0.4.8]# make
[root@localhost sysbench-0.4.8]# make install4、设置环境变量
安装完成后，会产生一个可执行文件，执行时报错：
[root@localhost sysbench-0.4.8]# cd sysbench/
[root@localhost sysbench]# ls
db_driver.c drivers Makefile.in sb_logger.h sb_options.h sb_timer.h sysbench.c tests
db_driver.h Makefile sb_list.h sb_logger.o sb_options.o sb_timer.o sysbench.h
db_driver.o Makefile.am sb_logger.c sb_options.c sb_timer.c sysbench sysbench.o
[root@localhost sysbench]# ./sysbench
./sysbench: error while loading shared libraries: libmysqlclient.so.18: cannot open shared object file: No such file or directory需要设置环境变量：
[root@localhost ~]# vi /etc/profile
--添加内容：export LD_LIBRARY_PATH=/usr/local/mysql/lib
[root@localhost ~]# source /etc/profile4、压力测试之前构造数据
[root@localhost sysbench]# ./sysbench --test=oltp --mysql-table-engine=innodb --mysql-db=test --oltp-table-size=100000 \
> --db-driver=mysql --mysql-socket=/tmp/mysql.sock --mysql-user=root --mysql-host=localhost --mysql-password=root prepare
--准备10万条数据5、执行压力测试
[root@localhost sysbench]# ./sysbench --test=oltp --mysql-table-engine=innodb --mysql-db=test --oltp-table-size=100000 \
> --db-driver=mysql --num-threads=2 --mysql-socket=/tmp/mysql.sock \
> --mysql-user=root --mysql-host=localhost --mysql-password=root run
sysbench v0.4.8: multi-threaded system evaluation benchmark
WARNING: Preparing of "BEGIN" is unsupported, using emulation
(last message repeated 1 times)
Running the test with following options:
Number of threads: 2
Doing OLTP test.
Running mixed OLTP test
Using Special distribution (12 iterations, 1 pct of values are returned in 75 pct cases)
Using "BEGIN" for starting transactions
Using auto_inc on the id column
Maximum number of requests for OLTP test is limited to 10000
Threads started!
Done.
OLTP test statistics:
queries performed:
read: 140000
write: 50000
other: 20000
total: 210000
transactions: 10000 (114.84 per sec.) --每秒处理事务数（tps）
deadlocks: 0 (0.00 per sec.)
read/write requests: 190000 (2181.94 per sec.) --每秒请求数（qps）
other operations: 20000 (229.68 per sec.)
Test execution summary:
total time: 87.0783s
total number of events: 10000
total time taken by event execution: 174.0889
per-request statistics:
min: 0.0072s
avg: 0.0174s
max: 0.6707s
approx. 95 percentile: 0.0491s
Threads fairness:
events (avg/stddev): 5000.0000/5.00
execution time (avg/stddev): 87.0444/0.00参数说明：
--number-threads=8表示发起8个并发连接 *cpu
--oltp-read-only=off表示不要进行只读测试，也就是会采用读写混合模式测试
--report-interval=10表示每10秒输出一次测试进度报告*
--rand-type=uniform表示随即类型为固定模式，其他几个可选随机模式：uniform(固定)，gaussian(高斯)，special(特定的)，pareto(帕累托)
--max-time=120表示最大执行时长为120秒 *
--max-requests=0表示总请求数为0，因为上面已经定义了总执行时长，所以总请求数可以设定为0；也可以只设定总请求数，不设定最大执行时长
--percentile=99表示设定采样比例，默认值时95%，99表示丢弃1%的长请求，再剩余的99%里取最大值。
可以通过调整数据库参数使tps和qps更高：
调整redo log和binlog的刷新参数：
mysql> set global innodb_flush_log_at_trx_commit=2;
Query OK, 0 rows affected (0.00 sec)
mysql> set global sync_binlog=0;
Query OK, 0 rows affected (0.00 sec)重新执行压力测试：
[root@localhost sysbench]# sysbench --test=oltp --mysql-table-engine=innodb --mysql-db=test --oltp-table-size=100000
> --db-driver=mysql --num-threads=2 --mysql-socket=/tmp/mysql.sock
> --mysql-user=root --mysql-host=localhost --mysql-password=root run
sysbench v0.4.8: multi-threaded system evaluation benchmark
WARNING: Preparing of "BEGIN" is unsupported, using emulation
(last message repeated 1 times)
Running the test with following options:
Number of threads: 2
Doing OLTP test.
Running mixed OLTP test
Using Special distribution (12 iterations, 1 pct of values are returned in 75 pct cases)
Using "BEGIN" for starting transactions
Using auto_inc on the id column
Maximum number of requests for OLTP test is limited to 10000
Threads started!
Done.
OLTP test statistics:
queries performed:
read: 140000
write: 50000
other: 20000
total: 210000
transactions: 10000 (702.90 per sec.)
deadlocks: 0 (0.00 per sec.)
read/write requests: 190000 (13355.08 per sec.)
other operations: 20000 (1405.80 per sec.)
Test execution summary:
total time: 14.2268s
total number of events: 10000
total time taken by event execution: 28.3987
per-request statistics:
min: 0.0018s
avg: 0.0028s
max: 0.8632s
approx. 95 percentile: 0.0033s
Threads fairness:
events (avg/stddev): 5000.0000/15.00
execution time (avg/stddev): 14.1994/0.00调整完参数以后可以发现tps和qps值都变大了。
浙公网安备 33010602011771号
