DataSophon集成DolphinScheduler-3.1.9升级手册
DataSophon集成DolphinScheduler-3.1.9升级手册
下载安装包并进行压缩
wget -O /opt/datasophon/DDP/packages/apache-dolphinscheduler-3.1.9-bin.tar.gz https://archive.apache.org/dist/dolphinscheduler/3.1.9/apache-dolphinscheduler-3.1.9-bin.tar.gz
cd /opt/datasophon/DDP/packages/
tar -xvf ./apache-dolphinscheduler-3.1.9-bin.tar.gz
修改安装包目录名称
保持和service_ddl.json中 decompressPackageName 一致
mv apache-dolphinscheduler-3.1.9-bin dolphinscheduler-3.1.9
增加jmx文件夹
mkdir -p /opt/datasophon/DDP/packages/dolphinscheduler-3.1.9/jmx
cp -r /opt/datasophon/hadoop-3.3.3/jmx/jmx_prometheus_javaagent-0.16.1.jar /opt/datasophon/DDP/packages/dolphinscheduler-3.1.9/jmx/
vi /opt/datasophon/DDP/packages/dolphinscheduler-3.1.9/jmx/prometheus_config.yml
---
lowercaseOutputLabelNames: true
lowercaseOutputName: true
whitelistObjectNames: ["java.lang:type=OperatingSystem"]
blacklistObjectNames: []
rules:
- pattern: 'java.lang<type=OperatingSystem><>(committed_virtual_memory|free_physical_memory|free_swap_space|total_physical_memory|total_swap_space)_size:'
name: os_$1_bytes
type: GAUGE
attrNameSnakeCase: true
- pattern: 'java.lang<type=OperatingSystem><>((?!process_cpu_time)\w+):'
name: os_$1
type: GAUGE
attrNameSnakeCase: true
修改以下脚本的启动命令使jmx生效
vim ./dolphinscheduler-3.1.9/alert-server/bin/start.sh
JAVA_OPTS=${JAVA_OPTS:-"-server -javaagent:$BIN_DIR/../../jmx/jmx_prometheus_javaagent-0.16.1.jar=12359:$BIN_DIR/../../jmx/prometheus_config.yml -Duser.timezone=${SPRING_JACKSON_TIME_ZONE} -Xms1g -Xmx1g -Xmn512m -XX:+PrintGCDetails -Xloggc:gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=dump.hprof"}
vim ./dolphinscheduler-3.1.9/api-server/bin/start.sh
JAVA_OPTS=${JAVA_OPTS:-"-server -javaagent:$BIN_DIR/../../jmx/jmx_prometheus_javaagent-0.16.1.jar=12356:$BIN_DIR/../../jmx/prometheus_config.yml -Duser.timezone=${SPRING_JACKSON_TIME_ZONE} -Xms1g -Xmx1g -Xmn512m -XX:+PrintGCDetails -Xloggc:gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=dump.hprof"}
vim ./dolphinscheduler-3.1.9/master-server/bin/start.sh
JAVA_OPTS=${JAVA_OPTS:-"-server -javaagent:$BIN_DIR/../../jmx/jmx_prometheus_javaagent-0.16.1.jar=12357:$BIN_DIR/../../jmx/prometheus_config.yml -Duser.timezone=${SPRING_JACKSON_TIME_ZONE} -Xms1g -Xmx1g -Xmn512m -XX:+PrintGCDetails -Xloggc:gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=dump.hprof"}
vim ./dolphinscheduler-3.1.9/worker-server/bin/start.sh
JAVA_OPTS=${JAVA_OPTS:-"-server -javaagent:$BIN_DIR/../../jmx/jmx_prometheus_javaagent-0.16.1.jar=12358:$BIN_DIR/../../jmx/prometheus_config.yml -Duser.timezone=${SPRING_JACKSON_TIME_ZONE} -Xms1g -Xmx1g -Xmn512m -XX:+PrintGCDetails -Xloggc:gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=dump.hprof"}
jmx的端口号需要和service_ddl.json中的jmx端口号一致
- api-server：12356
- master-server：12357
- worker-server：12358
- alert-server：12359
修改bin/dolphinscheduler-daemon.sh脚本
修改dolphinscheduler-3.1.9/bin/dolphinscheduler-daemon.sh脚本，在几乎使最下方的地方$state == "STOP"的地方增加一行exit 1
vi /opt/datasophon/DDP/packages/dolphinscheduler-3.1.9/bin/dolphinscheduler-daemon.sh
(status)
get_server_running_status
if [[ $state == "STOP" ]]; then
# font color - red
state="[ \033[1;31m $state \033[0m ]"
#增加一行，使得DataSophon执行脚本时可以有返回值判断状态
exit 1
else
# font color - green
state="[ \033[1;32m $state \033[0m ]"
fi
echo -e "$command $state"
;;
(*)
echo $usage
exit 1
;;
添加DolphinScheduler需要的驱动包
MySQL8
wget -O /opt/datasophon/DDP/packages/dolphinscheduler-3.1.9/alert-server/libs/mysql-connector-java-8.0.29.jar https://repo1.maven.org/maven2/mysql/mysql-connector-java/8.0.29/mysql-connector-java-8.0.29.jar
wget -O /opt/datasophon/DDP/packages/dolphinscheduler-3.1.9/api-server/libs/mysql-connector-java-8.0.29.jar https://repo1.maven.org/maven2/mysql/mysql-connector-java/8.0.29/mysql-connector-java-8.0.29.jar
wget -O /opt/datasophon/DDP/packages/dolphinscheduler-3.1.9/master-server/libs/mysql-connector-java-8.0.29.jar https://repo1.maven.org/maven2/mysql/mysql-connector-java/8.0.29/mysql-connector-java-8.0.29.jar
wget -O /opt/datasophon/DDP/packages/dolphinscheduler-3.1.9/standalone-server/libs/mysql-connector-java-8.0.29.jar https://repo1.maven.org/maven2/mysql/mysql-connector-java/8.0.29/mysql-connector-java-8.0.29.jar
wget -O /opt/datasophon/DDP/packages/dolphinscheduler-3.1.9/tools/libs/mysql-connector-java-8.0.29.jar https://repo1.maven.org/maven2/mysql/mysql-connector-java/8.0.29/mysql-connector-java-8.0.29.jar
wget -O /opt/datasophon/DDP/packages/dolphinscheduler-3.1.9/worker-server/libs/mysql-connector-java-8.0.29.jar https://repo1.maven.org/maven2/mysql/mysql-connector-java/8.0.29/mysql-connector-java-8.0.29.jar
参考ds的说明https://github.com/apache/dolphinscheduler/blob/3.1.9-release/docs/docs/zh/guide/howto/datasource-setting.md
commons-cli
wget -O /opt/datasophon/DDP/packages/dolphinscheduler-3.1.9/alert-server/libs/commons-cli-1.9.0.jar https://repo1.maven.org/maven2/commons-cli/commons-cli/1.9.0/commons-cli-1.9.0.jar
wget -O /opt/datasophon/DDP/packages/dolphinscheduler-3.1.9/api-server/libs/commons-cli-1.9.0.jar https://repo1.maven.org/maven2/commons-cli/commons-cli/1.9.0/commons-cli-1.9.0.jar
wget -O /opt/datasophon/DDP/packages/dolphinscheduler-3.1.9/master-server/libs/commons-cli-1.9.0.jar https://repo1.maven.org/maven2/commons-cli/commons-cli/1.9.0/commons-cli-1.9.0.jar
wget -O /opt/datasophon/DDP/packages/dolphinscheduler-3.1.9/standalone-server/libs/commons-cli-1.9.0.jar https://repo1.maven.org/maven2/commons-cli/commons-cli/1.9.0/commons-cli-1.9.0.jar
wget -O /opt/datasophon/DDP/packages/dolphinscheduler-3.1.9/tools/libs/commons-cli-1.9.0.jar https://repo1.maven.org/maven2/commons-cli/commons-cli/1.9.0/commons-cli-1.9.0.jar
wget -O /opt/datasophon/DDP/packages/dolphinscheduler-3.1.9/worker-server/libs/commons-cli-1.9.0.jar https://repo1.maven.org/maven2/commons-cli/commons-cli/1.9.0/commons-cli-1.9.0.jar

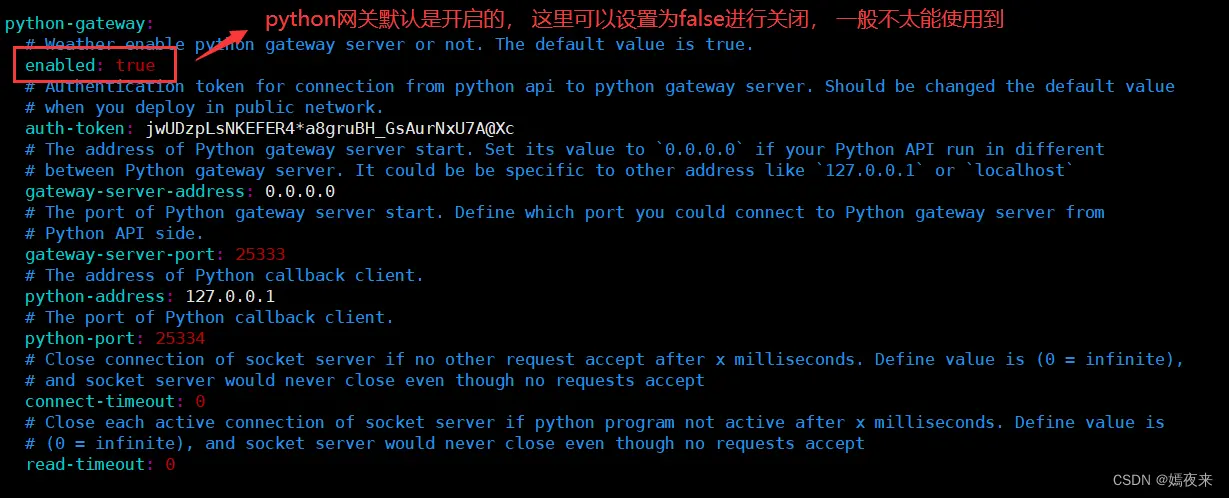

关闭 Python 网关 【可选】
Python 网关服务会默认与 api-server 一起启动，如果不想启动则需要更改 api-server 配置文件 /opt/packages/apache-dolphinscheduler-3.1.9-bin/api-server/conf/application.yaml 中的 python-gateway.enabled : false 来禁用它。
vim /opt/datasophon/DDP/packages/dolphinscheduler-3.1.9/api-server/conf/application.yaml
重新构建安装包
tar -zcf dolphinscheduler-3.1.9.tar.gz dolphinscheduler-3.1.9
md5sum dolphinscheduler-3.1.9.tar.gz > dolphinscheduler-3.1.9.tar.gz.md5
修改DS/service_ddl.json，修改以下参数
vi /opt/datasophon/datasophon-manager-1.2.1/conf/meta/DDP-1.2.1/DS/service_ddl.json
{
"name": "DS",
"label": "DolphinScheduler",
"description": "分布式易扩展的可视化工作流任务调度平台",
"version": "3.1.9",
"sortNum": 14,
"dependencies":["ZOOKEEPER"],
"packageName": "dolphinscheduler-3.1.9.tar.gz",
"decompressPackageName": "dolphinscheduler-3.1.9",
"roles": [
{
"name": "ApiServer",
"label": "ApiServer",
"roleType": "master",
"cardinality": "1",
"logFile": "api-server/logs/dolphinscheduler-api.log",
"jmxPort": 12356,
"startRunner": {
"timeout": "60",
"program": "bin/dolphinscheduler-daemon.sh",
"args": [
"start",
"api-server"
]
},
"stopRunner": {
"timeout": "600",
"program": "bin/dolphinscheduler-daemon.sh",
"args": [
"stop",
"api-server"
]
},
"statusRunner": {
"timeout": "60",
"program": "bin/dolphinscheduler-daemon.sh",
"args": [
"status",
"api-server"
]
},
"restartRunner": {
"timeout": "60",
"program": "control.sh",
"args": [
"restart",
"api-server"
]
},
"externalLink": {
"name": "DolphinScheduler Ui",
"label": "DolphinScheduler Ui",
"url": "http://${host}:12345/dolphinscheduler/ui"
}
},
{
"name": "MasterServer",
"label": "MasterServer",
"roleType": "master",
"cardinality": "1+",
"logFile": "master-server/logs/dolphinscheduler-master.log",
"jmxPort": 12357,
"startRunner": {
"timeout": "60",
"program": "bin/dolphinscheduler-daemon.sh",
"args": [
"start",
"master-server"
]
},
"stopRunner": {
"timeout": "600",
"program": "bin/dolphinscheduler-daemon.sh",
"args": [
"stop",
"master-server"
]
},
"statusRunner": {
"timeout": "60",
"program": "bin/dolphinscheduler-daemon.sh",
"args": [
"status",
"master-server"
]
},
"restartRunner": {
"timeout": "60",
"program": "control.sh",
"args": [
"restart",
"master-server"
]
}
},
{
"name": "WorkerServer",
"label": "WorkerServer",
"roleType": "worker",
"cardinality": "1+",
"logFile": "worker-server/logs/dolphinscheduler-worker.log",
"jmxPort": 12358,
"startRunner": {
"timeout": "60",
"program": "bin/dolphinscheduler-daemon.sh",
"args": [
"start",
"worker-server"
]
},
"stopRunner": {
"timeout": "600",
"program": "bin/dolphinscheduler-daemon.sh",
"args": [
"stop",
"worker-server"
]
},
"statusRunner": {
"timeout": "60",
"program": "bin/dolphinscheduler-daemon.sh",
"args": [
"status",
"worker-server"
]
},
"restartRunner": {
"timeout": "60",
"program": "control.sh",
"args": [
"restart",
"worker-server"
]
}
},
{
"name": "AlertServer",
"label": "AlertServer",
"roleType": "master",
"cardinality": "1",
"logFile": "alert-server/logs/dolphinscheduler-alert.log",
"jmxPort": 12359,
"startRunner": {
"timeout": "60",
"program": "bin/dolphinscheduler-daemon.sh",
"args": [
"start",
"alert-server"
]
},
"stopRunner": {
"timeout": "600",
"program": "bin/dolphinscheduler-daemon.sh",
"args": [
"stop",
"alert-server"
]
},
"statusRunner": {
"timeout": "60",
"program": "bin/dolphinscheduler-daemon.sh",
"args": [
"status",
"alert-server"
]
},
"restartRunner": {
"timeout": "60",
"program": "control.sh",
"args": [
"restart",
"alert-server"
]
}
}
],
"configWriter": {
"generators": [
{
"filename": "dolphinscheduler_env.sh",
"configFormat": "custom",
"outputDirectory": "bin/env/",
"templateName": "dolphinscheduler_env.ftl",
"includeParams": [
"databaseUrl",
"username",
"password",
"zkUrls"
]
},
{
"filename": "common.properties",
"configFormat": "properties",
"outputDirectory": "api-server/conf,master-server/conf,worker-server/conf,alert-server/conf",
"includeParams": [
"data.basedir.path",
"resource.storage.type",
"resource.storage.upload.base.path",
"resource.aws.access.key.id",
"resource.aws.secret.access.key",
"resource.aws.region",
"resource.aws.s3.bucket.name",
"resource.aws.s3.endpoint",
"resource.alibaba.cloud.access.key.id",
"resource.alibaba.cloud.access.key.secret",
"resource.alibaba.cloud.region",
"resource.alibaba.cloud.oss.bucket.name",
"resource.alibaba.cloud.oss.endpoint",
"resource.hdfs.root.user",
"resource.hdfs.fs.defaultFS",
"hadoop.security.authentication.startup.state",
"java.security.krb5.conf.path",
"login.user.keytab.username",
"login.user.keytab.path",
"kerberos.expire.time",
"resource.manager.httpaddress.port",
"yarn.resourcemanager.ha.rm.ids",
"yarn.application.status.address",
"yarn.job.history.status.address",
"datasource.encryption.enable",
"datasource.encryption.salt",
"data-quality.jar.name",
"support.hive.oneSession",
"sudo.enable",
"setTaskDirToTenant.enable",
"development.state",
"alert.rpc.port",
"conda.path",
"task.resource.limit.state",
"ml.mlflow.preset_repository",
"ml.mlflow.preset_repository_version",
"custom.common.properties"
]
}
]
},
"parameters": [
{
"name": "databaseUrl",
"label": "DolphinScheduler数据库地址",
"description": "",
"configType": "map",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "jdbc:mysql://${apiHost}:3306/dolphinscheduler?useUnicode=true&characterEncoding=UTF-8&useSSL=false"
},
{
"name": "username",
"label": "DolphinScheduler数据库用户名",
"description": "",
"configType": "map",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "dolphinscheduler"
},
{
"name": "password",
"label": "DolphinScheduler数据库密码",
"description": "",
"configType": "map",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "dolphinscheduler"
},
{
"name": "zkUrls",
"label": "ZK地址",
"description": "",
"configType": "map",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "${zkUrls}"
},
{
"name": "data.basedir.path",
"label": "data.basedir.path",
"description": "",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "/tmp/dolphinscheduler"
},{
"name": "resource.storage.type",
"label": "resource.storage.type",
"description": "",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "NONE"
},{
"name": "resource.storage.upload.base.path",
"label": "resource.storage.upload.base.path",
"description": "",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "/dolphinscheduler"
},{
"name": "resource.aws.access.key.id",
"label": "resource.aws.access.key.id",
"description": "",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "minioadmin"
},{
"name": "resource.aws.secret.access.key",
"label": "resource.aws.secret.access.key",
"description": "",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "minioadmin"
},{
"name": "resource.hdfs.root.user",
"label": "resource.hdfs.root.user",
"description": "",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "hdfs"
},{
"name": "resource.hdfs.fs.defaultFS",
"label": "resource.hdfs.fs.defaultFS",
"description": "",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "${fs.defaultFS}"
},{
"name": "resource.manager.httpaddress.port",
"label": "resource.manager.httpaddress.port",
"description": "",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "8088"
},{
"name": "yarn.resourcemanager.ha.rm.ids",
"label": "yarn.resourcemanager.ha.rm.ids",
"description": "",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "${rmHost}"
},{
"name": "yarn.application.status.address",
"label": "yarn.application.status.address",
"description": "",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "http://ds1:%s/ws/v1/cluster/apps/%s"
},{
"name": "yarn.job.history.status.address",
"label": "yarn.job.history.status.address",
"description": "",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "http://ds1:19888/ws/v1/history/mapreduce/jobs/%s"
},{
"name": "datasource.encryption.enable",
"label": "datasource.encryption.enable",
"description": "",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "false"
},{
"name": "datasource.encryption.salt",
"label": "datasource.encryption.salt",
"description": "",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "!@#$%^&*"
},{
"name": "data-quality.jar.name",
"label": "data-quality.jar.name",
"description": "",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "dolphinscheduler-data-quality-dev-SNAPSHOT.jar"
},{
"name": "support.hive.oneSession",
"label": "support.hive.oneSession",
"description": "",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "false"
},{
"name": "sudo.enable",
"label": "sudo.enable",
"description": "",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "true"
},{
"name": "setTaskDirToTenant.enable",
"label": "setTaskDirToTenant.enable",
"description": "",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "false"
},{
"name": "development.state",
"label": "development.state",
"description": "",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "false"
},{
"name": "alert.rpc.port",
"label": "alert.rpc.port",
"description": "",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "50052"
},{
"name": "conda.path",
"label": "conda.path",
"description": "",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "/opt/anaconda3/etc/profile.d/conda.sh"
},{
"name": "task.resource.limit.state",
"label": "task.resource.limit.state",
"description": "",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "false"
},{
"name": "ml.mlflow.preset_repository",
"label": "ml.mlflow.preset_repository",
"description": "",
"required": true,
"type": "input",
"value": "",
"configurableInWizard": true,
"hidden": false,
"defaultValue": "https://github.com/apache/dolphinscheduler-mlflow"
},{
"name": "custom.common.properties",
"label": "自定义配置common.properties",
"description": "自定义配置",
"configType": "custom",
"required": false,
"type": "multipleWithKey",
"value": [],
"configurableInWizard": true,
"hidden": false,
"defaultValue": ""
}
]
}
重启
各节点worker重启
sh /opt/datasophon/datasophon-worker/bin/datasophon-worker.sh restart worker
主节点重启api
sh /opt/datasophon/datasophon-manager-1.2.1/bin/datasophon-api.sh restart api
手动创建数据库并且运行sql
CREATE DATABASE dolphinscheduler DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
use dolphinscheduler;
source /opt/datasophon/DDP/packages/dolphinscheduler-3.1.9/tools/sql/sql/dolphinscheduler_mysql.sql
安装DolphinScheduler服务
添加服务
根据实际情况，选择ApiServer、MasterServer、AlertServer角色部署的节点。这里MasterServer可以选择部署多台

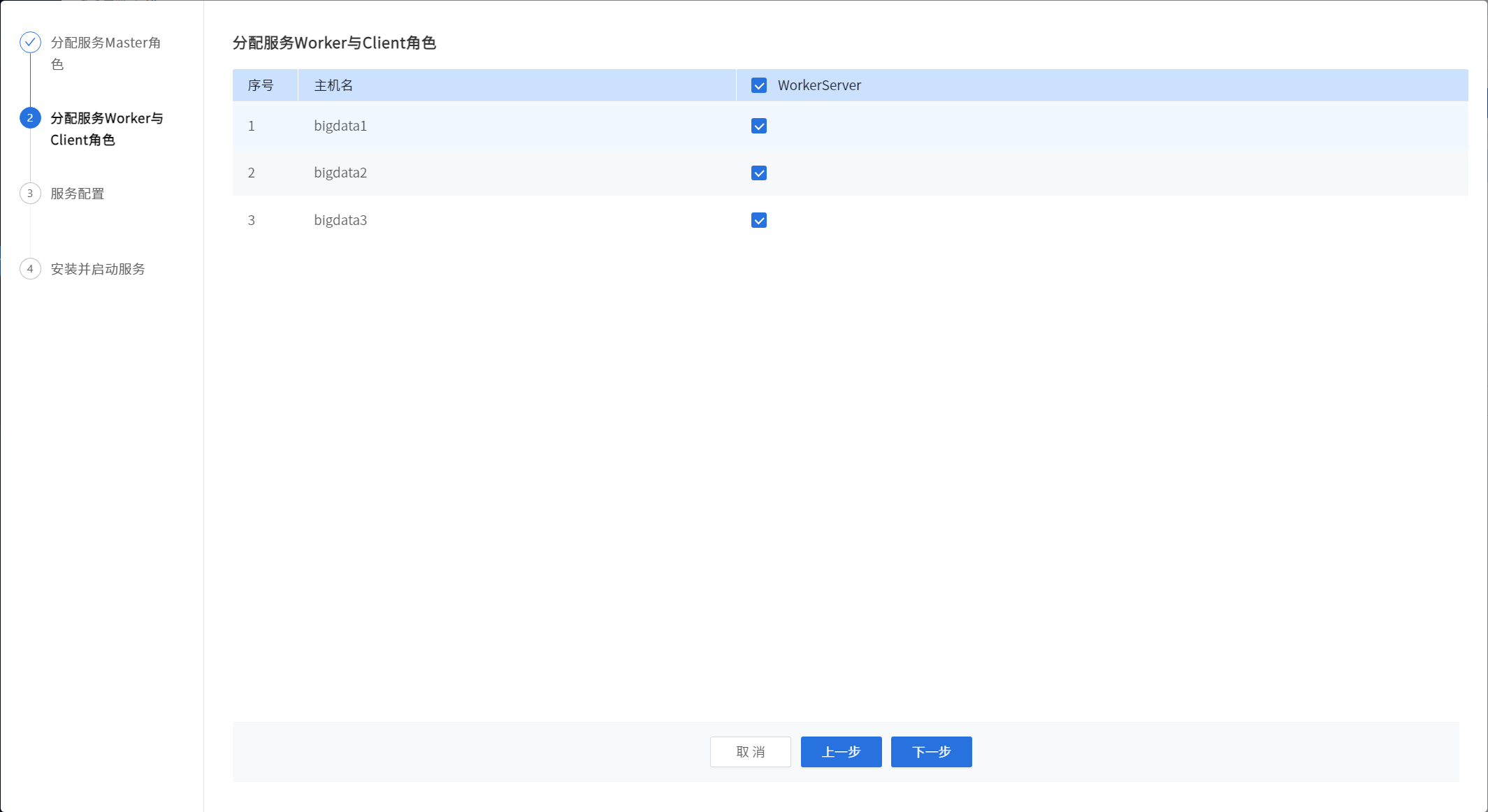

根据实际情况，选择WorkerServer角色部署的节点。这里WorkerServer可以选择部署一台或者多台
根据实际情况修改相关配置。
JPS查看是否安装成功
| bigdata1 | bigdata2 | bigdata3 |
|---|---|---|
| MasterServer | MasterServer | |
| WorkerServer | WorkerServer | WorkerServer |
| ApiApplicationServer | ||
| AlertServer |
浙公网安备 33010602011771号
