DataSophon集成StreamPark2.1.5

为DataSophon制作streampark-2.1.5安装包.md

下载并解压streampark 2.1.5安装包

wget -O  /opt/datasophon/DDP/packages/apache-streampark_2.12-2.1.5-incubating-bin.tar.gz https://www.apache.org/dyn/closer.lua/incubator/streampark/2.1.5/apache-streampark_2.12-2.1.5-incubating-bin.tar.gz?action=download

cd /opt/datasophon/DDP/packages/

tar -xzvf apache-streampark_2.12-2.1.5-incubating-bin.tar.gz

修改安装包目录名称

保持和service_ddl.json中 decompressPackageName 一致

mv apache-streampark_2.12-2.1.5-incubating-bin streampark-2.1.5

修改 `conf/config.yaml`【可选】

修改连接信息

进入到 conf 下，修改 conf/config.yaml，找到 spring 这一项，找到 profiles.active 的配置，数据库修改成MySQL即可，如下：

vi /opt/datasophon/DDP/packages/streampark-2.1.5/conf/config.yaml

spring:
  profiles.active: mysql #[h2,pgsql,mysql]
  application.name: StreamPark
  devtools.restart.enabled: false
  mvc.pathmatch.matching-strategy: ant_path_matcher
  servlet:
    multipart:
      enabled: true
      max-file-size: 500MB
      max-request-size: 500MB
  aop.proxy-target-class: true
  messages.encoding: utf-8
  jackson:
    date-format: yyyy-MM-dd HH:mm:ss
    time-zone: GMT+8
  main:
    allow-circular-references: true
    banner-mode: off

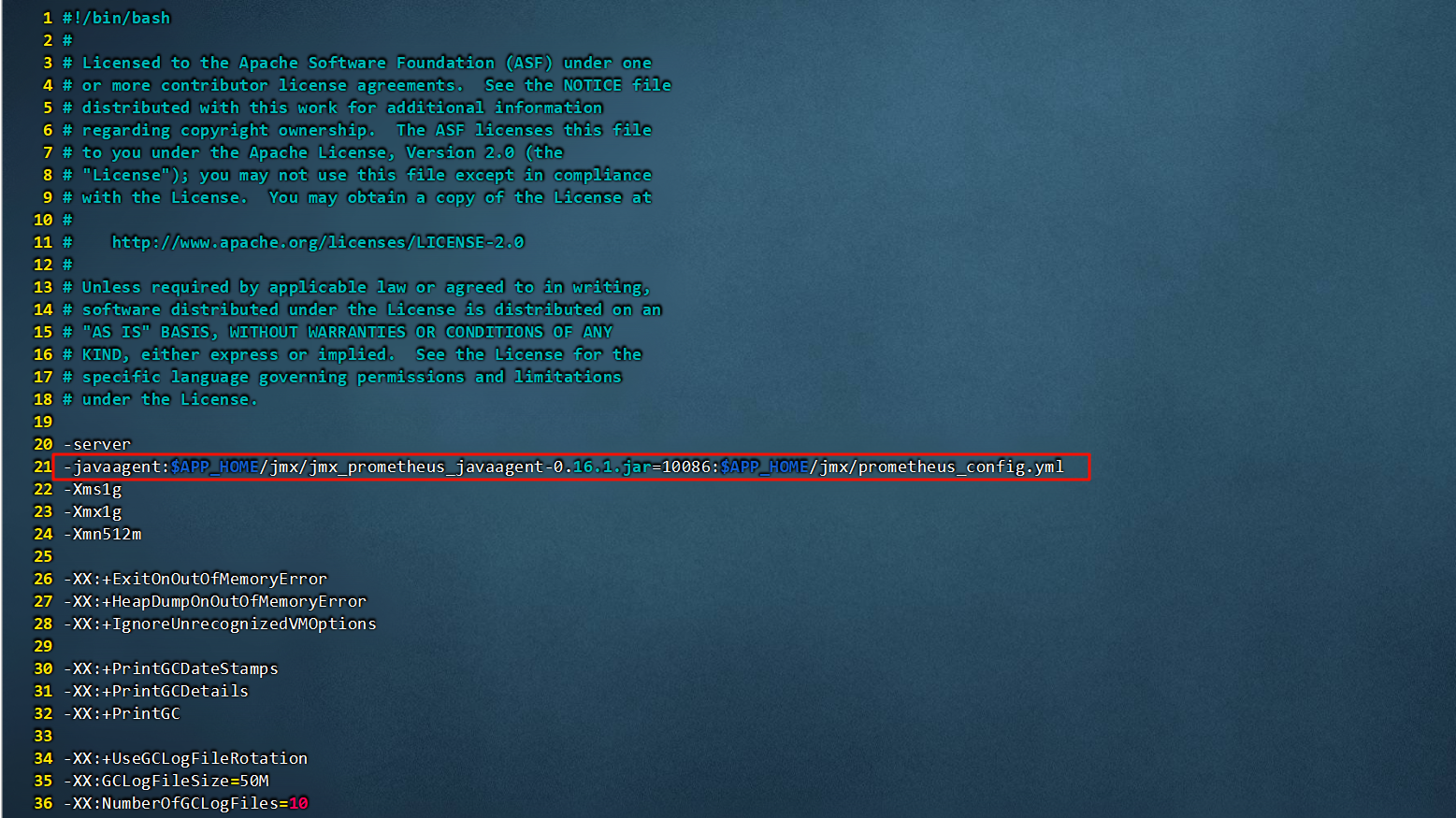

修改`streampark-2.1.5/bin/jvm_opts.sh`文件

(约21行)中增加prometheus_javaagent配置，如下：

vi /opt/datasophon/DDP/packages/streampark-2.1.5/bin/jvm_opts.sh

# 增加以下内容
-javaagent:$APP_HOME/jmx/jmx_prometheus_javaagent-0.16.1.jar=10086:$APP_HOME/jmx/prometheus_config.yml

如果是低一些的版本或者StreamPark2.1.1，需要直接在bin/streampark.sh文件增加prometheus_javaagent，那个时候就可以直接把下面的内容增加进去。

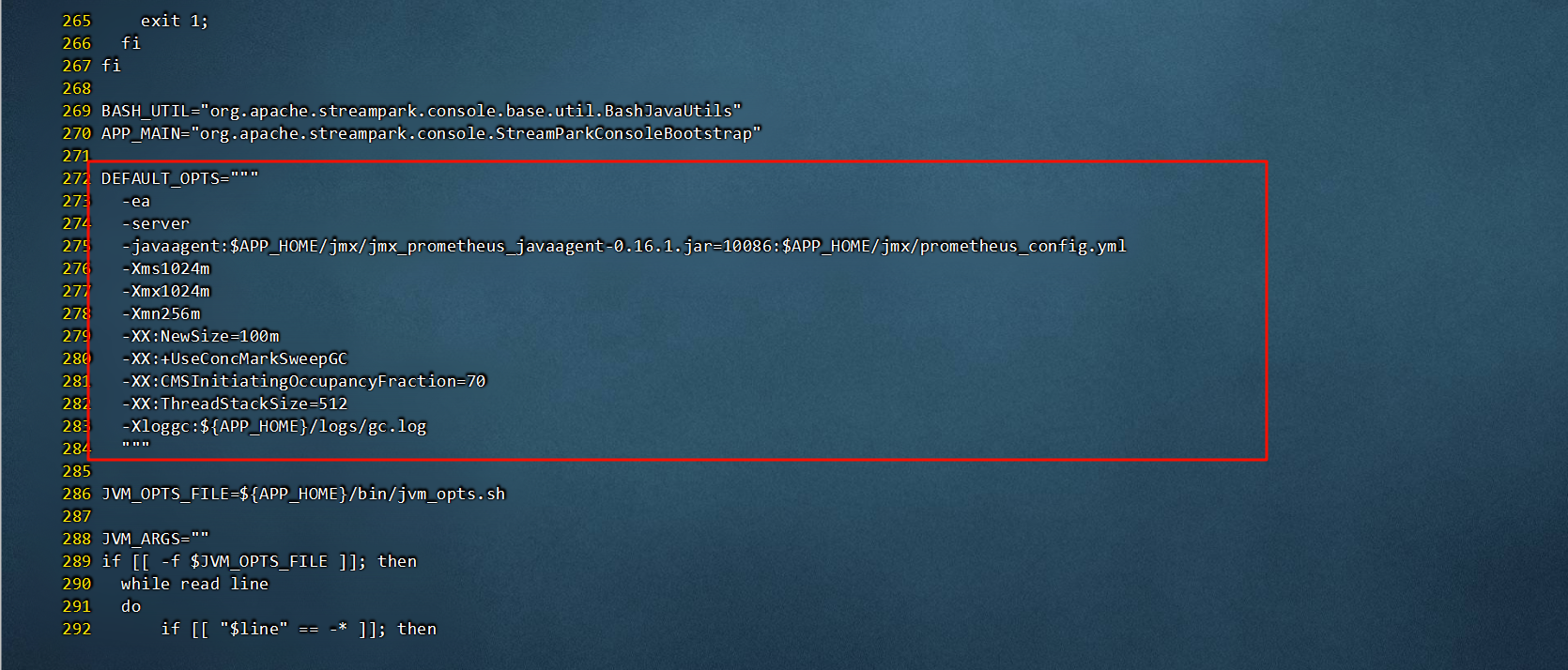

streampark.sh文件在DEFAULT_OPTS(约271行)中增加prometheus_javaagent配置，如下：

vi /opt/datasophon/DDP/packages/streampark-2.1.5/bin/streampark.sh

DEFAULT_OPTS="""
  -ea
  -server
  -javaagent:$APP_HOME/jmx/jmx_prometheus_javaagent-0.16.1.jar=10086:$APP_HOME/jmx/prometheus_config.yml
  -Xms1024m
  -Xmx1024m
  -Xmn256m
  -XX:NewSize=100m
  -XX:+UseConcMarkSweepGC
  -XX:CMSInitiatingOccupancyFraction=70
  -XX:ThreadStackSize=512
  -Xloggc:${APP_HOME}/logs/gc.log
  """

注意：为什么jvm_opts.sh文件中只是需要加上一行内容，其他的不要了呢？据群里大佬反馈：加了个参数压根都没用到

修改`streampark-2.1.5/bin/streampark.sh`文件

vi /opt/datasophon/DDP/packages/streampark-2.1.5/bin/streampark.sh

增加prometheus_javaagent【省略】-新版本已把jvm配置外置到jvm_opts.sh

StreamPark2.1.5版本已经把jvm配置外置到jvm_opts.sh，直接参考步骤4修改即可，这里可以直接不用看了。

修改start函数

在start函数中，local workspace=...略(约390行)下一行，增加 mkdir-p $workspace，如下

local workspace=`$_RUNJAVA -cp "$APP_LIB/*" $BASH_UTIL --get_yaml "streampark.workspace.local" "$CONFIG"`
   mkdir -p $workspace
   if [[ ! -d $workspace ]]; then
     echo_r "ERROR: streampark.workspace.local: \"$workspace\" is an invalid path, please reconfigure in $CONFIG"
     echo_r "NOTE: \"streampark.workspace.local\" should not be set under APP_HOME($APP_HOME) directory. Set it to a secure directory outside of APP_HOME."
     exit 1;
   fi

  if [[ ! -w $workspace ]] || [[ ! -r $workspace ]]; then
      echo_r "ERROR: streampark.workspace.local: \"$workspace\" Permission denied! "
      exit 1;
  fi

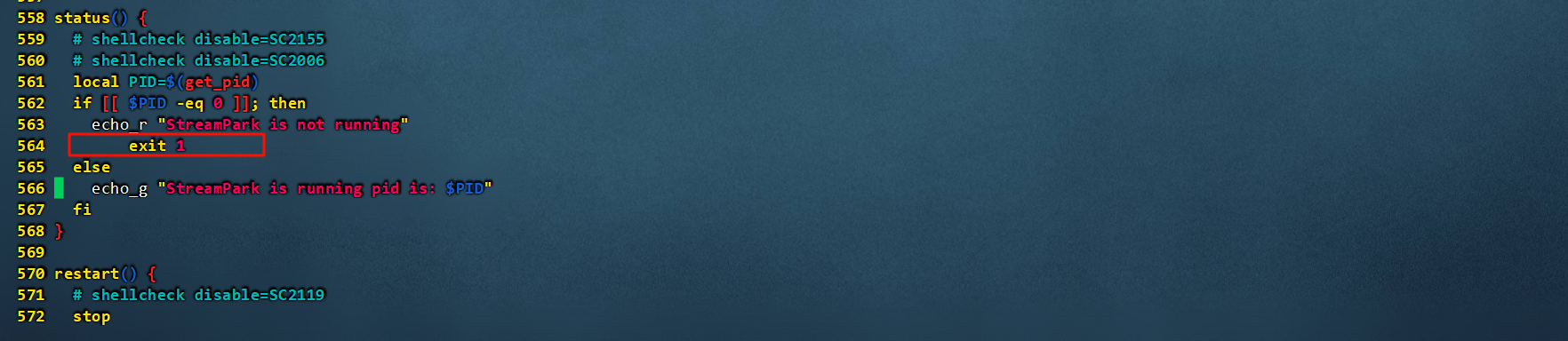

修改status函数

修改status函数(约564行)中增加exit 1,如下：

status() {
  # shellcheck disable=SC2155
  # shellcheck disable=SC2006
  local PID=$(get_pid)
  if [[ $PID -eq 0 ]]; then
    echo_r "StreamPark is not running"
	exit 1
  else
    echo_g "StreamPark is running pid is: $PID"
  fi
}

--完整streampark.sh文件参考如下：

#!/bin/bash
#
# Licensed to the Apache Software Foundation (ASF) under one
# or more contributor license agreements.  See the NOTICE file
# distributed with this work for additional information
# regarding copyright ownership.  The ASF licenses this file
# to you under the Apache License, Version 2.0 (the
# "License"); you may not use this file except in compliance
# with the License.  You may obtain a copy of the License at
#
#    http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing,
# software distributed under the License is distributed on an
# "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
# KIND, either express or implied.  See the License for the
# specific language governing permissions and limitations
# under the License.
#
# -----------------------------------------------------------------------------
# Control Script for the StreamPark Server
#
# Environment Variable Prerequisites
#
#   APP_HOME   May point at your StreamPark "build" directory.
#
#   APP_BASE   (Optional) Base directory for resolving dynamic portions
#                   of a StreamPark installation.  If not present, resolves to
#                   the same directory that APP_HOME points to.
#
#   APP_CONF    (Optional) config path
#
#   APP_PID    (Optional) Path of the file which should contains the pid
#                   of the StreamPark startup java process, when start (fork) is
#                   used
# -----------------------------------------------------------------------------

# Bugzilla 37848: When no TTY is available, don't output to console
have_tty=0
# shellcheck disable=SC2006
if [[ "`tty`" != "not a tty" ]]; then
    have_tty=1
fi

# Bugzilla 37848: When no TTY is available, don't output to console
have_tty=0
# shellcheck disable=SC2006
if [[ "`tty`" != "not a tty" ]]; then
    have_tty=1
fi

 # Only use colors if connected to a terminal
if [[ ${have_tty} -eq 1 ]]; then
  PRIMARY=$(printf '\033[38;5;082m')
  RED=$(printf '\033[31m')
  GREEN=$(printf '\033[32m')
  YELLOW=$(printf '\033[33m')
  BLUE=$(printf '\033[34m')
  BOLD=$(printf '\033[1m')
  RESET=$(printf '\033[0m')
else
  PRIMARY=""
  RED=""
  GREEN=""
  YELLOW=""
  BLUE=""
  BOLD=""
  RESET=""
fi

echo_r () {
    # Color red: Error, Failed
    [[ $# -ne 1 ]] && return 1
    # shellcheck disable=SC2059
    printf "[%sStreamPark%s] %s$1%s\n"  $BLUE $RESET $RED $RESET
}

echo_g () {
    # Color green: Success
    [[ $# -ne 1 ]] && return 1
    # shellcheck disable=SC2059
    printf "[%sStreamPark%s] %s$1%s\n"  $BLUE $RESET $GREEN $RESET
}

echo_y () {
    # Color yellow: Warning
    [[ $# -ne 1 ]] && return 1
    # shellcheck disable=SC2059
    printf "[%sStreamPark%s] %s$1%s\n"  $BLUE $RESET $YELLOW $RESET
}

echo_w () {
    # Color yellow: White
    [[ $# -ne 1 ]] && return 1
    # shellcheck disable=SC2059
    printf "[%sStreamPark%s] %s$1%s\n"  $BLUE $RESET $WHITE $RESET
}

# OS specific support.  $var _must_ be set to either true or false.
cygwin=false
os400=false
# shellcheck disable=SC2006
case "`uname`" in
CYGWIN*) cygwin=true;;
OS400*) os400=true;;
esac

# resolve links - $0 may be a softlink
PRG="$0"

while [[ -h "$PRG" ]]; do
  # shellcheck disable=SC2006
  ls=`ls -ld "$PRG"`
  # shellcheck disable=SC2006
  link=`expr "$ls" : '.*-> \(.*\)$'`
  if expr "$link" : '/.*' > /dev/null; then
    PRG="$link"
  else
    # shellcheck disable=SC2006
    PRG=`dirname "$PRG"`/"$link"
  fi
done

# Get standard environment variables
# shellcheck disable=SC2006
PRG_DIR=`dirname "$PRG"`

# shellcheck disable=SC2006
# shellcheck disable=SC2164
APP_HOME=`cd "$PRG_DIR/.." >/dev/null; pwd`
APP_BASE="$APP_HOME"
APP_CONF="$APP_BASE"/conf
APP_LIB="$APP_BASE"/lib
APP_LOG="$APP_BASE"/logs
APP_PID="$APP_BASE"/.pid
APP_OUT="$APP_LOG"/streampark.out
# shellcheck disable=SC2034
APP_TMPDIR="$APP_BASE"/temp

# Ensure that any user defined CLASSPATH variables are not used on startup,
# but allow them to be specified in setenv.sh, in rare case when it is needed.
CLASSPATH=

if [[ -r "$APP_BASE/bin/setenv.sh" ]]; then
  # shellcheck disable=SC1090
  . "$APP_BASE/bin/setenv.sh"
elif [[ -r "$APP_HOME/bin/setenv.sh" ]]; then
  # shellcheck disable=SC1090
  . "$APP_HOME/bin/setenv.sh"
fi

# For Cygwin, ensure paths are in UNIX format before anything is touched
if ${cygwin}; then
  # shellcheck disable=SC2006
  [[ -n "$JAVA_HOME" ]] && JAVA_HOME=`cygpath --unix "$JAVA_HOME"`
  # shellcheck disable=SC2006
  [[ -n "$JRE_HOME" ]] && JRE_HOME=`cygpath --unix "$JRE_HOME"`
  # shellcheck disable=SC2006
  [[ -n "$APP_HOME" ]] && APP_HOME=`cygpath --unix "$APP_HOME"`
  # shellcheck disable=SC2006
  [[ -n "$APP_BASE" ]] && APP_BASE=`cygpath --unix "$APP_BASE"`
  # shellcheck disable=SC2006
  [[ -n "$CLASSPATH" ]] && CLASSPATH=`cygpath --path --unix "$CLASSPATH"`
fi

# Ensure that neither APP_HOME nor APP_BASE contains a colon
# as this is used as the separator in the classpath and Java provides no
# mechanism for escaping if the same character appears in the path.
case ${APP_HOME} in
  *:*) echo "Using APP_HOME:   $APP_HOME";
       echo "Unable to start as APP_HOME contains a colon (:) character";
       exit 1;
esac
case ${APP_BASE} in
  *:*) echo "Using APP_BASE:   $APP_BASE";
       echo "Unable to start as APP_BASE contains a colon (:) character";
       exit 1;
esac

# For OS400
if ${os400}; then
  # Set job priority to standard for interactive (interactive - 6) by using
  # the interactive priority - 6, the helper threads that respond to requests
  # will be running at the same priority as interactive jobs.
  COMMAND='chgjob job('${JOBNAME}') runpty(6)'
  system "${COMMAND}"

  # Enable multi threading
  export QIBM_MULTI_THREADED=Y
fi

# Get standard Java environment variables
if ${os400}; then
  # -r will Only work on the os400 if the files are:
  # 1. owned by the user
  # 2. owned by the PRIMARY group of the user
  # this will not work if the user belongs in secondary groups
  # shellcheck disable=SC1090
  . "$APP_HOME"/bin/setclasspath.sh
else
  if [[ -r "$APP_HOME"/bin/setclasspath.sh ]]; then
    # shellcheck disable=SC1090
    . "$APP_HOME"/bin/setclasspath.sh
  else
    echo "Cannot find $APP_HOME/bin/setclasspath.sh"
    echo "This file is needed to run this program"
    exit 1
  fi
fi

# Add on extra jar files to CLASSPATH
# shellcheck disable=SC2236
if [[ ! -z "$CLASSPATH" ]]; then
  CLASSPATH="$CLASSPATH":
fi
CLASSPATH="$CLASSPATH"

# For Cygwin, switch paths to Windows format before running java
if ${cygwin}; then
  # shellcheck disable=SC2006
  JAVA_HOME=`cygpath --absolute --windows "$JAVA_HOME"`
  # shellcheck disable=SC2006
  JRE_HOME=`cygpath --absolute --windows "$JRE_HOME"`
  # shellcheck disable=SC2006
  APP_HOME=`cygpath --absolute --windows "$APP_HOME"`
  # shellcheck disable=SC2006
  APP_BASE=`cygpath --absolute --windows "$APP_BASE"`
  # shellcheck disable=SC2006
  CLASSPATH=`cygpath --path --windows "$CLASSPATH"`
fi

# get jdk version, return version as an Integer.
JDK_VERSION=$("$_RUNJAVA" -version 2>&1 | grep -i 'version' | head -n 1 | cut -d '"' -f 2)
MAJOR_VER=$(echo "$JDK_VERSION" 2>&1 | cut -d '.' -f 1)
[[ $MAJOR_VER -eq 1 ]] && MAJOR_VER=$(echo "$JDK_VERSION" 2>&1 | cut -d '.' -f 2)
MIN_VERSION=8

if [[ $MAJOR_VER -lt $MIN_VERSION ]]; then
  echo "JDK Version: \"${JDK_VERSION}\", the version cannot be lower than 1.8"
  exit 1
fi

if [[ -z "$USE_NOHUP" ]]; then
  if $hpux; then
    USE_NOHUP="true"
  else
    USE_NOHUP="false"
  fi
fi
unset NOHUP
if [[ "$USE_NOHUP" = "true" ]]; then
  NOHUP="nohup"
fi

CONFIG="${APP_CONF}/application.yml"
# shellcheck disable=SC2006
if [[ -f "$CONFIG" ]] ; then
  echo_y """[WARN] in the \"conf\" directory, found the \"application.yml\" file. The \"application.yml\" file is deprecated.
     For compatibility, this application.yml will be used preferentially. The latest configuration file is \"config.yaml\". It is recommended to use \"config.yaml\".
     Note: \"application.yml\" will be completely deprecated in version 2.2.0. """
else
  CONFIG="${APP_CONF}/config.yaml"
  if [[ ! -f "$CONFIG" ]] ; then
    echo_r "can not found config.yaml in \"conf\" directory, please check."
    exit 1;
  fi
fi

BASH_UTIL="org.apache.streampark.console.base.util.BashJavaUtils"
APP_MAIN="org.apache.streampark.console.StreamParkConsoleBootstrap"
JVM_OPTS_FILE=${APP_HOME}/bin/jvm_opts.sh

JVM_ARGS=""
if [[ -f $JVM_OPTS_FILE ]]; then
  while read line
  do
      if [[ "$line" == -* ]]; then
        JVM_ARGS="${JVM_ARGS} $line"
      fi
  done < $JVM_OPTS_FILE
fi

JAVA_OPTS=${JAVA_OPTS:-"${JVM_ARGS}"}
JAVA_OPTS="$JAVA_OPTS -XX:HeapDumpPath=${APP_HOME}/logs/dump.hprof"
JAVA_OPTS="$JAVA_OPTS -Xloggc:${APP_HOME}/logs/gc.log"
[[ $MAJOR_VER -gt $MIN_VERSION ]] && JAVA_OPTS="$JAVA_OPTS --add-opens java.base/jdk.internal.loader=ALL-UNNAMED --add-opens jdk.zipfs/jdk.nio.zipfs=ALL-UNNAMED"
[[ $MAJOR_VER -ge 17 ]] && JAVA_OPTS="$JAVA_OPTS -Djava.security.manager=allow"

SERVER_PORT=$($_RUNJAVA -cp "$APP_LIB/*" $BASH_UTIL --get_yaml "server.port" "$CONFIG")
# ----- Execute The Requested Command -----------------------------------------

print_logo() {
  printf '\n'
  printf '      %s    _____ __                                             __       %s\n'          $PRIMARY $RESET
  printf '      %s   / ___// /_________  ____ _____ ___  ____  ____ ______/ /__     %s\n'          $PRIMARY $RESET
  printf '      %s   \__ \/ __/ ___/ _ \/ __ `/ __ `__ \/ __ \  __ `/ ___/ //_/     %s\n'          $PRIMARY $RESET
  printf '      %s  ___/ / /_/ /  /  __/ /_/ / / / / / / /_/ / /_/ / /  / ,<        %s\n'          $PRIMARY $RESET
  printf '      %s /____/\__/_/   \___/\__,_/_/ /_/ /_/ ____/\__,_/_/  /_/|_|       %s\n'          $PRIMARY $RESET
  printf '      %s                                   /_/                            %s\n\n'        $PRIMARY $RESET
  printf '      %s   Version:  2.1.5 %s\n'                                                         $BLUE   $RESET
  printf '      %s   WebSite:  https://streampark.apache.org%s\n'                                  $BLUE   $RESET
  printf '      %s   GitHub :  http://github.com/apache/streampark%s\n\n'                          $BLUE   $RESET
  printf '      %s   ──────── Apache StreamPark, Make stream processing easier ô~ô!%s\n\n'         $PRIMARY  $RESET
  if [[ "$1"x == "start"x ]]; then
    printf '      %s                   http://localhost:%s %s\n\n'                                 $PRIMARY $SERVER_PORT   $RESET
  fi
}

# shellcheck disable=SC2120
get_pid() {
  if [[ -f "$APP_PID" ]]; then
    if [[ -s "$APP_PID" ]]; then
      # shellcheck disable=SC2155
      # shellcheck disable=SC2006
      local PID=`cat "$APP_PID"`
      kill -0 $PID >/dev/null 2>&1
      # shellcheck disable=SC2181
      if [[ $? -eq 0 ]]; then
        echo $PID
        exit 0
      fi
    else
      rm -f "$APP_PID" >/dev/null 2>&1
    fi
  fi

  # shellcheck disable=SC2006
  if [[ "${SERVER_PORT}"x == ""x ]]; then
    echo_r "server.port is required, please check $CONFIG"
    exit 1;
  else
     # shellcheck disable=SC2006
      # shellcheck disable=SC2155
      local used=`$_RUNJAVA -cp "$APP_LIB/*" $BASH_UTIL --check_port "$SERVER_PORT"`
      if [[ "${used}"x == "used"x ]]; then
        # shellcheck disable=SC2006
        local PID=`jps -l | grep "$APP_MAIN" | awk '{print $1}'`
        # shellcheck disable=SC2236
        if [[ ! -z $PID ]]; then
          echo "$PID"
        else
          echo 0
        fi
      else
        echo 0
      fi
  fi
}

# shellcheck disable=SC2120
start() {
  # shellcheck disable=SC2006
  local PID=$(get_pid)

  if [[ $PID -gt 0 ]]; then
    # shellcheck disable=SC2006
    echo_r "StreamPark is already running pid: $PID , start aborted!"
    exit 1
  fi

  # Bugzilla 37848: only output this if we have a TTY
  if [[ ${have_tty} -eq 1 ]]; then
    echo_w "Using APP_BASE:   $APP_BASE"
    echo_w "Using APP_HOME:   $APP_HOME"
    if [[ "$1" = "debug" ]] ; then
      echo_w "Using JAVA_HOME:   $JAVA_HOME"
    else
      echo_w "Using JRE_HOME:   $JRE_HOME"
    fi
    echo_w "Using APP_PID:   $APP_PID"
  fi

   # shellcheck disable=SC2006
   local workspace=`$_RUNJAVA -cp "$APP_LIB/*" $BASH_UTIL --get_yaml "streampark.workspace.local" "$CONFIG"`
   mkdir -p $workspace
   if [[ ! -d $workspace ]]; then
     echo_r "ERROR: streampark.workspace.local: \"$workspace\" is an invalid path, please reconfigure in $CONFIG"
     echo_r "NOTE: \"streampark.workspace.local\" should not be set under APP_HOME($APP_HOME) directory. Set it to a secure directory outside of APP_HOME."
     exit 1;
   fi

  if [[ ! -w $workspace ]] || [[ ! -r $workspace ]]; then
      echo_r "ERROR: streampark.workspace.local: \"$workspace\" Permission denied! "
      exit 1;
  fi

  if [[ "${HADOOP_HOME}"x == ""x ]]; then
    echo_y "WARN: HADOOP_HOME is undefined on your system env."
  else
    echo_w "Using HADOOP_HOME:   ${HADOOP_HOME}"
  fi

  #
  # classpath options:
  # 1): java env (lib and jre/lib)
  # 2): StreamPark
  # 3): hadoop conf
  # shellcheck disable=SC2091
  local APP_CLASSPATH=".:${JAVA_HOME}/lib:${JAVA_HOME}/jre/lib"
  # shellcheck disable=SC2206
  # shellcheck disable=SC2010
  local JARS=$(ls "$APP_LIB"/*.jar | grep -v "$APP_LIB/streampark-flink-shims_.*.jar$")
  # shellcheck disable=SC2128
  for jar in $JARS;do
    APP_CLASSPATH=$APP_CLASSPATH:$jar
  done

  if [[ -n "${HADOOP_CONF_DIR}" ]] && [[ -d "${HADOOP_CONF_DIR}" ]]; then
    echo_w "Using HADOOP_CONF_DIR:   ${HADOOP_CONF_DIR}"
    APP_CLASSPATH+=":${HADOOP_CONF_DIR}"
  else
    APP_CLASSPATH+=":${HADOOP_HOME}/etc/hadoop"
  fi

  echo_g "JAVA_OPTS:  ${JAVA_OPTS}"

  eval $NOHUP $_RUNJAVA $JAVA_OPTS \
    -classpath "$APP_CLASSPATH" \
    -Dapp.home="${APP_HOME}" \
    -Djava.io.tmpdir="$APP_TMPDIR" \
    -Dlogging.config="${APP_CONF}/logback-spring.xml" \
    $APP_MAIN "$@" >> "$APP_OUT" 2>&1 "&"

    local PID=$!
    local IS_NUMBER="^[0-9]+$"

    # Add to pid file if successful start
    if [[ ${PID} =~ ${IS_NUMBER} ]] && kill -0 $PID > /dev/null 2>&1 ; then
        echo $PID > "$APP_PID"
        # shellcheck disable=SC2006
        echo_g "StreamPark start successful. pid: $PID"
    else
        echo_r "StreamPark start failed."
        exit 1
    fi
}

# shellcheck disable=SC2120
start_docker() {
  # Bugzilla 37848: only output this if we have a TTY
  if [[ ${have_tty} -eq 1 ]]; then
    echo_w "Using APP_BASE:   $APP_BASE"
    echo_w "Using APP_HOME:   $APP_HOME"
    if [[ "$1" = "debug" ]] ; then
      echo_w "Using JAVA_HOME:   $JAVA_HOME"
    else
      echo_w "Using JRE_HOME:   $JRE_HOME"
    fi
    echo_w "Using APP_PID:   $APP_PID"
  fi

  if [[ "${HADOOP_HOME}"x == ""x ]]; then
    echo_y "WARN: HADOOP_HOME is undefined on your system env,please check it."
  else
    echo_w "Using HADOOP_HOME:   ${HADOOP_HOME}"
  fi

  # classpath options:
  # 1): java env (lib and jre/lib)
  # 2): StreamPark
  # 3): hadoop conf
  # shellcheck disable=SC2091
  local APP_CLASSPATH=".:${JAVA_HOME}/lib:${JAVA_HOME}/jre/lib"
  # shellcheck disable=SC2206
  # shellcheck disable=SC2010
  local JARS=$(ls "$APP_LIB"/*.jar | grep -v "$APP_LIB/streampark-flink-shims_.*.jar$")
  # shellcheck disable=SC2128
  for jar in $JARS;do
    APP_CLASSPATH=$APP_CLASSPATH:$jar
  done

  if [[ -n "${HADOOP_CONF_DIR}" ]] && [[ -d "${HADOOP_CONF_DIR}" ]]; then
    echo_w "Using HADOOP_CONF_DIR:   ${HADOOP_CONF_DIR}"
    APP_CLASSPATH+=":${HADOOP_CONF_DIR}"
  else
    APP_CLASSPATH+=":${HADOOP_HOME}/etc/hadoop"
  fi

  JAVA_OPTS="$JAVA_OPTS -XX:-UseContainerSupport"

  echo_g "JAVA_OPTS:  ${JAVA_OPTS}"

  $_RUNJAVA $JAVA_OPTS \
    -classpath "$APP_CLASSPATH" \
    -Dapp.home="${APP_HOME}" \
    -Djava.io.tmpdir="$APP_TMPDIR" \
    -Dlogging.config="${APP_CONF}/logback-spring.xml" \
    $APP_MAIN

}

# shellcheck disable=SC2120
stop() {
  # shellcheck disable=SC2155
  # shellcheck disable=SC2006
  local PID=$(get_pid)

  if [[ $PID -eq 0 ]]; then
    echo_r "StreamPark is not running. stop aborted."
    exit 1
  fi

  shift

  local SLEEP=3

  # shellcheck disable=SC2006
  echo_g "StreamPark stopping with the PID: $PID"

  kill -9 "$PID"

  while [ $SLEEP -ge 0 ]; do
    # shellcheck disable=SC2046
    # shellcheck disable=SC2006
    kill -0 "$PID" >/dev/null 2>&1
    # shellcheck disable=SC2181
    if [[ $? -gt 0 ]]; then
      rm -f "$APP_PID" >/dev/null 2>&1
      if [[ $? != 0 ]]; then
        if [[ -w "$APP_PID" ]]; then
          cat /dev/null > "$APP_PID"
        else
          echo_r "The PID file could not be removed."
        fi
      fi
      echo_g "StreamPark stopped."
      break
    fi

    if [[ $SLEEP -gt 0 ]]; then
       sleep 1
    fi
    # shellcheck disable=SC2006
    # shellcheck disable=SC2003
    SLEEP=`expr $SLEEP - 1 `
  done

  if [[ "$SLEEP" -lt 0 ]]; then
     echo_r "StreamPark has not been killed completely yet. The process might be waiting on some system call or might be UNINTERRUPTIBLE."
  fi
}

status() {
  # shellcheck disable=SC2155
  # shellcheck disable=SC2006
  local PID=$(get_pid)
  if [[ $PID -eq 0 ]]; then
    echo_r "StreamPark is not running"
	exit 1
  else
    echo_g "StreamPark is running pid is: $PID"
  fi
}

restart() {
  # shellcheck disable=SC2119
  stop
  # shellcheck disable=SC2119
  start
}

main() {
  case "$1" in
    "start")
        shift
        start "$@"
        [[ $? -eq 0 ]] && print_logo "start"
        ;;
    "start_docker")
        print_logo
        start_docker
        ;;
    "stop")
        print_logo
        stop
        ;;
    "status")
        print_logo
        status
        ;;
    "restart")
        restart
        [[ $? -eq 0 ]] && print_logo "start"
        ;;
    *)
        echo_r "Unknown command: $1"
        echo_w "Usage: streampark.sh ( commands ... )"
        echo_w "commands:"
        echo_w "  start \$conf              Start StreamPark with application config."
        echo_w "  stop                      Stop StreamPark, wait up to 3 seconds and then use kill -KILL if still running"
        echo_w "  start_docker              start in docker or k8s mode"
        echo_w "  status                    StreamPark status"
        echo_w "  restart \$conf            restart StreamPark with application config."
        exit 0
        ;;
  esac
}

main "$@"

增加jmx文件夹

cp -r /opt/datasophon/hadoop-3.3.3/jmx /opt/datasophon/DDP/packages/streampark-2.1.5/

下载MySQL8驱动包至lib目录

(streampark从某个版本后把mysql驱动包移除了)

wget -O /opt/datasophon/DDP/packages/streampark-2.1.5/lib/mysql-connector-java-8.0.29.jar https://repo1.maven.org/maven2/mysql/mysql-connector-java/8.0.29/mysql-connector-java-8.0.29.jar

拷贝streampark的 mysql-schema.sql 和 mysql-data.sql 脚本出来备用

cp /opt/datasophon/DDP/packages/streampark-2.1.5/script/schema/mysql-schema.sql /opt/datasophon/DDP/packages/streampark_mysql-schema.sql

cp /opt/datasophon/DDP/packages/streampark-2.1.5/script/data/mysql-data.sql /opt/datasophon/DDP/packages/streampark_mysql-data.sql

打压缩包并生成md5

tar -czf  streampark-2.1.5.tar.gz   streampark-2.1.5
md5sum streampark-2.1.5.tar.gz | awk '{print $1}' >streampark-2.1.5.tar.gz.md5

修改配置文件service_ddl.json

# 修改streampark的版本号
vi /opt/datasophon/datasophon-manager-1.2.1/conf/meta/DDP-1.2.1/STREAMPARK/service_ddl.json

{
  "name": "STREAMPARK",
  "label": "StreamPark",
  "description": "流处理极速开发框架,流批一体&湖仓一体的云原生平台,一站式流处理计算平台",
  "version": "2.1.5",
  "sortNum": 13,
  "dependencies":[],
  "packageName": "streampark-2.1.5.tar.gz",
  "decompressPackageName": "streampark-2.1.5",
  "roles": [
    {
      "name": "StreamPark",
      "label": "StreamPark",
      "roleType": "master",
      "cardinality": "1",
      "logFile": "logs/streampark.out",
      "jmxPort": 10086,
      "startRunner": {
        "timeout": "60",
        "program": "bin/startup.sh",
        "args": [
        ]
      },
      "stopRunner": {
        "timeout": "600",
        "program": "bin/shutdown.sh",
        "args": [
        ]
      },
      "statusRunner": {
        "timeout": "60",
        "program": "bin/streampark.sh",
        "args": [
          "status"
        ]
      },
      "restartRunner": {
        "timeout": "60",
        "program": "bin/streampark.sh",
        "args": [
          "restart"
        ]
      },
      "externalLink": {
        "name": "StreamPark Ui",
        "label": "StreamPark Ui",
        "url": "http://${host}:${serverPort}"
      }
    }
  ],
  "configWriter": {
    "generators": [
      {
        "filename": "config.yaml",
        "configFormat": "custom",
        "outputDirectory": "conf",
        "templateName": "streampark.ftl",
        "includeParams": [
          "databaseUrl",
          "username",
          "password",
          "serverPort",
          "hadoopUserName",
          "workspaceLocal",
          "workspaceRemote"
        ]
      }
    ]
  },

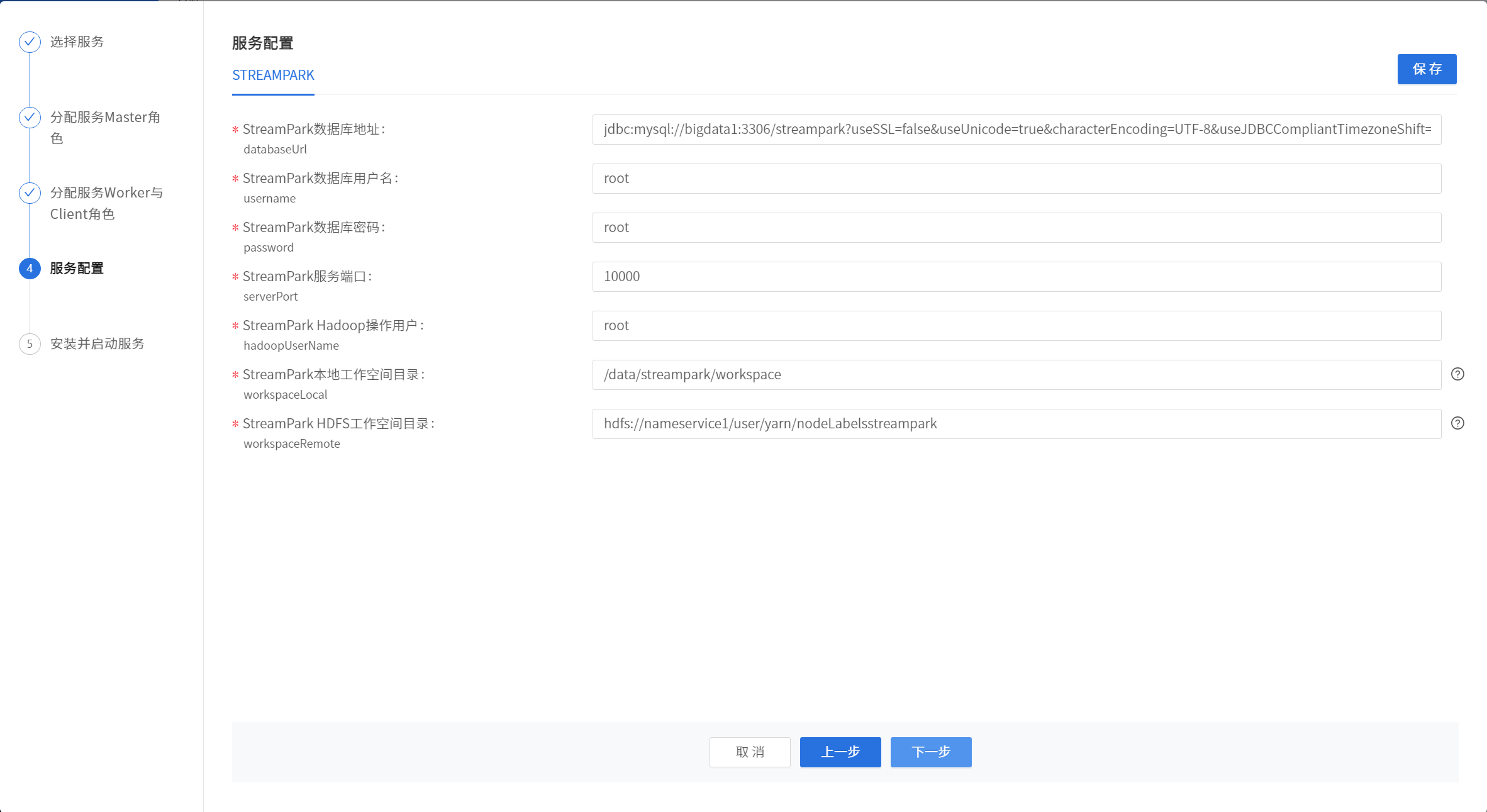

  "parameters": [
    {
      "name": "databaseUrl",
      "label": "StreamPark数据库地址",
      "description": "",
      "configType": "map",
      "required": true,
      "type": "input",
      "value": "",
      "configurableInWizard": true,
      "hidden": false,
      "defaultValue": "jdbc:mysql://${apiHost}:3306/streampark?useSSL=false&useUnicode=true&characterEncoding=UTF-8&useJDBCCompliantTimezoneShift=true&useLegacyDatetimeCode=false&serverTimezone=GMT%2B8"
    },
    {
      "name": "username",
      "label": "StreamPark数据库用户名",
      "description": "",
      "configType": "map",
      "required": true,
      "type": "input",
      "value": "",
      "configurableInWizard": true,
      "hidden": false,
      "defaultValue": "root"
    },
    {
      "name": "password",
      "label": "StreamPark数据库密码",
      "description": "",
      "configType": "map",
      "required": true,
      "type": "input",
      "value": "",
      "configurableInWizard": true,
      "hidden": false,
      "defaultValue": "root"
    },
    {
      "name": "serverPort",
      "label": "StreamPark服务端口",
      "description": "",
      "configType": "map",
      "required": true,
      "type": "input",
      "value": "",
      "configurableInWizard": true,
      "hidden": false,
      "defaultValue": "10000"
    },
    {
      "name": "hadoopUserName",
      "label": "StreamPark Hadoop操作用户",
      "description": "",
      "configType": "map",
      "required": true,
      "type": "input",
      "value": "",
      "configurableInWizard": true,
      "hidden": false,
      "defaultValue": "root"
    },
    {
      "name": "workspaceLocal",
      "label": "StreamPark本地工作空间目录",
      "description": "自行创建,用于存放项目源码,构建的目录等",
      "configType": "map",
      "required": true,
      "type": "input",
      "value": "",
      "configurableInWizard": true,
      "hidden": false,
      "defaultValue": "/data/streampark/workspace"
    },
    {
      "name": "workspaceRemote",
      "label": "StreamPark HDFS工作空间目录",
      "description": "HDFS工作空间目录",
      "configType": "map",
      "required": true,
      "type": "input",
      "value": "",
      "configurableInWizard": true,
      "hidden": false,
      "defaultValue": "hdfs://${dfs.nameservices}/user/yarn/nodeLabelsstreampark"
    }
  ]
}

各节点修改streampark.ftl文件

vi /opt/datasophon/datasophon-worker/conf/templates/streampark.ftl

#
# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#    http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#

logging:
  level:
    root: info

server:
  port: ${serverPort}
  session:
    # The user's login session has a validity period. If it exceeds this time, the user will be automatically logout
    # unit: s|m|h|d, s: second, m:minute, h:hour, d: day
    ttl: 2h # unit[s|m|h|d], e.g: 24h, 2d....
  undertow: # see: https://github.com/undertow-io/undertow/blob/master/core/src/main/java/io/undertow/Undertow.java
    buffer-size: 1024
    direct-buffers: true
    threads:
      io: 16
      worker: 256

# system database, default h2, mysql|pgsql|h2
datasource:
  dialect: mysql  #h2, mysql, pgsql
  h2-data-dir: ~/streampark/h2-data # if datasource.dialect is h2, you can configure the data dir
  # if datasource.dialect is mysql or pgsql, you need to configure the following connection information
  # mysql/postgresql/h2 connect user
  username: ${username}
  # mysql/postgresql/h2 connect password
  password: ${password}
  # mysql/postgresql connect jdbcURL
  # mysql example: datasource.url: jdbc:mysql://localhost:3306/streampark?useUnicode=true&characterEncoding=UTF-8&useJDBCCompliantTimezoneShift=true&useLegacyDatetimeCode=false&serverTimezone=GMT%2B8
  # postgresql example: jdbc:postgresql://localhost:5432/streampark?stringtype=unspecified
  url: ${databaseUrl}

streampark:
  workspace:
    # Local workspace, storage directory of clone projects and compiled projects,Do not set under $APP_HOME. Set it to a directory outside of $APP_HOME.
    local: ${workspaceLocal}
    # The root hdfs path of the jars, Same as yarn.provided.lib.dirs for flink on yarn-application and Same as --jars for spark on yarn
    remote: ${workspaceRemote}
  proxy:
    # lark proxy address, default https://open.feishu.cn
    lark-url:
    # hadoop yarn proxy path, e.g: knox process address https://streampark.com:8443/proxy/yarn
    yarn-url:
  yarn:
    # flink on yarn or spark on yarn, monitoring job status from yarn, it is necessary to set hadoop.http.authentication.type
    http-auth: 'simple'  # default simple, or kerberos
  # flink on yarn or spark on yarn, HADOOP_USER_NAME
  hadoop-user-name: ${hadoopUserName}
  project:
    # Number of projects allowed to be running at the same time , If there is no limit, -1 can be configured
    max-build: 16
  #openapi white-list, You can define multiple openAPI, separated by spaces(" ") or comma(,).
  openapi.white-list:

# flink on yarn or spark on yarn, when the hadoop cluster enable kerberos authentication, it is necessary to set Kerberos authentication parameters.
security:
  kerberos:
    login:
      debug: false
      enable: false
      keytab:
      krb5:
      principal:
    ttl: 2h # unit [s|m|h|d]

# sign streampark with ldap.
ldap:
  base-dn: dc=streampark,dc=com  # Login Account
  enable: false  # ldap enabled'
  username: cn=Manager,dc=streampark,dc=com
  password: streampark
  urls: ldap://99.99.99.99:389 #AD server IP, default port 389
  user:
    email-attribute: mail
    identity-attribute: uid

重启

各节点worker重启

sh /opt/datasophon/datasophon-worker/bin/datasophon-worker.sh restart worker

主节点重启api

sh /opt/datasophon/datasophon-manager-1.2.1/bin/datasophon-api.sh restart api

手动创建数据库并且运行初始化SQL

初始化StreamPark数据库。

mysql -u root -p -e "CREATE DATABASE streampark DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci"

执行/opt/datasophon/DDP/packages目录下streampark.sql创建streampark数据库表。

use streampark;
source /opt/datasophon/DDP/packages/streampark.sql
source /opt/datasophon/DDP/packages/streampark_mysql-schema.sql
source /opt/datasophon/DDP/packages/streampark_mysql-data.sql

安装StreamPark

添加StreamPark。

分配streampark角色，根据实际选择安装StreamPark在哪个节点机器

直接下一步

根据实际情况修改相关配置。

根据实际情况，修改streampark配置。

到此，DataSophon集成StreamPark2.1.5成功！

posted @ 2024-11-28 20:23 xiongshengxiao 阅读(208) 评论(0) 收藏举报

刷新页面返回顶部

YIXIAO的博客

DataSophon集成StreamPark2.1.5

为DataSophon制作streampark-2.1.5安装包.md

下载并解压streampark 2.1.5安装包

修改安装包目录名称

修改 `conf/config.yaml`【可选】

修改`streampark-2.1.5/bin/jvm_opts.sh`文件

修改`streampark-2.1.5/bin/streampark.sh`文件

增加prometheus_javaagent【省略】-新版本已把jvm配置外置到jvm_opts.sh

修改start函数

修改status函数

增加jmx文件夹

下载MySQL8驱动包至lib目录

拷贝streampark的 mysql-schema.sql 和 mysql-data.sql 脚本出来备用

打压缩包并生成md5

修改配置文件service_ddl.json

各节点修改streampark.ftl文件

重启

手动创建数据库并且运行初始化SQL

安装StreamPark

公告

YIXIAO的博客

DataSophon集成StreamPark2.1.5

为DataSophon制作streampark-2.1.5安装包.md

下载并解压streampark 2.1.5安装包

修改安装包目录名称

修改 conf/config.yaml【可选】

修改streampark-2.1.5/bin/jvm_opts.sh文件

修改streampark-2.1.5/bin/streampark.sh文件

增加prometheus_javaagent【省略】-新版本已把jvm配置外置到jvm_opts.sh

修改start函数

修改status函数

增加jmx文件夹

下载MySQL8驱动包至lib目录

拷贝streampark的 mysql-schema.sql 和 mysql-data.sql 脚本出来备用

打压缩包并生成md5

修改配置文件service_ddl.json

各节点修改streampark.ftl文件

重启

手动创建数据库并且运行初始化SQL

安装StreamPark

公告

修改 `conf/config.yaml`【可选】

修改`streampark-2.1.5/bin/jvm_opts.sh`文件

修改`streampark-2.1.5/bin/streampark.sh`文件
