ElasticSEearch 9.X环境部署
作者：尹正杰
版权声明：原创作品，谢绝转载！否则将追究法律责任。
一.ES9单点部署实战
1.下载软件包
参考链接:
https://www.elastic.co/guide/en/elasticsearch/reference/8.18/deb.html
https://www.elastic.co/docs/deploy-manage/deploy/self-managed/install-elasticsearch-with-debian-package
[root@elk94 ~]# wget https://artifacts.elastic.co/downloads/elasticsearch/elasticsearch-9.2.0-amd64.deb
2.安装ES9
[root@elk94 ~]# ll elasticsearch-9.2.0-amd64.deb
-rw-r--r-- 1 root root 686588732 Nov 4 10:36 elasticsearch-9.2.0-amd64.deb
[root@elk94 ~]#
[root@elk94 ~]# dpkg -i elasticsearch-9.2.0-amd64.deb
...
--------------------------- Security autoconfiguration information ------------------------------
Authentication and authorization are enabled.
TLS for the transport and HTTP layers is enabled and configured.
The generated password for the elastic built-in superuser is : _1nGhU1tRMZl2G=PpgL+
If this node should join an existing cluster, you can reconfigure this with
'/usr/share/elasticsearch/bin/elasticsearch-reconfigure-node --enrollment-token <token-here>'
after creating an enrollment token on your existing cluster.
You can complete the following actions at any time:
Reset the password of the elastic built-in superuser with
'/usr/share/elasticsearch/bin/elasticsearch-reset-password -u elastic'.
Generate an enrollment token for Kibana instances with
'/usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s kibana'.
Generate an enrollment token for Elasticsearch nodes with
'/usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s node'.
-------------------------------------------------------------------------------------------------
### NOT starting on installation, please execute the following statements to configure elasticsearch service to start automatically using systemd
sudo systemctl daemon-reload
sudo systemctl enable elasticsearch.service
### You can start elasticsearch service by executing
sudo systemctl start elasticsearch.service
[root@elk94 ~]#
3.修改ES集群的配置文件
[root@elk94 ~]# grep network.host /etc/elasticsearch/elasticsearch.yml
#network.host: 192.168.0.1
[root@elk94 ~]#
[root@elk94 ~]# sed -i 's@#network.host: 192.168.0.1@network.host: 0.0.0.0@' /etc/elasticsearch/elasticsearch.yml
[root@elk94 ~]#
[root@elk94 ~]# grep network.host /etc/elasticsearch/elasticsearch.yml
network.host: 0.0.0.0
[root@elk94 ~]#
4.启动ES服务
[root@elk94 ~]# systemctl enable --now elasticsearch.service
Created symlink /etc/systemd/system/multi-user.target.wants/elasticsearch.service → /lib/systemd/system/elasticsearch.service.
[root@elk94 ~]#
[root@elk94 ~]# ss -ntl | grep 9200
LISTEN 0 4096 *:9200 *:*
[root@elk94 ~]#
5.访问测试
[root@elk95 ~]# curl -k https://10.0.0.94:9200 -u "elastic:_1nGhU1tRMZl2G=PpgL+"
{
"name" : "elk94",
"cluster_name" : "elasticsearch",
"cluster_uuid" : "8wypk5pFSXyr3xwR7T92CQ",
"version" : {
"number" : "9.2.0",
"build_flavor" : "default",
"build_type" : "deb",
"build_hash" : "25d88452371273dd27356c98598287b669a03eae",
"build_date" : "2025-10-21T10:06:21.288851013Z",
"build_snapshot" : false,
"lucene_version" : "10.3.1",
"minimum_wire_compatibility_version" : "8.19.0",
"minimum_index_compatibility_version" : "8.0.0"
},
"tagline" : "You Know, for Search"
}
[root@elk95 ~]#
6.验证集群
[root@elk95 ~]# curl -k https://10.0.0.94:9200/_cat/nodes -u "elastic:_1nGhU1tRMZl2G=PpgL+"
10.0.0.94 54 97 12 0.24 0.30 0.18 cdfhilmrstw * elk94
[root@elk95 ~]#
二.ES9集群部署实战
1.准备机器
硬件： 2c,4G,50GB+
IP地址及主机名
10.0.0.94 elk94
10.0.0.95 elk95
10.0.0.96 elk96
2.停止ES单点服务
[root@elk94 ~]# systemctl disable --now elasticsearch.service
[root@elk94 ~]#
[root@elk94 ~]# ss -ntl | egrep "9200|9300"
[root@elk94 ~]#
[root@elk94 ~]# rm -rf /var/{log,lib}/elasticsearch/*
[root@elk94 ~]#
3.拷贝软件包到其他节点
[root@elk94 ~]# scp elasticsearch-9.2.0-amd64.deb 10.0.0.95:~
[root@elk94 ~]# scp elasticsearch-9.2.0-amd64.deb 10.0.0.96:~
3.其他节点安装ES8软件包
[root@elk95 ~]# dpkg -i elasticsearch-9.2.0-amd64.deb
[root@elk96 ~]# dpkg -i elasticsearch-9.2.0-amd64.deb
4.修改ES集群的配置文件
[root@elk94 ~]# egrep -v "^#|^$" /etc/elasticsearch/elasticsearch.yml
cluster.name: oldboyedu-linux100-es9-cluster
path.data: /var/lib/elasticsearch
path.logs: /var/log/elasticsearch
network.host: 0.0.0.0
discovery.seed_hosts: ["10.0.0.94"]
cluster.initial_master_nodes: ["10.0.0.94"]
xpack.security.enabled: true
xpack.security.enrollment.enabled: true
xpack.security.http.ssl:
enabled: true
keystore.path: certs/http.p12
xpack.security.transport.ssl:
enabled: true
verification_mode: certificate
keystore.path: certs/transport.p12
truststore.path: certs/transport.p12
cluster.initial_master_nodes: ["elk94"]
http.host: 0.0.0.0
[root@elk94 ~]#
5.启动ES服务
[root@elk94 ~]# systemctl enable --now elasticsearch.service
[root@elk94 ~]# ss -ntl | egrep "9200|9300"
LISTEN 0 4096 *:9300 *:*
LISTEN 0 4096 *:9200 *:*
[root@elk94 ~]#
6.测试验证
[root@elk95 ~]# curl -k https://10.0.0.94:9200/_cat/nodes -u "elastic:_1nGhU1tRMZl2G=PpgL+"
10.0.0.94 52 96 40 0.51 0.23 0.18 cdfhilmrstw * elk94
[root@elk95 ~]#
7.生成token
[root@elk94 ~]# /usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s node # ES9采用该脚本生成令牌
eyJ2ZXIiOiI4LjE0LjAiLCJhZHIiOlsiMTAuMC4wLjk0OjkyMDAiXSwiZmdyIjoiYmNhMjA4MzMxOTgzZGUzZWI2Nzg5MDNmZjZjMjliYzhlYmI4ZDZmNzdmMGZmYjk0MDU2ODQwMzdjNjFiOWRlOCIsImtleSI6IkZLYmJUSm9CNlNzT3c2UWhZY2xQOjIxR0tUQTZKdGo5UzNYOUdqUmc2dkEifQ==
[root@elk94 ~]#
8.新加入节点使用token注册【但是该步骤仅能同步部分配置】
语法格式:
/usr/share/elasticsearch/bin/elasticsearch-reconfigure-node --enrollment-token <TOKEN>
[root@elk95 ~]# /usr/share/elasticsearch/bin/elasticsearch-reconfigure-node --enrollment-token eyJ2ZXIiOiI4LjE0LjAiLCJhZHIiOlsiMTAuMC4wLjk0OjkyMDAiXSwiZmdyIjoiYmNhMjA4MzMxOTgzZGUzZWI2Nzg5MDNmZjZjMjliYzhlYmI4ZDZmNzdmMGZmYjk0MDU2ODQwMzdjNjFiOWRlOCIsImtleSI6IkZLYmJUSm9CNlNzT3c2UWhZY2xQOjIxR0tUQTZKdGo5UzNYOUdqUmc2dkEifQ==
This node will be reconfigured to join an existing cluster, using the enrollment token that you provided.
This operation will overwrite the existing configuration. Specifically:
- Security auto configuration will be removed from elasticsearch.yml
- The [certs] config directory will be removed
- Security auto configuration related secure settings will be removed from the elasticsearch.keystore
Do you want to continue with the reconfiguration process [y/N]y
[root@elk95 ~]#
[root@elk95 ~]# egrep -v "^#|^$" /etc/elasticsearch/elasticsearch.yml
path.data: /var/lib/elasticsearch
path.logs: /var/log/elasticsearch
xpack.security.enabled: true
xpack.security.enrollment.enabled: true
xpack.security.http.ssl:
enabled: true
keystore.path: certs/http.p12
xpack.security.transport.ssl:
enabled: true
verification_mode: certificate
keystore.path: certs/transport.p12
truststore.path: certs/transport.p12
discovery.seed_hosts: ["10.0.0.94:9300"]
http.host: 0.0.0.0
transport.host: 0.0.0.0
[root@elk95 ~]#
[root@elk96 ~]# /usr/share/elasticsearch/bin/elasticsearch-reconfigure-node --enrollment-token eyJ2ZXIiOiI4LjE0LjAiLCJhZHIiOlsiMTAuMC4wLjk0OjkyMDAiXSwiZmdyIjoiYmNhMjA4MzMxOTgzZGUzZWI2Nzg5MDNmZjZjMjliYzhlYmI4ZDZmNzdmMGZmYjk0MDU2ODQwMzdjNjFiOWRlOCIsImtleSI6IkZLYmJUSm9CNlNzT3c2UWhZY2xQOjIxR0tUQTZKdGo5UzNYOUdqUmc2dkEifQ==
This node will be reconfigured to join an existing cluster, using the enrollment token that you provided.
This operation will overwrite the existing configuration. Specifically:
- Security auto configuration will be removed from elasticsearch.yml
- The [certs] config directory will be removed
- Security auto configuration related secure settings will be removed from the elasticsearch.keystore
Do you want to continue with the reconfiguration process [y/N]y
[root@elk96 ~]#
[root@elk96 ~]# egrep -v "^#|^$" /etc/elasticsearch/elasticsearch.yml
path.data: /var/lib/elasticsearch
path.logs: /var/log/elasticsearch
xpack.security.enabled: true
xpack.security.enrollment.enabled: true
xpack.security.http.ssl:
enabled: true
keystore.path: certs/http.p12
xpack.security.transport.ssl:
enabled: true
verification_mode: certificate
keystore.path: certs/transport.p12
truststore.path: certs/transport.p12
discovery.seed_hosts: ["10.0.0.94:9300"]
http.host: 0.0.0.0
transport.host: 0.0.0.0
[root@elk96 ~]#
9.手动同步ES集群配置文件
[root@elk94 ~]# scp /etc/elasticsearch/elasticsearch.yml 10.0.0.95:/etc/elasticsearch/
[root@elk94 ~]#
[root@elk94 ~]# scp /etc/elasticsearch/elasticsearch.yml 10.0.0.96:/etc/elasticsearch/
[root@elk94 ~]#
10.各节点检查配置文件
[root@elk94 ~]# egrep -v "^#|^$" /etc/elasticsearch/elasticsearch.yml
cluster.name: oldboyedu-linux100-es9-cluster
path.data: /var/lib/elasticsearch
path.logs: /var/log/elasticsearch
network.host: 0.0.0.0
discovery.seed_hosts: ["10.0.0.94"]
cluster.initial_master_nodes: ["10.0.0.94"]
xpack.security.enabled: true
xpack.security.enrollment.enabled: true
xpack.security.http.ssl:
enabled: true
keystore.path: certs/http.p12
xpack.security.transport.ssl:
enabled: true
verification_mode: certificate
keystore.path: certs/transport.p12
truststore.path: certs/transport.p12
http.host: 0.0.0.0
[root@elk94 ~]#
[root@elk95 ~]# egrep -v "^#|^$" /etc/elasticsearch/elasticsearch.yml
cluster.name: oldboyedu-linux100-es9-cluster
path.data: /var/lib/elasticsearch
path.logs: /var/log/elasticsearch
network.host: 0.0.0.0
discovery.seed_hosts: ["10.0.0.94"]
cluster.initial_master_nodes: ["10.0.0.94"]
xpack.security.enabled: true
xpack.security.enrollment.enabled: true
xpack.security.http.ssl:
enabled: true
keystore.path: certs/http.p12
xpack.security.transport.ssl:
enabled: true
verification_mode: certificate
keystore.path: certs/transport.p12
truststore.path: certs/transport.p12
http.host: 0.0.0.0
[root@elk95 ~]#
[root@elk96 ~]# egrep -v "^#|^$" /etc/elasticsearch/elasticsearch.yml
cluster.name: oldboyedu-linux100-es9-cluster
path.data: /var/lib/elasticsearch
path.logs: /var/log/elasticsearch
network.host: 0.0.0.0
discovery.seed_hosts: ["10.0.0.94"]
cluster.initial_master_nodes: ["10.0.0.94"]
xpack.security.enabled: true
xpack.security.enrollment.enabled: true
xpack.security.http.ssl:
enabled: true
keystore.path: certs/http.p12
xpack.security.transport.ssl:
enabled: true
verification_mode: certificate
keystore.path: certs/transport.p12
truststore.path: certs/transport.p12
http.host: 0.0.0.0
[root@elk96 ~]#
11.重启ES集群
[root@elk94 ~]# systemctl restart elasticsearch.service
[root@elk94 ~]#
[root@elk95 ~]# systemctl enable --now elasticsearch.service
[root@elk95 ~]#
[root@elk96 ~]# systemctl enable --now elasticsearch.service
[root@elk96 ~]#
12.再次测试验证
[root@elk95 ~]# curl -k https://10.0.0.94:9200/_cat/nodes -u "elastic:_1nGhU1tRMZl2G=PpgL+"
10.0.0.95 42 97 0 0.10 0.18 0.11 cdfhilmrstw - elk95
10.0.0.94 47 95 0 0.08 0.14 0.10 cdfhilmrstw * elk94
10.0.0.96 41 97 0 0.09 0.23 0.16 cdfhilmrstw - elk96
[root@elk95 ~]#
13.可能会遇到的错误
Q1: ERROR: Failed to determine the health of the cluster., with exit code 69
root@elk81:~# /usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s node
ERROR: Failed to determine the health of the cluster., with exit code 69
root@elk81:~#
问题分析:
ES服务没有启动。
解决方案:
先启动服务。
彩蛋: 卸载ES服务
systemctl disable --now elasticsearch.service
dpkg -P elasticsearch
rm -rf /var/{lib,log}/elasticsearch/*
三.ES9重置管理员elatic密码
1.重置密码
[root@elk94 ~]# /usr/share/elasticsearch/bin/elasticsearch-reset-password -u elastic
This tool will reset the password of the [elastic] user to an autogenerated value.
The password will be printed in the console.
Please confirm that you would like to continue [y/N]y # 手动输入字母'y'
Password for the [elastic] user successfully reset.
New value: v1YLiqrPX_qCtTMz=w39
[root@elk94 ~]#
2.用旧密码将无法访问
[root@elk95 ~]# curl -k https://10.0.0.94:9200/_cat/nodes -u "elastic:_1nGhU1tRMZl2G=PpgL+" ; echo
{"error":{"root_cause":[{"type":"security_exception","reason":"unable to authenticate user [elastic] for REST request [/_cat/nodes]","header":{"WWW-Authenticate":["Basic realm=\"security\", charset=\"UTF-8\"","Bearer realm=\"security\"","ApiKey"]}}],"type":"security_exception","reason":"unable to authenticate user [elastic] for REST request [/_cat/nodes]","header":{"WWW-Authenticate":["Basic realm=\"security\", charset=\"UTF-8\"","Bearer realm=\"security\"","ApiKey"]}},"status":401}
[root@elk95 ~]#
3.使用新密码是可以正常访问的
[root@elk95 ~]# curl -k https://10.0.0.94:9200/_cat/nodes -u "elastic:v1YLiqrPX_qCtTMz=w39"
10.0.0.95 44 97 0 0.01 0.11 0.09 cdfhilmrstw - elk95
10.0.0.94 49 95 2 0.06 0.11 0.09 cdfhilmrstw * elk94
10.0.0.96 42 97 0 0.01 0.14 0.13 cdfhilmrstw - elk96
[root@elk95 ~]#
四.验证ES 9集群高可用
1 停止master节点
ES集群数据写入机制为半数以上写入，因此要确保ES集群半数以上节点存活。
假设主分片数量为1，副本数量为1，则半数以上机制为2副本写入。
因此要确保ES集群最少有2台节点可用。
实操案例:
[root@elk94 ~]# systemctl stop elasticsearch.service
[root@elk94 ~]#
[root@elk94 ~]# ss -ntl | grep 9200
[root@elk94 ~]#
2 验证自动切换master
[root@elk95 ~]# curl -k https://10.0.0.95:9200/_cat/nodes -u "elastic:v1YLiqrPX_qCtTMz=w39"
10.0.0.96 27 96 2 0.21 0.05 0.02 cdfhilmrstw * elk96
10.0.0.95 25 97 1 0.00 0.00 0.00 cdfhilmrstw - elk95
[root@elk95 ~]#
3 再次停止master节点
[root@elk96 ~]# systemctl stop elasticsearch.service
[root@elk96 ~]#
[root@elk96 ~]# ss -ntl | grep 9200
[root@elk96 ~]#
4 发现集群不可用
[root@elk95 ~]# curl -k https://10.0.0.95:9200/_cat/nodes -u "elastic:v1YLiqrPX_qCtTMz=w39" ;echo
{"error":{"root_cause":[{"type":"master_not_discovered_exception","reason":null}],"type":"master_not_discovered_exception","reason":null},"status":503}
[root@elk95 ~]#
5 启动停止的节点
[root@elk94 ~]# systemctl start elasticsearch.service
[root@elk96 ~]# systemctl start elasticsearch.service
6 验证是否正常工作
[root@elk95 ~]# curl -k https://10.0.0.95:9200/_cat/nodes -u "elastic:v1YLiqrPX_qCtTMz=w39"
10.0.0.94 41 96 56 0.61 0.16 0.05 cdfhilmrstw - elk94
10.0.0.96 41 97 73 0.56 0.14 0.04 cdfhilmrstw - elk96
10.0.0.95 6 97 1 0.30 0.07 0.02 cdfhilmrstw * elk95
[root@elk95 ~]#
五.部署kibana对接ES9集群
1.下载kibana
[root@elk96 ~]# wget https://artifacts.elastic.co/downloads/kibana/kibana-9.2.0-amd64.deb
2.安装kibana
[root@elk96 ~]# dpkg -i kibana-9.2.0-amd64.deb
3.修改kibana的配置文件
[root@elk96 ~]# vim /etc/kibana/kibana.yml
...
server.host: "0.0.0.0"
i18n.locale: "zh-CN"
4.启动kibana
[root@elk96 ~]# systemctl enable --now kibana.service
Created symlink /etc/systemd/system/multi-user.target.wants/kibana.service → /lib/systemd/system/kibana.service.
[root@elk96 ~]#
[root@elk96 ~]# ss -ntl | grep 5601
LISTEN 0 511 0.0.0.0:5601 0.0.0.0:*
[root@elk96 ~]#
5.生成kiban专用的token
[root@elk94 ~]# /usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s kibana
eyJ2ZXIiOiI4LjE0LjAiLCJhZHIiOlsiMTAuMC4wLjk0OjkyMDAiXSwiZmdyIjoiYmNhMjA4MzMxOTgzZGUzZWI2Nzg5MDNmZjZjMjliYzhlYmI4ZDZmNzdmMGZmYjk0MDU2ODQwMzdjNjFiOWRlOCIsImtleSI6ImJSYV9UWm9CN2tKNGpTSmFrc1o3OlduYnR2WENFMFJWSi1tN3Bxd2FZQ1EifQ==
[root@elk94 ~]#
6.访问kibana的webUI
http://10.0.0.96:5601/
基于token进行认证配置即可。
7.kiban服务器获取校验码
[root@elk96 ~]# /usr/share/kibana/bin/kibana-verification-code
Your verification code is: 194 550
[root@elk96 ~]#
8.基于校验码登录
略，见视频。
9.修改管理员密码

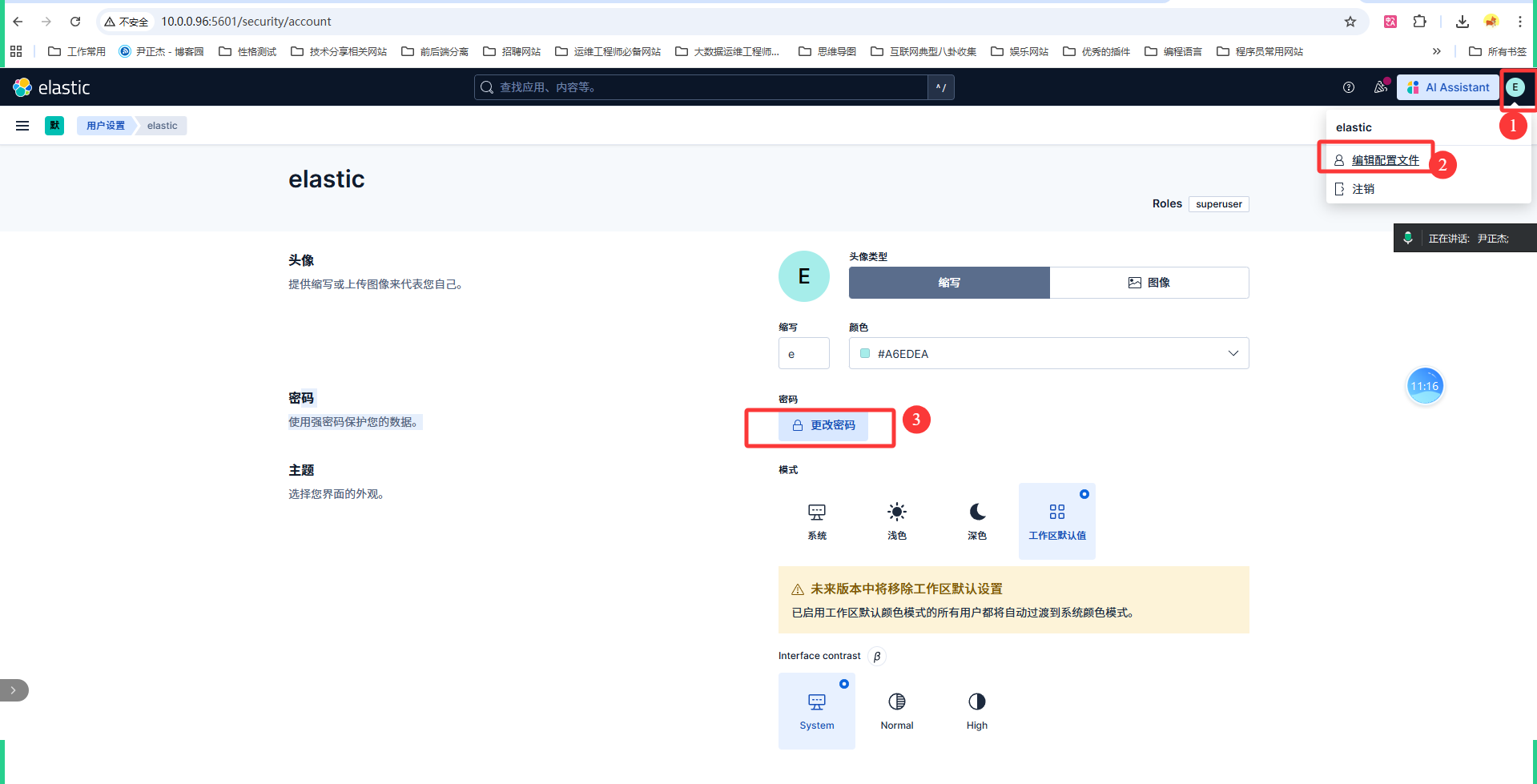

如上图所示，建议修改elastic密码为123456
10.修改后测试密码
[root@elk95 ~]# curl -k https://10.0.0.95:9200/_cat/nodes -u "elastic:123456"
10.0.0.94 58 97 3 0.06 0.16 0.13 cdfhilmrstw - elk94
10.0.0.96 13 95 3 0.11 0.23 0.16 cdfhilmrstw - elk96
10.0.0.95 35 97 1 0.02 0.07 0.03 cdfhilmrstw * elk95
[root@elk95 ~]#
六.ES8和ES7对比
1.ES8默认启用了https，支持认证等功能;
2.ES8新增'elasticsearch-reset-password'脚本，对于elastic用户重置密码更加简单;
3.ES8新增'elasticsearch-create-enrollment-token'脚本，可以为组件创建token信息，比如kibana，node组件；
4.ES8新增kibana新增'kibana-verification-code'用于生成校验码。
5.kibana支持更多的语言：English (default) "en", Chinese "zh-CN", Japanese "ja-JP", French "fr-FR"
6.kibana的webUI更加丰富，支持AI助手，手动创建索引等功能;
7.kibana不用创建索引模式就可以直接查看数据，系统会生成一个临时的视图以供查看;
8.ES8集群部署时，需要借助'elasticsearch-reconfigure-node'脚本来加入已存在的集群，默认就是单master节点的配置;
本文来自博客园，作者：尹正杰，转载请注明原文链接：https://www.cnblogs.com/yinzhengjie/p/19170246，个人微信: "JasonYin2020"（添加时请备注来源及意图备注，有偿付费）
当你的才华还撑不起你的野心的时候，你就应该静下心来学习。当你的能力还驾驭不了你的目标的时候，你就应该沉下心来历练。问问自己，想要怎样的人生。
浙公网安备 33010602011771号
