BP神经网络

'''
将测试集样本放入训练好的网络中去
'''
error_te = []
score=[]
m=len(data_te)
for it in range(m):    #测试集有m条记录
    net_in = np.array([data_te.iloc[it, 0], data_te.iloc[it, 1], -1])  # 网络输入
    real = data_te.iloc[it, 2]
    for i in range(4):
        out_in[i] = sigmoid(sum(net_in * w_mid[:, i]))  # 从输入到隐层的传输过程
    res = sigmoid(sum(out_in * w_out))   # 模型预测值
    error_te.append(abs(real-res))

    if(abs(real-res)<0.1718):
        score.append(1)
    else:
        score.append(0)
score_array = np.asfarray(score)
print("测试集进行1轮测试的正确率是：",(score_array.sum()/score_array.size)*100,'%')

plt.plot(error_te)#测试集上每一轮的误差
plt.show()
err2=np.mean(error_te)
print("测试集进行1轮测试的平均误差:",err2)

import numpy as np
import scipy.special
import pylab
import matplotlib.pyplot as plt
#%%
class NeuralNetwork():
    # 初始化神经网络
    def __init__(self, inputnodes, hiddennodes, outputnodes, learningrate):
         # 设置输入层节点，隐藏层节点和输出层节点的数量和学习率
        self.inodes = inputnodes
        self.hnodes = hiddennodes
        self.onodes = outputnodes
        self.lr = learningrate                #设置神经网络中的学习率
        # 使用正态分布，进行权重矩阵的初始化
        self.wih = np.random.normal(0.0, pow(self.hnodes, -0.5), (self.hnodes, self.inodes))  #(mu,sigma,矩阵)
        self.who = np.random.normal(0.0, pow(self.onodes, -0.5), (self.onodes, self.hnodes))
        self.activation_function = lambda x: scipy.special.expit(x)       #激活函数设为Sigmod()函数
        pass
    # 定义训练神经网络
    print("************Train start******************")
    def train(self,input_list,target_list):
        # 将输入、输出列表转换为二维数组
        inputs = np.array(input_list, ndmin=2).T    #T:转置
        targets = np.array(target_list,ndmin= 2).T
        hidden_inputs = np.dot(self.wih, inputs)                           #计算到隐藏层的信号，dot()返回的是两个数组的点积
        hidden_outputs = self.activation_function(hidden_inputs)           #计算隐藏层输出的信号
        final_inputs = np.dot(self.who, hidden_outputs)                    #计算到输出层的信号
        final_outputs = self.activation_function(final_inputs)

        output_errors = targets - final_outputs                           #计算输出值与标签值的差值
        #print("*****************************")
        #print("output_errors:",output_errors)
        hidden_errors = np.dot(self.who.T,output_errors)


        #隐藏层和输出层权重更新
        self.who += self.lr * np.dot((output_errors*final_outputs*(1.0-final_outputs)),
                                       np.transpose(hidden_outputs))#transpose()转置
        #输入层和隐藏层权重更新
        self.wih += self.lr * np.dot((hidden_errors*hidden_outputs*(1.0-hidden_outputs)),
                                       np.transpose(inputs))#转置
        pass

        #查询神经网络
    def query(self, input_list):   # 转换输入列表到二维数
        inputs = np.array(input_list, ndmin=2).T                     #计算到隐藏层的信号
        hidden_inputs = np.dot(self.wih, inputs)                     #计算隐藏层输出的信号
        hidden_outputs = self.activation_function(hidden_inputs)        #计算到输出层的信号
        final_inputs = np.dot(self.who, hidden_outputs)
        final_outputs = self.activation_function(final_inputs)
        return final_outputs
#%%
input_nodes = 784              #输入层神经元个数
hidden_nodes = 100             #隐藏层神经元个数
output_nodes = 10              #输出层神经元个数
learning_rate = 0.3            #学习率为0.3
# 创建神经网络
n = NeuralNetwork(input_nodes, hidden_nodes, output_nodes, learning_rate)
#%%
#读取训练数据集 转化为列表
training_data_file = open(r"E:\1大二下课程\人工智能课程\代码和数据\第四章代码和数据\mnist_train.csv",'r')
training_data_list = training_data_file.readlines()     #方法用于读取所有行，并返回列表
#print("training_data_list:",training_data_list)
training_data_file.close()
#%%
#训练次数
i = 2
for e in range(i):
    #训练神经网络
    for record in training_data_list:
        all_values = record.split(',')                   #根据逗号，将文本数据进行拆分
        #将文本字符串转化为实数，并创建这些数字的数组。
        inputs = (np.asfarray(all_values[1:])/255.0 * 0.99) + 0.01
        #创建用零填充的数组，数组的长度为output_nodes,加0.01解决了0输入造成的问题
        targets = np.zeros(output_nodes) + 0.01     #10个元素都为0.01的数组
        #使用目标标签，将正确元素设置为0.99
        targets[int(all_values[0])] = 0.99#all_values[0]=='8'
        n.train(inputs,targets)
        pass
pass
#%%
test_data_file = open(r"E:\1大二下课程\人工智能课程\代码和数据\第四章代码和数据\mnist_test.csv",'r')
test_data_list = test_data_file.readlines()
test_data_file.close()

all_values = test_data_list[2].split(',')       #第3条数据，首元素为1
# print(all_values)
# print(len(all_values))
# print(all_values[0])  #输出目标值
#%%
score = []
print("***************Test start!**********************")
for record in test_data_list:
    #用逗号分割将数据进行拆分
    all_values = record.split(',')
    #正确的答案是第一个值
    correct_values = int(all_values[0])
    # print(correct_values,"是正确的期望值")
    #做输入
    inputs = (np.asfarray(all_values[1:])/255.0 * 0.99) + 0.01
    #测试网络 作输入
    outputs= n.query(inputs)#10行一列的矩阵
    #找出输出的最大值的索引
    label = np.argmax(outputs)
    # print(label,"是网络的输出值\n")
    #如果期望值和网络的输出值正确 则往score 数组里面加1 否则添加0
    if(label == correct_values):
        score.append(1)
    else:
        score.append(0)
    pass
pass
print(outputs)
#%%
# print(score)
score_array = np.asfarray(score)
#%%
print("正确率是：",(score_array.sum()/score_array.size)*100,'%')

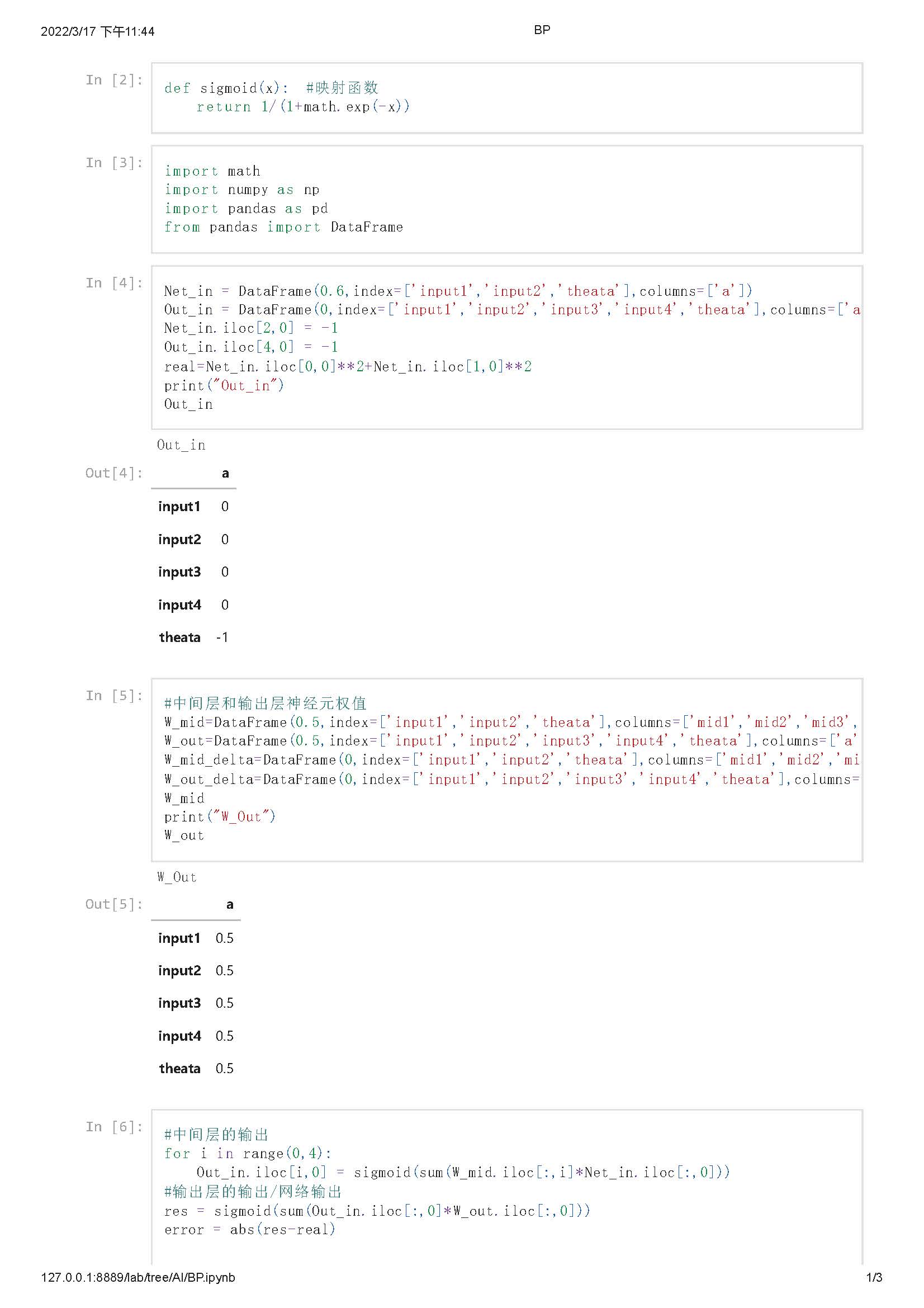

def sigmoid(x):  #映射函数
    return 1/(1+math.exp(-x))
#%%
import math
import numpy as np
import pandas as pd
from pandas import DataFrame
#%%
Net_in = DataFrame(0.6,index=['input1','input2','theata'],columns=['a'])
Out_in = DataFrame(0,index=['input1','input2','input3','input4','theata'],columns=['a'])
Net_in.iloc[2,0] = -1
Out_in.iloc[4,0] = -1
real=Net_in.iloc[0,0]**2+Net_in.iloc[1,0]**2
print("Out_in")
Out_in
#%%
#中间层和输出层神经元权值
W_mid=DataFrame(0.5,index=['input1','input2','theata'],columns=['mid1','mid2','mid3','mid4'])
W_out=DataFrame(0.5,index=['input1','input2','input3','input4','theata'],columns=['a'])
W_mid_delta=DataFrame(0,index=['input1','input2','theata'],columns=['mid1','mid2','mid3','mid4'])
W_out_delta=DataFrame(0,index=['input1','input2','input3','input4','theata'],columns=['a'])
W_mid
print("W_Out")
W_out
#%%
#中间层的输出
for i in range(0,4):
    Out_in.iloc[i,0] = sigmoid(sum(W_mid.iloc[:,i]*Net_in.iloc[:,0]))
#输出层的输出/网络输出
res = sigmoid(sum(Out_in.iloc[:,0]*W_out.iloc[:,0]))
error = abs(res-real)
print("error")
error
#%%
yita=0.6
#输出层权值变化量
W_out_delta.iloc[:,0] = yita*res*(1-res)*(real-res)*Out_in.iloc[:,0]
print("W_out_delta",'\n',W_out_delta)
W_out_delta.iloc[4,0] = -(yita*res*(1-res)*(real-res))#更新输出层阈值theata
print("W_out_delta",'\n',W_out_delta)
W_out = W_out + W_out_delta #输出层权值更新
print("W_out")
W_out
#%%
#中间层权值变化量
for i in range(0,4):
    W_mid_delta.iloc[:,i] = yita*Out_in.iloc[i,0]*(1-Out_in.iloc[i,0])*W_out.iloc[i,0]*res*(1-res)*(real-res)*Net_in.iloc[:,0]
    W_mid_delta.iloc[2,i] = -(yita*Out_in.iloc[i,0]*(1-Out_in.iloc[i,0])*W_out.iloc[i,0]*res*(1-res)*(real-res))#更新隐含层阈值theat
W_mid = W_mid + W_mid_delta #中间层权值更新
print("W_mid")
W_mid
