配置增强swagger

​

<dependency>
    <groupId>org.springdoc</groupId>
    <artifactId>springdoc-openapi-starter-webmvc-ui</artifactId>
    <version>${org.springdoc.version}</version>
</dependency>

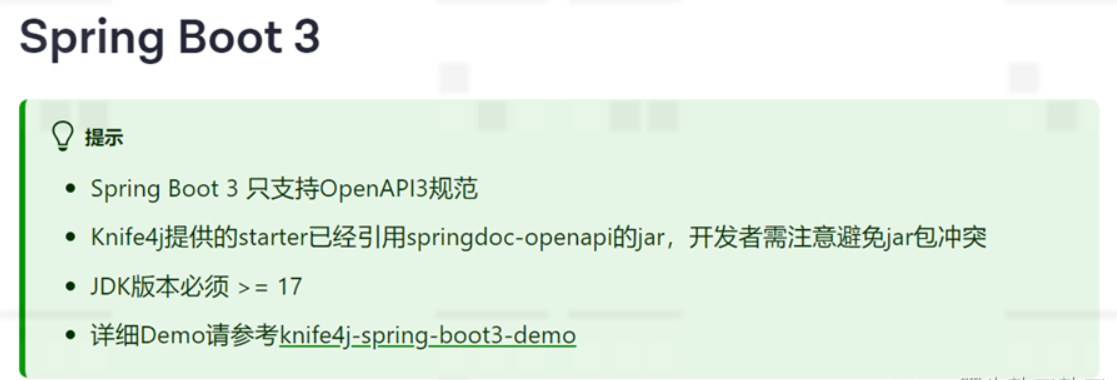

Swagger版本要与springboot  版本对应

2.1.0 ->3.1.2

<org.springdoc.version>2.1.0</org.springdoc.version>

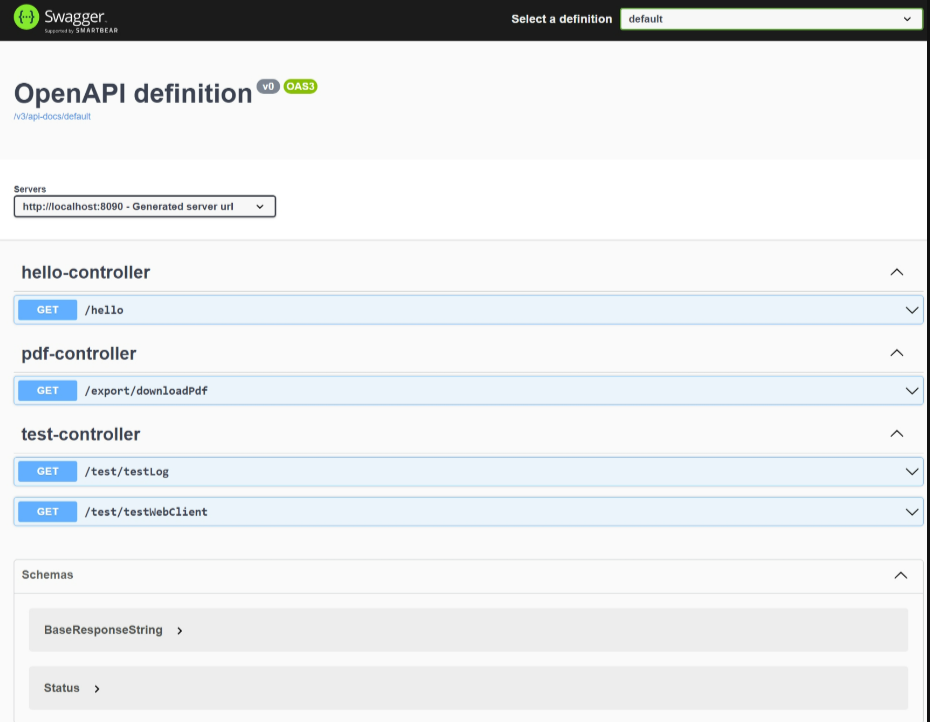

地址：http://localhost:8090/swagger-ui/index.html

增强版

swagger扩展框架 之knife4j

<knife4j.version>4.3.0</knife4j.version>
<dependency>

    <groupId>com.github.xiaoymin</groupId>

    <artifactId>knife4j-openapi3-jakarta-spring-boot-starter</artifactId>

    <version>${knife4j.version}</version>

</dependency>

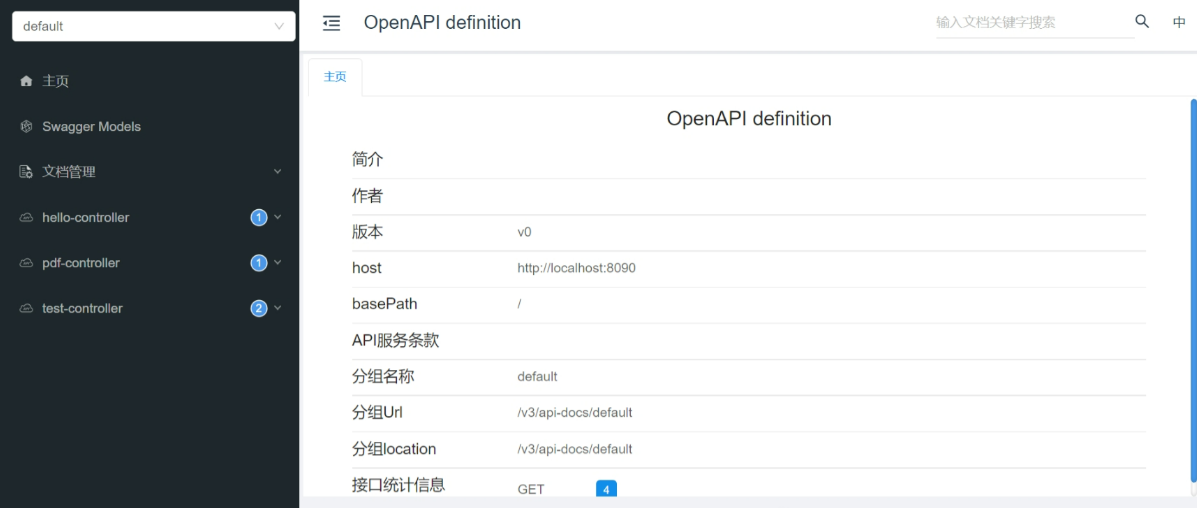

地址：http://localhost:8090/doc.html#/home

配置

# springdoc-openapi项目配置
springdoc:
  swagger-ui:
    path: /swagger-ui.html
    tags-sorter: alpha
    operations-sorter: alpha
  api-docs:
    path: /v3/api-docs
  group-configs:
    - group: 'default'
      paths-to-match: '/**'
      packages-to-scan: com.example.activiti.controller
# knife4j的增强配置，不需要增强可以不配
knife4j:
  enable: true
  setting:
    language: en

Knife4j · 集Swagger2及OpenAPI3为一体的增强解决方案. | Knife4j (xiaominfo.com)





SpringBoot2.2.6 整合 Swagger2文档 使用BootstrapUI页面

参考：http://t.csdnimg.cn/EMvSi

引入依赖

		<swagger-ui.version>2.9.2</swagger-ui.version>
        <swagger2.version>2.9.2</swagger2.version>
        <swagger-bootstrap-ui.version>1.8.5</swagger-bootstrap-ui.version>
<span class="hljs-comment">&lt;!-- swagger-ui --&gt;
    <span class="hljs-tag">&lt;<span class="hljs-name">dependency&gt;
        <span class="hljs-tag">&lt;<span class="hljs-name">groupId&gt;io.springfox<span class="hljs-tag">&lt;/<span class="hljs-name">groupId&gt;
        <span class="hljs-tag">&lt;<span class="hljs-name">artifactId&gt;springfox-swagger-ui<span class="hljs-tag">&lt;/<span class="hljs-name">artifactId&gt;
        <span class="hljs-tag">&lt;<span class="hljs-name">version&gt;${swagger-ui.version}<span class="hljs-tag">&lt;/<span class="hljs-name">version&gt;
    <span class="hljs-tag">&lt;/<span class="hljs-name">dependency&gt;
    <span class="hljs-comment">&lt;!-- swagger2 --&gt;
    <span class="hljs-tag">&lt;<span class="hljs-name">dependency&gt;
        <span class="hljs-tag">&lt;<span class="hljs-name">groupId&gt;io.springfox<span class="hljs-tag">&lt;/<span class="hljs-name">groupId&gt;
        <span class="hljs-tag">&lt;<span class="hljs-name">artifactId&gt;springfox-swagger2<span class="hljs-tag">&lt;/<span class="hljs-name">artifactId&gt;
        <span class="hljs-tag">&lt;<span class="hljs-name">version&gt;${swagger2.version}<span class="hljs-tag">&lt;/<span class="hljs-name">version&gt;
    <span class="hljs-tag">&lt;/<span class="hljs-name">dependency&gt;
    <span class="hljs-comment">&lt;!-- 引入swagger-bootstrap-ui包 --&gt;
    <span class="hljs-tag">&lt;<span class="hljs-name">dependency&gt;
        <span class="hljs-tag">&lt;<span class="hljs-name">groupId&gt;com.github.xiaoymin<span class="hljs-tag">&lt;/<span class="hljs-name">groupId&gt;
        <span class="hljs-tag">&lt;<span class="hljs-name">artifactId&gt;swagger-bootstrap-ui<span class="hljs-tag">&lt;/<span class="hljs-name">artifactId&gt;
        <span class="hljs-tag">&lt;<span class="hljs-name">version&gt;${swagger-bootstrap-ui.version}<span class="hljs-tag">&lt;/<span class="hljs-name">version&gt;
    <span class="hljs-tag">&lt;/<span class="hljs-name">dependency&gt;

加入SwaggerConfig配置类

package com.cibn.boss.order.config;
import org.springframework.context.annotation.Bean;

import org.springframework.context.annotation.Configuration;

import springfox.documentation.builders.ApiInfoBuilder;

import springfox.documentation.builders.PathSelectors;

import springfox.documentation.builders.RequestHandlerSelectors;

import springfox.documentation.service.ApiInfo;

import springfox.documentation.spi.DocumentationType;

import springfox.documentation.spring.web.plugins.Docket;
/**


SwaggerConfig


@desc: Swagger配置


@version:


@createTime: 2020/8/06 14:36


@author:

*/

@Configuration

public class SwaggerConfig {
@Bean

public Docket createH5RestApi() {

return new Docket(DocumentationType.SWAGGER_2)

.apiInfo(apiInfo())

.select()

.apis(RequestHandlerSelectors.any())

.paths(PathSelectors.any())

.build();

}
private ApiInfo apiInfo() {

return new ApiInfoBuilder()

.title("海外boss api文档")

.description("restful 风格接口")

.version("1.0")

.build();

}


}

启动类

package com.cibn.boss.order;
import com.github.xiaoymin.swaggerbootstrapui.annotations.EnableSwaggerBootstrapUI;

import org.mybatis.spring.annotation.MapperScan;

import org.springframework.boot.SpringApplication;

import org.springframework.boot.autoconfigure.SpringBootApplication;

import springfox.documentation.swagger2.annotations.EnableSwagger2;
@EnableSwaggerBootstrapUI

@EnableSwagger2

@SpringBootApplication

@MapperScan(value = "com.cibn.boss.order.dao")

public class BossAppcation {

public static void main(String[] args)

{

SpringApplication.run(BossAppcation.class, args);
}

}

访问页面: http://ip:端口号/doc.html

​
