treafik2+swarm搭建运维平台

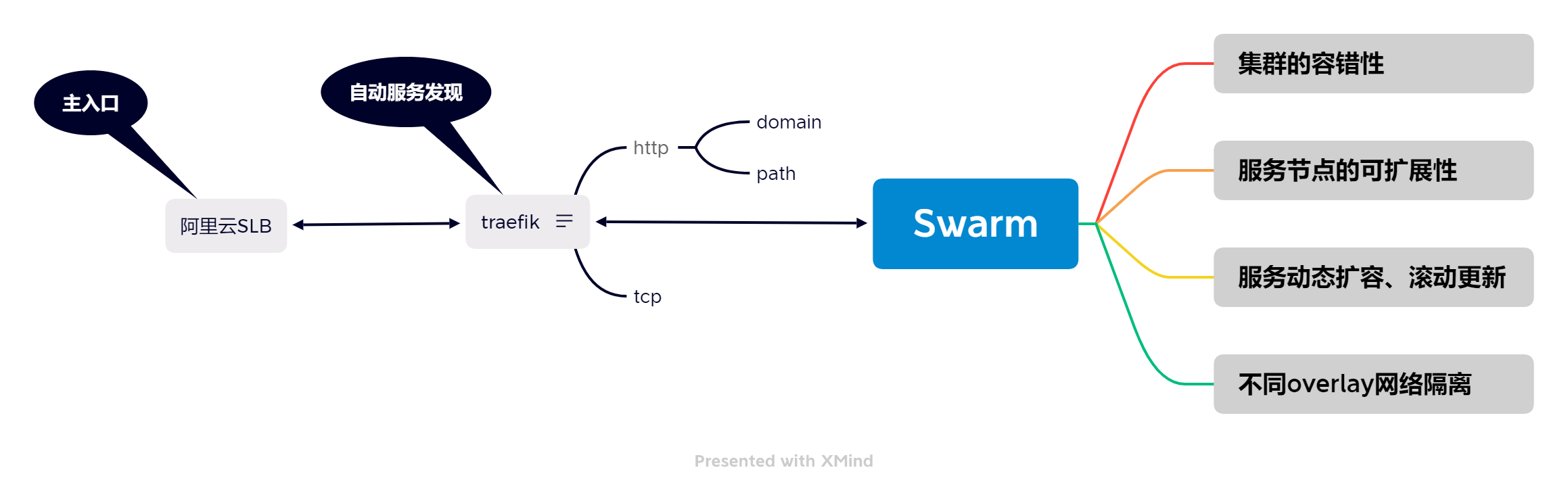

思维导图



直接上搭建命令

环境依赖

用vmware搭建三台ubuntu主机，配置固定ip并安装好docker。

master 192.168.154.200

node1 192.168.154.201

node2 192.168.154.202

一、搭建swarm环境

1、初始化swarm集群
docker swarm init --advertise-addr 192.168.154.200
2、 两个node节点执行添加节点命令
docker swarm join --token SWMTKN-1-26u6knpsjtb5u1t77bry4yucl9w1gjkve73vpmmyyb4s4jykoq-eek4e8zcxhdw98m7rkfc2cv0m 192.168.154.200:2377

集群搭建好了  就是这样简单

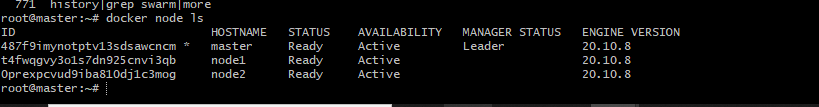

验证一下
docker node ls







　　

二、部署traefik2

1.创建2个不同的network，区别test、prod网络可以进行集群内网络隔离

docker network create --driver=overlay traefik_prod
docker network create --driver=overlay traefik_test

2.部署traefik同时监听上面两个网络（注意要部署到主节点上，官网的文档有问题 ）

docker-compose-traefik.yml

version: '3'


services:
  reverse-proxy:
    # The official v2 Traefik docker image
    image: traefik:v2.8
    # Enables the web UI and tells Traefik to listen to docker
    command:
      - --api.insecure=true
      - --providers.docker.swarmMode=true
    ports:
      # The HTTP port
      - "80:80"
      # The Web UI (enabled by --api.insecure=true)
      - "8080:8080"
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
    deploy:
      placement:
        constraints:
          - node.role == manager
      labels:
        - "traefik.enable=true"
        - "traefik.http.routers.api.rule=Host(`traefik.yourdomain.com`)"
        - "traefik.http.routers.api.service=api@internal" # Let the dashboard access the traefik api
    networks:
      - traefik_prod
      - traefik_test
networks:
  traefik_prod:
    external: true
  traefik_test:
    external: true


3.部署

docker stack deploy -c docker-compose-traefik.yml traefik

4.验证



 5.访问traefik管理页面

http://192.168.154.200:8080/dashboard/#/http/services

　　

三、部署测试demo

1.部署2个nginx
compose.yml

version: '3'

services:
  container-prod:
    image: nginx
    networks:
      - traefik_prod
    deploy:
      replicas: 2
      labels:
        - traefik.enable=true
        - traefik.http.routers.container-prod.rule=Host(`nginx.com`)
        - traefik.http.services.container-prod-service.loadbalancer.server.port=80
networks:
  traefik_prod:
    external: true
2.部署
docker stack deploy -c compose.yml test
3.验证一下
docker stack ps test

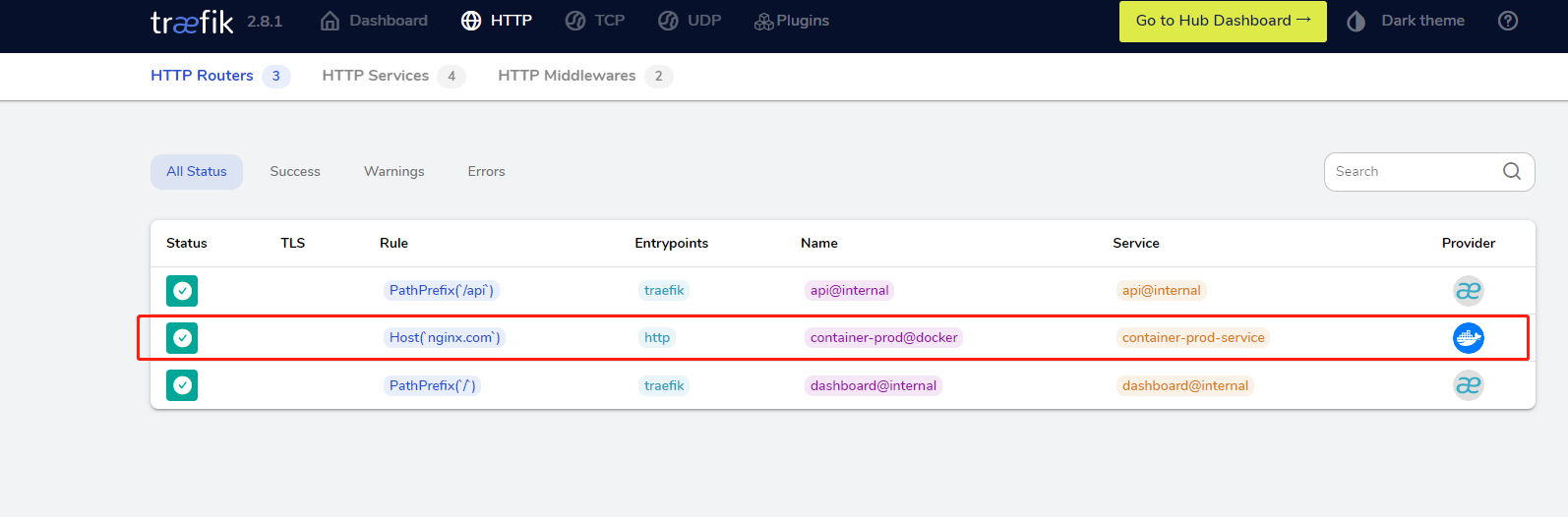

 4.treafik管理页面看一下









　搞定了  写的可能有点仓促了 大体思路是这样 。
