初学MyBatis

MyBatis简介

引言

Mybatis：是apache的一个开源项目iBatis，2010年这个项目由apache software foundation迁移到goodle code，并且改名为Mybatis，2013年11月迁移到Github
Mybatis：是一个实现了数据持久化的开源框架，底层是对JDBC进行封装
Mybatis：是半自动映射框架
Mybatis是ORM框架（object、relational、mapping）对象关系模型，使用Mybatis，可以面向对象来操作持久化对象，ORM框架会通过映射关系将这些面向对象的操作转换成底层的SQL操作

持久化

数据持久是将内存中的数据保存到磁盘上加以固
化的过程
持久化的实现过程大多通过各种关系型数据库来完成。

持久层

在Java开发中对数据进行持久化的集合

第一个MyBatis

环境搭建

新建Maven工程，pom.xml

       <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.13</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.22</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.6</version>
        </dependency>
		<!-- 解决找不到资源文件配置 -->
		<build>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.XML</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>true</filtering>
            </resource>
        </resources>
    </build>

新建数据表

 create table user3(
 id int primary key auto_increment,
 username varchar(11),
 password varchar(11),
 age int
 );

新建数据表对应的实体类User（与数据表中的字段对应）

package com.sheep.pojo;

public class User {
    private long id;
    private String username;
    private String password;
    private int age;
	...请补充get、set
}

创建MyBatis的核心配置文件 config.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <!--  配置Mybatis运行环境  -->
    <environments default="mysql">
        <environment id="mysql">
            <!-- 配置JDBC事物管理 -->
            <transactionManager type="JDBC"/>
            <!-- POOLED配置JDBC数据源连接池 -->
            <dataSource type="POOLED">
                <property name="driver" value="com.mysql.cj.jdbc.Driver"/>
                <property name="url"
                          value="jdbc:mysql://localhost:3306/user01?serverTimezone=UTC&amp;useUnicode=true&amp;characterEncoding=utf8&amp;useSSL=true"/>
                <property name="username" value="root"/>
                <property name="password" value="123321"/>
            </dataSource>
        </environment>
    </environments>
    <!-- 注册UserMapper.XML -->
    <mappers>
        <mapper resource="com/sheep/mapper/UserMapper.XML"/>
    </mappers>
</configuration>

原生接口开发

创建MyBatis的配置文件 Mapper.xml。MyBatis框架需要开发者自定义SQL语句，写在Mapper.xml文件中，实际开发中，会为每个实体类创建对应的Mapper.xml，定义管理该对象数据的SQL。

调用MyBatis的原生接口执行添加操作

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.sheep.mapper.UserMapper">
    <insert id="insert" parameterType="com.sheep.pojo.User">
        insert into user3(username,password,age) values(#{username},#{password},#{age})
    </insert>
</mapper>

namespace属性通常设置为文件所在包+文件名的形式
id是实际调用MyBatis方法时需要用到的参数

parameterType是调用对应方法时参数的数据类型
- resultType是查询结果的返回类型
- insert标签表示执行添加操作
- update标签表示执行更新操作
- select标签表示执行查询操作
- delete标签表示执行删除操作

在全局配置文件config.xml中注册user3Mapper.xml

<!-- 注册User3Mapper。xml -->
<mappers>
    <mapper resource="com/sheep/mapper/UserMapper.XML"/>
</mappers>

调用MyBatis原生接口进行操作

import com.sheep.pojo.User;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;

import java.io.InputStream;

public class Test {
    public static void main(String[] args) {
        //加载配置文件
        InputStream inputStream = Test.class.getClassLoader().getResourceAsStream("config.XML");
        //创建SessionFactoryBuilder对象
        SqlSessionFactoryBuilder sqlSessionFactoryBuilder = new SqlSessionFactoryBuilder();
        //SqlSessionFactoryBuilder对象的Build方法通过配置文件创建会话工厂SqlSessionFactory
        SqlSessionFactory sqlSessionFactory = sqlSessionFactoryBuilder.build(inputStream);
        //通过工厂获取SqlSession
        SqlSession sqlSession = sqlSessionFactory.openSession();
        //通过SqlSession调用User3Mapper中的SQL语句
        //com.sheep.mapper.UserMapper.insert=com.sheep.mapper.UserMapper+.insert（statement标签的id属性）
        String statement = "com.sheep.mapper.UserMapper.insert";
        User user = new User(1L,"梅西","123123",22);
        sqlSession.insert(statement,user);
        //提交事务
        sqlSession.commit();
        //释放资源
        sqlSession.close();
    }
}

加载MyBatis配置文件
- 创建SqlSessionFactoryBuilder对象
- 通过SqlSessionFactoryBuilder对象创建会话工厂SqlSessionFactory
- 通过工厂获取SqlSession
- 通过SqlSession获取Mapper映射文件全类名＋statement标签中的id属性调用SQL
- 提交事务、释放资源

代理接口开发

通过MyBatis代理实现自定义接口

自定义接口

package com.sheep.repository;
import com.sheep.pojo.User;
import java.util.List;

public interface UserIntf {
    public int insert(User user);
    public int update(User user);
    public int deleteById(long id);
    public List<User> findAll();
    public User findById(long id);
}

创建接口对应的UserIntf.XML，定义接口方法对应的SQL语句。

statement标签（即<mapper>中的标签）可根据SQL执行的业务选择insert、delete、update、select。

MyBatis框架会根据规则自动创建接口实现类的代理对象。

规则：

Mapper.xml中namespace为接口的全类名。
Mapper.xml中statement的id为接口中对应的方法名。
Mapper.xml中statement的parameterType和接口中对应方法的参数类型一致。
Mapper.xml中statement的resultType和接口中对应的返回值类型一致。

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.sheep.repository.UserIntf">
    <insert id="insert" parameterType="com.sheep.pojo.User">
        insert into user3(username,password,age) values(#{username},#{password},#{age})
    </insert>
    <update id="update" parameterType="com.sheep.pojo.User">
        update user3 set username=#{username},password=#{password},age=#{age} where id=#{id}
    </update>
    <delete id="deleteById" parameterType="java.lang.Long">
        delete from user3 where id=#{id}
    </delete>
    <select id="findAll" resultType="com.sheep.pojo.User">
        select * from user3
    </select>
    <select id="findById" parameterType="java.lang.Long" resultType="com.sheep.pojo.User">
        select * from user3 where id=#{id}
    </select>
</mapper>

在全局配置文件config.xml中注册UserIntf.XML

<!-- 注册User3Mapper.xml -->
    <mappers>
        <mapper resource="com/sheep/repository/UserIntf.XML"/>
    </mappers>

调用接口的代理对象完成相关的业务操作

import com.sheep.pojo.User;
import com.sheep.repository.UserIntf;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;

import java.io.InputStream;
import java.util.List;

public class Test2 {
    public static void main(String[] args) {
        InputStream resource = Test2.class.getClassLoader().getResourceAsStream("config.XML");
        SqlSessionFactoryBuilder sqlSessionFactoryBuilder = new SqlSessionFactoryBuilder();
        SqlSessionFactory build = sqlSessionFactoryBuilder.build(resource);
        SqlSession sqlSession = build.openSession();
        /**
         * 获取实现接口的代理对象
         * */
        UserIntf mapper = sqlSession.getMapper(UserIntf.class);
        /**
         * 查询
         * */
        List<User> all = mapper.findAll();
        for (User user:all){
            System.out.println(user);
        }
        sqlSession.close();
        /**
         * 添加
         * */
        User user = new User(1L, "C罗", "1235679", 34);
        mapper.insert(user);
        sqlSession.commit();
        sqlSession.close();
        /**
         * 更改
         * */
        User user2 = mapper.findById(3L);
        user.setUsername("石磊");
        user.setPassword("666666");
        user.setAge(23);
        int update = mapper.update(user2);
        sqlSession.commit();
        sqlSession.close();
        /**
         * 根据id查询对象
         * */
        User byId = mapper.findById(2L);
        System.out.println(byId);
        sqlSession.close();
        /**
         * 删除
         * */
        int i = mapper.deleteById(3L);
        System.out.println(i);
        sqlSession.commit();
        sqlSession.close();
    }
}

增删改必须提交事务

MyBatis的四大神兽

SqlSessionFactory

SqlSessionFactory是MyBatis框架中十分重要的对象，它是单个数据库映射关系经过编译后的内存镜像，其主作用是创建SqlSession。SqlSessionFactory对象的实例可以通过SqlSessionFactoryBuilder对象来创建，而SqlSessionFactoryBuilder则可以通过XML配置文件构建出SqlSessionFactory的实例

//创建SqlSessionFactoryBuilder对象
        SqlSessionFactoryBuilder sqlSessionFactoryBuilder = new SqlSessionFactoryBuilder();
        //SqlSessionFactoryBuilder对象的Build方法通过配置文件创建会话工厂SqlSessionFactory
        SqlSessionFactory sessionFactory = sqlSessionFactoryBuilder.build(inputStream);

SqlSessionFactory对象是线程安全的，一旦被创建，在整个应用执行期间都会存在。

如果多次创建同一个数据库的SqlSessionFactory，那么数据库资源将很容易被耗尽，所有通常每一个数据库都会对应一个SqlSessionFactory，所有在构建SqlSessionFactory实例时，建议使用单例模式。

SqlSession

SqlSession是应用程序与持久层之间执行交互操作的一个单线程对象，主要用作持久化操作。

SqlSession对象包含了数据库中所有执行SQL操作的所有方法，底层封装了JDBC连接。

每一个线程都应该有一个自己的SqlSession实例，并且该实例是不能被共享的。SqlSession实例是线程不安全的，因此其使用范围最好在一次请求或一个方法中，绝不能将其放在一个类的静态字段、实例字段或任何管理范围（Servlt的HttpSession）中使用。使用完SqlSession记得关闭。

Config.xml

Config.xml配置文件中<configuration>元素是根元素，<configuration>的子元素必须按照以下顺序配置，否则会报错。

<configuration>
    <properties><!-- 数据库的连接属性 -->
    <settings><!-- 开启二级缓存、开启延时加载 -->
    <typeAliases><!-- 设置别名 -->
    <typeHandlers><!-- 设置一个参数、或者从结果集中取出一个值 -->
    <objectFactory><!-- 对象工厂 -->
    <plugins><!-- 插件 -->
    <environments><!-- 数据环境配置 -->
    <databaseIdProvider>
    <mappers><!-- 指定Mapper文件的映射位置 -->
</configuration>

Mapper.xml

statement标签：<select>、<insert>、<update>、<delete>、<sql>、<cache>、<cache-ref>、<resultMap>。
<select>、<insert>、<update>、<delete>标签分别对应查询、添加、更改、删除操作
CRUD中的属性

parameterType：参数类型

基本数据类型，通过id查询User

public User findById(long id);

<select id="findById" parameterType="java.lang.Long"resultType="com.sheep.pojo.User">
    select * from user3 where id=#{id}
</select>

public static void main(String[] args) {
        InputStream resource=Test2.class.getClassLoader().getResourceAsStream("config.XML");
        SqlSessionFactoryBuilder sqlSessionFactoryBuilder=new SqlSessionFactoryBuilder();
        SqlSessionFactory build=sqlSessionFactoryBuilder.build(resource);
        SqlSession sqlSession=build.openSession();
    	//获取接口代理对象
		UserIntf mapper = sqlSession.getMapper(UserIntf.class);
		User user = mapper.findById(2L);
        System.out.println(user);
        sqlSession.close();
}

String类型，通过name查询User

public User findByName(String username);

<select id="findByName" parameterType="java.lang.String" resultType="com.sheep.pojo.User">
        select * from user3 where username=#{username}
    </select>

User user = mapper.findByName("内马尔");
System.out.println(user);
sqlSession.close();

包装类，通过id查询User

public User findById2(long id);

<select id="findById2" parameterType="java.lang.Long"resultType="com.sheep.pojo.User">
    select * from user3 where id=#{id}
</select>

User user = mapper.findById(2L);
System.out.println(user);
sqlSession.close();

多个参数

public User findByNameAndAge(String username,int age);

<select id="findByNameAndAge" resultType="com.sheep.pojo.User">
    select * from user3 where username=#{param1} and age=#{param2}
	<!--有多个参数时不用写parameterType参数但取值时要使用#{param1}、#{param2}-->
</select>

User user = mapper.findByNameAndAge("C罗", 34);
System.out.println(user);
sqlSession.close();

javaBean做参数

public int update(User user);

<update id="update" parameterType="com.sheep.pojo.User">
    update user3 set username=#{username},password=#{password},age=#{age} where id=#{id}
</update>

User user2 = mapper.findById(3L);
user.setUsername("石磊");
user.setPassword("666666");
user.setAge(23);
int update = mapper.update(user2);
sqlSession.commit();
sqlSession.cose();

Map参数

public User findUser(Map<Object, Object> map);

<select id="findUser" parameterType="map" resultType="com.sheep.pojo.User">
    select * from user3 where id=#{abcdefg} and age=#{hijklmn}
</select>

Map<Object, Object> map = new HashMap<>();
map.put("abcdefg",4);
map.put("hijklmn",29);
User user = mapper.findUser(map);
System.out.println(user);
sqlSession.close();

当根据多个字段查询时使用Map集合更加方便。而且SQL语句中参数名只要与Map集合中的Key相同即可。

resultType：结果类型

基本数据类型

public int count();

<select id="count" resultType="int">
    select count(id) from user3
</select>

int count = mapper.count();
System.out.println(count);
sqlSession.close();

包装类

public Integer count2();

<select id="count2" resultType="java.lang.Integer">
    select count(id) from user3
</select>

Integer integer = mapper.count2();
System.out.println(integer);
sqlSession.close();

String类型，通过id查询User的username

public String findNameById(long id);

<select id="findNameById" resultType="String">
    select username from user3 where id=#{id}
</select>

String name = mapper.findNameById(5L);
System.out.println(name);
sqlSession.close();

JavaBean类型返回集合类型

public List<User> findAll();

<select id="findAll" resultType="com.sheep.pojo.User">
    select * from user3
</select>

List<User> all = mapper.findAll();
for (User user:all){
    System.out.println(user);
}
sqlSession.close();

javaBean类型

public User findById(long id);

<select id="findById" parameterType="java.lang.Long" resultType="com.sheep.pojo.User">
    select * from user3 where id=#{id}
</select>

User byId = mapper.findById(2L);
System.out.println(byId);
sqlSession.close();

Limit分页

引言

客服端传过来的start（页码），pageSize（每页显示的数据）两个参数去分页查询数据库，MySQL数据库提供了分页的函数limit m,n，但是该函数的用法和我们的需求不一样，我们要根据真实需求来写适合我i吗的分页语句。

例如：每页10条显示数据，

查询第1条SQL语句是：select * from table limit 0,10; = select * from table limit(1-1)*10,10;

查询第11条SQL语句是：select * from talbe limit 10,10; = select * from table limit(2-1)*10,10;

查询第21条SQL语句是：select * from table limit 20,10; = select * from table limit(3-1)*10,10;

limit(起始位,步长);

通过上面的分析，可以得出符合需求的分页sql格式：select * from table limit(start-1)*pageSize,pageSize;

简单案例

建表

 create table user3(
 id int primary key auto_increment,
 username varchar(11),
 password varchar(11),
 age int
 );

实体类

public class User{
    private long id;
    private String username;
    private String password;
    private int age;
    ...请补充get、set
}

创建接口

public List<User> getUserByLimit(Map<Object, Object> map);

mapper代理实现

<select id="getUserByLimit" resultType="com.sheep.pojo.User">
    select * from user3 limit #{startIndex},#{pageSize}
</select>

测试

public static void main(String[] args) {
        InputStream resource = Test2.class.getClassLoader().getResourceAsStream("config.XML");
        SqlSessionFactoryBuilder sqlSessionFactoryBuilder = new SqlSessionFactoryBuilder();
        SqlSessionFactory build = sqlSessionFactoryBuilder.build(resource);
        SqlSession sqlSession = build.openSession();
		Map<Object, Object> map = new HashMap<>();
        map.put("startIndex",0);
        map.put("pageSize",5);
        List<User> userByLimit = mapper.getUserByLimit(map);
        for (User user:userByLimit){
            System.out.println(user);
        }
}

结果

==>  Preparing: select * from user3 limit ?,?
==> Parameters: 0(Integer), 4(Integer)
<==    Columns: id, username, password, age
<==        Row: 1, 梅西, 123123, 22
<==        Row: 2, 梅西, 123123, 22
<==        Row: 4, 内马尔, 1235679, 29
<==        Row: 5, C罗, 1235679, 34
<==      Total: 4
user3{id=1, username='梅西', password='123123', age=22}
user3{id=2, username='梅西', password='123123', age=22}
user3{id=4, username='内马尔', password='1235679', age=29}
user3{id=5, username='C罗', password='1235679', age=34}

级联操作

mybatis级联：通过数据库中的表可以描述数据之间的关系，在Java中，对象也可以进行关系描述

/**
*一对一
*/
Class A{			Class B{
    B b;				A a;
}					}
/**
*一对多
*/
Class A{			Class B{
    List<B> b;			A a;
}					}
/**
*多对多
*/
Class A{			Class B{
    List<B> b;			List<A> a;
}					}

一对一

创建表

mysql> create table white(
    -> id int primary key auto_increment,
    -> name varchar(5)
    -> );
mysql> create table black(
    -> id int primary key auto_increment,
    -> name varchar(10),
    -> wid int,
    -> foreign key(wid) references white(id)
    -> );

创建表对应的实体类

package com.sheep.pojo;

public class Black{
    private int id;
    private String name;
    private White white;
	...请补充get、set
}

package com.sheep.pojo;

public class White {
    private int id;
    private String name;
    private Black black;
	...请补充get、set
}

创建接口

package com.sheep.repository;
import com.sheep.pojo.Black;

public interface BlackRepository {
    public Black findById(long id);
}

创建接口对应的代理对象

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.sheep.repository.BlackRepository">
    <resultMap id="blackMap" type="com.sheep.pojo.Black">
        <result column="bname" property="name"/>
        <association property="white" javaType="com.sheep.pojo.White">
            <result column="wname" property="name"/>
        </association>
    </resultMap>
    <select id="findById" parameterType="long" resultMap="blackMap">
        select b.name bname,w.name wname from black b,white w where b.id=#{id} and b.wid=w.id;
    </select>
</mapper>

在全局备注文件中注册代理对象

<mapper resource="com/sheep/repository/BlackRepository.XML"/>

测试

import com.sheep.pojo.Black;
import com.sheep.repository.BlackRepository;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import java.io.InputStream;

public class Test7 {
    public static void main(String[] args) {
        InputStream resource = Test7.class.getClassLoader().getResourceAsStream("config.XML");
        SqlSessionFactoryBuilder sqlSessionFactoryBuilder = new SqlSessionFactoryBuilder();
        SqlSessionFactory build = sqlSessionFactoryBuilder.build(resource);
        SqlSession sqlSession = build.openSession();
        BlackRepository mapper = sqlSession.getMapper(BlackRepository.class);
        Black byId = mapper.findById(5l);
        System.out.println(byId);
    }
}

结果Black{id=0, name='z长空', white=White{id=0, name='大陆', black=null}}

一对多

创建表

mysql> create table classes(
    -> id int primary key auto_increment,
    -> name varchar(10)
    -> );
mysql> create table student(
    -> id int primary key auto_increment,
    -> name varchar(10),
    -> cid int,
    -> foreign key(cid) references classes(id)
    -> );

创建数据库对应的实体类

Classes、班级

package com.sheep.pojo;
import java.util.List;

public class Classes {
    private long id;
    private String name;
    private List<Student> studentList;
	...请补充get、set
}

Student、班级

package com.sheep.pojo;
public class Student {
    private long id;
    private String name;
    private Classes classes;
	...请补充get、set
}

创建接口

package com.sheep.repository;
import com.sheep.pojo.Student;

public interface StudentRepository {
    public Student findById(long id);
}

创建代理类对应的xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.sheep.repository.StudentRepository">
    <resultMap id="studentMap" type="com.sheep.pojo.Student">
        <id column="id" property="id"/>
        <result column="name" property="name"/>
        <association property="classes" javaType="com.sheep.pojo.Classes">
            <id column="cid" property="id"/>
            <result column="cname" property="name"/>
        </association>
    </resultMap>
    <select id="findById" parameterType="long" resultMap="studentMap">
        select stu.id,stu.name,cla.id as cid,cla.name as cname from student stu,classes cla where stu.id=#{id} and stu.cid = cla.id
    </select>
</mapper>

xml中SQL语句

select stu.id,stu.name,cla.id as cid,cla.name as cname
from student stu,classes cla
where stu.id=#{id} and stu.cid = cla.id
< -- 根据stu、cla查找stu.id为#{id}并且stu.cid = cla.id的记录，-->
< -- 并将该记录的stu.id、stu.name、cla.cid、cla.cname返回-- >

xml中<resultMap>标签：

<resultMap id="studentMap" type="com.sheep.pojo.Student">
    <id column="id" property="id"/>
    <result column="name" property="name"/>
    <association property="classes" javaType="com.sheep.pojo.Classes">
        <id column="cid" property="id"/>
        <result column="cname" property="name"/>
    </association>
</resultMap>

在级联查询中SQL语句查询的结果，无法直接与实体类映射，需要使用<resultMap/>标签与查询结果间接映射
<resultMap id="间接映射id" type="代理接口的返回类型"/>
<id column="查询结果字段主键" property="d对应的实体类参数"/>
<result column="查询结果字段" property=对应的实体类参数""/>
<collection property="实体类集合变量" ofType="集合泛型"/>

在config.xml中注册

<mapper resource="com/sheep/repository/StudentRepositoy.XML"/>

测试

import com.sheep.pojo.Student;
import com.sheep.repository.StudentRepository;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import java.io.InputStream;

public class Test3 {
    public static void main(String[] args) {
        InputStream resource = Test2.class.getClassLoader().getResourceAsStream("config.XML");
        SqlSessionFactoryBuilder sqlSessionFactoryBuilder = new SqlSessionFactoryBuilder();
        SqlSessionFactory build = sqlSessionFactoryBuilder.build(resource);
        SqlSession sqlSession = build.openSession();
        StudentRepository mapper = sqlSession.getMapper(StudentRepository.class);
        Student student = mapper.findById(1L);
        System.out.println(student);
    }
}

结果Student{id=1, name='梅西', classes=Classes{id=1, name='z阿根廷', studentList=null}}

多对一

创建接口

package com.sheep.repository;
import com.sheep.pojo.Classes;

public interface ClassesRepository {
    public Classes findById(long id);
}

创建代理类对应的xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.sheep.repository.ClassesRepository">
    <resultMap id="classesMap" type="com.sheep.pojo.Classes">
        <id column="id" property="id"/>
        <result column="name" property="name"/>
        <collection property="studentList" ofType="com.sheep.pojo.Student">
            <id column="sid" property="id"/>
            <result column="sname" property="name"/>
        </collection>
    </resultMap>
    <select id="findById" parameterType="long" resultMap="classesMap">
        select c.id,c.name,s.id as sid,s.name as sname from classes c,student s where c.id=#{id} and c.id=s.cid;
    </select>
</mapper>

在级联查询中SQL语句查询的结果，无法直接与实体类映射，需要使用<resultMap/>标签与查询结果间接映射
<resultMap id="间接映射id" type="代理接口的返回类型"/>
<id column="查询结果字段主键" property="d对应的实体类参数"/>
<result column="查询结果字段" property=对应的实体类参数""/>
<collection property="实体类集合变量" ofType="集合泛型"/>

在config.xml中注册

<mapper resource="com/sheep/repository/ClassesRepository.XML"/>

import com.sheep.pojo.Classes;
import com.sheep.repository.ClassesRepository;
import com.sheep.repository.StudentRepository;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;

import java.io.InputStream;

public class Test4 {
    public static void main(String[] args) {
        InputStream resource = Test2.class.getClassLoader().getResourceAsStream("config.XML");
        SqlSessionFactoryBuilder sqlSessionFactoryBuilder = new SqlSessionFactoryBuilder();
        SqlSessionFactory build = sqlSessionFactoryBuilder.build(resource);
        SqlSession sqlSession = build.openSession();
        ClassesRepository mapper = sqlSession.getMapper(ClassesRepository.class);
        Classes byId = mapper.findById(3l);
        System.out.println(byId);
    }
}

结果Classes{id=3, name='z巴西', studentList=[Student{id=6, name='内马尔', classes=null}, Student{id=7, name='小罗', classes=null}, Student{id=8, name='外星人', classes=null}, Student{id=9, name='贝利', classes=null}]}

多对多

创建三个表

mysql> create table customer(
    -> id int primary key auto_increment,
    -> name varchar(10)
    -> );
mysql> create table goods(
    -> id int primary key auto_increment,
    -> name varchar(15)
    -> );
mysql> create table customer_goods(
    -> id int primary key auto_increment,
    -> cid int,
    -> gid int,
    -> foreign key(cid) references customer(id),
    -> foreign key(gid) references goods(id)
    -> );
mysql> select * from customer;
+----+--------+
| id | name   |
+----+--------+
|  1 | 梅西   |
|  2 | C罗    |
|  3 | 詹姆斯 |
|  4 | 张继科 |
|  5 | 超级丹 |
+----+--------+
mysql> select * from customer_goods;
+----+------+------+
| id | cid  | gid  |
+----+------+------+
|  1 |    1 |    1 |
|  2 |    2 |    1 |
|  3 |    3 |    2 |
|  4 |    4 |    3 |
|  5 |    5 |    4 |
|  6 |    1 |    4 |
|  7 |    2 |    2 |
|  8 |    4 |    1 |
|  9 |    5 |    2 |
| 10 |    2 |    4 |
+----+------+------+
mysql> select * from goods;
+----+--------+
| id | name   |
+----+--------+
|  1 | 足球   |
|  2 | 篮球   |
|  3 | 兵乓球 |
|  4 | 羽毛球 |
+----+--------+

创建表customer、goods对应的实体类

package com.sheep.pojo;
import java.util.List;

public class Customer {
    private long id;
    private String name;
    private List<Goods> goodsList;
	...请补充get、set
}

package com.sheep.pojo;
import java.util.List;

public class Goods {
    private long id;
    private String name;
    private List<Customer> customerList;
    public Goods(){}
	...请补充get、set
}

创建接口（客户对商品）

package com.sheep.repository;
import com.sheep.pojo.Customer;

public interface CustomerRepository {
    public Customer findById(long id);
}

新建接口的代理对象xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.sheep.repository.CustomerRepository">
    <resultMap id="customerMap" type="com.sheep.pojo.Customer">
        <result column="cname" property="name"/>
        <collection property="goodsList" ofType="com.sheep.pojo.Goods">
            <result column="gname" property="name"/>
        </collection>
    </resultMap>
    <select id="findById" parameterType="long" resultMap="customerMap">
        select c.name cname,g.name gname from customer c,goods g,customer_goods cg where c.id=#{id} and c.id=cg.cid and g.id=cg.gid;
    </select>
</mapper>

在config.xml中配置

<mapper resource="com/sheep/repository/CustomerRepository.XML"/>

测试

import com.sheep.pojo.Customer;
import com.sheep.repository.CustomerRepository;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;

import java.io.InputStream;

public class Test5 {
    public static void main(String[] args) {
        InputStream resource = Test2.class.getClassLoader().getResourceAsStream("config.XML");
        SqlSessionFactoryBuilder sqlSessionFactoryBuilder = new SqlSessionFactoryBuilder();
        SqlSessionFactory build = sqlSessionFactoryBuilder.build(resource);
        SqlSession sqlSession = build.openSession();
        CustomerRepository mapper = sqlSession.getMapper(CustomerRepository.class);
        Customer byId = mapper.findById(1l);
        System.out.println(byId);
    }
}

结果Customer{id=0, name='超级丹', goodsList=[Goods{id=0, name='羽毛球', customerList=null}, Goods{id=0, name='篮球', customerList=null}]}

创建接口（商品对客户）

package com.sheep.repository;
import com.sheep.pojo.Goods;

public interface GoodsRepository {
    public Goods findById(long id);
}

创建接口代理对象

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.sheep.repository.GoodsRepository">
    <resultMap id="goodsMap" type="com.sheep.pojo.Goods">
        <result column="gname" property="name"/>
        <collection property="customerList" ofType="com.sheep.pojo.Customer">
            <result column="cname" property="name"/>
        </collection>
    </resultMap>
    <select id="findById" parameterType="long" resultMap="goodsMap">
        select g.name gname,c.name cname from customer c,goods g,customer_goods cg where g.id=#{id} and g.id=cg.cid and c.id=cg.gid;
    </select>
</mapper>

在XML中注册

<mapper resource="com/sheep/repository/GoodsRepository.XML"/>

测试

import com.sheep.pojo.Goods;
import com.sheep.repository.GoodsRepository;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import java.io.InputStream;

public class Test6 {
    public static void main(String[] args) {
        InputStream resource = Test6.class.getClassLoader().getResourceAsStream("config.XML");
        SqlSessionFactoryBuilder sqlSessionFactoryBuilder = new SqlSessionFactoryBuilder();
        SqlSessionFactory build = sqlSessionFactoryBuilder.build(resource);
        SqlSession sqlSession = build.openSession();
        GoodsRepository mapper = sqlSession.getMapper(GoodsRepository.class);
        Goods byId = mapper.findById(1l);
        System.out.println(byId);
    }
}

结果Goods{id=0, name='足球', customerList=[Customer{id=0, name='梅西', goodsList=null}, Customer{id=0, name='张继科', goodsList=null}]}

总结

在级联查询中当返回的结果中有基本数据类型、List、实体类时。不能直接映射，只能使用间接映射。

当返回的结果中包含实体类时使用<resultMap>、<association>。

当返回的结果中包含List时使用<resultMap>、<collection>。

动态SQL

创建表

CREATE TABLE `trends` (
  `id` int NOT NULL AUTO_INCREMENT,
  `name` varchar(5) DEFAULT NULL,
  `password` varchar(10) DEFAULT NULL,
  `age` varchar(5) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=4 DEFAULT CHARSET=utf8

创建表对应的实体类

public class Trends {
    private int id;
    private String name;
    private String password;
    private String age;
    //ids变量用于<foreach/>
    private List<Long> ids;
}

.<if>

public int sel(Trends trends);

if标签：判断语句，相当于Java中的if，如果test="name !=null and name!='' 为 true 则执行该代码。否则不执行

<!-- if语句 -->
    <select id="sel" parameterType="com.sheep.pojo.Trends" resultType="int">
        select * from trends where 1=1
        <if test="name !=null and name!=''">
            and name=#{name}
        </if>
        <if test="password != null and password != ''">
            and password=#{password}
        </if>
        <if test="age != null and age !=''">
            and age=#{age}
        </if>
    </select>

/** if语句 */
        Trends trends = new Trends();
        trends.setName("梅西");
        trends.setPassword("666");
        trends.setAge("36");
        mapper.sel(trends);

if+where

public List<Trends> AllSelect(Trends trends);

where标签：如果它包含的标签中有返回值，就插入一个where。如果标签返回的内容是and或or开头的则它会踢出。

	<!-- if-where -->
    <!-- if-trim与if-where效果基本相等 -->
    <select id="AllSelect" parameterType="com.sheep.pojo.Trends" resultType="com.sheep.pojo.Trends">
        select * from trends
        <where>
            <if test="name != null and name != ''">
                and name=#{name}
            </if>
            <if test="password != null and password != ''">
                and password=#{password}
            </if>
        </where>
        <trim prefix="where" prefixOverrides="and | or">
            <if test="name != null and name != ''">
                and name=#{name}
            </if>
            <if test="password != null and password != ''">
                and password=#{password}
            </if>
        </trim>
	</select>

/** if-where 、if-trim*/
        Trends trends = new Trends();
        List<Trends> listTrends = mapper.AllSelect(trends);
        for (Trends trends2:listTrends){
            System.out.println(trends2);
        }

if+trim

public List<Trends> AllSelect(Trends trends);

trim标签：是一个格式化的标记，可以完成set或者是where标记的功能

prefix="where"：如果有返回值就在返回值前面加where

prefixOverrides="and | or"：如果返回值开头是and | or就踢出

	<!-- if-where -->
    <!-- if-trim与if-where效果基本相等 -->
    <select id="AllSelect" parameterType="com.sheep.pojo.Trends" resultType="com.sheep.pojo.Trends">
        select * from trends
        <trim prefix="where" prefixOverrides="and | or">
            <if test="name != null and name != ''">
                and name=#{name}
            </if>
            <if test="password != null and password != ''">
                and password=#{password}
            </if>
        </trim>
	</select>

/** if-where 、if-trim*/
        Trends trends = new Trends();
        List<Trends> listTrends = mapper.AllSelect(trends);
        for (Trends trends2:listTrends){
            System.out.println(trends2);
        }

if+set

public void update(Trends trends);

set标签：专门用于更新操作，如果第一个条件为 false 则不执行该条件，继续判断下面语句。

<!-- if-set...用于update语句 -->
    <select id="update" parameterType="com.sheep.pojo.Trends">
        update trends
        <set>
            <if test="name !=null and name !=''">
                name=#{name},
            </if>
            <if test="age !=null and name !=''">
                age=#{age}
            </if>
        </set>
        where id=#{id}
    </select>

 /** if-set */
        Trends trends = mapper.trendsAll(3);
        System.out.println(trends);
        trends.setName("小C罗");
        trends.setAge("18");
        mapper.update(trends);
        sqlSession.commit();
        sqlSession.close();

.<choose>

public Trends findTrends(Trends trends);

<choose>语句：类似于Java当中switch...case...default语句，如果when标签中test为true则赋值该SQL如果都不为真则最终执行otherwise标签中的代码。

<!-- <choose><when><otherwise> -->
    <select id="findTrends" parameterType="com.sheep.pojo.Trends" resultType="com.sheep.pojo.Trends">
        select * from trends
        <where>
            <choose>
                <when test="id != null and id != ''">
                    and id=#{id}
                </when>
                <when test="name != null and name !=''">
                    and name=#{name}
                </when>
                <when test="password !=null and password !=''">
                    and password=#{password}
                </when>
                <otherwise>
                    and age=#{age}
                </otherwise>
            </choose>
        </where>
    </select>

 /**<choose><when><otherwise>*/
        Trends trends = new Trends();
        trends.setAge("18");
        Trends trends1 = mapper.findTrends(trends);
        System.out.println(trends1);

<where>、<trim>、<set>

<where>：根据条件添加where，或踢出and | or
<trim>：根据条件添加where，或踢出and | or
<set>：用于更新操作（update）根据条件添加set。

.<foreach>

public List<Trends> findByAllId(Trends trends);

在实体类中添加属性ids

//ids变量用于<foreach/>
private List<Long> ids;

foreach标签：当sql语句为：select * from user where id=1 or id=2 or id=3; || select * from user where id in (1,2,3);

就可以使用foreach标签类似于Java中的for循环

collection="ids"：被循环的变量（array、list、或collection、Map集合的键、POJO包装类中的数组或集合类型的属性名）。

open="id in ("：以什么符号开头（相当于从or语句开始）

separator=","：各个元素的间隔符

close=")"：以什么符号结尾

item="id"：将容器变量赋值给该属性并将该属性与sql语句中的属性关联。

<select id="findByAllId" parameterType="com.sheep.pojo.Trends" resultType="com.sheep.pojo.Trends">
        select * from trends
        <where>
            <foreach collection="ids" item="id" open="id in (" separator="," close=")">
                #{id}
            </foreach>
        </where>
    </select>

/**<foreach>*/
Trends trends1 = new Trends();
        List<Long> list = new ArrayList<>();
        list.add(1L);
        list.add(2L);
        list.add(3L);
        trends1.setIds(list);
        List<Trends> byAllId = mapper.findByAllId(trends1);
        for (Trends trends:byAllId){
            System.out.println(trends);
        }

SQL片段引用

public int findAll(Trends trends);

<!-- 引用sql片段 -->
<!-- 被引用的是sql标签 -->
    <sql id="findAllTrends">
        <if test="name !=null and name !=''">
            and name=#{name}
        </if>
        <if test="password !=null and password != ''">
            and password=#{password}
        </if>
        <if test="age !=null and age !=''">
            and age=#{age}
        </if>
    </sql>
    <select id="findAll" parameterType="com.sheep.pojo.Trends" resultType="int">
        select * from trends
        <trim prefix="where" prefixOverrides="and | or">
            <include refid="findAllTrends"></include>
        </trim>
    </select>

/** 引用sql片段 */
           Trends trends = new Trends();
           trends.setName("梅西");
           trends.setPassword("666");
           trends.setAge("36");
           int all = mapper.findAll(trends);
           System.out.println(all);
       }

浅聊MyBatis延迟加载

什么是延迟加载？

延迟加载其实就是将数据加载时机推迟，比如推迟嵌套查询的执行时机（延迟加载也称懒加载，就是在需要用到数据时才进行加载，不需要用到数据时就不加载数据）。在Mybatis中经常用到关联查询，但是并不是任何时候都需要立即返回关联查询结果。比如查询用户信息，并不一定需要及时返回用户下对应的账户信息，再比如查询商品分类信息并不一定要及时返回该类别下有哪些产品，这种情况一下需要一种机制，当需要查看时，再执行查询，返回需要的结果集，这种需求在Mybatis中可以使用延迟加载机制来实现。延迟加载可以实现先查询主表，按需实时做关联查询，返回关联表结果集，一定程度上提高了效率

如何使用

不开启延迟加载

表classes、student

mysql> create table classes(
    -> id int primary key auto_increment,
    -> name varchar(10)
    -> );
mysql> create table student(
    -> id int primary key auto_increment,
    -> name varchar(10),
    -> cid int,
    -> foreign key(cid) references classes(id)
    -> );

表对应的实体类Student、Classes

public class Student {
    private long id;
    private String name;
    private Classes classes;
    ...请补充get、set
}

public class Classes {
    private long id;
    private String name;
    private List<Student> studentList;
    ...请补充get、set
}

创建接口ClassesRepository、StudentRepository

package com.sheep.repository;
import com.sheep.pojo.Classes;

public interface ClassesRepository {
    public Classes findByIdLazy(long id);
}

package com.sheep.repository;
import com.sheep.pojo.Student;

public interface StudentRepository {
    public Student findById2(long id);
}

创建接口的代理对象ClassesRepository.XML、StudentRepository.XML

<?xml version="1.0" encoding="UTF8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<!-- ClassesRepository.XML -->
<mapper namespace="com.sheep.repository.ClassesRepository">
    <select id="findByIdLazy" parameterType="long" resultType="com.sheep.pojo.Classes">
        select * from classes where id=#{id}
    </select>
</mapper>

<?xml version="1.0" encoding="UTF8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<!-- StudentRepository.XML -->
<mapper namespace="com.sheep.repository.StudentRepository">
    <resultMap id="studentMap2" type="com.sheep.pojo.Student">
        <id column="id" property="id"/>
        <result column="name" property="name"/>
        <association property="classes" javaType="com.sheep.pojo.Classes" select="com.sheep.repository.ClassesRepository.findByIdLazy" column="cid">
            <!-- 把当前结果集的cid当作条件当作com.sheep.repository.ClassesRepository.findByIdLazy方法的参数查询并返回结果 -->
        </association>
    </resultMap>
    <select id="findById2" parameterType="long" resultMap="studentMap2">
        select * from student where id=#{id}
    </select>
</mapper>

测试

import com.sheep.pojo.Student;
import com.sheep.repository.StudentRepository;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import java.io.InputStream;

public class Test3 {
    public static void main(String[] args) {
        InputStream resource = Test2.class.getClassLoader().getResourceAsStream("config.XML");
        SqlSessionFactoryBuilder sqlSessionFactoryBuilder = new SqlSessionFactoryBuilder();
        SqlSessionFactory build = sqlSessionFactoryBuilder.build(resource);
        SqlSession sqlSession = build.openSession();
        //通过StudentRepository运行时类创建对象
        StudentRepository mapper = sqlSession.getMapper(StudentRepository.class);
        Student student2 = mapper.findById2(2L);
        System.out.println(student2.getName());
    }
}

运行

==>  Preparing: select * from student where id=?
==> Parameters: 2(Long)
<==    Columns: id, name, cid
<==        Row: 2, 保罗.迪巴拉, 1
====>  Preparing: select * from classes where id=?
====> Parameters: 1(Long)
<====    Columns: id, name
<====        Row: 1, z阿根廷
<====      Total: 1
<==      Total: 1
保罗.迪巴拉

在config.xml配置开启延时加载

<settings>
    <!-- 设置SQL打印 -->
    <setting name="logImpl" value="STDOUT_LOGGING"/>
    <!-- 开启延迟加载 -->
    <setting name="lazyLoadingEnabled" value="true"/>
</settings>

运行

==>  Preparing: select * from student where id=?
==> Parameters: 2(Long)
<==    Columns: id, name, cid
<==        Row: 2, 保罗.迪巴拉, 1
<==      Total: 1
保罗.迪巴拉

可以看出开启延时加载后只打印了一次SQL语句

Mybatis缓存

什么是MyBatis缓存

在一个Web项目中，查询数据库中的操作算是一个非常常用的操作，但是有些数据会被经常性的查询，而每一次都去数据库中查询这些重复的数据，会很消耗数据库的资源，同时使得查询效率也很低，而 MyBatis 中就通过缓存技术来解决这样的问题，也就是说：将一些经常查询，并且不经常改变的，以及数据的正确对最后的结果影响不大的数据，放置在一个缓存容器中，当用户再次查询这些数据的时候，就不必再去数据库中查询，直接在缓存中提取就可以了。

MyBatis 提供了一级缓存和二级缓存两种形式

一级缓存：它是 SqlSession 级别的缓存，SqlSession 类的实例对象中提供了一个 HashMap 的结构，可以用于存储缓存数据，当我们再次查询同一数据的时候，MyBatis 会先去 SqlSession 中查询，有的话，就直接调用
二级缓存：是Mapper 级别的缓存，也就是说，如果多个 SqlSession 类的实例，去操作同一个Mapper配置文件中的SQL，这些实例对象可以共用二级缓存

一级缓存

通过一个例子来说：

第一次查询 id 为某个值的用户信息时，先去 SqlSesion 的一级缓存中去寻找，如果找到了，就直接用，如果没有找到就去数据库中去查，然后将查到的内容存到一级缓存区域
但是，如果在下一次操作中，执行了 commit 操作，也就是执行了增删改的操作，一级缓存区域内的内容会被清空，这是为了保证缓存中的数据的有效性，避免脏读的产生
一级缓存是默认开启的。

如何使用

创建表

 create table user(
 id int primary key auto_increment,
 username varchar(11),
 password varchar(11),
 age int
 );

创建表对应的实体类

public class User {
    private long id;
    private String username;
    private String password;
    private int age;
    ...请补充get、set
}

创建接口

public interface UserIntf {
    public User findById(long id);
}

创建接口的代理对象

<mapper namespace="com.sheep.repository.UserIntf">
    <select id="findById" parameterType="java.lang.Long" resultType="com.sheep.pojo.User">
        select * from user3 where id=#{id}
    </select>
</mapper>

测试

import com.sheep.pojo.User;
import com.sheep.repository.UserIntf;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;

import java.io.InputStream;

public class Test8 {
    public static void main(String[] args) {
        InputStream resourceAsStream = Test8.class.getClassLoader().getResourceAsStream("config.XML");
        SqlSessionFactoryBuilder sqlSessionFactoryBuilder = new SqlSessionFactoryBuilder();
        SqlSessionFactory build = sqlSessionFactoryBuilder.build(resourceAsStream);
        SqlSession sqlSession = build.openSession();
        UserIntf mapper = sqlSession.getMapper(UserIntf.class);
        User byId = mapper.findById(1L);
        System.out.println(byId);
        User byId2 = mapper.findById(1L);
        System.out.println(byId2);
        System.out.println(byId.hashCode());
        System.out.println(byId2.hashCode());
    }
}

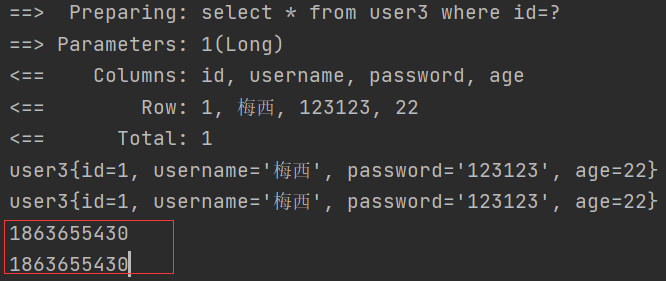

可以看出虽然查询了两次但是只执行了一次SQL，而且两次返回的内存地址是一致的。

当关闭第一次SqlSession时

import com.sheep.pojo.User;
import com.sheep.repository.UserIntf;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import java.io.InputStream;

public class Test8 {
    public static void main(String[] args) {
        InputStream resourceAsStream = Test8.class.getClassLoader().getResourceAsStream("config.XML");
        SqlSessionFactoryBuilder sqlSessionFactoryBuilder = new SqlSessionFactoryBuilder();
        SqlSessionFactory build = sqlSessionFactoryBuilder.build(resourceAsStream);
        SqlSession sqlSession = build.openSession();
        UserIntf mapper = sqlSession.getMapper(UserIntf.class);
        User byId = mapper.findById(1L);
        System.out.println(byId);
        System.out.println(byId.hashCode());
        //关闭session
        sqlSession.close();
        //从新开启
        SqlSession sqlSession1 = build.openSession();
        UserIntf mapper1 = sqlSession1.getMapper(UserIntf.class);
        User byId1 = mapper1.findById(1l);
        System.out.println(byId1);
        System.out.println(byId1.hashCode());
        sqlSession.close();
    }
}

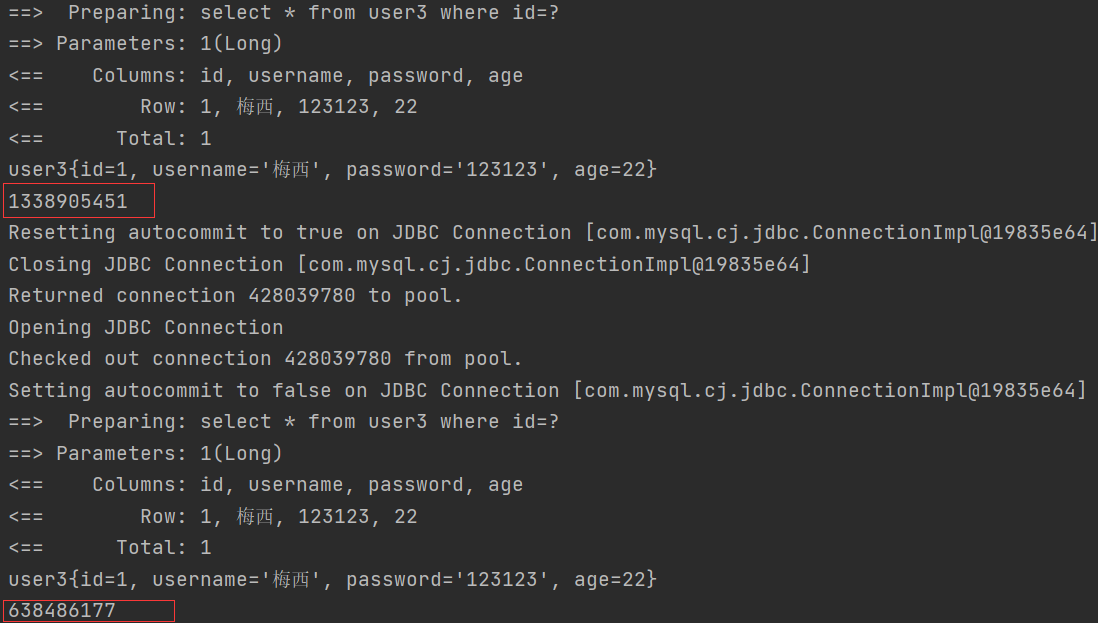

当第一次关闭SqlSession后，返回的内存地址不相同，并且执行了两次SQL

二级缓存

一级缓存是基于同一个SqlSession的，但有时候由于方法的封装等原因、或者是在查询完后SqlSession对象会关闭，一级缓存就清空了，导致无法从中获取内容。

二级缓存可以解决一级缓存无法使用的情况，前面已经说过二级缓存是Mapper级别的缓存，多个SqlSession类的实例对象加载同一个Mapper配置文件，并执行其中SQL配置，他们就共享同一个Mapper缓存。

查询时，先去Mapper缓存区去找这个值，如果找不到，就去数据库查，然后将查询到的结果存储到缓存中，等下次使用
当某个SqlSession类的实例对象执行了增删改操作时，二级缓存就会被清空。

如何使用

在config.xml中开启二级缓存

<settings>
    <!-- 开启二级缓存 -->
    <setting name="cacheEnabled" value="true"/>
</settings>

在Mapper映射文件中添加配置
```
<cache/>
```

实体类实现序列化接口

public class User implements Serializable {
    private long id;
    private String username;
    private String password;
    private int age;
}

测试

import com.sheep.pojo.User;
import com.sheep.repository.UserIntf;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import java.io.InputStream;

public class Test8 {
    public static void main(String[] args) {
        InputStream resourceAsStream = Test8.class.getClassLoader().getResourceAsStream("config.XML");
        SqlSessionFactoryBuilder sqlSessionFactoryBuilder = new SqlSessionFactoryBuilder();
        SqlSessionFactory build = sqlSessionFactoryBuilder.build(resourceAsStream);
        SqlSession sqlSession = build.openSession();
        UserIntf mapper = sqlSession.getMapper(UserIntf.class);
        User byId = mapper.findById(1L);
        System.out.println(byId);
        System.out.println(byId.hashCode());
        //关闭session
        sqlSession.close();
        //从新开启
        SqlSession sqlSession1 = build.openSession();
        UserIntf mapper1 = sqlSession1.getMapper(UserIntf.class);
        User byId1 = mapper1.findById(1l);
        System.out.println(byId1);
        System.out.println(byId1.hashCode());
        sqlSession.close();
    }
}

可以看出第一次查询虽然关闭但是只查询了一次SQL语句，虽然两个对象地址并不相等。

MyBatis逆向工程

逆向工程

MyBatis框架需要：实体类、自定义Mapper接口、Mapper.xml

传统开发中上述的三个组件需要开发者手动创建，逆向工程可以帮助开发者自动创建三个组件，减轻开发者的工作量，提高效率。

如何使用

MyBatis Generator，简称MBG，是一个专门为MyBatis框架开发者定制的代码生成器，可自动生成MyBtais框架所需的实体类，Mapper接口、Mapper.xml，支持基本的CRUD操作。但是相对复杂的SQL需要开发者自己来完成。

新建Maven工程，pom.xml

<dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.13</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.22</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.6</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis.generator</groupId>
            <artifactId>mybatis-generator-core</artifactId>
            <version>1.4.0</version>
        </dependency>
    </dependencies>
    <!-- 解决找不到资源文件配置 -->
    <build>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.XML</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>true</filtering>
            </resource>
        </resources>
    </build>

创建MBG配置文件generatorConfig.xml

jdbcConnection配置数据库连接信息
javaModelGenerator配置JavaBean生成策略
sqlMapGenerator配置SQL映射文件生成策略
javaClientGenerator配置Mapper接口的生成策略。
table配置目标数据表（tableName：表名，dmainObjectName：JavaBean类名）。

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>
    <context id="testTables" targetRuntime="Mybatis3">
        <jdbcConnection driverClass="com.mysql.cj.jdbc.Driver"
                        connectionURL="jdbc:mysql://localhost:3306/user01?serverTimezone=UTC&amp;useUnicode=true&amp;characterEncoding=utf8&amp;useSSL=true"
                        userId="root"
                        password="123321"
        ></jdbcConnection>
        <javaModelGenerator targetPackage="com.Sheep.pojo" targetProject="./src/main/java"></javaModelGenerator>
        <sqlMapGenerator targetPackage="com.Sheep.repository" targetProject="./src/main/java"></sqlMapGenerator>
        <javaClientGenerator type="XMLMAPPER" targetPackage="com.Sheep.repository" targetProject="./src/main/java"></javaClientGenerator>
        <table tableName="t_user" domainObjectName="User"></table>
    </context>
</generatorConfiguration>

<generatorConfiguration>
    <context id="自定义" targetRuntime="必须Mybatis3">
        <jdbcConnection driverClass="驱动"
                        connectionURL="URL"
                        userId="root"
                        password="password"
        ></jdbcConnection>
        <javaModelGenerator targetPackage="创建后的实体类存放的包" targetProject="包放的目录下"></javaModelGenerator>
        <sqlMapGenerator targetPackage="创建后的SQL映射存放的包" targetProject="./src/main/java"></sqlMapGenerator>
        <javaClientGenerator type="XMLMAPPER" targetPackage="com.Sheep.repository" targetProject="./src/main/java"></javaClientGenerator>
        <table tableName="要映射的表" domainObjectName="实体类额名字"></table>
    </context>
</generatorConfiguration>

创建Generator执行的类

package com.Sheep.test;
import org.mybatis.generator.api.MyBatisGenerator;
import org.mybatis.generator.config.Configuration;
import org.mybatis.generator.config.xml.ConfigurationParser;
import org.mybatis.generator.exception.InvalidConfigurationException;
import org.mybatis.generator.exception.XMLParserException;
import org.mybatis.generator.internal.DefaultShellCallback;

import java.io.File;
import java.io.IOException;
import java.sql.SQLException;
import java.util.ArrayList;
import java.util.List;

public class Main {
    public static void main(String[] args) {
        List<String> warings = new ArrayList<String>();
        boolean overwrite = true;
        /**
        *genCig：resources/generatorConfig.xml
        */
        String genCig = "/generatorConfig.xml";
        File configfile = new File(Main.class.getResource(genCig).getFile());
        ConfigurationParser configurationParser = new ConfigurationParser(warings);
        Configuration configuration = null;
        try {
            configuration = configurationParser.parseConfiguration(configfile);
        } catch (IOException e) {
            e.printStackTrace();
        } catch (XMLParserException e) {
            e.printStackTrace();
        }
        DefaultShellCallback callback = new DefaultShellCallback(overwrite);
        MyBatisGenerator myBatisGenerator = null;
        try {
            myBatisGenerator=new MyBatisGenerator(configuration,callback,warings);
        } catch (InvalidConfigurationException e) {
            e.printStackTrace();
        }
        try {
            myBatisGenerator.generate(null);
        } catch (SQLException throwables) {
            throwables.printStackTrace();
        } catch (IOException e) {
            e.printStackTrace();
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
    }
}

运行

posted @ 2021-03-31 21:27 一程山水一年华^_^ 阅读(97) 评论(0) 收藏举报

刷新页面返回顶部

初学MyBatis

MyBatis简介

引言

持久化

持久层

第一个MyBatis

环境搭建

原生接口开发

代理接口开发

MyBatis的四大神兽

SqlSessionFactory

SqlSession

Config.xml

Mapper.xml

Limit分页

引言

简单案例

级联操作

一对一

一对多

多对一

多对多

动态SQL

.<if>

.<choose>

<where>、<trim>、<set>

.<foreach>

SQL片段引用

浅聊MyBatis延迟加载

什么是延迟加载？

如何使用

Mybatis缓存

什么是MyBatis缓存

一级缓存

二级缓存

MyBatis逆向工程

逆向工程

如何使用

公告
