|NO.Z.00359|——————————|CloudNative|——|KuberNetes&运维.V75|——|IngressNginx.v11|自定义错误页面|

一、IngressNginx自定义错误页面

### --- error_page配置：IngressNginx自定义错误页面

apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /$2
    nginx.ingress.kubernetes.io/server-snippet: error_page 404 https://www.baidu.com;
  name: ingress-test
  namespace: ratel-test1
spec:
  rules:
  - host: rewrite.test.com
    http:
      paths:
      - backend:
          serviceName: ingress-test
          servicePort: 80
        path: /something(/|$)(.*)
        pathType: ImplementationSpecific

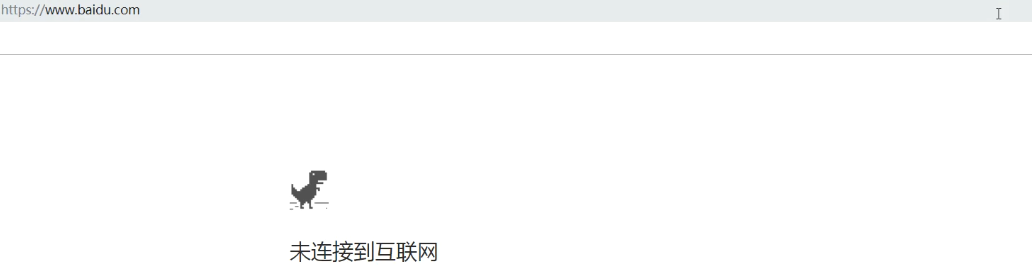

二、通过浏览器访问http://rewrite.test.com/会自动跳转到百度

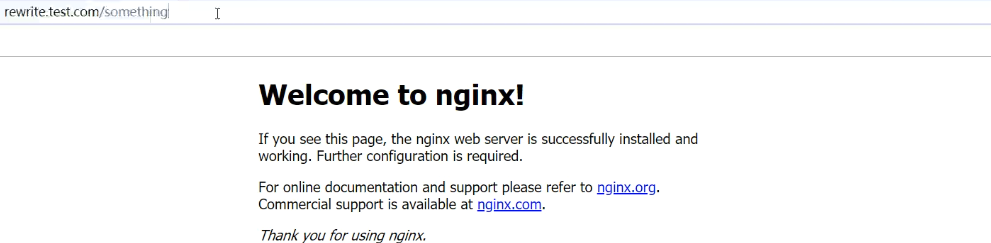

三、访问something是有的

四、custom-http-errors ：全局配置

### --- 修改configmap进行全局配置

apiVersion: v1
data:
  custom-http-errors: 404,403
kind: ConfigMap
metadata:
  annotations:
    meta.helm.sh/release-name: ingress-nginx
    meta.helm.sh/release-namespace: ingress-nginx
    ratel.io/configMapLastVersion: "3"
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/version: 0.40.2
    helm.sh/chart: ingress-nginx-3.6.0
  name: ingress-nginx-controller
  namespace: ingress-nginx

### --- 修改controller文件，把default-backend修改自己配置的参数

[root@k8s-master01 ~]# kubectl edit ds -n ingress-nginx
      containers:
      - args:
        - /nginx-ingress-controller
        - --default-backend-service=ratel-test1/ingress-test

### --- 重启容器

[root@k8s-master01 ~]# kubectl delete po -n ingress-nginx --all
pod "ingress-nginx-controller-89z64" deleted
pod "ingress-nginx-controller-rjfpw" deleted
pod "ingress-nginx-controller-rlcwb" deleted

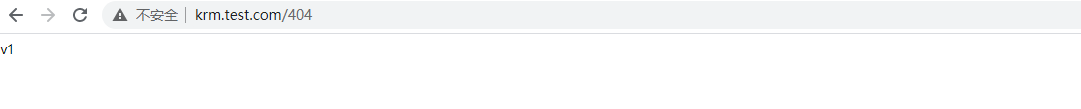

五、访问测试：http://krm.test.com/404：重定向到V1上面了；跳转到后端service上面

---



















---
