Hadoop集群搭建之全分布式集群配置

Hadoop集群搭建之全分布式集群配置

1. 准备工作

准备三台已经安装了CentOS7系统的虚拟机，并进行了相关设置。

系统配置可以参考Hadoop集群搭建之CentOS7系统配置这篇文章

2. 集群规划

主机名称	IP地址	用户	HDFS	YARN
master	192.168.21.210	hadoop	NameNode，DataNode	ResourceManager，NodeManager
slave1	192.168.21.211	hadoop	DataNode，SecondaryNameNode	NodeManager
slave2	192.168.21.212	hadoop	DataNode	NodeManager

3. Hadoop安装

1. 安装目录规划

统一安装路径：/opt/apps
统一软件存放路径：/opt/software

2. 上传压缩包

1. 将压缩包上传到[/opt/software]目录下，解压到[/opt/apps]目录下
2. 修改[/home/hadoop/.bash_profile]文件，增加以下内容：
	HADOOP_HOME=/opt/apps/hadoop-2.7.7
	PATH=$HADOOP_HOME/bin:$HADOOP_HOME/sbin:$PATH
	export HADOOP_HOME PATH
3. 使用[source ~/.bash_profile]是其生效

3. 集群配置

• hadoop-env.sh

  修改第25行JAVA_HOME的路径为[/opt/apps/jdk1.8.0_162]


• yarn-env.sh

  修改第23行JAVA_HOME的路径为[/opt/apps/jdk1.8.0_162]（记得取消注释）


• core-site.xml

  <configuration>
      <property>
          <name>hadoop.tmp.dir</name>
          <value>/opt/apps/hadoop-2.7.7/tmp</value>
      </property>
      <property>
          <name>fs.defaultFS</name>
          <value>hdfs://master:8020</value>
      </property>
  </configuration>


• hdfs-site.xml

  <configuration>
      <property>
          <name>dfs.replication</name>
          <value>3</value>
      </property>
      <property>
          <name>dfs.blocksize</name>
          <value>134217728</value>
      </property>
      <property>
          <name>dfs.namenode.secondary.http-address</name>
          <value>slave1:50090</value>
      </property>
  </configuration>


• mapred-site.xml

  需要将mapred-site.xml.template复制一份为mapred-site.xml

  <configuration>
      <property>
          <name>mapreduce.framework.name</name>
          <value>yarn</value>
      </property>
      <property>
          <name>mapreduce.jobhistory.address</name>
          <value>master:10020</value>
      </property>
      <property>
          <name>mapreduce.jobhistory.weapp.address</name>
          <value>master:19888</value>
      </property>
  </configuration>


• yarn-site.xml

  <configuration>
      <property>
          <name>yarn.resourcemanager.hostname</name>
      	<value>master</value>
      </property>
      <property>
          <name>yarn.nodemanager.aux-services</name>
          <value>mapreduce_shuffle</value>
      </property>
      <property>
          <name>yarn.log-aggregation-enable</name>
          <value>true</value>
      </property>
  </configuration>


• slaves

  master
  slave1
  slave2


使用[scp -r /opt/appshadoop-2.7.7 username@hostname:/opt/apps]命令将hadoop发送到三台服务器中

4. Hadoop集群测试

1. 集群格式化

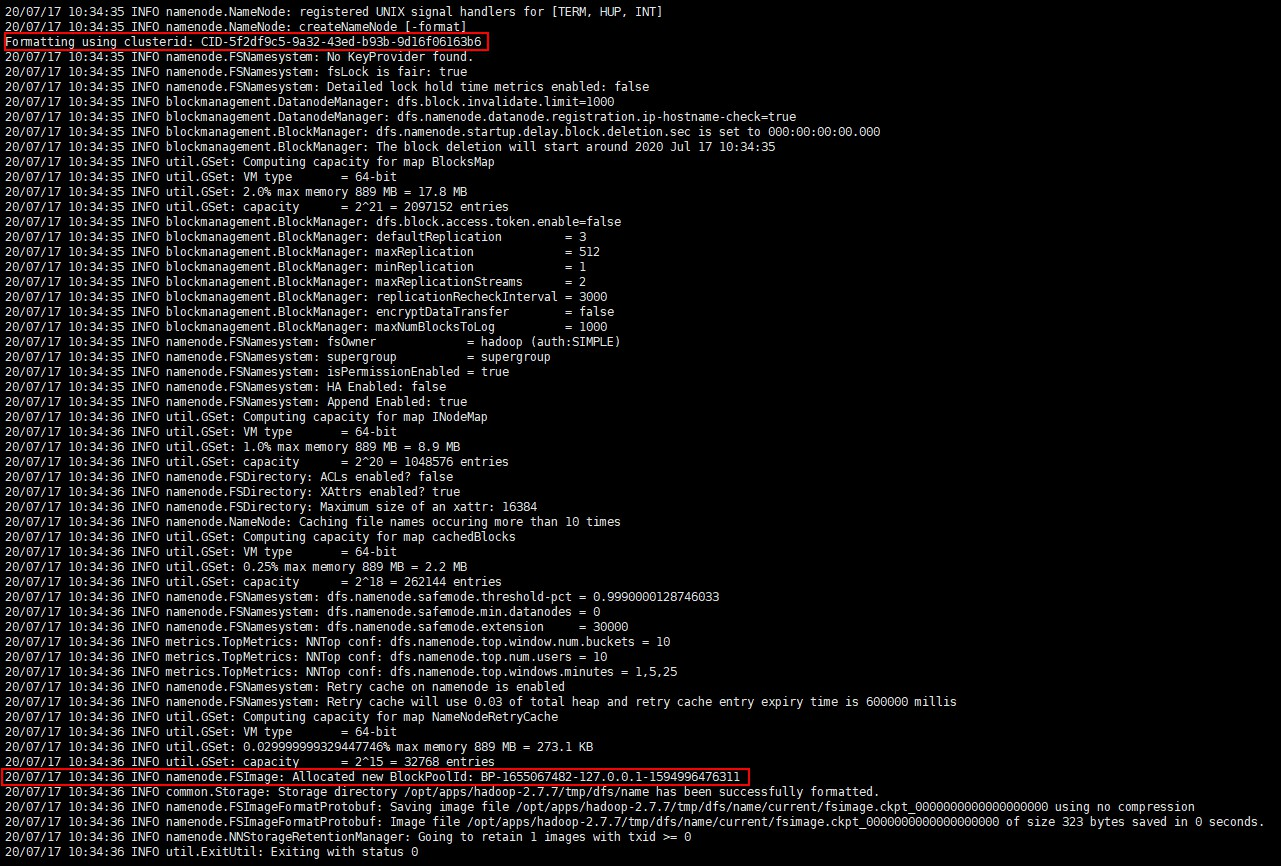

使用[hadoop namenode -format]命令对集群进行格式化，格式化后会产生集群ID，块池ID等相关信息。

2. 启动集群

官方建议使用[start-dfs.sh]和[start-yarn.sh]分别启动hdfs和yarn集群，当然也可以使用[start-all.sh]启动集群

3. 集群测试

1. 访问[192.168.21.210:50070]查看HDFS集群WebUI
2. 访问[192.168.21.210:8088]查看YARN集群WebUI

5. Hadoop高可用集群

1. 集群规划

主机名称	IP地址	用户	HDFS	YARN	ZK	ZKFC
master	192.168.21.210	hadoop	NameNode，DataNode，JournalNode	ResourceManager，NodeManager	QuorumPeerMain	DFSZKFailoverController
slave1	192.168.21.211	hadoop	Namenode，DataNode，JournalNode	ResourceManager，NodeManager	QuorumPeerMain	DFSZKFailoverController
slave2	192.168.21.212	hadoop	DataNode，JournalNode	NodeManager	QuorumPeerMain

2. Zookeeper安装

由于安装高可用集群需要Zookeeper的支持，所以我们先要安装Zookeeper集群

• 上传压缩包并配置环境变量

  ZOOKEEPER_HOME=/opt/apps/zookeeper-3.6.1
  PATH=$ZOOKEEPER_HOME/bin:$PATH
  export ZOOKEEPER_HOME PATH


• 修改zookeeper相关配置文件

  • zoo.cfg

    由于[conf]目录下只有[zoo_sample.cfg]，所以需要复制一份重命名为[zoo.cfg]

    # The number of milliseconds of each tick
    tickTime=2000
    # The number of ticks that the initial
    # synchronization phase can take
    initLimit=10
    # The number of ticks that can pass between
    # sending a request and getting an acknowledgement
    syncLimit=5
    # the directory where the snapshot is stored.
    # do not use /tmp for storage, /tmp here is just
    # example sakes.
    dataDir=/opt/apps/zookeeper-3.6.1/data
    # the port at which the clients will connect
    clientPort=2181
    # the maximum number of client connections.
    # increase this if you need to handle more clients
    #maxClientCnxns=60
    #
    # Be sure to read the maintenance section of the
    # administrator guide before turning on autopurge.
    #
    # http://zookeeper.apache.org/doc/current/zookeeperAdmin.html#sc_maintenance
    #
    # The number of snapshots to retain in dataDir
    #autopurge.snapRetainCount=3
    # Purge task interval in hours
    # Set to "0" to disable auto purge feature
    #autopurge.purgeInterval=1

    ## Metrics Providers
    #
    # https://prometheus.io Metrics Exporter
    #metricsProvider.className=org.apache.zookeeper.metrics.prometheus.PrometheusMetricsProvider
    #metricsProvider.httpPort=7000
    #metricsProvider.exportJvmInfo=true

    server.1=master:2888:3888
    server.2=slave1:2888:3888
    server.3=slave2:2888:3888


  • myid

    新建一个目录[data]，在data中新建一个文件[myid]，写上刚才IP地址所对应的[server.id]中的[id]值。（192.168.21.210填写1，其余的自行修改）

    1


• 分发到三台服务器，并修改[myid]内容

• 使用命令[zkServer.sh start]启动三台服务器中的zookeeper，如果出现进程名为[QuorumPeerMain]的进程表示zookeeper启动成功

3. HA集群配置

• core-site.xml

  <configuration>
      <property>
          <name>hadoop.tmp.dir</name>
          <value>/opt/apps/hadoop-2.7.7/tmp</value>
      </property>
      <property>
          <name>fs.defaultFS</name>
          <value>hdfs://supercluster</value>
      </property>
      <property>
          <name>ha.zookeeper.quorum</name>
          <value>master:2181,slave1:2181,slave2:2181</value>
      </property>
  </configuration>


• hdfs-site.xml

  <configuration>
      <property>
          <name>dfs.replication</name>
          <value>3</value>
      </property>
      <property>
          <name>dfs.blocksize</name>
          <value>134217728</value>
      </property>
      <property>
          <name>dfs.nameservices</name>
          <value>supercluster</value>
      </property>
      <property>
          <name>dfs.ha.namenodes.supercluster</name>
          <value>nn1,nn2</value>
      </property>
      <property>
          <name>dfs.namenode.rpc-address.supercluster.nn1</name>
          <value>master:8020</value>
      </property>
      <property>
          <name>dfs.namenode.rpc-address.supercluster.nn2</name>
          <value>slave1:8020</value>
      </property>
      <property>
          <name>dfs.namenode.http-address.supercluster.nn1</name>
          <value>master:50070</value>
      </property>
      <property>
          <name>dfs.namenode.http-address.supercluster.nn2</name>
          <value>slave1:50070</value>
      </property>
      <property>
          <name>dfs.namenode.shared.edits.dir</name>
          <value>qjournal://master:8485;slave1:8485;slave2:8485/supercluster</value>
      </property>
      <property>
          <name>dfs.journalnode.edits.dir</name>
          <value>/opt/apps/hadoop-2.7.7/tmp/journaldata</value>
      </property>
      <property>
          <name>dfs.ha.automatic-failover.enabled</name>
          <value>true</value>
      </property>
      <property>
          <name>dfs.client.failover.proxy.provider.supercluster</name>
          <value>org.apahce.hadoop.hdfs.server.namenode.ha.ConfiguredFailoverProxyProvider</value>
      </property>
      <property>
          <name>dfs.ha.fencing.methods</name>
          <value>
              sshfence
              shell(/bin/true)
          </value>
      </property>
      <property>
          <name>dfs.ha.fencing.ssh.private-key-files</name>
          <value>/home/hadoop/.ssh/id_rsa</value>
      </property>
      <property>
          <name>dfs.ha.fencing.ssh.connect-timeout</name>
          <value>30000</value>
      </property>
  </configuration>


• mapred-site.xml

  <configuration>
      <property>
          <name>mapreduce.framework.name</name>
          <value>yarn</value>
      </property>
      <property>
          <name>mapreduce.jobhistory.address</name>
          <value>master:10020</value>
      </property>
      <property>
          <name>mapreduce.jobhistory.weapp.address</name>
          <value>master:19888</value>
      </property>
  </configuration>


• yarn-site.xml

  <configuration>
      <property>
          <name>yarn.resourcemanager.ha.enabled</name>
      	<value>true</value>
      </property>
      <property>
          <name>yarn.resourcemanager.cluster-id</name>
          <value>yarncluster</value>
      </property>
      <property>
          <name>yarn.resourcemanager.ha.rm-ids</name>
          <value>rm1,rm2</value>
      </property>
      <property>
          <name>yarn.resourcemanager.hostname.rm1</name>
          <value>master</value>
      </property>
      <property>
          <name>yarn.resourcemanager.hostname.rm2</name>
          <value>slave1</value>
      </property>
      <property>
          <name>yarn.resourcemanager.zk-address</name>
          <value>master:2181,slave1:2181,slave2:2181</value>
      </property>
      <property>
          <name>yarn.nodemanager.aux-services</name>
          <value>mapreduce_shuffle</value>
      </property>
      <property>
          <name>yarn.log-aggregation-enable</name>
          <value>true</value>
      </property>
  </configuration>


4. 启动HA集群

• 首先停止原有集群，启动[journalnode]（三台都要启动）

  [hadoop@master ~]$ hadoop-daemon.sh start journalnode
  [hadoop@slave1 ~]$ hadoop-daemon.sh start journalnode
  [hadoop@slave2 ~]$ hadoop-daemon.sh start journalnode


• 启动原有节点上的[namenode]

  [hadoop@master ~]$ hadoop-daemon.sh start namenode


• 在新的[namenode]上拉取集群镜像文件

  [hadoop@slave1 ~]$ hdfs namenode -bootstrapStandby


• 停止原有集群的[namenode]，同步数据到[journalnode]

  [hadoop@master ~]$ hadoop-daemon.sh stop namenode
  [hadoop@master ~]$ hdfs namenode -initializeSharedEdits


• 格式化ZKFC集群

  [hadoop@master ~]$ hdfs zkfc -formatZK


• 启动HA集群

  [hadoop@master ~]$ start-dfs.sh
  [hadoop@master ~]$ start-yarn.sh


• 手动启动[slave1]上的[resourcemanager]

  [hadoop@slave1 ~]$ yarn-daemon.sh start resourcemanager


5. 测试HA集群自动容灾

直接[kill]掉为[active]的[namenode]，如果状态为[standby]的[namenode]切换为[active]，说明自动容灾成功
