SSM框架整合
导入依赖
<!--依赖-->
<dependencies>
<!--junit-->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.12</version>
</dependency>
<!--lombok-->
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<version>1.18.26</version>
</dependency>
<!--数据库连接池c3p0-->
<dependency>
<groupId>com.mchange</groupId>
<artifactId>c3p0</artifactId>
<version>0.9.5.5</version>
</dependency>
<!--Servlet-jsp-->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>servlet-api</artifactId>
<version>2.5</version>
</dependency>
<dependency>
<groupId>javax.servlet.jsp</groupId>
<artifactId>jsp-api</artifactId>
<version>2.2</version>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>jstl</artifactId>
<version>1.2</version>
</dependency>
<!--mybatis-->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.5.12</version>
</dependency>
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>2.0.6</version>
</dependency>
<dependency>
<groupId>com.mysql</groupId>
<artifactId>mysql-connector-j</artifactId>
<version>8.0.32</version>
</dependency>
<!--spring-->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>5.3.23</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>5.3.23</version>
</dependency>
<!--aop织入包-->
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjweaver</artifactId>
<version>1.9.19</version>
</dependency>
</dependencies>
<!--静态资源过滤问题-->
<build>
<resources>
<resource>
<directory>src/main/resources</directory>
<includes>
<include>**/*.properties</include>
<include>**/*.xml</include>
</includes>
<filtering>true</filtering>
</resource>
<resource>
<directory>src/main/java</directory>
<includes>
<include>**/*.properties</include>
<include>**/*.xml</include>
</includes>
<filtering>true</filtering>
</resource>
</resources>
</build>
mybatis-config.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"https://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<typeAliases>
<package name="com.xx.pojo"/>
</typeAliases>
<mappers>
<package name="com.xx.mapper"/>
</mappers>
</configuration>
mapper.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"https://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper>
</mapper>
jdbc.properties
jdbc.driver=com.mysql.cj.jdbc.Driver jdbc.url=jdbc:mysql://localhost:3306/blog?useSSL=true&useUnicode=true&characterEncoding=UTF-8 jdbc.username=root jdbc.password=root
spring-dao.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans
https://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
https://www.springframework.org/schema/context/spring-context.xsd
">
<!-- <bean class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">-->
<!-- <property name="location" value="classpath:jdbc.properties"/>-->
<!-- </bean>-->
<context:property-placeholder location="classpath:jdbc.properties"/>
<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
<property name="driverClass" value="${jdbc.driver}"/>
<property name="jdbcUrl" value="${jdbc.url}"/>
<property name="user" value="${jdbc.username}"/>
<property name="password" value="${jdbc.password}"/>
<!--c3p0连接池私有属性-->
<!--设置最大连接池大小-->
<property name="maxPoolSize" value="30"/>
<property name="minPoolSize" value="10"/>
<!--关闭连接后不自动提交事务-->
<property name="autoCommitOnClose" value="false"/>
<!--获取连接超时时间-->
<property name="checkoutTimeout" value="10000"/>
<!--当获取连接失败重试次数-->
<property name="acquireRetryAttempts" value="2"/>
</bean>
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource" ref="dataSource"/>
<property name="configLocation" value="classpath:mybatis-config.xml"/>
</bean>
<!--mapper层自动接入sqlSessionFactory-->
<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
<!--注入sqlSessionFactory-->
<property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
<!--需要注入sqlSessionFactory的包-->
<property name="basePackage" value="com.xx.mapper"/>
</bean>
</beans>
spring-service.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:aop="http://www.springframework.org/schema/aop"
xsi:schemaLocation="http://www.springframework.org/schema/beans
https://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
https://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/tx
https://www.springframework.org/schema/tx/spring-tx.xsd
http://www.springframework.org/schema/aop
https://www.springframework.org/schema/aop/spring-aop.xsd
">
<!--自动扫描包-->
<context:component-scan base-package="com.xx.service"/>
<!--bean装配-->
<bean id="articleServiceImpl" class="com.xx.service.ArticleServiceImpl">
<!--注入dao-->
<property name="articleMapper" ref="articleMapper"/>
</bean>
<!--创建事务管理器-->
<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<property name="dataSource" ref="dataSource"/>
</bean>
<!--添加事务-->
<tx:advice id="interceptor" transaction-manager="transactionManager">
<tx:attributes>
<tx:method name="*" propagation="REQUIRED"/>
</tx:attributes>
</tx:advice>
<!--aop横切-->
<aop:config>
<aop:pointcut id="pointcut" expression="execution(* com.xx.mapper.ArticleMapper.*(..))"/>
<aop:advisor advice-ref="interceptor" pointcut-ref="pointcut"/>
</aop:config>
</beans>
springmvc-servlet.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="http://www.springframework.org/schema/beans
https://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
https://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/mvc
https://www.springframework.org/schema/mvc/spring-mvc.xsd
">
<!--注解驱动-->
<!--容器自动注册HandlerMapping和HandlerAdapter-->
<mvc:annotation-driven/>
<!--扫描包-->
<context:component-scan base-package="com.xx.controller"/>
<!--静态资源过滤-->
<mvc:default-servlet-handler/>
<!--视图解析器-->
<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value="/WEB-INF/jsp/"/>
<property name="suffix" value=".jsp"/>
</bean>
</beans>
applicationContext.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans
https://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
https://www.springframework.org/schema/context/spring-context.xsd">
<import resource="spring-dao.xml"/>
<import resource="spring-service.xml"/>
<import resource="springmvc-servlet.xml"/>
</beans>
web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
version="4.0">
<!--DispatcherServlet-->
<servlet>
<servlet-name>springmvc</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:applicationContext.xml</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>springmvc</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
<!--乱码过滤-->
<filter>
<filter-name>encodingFilter</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>utf-8</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>encodingFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<!--session-->
<session-config>
<session-timeout>10</session-timeout>
</session-config>
</web-app>

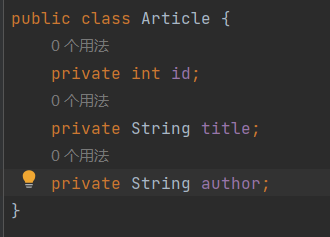

实体类

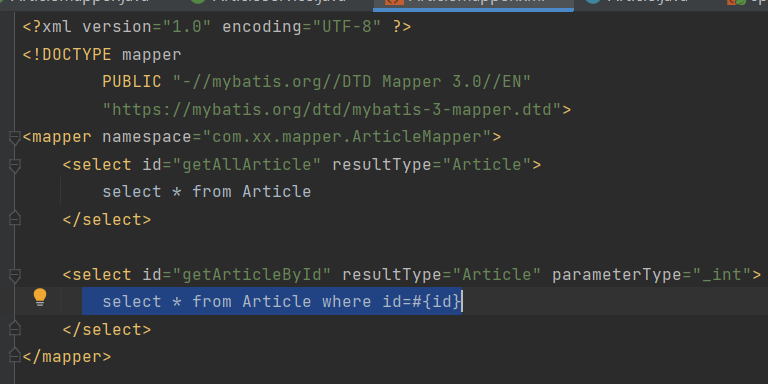

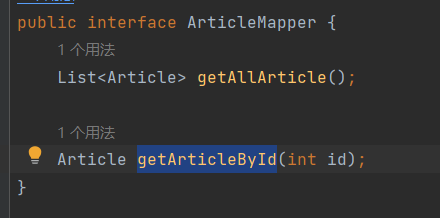

mapper

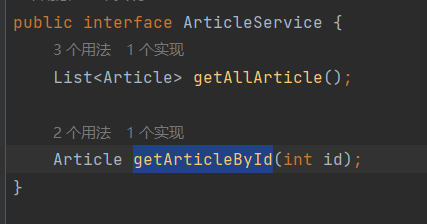

service接口

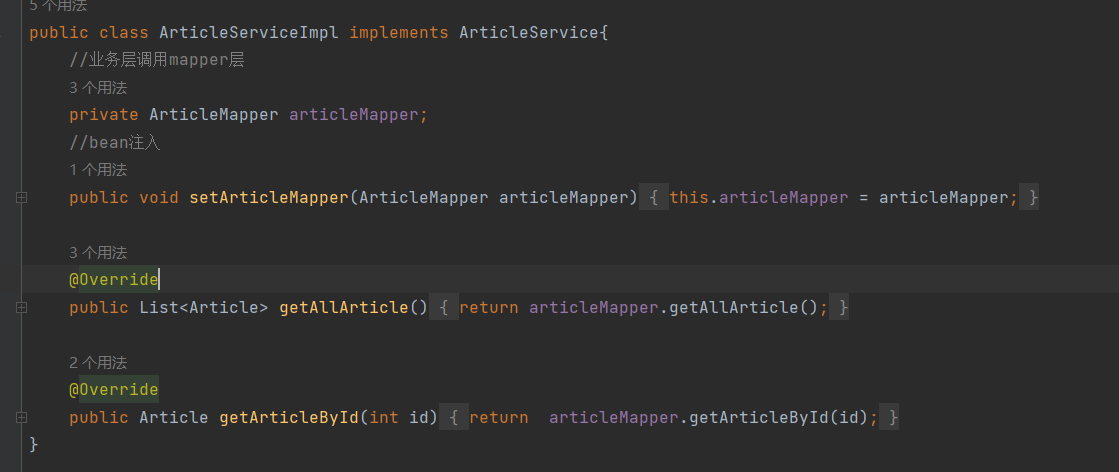

业务实现类

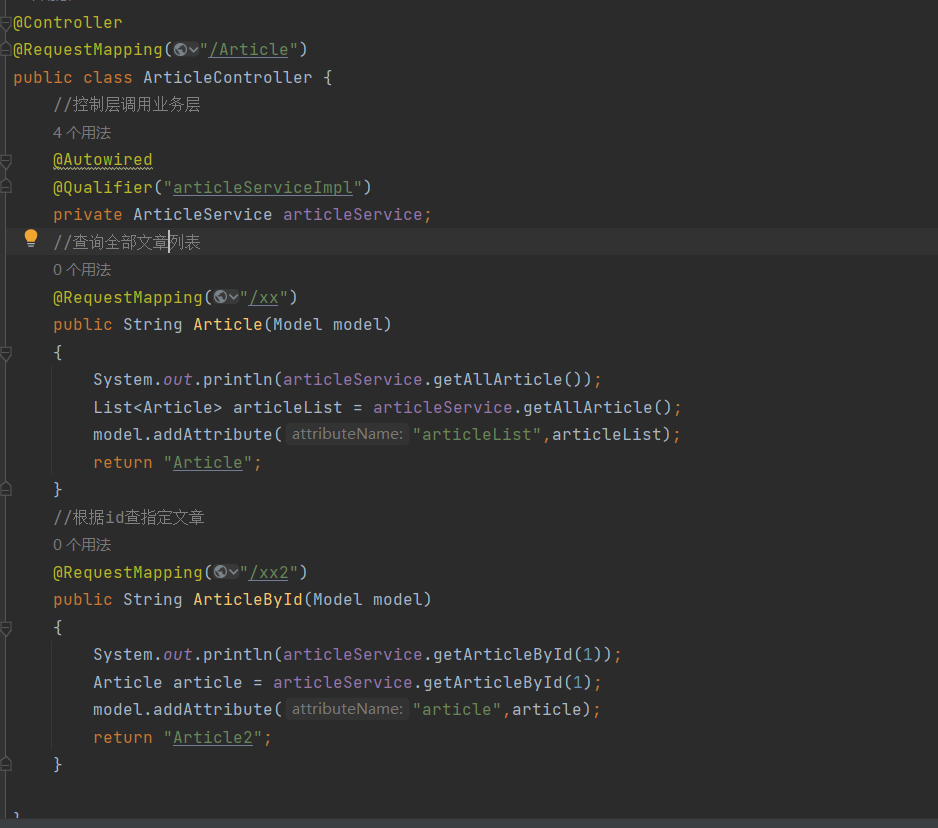

控制层

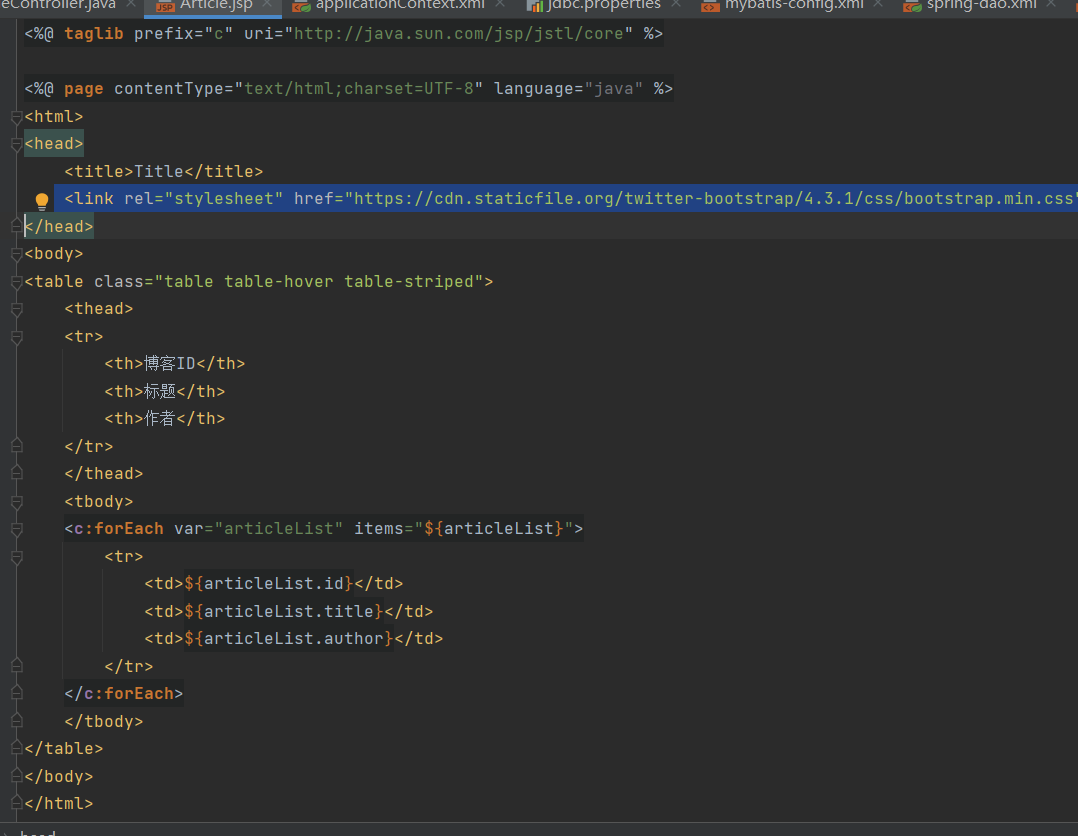

页面一：

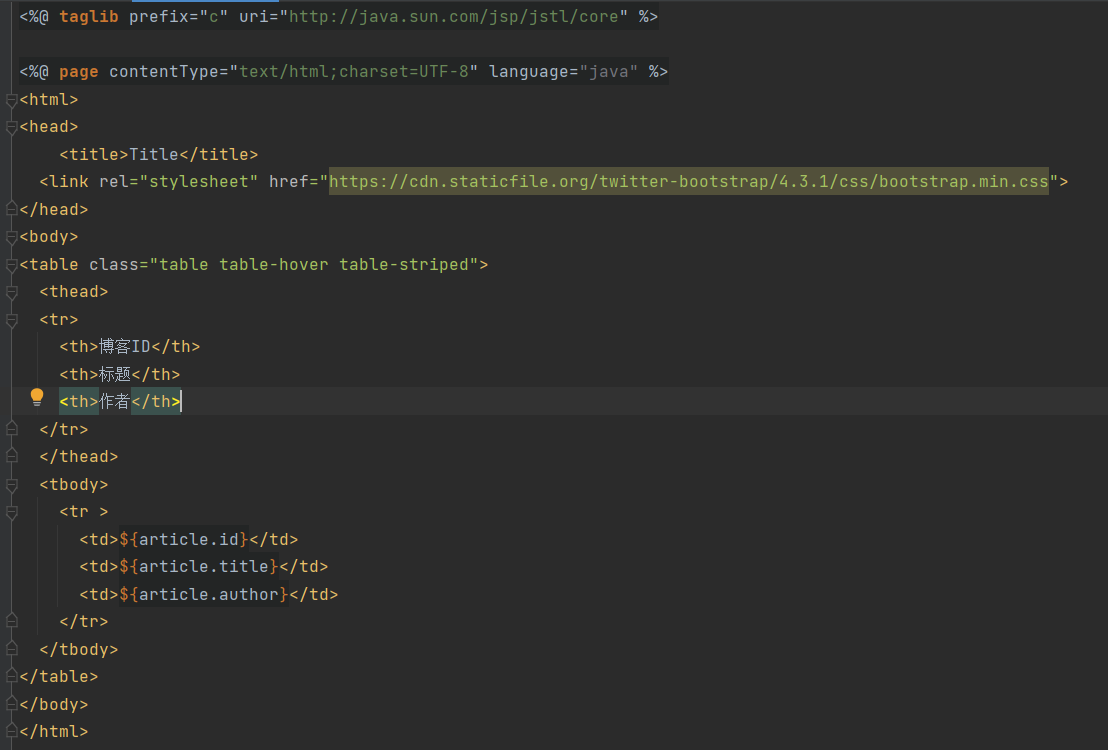

页面二：

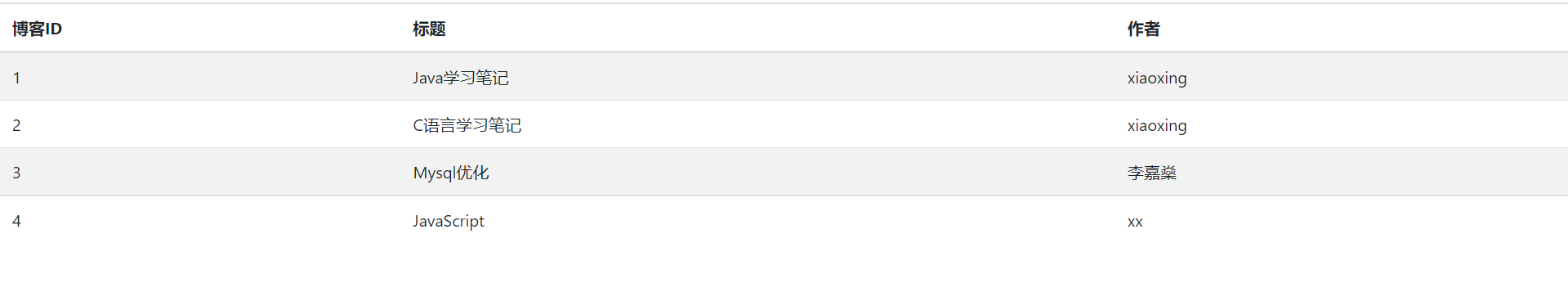

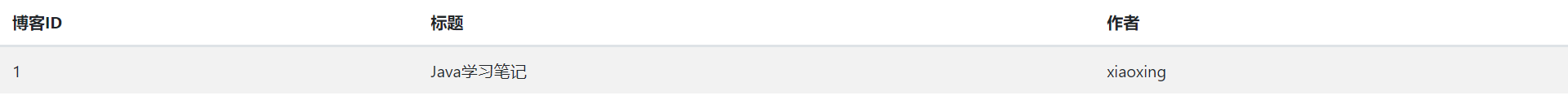

效果一：
效果二：

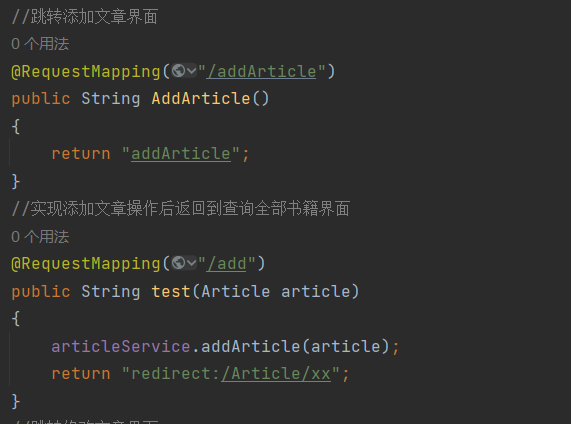

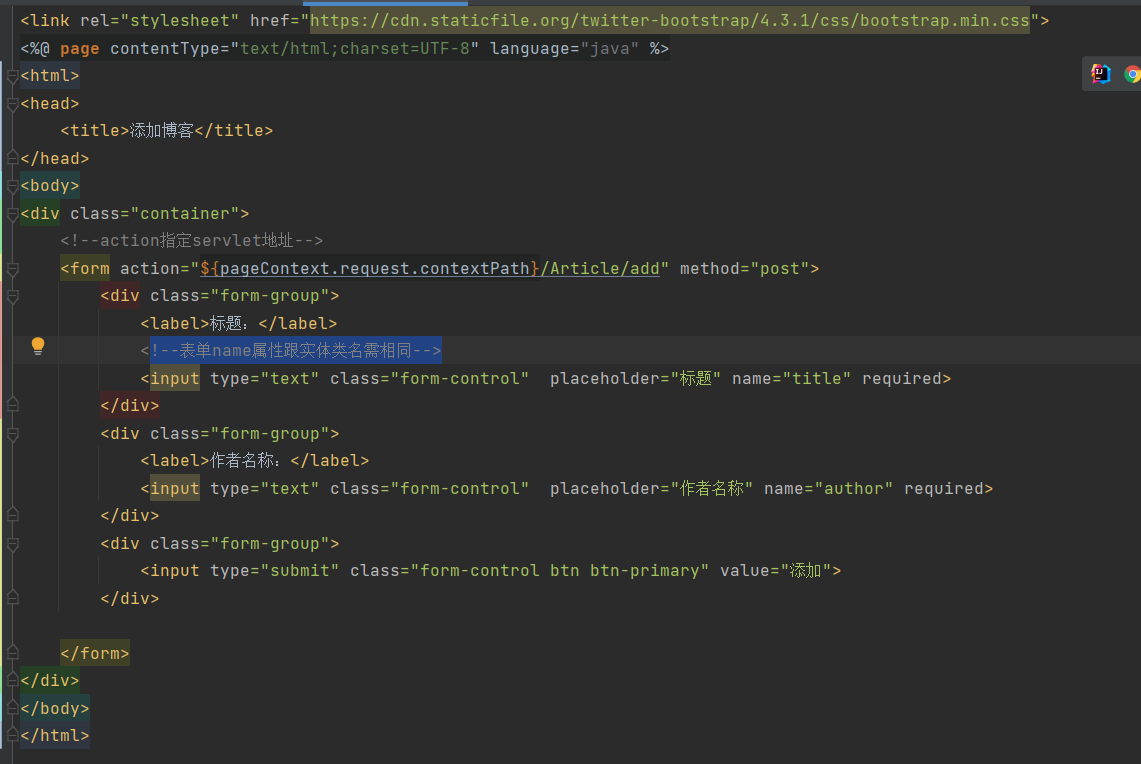

添加博客文章
界面
链接
接口

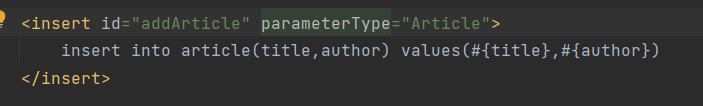

mapper
控制层

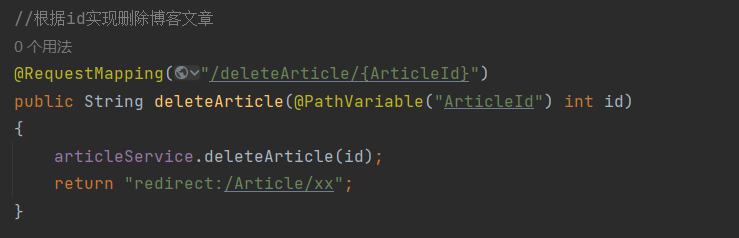

删除博客文章
链接
接口

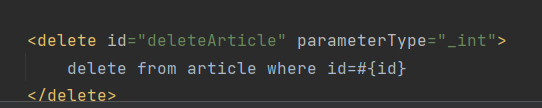

mapper
控制层
修改博客（注意点：添加隐藏域来获取博客id
链接

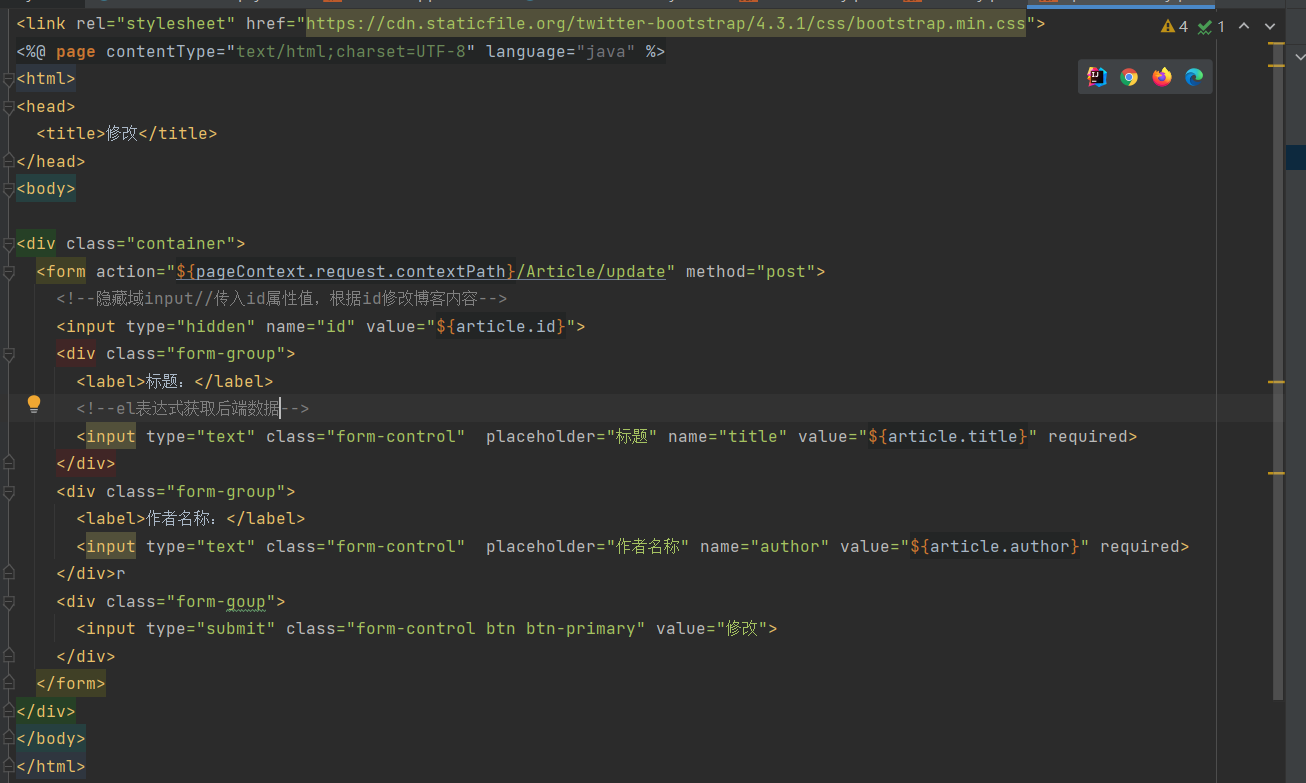

界面
接口

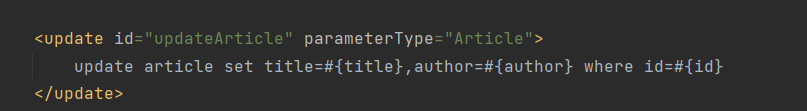

mapper

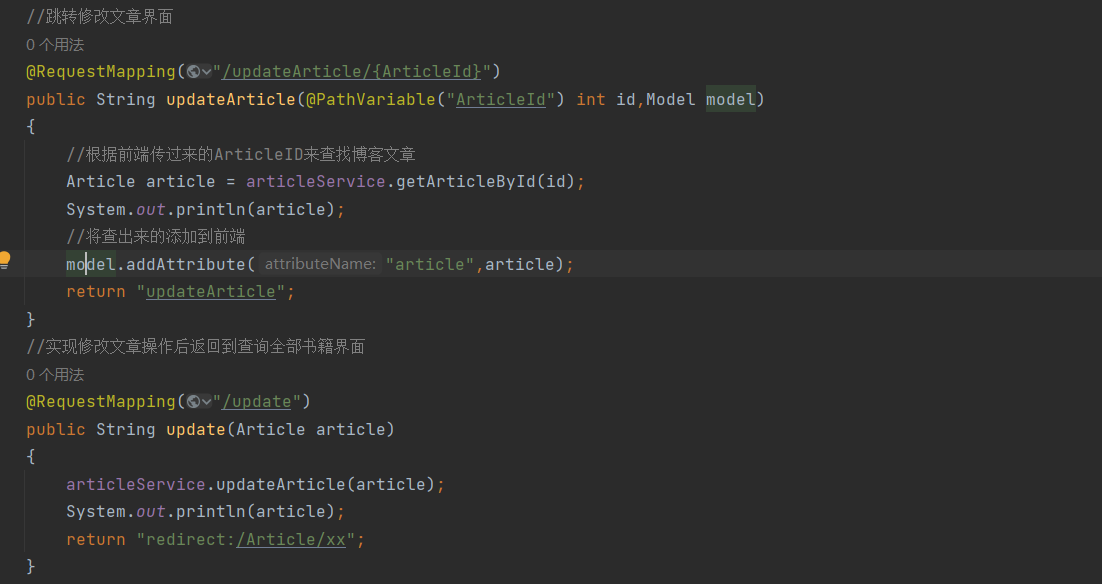

控制层
整合代码
实体类
public class Article {
private int id;
private String title;
private String author;
}
mapper接口
public interface ArticleMapper {
//查询全部博客文章
List<Article> getAllArticle();
//根据ID查询博客文章
Article getArticleById(int id);
//分页查询博客文章
List<Article> getAllArticleLimit(Map<String,Object> map);
//添加博客文章
int addArticle(Article article);
//修改博客文章
int updateArticle(Article article);
//根据id删除文章
int deleteArticle(int id);
}
业务接口
public interface ArticleService {
List<Article> getAllArticle();
Article getArticleById(int id);
List<Article> getAllArticleLimit(Map<String,Object> map);
int addArticle(Article article);
int updateArticle(Article article);
int deleteArticle(int id);
}
业务实现类
public interface ArticleService {
List<Article> getAllArticle();
Article getArticleById(int id);
List<Article> getAllArticleLimit(Map<String,Object> map);
int addArticle(Article article);
int updateArticle(Article article);
int deleteArticle(int id);
}
mapper.xml
<select id="getAllArticle" resultType="Article">
select * from Article
</select>
<select id="getArticleById" resultType="Article" parameterType="_int">
select * from Article where id=#{id}
</select>
<select id="getAllArticleLimit" resultType="Article" parameterType="map">
select * from Article limit #{pageNow},#{pageSize}
</select>
<insert id="addArticle" parameterType="Article">
insert into article(title,author) values(#{title},#{author})
</insert>
<update id="updateArticle" parameterType="Article">
update article set title=#{title},author=#{author} where id=#{id}
</update>
<delete id="deleteArticle" parameterType="_int">
delete from article where id=#{id}
</delete>
index.jsp
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>$Title$</title>
<style>
a{
text-decoration: none;
color: black;
font-size: 36px;
}
h3{
margin:auto;
padding: 10px;
text-align: center;
line-height: 38px;
background: skyblue;
width: 180px;
height: 40px;
border-radius: 8px;
}
</style>
</head>
<body>
<h3>
<a href="${pageContext.request.contextPath}/Article/xx">博客</a>
</h3>
</body>
</html>
Article.jsp
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>Title</title>
<link rel="stylesheet" href="https://cdn.staticfile.org/twitter-bootstrap/4.3.1/css/bootstrap.min.css">
</head>
<body>
<div class="container">
<div class="row">
<div class="col-md-4 column">
<!--指定到servlet地址-->
<a class="btn btn-info" href="${pageContext.request.contextPath}/Article/addArticle">新增书籍</a>
</div>
</div>
<table class="table table-bordered table-hover">
<thead>
<tr>
<th>博客ID</th>
<th>标题</th>
<th>作者</th>
<th>操作</th>
</tr>
</thead>
<tbody>
<c:forEach var="articleList" items="${articleList}">
<tr>
<td>${articleList.id}</td>
<td>${articleList.title}</td>
<td>${articleList.author}</td>
<td>
<!--传入id参数-->
<a class="btn btn-info" href="${pageContext.request.contextPath}/Article/updateArticle/${articleList.id}">修改</a>
<a class="btn btn-danger" href="${pageContext.request.contextPath}/Article/deleteArticle/${articleList.id}">删除</a>
</td>
</tr>
</c:forEach>
</tbody>
</table>
</div>
</body>
</html>
addArticle.jsp
<link rel="stylesheet" href="https://cdn.staticfile.org/twitter-bootstrap/4.3.1/css/bootstrap.min.css">
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>添加博客</title>
</head>
<body>
<div class="container">
<!--action指定servlet地址-->
<form action="${pageContext.request.contextPath}/Article/add" method="post">
<div class="form-group">
<label>标题：</label>
<!--表单name属性跟实体类名需相同-->
<input type="text" class="form-control" placeholder="标题" name="title" required>
</div>
<div class="form-group">
<label>作者名称：</label>
<input type="text" class="form-control" placeholder="作者名称" name="author" required>
</div>
<div class="form-group">
<input type="submit" class="form-control btn btn-primary" value="添加">
</div>
</form>
</div>
</body>
</html>
updateArticle.jsp
<link rel="stylesheet" href="https://cdn.staticfile.org/twitter-bootstrap/4.3.1/css/bootstrap.min.css">
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>修改</title>
</head>
<body>
<div class="container">
<form action="${pageContext.request.contextPath}/Article/update" method="post">
<!--隐藏域input//传入id属性值，根据id修改博客内容-->
<input type="hidden" name="id" value="${article.id}">
<div class="form-group">
<label>标题：</label>
<!--el表达式获取后端数据-->
<input type="text" class="form-control" placeholder="标题" name="title" value="${article.title}" required>
</div>
<div class="form-group">
<label>作者名称：</label>
<input type="text" class="form-control" placeholder="作者名称" name="author" value="${article.author}" required>
</div>r
<div class="form-goup">
<input type="submit" class="form-control btn btn-primary" value="修改">
</div>
</form>
</div>
</body>
</html>
浙公网安备 33010602011771号
