ANT+ 自行车车灯 数据页19 – 补充信息（0x13）

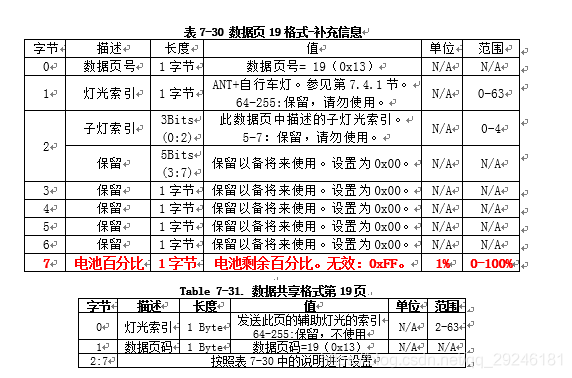

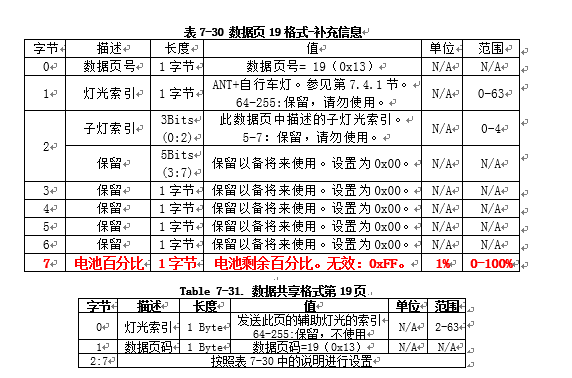

ANT+控制器可请求此页面（如第5.3节所述）确定有关ANT+自行车灯的附加信息。这是ANT+自行车灯的可选页面。如果不支持此页，则应忽略对此页的请求。当ANT+控制器请求时，数据页19从ANT+自行车灯广播。此信息中的所有字段应按表7-30所述进行设置。

7.14.1 电池百分比
该字段用于以百分比表示剩余电池电量。如果不支持此字段，则应将其设置为无效，即0xFF。

/* Copyright (c) 2015 Nordic Semiconductor. All Rights Reserved.
 *
 * The information contained herein is property of Nordic Semiconductor ASA.
 * Terms and conditions of usage are described in detail in NORDIC
 * SEMICONDUCTOR STANDARD SOFTWARE LICENSE AGREEMENT.
 *
 * Licensees are granted free, non-transferable use of the information. NO
 * WARRANTY of ANY KIND is provided. This heading must NOT be removed from
 * the file.
 *
 */

#include "ant_BikeLight_page_19.h"
#include "ant_BikeLight_utils.h"
#include "ant_BikeLight_page_logger.h"
#include "SEGGER_RTT.h"
#include "SEGGER_RTT_Conf.h"
#include "main.h"
/**@brief BikeLight 补充信息 (0x13) 第19页数据布局结构.  如果不支持此页面，则对它的请求应被忽略 */
typedef struct
{
    uint8_t Light_Index;                             //灯光索引 0-63

    uint8_t Sublight_Index                    : 3;   //子灯索引 0-4
    uint8_t Reserved                          : 5;   //保留

    uint8_t Reserved1[4];                            //保留
    uint8_t Battery_percentage;                      //电池百分比 单位：1%  范围：[0,100]
} ant_BikeLight_page19_data_layout_t;


static void page19_data_log(ant_BikeLight_page19_data_t const *p_page_data)
{
//    SEGGER_RTT_printf(0, "Light_Index:             %d\r\n", (uint8_t)p_page_data->Light_Index);

}


void ant_BikeLight_page_19_encode(uint8_t                     *p_page_buffer,
                                  ant_BikeLight_page19_data_t const *p_page_data)
{

    ant_BikeLight_page19_data_layout_t *p_outcoming_data = (ant_BikeLight_page19_data_layout_t *)p_page_buffer;
    memset(p_page_buffer, 0, sizeof(ant_BikeLight_page19_data_layout_t));
    p_outcoming_data->Light_Index                   = p_page_data->Light_Index;
    p_outcoming_data->Battery_percentage            = p_page_data->Battery_percentage;

//    page19_data_log(p_page_data);
}


void ant_BikeLight_page_19_decode(uint8_t const              *p_page_buffer,
                                  ant_BikeLight_page19_data_t *p_page_data)
{
//    ant_BikeLight_page19_data_layout_t const *p_incoming_data =
//        (ant_BikeLight_page19_data_layout_t *)p_page_buffer;

//    p_page_data->Light_Index                   = p_incoming_data->Light_Index;

    page19_data_log(p_page_data);
}

/* Copyright (c) 2015 Nordic Semiconductor. All Rights Reserved.
 *
 * The information contained herein is property of Nordic Semiconductor ASA.
 * Terms and conditions of usage are described in detail in NORDIC
 * SEMICONDUCTOR STANDARD SOFTWARE LICENSE AGREEMENT.
 *
 * Licensees are granted free, non-transferable use of the information. NO
 * WARRANTY of ANY KIND is provided. This heading must NOT be removed from
 * the file.
 *
 */
#ifndef ANT_BIKELIGHT_PAGE_19_H__
#define ANT_BIKELIGHT_PAGE_19_H__

#include <stdint.h>

typedef struct
{
    uint8_t Light_Index;                             //灯光索引 0-63

    uint8_t Sublight_Index                    : 3;   //子灯索引 0-4
    uint8_t Reserved                          : 5;   //保留

    uint8_t Reserved1[4];                            //保留
    uint8_t Battery_percentage;                      //电池百分比 单位：1%  范围：[0,100]

} ant_BikeLight_page19_data_t;


#define DEFAULT_ANT_BikeLight_PAGE19()            \
    (ant_BikeLight_page19_data_t)                 \
    {                                             \
        .Light_Index                     = 0,     \
        .Sublight_Index                  = 0,     \
        .Battery_percentage              = 100,   \
    }


void ant_BikeLight_page_19_encode(uint8_t                          *p_page_buffer,
                                  ant_BikeLight_page19_data_t const *p_page_data);


void ant_BikeLight_page_19_decode(uint8_t const              *p_page_buffer,
                                  ant_BikeLight_page19_data_t *p_page_data);

#endif // ANT_BIKELIGHT_PAGE_19_H__
/** @} */
