The Riemann Solver of Roe

1. Bases of the Roe Approach

m维双曲守恒定律

1.1 The Exact Riemann Problem and the Godunov Flux

Initial Boundary Value Problem:

\[\text{PDES: } \mathbf{U}_{t} + \mathbf{F}(\mathbf{U})_{x} = 0 \\ \text{ICs: } \mathbf{U}(x,0) = \mathbf{U}^{(0)}(x) \\ \text{BCs: } \mathbf{U}(0,t) = \mathbf{U}_{l}(t); \quad \mathbf{U}(L,t) = \mathbf{U}_{r}(t); \label{IBVP} \]

使用显示的守恒格式：

\[\mathbf{U}_{i}^{n+1} = \mathbf{U}_{i}^{n} + \frac{\Delta t}{\Delta x}[\mathbf{F}_{i-\frac{1}{2}} - \mathbf{F}_{i+\frac{1}{2}}] \]

假设\(\eqref{IBVP}\) 有解。在第六章中Godunov面通量被定义为：

\[\mathbf{F}_{i+\frac{1}{2}} = \mathbf{F}(\mathbf{U}_{i+\frac{1}{2}}(0)) \]

其中\(\mathbf{U}_{i+\frac{1}{2}}(0)\) 是黎曼问题

\[\mathbf{U}_{t} + \mathbf{F}(\mathbf{U})_{x} = 0 \\ \mathbf{U}(x,0) = \left\{\begin{matrix} \mathbf{U}_{L} & \text{if } x < 0 \\ \mathbf{U}_{R} & \text{if } x > 0 \end{matrix}\right. \label{riemann} \]

的在\(x/t\)位置处的相似解析解\(\mathbf{U}_{i+\frac{1}{2}}(x/t)\) 。

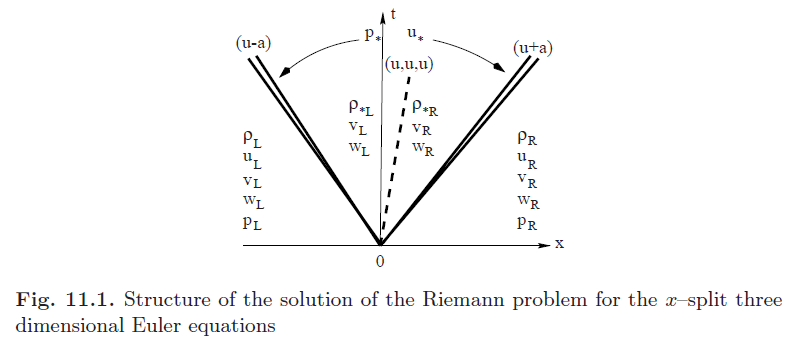

图11.1展示了在x方向分解的欧拉方程的解的结构，其中守恒量和通量向量为：

\[\mathbf{U} = \begin{bmatrix} \rho \\ \rho u \\ \rho v \\ \rho w \\ E \end{bmatrix} \qquad \mathbf{U} = \begin{bmatrix} \rho u \\ \rho u^2 + p \\ \rho uv \\ \rho uw \\ u(E+p) \end{bmatrix} \]

左波和右波中间的星号区域包含了问题的未知数。其中\(x/t = 0\) 代表时间轴，在Godunov格式中使用这些量。初始时刻的分段常量为：

\[\mathbf{W}_{L} = \begin{bmatrix} \rho_{L} \\ u_{L} \\ v_{L} \\ w_{L} \\ p_{L} \end{bmatrix} \qquad \mathbf{W}_{R} = \begin{bmatrix} \rho_{R} \\ u_{R} \\ v_{R} \\ w_{R} \\ p_{R} \end{bmatrix} \]

在Roe格式中直接近似通量函数\(\mathbf{F}_{i+\frac{1}{2}}\)

1.2 Approximate Conservation Laws

Roe直接近似求解黎曼问题\(\eqref{riemann}\)。引入Jacobian 矩阵：

\[\mathbf{A(\mathbf{U})} = \frac{\partial \mathbf{F}}{\partial \mathbf{U}} \]

对守恒方程\(\mathbf{U}_{t} + \mathbf{F}(\mathbf{U})_{x} = 0\) 链式求导可得：

\[\mathbf{U}_{t} + \mathbf{A(\mathbf{U})} \mathbf{U}_{x} = 0 \]

Roe把Jacobian矩阵替换为一个常系数Jacobian矩阵：

\[\tilde{\mathbf{A}} = \tilde{\mathbf{A}}(\mathbf{U}_{L}, \mathbf{U}_{R}) \]

把原始的PDE转化为：

\[\mathbf{U}_{t} + \tilde{\mathbf{A}} \mathbf{U}_{x} = 0 \]

原来的初值问题转化为：

\[\mathbf{U}_{t} + \tilde{\mathbf{A}} \mathbf{U}_{x} = 0 \\ \mathbf{U}(x,0) = \left\{\begin{matrix} \mathbf{U}_{L} & \text{if } x < 0 \\ \mathbf{U}_{R} & \text{if } x > 0 \end{matrix}\right. \]

然后求解析解。把原始的非线性的系统用线性的常系数系统近似，但是初始时刻的值不变。

对于大多双曲守恒律系统来说，Roe Jacobian 矩阵需要满足一下条件：

1. 系统的双曲性

\(\tilde{\mathbf{A}}\) 要有实特征值\(\tilde{\lambda}_{i} = \tilde{\lambda}_{i} (\mathbf{U}_{L}, \mathbf{U}_{L})\)，并且按照以下方式排列：

\[\tilde{\lambda}_{1} < \tilde{\lambda}_{i} < ... < \tilde{\lambda}_{m} \]

相应的右特征向量为：

\[\tilde{\mathbf{K}}^{(1)} , \tilde{\mathbf{K}}^{(2)}, ... \tilde{\mathbf{K}}^{(m)} \]

2. 与原始的矩阵一致：

   \[\tilde{\mathbf{A}}(\mathbf{U}, \mathbf{U}) = \mathbf{A}(\mathbf{U}) \]

3. 在间断处守恒：

   \[\mathbf{F}(\mathbf{U}_R) - \mathbf{F}(\mathbf{U}_L) = \tilde{\mathbf{A}}(\mathbf{U}_R - \mathbf{U}_L) \label{Conservation} \]

性质3能够保证精确捕捉激波。但是这并不代表在Godunov方法中，通过Roe近似格式求数值通量能够得到间断的解析解。

但是构造满足以上三个条件的双曲系统很复杂。但是对于理想气体的欧拉方程，Roe and Pike提出来了一些更简单的方法。

1.3 The Approximate Riemann Problem and the Intercell Flux

当得到了矩阵\(\tilde{\mathbf{A}}(\mathbf{U}_{L}, \mathbf{U}_{R})\) 及其特征值 \(\tilde{\lambda} (\mathbf{U}_{L}, \mathbf{U}_{R})\)和其右特征向量\(\tilde{\mathbf{K}}(\mathbf{U}_{L}, \mathbf{U}_{R})\)后，黎曼问题就可以通过2.3节、5.4节中的方法求解。通过把数据差异 \(\Delta \mathbf{U} = \mathbf{U}_R - \mathbf{U}_L\) 写成右特征向量：

\[\Delta \mathbf{U} = \mathbf{U}_R - \mathbf{U}_L = \sum_{i=1}^{m} \tilde{\alpha}_{i}\tilde{\mathbf{K}}^{(i)} \]

需要得到波强度\(\tilde{\alpha}_{i} = \tilde{\alpha}_{i}(\mathbf{A}(\mathbf{U}_{L}, \mathbf{U}_{R})\)。此时沿着时间轴 \(x/t=0\) 的解\(\mathbf{U}_{i+\frac{1}{2}}(x/t)\) 为：

\[\mathbf{U}_{i+\frac{1}{2}}(0) = \mathbf{U}_L + \sum_{\tilde{\lambda}_i \le 0} \tilde{\alpha}_{i}\tilde{\mathbf{K}}^{(i)} \label{mid_u} \]

或者：

\[\mathbf{U}_{i+\frac{1}{2}}(0) = \mathbf{U}_R - \sum_{\tilde{\lambda}_i \ge 0} \tilde{\alpha}_{i}\tilde{\mathbf{K}}^{(i)} \label{mid_u1} \]

这样就能得到相应的数值通量。上述过程可看做修改后的守恒方程：

\[\bar{\mathbf{U}}_t = \bar{\mathbf{F}}(\bar{\mathbf{U}})_x = 0 \label{MDC} \]

通量为：

\[\overline{\mathbf{F}}(\overline{\mathbf{U}}) = \tilde{\mathbf{A}} \overline{\mathbf{U}} \]

相应的数值通量：

\[\mathbf{F}_{i+\frac{1}{2}} = \tilde{\mathbf{A}} \overline{\mathbf{U}}_{i+\frac{1}{2}}(0) \]

这个通量在右侧流速为超音速的时候会明显是不对的。因为此时算出来的通量\(\mathbf{F}_{i+\frac{1}{2}} \neq \mathbf{F}_L\)。正确的通量可以用以下任何一种积分形式计算：

\[\mathbf{F}_{0L} = \mathbf{F}_{L}- \mathbf{S}_{L} \mathbf{U}_{L} - \frac{1}{T}\int_{TS_L} ^{0} \mathbf{U}(x,T)dx \]

或者

\[\mathbf{F}_{0R} = \mathbf{F}_{R}- \mathbf{S}_{R} \mathbf{U}_{R} - \frac{1}{T}\int_{TS_R} ^{0} \mathbf{U}(x,T)dx \]

上面两个式子在10.2节中有具体的推导。其中，\(S_L, S_R\)分别为黎曼解析解中最快和最慢的波速。\(T\)是正的时间。如果\(\mathbf{U}(x,t)\)通过近似解求得，则\(\mathbf{F}_{0L}\)和\(\mathbf{F}_{0L}\)要满足一致性（Consistency Condition，Sect. 10.2 of Chap. 10.）。

如果\(\overline{\mathbf{U}}_{i+\frac{1}{2}}(x, t)\)是修改后的守恒方程\(\eqref{MDC}\)的解，上述两式的积分部分可转化为：

\[\int_{TS_L} ^{0} \overline{\mathbf{U}}_{i+\frac{1}{2}}(x,T)dx = T[\overline{\mathbf{F}}(\mathbf{U}_L) - \overline{\mathbf{F}}(\overline{\mathbf{U}}_{i+\frac{1}{2}}(0))] - TS_L\mathbf{U}_L \]

和

\[\int_{0}^{TS_R} \overline{\mathbf{U}}_{i+\frac{1}{2}}(x,T)dx = T[\overline{\mathbf{F}}(\overline{\mathbf{U}}_{i+\frac{1}{2}}(0)) - \overline{\mathbf{F}}(\mathbf{U}_R)] - TS_L\mathbf{U}_L \]

带入后可得：

\[\mathbf{F}_{0L} = \overline{\mathbf{F}}(\overline{\mathbf{U}}_{i+\frac{1}{2}}(0)) + \mathbf{F}(\mathbf{U}_{L}) - \overline{\mathbf{F}}(\mathbf{U}_L) \]

或者：

\[\mathbf{F}_{0R} = \overline{\mathbf{F}}(\overline{\mathbf{U}}_{i+\frac{1}{2}}(0)) + \mathbf{F}(\mathbf{U}_{R}) - \overline{\mathbf{F}}(\mathbf{U}_R) \]

其中\(\overline{\mathbf{U}}_{i+\frac{1}{2}}(0)\)由\(\eqref{mid_u}\)和\(\eqref{mid_u1}\)计算，通量\(\overline{\mathbf{F}} = \tilde{\mathbf{A}} \overline{\mathbf{U}}\)，得到：

\[\mathbf{F}_{i+\frac{1}{2}} = \mathbf{F}_{L} + \sum_{\tilde{\lambda}_i \le 0} \tilde{\alpha}_{i} \tilde{\lambda}_i \tilde{\mathbf{K}}^{(i)} \]

或者：

\[\mathbf{F}_{i+\frac{1}{2}} = \mathbf{F}_{R} - \sum_{\tilde{\lambda}_i \ge 0} \tilde{\alpha}_{i} \tilde{\lambda}_i \tilde{\mathbf{K}}^{(i)} \]

或者写为：

\[\mathbf{F}_{i+\frac{1}{2}} = \frac{1}{2} (\mathbf{F}_{L} + \mathbf{F}_{R}) - \frac{1}{2} (\sum_{i=1} ^{m} \tilde{\alpha}_{i} |\tilde{\lambda}_i| \tilde{\mathbf{K}}^{(i)}) \label{Roe_flux} \]

2. The Original Roe Method

为了计算\(\eqref{Roe_flux}\) 需要得到平均特征值\(\tilde{\lambda}_i\)，对应的右特征值\(\tilde{\mathbf{K}}^{(i)}\)，和波强度\(\tilde{\alpha}_{i}\)。在Roe原始论文中，先得到平均矩阵\(\tilde{\mathbf{A}}\)，然后得到右特征值\(\tilde{\mathbf{K}}^{(i)}\)，和波强度\(\tilde{\alpha}_{i}\)。构造矩阵，要满足上述三个条件，前两个好满足，后面一个不好满足。这种方式缺陷很多，比如：矩阵不唯一，得到的格式复杂。

突破：通过引入参数向量\(\mathbf{Q}\)构造\(\tilde{\mathbf{A}}\)，这样守恒量向量\(\mathbf{U}\)和通量向量\(\mathbf{F}(\mathbf{U})\)能够通过\(\mathbf{Q}\)表示：

\[\mathbf{U} = \mathbf{U}(\mathbf{Q}) \quad \mathbf{F} = \mathbf{F}(\mathbf{Q}) \]

两个很重要的步骤：

\[\Delta \mathbf{U} = \mathbf{U}_R - \mathbf{U}_L, \quad \Delta\mathbf{F} = \mathbf{F} (\mathbf{U}_R) - \mathbf{F} (\mathbf{U}_L) \label{jump} \]

可以通过\(\Delta \mathbf{Q} = \mathbf{Q}_R - \mathbf{Q}_L\)表示。然后均值通过对\(\mathbf{Q}\) 代数平均得到。

2.1 The Isothermal Equations

isothermal equations：

\[\mathbf{U}_{t} + \mathbf{F}(\mathbf{U})_{x} = 0 \\ \mathbf{U} \equiv \begin{bmatrix}u_1 \\ u_2 \end{bmatrix}\equiv \begin{bmatrix}\rho \\ \rho u \end{bmatrix} , \quad \mathbf{F} \equiv \begin{bmatrix}f_1 \\ f_2 \end{bmatrix}\equiv \begin{bmatrix}\rho u \\ \rho u^2 + a^2\rho \end{bmatrix} \]

其中：

\[\mathbf{A(\mathbf{U})} = \begin{bmatrix} 0 & 1 \\ a^2-u^2 & 2u \end{bmatrix} \\ \lambda_1 = u - a, \quad \lambda_2 = u + a \\ \mathbf{K}^{(1)} = \begin{bmatrix} 1 \\ u-a \end{bmatrix}, \quad \mathbf{K}^{(2)} = \begin{bmatrix} 1 \\ u+a \end{bmatrix} \]

选择参数矩阵：

\[\mathbf{Q} \equiv \begin{bmatrix} q_1 \\ q_2 \end{bmatrix} \equiv \frac{\mathbf{U}}{\sqrt{\rho}} = \begin{bmatrix} \sqrt{\rho} \\ \sqrt{\rho} u \end{bmatrix}： \]

表示成\(\mathbf{Q}\)的形式

\[\mathbf{U} \equiv \begin{bmatrix} u_1 \\ u_2 \end{bmatrix}\equiv q_1\mathbf{Q} = \begin{bmatrix} q_1^2 \\ q_1 q_2 \end{bmatrix} \]

且：

\[\mathbf{F} \equiv \begin{bmatrix}f_1 \\ f_2 \end{bmatrix} = \begin{bmatrix}q_1q_2 \\ q_2^2+a^2q_1^2 \end{bmatrix} \]

定义平均向量\(\tilde{\mathbf{Q}} = (\tilde{q}_1, \tilde{q}_2)^T\)。通过简单的代数平均：

\[\tilde{\mathbf{Q}} = \begin{bmatrix} \tilde q_1 \\ \tilde q_2 \end{bmatrix} = \frac{1}{2}(\mathbf{Q}_L+\mathbf{Q}_R) = \frac{1}{2}\begin{bmatrix} \sqrt{\rho_L} + \sqrt{\rho_R} \\ \sqrt{\rho_L}u_L + \sqrt{\rho_R}u_R \end{bmatrix} \]

由此可以得到\(\tilde{\mathbf{B}} = \tilde{\mathbf{B}}(\tilde{\mathbf{Q}})\) 和\(\tilde{\mathbf{C}} = \tilde{\mathbf{C}}(\tilde{\mathbf{Q}})\), 式\(\eqref{jump}\)中的跳跃\(\Delta \mathbf{U}\)和\(\Delta \mathbf{F}\)可以表示为：

\[\Delta \mathbf{U} = \tilde{\mathbf{B}}\Delta \mathbf{Q}, \quad \Delta \mathbf{F} = \tilde{\mathbf{C}}\Delta \mathbf{Q} \label{jump_q} \]

以上公式可得：

\[\quad \Delta \mathbf{F} = (\tilde{\mathbf{C}}\tilde{\mathbf{B}}^{-1}) \Delta \mathbf{U} \]

若满足式\(\eqref{Conservation}\)，则：

\[\tilde{\mathbf{A}} = \tilde{\mathbf{C}}\tilde{\mathbf{B}}^{-1} \]

通过式\(\eqref{jump_q}\)可得：

\[\tilde{\mathbf{B}} = \begin{bmatrix} 2\tilde q_1 & 0 \\ \tilde q_2 & \tilde q_1 \end{bmatrix} ; \quad \tilde{\mathbf{C}} = \begin{bmatrix} \tilde q_2 & \tilde q_1 \\ 2a^2\tilde q_1 & 2\tilde q_2^2 \end{bmatrix} \]

由此可得Roe平均矩阵：

\[\tilde{\mathbf{A}} = \begin{bmatrix} 0 & 1 \\ a^2 - \tilde u^2 & 2\tilde u \end{bmatrix} \]

其中\(\tilde u\)为Roe平均速度：

\[\tilde u = \frac{\sqrt{\rho_L}u_L + \sqrt{\rho_R}u_R}{\sqrt{\rho_L} + \sqrt{\rho_R}} \]

得到\(\tilde{\mathbf{A}}\)以后可得其特征值：

\[\tilde \lambda_1 = \tilde u - a, \quad \tilde \lambda_2 = \tilde u + a \]

右特征向量：

\[\tilde{\mathbf{K}}^{(1)} = \begin{bmatrix} 1 \\ \tilde u-a \end{bmatrix}, \quad \tilde{\mathbf{K}}^{(2)} = \begin{bmatrix} 1 \\ \tilde u+a \end{bmatrix} \]

以上两个向量线性无关，满足条件1。求解波强度\(\tilde{\alpha}_{i}\)：

\[\Delta{\mathbf{U}} = \begin{bmatrix} \Delta u_1 \\ \Delta u_2 \end{bmatrix} = \sum_{i=1}^{2} \tilde{\alpha}_{i} \tilde{\mathbf{K}}^{(i)} \]

解为：

\[\alpha_{1} = \frac{\Delta u_1(\tilde u+a) - \Delta u_2 }{2a} \\ \alpha_{2} = \frac{-\Delta u_1(\tilde u-a) + \Delta u_2 }{2a} \]

由此可得通量\(\mathbf{F}_{i+\frac{1}{2}}\)

2.2 The Euler Equations

理想气体条件下的三维非稳态在x方向分解的欧拉方程。

\(x\)方向的Exact Jacobian matrix\(\mathbf{A(\mathbf{U})}\)：

\[\mathbf{A} = \begin{bmatrix} 0 & 1 & 0 & 0 & 0 \\ \hat{\gamma}H-u^2-a^2 & (3-\gamma)u & -\hat{\gamma}v & -\hat{\gamma} w & \hat{\gamma} \\ -uv & v & u & 0 & 0 \\ -uw & w & 0 & u & 0 \\ \frac{1}{2}u[(\gamma -3)H -a^2] & H - \hat{\gamma}U^2 & -\hat{\gamma}uv & \hat{\gamma}uw & \gamma u \end{bmatrix} \]

其中\(\hat{\gamma} = \gamma - 1\)。特征值为：

\[\lambda_1 = u - a \qquad \lambda_2 =\lambda_3 =\lambda_4 = u \qquad \lambda_5 = u + a \]

其中\(a = \sqrt{\gamma p / \rho}\)为音速，相应的右特征向量：

\[\mathbf{K}^{(1)} = \begin{bmatrix} 1 \\ u-a \\v \\ w \\ H-ua \end{bmatrix} ;\quad \mathbf{K}^{(2)} = \begin{bmatrix} 1 \\ u \\v \\ w \\ \frac{1}{2}V^2 \end{bmatrix} ;\quad \mathbf{K}^{(3)} = \begin{bmatrix} 0 \\ 0 \\ 1 \\ 0 \\ v \end{bmatrix} ; \\ \mathbf{K}^{(4)} = \begin{bmatrix} 0 \\ 0 \\ 0 \\ 1 \\ w \end{bmatrix} ; \qquad \mathbf{K}^{(5)} = \begin{bmatrix} 1 \\ u+a \\v \\ w \\ H+ua \end{bmatrix} \]

其中\(H\)为总焓：

\[H = \frac{E + p}{\rho} \]

\(E\)为总能per unit volume：

\[E = \frac{1}{2} \rho \mathbf{V}^2 + \rho e \]

\(e\)：specific internal energy

\[e = \frac{p}{(\gamma -1)\rho} \]

选择参数向量：

\[\mathbf{Q} = \begin{bmatrix} q_1 \\ q_2 \\ q_3 \\ q_4 \\ q_5 \end{bmatrix} = \sqrt{\rho} \begin{bmatrix} 1 \\ u \\ v \\ w \\ H \end{bmatrix} \]

这样子通量中的每个部分对参数均为二次函数。比如：\(u_1 = q_1^2, \quad f_1 = q_1q_2\)。这个性质对于\(\mathbf{G}, \mathbf{H}\)也成立。

与isothermal equations相同，把\(\Delta \mathbf{U}\)和\(\Delta \mathbf{F}\)通过矩阵\(\tilde{\mathbf{B}}\)和 \(\tilde{\mathbf{C}}\)写成$$\Delta \mathbf{Q}$$的函数。Roe给出以下形式：

\[\tilde{\mathbf{B}} =\begin{bmatrix} 2\tilde q_1 & 0 & 0 & 0 & 0 \\ \tilde q_2 & \tilde q_1 & 0 & 0 & 0 \\ \tilde q_3 & 0 & \tilde q_1 & 0 & 0 \\ \tilde q_4 & 0 & 0 & \tilde q_1 & 0\\ \frac{\tilde q_5}{\gamma} & \frac{\gamma-1}{\gamma}\tilde q_2 & \frac{\gamma-1}{\gamma}\tilde q_3 & \frac{\gamma-1}{\gamma}\tilde q_4 & \frac{\tilde q_1}{\gamma} \end{bmatrix} \]

和

\[\tilde{\mathbf{C}} = \begin{bmatrix} \tilde q_2 & \tilde q_1 & 0 & 0 & 0 \\ \frac{\gamma-1}{\gamma}\tilde q_5 & \frac{\gamma+1}{\gamma}\tilde q_2 & -\frac{\gamma-1}{\gamma}\tilde q_3 & -\frac{\gamma-1}{\gamma}\tilde q_4 & \frac{\gamma-1}{\gamma}\tilde q_1 \\ 0 & \tilde q_3 & \tilde q_2 & 0 & 0 \\ 0 & \tilde q_4 & 0 & \tilde q_2 & 0 \\ 0 & \tilde q_5 & 0 & 0 & \tilde q_2 \end{bmatrix} \]

可得Roe近似矩阵：

\[\tilde{\mathbf{A}} = \tilde{\mathbf{C}}\tilde{\mathbf{B}}^{-1} \]

矩阵\(\tilde{\mathbf{A}} = \tilde{\mathbf{C}}\tilde{\mathbf{B}}^{-1}\)的特征值：

\[\tilde \lambda_1 = \tilde u - \tilde a, \quad \tilde \lambda_2 = \tilde \lambda_3 = \tilde \lambda_4 = \tilde u , \quad \tilde \lambda_5 = \tilde u + \tilde a \label{averaged eigenvalues} \]

\[\tilde{\mathbf{K}}^{(1)} = \begin{bmatrix} 1 \\ \tilde u - \tilde a \\ \tilde v \\ \tilde w \\ \tilde H-\tilde u \tilde a \end{bmatrix} ;\quad \tilde{\mathbf{K}}^{(2)} = \begin{bmatrix} 1 \\ \tilde u \\ \tilde v \\ \tilde w \\ \frac{1}{2}\tilde V^2 \end{bmatrix} ;\quad \tilde{\mathbf{K}}^{(3)} = \begin{bmatrix} 0 \\ 0 \\ 1 \\ 0 \\ \tilde v \end{bmatrix} ; \\ \tilde{\mathbf{K}}^{(4)} = \begin{bmatrix} 0 \\ 0 \\ 0 \\ 1 \\ \tilde w \end{bmatrix} ; \qquad \tilde{\mathbf{K}}^{(5)} = \begin{bmatrix} 1 \\ \tilde u+ \tilde a \\ \tilde v \\ \tilde w \\ \tilde H+\tilde u \tilde a \end{bmatrix} \label{averaged right eigenvectors} \]

相应的均值：

\[\tilde u = \frac{\sqrt{\rho_L}u_L + \sqrt{\rho_R}u_R}{\sqrt{\rho_L} + \sqrt{\rho_R}} \\ \tilde v = \frac{\sqrt{\rho_L}v_L + \sqrt{\rho_R}v_R}{\sqrt{\rho_L} + \sqrt{\rho_R}} \\ \tilde w = \frac{\sqrt{\rho_L}w_L + \sqrt{\rho_R}w_R}{\sqrt{\rho_L} + \sqrt{\rho_R}} \\ \tilde H = \frac{\sqrt{\rho_L}H_L + \sqrt{\rho_R}H_R}{\sqrt{\rho_L} + \sqrt{\rho_R}} \\ \tilde a = \left( (\gamma - 1)(\tilde H - \frac{1}{2} \tilde V^2) \right)^{\frac{1}{2}} \label{Roe average values} \]

为了得到Roe通量\(\mathbf{F}_{\frac{1}{2}}\)，需要得到波强度，通过求解以下公式。

\[\Delta \mathbf{U} = \sum_{1}^{5} \tilde{\alpha}_i \hat{\mathbf{K}}^{(i)} \]

展开：

\[\tilde{\alpha}_1 + \tilde{\alpha}_2 + \tilde{\alpha}_5 = \Delta u_1 \\ \tilde{\alpha}_1 (\tilde{u} - \tilde{a}) + \tilde{\alpha}_2 \tilde{u} + \tilde{\alpha}_5 (\tilde{u} + \tilde{a}) = \Delta u_2 \\ \tilde{\alpha}_1 \tilde{v} + \tilde{\alpha}_2 \tilde{v} + \tilde{\alpha}_3 + \tilde{\alpha}_5 \tilde{v} = \Delta u_3 \\ \tilde{\alpha}_1 \tilde{w} + \tilde{\alpha}_2 \tilde{w} + \tilde{\alpha}_4 + \tilde{\alpha}_5 \tilde{w} = \Delta u_4 \\ \tilde{\alpha}_1 (\tilde H-\tilde u \tilde a) + \frac{1}{2}\tilde V^2 \tilde{\alpha}_2 + \tilde{\alpha}_3 \tilde{v} + \tilde{\alpha}_4 \tilde{w} + \tilde{\alpha}_5 (\tilde H+\tilde u \tilde a) = \Delta u_5 \label{wave strengths} \]

在计算以上方程组之前，可以先考虑一维的情况，此时：

\[\tilde{v} + \tilde{w} = 0, \qquad \tilde{\alpha}_3 = \tilde{\alpha}_4 = 0, \qquad \tilde{\mathbf{K}}^{(3)} = \tilde{\mathbf{K}}^{(4)} = 0 \]

对于在x方向分解的三维问题，和一维问题相同。

\[\tilde{\alpha}_3 = \Delta u_3 - \tilde{v} \Delta u_1 \qquad \tilde{\alpha}_4 = \Delta u_4 - \tilde{w} \Delta u_1 \]

然后可求出\(\tilde{\alpha}_1, \tilde{\alpha}_2, \tilde{\alpha}_5\)

算法流程：

通过以下步骤计算Roe通量\(\mathbf{F}_{\frac{1}{2}}\)：

1. 通过\(\eqref{Roe average values}\)计算均值\(\tilde u, \tilde v, \tilde w, \tilde H, \tilde a\)。
2. 通过\(\eqref{averaged eigenvalues}\)计算平均特征值\(\tilde\lambda_i\)。
3. 通过\(\eqref{averaged right eigenvectors}\)计算平均右特征向量\(\tilde{\mathbf{K}}^{(i)}\)。
4. 通过\(\eqref{wave strengths}\)计算波强度\(\tilde\alpha_i\)。
5. 用以上结果计算Roe通量\(\mathbf{F}_{\frac{1}{2}}\)。

3. The Roe–Pike Method

通过Roe格式算通量，需要计算平均特征值\(\tilde\lambda_i\)， 平均右特征向量\(\tilde{\mathbf{K}}^{(i)}\)， 波强度\(\tilde\alpha_i\)。上述为原始的Roe格式，在这个格式中首先考虑平均Jacobian矩阵。Roe and Pike提出的方法则可以绕开构造这一矩阵。在这个方法中，直接得到平均量，然后计算出特征值，右特征向量和波强度。

3.1 The Approach

前提：守恒律方程为双曲方程，能够解析地得到特征值\(\lambda_i\)和一组线性无关的右特征向量\(\mathbf{K}^{(i)}\)。然后选择一组数量组成向量，一般使用原始变量组成的向量\(\mathbf{W}\)，然后得到该向量的平均向量\(\tilde{\mathbf{W}}\)，然后直接在平均值\(\tilde{\mathbf{W}}\)处解析地得到\(\lambda_i, \mathbf{K}^{(i)}, \hat{\alpha}_i\)。在Roe–Pike格式中主要分为两步。

Linearisation about a Reference State（在参考状态下线性化）

为了解析地得到波强度\(\hat{\alpha}_i\)，基于左值\(\mathbf{U}_L\)和右值\(\mathbf{U}_R\)二阶\(O(\Delta^2)\)接近参考状态\(\hat{\mathbf{U}}\)，Roe and Pike假设一个线性形式的控制方程：

\[\mathbf{U}_{t} + \mathbf{F}(\mathbf{U})_{x} = \mathbf{U}_{t} + \frac{\partial \mathbf{F}}{\partial \mathbf{F}}\mathbf{U}_{x} \approx \mathbf{U}_{t} + \hat{\mathbf{A}}\mathbf{U}_x = 0 \]

其中\(\hat{\mathbf{A}}\) 是Jacobian矩阵，假设已知，使用参考状态\(\hat{\mathbf{U}}\) 计算。特征值和右特征向量也一样。线性黎曼问题：

\[\mathbf{U}_{t} + \hat{\mathbf{A}}\mathbf{U}_x = 0 \\ \mathbf{U}(x, 0) = \left\{\begin{matrix} \mathbf{U}_L & \text{if} \quad x < 0\\ \mathbf{U}_R & \text{if} \quad x > 0 \end{matrix}\right. \]

的 波强度\(\tilde\alpha_i\)通过分解\(\Delta \mathbf{U}\)至右特征向量求解。即求解：

\[\Delta \mathbf{U} = \mathbf{U}_R - \mathbf{U}_L = \sum_{k=1}^{m} \hat{\alpha}_k \hat{\mathbf{K}}^{(k)} \]

注意：这个线性化不是从Roe Matrix \(\tilde{\mathbf{A}}\)中得到的Roe线性化。这仅仅是为了寻找波强度的解析解，可以通过未知的Roe–Pike average state \(\tilde{\mathbf{W}}\)计算。

The Algebraic Problem for the Average State

为了求解Roe–Pike average vector \(\tilde{\mathbf{W}}\) ，首先：

\[\tilde{\alpha}_i = \hat{\alpha}_i(\tilde{\mathbf{W}}), \qquad \tilde{\lambda}_i = \lambda_i(\tilde{\mathbf{W}}), \qquad \tilde{\mathbf{K}}^{(i)} = \mathbf{K}^{(i)}(\tilde{\mathbf{W}}) \]

\(\hat{\alpha}_i, \lambda_i, \mathbf{K}^{(i)}\)的解析解在未知状态\(\tilde{\mathbf{W}}\)处计算。\(\tilde{\mathbf{W}}\)通过求解以下代数方程求解：

\[\Delta \mathbf{U} = \mathbf{U}_R - \mathbf{U}_L = \sum_{k=1}^{m}\tilde{\alpha}_k \tilde{\mathbf{K}}^{(k)} \]

和：

\[\Delta \mathbf{F} = \mathbf{F}_R - \mathbf{F}_L = \sum_{k=1}^{m}\tilde{\alpha}_k \tilde{\lambda}_k \tilde{\mathbf{K}}^{(k)} \]

3.2 The Isothermal Equations

通过Roe–Pike approach求解isothermal equations方程的黎曼问题：

\[\mathbf{U}_{t} + \mathbf{F}(\mathbf{U})_{x} = 0 \\ \mathbf{U}(x,0) = \left\{\begin{matrix} \mathbf{U}_{L} & \text{if } x < 0 \\ \mathbf{U}_{R} & \text{if } x > 0 \end{matrix}\right. \]

真正的Jacobian 矩阵，特征值和右特征向量为：

\[\mathbf{A(\mathbf{U})} = \begin{bmatrix} 0 & 1 \\ a^2-u^2 & 2u \end{bmatrix} \\ \lambda_1 = u - a, \quad \lambda_2 = u + a \\ \mathbf{K}^{(1)} = \begin{bmatrix} 1 \\ u-a \end{bmatrix}, \quad \mathbf{K}^{(2)} = \begin{bmatrix} 1 \\ u+a \end{bmatrix} \]

Linearisation about a Reference State

在\(\hat{\mathbf{U}}\)处线性化黎曼问题：

\[\mathbf{U}_{t} + \hat{\mathbf{A}}\mathbf{U}_{x} = 0 \\ \mathbf{U}(x,0) = \left\{\begin{matrix} \mathbf{U}_{L} & \text{if } x < 0 \\ \mathbf{U}_{R} & \text{if } x > 0 \end{matrix}\right. \]

其中\(\hat{\mathbf{A}}\)是在参考状态\(\hat{\mathbf{U}}\)处计算的Jacobian矩阵，原始变量的形式为\(\hat{\mathbf{W}} = \{\hat{\rho}, \hat{u} \}^{T}\)。完整的特征结构为：

\[\mathbf{A(\mathbf{U})} = \begin{bmatrix} 0 & 1 \\ a^2-\hat u^2 & 2\hat u \end{bmatrix} \\ \lambda_1 = \hat u - a, \quad \lambda_2 = \hat u + a \\ \mathbf{K}^{(1)} = \begin{bmatrix} 1 \\ \hat u-a \end{bmatrix}, \quad \mathbf{K}^{(2)} = \begin{bmatrix} 1 \\ \hat u+a \end{bmatrix} \]

分解\(\Delta \mathbf{U}\)

\[\Delta \mathbf{U} = \mathbf{U}_R - \mathbf{U}_L = \sum_{k=1}^{m}\hat{\alpha}_k \hat{\mathbf{K}}^{(k)} \]

展开：

\[\Delta{\rho} = \rho_R - \rho_L = \hat{\alpha}_1 + \hat{\alpha}_2 \\ \Delta{(\rho u)} = (\rho u)_R - (\rho u)_L = \hat{\alpha}_1 (\hat{u} - a) + \hat{\alpha}_2(\hat{u} + a) \]

其中：

\[\Delta{(\rho u)} = \hat{\rho}\Delta u + \hat{u}\Delta \rho + O(\Delta^2) \]

其中the leading term in\(O(\Delta^2)\)为：

\[(\rho_R - \hat{\rho})(u_R - \hat{u}) - (\rho_L - \hat{\rho})(u_L - \hat{u}) \]

忽略\(O(\Delta^2)\)：

\[\hat{\rho}\Delta u + \hat{u}\Delta \rho = \hat{\alpha}_1 (\hat{u} - a) + \hat{\alpha}_2(\hat{u} + a) \]

求解后可得：

\[\hat{\alpha}_1 = \frac{1}{2} \left[ \Delta \rho - \hat{\rho}\frac{\Delta u}{a} \right] \\ \hat{\alpha}_1 = \frac{1}{2} \left[ \Delta \rho + \hat{\rho}\frac{\Delta u}{a} \right] \]

与原始的Roe格式得到的波强度相比，在二阶精度\(O(\Delta^2)\)的范围内，一致，故以下两组方程满足：

\[\Delta \mathbf{U} = \mathbf{U}_R - \mathbf{U}_L = \sum_{k=1}^{2}\hat{\alpha}_k \hat{\mathbf{K}}^{(k)} \\ \Delta \mathbf{F} = \mathbf{F}_R - \mathbf{F}_L = \sum_{k=1}^{2}\hat{\alpha}_k \hat{\lambda}_k \hat{\mathbf{K}}^{(k)} \]

对于第二组方程，展开后可得：

\[\Delta (\rho u) = \hat{\alpha}_1 \hat{\lambda}_1 + \hat{\alpha}_2 \hat{\lambda}_2 \\ \Delta(\rho u^2 + \rho a^2) = \hat{\alpha}_1 \hat{\lambda}_1 (\hat{u} - a) + \hat{\alpha}_2 \hat{\lambda}_2 (\hat{u} + a) \]

上式的第一个方程展开：

\[\hat{\rho}\Delta u + \hat{u}\Delta \rho = \hat{u}(\hat \alpha_1 + \hat \alpha_2) + a(\hat \alpha_1 - \hat \alpha_2) \]

第二个方程右侧展开：

\[\Delta(\rho u^2 + \rho a^a) = 2 \hat \rho\hat u \Delta u + \hat{u}^2 \Delta \rho + a^2 \Delta \rho \]

右侧可以表述为：

\[(\hat{\alpha}_1 + \hat{\alpha}_2)(\hat{u}^2 + a^2) + 2\hat u a (\hat{\alpha}_2 - \hat{\alpha}_1) \]

The Algebraic Problem for the Average State

Roe–Pike 方法通过代数问题寻找满足以下条件的均值：

\[\Delta \mathbf{U} = \mathbf{U}_R - \mathbf{U}_L = \sum_{k=1}^{2}\tilde{\alpha}_k \tilde{\mathbf{K}}^{(k)} \\ \Delta \mathbf{F} = \mathbf{F}_R - \mathbf{F}_L = \sum_{k=1}^{2}\tilde{\alpha}_k \tilde{\lambda}_k \hat{\mathbf{K}}^{(k)} \label{condition} \]

特征结构可写为：

\[\tilde{\alpha}_1 = \frac{1}{2} \left[ \Delta \rho - \tilde{\rho}\frac{\Delta u}{a} \right], \qquad \tilde{\alpha}_1 = \frac{1}{2} \left[ \Delta \rho + \tilde{\rho}\frac{\Delta u}{a} \right] \\ \tilde{\lambda}_1 = \tilde{u} - a, \qquad \tilde{\lambda}_2 = \tilde{u} + a \\ \tilde{\mathbf{K}}^{(1)} = \begin{bmatrix} 1 \\ \tilde{u} - a \end{bmatrix}, \qquad \tilde{\mathbf{K}}^{(2)} = \begin{bmatrix} 1 \\ \tilde{u} + a \end{bmatrix} \]

展开\(\eqref{condition}\)可得：

\[\Delta \rho = \tilde{\alpha}_1 + \tilde{\alpha}_2 \qquad \text{(a)} \\ \Delta{(\rho u)} = \tilde{\alpha}_1 (\tilde{u} - a) + \tilde{\alpha}_2(\tilde{u} + a) \qquad \text{(b)} \\ \Delta{(\rho u)} = \tilde{\lambda}_1 \tilde{\alpha}_1 + \tilde{\lambda}_2 \tilde{\alpha}_2 \qquad \text{(c)} \\ \Delta(\rho u^2 + \rho a^2) = \tilde{\alpha}_1 \tilde{\lambda}_1 (\tilde{u} - a) + \tilde{\alpha}_2 \tilde{\lambda}_2 (\tilde{u} + a) \qquad \text{(d)} \]

四个方程，求解两个未知数\(\tilde{\rho}, \tilde{u}\)。但是公式（a）无条件满足，公式（b）和公式（c）一致，所以最后只需要联立（c）和（d）即可求解。

从（c）中可得

\[\Delta(\rho u) = \tilde{u}(\tilde \alpha_1 + \tilde \alpha_2) + a(\tilde \alpha_1 - \tilde \alpha_2) \]

带入波强度公式：

\[\Delta(\rho u) = \tilde{\rho}\Delta u + \tilde{u} \Delta \rho \]

公式（d）可以写为：

\[\Delta(\rho u^2 + \rho a^2) = (\tilde{\alpha}_1 + \tilde{\alpha}_2)(\tilde{u}^2 + a^2) + 2\tilde u a (\tilde{\alpha}_2 - \tilde{\alpha}_1) \]

带入波强度：

\[\Delta(\rho u^2 + \rho a^2) = \Delta(\rho u^2) + a^2 \Delta \rho \]

此处省略求解过程！

最终结果：

\[\tilde{u} = \frac{\Delta (\rho u \pm \Delta u \sqrt{\rho_L \rho_R})}{\Delta \rho} \]

应该取负号：

\[\tilde{u} = \frac{\sqrt{\rho_L}u_L + \sqrt{\rho_R}u_R}{\sqrt{\rho_L} + \sqrt{\rho_R}} \]

密度：

\[\tilde{\rho} = \sqrt{\rho_L \rho_R} \]

取负号的时候，会引起数值波动。

3.3 The Euler Equations

对于欧拉方程的黎曼问题：

\[\mathbf{U}_{t} + \hat{\mathbf{A}}\mathbf{U}_{x} = 0 \\ \mathbf{U}(x,0) = \left\{\begin{matrix} \mathbf{U}_{L} & \text{if } x < 0 \\ \mathbf{U}_{R} & \text{if } x > 0 \end{matrix}\right. \]

特征值：

\[\hat \lambda_1 = \hat u - \hat a, \quad \hat \lambda_2 = \hat \lambda_3 = \hat \lambda_4 = \hat u , \quad \hat \lambda_5 = \hat u + \hat a \]

特征向量：

\[\hat{\mathbf{K}}^{(1)} = \begin{bmatrix} 1 \\ \hat u - \hat a \\ \hat v \\ \hat w \\ \hat H-\hat u \hat a \end{bmatrix} ;\quad \hat{\mathbf{K}}^{(2)} = \begin{bmatrix} 1 \\ \hat u \\ \hat v \\ \hat w \\ \frac{1}{2}\hat V^2 \end{bmatrix} ;\quad \hat{\mathbf{K}}^{(3)} = \begin{bmatrix} 0 \\ 0 \\ 1 \\ 0 \\ \hat v \end{bmatrix} ; \\ \hat{\mathbf{K}}^{(4)} = \begin{bmatrix} 0 \\ 0 \\ 0 \\ 1 \\ \hat w \end{bmatrix} ; \qquad \hat{\mathbf{K}}^{(5)} = \begin{bmatrix} 1 \\ \hat u+ \hat a \\ \hat v \\ \hat w \\ \hat H+\hat u \hat a \end{bmatrix} \]

展开\(\Delta \mathbf{U}\) ：

\[\Delta \mathbf{U} = \sum_{1}^{5} \hat{\alpha}_i \hat{\mathbf{K}}^{(i)} \]

求解上述方程，可得波强系数\(\hat{\alpha}_i\) ：

\[\hat{\alpha}_3 = \Delta u_3 - \hat{v}\Delta u_1 \\ \hat{\alpha}_4 = \Delta u_4 - \hat{w}\Delta u_1 \\ \hat{\alpha}_2 = \frac{\gamma - 1}{\hat{a}^2}[\Delta u_1 (\hat{H} - \hat{u}^2) + \hat{u}\Delta u_2 - \overline{\Delta u_5}] \\ \hat{\alpha}_1 = \frac{1}{2\hat{a}}[\Delta u_1(\hat{u} + \hat{a}) - \Delta u_2 - \hat{a}\hat{\alpha}_2] \\ \hat{\alpha}_5 = \Delta u_1 - (\hat{\alpha}_1 + \hat{\alpha}_2) \]

二阶近似后可得：

\[\hat{\alpha}_1 = \frac{1}{2\hat{a}^2}[\Delta p - \hat{\rho}\hat{a}\Delta u] \\ \hat{\alpha}_2 = \Delta \rho - \Delta p / \hat{a}^2 \\ \hat{\alpha}_3 = \hat{\rho}\Delta v \\ \hat{\alpha}_4 = \hat{\rho}\Delta w \\ \hat{\alpha}_3 = \frac{1}{2\hat{a}^2}[\Delta p + \hat{\rho}\hat{a}\Delta u] \]

第二步：寻找均值状态

\[\tilde{\mathbf{W}} = (\tilde{\rho}, \tilde{u}, \tilde{v}, \tilde{w}, \tilde{a})^T \]

求解：

\[\Delta \mathbf{U} = \mathbf{U}_R - \mathbf{U}_L = \sum_{k=1}^{2}\tilde{\alpha}_k \tilde{\mathbf{K}}^{(k)} \\ \Delta \mathbf{F} = \mathbf{F}_R - \mathbf{F}_L = \sum_{k=1}^{2}\tilde{\alpha}_k \tilde{\lambda}_k \hat{\mathbf{K}}^{(k)} \]

其中：

\[\tilde{\alpha}_i = \hat{\alpha}_i(\tilde{\mathbf{W}}), \qquad \tilde{\lambda}_i = \lambda_i(\tilde{\mathbf{W}}), \qquad \tilde{\mathbf{K}}^{(i)} = \mathbf{K}^{(i)}(\tilde{\mathbf{W}}) \]

得到解为：

\[\tilde{\rho} = \sqrt{\rho_L \rho_R} \\ \tilde{u} = \frac{\sqrt{\rho_L}u_L + \sqrt{\rho_R}u_R}{\sqrt{\rho_L} + \sqrt{\rho_R}} \\ \tilde{v} = \frac{\sqrt{\rho_L}v_L + \sqrt{\rho_R}v_R}{\sqrt{\rho_L} + \sqrt{\rho_R}} \\ \tilde{w} = \frac{\sqrt{\rho_L}w_L + \sqrt{\rho_R}w_R}{\sqrt{\rho_L} + \sqrt{\rho_R}} \\ \tilde{H} = \frac{\sqrt{\rho_L}H_L + \sqrt{\rho_R}H_R}{\sqrt{\rho_L} + \sqrt{\rho_R}} \\ \tilde{a} = \left( (\gamma - 1)(\tilde{H} - \frac{1}{2}\tilde{\mathbf{V}}^2) \right)^{\frac{1}{2}} \label{average} \]

算法

1. 根据\(\eqref{average}\)计算均值。
2. 通过均值计算特征值
3. 通过均值计算特征向量
4. 通过均值计算波强
5. 用以上结果求解Roe通量

4. An Entropy Fix

线性化的黎曼问题只包含了间断跳跃，对于激波和接触间断是一个很好的近似，但是对于接触间断则会有一些错误。但是在实际使用中，只有跨音速的接触间断会影响面通量。此时会引起entropy violating discontinuous waves，这种现象也被叫为rarefaction shocks。

4.1 The Entropy Problem

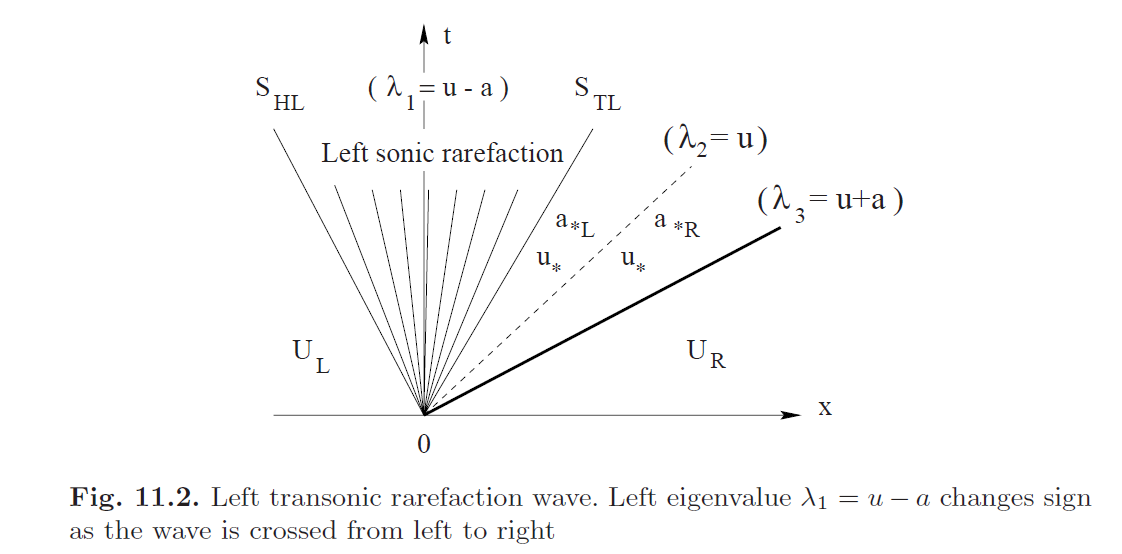

对于作稀疏波，满足以下条件的时候是跨音速稀疏波：

波头速度：

\[\lambda_1(\mathbf{U}_L) = S_{HL} = u_L - a_L < 0 \]

波尾速度：

\[\lambda_1(\mathbf{U}_{*L}) = S_{HL} = u_* - a_{*L} > 0 \]

可以修正Roe 求解器以避免这一问题。

4.2 The Harten–Hyman Entropy Fix

主要说明非稳态欧拉方程的熵修正问题，此时只需要考虑左右两侧的非线性波，其特征值为\(\lambda_1 = u - a\)和\(\lambda_5 = u +a\)。熵修正依赖对速度\(u_*\)以及星号区域内左右音速\(a_{*L}, a_{*R}\)。

Left Transonic Rarefaction

假设速度\(u_*\)以及星号区域内左右音速\(a_{*L}, a_{*R}\) 已知， 波速：

\[\lambda_1^L = u_L - a_L ,\qquad \lambda_1^R = u_* - a_{*L} \]

如果

\[\lambda_1^L < 0 <\lambda_1^R \]

则左侧的波为跨音速稀疏波。这种情况下，熵修正按照以下形式。单个间断：

\[\mathbf{U}_{*L} - \mathbf{U}_{L} = \tilde{\alpha}_1 \tilde{\mathbf{K}}^{(1)} \]

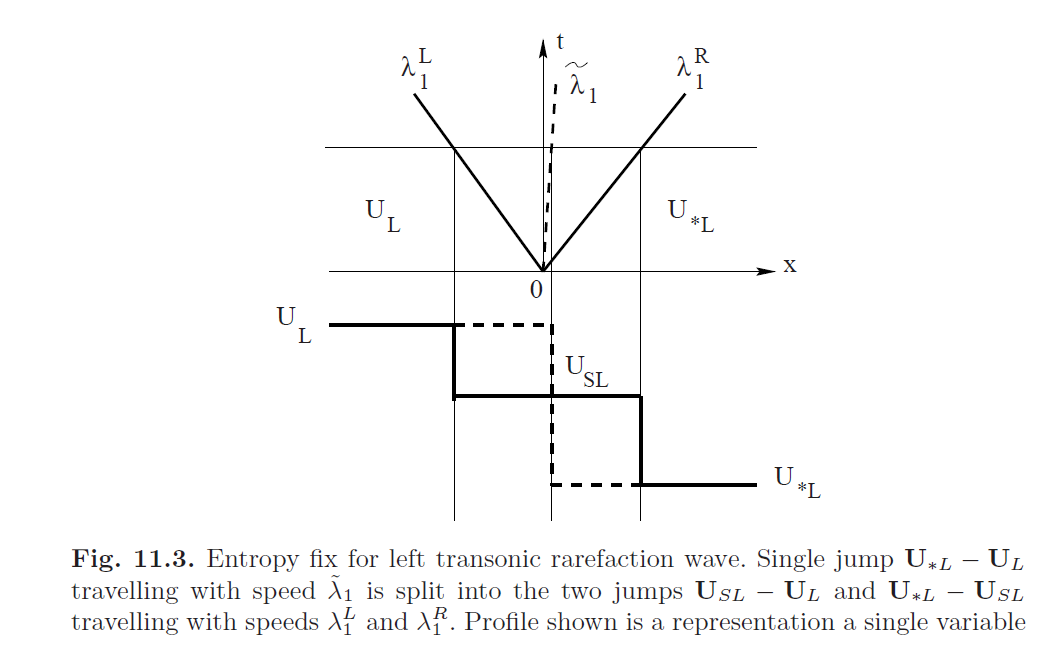

以\(\tilde{\lambda}_1\)的速度传播。此间断分解成两个间断\(\mathbf{U}_{SL} - \mathbf{U}_{L}\)和\(\mathbf{U}_{*L} - \mathbf{U}_{SL}\) ，其传播速度分别为\(\lambda_1^L\)和\(\lambda_1^R\)，此时需要找到\(\mathbf{U}_{SL}\)这一中间态。结构如图11.3所示。

使用积分形式的守恒率得：

\[\lambda_1^R (\mathbf{U}_{SL} - \mathbf{U}_{*L}) + \lambda_1^L(\mathbf{U}_{L} - \mathbf{U}_{SL}) = \tilde{\lambda}_1 (\mathbf{U}_{L} - \mathbf{U}_{*L}) \label{int con} \]

由此可得：

\[\mathbf{U}_{SL} = \frac{(\tilde{\lambda}_1 - \lambda_1^L)\mathbf{U}_{L} + (\lambda_1^R - \tilde{\lambda}_1) \mathbf{U}_{*L}}{\lambda_1^R - \lambda_1^L} \]

计算Roe通量时，则采用单边：

\[\mathbf{F}_{i+\frac{1}{2}} = \mathbf{F}_L + \sum_{\tilde{\lambda}_k \le 0} \tilde{\lambda}_k \tilde{\alpha}_k \tilde{\mathbf{K}}^{(k)} \]

对于本例，只有间断\(\mathbf{U}_{SL} - \mathbf{U}_{L}\)的传播速度\(\lambda_1^L < 0\)。化简\(\eqref{int con}\)得：

\[\mathbf{U}_{SL} - \mathbf{U}_{L}= \frac{\lambda_1^R - \tilde{\lambda}_1}{\lambda_1^R - \lambda_1^L}(\mathbf{U}_{*L} - \mathbf{U}_{L}) \]

Roe近似：

\[\lambda_1^R - \lambda_1^L = \tilde{\alpha}_1 \tilde{\mathbf{K}}^{(1)} \]

通量跳跃可写为：

\[(\Delta F)_1^L = \lambda_1^L \left(\frac{\lambda_1^R - \tilde{\lambda}_1}{\lambda_1^R - \lambda_1^L} \right) \tilde{\alpha}_1 \tilde{\mathbf{K}}^{(1)} \]

则波速可写为：

\[\overline{\lambda}_1 = \lambda_1^L \left(\frac{\lambda_1^R - \tilde{\lambda}_1}{\lambda_1^R - \lambda_1^L} \right) \]

通量可写为：

\[\mathbf{F}_{i+\frac{1}{2}} = \mathbf{F}_L + \overline{\lambda}_1 \tilde{\alpha}_1 \tilde{\mathbf{K}}^{(1)} \]

Right Transonic Rarefaction

与左侧同理

4.3 The Speeds \(u_*, a_{*L}, a_{*R}\)

此时需要计算星号区域内的参数。有以下几种方法：

1. The Roe–Averaged States
2. The PVRS Approximation
3. TRRS Approximation
