RGB闪烁问题（WS2811）

关联文章：https://www.cnblogs.com/xjxcxjx/p/15637859.html

WS2811使用的是上古代码，也就是我来公司时候那位硬件工程师从网上抄的代码。本着能跑的代码就不动的原则，从2019年到现在2025年，芯片从STM32F103换到STM32F450,再到GD32F450,GD32F470，WS2811的驱动代码就没动过。

现在的项目因为都统一上了系统，然后又增加了一些硬件需要驱动，WS2811就开时闪烁了。很没有规律，有时候好长时间不闪一下，有时候连续闪烁。

先把上古代码贴出来：（反正都是网上抄的，也不存在泄密）

  1 void WS2812_send( uint8_t (*color)[ 3 ], uint16_t len,uint8_t PWM_CHANNEL )
  2 {
  3     uint8_t  j;
  4
  5     uint8_t led = 0;
  6
  7     uint16_t memaddr= 0;
  8
  9     uint16_t buffersize = 0;
 10
 11     buffersize = ( len * 24 ) + 42; // number of bytes needed is #LEDs * 24 bytes + 42 trailing bytes
 12
 13     if(buffersize>=RGB_BUFFER_LEN)
 14     {
 15         return;//数据超过buf长度
 16     }
 17     while ( len )
 18     {
 19         for ( j = 0; j < 8; j++ )  // GREEN data
 20         {
 21             LED_BYTE_Buffer[ memaddr++ ] = ((color[led][1]<<j) & 0x80)?RGB_LOGICAL_H:RGB_LOGICAL_L;
 22         }
 23         for ( j = 0; j < 8; j++ )// red data
 24         {
 25             LED_BYTE_Buffer[ memaddr++ ] = ((color[led][0]<<j) & 0x80)?RGB_LOGICAL_H:RGB_LOGICAL_L;
 26         }
 27         for ( j = 0; j < 8; j++ )  // BLUE data
 28         {
 29             LED_BYTE_Buffer[ memaddr++ ] = ((color[led][2]<<j) & 0x80)?RGB_LOGICAL_H:RGB_LOGICAL_L;
 30         }
 31         led++;
 32         len--;
 33     }
 34     /*
 35         RGB0 = PB1      /       T2_CH3
 36         RGB1 = PA5      /       T1_CH0
 37         RGB2 = PB5      /       T2_CH1
 38         TWINKLE_LED_BEGIN = PB6 /T3_CH0
 39         RGB3 = PD13     /       T3_CH1  ASCD1
 40     */
 41     if(PWM_CHANNEL==0)  timer_channel_output_pulse_value_config(TIMER2,TIMER_CH_3,0);
 42     if(PWM_CHANNEL==1)  timer_channel_output_pulse_value_config(TIMER1,TIMER_CH_0,0);
 43     if(PWM_CHANNEL==2)  timer_channel_output_pulse_value_config(TIMER2,TIMER_CH_1,0);
 44     if(PWM_CHANNEL==3)  timer_channel_output_pulse_value_config(TIMER3,TIMER_CH_0,0);
 45
 46     while ( memaddr < buffersize )
 47     {
 48         LED_BYTE_Buffer[ memaddr++ ] = 0;
 49     }
 50
 51     usart_interrupt_disable(USART0, USART_INT_TC);
 52     usart_interrupt_disable(USART0, USART_INT_RBNE);
 53     spi_i2s_interrupt_disable(SPI1,SPI_I2S_INT_RBNE);
 54
 55     vTaskSuspendAll();
 56     //__set_FAULTMASK (1);
 57     //    __IRQ_SAFE  //暂时关闭总中断
 58     {
 59         if(PWM_CHANNEL==0)
 60         {
 61             Tim2CH3_init_DMA(buffersize);
 62             //          dma_transfer_number_config(DMA0, DMA_CH2, buffersize);
 63             dma_channel_enable(DMA0, DMA_CH2);
 64             timer_enable(TIMER2);
 65             while ( !dma_flag_get( DMA0, DMA_CH2,DMA_INTF_FTFIF ) );   // wait until transfer complete
 66             dma_channel_disable(DMA0, DMA_CH2);
 67             dma_flag_clear( DMA0, DMA_CH2,DMA_INTF_FTFIF );
 68             timer_disable(TIMER2);
 69
 70         }
 71         else if(PWM_CHANNEL==1) //TIM4CH1
 72         {
 73             //          Timer1CH0_init_DMA();
 74             dma_channel_enum dma_channel = DMA_CH7;
 75             dma_transfer_number_config(DMA0, dma_channel, buffersize);
 76             dma_channel_enable(DMA0, dma_channel);
 77             timer_enable((TIMER1));
 78             while ( !dma_flag_get( DMA0, dma_channel,DMA_INTF_FTFIF ) );   // wait until transfer complete
 79             dma_channel_disable(DMA0, dma_channel);
 80             dma_flag_clear( DMA0, dma_channel,DMA_INTF_FTFIF);
 81             timer_disable((TIMER1));
 82
 83         }
 84         else if(PWM_CHANNEL==2) //TIM2_CH1
 85         {
 86             Tim2CH1_init_DMA(buffersize);
 87             //          dma_transfer_number_config(DMA0, DMA_CH2, buffersize);
 88             dma_channel_enable(DMA0, DMA_CH2);
 89             timer_enable(TIMER2);
 90             while ( !dma_flag_get( DMA0, DMA_CH2,DMA_INTF_FTFIF ) );   // wait until transfer complete
 91             dma_channel_disable(DMA0, DMA_CH2);
 92             dma_flag_clear( DMA0, DMA_CH2,DMA_INTF_FTFIF );
 93             timer_disable(TIMER2);
 94
 95         }
 96         else if(PWM_CHANNEL==3) //TIM3_CH0
 97         {
 98             TIMER3CH0_init_DMA(buffersize);
 99             // dma_transfer_number_config(DMA0, DMA_CH6, buffersize);
100             dma_channel_enable(DMA0, DMA_CH6);
101             timer_enable(TIMER3);
102             while ( !dma_flag_get( DMA0, DMA_CH6,DMA_INTF_FTFIF ) );   // wait until transfer complete
103             dma_channel_disable(DMA0, DMA_CH6);
104             dma_flag_clear( DMA0, DMA_CH6,DMA_INTF_FTFIF );
105             timer_disable(TIMER3);
106         }
107     }
108     xTaskResumeAll();
109     //__set_FAULTMASK (0);
110
111     spi_i2s_interrupt_enable(SPI1,SPI_I2S_INT_RBNE);
112     usart_interrupt_enable(USART0, USART_INT_TC);
113     usart_interrupt_enable(USART0, USART_INT_RBNE);
114 }

这个项目刚启动的时候其实RGB灯就存在闪烁问题了，当时我的解决方案是添加了

__IRQ_SAFE

用来关闭总中断。但是这样做的后果就是会影响其他应用。

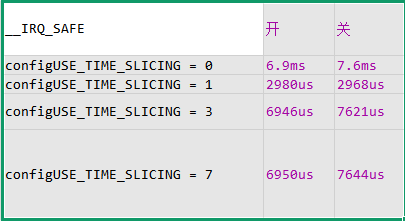

通过这次的排查也能发现，一次刷灯的时间最长7644us，这个时长是接受不了的

 这个时长问题其实这个项目二次启动的时候我就发现这个问题了，并且项目经理安排了同事去解决。

她当初说她通过DMA的方式解决了，但是她花了1个多月解决的方案并没有应用，我也没看到她的代码。。。。

===========================================================我是快乐的分割线=============================================================

===========================================================防火防盗防CSDN=============================================================

记录下排查过程：

  1. 通过屏蔽大法先排查问题所在

    1. 　　以下就是排查过程，各种情况似是而非完全无法锁定问题所在

  2. 计算函数运行时间
    1. 通过跟同事分享排查结果，他提示，可能是RGB灯刷新的时候被打断导致的
    2. 于是就有了上面的那张时间表

　　我设定的FreeRTOS的时间片是1ms，这个函数一次运行需要7ms，铁定被打断。而且RGB刷新还是连续刷新，不能被打断的。也就无法通过分拆的方法

只能通过DMA的方式试试看有没有效果。结果是好的，DMA能完美解决。

  1 static void WS2812_send_internal(uint8_t (*color)[3], uint16_t len, uint8_t PWM_CHANNEL)
  2 {
  3     uint16_t buffersize = (len * 24) + 42;
  4     if(buffersize >= RGB_BUFFER_LEN) {
  5         return;
  6     }
  7
  8     // 准备数据
  9     uint16_t memaddr = 0;
 10     for(uint16_t led = 0; led < len; led++) {
 11         // 准备RGB数据
 12         for(uint8_t j = 0; j < 8; j++) {
 13             LED_BYTE_Buffer[memaddr++] = ((color[led][1]<<j) & 0x80) ? RGB_LOGICAL_H : RGB_LOGICAL_L;
 14         }
 15         for(uint8_t j = 0; j < 8; j++) {
 16             LED_BYTE_Buffer[memaddr++] = ((color[led][0]<<j) & 0x80) ? RGB_LOGICAL_H : RGB_LOGICAL_L;
 17         }
 18         for(uint8_t j = 0; j < 8; j++) {
 19             LED_BYTE_Buffer[memaddr++] = ((color[led][2]<<j) & 0x80) ? RGB_LOGICAL_H : RGB_LOGICAL_L;
 20         }
 21     }
 22
 23     // 填充剩余缓冲区
 24     while(memaddr < buffersize) {
 25         LED_BYTE_Buffer[memaddr++] = 0;
 26     }
 27
 28     // 配置DMA
 29     switch(PWM_CHANNEL) {
 30         case 0:
 31             Tim2CH3_init_DMA(buffersize);
 32             dma_channel_enable(DMA0, DMA_CH2);
 33             timer_enable(TIMER2);
