Bootstrap学习笔记之 input group组件
input group 的学习
使用 input-group 来表示一组 input
- 可以在输入框的前端(后端)加入修饰内容
.input-group-prepend或者input-group-append- 用
span包裹.input-group-text
- 用

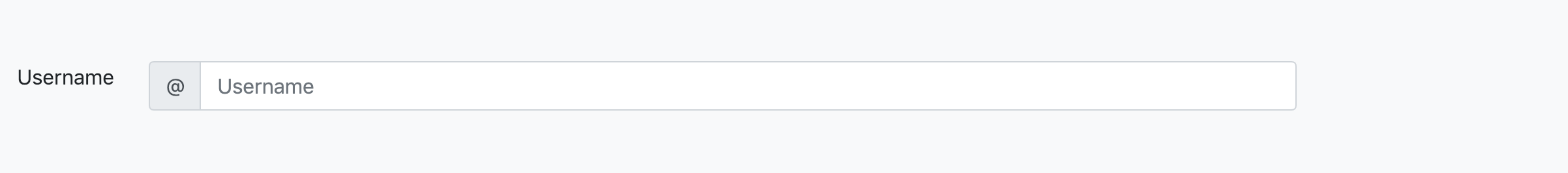

wrapping
- 为了在 input-group 之内成功的容纳自定义的表格,默认的是.flex-wrap
- 可以手动设置.flex-nowrap
<div class="input-group flex-nowrap">
<div class="input-group-prepend">
<span class="input-group-text" id="addon-wrapping">@</span>
</div>
<input type="text" class="form-control" placeholder="Username" aria-label="Username" aria-describedby="addon-wrapping">
</div>
sizing
-
通过
.input-groput-*控制输入框的大小,内容的大小也会跟着一起进行修改.input-group-sm
<div class="input-group input-group-sm align-items-center"> <div class="input-group-prepend"> <span class="input-group-text">@</span> </div> <input type="text" class="form-control"> </div>.input-group默认大小
<div class="input-group align-items-center"> <div class="input-group-prepend"> <span class="input-group-text">@</span> </div> <input type="text" class="form-control"> </div>.input-group-large大
<div class="input-group input-group-lg align-items-center"> <div class="input-group-prepend"> <span class="input-group-text">@</span> </div> <input type="text" class="form-control"> </div>
checkbox 和 radio
-
可以使用 checkbox 或者 radio 来代替 span 包裹的 text
- checkbox 多选
<!--checkbox--> <div class="container py-2 border"> <div class="row justify-content-center"> <div class="text-info font-weight-bolder">Checkbox</div> <div class="w-100"></div> <div class="input-group"> <div class="input-group-prepend"> <div class="input-group-text"> <input type="checkbox" name="checkbox" id="checkbox" aria-label="Checkbox for the following input text"> </div> </div> <input type="text" name="text" class="form-control" id="checkbox-text" placeholder="Please input" aria-label="Text input with checkbox"> </div> </div> </div>- radio 单选
<div class="container py-2 border"> <div class="row justify-content-center"> <div class="text-info font-weight-bolder">Radio</div> <div class="w-100"></div> <div class="input-group"> <div class="input-group-prepend"> <div class="input-group-text"> <input type="radio" name="radio" id="radio" aria-label="Radio for the following input text"> </div> </div> <input type="text" name="text" class="form-control" id="radio-text" placeholder="Please input" aria-label="Text input with radio"> </div> </div> </div>
Multiple input
- 在且仅在
.input-group中支持多个input标签分割样式
<div class="input-group">
<div class="input-group-prepend">
<span class="input-group-text">FirstName and LastName</span>
</div>
<input type="text" name="firstname" id="firstname" placeholder="firstname" class="form-control">
<input type="text" name="lastname" id="lastname" placeholder="lastname" class="form-control">
</div>
Multiple addons
- 不仅支持多个 input, 也支持多个 add-ons, 而且也能 text, checkbox 和radio 进行混合
<div class="container py-2 border">
<div class="row">
<div class="input-group">
<div class="input-group-prepend">
<span class="input-group-text">$</span>
<span class="input-group-text">0.00</span>
</div>
<input type="text" class="form-control">
</div>
<div class="w-100"></div>
<div class="input-group">
<input type="text" class="form-control">
<div class="input-group-append">
<div class="input-group-text">
<input type="checkbox">
</div>
<div class="input-group-text">
<input type="radio">
</div>
</div>
</div>
</div>
</div>
Button adons
<div class="input-group mb-3">
<div class="input-group-prepend">
<button class="btn btn-outline-secondary" type="button" id="button-addon1">Button</button>
</div>
<input type="text" class="form-control" placeholder="" aria-label="Example text with button addon" aria-describedby="button-addon1">
</div>
<div class="input-group mb-3">
<input type="text" class="form-control" placeholder="Recipient's username" aria-label="Recipient's username" aria-describedby="button-addon2">
<div class="input-group-append">
<button class="btn btn-outline-secondary" type="button" id="button-addon2">Button</button>
</div>
</div>
<div class="input-group mb-3">
<div class="input-group-prepend" id="button-addon3">
<button class="btn btn-outline-secondary" type="button">Button</button>
<button class="btn btn-outline-secondary" type="button">Button</button>
</div>
<input type="text" class="form-control" placeholder="" aria-label="Example text with two button addons" aria-describedby="button-addon3">
</div>
<div class="input-group">
<input type="text" class="form-control" placeholder="Recipient's username" aria-label="Recipient's username with two button addons" aria-describedby="button-addon4">
<div class="input-group-append" id="button-addon4">
<button class="btn btn-outline-secondary" type="button">Button</button>
<button class="btn btn-outline-secondary" type="button">Button</button>
</div>
</div>
dropdown button segment
- 可以使用下拉的 button
<div class="input-group py-1 ">
<div class="input-group-prepend">
<button class="btn btn-outline-secondary dropdown-toggle" data-toggle="dropdown" aria-haspopup="true" aria-expanded="false">Dropdown</button>
<div class="dropdown-menu overflow-hidden bg-dark">
<a href="#" class="dropdown-item">Action1</a>
<a href="#" class="dropdown-item">Action2</a>
<a href="#" class="dropdown-item">Action3</a>
<!--role可以省略的-->
<div class="dropdown-divider" role="separator"></div>
<a href="#" class="dropdown-item">Another</a>
</div>
</div>
<input type="text" placeholder="Please input" class="form-control" aria-label="Text input with dropdown button">
</div>
- 利用 multiple button 可以做到 segment 的效果
<div class="input-group">
<input type="text" class="form-control" placeholder="Please Input Here">
<div class="input-group-append">
<button class="btn btn-outline-secondary" type="button">Action</button>
<button class="btn btn-outline-secondary dropdown-toggle dropdown-toggle-split" data-toggle="dropdown" aria-expanded="false" aria-haspopup="true" type="button"></button>
<span class="sr-only">Toggle dropdown</span>
<div class="dropdown-menu">
<a href="#" class="dropdown-item">Action 1</a>
<a href="#" class="dropdown-item">Action 2</a>
<a href="#" class="dropdown-item">Action 3</a>
<div class="dropdown-divider" role="separator"></div>
<a href="#" class="dropdown-item">Seperator Link</a>
</div>
</div>
</div>
Custom forms
custom select
select标签上使用.custom-select
<div class="input-group">
<div class="input-group-prepend">
<span class="input-group-text">Options</span>
</div>
<select class="custom-select">
<option value="" selected>Choose...</option>
<option value="1">Option 1</option>
<option value="2">Option 2</option>
<option value="3">Option 3</option>
<option value="4">Option 4</option>
</select>
</div>
custom upload
-
把
.custom-file放在包裹代码块上- 把
.custom-file-input放在input:file上
<div class="input-group"> <div class="custom-file"> <input type="file" class="custom-file-input" id="file" multiple> <label for="file" class="custom-file-label">Choose files</label> </div> <div class="input-group-append"> <button class="btn btn-outline-secondary bg-light" type="submit">Submit</button> </div> </div> - 把
