利用Adobe LiveCycle ES2创建PDF模板，并用C#替换模板中的Acrobat 控件的值

     近段时间，客户有个需求就是有几种60多页的PDF文档，之前的做法是用Word结合Excel的方式，很多东西都是靠人工眼力校对，效率和准确度都得不到保证，故采取编程的方式帮助用户提高效率，具体的实现过程如下：



准备工作：安装Acrobat，具体可以上Adobe的官网上下载

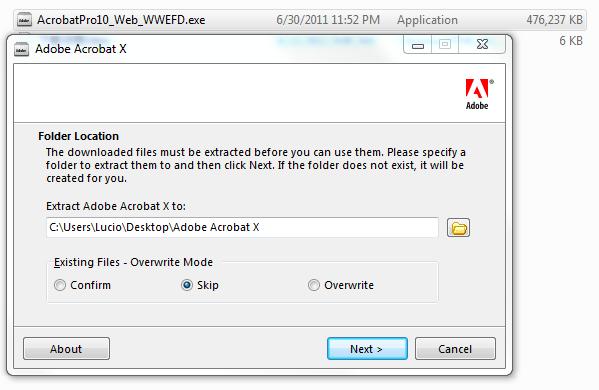

Step1：安装Acrobat X，这里安装是10版本，现在应该有更新的版本了





Step2：打开Adobe LiveCycle ES2:

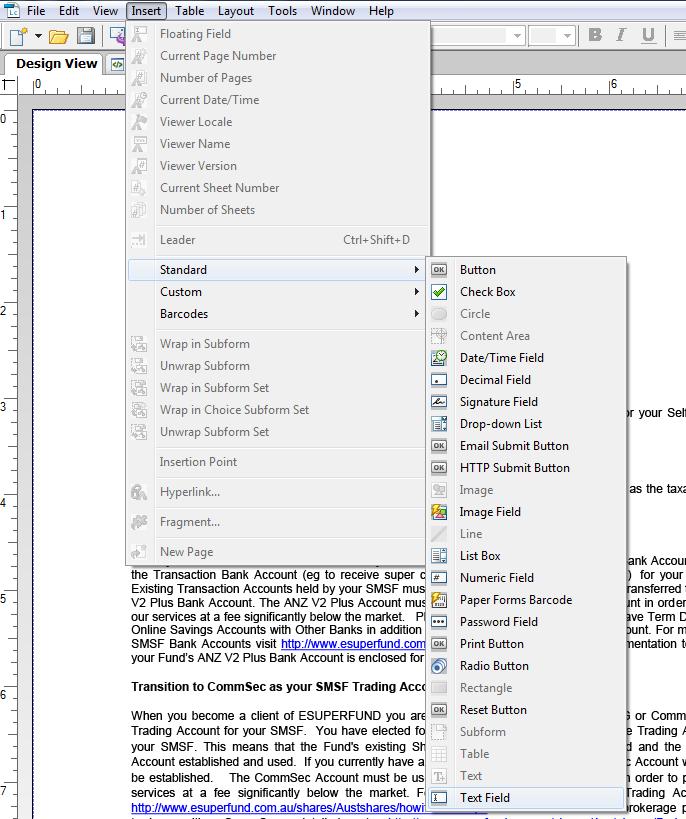

Step3:打开或新建一个文档，插入一个TextBox：

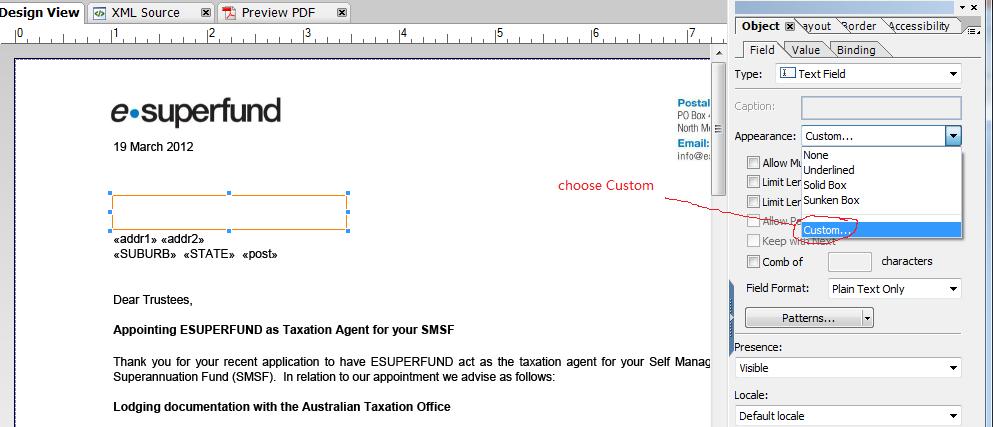

Step4 ：依次选择Custom，设置Border：none；背景为Solid

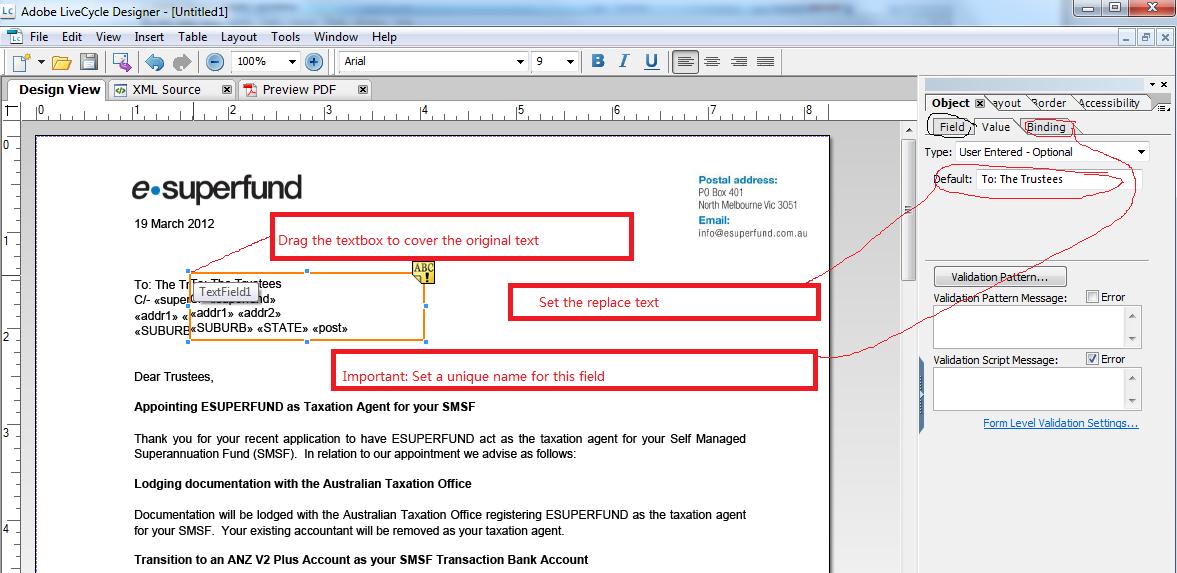

最后一步比较重要，每一个TextBox的Name一定要设置得不一样



下面的一段代码是用C#代码替换我们设置的TextBox里面的文本：



 1  using (var existingFileStream = new FileStream(fileNameExisting, FileMode.Open))
 2         using (var newFileStream = new FileStream(fileNameNew, FileMode.Create))
 3         {
 4
 5             // Open existing PDF
 6             var pdfReader = new PdfReader(existingFileStream);
 7
 8             // PdfStamper, which will create
 9             PdfStamper stamper = new PdfStamper(pdfReader, newFileStream);
10             var form = stamper.AcroFields;
11             var fieldKeys = form.Fields.Keys;
12             string strFieldValue = string.Empty;
13             //int i = 0;
14             if (fileNameExisting.Contains("SetupPackage_16_ANZV2.pdf") || fileNameExisting.Contains("SetupPackage_16_ANZV2_03.pdf") || fileNameExisting.Contains("SetupPackage_16_ANZV2_04.pdf") || fileNameExisting.Contains("SetupPackage_16Company_ANZV2") || fileNameExisting.Contains("SetupPackage_10_ATOTrusteeDeclaration.pdf"))
15             {
16                 string imgRightPath =HttpContext.Current.Server.MapPath("~/nnfunds/template/img/imgRight.jpg");
17                 string imgSignaturePath = HttpContext.Current.Server.MapPath("~/nnfunds/template/img/imgSignature.jpg");
18                 string imgDatePath = HttpContext.Current.Server.MapPath("~/nnfunds/template/img/imgDate.jpg");//imgDate
19                 foreach (string fieldKey in fieldKeys)
20                 {
21                     if (fieldKey.Contains("imgRight") || fieldKey.Contains("imgSignature") || fieldKey.Contains("imgDate"))
22                     {
23                         iTextSharp.text.Image instanceImg = iTextSharp.text.Image.GetInstance(imgRightPath);
24                         if(fieldKey.Contains("imgSignature"))
25                         {
26                             instanceImg = iTextSharp.text.Image.GetInstance(imgSignaturePath);
27                         }
28                         if (fieldKey.Contains("imgDate"))
29                         {
30                             instanceImg = iTextSharp.text.Image.GetInstance(imgDatePath);
31                         }
32                         PdfContentByte overContent = stamper.GetOverContent(2);
33                         //PdfContentByte overContent1 = stamper.GetOverContent(3);
34                         //Specifying the name of the field wehere this image will be placed
35
36                         var imageArea = form.GetFieldPositions(fieldKey)[0];
37
38
39                         iTextSharp.text.Rectangle imageRect = new Rectangle(imageArea.position.Left,
40                                                                             imageArea.position.Bottom,
41                                                                             imageArea.position.Right,
42                                                                             imageArea.position.Top);
43
44                         instanceImg.ScaleToFit(imageRect.Width, imageRect.Height);
45
46                         instanceImg.SetAbsolutePosition(
47                             imageArea.position.Right - instanceImg.ScaledWidth +
48                             (imageRect.Width - instanceImg.ScaledWidth) / 2,
49                             imageArea.position.Bottom + (imageRect.Height - instanceImg.ScaledHeight) / 2);
50
51                         overContent.AddImage(instanceImg);
52                         //overContent1.AddImage(instanceImg);
53                     }
54                     if (fieldKey.Contains("imgpDate1"))
55                     {
56                         iTextSharp.text.Image instanceImg = iTextSharp.text.Image.GetInstance(imgDatePath);
57                         PdfContentByte overContent = stamper.GetOverContent(3);
58                         var imageArea = form.GetFieldPositions(fieldKey)[0];
59
60
61                         iTextSharp.text.Rectangle imageRect = new Rectangle(imageArea.position.Left,
62                                                                             imageArea.position.Bottom,
63                                                                             imageArea.position.Right,
64                                                                             imageArea.position.Top);
65
66                         instanceImg.ScaleToFit(imageRect.Width, imageRect.Height);
67
68                         instanceImg.SetAbsolutePosition(
69                             imageArea.position.Right - instanceImg.ScaledWidth +
70                             (imageRect.Width - instanceImg.ScaledWidth) / 2,
71                             imageArea.position.Bottom + (imageRect.Height - instanceImg.ScaledHeight) / 2);
72
73                         overContent.AddImage(instanceImg);
74                     }
75                     else
76                     {
77                         strFieldValue = GetFieldValue(hshTable, form.GetField(fieldKey));
78                         form.SetField(fieldKey, strFieldValue);
79                     }
80                 }
81             }
82             else
83             {
84                 foreach (string fieldKey in fieldKeys)
85                 {
86                     strFieldValue = GetFieldValue(hshTable, form.GetField(fieldKey));
87                     form.SetField(fieldKey, strFieldValue);
88                 }
89             }
90             // "Flatten" the form so it wont be editable/usable anymore
91             stamper.FormFlattening = true;
92             stamper.Close();
93             pdfReader.Close();
94         }
95



这里用到了第三方组件ItextSharp
