Arouter使用指南与原理分析
Arouter通过APT技术生成的文件如下：
package: com.alibaba.android.arouter.routes;
- ARouter$$Group$$<groupName>.java
- ARouter$$Interceptors$$<moduleName>.java
- ARouter$$Providers$$<moduleName>.java
- ARouter$$Root$$<moduleName>.java
如果使用AutoWired的话，会在原有的package下生成：
- <ClassName>$$ARouter$$Autowired.java
下面分别举例说明：
- ARouter$$Group$$<groupName>.java
package com.alibaba.android.arouter.routes;
import com.alibaba.android.arouter.facade.enums.RouteType;
import com.alibaba.android.arouter.facade.model.RouteMeta;
import com.alibaba.android.arouter.facade.template.IRouteGroup;
import com.yxf.arouter.other.OtherActivity;
import java.lang.Override;
import java.lang.String;
import java.util.Map;
/**
* DO NOT EDIT THIS FILE!!! IT WAS GENERATED BY AROUTER. */
public class ARouter$$Group$$other implements IRouteGroup {
@Override
public void loadInto(Map<String, RouteMeta> atlas) {
atlas.put("/other/otherActivity", RouteMeta.build(RouteType.ACTIVITY, OtherActivity.class, "/other/otheractivity", "other", null, -1, -2147483648));
}
}
- ARouter$$Providers$$<moduleName>.java
package com.alibaba.android.arouter.routes;
import com.alibaba.android.arouter.facade.model.RouteMeta;
import com.alibaba.android.arouter.facade.template.IProviderGroup;
import java.lang.Override;
import java.lang.String;
import java.util.Map;
/**
* DO NOT EDIT THIS FILE!!! IT WAS GENERATED BY AROUTER. */
public class ARouter$$Providers$$moduleother implements IProviderGroup {
@Override
public void loadInto(Map<String, RouteMeta> providers) {
}
}
- ARouter$$Root$$<moduleName>.java
package com.alibaba.android.arouter.routes;
import com.alibaba.android.arouter.facade.template.IRouteGroup;
import com.alibaba.android.arouter.facade.template.IRouteRoot;
import java.lang.Class;
import java.lang.Override;
import java.lang.String;
import java.util.Map;
/**
* DO NOT EDIT THIS FILE!!! IT WAS GENERATED BY AROUTER. */
public class ARouter$$Root$$moduleother implements IRouteRoot {
@Override
public void loadInto(Map<String, Class<? extends IRouteGroup>> routes) {
routes.put("other", ARouter$$Group$$other.class);
}
}

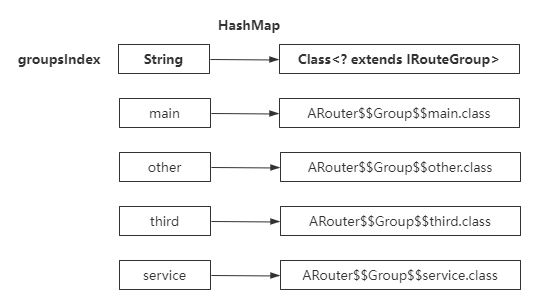

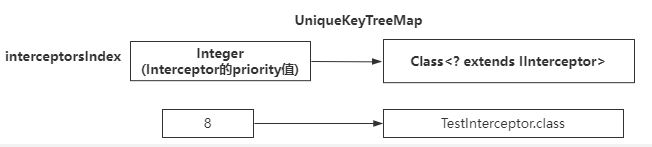

WareHouse的数据结构：
Arouter的初始化：
Arouter.init(this);
主要工作：
//LogisticsCenter.init(mContext, executor);
/**
* LogisticsCenter init, load all metas in memory. Demand initialization
*/
public synchronized static void init(Context context, ThreadPoolExecutor tpe) throws HandlerException {
mContext = context;
executor = tpe;
try {
long startInit = System.currentTimeMillis();
//load by plugin first
loadRouterMap();
if (registerByPlugin) {
logger.info(TAG, "Load router map by arouter-auto-register plugin.");
} else {
Set<String> routerMap;
// It will rebuild router map every times when debuggable.
if (ARouter.debuggable() || PackageUtils.isNewVersion(context)) {
routerMap = ClassUtils.getFileNameByPackageName(mContext, ROUTE_ROOT_PAKCAGE);
if (!routerMap.isEmpty()) {
context.getSharedPreferences(AROUTER_SP_CACHE_KEY, Context.MODE_PRIVATE).edit().putStringSet(AROUTER_SP_KEY_MAP, routerMap).apply();
}
PackageUtils.updateVersion(context); // Save new version name when router map update finishes.
} else {
routerMap = new HashSet<>(context.getSharedPreferences(AROUTER_SP_CACHE_KEY, Context.MODE_PRIVATE).getStringSet(AROUTER_SP_KEY_MAP, new HashSet<String>()));
}
startInit = System.currentTimeMillis();
for (String className : routerMap) {
if (className.startsWith(ROUTE_ROOT_PAKCAGE + DOT + SDK_NAME + SEPARATOR + SUFFIX_ROOT)) {
//以com.alibaba.android.arouter.routes.ARouter$$Root开头。
((IRouteRoot) (Class.forName(className).getConstructor().newInstance())).loadInto(Warehouse.groupsIndex);
} else if (className.startsWith(ROUTE_ROOT_PAKCAGE + DOT + SDK_NAME + SEPARATOR + SUFFIX_INTERCEPTORS)) {
//以com.alibaba.android.arouter.routes.ARouter$$Interceptors开头。
((IInterceptorGroup) (Class.forName(className).getConstructor().newInstance())).loadInto(Warehouse.interceptorsIndex);
} else if (className.startsWith(ROUTE_ROOT_PAKCAGE + DOT + SDK_NAME + SEPARATOR + SUFFIX_PROVIDERS)) {
//以com.alibaba.android.arouter.routes.ARouter$$Providers开头。
((IProviderGroup) (Class.forName(className).getConstructor().newInstance())).loadInto(Warehouse.providersIndex);
}
}
}
} catch (Exception e) {
throw new HandlerException(TAG + "ARouter init logistics center exception! [" + e.getMessage() + "]");
}
}
其中使用的executor为DefaultPoolExecutor.getInstance()。
- 扫描com.alibaba.android.arouter.routes包名下的所有className，存放入HashSet中；
- 遍历该HashSet, 分三种情况：
（1）针对ARouter$$Root开头的className，实例化IRouteRoot并调用loadInfo()加载到Warehouse.groupsIndex（Map<String, Class<? extends IRouteGroup>>类型）；
（2）针对ARouer$$Interceptors开头的className，实例化IInterceptorGroup并调用loadInfo()加载到Warehouse.interceptorsIndex（Map<Integer, Class<? extends IInterceptor>>类型）；
（3）针对ARouer$$Providers开头的className，实例化IProviderGroup并调用loadInfo()加载到Warehouse.providersIndex（Map<String, RouteMeta>类型）。
Arouter.getInstance().build(String path);
通过path和group构建一个Postcard实例；
Postcard$navigation()
-> Postcard$navigation(Context);
-> Postcard$navigation(Context context, NavigationCallback callback)
-> Arouter$navigation(Context mContext, Postcard postcard, int requestCode, NavigationCallback callback)
-> LogisticsCenter$completion(Postcard postcard);
下面重点分析一下LogisticsCenter$completion（Postcard）方法。
- 根据postcard的path，从Warehouse.routes(Map<String, RouteMeta>)中查找RouteMeta实例routeMeta；
- 如果routeMeta为空，则先从Warehouse.groupsIndex中查找postcard所属的group对应的Class<? extends IRouteGroup>实例，然后通过反射构造出IRouteGroup实例，然后调用iGroupInstance.loadInto(Warehouse.routes)，然后再将postcard所属的group从Warehouse.groupsIndex中移除。然后再次调用LogisticsCenter$completion（Postcard）方法。
- 设置PostCard的destination、type、priority和extra。
public class LogisticsCenter {
...
/**
* Completion the postcard by route metas
*
* @param postcard Incomplete postcard, should complete by this method.
*/
public synchronized static void completion(Postcard postcard) {
if (null == postcard) {
throw new NoRouteFoundException(TAG + "No postcard!");
}
RouteMeta routeMeta = Warehouse.routes.get(postcard.getPath());
if (null == routeMeta) { // Maybe its does't exist, or didn't load.
Class<? extends IRouteGroup> groupMeta = Warehouse.groupsIndex.get(postcard.getGroup()); // Load route meta.
if (null == groupMeta) {
throw new NoRouteFoundException(TAG + "There is no route match the path [" + postcard.getPath() + "], in group [" + postcard.getGroup() + "]");
} else {
// Load route and cache it into memory, then delete from metas.
try {
...
IRouteGroup iGroupInstance = groupMeta.getConstructor().newInstance();
iGroupInstance.loadInto(Warehouse.routes);
Warehouse.groupsIndex.remove(postcard.getGroup());
...
} catch (Exception e) {
throw new HandlerException(TAG + "Fatal exception when loading group meta. [" + e.getMessage() + "]");
}
completion(postcard); // Reload
}
} else {
postcard.setDestination(routeMeta.getDestination());
postcard.setType(routeMeta.getType());
postcard.setPriority(routeMeta.getPriority());
postcard.setExtra(routeMeta.getExtra());
Uri rawUri = postcard.getUri();
if (null != rawUri) { // Try to set params into bundle.
Map<String, String> resultMap = TextUtils.splitQueryParameters(rawUri);
Map<String, Integer> paramsType = routeMeta.getParamsType();
if (MapUtils.isNotEmpty(paramsType)) {
// Set value by its type, just for params which annotation by @Param
for (Map.Entry<String, Integer> params : paramsType.entrySet()) {
setValue(postcard,
params.getValue(),
params.getKey(),
resultMap.get(params.getKey()));
}
// Save params name which need auto inject.
postcard.getExtras().putStringArray(ARouter.AUTO_INJECT, paramsType.keySet().toArray(new String[]{}));
}
// Save raw uri
postcard.withString(ARouter.RAW_URI, rawUri.toString());
}
switch (routeMeta.getType()) {
case PROVIDER: // if the route is provider, should find its instance
// Its provider, so it must implement IProvider
Class<? extends IProvider> providerMeta = (Class<? extends IProvider>) routeMeta.getDestination();
IProvider instance = Warehouse.providers.get(providerMeta);
if (null == instance) { // There's no instance of this provider
IProvider provider;
try {
provider = providerMeta.getConstructor().newInstance();
provider.init(mContext);
Warehouse.providers.put(providerMeta, provider);
instance = provider;
} catch (Exception e) {
throw new HandlerException("Init provider failed! " + e.getMessage());
}
}
postcard.setProvider(instance);
postcard.greenChannel(); // Provider should skip all of interceptors
break;
case FRAGMENT:
postcard.greenChannel(); // Fragment needn't interceptors
default:
break;
}
}
}
}
- 调用_ARouter$_navigation(final Context context, final Postcard postcard, final int requestCode, final NavigationCallback callback)实现跳转功能。如果是Activity的跳转，则会调用_ARouter$startActivity(int requestCode, Context currentContext, Intent intent, Postcard postcard, NavigationCallback callback)。
final class _ARouter {
...
private Object _navigation(final Context context, final Postcard postcard, final int requestCode, final NavigationCallback callback) {
final Context currentContext = null == context ? mContext : context;
switch (postcard.getType()) {
case ACTIVITY:
// Build intent
final Intent intent = new Intent(currentContext, postcard.getDestination());
intent.putExtras(postcard.getExtras());
// Set flags.
int flags = postcard.getFlags();
if (-1 != flags) {
intent.setFlags(flags);
} else if (!(currentContext instanceof Activity)) { // Non activity, need less one flag.
intent.setFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
}
// Set Actions
String action = postcard.getAction();
if (!TextUtils.isEmpty(action)) {
intent.setAction(action);
}
// Navigation in main looper.
runInMainThread(new Runnable() {
@Override
public void run() {
startActivity(requestCode, currentContext, intent, postcard, callback);
}
});
break;
case PROVIDER:
return postcard.getProvider();
case BOARDCAST:
case CONTENT_PROVIDER:
case FRAGMENT:
Class fragmentMeta = postcard.getDestination();
try {
Object instance = fragmentMeta.getConstructor().newInstance();
if (instance instanceof Fragment) {
((Fragment) instance).setArguments(postcard.getExtras());
} else if (instance instanceof android.support.v4.app.Fragment) {
((android.support.v4.app.Fragment) instance).setArguments(postcard.getExtras());
}
return instance;
} catch (Exception ex) {
logger.error(Consts.TAG, "Fetch fragment instance error, " + TextUtils.formatStackTrace(ex.getStackTrace()));
}
case METHOD:
case SERVICE:
default:
return null;
}
return null;
}
/**
* Start activity
*
* @see ActivityCompat
*/
private void startActivity(int requestCode, Context currentContext, Intent intent, Postcard postcard, NavigationCallback callback) {
if (requestCode >= 0) { // Need start for result
if (currentContext instanceof Activity) {
ActivityCompat.startActivityForResult((Activity) currentContext, intent, requestCode, postcard.getOptionsBundle());
} else {
logger.warning(Consts.TAG, "Must use [navigation(activity, ...)] to support [startActivityForResult]");
}
} else {
ActivityCompat.startActivity(currentContext, intent, postcard.getOptionsBundle());
}
if ((-1 != postcard.getEnterAnim() && -1 != postcard.getExitAnim()) && currentContext instanceof Activity) { // Old version.
((Activity) currentContext).overridePendingTransition(postcard.getEnterAnim(), postcard.getExitAnim());
}
if (null != callback) { // Navigation over.
callback.onArrival(postcard);
}
}
}
扫描dex文件中包名com.alibaba.android.arouter.routes下的所有class文件
ClassUtils.getFileNameByPackageName()方法返回指定包名下的所有class文件名。举例：
com.alibaba.android.arouter.routes.ARouter$$Root$$app
com.alibaba.android.arouter.routes.ARouter$$Root$$moduleother，
com.alibaba.android.arouter.routes.ARouter$$Root$$modulethird,
com.alibaba.android.arouter.routes.ARouter$$Root$$moduleservice,
com.alibaba.android.arouter.routes.ARouter$$Root$$arouterapi,
com.alibaba.android.arouter.routes.ARouter$$Group$$arouter,
com.alibaba.android.arouter.routes.ARouter$$Group$$main,
com.alibaba.android.arouter.routes.ARouter$$Group$$other,
com.alibaba.android.arouter.routes.ARouter$$Group$$third,
com.alibaba.android.arouter.routes.ARouter$$Group$$service,
com.alibaba.android.arouter.routes.ARouter$$Providers$$arouterapi,
com.alibaba.android.arouter.routes.ARouter$$Providers$$app,
com.alibaba.android.arouter.routes.ARouter$$Providers$$moduleother,
com.alibaba.android.arouter.routes.ARouter$$Providers$$modulethird,
com.alibaba.android.arouter.routes.ARouter$$Providers$$moduleservice,
com.alibaba.android.arouter.routes.ARouter$$Interceptors$$app
//ClassUtils.java
public static Set<String> getFileNameByPackageName(Context context, final String packageName)
throws PackageManager.NameNotFoundException, IOException, InterruptedException {
final Set<String> classNames = new HashSet<>();
List<String> paths = getSourcePaths(context);
final CountDownLatch parserCtl = new CountDownLatch(paths.size());
for (final String path : paths) {
DefaultPoolExecutor.getInstance().execute(new Runnable() {
@Override
public void run() {
DexFile dexfile = null;
try {
//path: /data/app/com.yxf.arouter.sample-c4N-3bLkk7jsTmTOlMbi-w==/base.apk
if (path.endsWith(EXTRACTED_SUFFIX)) {
//NOT use new DexFile(path), because it will throw "permission error in /data/dalvik-cache"
dexfile = DexFile.loadDex(path, path + ".tmp", 0);
} else {
dexfile = new DexFile(path);
}
Enumeration<String> dexEntries = dexfile.entries();
while (dexEntries.hasMoreElements()) {
String className = dexEntries.nextElement();
if (className.startsWith(packageName)) {
classNames.add(className);
}
}
} catch (Throwable ignore) {
Log.e("ARouter", "Scan map file in dex files made error.", ignore);
} finally {
if (null != dexfile) {
try {
dexfile.close();
} catch (Throwable ignore) {
}
}
parserCtl.countDown();
}
}
});
}
parserCtl.await();
Log.d(Consts.TAG, "Filter " + classNames.size() + " classes by packageName <" + packageName + ">");
return classNames;
}
arouter-register
会扫描所有以下三种的接口实例：
- IRouteRoot
- IInterceptorGroup
- IProviderGroup
例如：
private static void loadRouterMap() {
registerByPlugin = true;
register("com.alibaba.android.arouter.routes.ARouter$$Root$$arouterapi");
register( "com.alibaba.android.arouter.routes.ARouter$$Root$$moduleother");
register("com.alibaba.android.arouter.routes.ARouter$$Root$$modulethird");
register("com.alibaba.android.arouter.routes.ARouter$$Root$$app");
register("com.alibaba.android.arouter.routes.ARouter$$Providers$$arouterapi");
register( "com.alibaba.android.arouter.routes.ARouter$$Providers$$moduleother");
register("com.alibaba.android.arouter.routes.ARouter$$Providers$$modulethird");
register("com.alibaba.android.arouter.routes.ARouter$$Providers$$app");
}
浙公网安备 33010602011771号
