WinForm 使用 ReactiveUI 实现数据绑定（MVVM） 与跨页面数据同步（MessageBus）

参考

• DeepSeek
• 豆包
• https://www.reactiveui.net/
• https://cloud.tencent.com/developer/ask/sof/106145401
• https://www.cnblogs.com/grj001/p/12223640.html

环境

软件/系统	版本	说明
Windows	windows 10 专业版 22H2 64 位操作系统, 基于 x64 的处理器
Microsoft Visual Studio	Community 2022 (64 位) - Current 版本 17.14.4
.NET Framework	4.8
ReactiveUI.Winforms	20.4.0.0	nuget依赖库

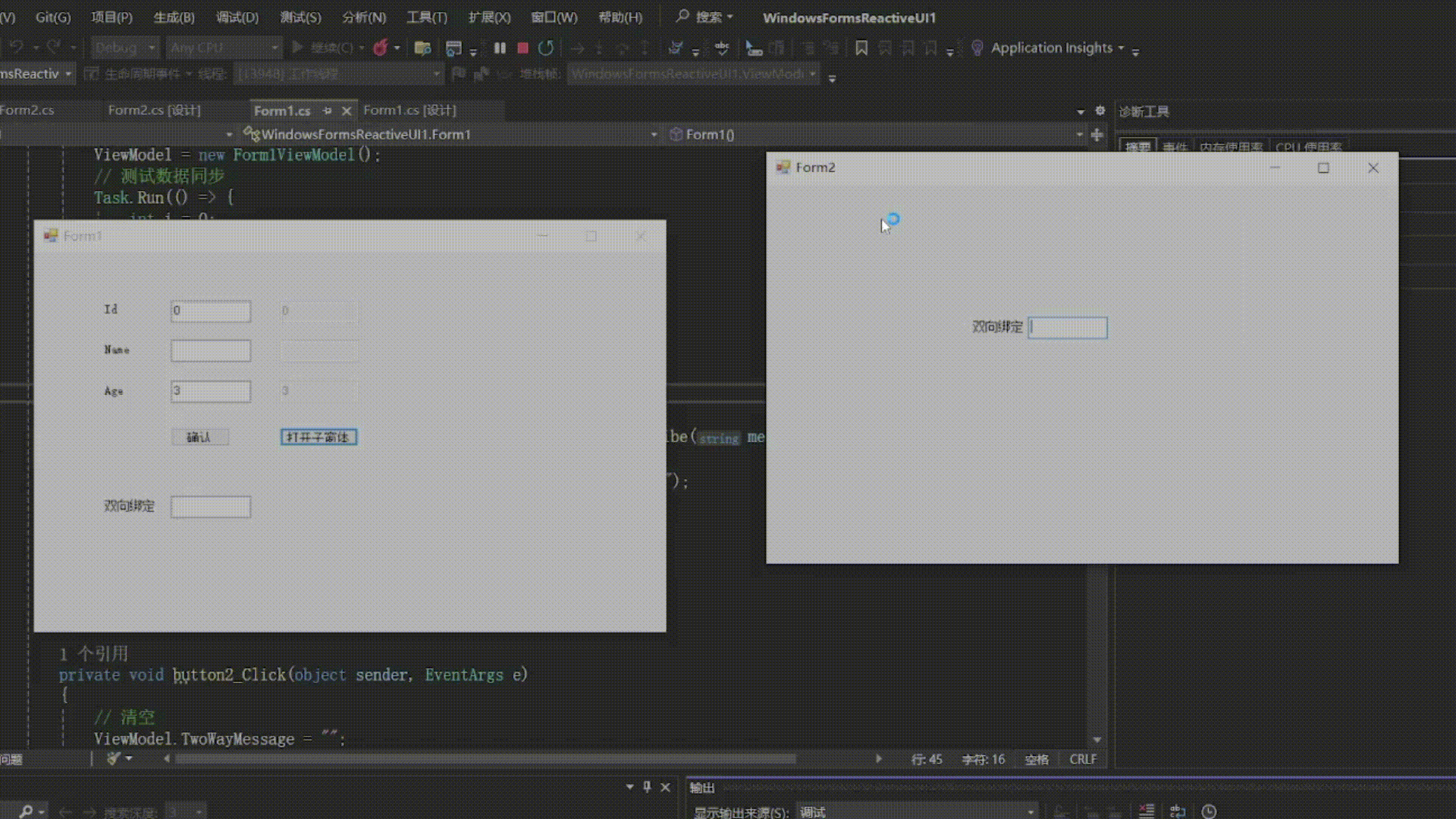

预览

实现内容：

1. 页面与数据分离，实现数据的双向绑定
2. 跨页面的数据同步


正文

主要代码

1. Form1ViewModel.cs

   using ReactiveUI;

   namespace WindowsFormsReactiveUI1.ViewModel
   {
   	public class Form1ViewModel : ReactiveObject
   	{
   		private int _id;
   		private string _name;
   		private int _age;
   		private string _twoWayMessage;

   		public int Id
   		{
   			get => _id;
   			set => this.RaiseAndSetIfChanged(ref _id, value);
   		}

   		public string Name
   		{
   			get => _name;
   			set => this.RaiseAndSetIfChanged(ref _name, value);
   		}

   		public int Age
   		{
   			get => _age;
   			set => this.RaiseAndSetIfChanged(ref _age, value);
   		}

   		public string TwoWayMessage
   		{
   			get => _twoWayMessage;
   			set => this.RaiseAndSetIfChanged(ref _twoWayMessage, value);
   		}
   	}
   }



2. Form1.cs

   using ReactiveUI;
   using System;
   using System.Diagnostics;
   using System.Threading;
   using System.Threading.Tasks;
   using System.Windows.Forms;
   using WindowsFormsReactiveUI1.ViewModel;

   namespace WindowsFormsReactiveUI1
   {
   	public partial class Form1 : Form, IViewFor<Form1ViewModel>
   	{
   		object IViewFor.ViewModel
   		{
   			get => ViewModel;
   			set => ViewModel = (Form1ViewModel)value;
   		}

   		public Form1ViewModel ViewModel { get; set; }

   		public Form1()
   		{
   			InitializeComponent();
   			this.WhenActivated(d =>
   			{
   				d(this.Bind(ViewModel, vm => vm.Id, v => v.textBox1.Text));
   				d(this.Bind(ViewModel, vm => vm.Name, v => v.textBox2.Text));
   				d(this.Bind(ViewModel, vm => vm.Age, v => v.textBox3.Text));
   				d(this.OneWayBind(ViewModel, vm => vm.Id, v => v.textBox4.Text));
   				d(this.OneWayBind(ViewModel, vm => vm.Name, v => v.textBox5.Text));
   				d(this.OneWayBind(ViewModel, vm => vm.Age, v => v.textBox6.Text));
   				d(this.OneWayBind(ViewModel, vm => vm.TwoWayMessage, v => v.textBox7.Text));
   			});
   			ViewModel = new Form1ViewModel();
   			// 测试数据同步
   			Task.Run(() => {
   				int i = 0;
   				while (true) {
   					Thread.Sleep(1000);
   					this.Invoke(new Action(() =>
   					{
   						ViewModel.Age = ++i;
   					}));
   				}
   			});
   			// 订阅消息-实现名字更新
   			MessageBus.Current.Listen<string>("UpdateMessage").Subscribe(message =>
   			{
   				Debug.WriteLine($"收到标签为Form2的消息更新：{message}");
   				this.Invoke(new Action(() =>
   				{
   					ViewModel.TwoWayMessage = message;
   				}));
   			});
   		}

   		private void button2_Click(object sender, EventArgs e)
   		{
   			// 清空
   			ViewModel.TwoWayMessage = "";
   			// 打开新窗口
   			Form2 form2 = new Form2();
   			form2.Show();
   		}
   	}
   }



3. Form2.cs

   using ReactiveUI;
   using System;
   using System.Windows.Forms;

   namespace WindowsFormsReactiveUI1
   {
   	public partial class Form2 : Form
   	{
   		public Form2()
   		{
   			InitializeComponent();
   		}

   		private void textBox1_TextChanged(object sender, EventArgs e)
   		{
   			TextBox t1 = sender as TextBox;
   			MessageBus.Current.SendMessage(t1.Text, "UpdateMessage");
   		}
   	}
   }
