C# 使用 TouchSocket 实现 WebSocket 服务端和客户端

参考

环境

软件/系统 版本 说明
Windows windows 10 专业版 22H2 64 位操作系统, 基于 x64 的处理器
Microsoft Visual Studio Community 2022 (64 位) - Current 版本 17.13.6
.NET 6.0
TouchSocket 3.1.6 依赖库
TouchSocket.Http 3.1.6 依赖库
TouchSocket.Rpc 3.1.6 依赖库
TouchSocket.WebApi 3.1.6 依赖库

正文

基于控制台项目进行了测试
代码来源 https://gitee.com/RRQM_Home/TouchSocket/blob/master/examples/WebSocket/WebSocketConsoleApp/Program.cs#

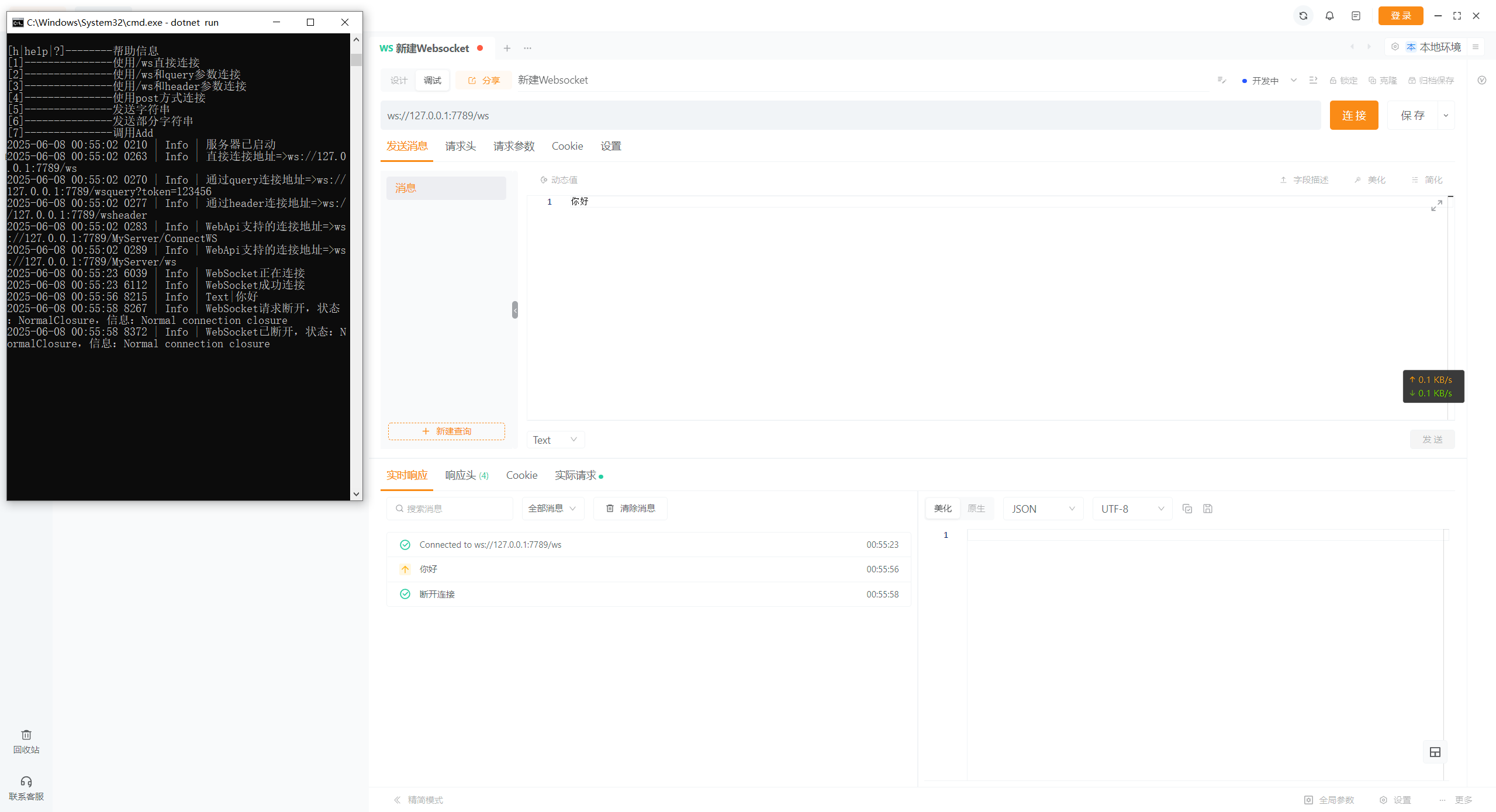

运行截图

使用接口调试工具进行了验证（也可以在服务端启动后的所在命令行进行输入命令交互验证）


代码

  1. Program.cs
    using System;
using System.IO;
using System.Text;
using System.Threading;
using System.Threading.Tasks;
using TouchSocket.Core;
using TouchSocket.Http;
using TouchSocket.Http.WebSockets;
using TouchSocket.Rpc;
using TouchSocket.Sockets;
using TouchSocket.WebApi;

namespace WebSocketConsoleApp;

public class Program
{
	private static async Task Main(string[] args)
	{
		var consoleAction = new ConsoleAction();
		consoleAction.OnException += ConsoleAction_OnException;

		consoleAction.Add("1", "使用/ws直接连接", ConnectWith_ws);
		consoleAction.Add("2", "使用/ws和query参数连接", ConnectWith_wsquery);
		consoleAction.Add("3", "使用/ws和header参数连接", ConnectWith_wsheader);
		consoleAction.Add("4", "使用post方式连接", ConnectWith_Post_ws);
		consoleAction.Add("5", "发送字符串", SendText);
		consoleAction.Add("6", "发送部分字符串", SendSubstringText);
		consoleAction.Add("7", "调用Add", SendAdd);

		consoleAction.ShowAll();

		var service = await CreateHttpService();

		await consoleAction.RunCommandLineAsync();
	}

	private static async Task SendAdd()
	{
		var client = new WebSocketClient();
		await client.SetupAsync(new TouchSocketConfig()
			 .ConfigureContainer(a =>
			 {
				 a.AddConsoleLogger();
			 })
			 .ConfigurePlugins(a =>
			 {
				 a.UseWebSocketReconnection();
				 a.Add(typeof(IWebSocketReceivedPlugin), async (IHttpSession c, WSDataFrameEventArgs e) =>
				 {
					 client.Logger.Info($"收到Add的计算结果：{e.DataFrame.ToText()}");
					 await e.InvokeNext();
				 });
			 })
			 .SetRemoteIPHost("ws://127.0.0.1:7789/ws"));
		await client.ConnectAsync();

		await client.SendAsync("Add 10 20");
		await Task.Delay(1000);

		await client.CloseAsync("我想关就关");

		//或者使用关闭状态码
		//await client.CloseAsync( WebSocketCloseStatus.InternalServerError,"我不想关，但还得关");
	}

	private static async Task SendSubstringText()
	{
		var client = new WebSocketClient();
		await client.SetupAsync(new TouchSocketConfig()
			 .ConfigureContainer(a =>
			 {
				 a.AddConsoleLogger();
			 })
			 .SetRemoteIPHost("ws://127.0.0.1:7789/ws"));
		await client.ConnectAsync();

		for (var i = 0; i < 10; i++)
		{
			var msg = Encoding.UTF8.GetBytes("hello");
			await client.SendAsync("Hello", i == 9);
		}
	}

	private static async Task SendText()
	{
		var client = new WebSocketClient();
		await client.SetupAsync(new TouchSocketConfig()
			  .ConfigureContainer(a =>
			  {
				  a.AddConsoleLogger();
			  })
			  .SetRemoteIPHost("ws://127.0.0.1:7789/ws"));
		await client.ConnectAsync();
		await client.SendAsync("hello");
	}

	private static void ConsoleAction_OnException(Exception obj)
	{
		Console.WriteLine(obj.Message);
	}

	/// <summary>
	/// 通过/ws直接连接
	/// </summary>
	private static async Task ConnectWith_ws()
	{
		using var client = new WebSocketClient();
		await client.SetupAsync(new TouchSocketConfig()
			 .ConfigureContainer(a =>
			 {
				 a.AddConsoleLogger();
			 })
			 .ConfigurePlugins(a =>
			 {
				 a.Add(typeof(IWebSocketHandshakedPlugin), () =>
				 {
					 Console.WriteLine("WebSocketHandshaked");
				 });

				 a.Add(typeof(IWebSocketClosingPlugin), () =>
				 {
					 Console.WriteLine("WebSocketClosing");
				 });

				 a.Add(typeof(IWebSocketClosedPlugin), () =>
				 {
					 Console.WriteLine("WebSocketClosed");
				 });

				 a.UseWebSocketHeartbeat()
				 .SetTick(TimeSpan.FromSeconds(1));

				 a.UseWebSocketReconnection();
			 })
			 .SetRemoteIPHost("ws://127.0.0.1:7789/ws"));
		await client.ConnectAsync();

		client.Logger.Info("通过ws://127.0.0.1:7789/ws连接成功");

		await Task.Delay(1000000);
	}

	/// <summary>
	/// 通过/wsquery，传入参数连接
	/// </summary>
	private static void ConnectWith_wsquery()
	{
		using var client = new WebSocketClient();
		client.SetupAsync(new TouchSocketConfig()
			.ConfigureContainer(a =>
			{
				a.AddConsoleLogger();
			})
			.SetRemoteIPHost("ws://127.0.0.1:7789/wsquery?token=123456"));
		client.ConnectAsync();

		client.Logger.Info("通过ws://127.0.0.1:7789/wsquery?token=123456连接成功");
	}

	/// <summary>
	/// 通过/wsheader,传入header连接
	/// </summary>
	private static void ConnectWith_wsheader()
	{
		using var client = new WebSocketClient();
		client.SetupAsync(new TouchSocketConfig()
			.ConfigureContainer(a =>
			{
				a.AddConsoleLogger();
			})
			.ConfigurePlugins(a =>
			{
				a.Add(typeof(IWebSocketHandshakingPlugin), async (IWebSocket webSocket, HttpContextEventArgs e) =>
				{
					e.Context.Request.Headers.Add("token", "123456");
					await e.InvokeNext();
				});
			})
			.SetRemoteIPHost("ws://127.0.0.1:7789/wsheader"));
		client.ConnectAsync();

		client.Logger.Info("通过ws://127.0.0.1:7789/wsheader连接成功");
	}

	/// <summary>
	/// 使用Post方式连接
	/// </summary>
	private static void ConnectWith_Post_ws()
	{
		using var client = new WebSocketClient();
		client.SetupAsync(new TouchSocketConfig()
			.ConfigureContainer(a =>
			{
				a.AddConsoleLogger();
			})
			.ConfigurePlugins(a =>
			{
				a.Add(typeof(IWebSocketHandshakingPlugin), async (IWebSocket webSocket, HttpContextEventArgs e) =>
				{
					e.Context.Request.Method = TouchSocket.Http.HttpMethod.Post;//将请求方法改为Post
					await e.InvokeNext();
				});
			})
			.SetRemoteIPHost("ws://127.0.0.1:7789/postws"));
		client.ConnectAsync();

		client.Logger.Info("通过ws://127.0.0.1:7789/postws连接成功");
	}

	private static async Task<HttpService> CreateHttpService()
	{
		var service = new HttpService();
		await service.SetupAsync(new TouchSocketConfig()//加载配置
			 .SetListenIPHosts(7789)
			 .ConfigureContainer(a =>
			 {
				 a.AddConsoleLogger();
				 a.AddRpcStore(store =>
				 {
					 store.RegisterServer<MyServer>();
				 });
			 })
			 .ConfigurePlugins(a =>
			 {
				 a.UseWebSocket()//添加WebSocket功能
								 //.SetWSUrl("/ws")//设置url直接可以连接。
						.SetVerifyConnection(VerifyConnection)
						//.UseAutoPong()//当收到ping报文时自动回应pong
						;

				 //a.Add<MyReadTextWebSocketPlugin>();

				 //a.Add<MyWSCommandLinePlugin>();
				 a.Add<MyWebSocketPlugin>();

				 a.UseWebApi();
			 }));
		await service.StartAsync();

		service.Logger.Info("服务器已启动");
		service.Logger.Info("直接连接地址=>ws://127.0.0.1:7789/ws");
		service.Logger.Info("通过query连接地址=>ws://127.0.0.1:7789/wsquery?token=123456");
		service.Logger.Info("通过header连接地址=>ws://127.0.0.1:7789/wsheader");//使用此连接时，需要在header中包含token的项
		service.Logger.Info("WebApi支持的连接地址=>ws://127.0.0.1:7789/MyServer/ConnectWS");
		service.Logger.Info("WebApi支持的连接地址=>ws://127.0.0.1:7789/MyServer/ws");
		return service;
	}

	/// <summary>
	/// 验证websocket的连接
	/// </summary>
	/// <param name="client"></param>
	/// <param name="context"></param>
	/// <returns></returns>
	private static async Task<bool> VerifyConnection(IHttpSessionClient client, HttpContext context)
	{
		if (!context.Request.IsUpgrade())//如果不包含升级协议的header，就直接返回false。
		{
			return false;
		}

		//使用Post连接
		if (context.Request.Method == TouchSocket.Http.HttpMethod.Post)
		{
			if (context.Request.UrlEquals("/postws"))
			{
				return true;
			}
		}

		if (context.Request.UrlEquals("/ws"))//以此连接，则直接可以连接
		{
			return true;
		}
		else if (context.Request.UrlEquals("/wsquery"))//以此连接，则需要传入token才可以连接
		{
			if (context.Request.Query.Get("token") == "123456")
			{
				return true;
			}
			else
			{
				await context.Response
					 .SetStatus(403, "token不正确")
					 .AnswerAsync();
			}
		}
		else if (context.Request.UrlEquals("/wsheader"))//以此连接，则需要从header传入token才可以连接
		{
			if (context.Request.Headers.Get("token") == "123456")
			{
				return true;
			}
			else
			{
				await context.Response
					  .SetStatus(403, "token不正确")
					  .AnswerAsync();
			}
		}
		return false;
	}


	internal class MyReadTextWebSocketPlugin : PluginBase, IWebSocketHandshakedPlugin
	{
		private readonly ILog m_logger;

		public MyReadTextWebSocketPlugin(ILog logger)
		{
			this.m_logger = logger;
		}

		public async Task OnWebSocketHandshaked(IWebSocket client, HttpContextEventArgs e)
		{
			//当WebSocket想要使用ReadAsync时，需要设置此值为true
			client.AllowAsyncRead = true;

			//此处即表明websocket已连接

			MemoryStream stream = default;//中继包缓存
			var isText = false;//标识是否为文本
			while (true)
			{
				using (var receiveResult = await client.ReadAsync(CancellationToken.None))
				{
					if (receiveResult.IsCompleted)
					{
						break;
					}

					var dataFrame = receiveResult.DataFrame;
					var data = receiveResult.DataFrame.PayloadData;

					switch (dataFrame.Opcode)
					{
						case WSDataType.Cont:
							{
								//如果是非net9.0即以上，即：NetFramework平台使用。原因是stream不支持span写入
								//var segment = data.AsSegment();
								//stream.Write(segment.Array, segment.Offset, segment.Count);

								//如果是net9.0以上，直接写入span即可
								stream.Write(data.Span);

								//收到的是中继包
								if (dataFrame.FIN)//判断是否为最终包
								{
									//是

									if (isText)//判断是否为文本
									{
										this.m_logger.Info($"WebSocket文本：{Encoding.UTF8.GetString(stream.ToArray())}");
									}
									else
									{
										this.m_logger.Info($"WebSocket二进制：{stream.Length}长度");
									}
								}
								else
								{
									//否，继续缓存
								}
							}
							break;
						case WSDataType.Text:
							{
								if (dataFrame.FIN)//判断是不是最后的包
								{
									//是，则直接输出
									//说明上次并没有中继数据缓存，直接输出本次内容即可
									this.m_logger.Info($"WebSocket文本：{dataFrame.ToText()}");
								}
								else
								{
									isText = true;

									//否，则说明数据太大了，分中继包了。
									//则，初始化缓存容器
									stream ??= new MemoryStream();

									//下面则是缓存逻辑

									//如果是非net9.0即以上，即：NetFramework平台使用。原因是stream不支持span写入
									//var segment = data.AsSegment();
									//stream.Write(segment.Array, segment.Offset, segment.Count);

									//如果是net9.0以上，直接写入span即可
									stream.Write(data.Span);
								}
							}
							break;
						case WSDataType.Binary:
							{
								if (dataFrame.FIN)//判断是不是最后的包
								{
									//是，则直接输出
									//说明上次并没有中继数据缓存，直接输出本次内容即可
									this.m_logger.Info($"WebSocket二进制：{data.Length}长度");
								}
								else
								{
									isText = false;

									//否，则说明数据太大了，分中继包了。
									//则，初始化缓存容器
									stream ??= new MemoryStream();

									//下面则是缓存逻辑

									//如果是非net9.0即以上，即：NetFramework平台使用。原因是stream不支持span写入
									//var segment = data.AsSegment();
									//stream.Write(segment.Array, segment.Offset, segment.Count);

									//如果是net9.0以上，直接写入span即可
									stream.Write(data.Span);
								}
							}
							break;
						case WSDataType.Close:
							break;
						case WSDataType.Ping:
							break;
						case WSDataType.Pong:
							break;
						default:
							break;
					}
				}
			}

			//此处即表明websocket已断开连接
			this.m_logger.Info("WebSocket断开连接");
			await e.InvokeNext();
		}
	}

	public class MyWebSocketPlugin : PluginBase,
		IWebSocketHandshakingPlugin,
		IWebSocketHandshakedPlugin,
		IWebSocketReceivedPlugin,
		IWebSocketClosingPlugin,
		IWebSocketClosedPlugin
	{
		public MyWebSocketPlugin(ILog logger)
		{
			this.m_logger = logger;
		}

		public async Task OnWebSocketHandshaking(IWebSocket client, HttpContextEventArgs e)
		{
			if (client.Client is IHttpSessionClient socketClient)
			{
				//服务端

				var id = socketClient.Id;
			}
			else if (client.Client is IHttpClient httpClient)
			{
				//客户端
			}
			this.m_logger.Info("WebSocket正在连接");
			await e.InvokeNext();
		}

		public async Task OnWebSocketHandshaked(IWebSocket client, HttpContextEventArgs e)
		{
			this.m_logger.Info("WebSocket成功连接");
			await e.InvokeNext();
		}

		private readonly ILog m_logger;

		public async Task OnWebSocketReceived(IWebSocket client, WSDataFrameEventArgs e)
		{
			switch (e.DataFrame.Opcode)
			{
				case WSDataType.Close:
					{
						this.m_logger.Info("远程请求断开");

						//var byteBlock = e.DataFrame.PayloadData;
						//byteBlock.SeekToStart();
						//var ss = byteBlock.ReadUInt16(EndianType.Big);
						//using (var frame = new WSDataFrame())
						//{
						//    frame.Opcode = WSDataType.Close;
						//    frame.FIN = true;
						//    frame.PayloadData=new ByteBlock(1024*64);
						//    frame.PayloadData.WriteUInt16(1000, EndianType.Big);
						//    frame.PayloadData.Write(Encoding.UTF8.GetBytes("hello"));
						//    await client.SendAsync(frame);
						//}

						//client.Client.TryShutdown();

						await client.CloseAsync("断开");
					}
					return;

				case WSDataType.Ping:
					this.m_logger.Info("Ping");
					await client.PongAsync();//收到ping时，一般需要响应pong
					break;

				case WSDataType.Pong:
					this.m_logger.Info("Pong");
					break;

				default:
					{

						//其他报文，需要考虑中继包的情况。所以需要手动合并 WSDataType.Cont类型的包。
						//或者使用消息合并器

						//获取消息组合器
						var messageCombinator = client.GetMessageCombinator();

						try
						{
							//尝试组合
							if (messageCombinator.TryCombine(e.DataFrame, out var webSocketMessage))
							{
								//组合成功，必须using释放模式
								using (webSocketMessage)
								{
									//合并后的消息
									var dataType = webSocketMessage.Opcode;

									//合并后的完整消息
									var data = webSocketMessage.PayloadData;

									if (dataType == WSDataType.Text)
									{
										this.m_logger.Info($"{dataType}|{data.Span.ToString(Encoding.UTF8)}");
										//按文本处理
									}
									else if (dataType == WSDataType.Binary)
									{
										//按字节处理
									}
									else
									{
										//可能是其他自定义协议
									}
								}
							}
						}
						catch (Exception ex)
						{
							this.m_logger.Exception(ex);
							messageCombinator.Clear();//当组合发生异常时，应该清空组合器数据
						}

					}
					break;
			}

			await e.InvokeNext();
		}

		public async Task OnWebSocketClosed(IWebSocket webSocket, ClosedEventArgs e)
		{
			this.m_logger.Info($"WebSocket已断开，状态：{webSocket.CloseStatus}，信息：{e.Message}");
			await e.InvokeNext();
		}

		public async Task OnWebSocketClosing(IWebSocket webSocket, ClosingEventArgs e)
		{
			this.m_logger.Info($"WebSocket请求断开，状态：{webSocket.CloseStatus}，信息：{e.Message}");
			await e.InvokeNext();
		}
	}

	private class MyHttpPlugin : PluginBase, IHttpPlugin
	{
		public async Task OnHttpRequest(IHttpSessionClient client, HttpContextEventArgs e)
		{
			if (e.Context.Request.IsGet())
			{
				if (e.Context.Request.UrlEquals("/GetSwitchToWebSocket"))
				{
					var result = await client.SwitchProtocolToWebSocketAsync(e.Context);
					return;
				}
			}

			await e.InvokeNext();
		}
	}

	/// <summary>
	/// 命令行插件。
	/// 声明的方法必须为公开实例方法、以"Command"结尾，且支持json字符串，参数之间空格隔开。
	/// </summary>
	public class MyWSCommandLinePlugin : WebSocketCommandLinePlugin
	{
		public MyWSCommandLinePlugin(ILog logger) : base(logger)
		{
		}

		public int AddCommand(int a, int b)
		{
			return a + b;
		}

		//当第一个参数，直接或间接实现ITcpSession接口时，会收集到当前请求的客户端，从而可以获取IP等。
		public SumClass SumCommand(IHttpSession client, SumClass sumClass)
		{
			sumClass.Sum = sumClass.A + sumClass.B;
			return sumClass;
		}
	}

	public class SumClass
	{
		public int A { get; set; }
		public int B { get; set; }
		public int Sum { get; set; }
	}

	public class MyServer : SingletonRpcServer
	{
		private readonly ILog m_logger;

		public MyServer(ILog logger)
		{
			this.m_logger = logger;
		}

		[Router("/[api]/ws")]
		[Router("/[api]/[action]")]
		[WebApi(Method = HttpMethodType.Get)]
		public async Task ConnectWS(IWebApiCallContext callContext)
		{
			if (callContext.Caller is HttpSessionClient socketClient)
			{
				var result = await socketClient.SwitchProtocolToWebSocketAsync(callContext.HttpContext);
				if (!result.IsSuccess)
				{
					this.m_logger.Error(result.Message);
					return;
				}

				this.m_logger.Info("WS通过WebApi连接");
			}
		}
	}
}
posted @ 2025-06-08 00:53  夏秋初  阅读(378)  评论(0)    收藏  举报
