nginx+SLB, nginx端口转发, 强制跳转https

环境 阿里的ECS

注意在安全组开启相应端口

两个站点 a.exemple.cn    b.exemple.cn

源码安装

yum update -y
yum -y install gcc gcc-c++ epel-release automake pcre pcre-devel zlib zlib-devel openssl openssl-devel gd gd-devel
groupadd nginx
useradd nginx -g nginx -s /sbin/nologin -M
cd /opt/
 wget http://nginx.org/download/nginx-1.21.3.tar.gz
tar -zxvf nginx-1.21.3.tar.gz
cd nginx-1.21.3
./configure --user=nginx --group=nginx --prefix=/usr/local/nginx --http-log-path=/var/log/nginx/access.log --error-log-path=/var/log/nginx/error.log --lock-path=/var/lock/nginx.lock --pid-path=/run/nginx.pid --with-pcre-jit --with-http_ssl_module --with-http_v2_module --with-http_sub_module --with-stream --with-stream_ssl_module --with-http_image_filter_module
make && make install
cd /usr/local/nginx/
ls
cd sbin/
ls

启动
 ./nginx
查看版本信息
 ./nginx -V

 添加开机自启

vim /etc/rc.d/rc.local

/usr/local/nginx/sbin/nginx

chmod +x /etc/rc.d/rc.local

nginx.conf配置文件

user  nobody;
worker_processes  auto;
pid /run/nginx.pid;
include /usr/share/nginx/modules/*.conf;

events {
    worker_connections  40960;
}


http {

        sendfile on;
        tcp_nopush on;
        tcp_nodelay on;
        resolver_timeout 30;
        keepalive_timeout 30;
        types_hash_max_size 2048;
        server_tokens off;
        server_names_hash_bucket_size 64;
        server_name_in_redirect off;

        include mime.types;
        default_type application/octet-stream;
        log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                                                  '$status $body_bytes_sent "$http_referer" '
                                                  '"$http_user_agent" "$http_x_forwarded_for" "$request_body" '
                                                   ' $upstream_addr $upstream_response_time $request_time ';


        access_log /var/log/nginx/access.log main;
        error_log /var/log/nginx/error.log;




        include ../conf.d/*.conf;
        gzip on;
        gzip_disable "msie6";
        proxy_max_temp_file_size 0;
        proxy_connect_timeout 1;
        proxy_send_timeout 10;
        proxy_read_timeout 30;
        proxy_buffer_size 4k;
        proxy_buffers 4 32k;
        proxy_busy_buffers_size 64k;
        proxy_temp_file_write_size 64k;
        client_max_body_size 20m;
        gzip_vary on;
        gzip_proxied any;
        gzip_comp_level 6;
        gzip_buffers 16 8k;
        gzip_http_version 1.1;
        gzip_types text/plain text/css application/json application/javascript text/xml application/xml application/xml+rss text/javascript;
        limit_req_zone $http_x_forwarded_for zone=zl:10m rate=20r/s;
        proxy_cache_path /tmp/nginx levels=1:2 keys_zone=cache:100m max_size=1g inactive=7d;
        limit_req_status 429;


    }



nginx配置文件和SLB不能同时都加载证书

如果两个站点是同一个根域名，则只在A站点配置文件中加入SSL，B站点即使不加入SSL配置也是可以的

SLB挂载网站是按照后端ECS服务器上配置网站的域名来计算的，如果后端ECS上有两个根域名的网站比如 a.exemple-A.cn    b.exemple-B.cn，则需要购买两个SLB实例

1、nginx加载https证书、SLB使用TCP模式监听端口     (直接使用单台ECS的nginx代理，不使用SLB，配置文件也是这样)

站点A



server {
 listen 80;
 server_name a.exemple.cn;
rewrite ^(.*)$ https://$host$1 permanent;
 location / {
index index.html index.htm Agreement.html Privacy.html;
}
}
server {
listen 443 ssl ;
 server_name a.exemple.cn;


#(允许特定的IP可以访问，拒绝其他IP访问该网站)


#allow 61.164.52.202;


#deny    all;


index index.html index.htm Agreement.html Privacy.html;
 ssl_certificate   /home/web/ssl/xxxxx.pem;
 ssl_certificate_key  /home/web/ssl/xxxxx.key;
 ssl_session_timeout 5m;
 ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:ECDHE:ECDH:AES:HIGH:!NULL:!aNULL:!MD5:!ADH:!RC4;
 ssl_protocols SSLv3 TLSv1 TLSv1.1 TLSv1.2;
 ssl_prefer_server_ciphers on;
 access_log /var/log/nginx/a.exemple.cn.access.log main;
 error_log /var/log/nginx/a.exemple.cn.error.log;
 location / {
     root /home/web/111/;
     index index.html index.htm Agreement.html Privacy.html;
 }
}












B站点




server {
 listen 80;
 server_name b.exemple.cn;
rewrite ^(.*)$ https://$host$1 permanent;
 location / {
index index.html index.htm Agreement.html Privacy.html;
}
}
server {
 listen 443 ssl;
 server_name b.exemple.cn;
 index index.html index.htm Agreement.html Privacy.html;
 ssl_certificate   /home/web/ssl/xxxxx.pem;
 ssl_certificate_key  /home/web/ssl/xxxxx.key;
 ssl_session_timeout 5m;
 ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:ECDHE:ECDH:AES:HIGH:!NULL:!aNULL:!MD5:!ADH:!RC4;
 ssl_protocols SSLv3 TLSv1 TLSv1.1 TLSv1.2;
 ssl_prefer_server_ciphers on;
 access_log /var/log/nginx/b.exemple.cn.access.log main;
 error_log /var/log/nginx/b.exemple.cn.error.log;
 location / {
     root /home/web/222/;
     index index.html index.htm Agreement.html Privacy.html;
 }
}




 2、nginx配置文件不加载ssl证书，SLB使用http和https模式监听端口，SLB实现强制跳转


a站点




server {
        listen       80;
        server_name  phoneh5;
        access_log /var/log/nginx/a.exampel.access.log main;
        error_log /var/log/nginx/a.example.error.log;
        location / {
            root   /home/web/111/;
            index  index.html index.htm;
        }
        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root   /home/web/111/;
        }
}

































b站点




server {
listen 80;
server_name phoneh5;
access_log /var/log/nginx/b.example.access.log main;
error_log /var/log/nginx/b.example.error.log;
location / {
root /home/web/222/;
index index.html index.htm;
}
error_page 500 502 503 504 /50x.html;
location = /50x.html {
root /home/web/222/;
}
}

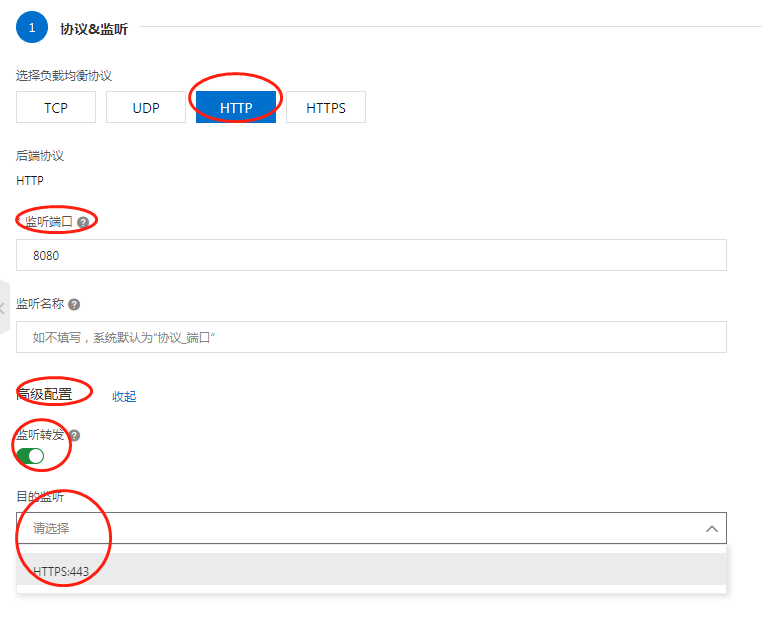

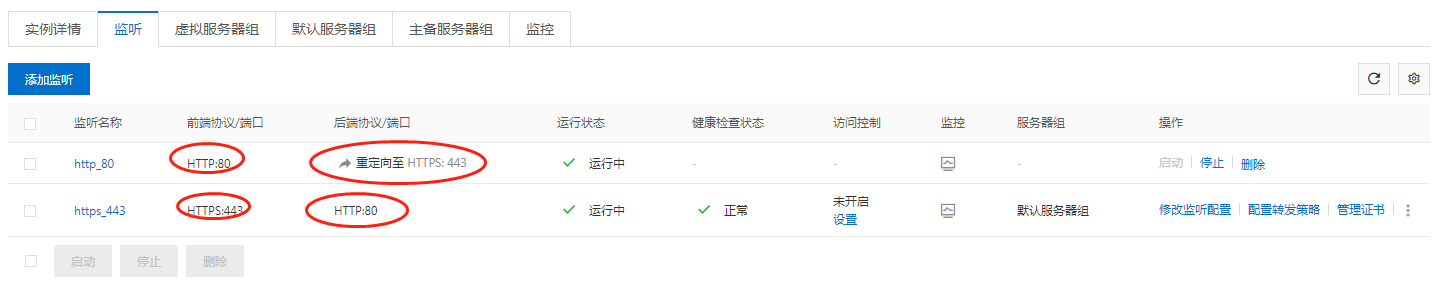

SLB配置实现：


1、443监听配置nginx服务器的80端口


2、访问SLB的80端口（即访问网站自动跳转https）






















如果站点是IIS





前端负载均衡已经用https 443 了后端就不要用443 了。用80就可以了。证书推送到负载均衡。




操作步骤






    1. 确保后端服务器上没有针对100.64.0.0/10地址段进行任何形式的屏蔽，包括iptables或其他任何第三方防火墙/安全策略软件。



      负载均衡SLB通过100.64.0.0/10内部保留地址段中的IP地址与后端服务器通信，如被屏蔽则会导致健康检查异常，负载均衡无法正常工作。




      2.

    2. 从后端服务器本地发起访问，确保后端服务器上的HTTP服务正常工作。


      1. 登录负载均衡控制台，在监听实例详情页中，查看健康检查配置。



        本次示例使用HTTP监听，出现健康检查异常的后端服务器内网IP为10.0.0.2，其他健康检查配置信息如下：



        • 健康检查端口：80
          •

        • 健康检查域名：www.slb-test.com
          •

        • 健康检查路径：/test.html
          •


















        2.





      3.







以Linux系统为例，执行nc或curl命令对后端服务器上的HTTP服务进行探测，健康检查路径、健康检查端口和健康检查域名配置必须与后端服务器上配置保持一致，否则会产生健康检查异常。


此处使用nc命令为例，请根据实际情况配置健康检查路径、健康检查域名、健康检查内网地址和健康检查端口：








echo -e "HEAD /test.html HTTP/1.0\r\nHost: www.slb-test.com\r\n\r\n" | nc -t 172.17.58.131 80










  • 正常情况下，返回200或其他2xx/3xx返回码，如下图所示。












































    •

  • 异常示例：假设负载均衡上的监听配置保持不变，但是删除后端服务器上/test.html页面，执行nc命令后，得到404错误码，该错误码与负载均衡SLB监听中设置的2xx或者3xx状态码不符，此时会出现健康检查异常结果，如下图所示。








































    •











































端口转发配置：








upstream abc{
server 192.168.1.1xx:8081 max_fails=2 fail_timeout=2s;
keepalive 300;
}




server {
    listen 80;
    server_name xx.midust.com;





    location / {
        proxy_pass http://abc;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header Host $host;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}










多端口转发


80端口转发192.168.1.213:4999 端口   192.168.1.51:9527端口







upstream docs.xxx.com{
        server 192.168.1.213:4999 max_fails=0 fail_timeout=0s weight=3;
        keepalive 300;
        }


upstream datax.xxxxxx.com{
        server 192.168.1.51:9527 max_fails=0 fail_timeout=0s weight=3;
        keepalive 300;
        }


    server {
        listen       80;
        server_name  docs.xxx.com;
        access_log /var/log/nginx/docs.xxx.com.access.log;
        error_log  /var/log/nginx/docs.xxx.com.error.log;
        # Load configuration files for the default server block.
        #include /etc/nginx/default.d/*.conf;

        location / {
             proxy_pass http://docs.xxx.com;
                proxy_set_header Host $host;
                proxy_set_header X-Real-IP $remote_addr;
                proxy_set_header x-forwarded-for $proxy_add_x_forwarded_for;
                proxy_redirect default;
                proxy_http_version 1.1;
                proxy_set_header Connection "";
        }

        error_page 404 /404.html;
            location = /40x.html {
        }

        error_page 500 502 503 504 /50x.html;
            location = /50x.html {
        }
    }



    server {
        listen       80;
        server_name  datax.xxxxxx.com;
        access_log /var/log/nginx/datax.xxxxxx.com.access.log;
        error_log  /var/log/nginx/datax.xxxxxx.com.error.log;
        # Load configuration files for the default server block.


        location / {
                 proxy_pass http://datax.xxxxxx.com;
                proxy_set_header Host $host;
                proxy_set_header X-Real-IP $remote_addr;
                proxy_set_header x-forwarded-for $proxy_add_x_forwarded_for;
                proxy_redirect default;
                proxy_http_version 1.1;
                proxy_set_header Connection "";
        }

        error_page 404 /404.html;
            location = /40x.html {
        }

        error_page 500 502 503 504 /50x.html;
            location = /50x.html {
        }
    }




 强制HTTPS




upstream xxx.whenchat.com{
ip_hash;
server 172.16.xxx.11:8080 max_fails=2 fail_timeout=2s;
server 172.16.xxx.12:8080 max_fails=2 fail_timeout=2s;
keepalive 300;
}
server {
    listen 80;
    server_name xxx.whenchat.com;  # 自行修改成你的域名
    return 301 https://$server_name$request_uri;
}


server {
    listen 443 ssl;
    server_name          xxx.whenchat.com;  # 自行修改成你的域名
    ssl_certificate      /home/ssl/02__whenchat.com.pem;  # 自行设置证书
    ssl_certificate_key  /home/ssl/02__whenchat.com.key;  # 自行设置证书
    ssl_session_timeout  5m;
    ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:ECDHE:ECDH:AES:HIGH:!NULL:!aNULL:!MD5:!ADH:!RC4;
    ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
    ssl_prefer_server_ciphers on;
    allow 61.164.52.xx;
    deny all;


    location / {
        proxy_pass http://xxx.whenchat.com;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header Host $host;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}


















server {
    listen       80;
    server_name  xxx.com;
    return 301 https://$server_name$request_uri;
}
server {
    listen       443 ssl;
    server_name  xxx.com;
    client_max_body_size 1000m;
    ssl_certificate      /home/web/ssl/xxx.pem;
    ssl_certificate_key  /home/web/ssl/xxx.key;
    ssl_session_timeout  5m;
    ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:ECDHE:ECDH:AES:HIGH:!NULL:!aNULL:!MD5:!ADH:!RC4;
    ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
    ssl_prefer_server_ciphers on;
    location ^~ / {
        proxy_pass http://127.0.0.1:4999/;
        proxy_redirect off;
        proxy_connect_timeout 90;
        proxy_send_timeout 90;
        proxy_read_timeout 90;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header http_user_agent $http_user_agent;
    }
}







建个域名 d2xx.newchat.cc 通过cen转发至 d2xx.shuzilm.cn
杭州ECS配置52801  转发http://d2xx.shuzilm.cn/
新加坡ECS 配置转发杭州ECS




cat shence.conf
    server {
        listen       52801;


        location / {
            root   html;
            index  index.html index.htm;
        proxy_pass http://d2xx.shuzilm.cn/;
            proxy_set_header Host $host;
            proxy_set_header X-Real-IP $remote_addr;
            proxy_set_header x-forwarded-for $proxy_add_x_forwarded_for;
            proxy_redirect default;
            proxy_http_version 1.1;
            proxy_set_header Connection "";
        }

        error_page 404 /404.html;
            location = /40x.html {
        }

        error_page 500 502 503 504 /50x.html;
            location = /50x.html {
        }
    }






[root@K8S-1 conf.d]# cat d2xx.newchat.conf
server {
    listen 80;
    server_name d2xx.newchat.cc;
    return 301 https://$server_name$request_uri;
}

server {
    listen 443 ssl;
    server_name          d2xx.newchat.cc;
    ssl_certificate      /home/web/ssl/7512044__newchat.cc.pem;
    ssl_certificate_key  /home/web/ssl/7512044__newchat.cc.key;
    ssl_session_timeout  5m;
    ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:ECDHE:ECDH:AES:HIGH:!NULL:!aNULL:!MD5:!ADH:!RC4;
    ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
    ssl_prefer_server_ciphers on;
    access_log /var/log/nginx/d2xx.newchat.cc.access.log main;
    error_log /var/log/nginx/d2xx.newchat.cc.error.log;
    location / {
        root   html;
        index  index.html index.htm;
        proxy_pass http://172.16.xx.xx:52801/;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header x-forwarded-for $proxy_add_x_forwarded_for;
        proxy_redirect default;
        proxy_http_version 1.1;
        proxy_set_header Connection "";
        proxy_pass_request_headers on;
        }
}







nginx日志关闭




#access log 关闭
access_log off;

#error log 关闭
error_log /dev/null ;

关闭 error log 不要写 error_log off; 这样错误日志会被写到一个叫做 off的文件中（off位置在/usr/local/nginx/off，即nginx的安装目录下）







一台服务器上部署多个网站，在web中使用IP访问 指定一个默认的网站


NGINX配置




server {
    listen 80 default_server;   # 关键参数 default_server
    server_name www.a.com;              # 通配所有未匹配的域名或IP

    root /var/www/your_default_site;  # 替换为你的网站目录
    index index.html index.htm;

    # 其他配置（如PHP支持、日志等）
    ...
}

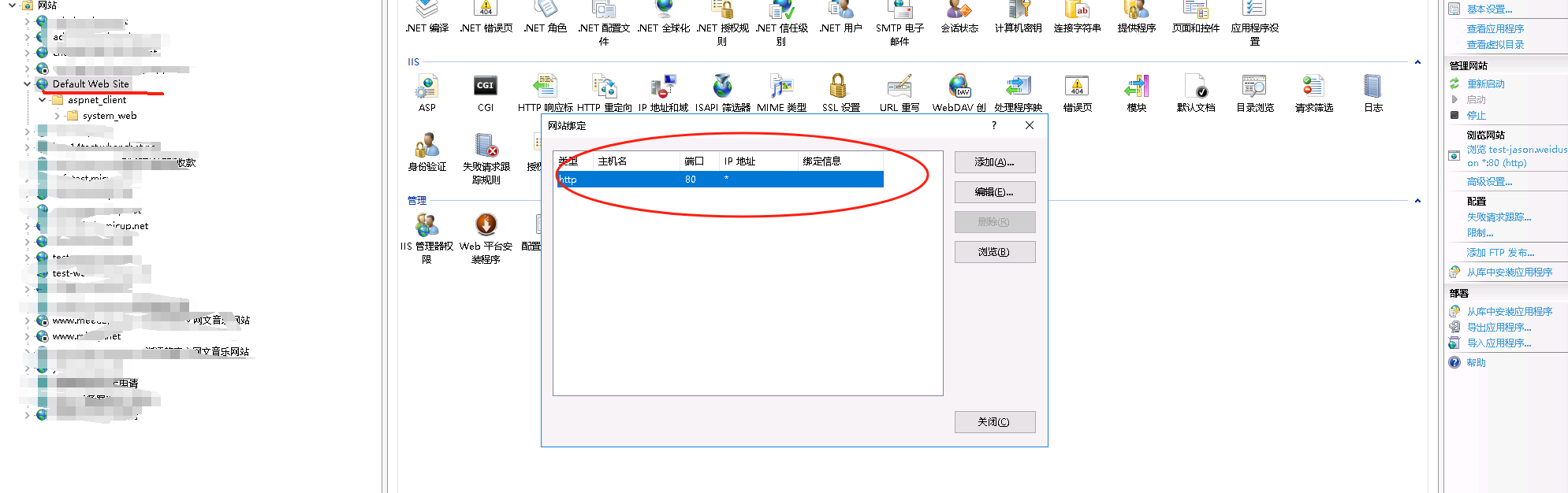

IIS配置
