FlinkX的安装与简单使用
FlinkX概述
FlinkX是在是袋鼠云内部广泛使用的基于flink的分布式离线和实时的数据同步框架，实现了多种异构数据源之间高效的数据迁移。

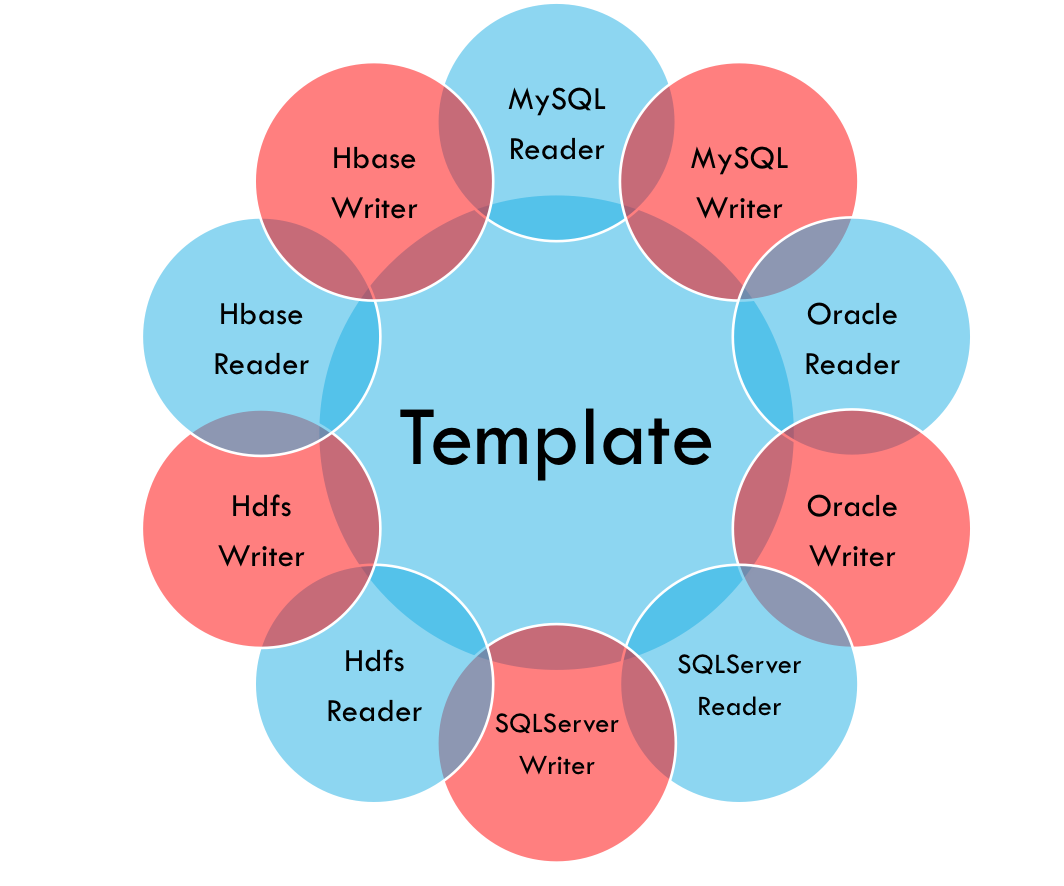

FlinkX是一个基于Flink的批流统一的数据同步工具，既可以采集静态的数据，比如MySQL，HDFS等，也可以采集实时变化的数据，比如MySQL binlog，Kafka等

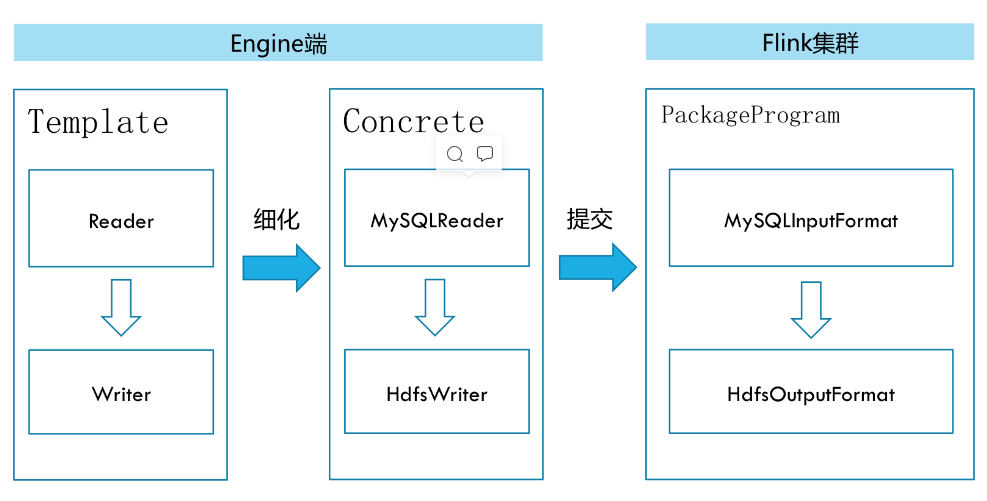

在底层实现上，FlinkX依赖Flink，数据同步任务会被翻译成StreamGraph在Flink上执行.
FlinkX的安装
https://github.com/oceanos/flinkx/blob/1.8_release/README_OLD.
1、上传并解压
unzip flinkx-1.10.zip -d /usr/local/soft/2、配置环境变量
3、给bin/flinkx这个文件加上执行权限
chmod a+x flinkx4、修改配置文件，设置运行端口、
vim flinkconf/flink-conf.yaml## web服务端口，不指定的话会随机生成一个
rest.bind-port: 8888FlinkX的简单使用
MySQLToHDFS
-
配置文件
{
"job": {
"content": [
{
"reader": {
"parameter": {
"username": "root",
"password": "123456",
"connection": [
{
"jdbcUrl": [
"jdbc:mysql://master01:3306/students?useUnicode=true&characterEncoding=utf8"
],
"table": [
"student"
]
}
],
"column": [
"*"
],
"customSql": "",
"where": "clazz = '19期'",
"splitPk": "",
"queryTimeOut": 1000,
"requestAccumulatorInterval": 2
},
"name": "mysqlreader"
},
"writer": {
"name": "hdfswriter",
"parameter": {
"path": "hdfs://master01:9000/shujia/bigdata19/flinkx/student2",
"defaultFS": "hdfs://master01:9000",
"column": [
{
"name": "col1",
"index": 0,
"type": "string"
},
{
"name": "col2",
"index": 1,
"type": "string"
},
{
"name": "col3",
"index": 2,
"type": "string"
},
{
"name": "col4",
"index": 3,
"type": "string"
},
{
"name": "col5",
"index": 4,
"type": "string"
},
{
"name": "col6",
"index": 5,
"type": "string"
}
],
"fieldDelimiter": ",",
"fileType": "text",
"writeMode": "overwrite"
}
}
}
],
"setting": {
"restore": {
"isRestore": false,
"isStream": false
},
"errorLimit": {},
"speed": {
"channel": 1
}
}
}
}-
启动任务
flinkx -mode local -job ./mysqlToHDFS.json -pluginRoot /usr/local/soft/flinkx-1.10/syncplugins/ -flinkconf /usr/local/soft/flinkx-1.10/flinkconf/-
监听日志
flinkx 任务启动后，会在执行命令的目录下生成一个nohup.out文件
tail -f nohup.out-
通过web界面查看任务运行情况
http://master:8888MySQLToHive
-
配置文件
{
"job": {
"content": [
{
"reader": {
"parameter": {
"username": "root",
"password": "123456",
"connection": [
{
"jdbcUrl": [
"jdbc:mysql://master:3306/student?characterEncoding=utf8"
],
"table": [
"student"
]
}
],
"column": [
"id",
"name",
"age",
"clazz"
],
"customSql": "",
"where": "clazz = '文科二班'",
"splitPk": "id",
"queryTimeOut": 1000,
"requestAccumulatorInterval": 2
},
"name": "mysqlreader"
},
"writer": {
"name": "hivewriter",
"parameter": {
"jdbcUrl": "jdbc:hive2://master:10000/testflinkx",
"username": "",
"password": "",
"fileType": "text",
"fieldDelimiter": ",",
"writeMode": "overwrite",
"compress": "",
"charsetName": "UTF-8",
"maxFileSize": 1073741824,
"tablesColumn": "{\"student\":[{\"key\":\"id\",\"type\":\"string\"},{\"key\":\"name\",\"type\":\"string\"},{\"key\":\"age\",\"type\":\"string\"},{\"key\":\"clazz\",\"type\":\"string\"}]}",
"defaultFS": "hdfs://master:9000"
}
}
}
],
"setting": {
"restore": {
"isRestore": false,
"isStream": false
},
"errorLimit": {},
"speed": {
"channel": 3
}
}
}
}-
在hive中创建testflinkx数据库，并创建student分区表
create database testflinkx;
use testflinkx;
CREATE TABLE `student`(
`id` string,
`name` string,
`age` string,
`clazz` string)
PARTITIONED BY (
`pt` string)
ROW FORMAT DELIMITED
FIELDS TERMINATED BY ','-
启动hiveserver2
# 第一种方式：
hiveserver2
# 第二种方式:
hive --service hiveserver2-
启动任务
flinkx -mode local -job ./mysql2hive.json -pluginRoot /usr/local/soft/flinkx-1.10/syncplugins/ -flinkconf /usr/local/soft/flinkx-1.10/flinkconf/-
查看日志及运行情况同上
MySQLToHBase
-
配置文件
{
"job": {
"content": [
{
"reader": {
"parameter": {
"username": "root",
"password": "123456",
"connection": [
{
"jdbcUrl": [
"jdbc:mysql://master:3306/student?characterEncoding=utf8"
],
"table": [
"score"
]
}
],
"column": [
"*"
],
"customSql": "",
"splitPk": "student_id",
"queryTimeOut": 1000,
"requestAccumulatorInterval": 2
},
"name": "mysqlreader"
},
"writer": {
"name": "hbasewriter",
"parameter": {
"hbaseConfig": {
"hbase.zookeeper.property.clientPort": "2181",
"hbase.rootdir": "hdfs://master:9000/hbase",
"hbase.cluster.distributed": "true",
"hbase.zookeeper.quorum": "master,node1,node2",
"zookeeper.znode.parent": "/hbase"
},
"table": "testFlinkx",
"rowkeyColumn": "$(cf1:student_id)_$(cf1:course_id)",
"column": [
{
"name": "cf1:student_id",
"type": "string"
},
{
"name": "cf1:course_id",
"type": "string"
},
{
"name": "cf1:score",
"type": "string"
}
]
}
}
}
],
"setting": {
"restore": {
"isRestore": false,
"isStream": false
},
"errorLimit": {},
"speed": {
"channel": 3
}
}
}
}-
启动hbase 并创建testflinkx表
create 'testFlinkx','cf1'-
启动任务
flinkx -mode local -job ./mysqlToHBase.json -pluginRoot /usr/local/soft/flinkx-1.10/syncplugins/ -flinkconf /usr/local/soft/flinkx-1.10/flinkconf/-
查看日志及运行情况同上
MySQLToMySQL
配置文件
{
"job": {
"content": [
{
"reader": {
"name": "mysqlreader",
"parameter": {
"column": [
{
"name": "id",
"type": "int"
},
{
"name": "name",
"type": "string"
},
{
"name": "age",
"type": "int"
},
{
"name": "gender",
"type": "string"
},
{
"name": "clazz",
"type": "string"
}
],
"username": "root",
"password": "123456",
"connection": [
{
"jdbcUrl": [
"jdbc:mysql://master:3306/student?useSSL=false"
],
"table": [
"student"
]
}
]
}
},
"writer": {
"name": "mysqlwriter",
"parameter": {
"username": "root",
"password": "123456",
"connection": [
{
"jdbcUrl": "jdbc:mysql://master:3306/student?useSSL=false",
"table": [
"student2"
]
}
],
"writeMode": "insert",
"column": [
{
"name": "id",
"type": "int"
},
{
"name": "name",
"type": "string"
},
{
"name": "age",
"type": "int"
},
{
"name": "gender",
"type": "string"
},
{
"name": "clazz",
"type": "string"
}
]
}
}
}
],
"setting": {
"speed": {
"channel": 1,
"bytes": 0
}
}
}
}
