海王星4 cura压力提前校准

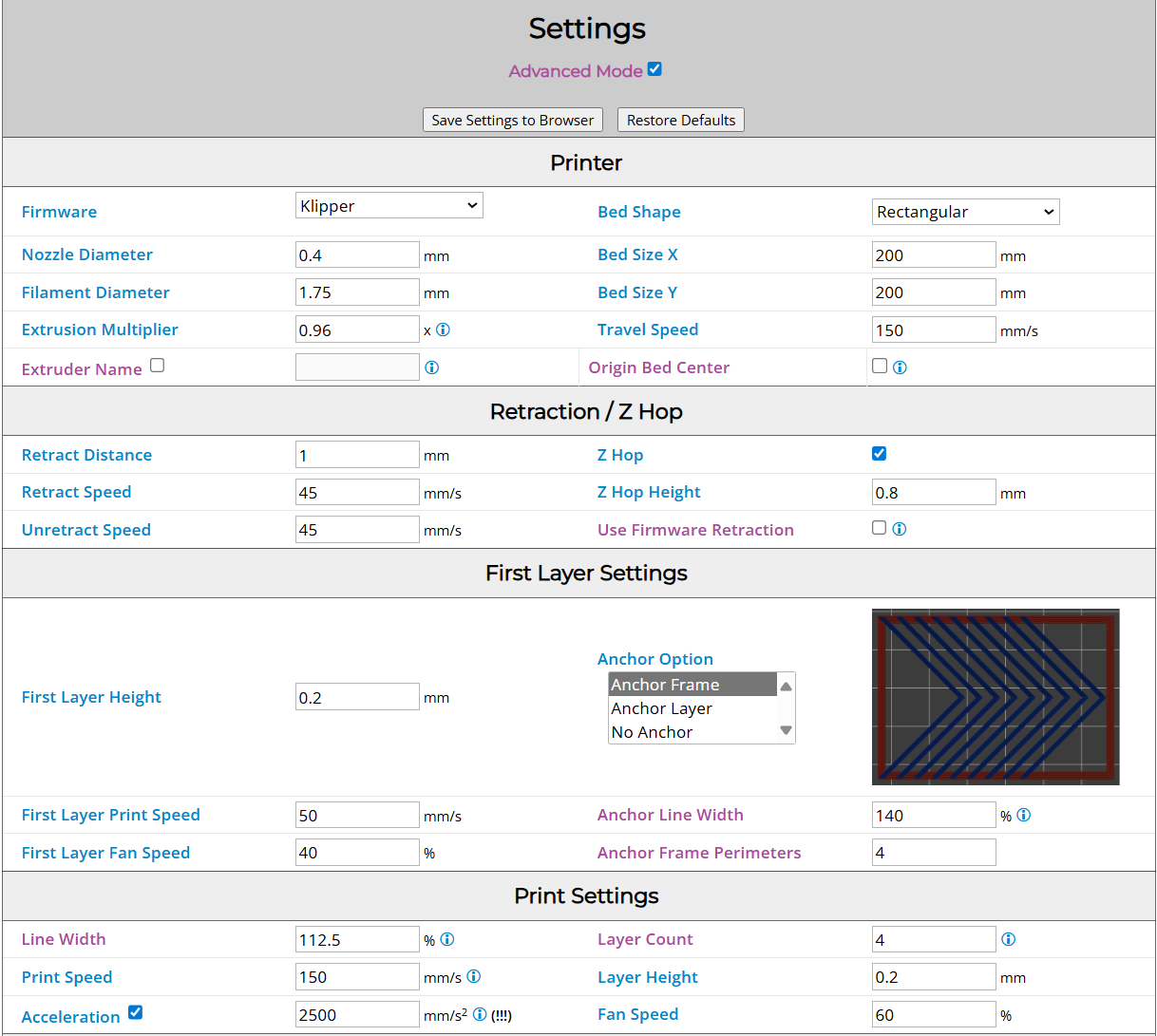

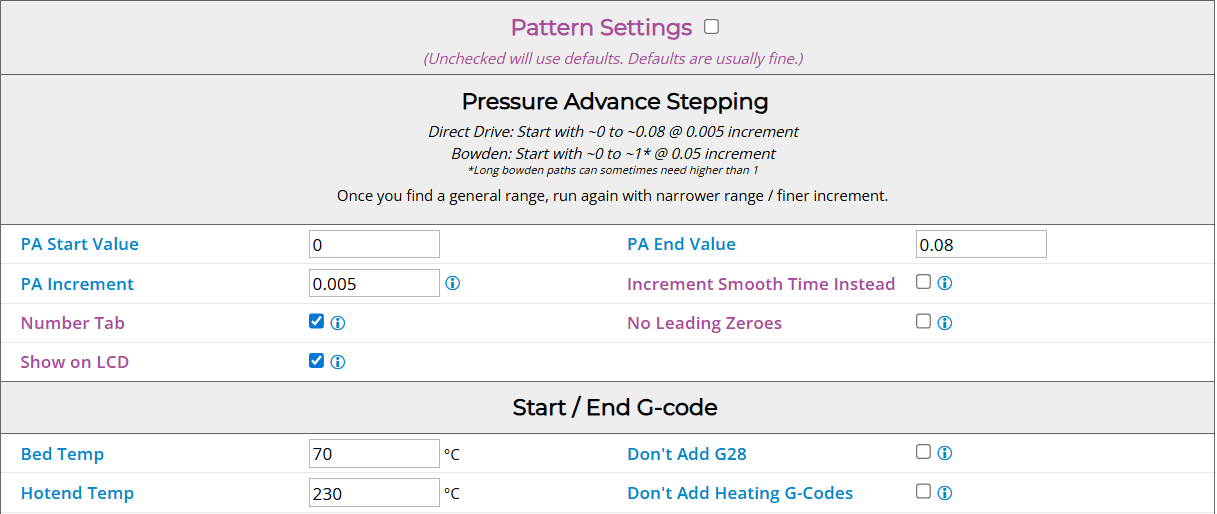

Ellis 的压力提前/线性提前校准工具

 Start G-code

;FLAVOR:Marlin
;TIME:1991
;Filament used: 3.50605m
;Layer height: 0.2
;MINX:86.92
;MINY:29.92
;MINZ:0.2
;MAXX:148.08
;MAXY:205.08
;MAXZ:3
;Generated with Cura_SteamEngine 4.8.0
M82 ;absolute extrusion mode
;ELEGOO NEPTUNE 4
M220 S100 ;Set the feed speed to 100%
M221 S100 ;Set the flow rate to 100%
M104 S140
M190 S70
G90
G28 ;home
G1 Z10 F300
G1 X67.5 Y0 F6000
G1 Z0 F300
M109 S230
G92 E0 ;Reset Extruder
G1 X67.5 Y0 Z0.4 F300 ;Move to start position
G1 X167.5 E30 F400 ;Draw the first line
G1 Z0.6 F120.0 ;Move to side a little
G1 X162.5 F3000
G92 E0 ;Reset Extruder
G92 E0
G92 E0
G1 F2700 E-1
;LAYER_COUNT:15
;LAYER:0
M107
M204 S500
G1 F600 Z1
G0 F6000 X87.229 Y200.785 Z1

参考：图案法 |Ellis 的打印调整指南

在printer.cfg配置中的[extruder]节中加入pressure_advance = <calculated_value>

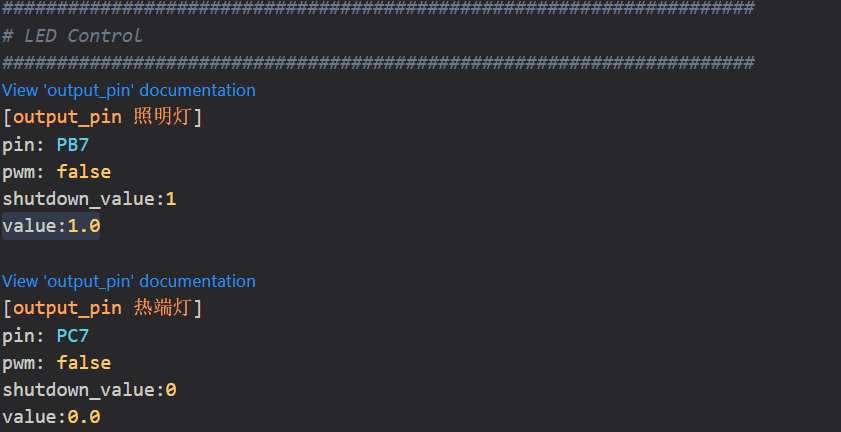

其他
