java——mysql随笔——运维——分库分表&MyCat

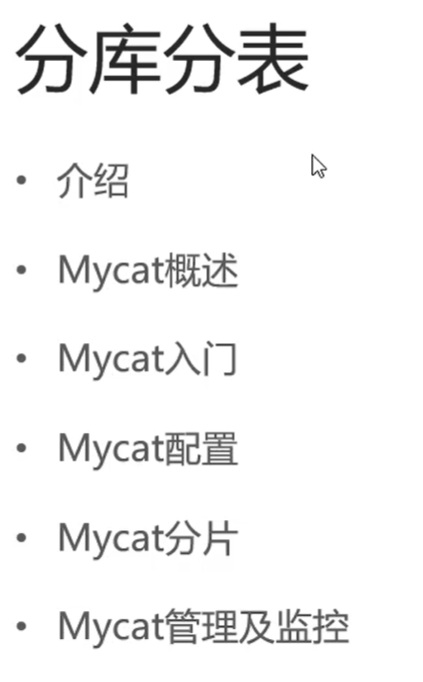

分库分表：

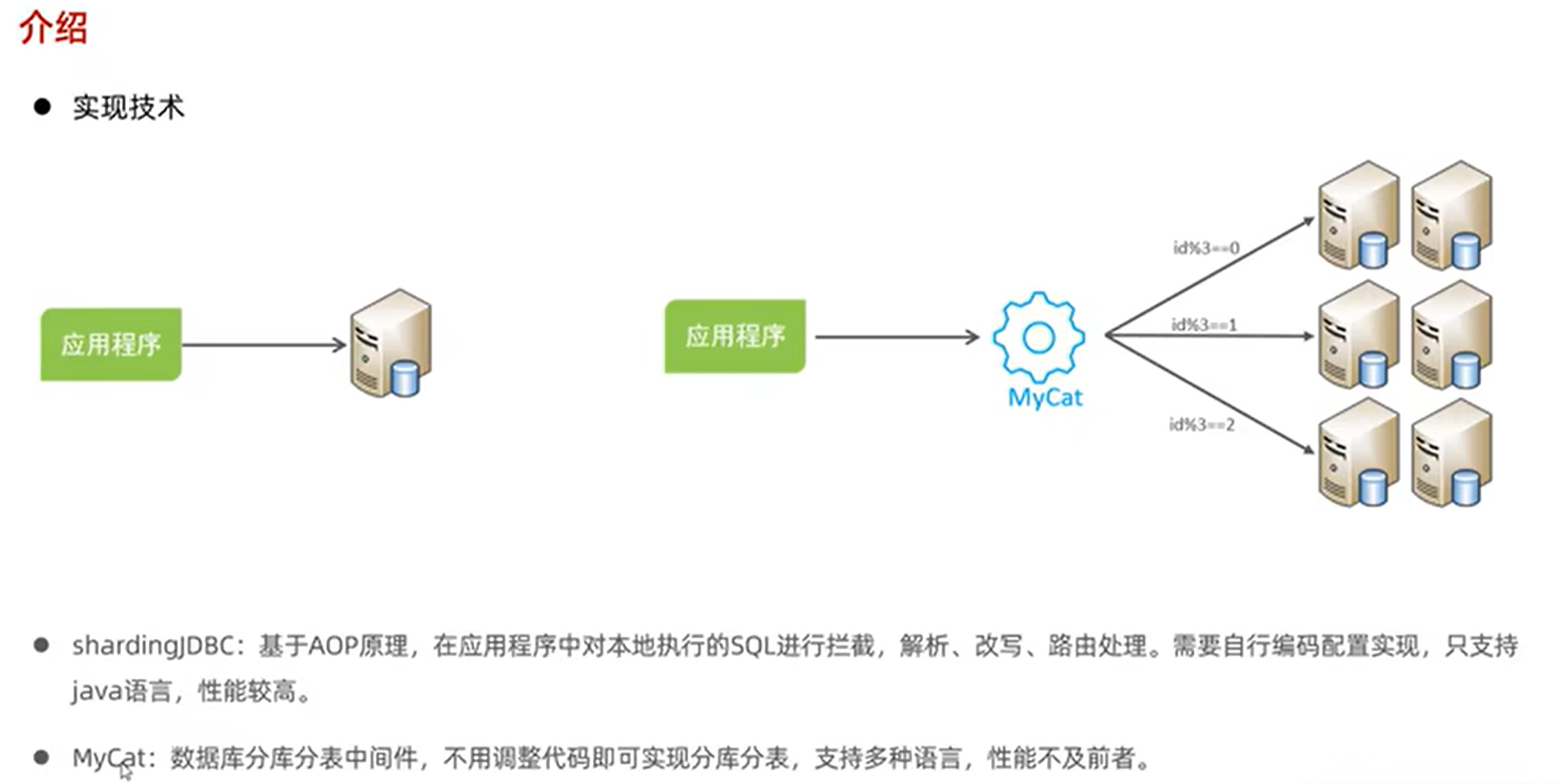

介绍：

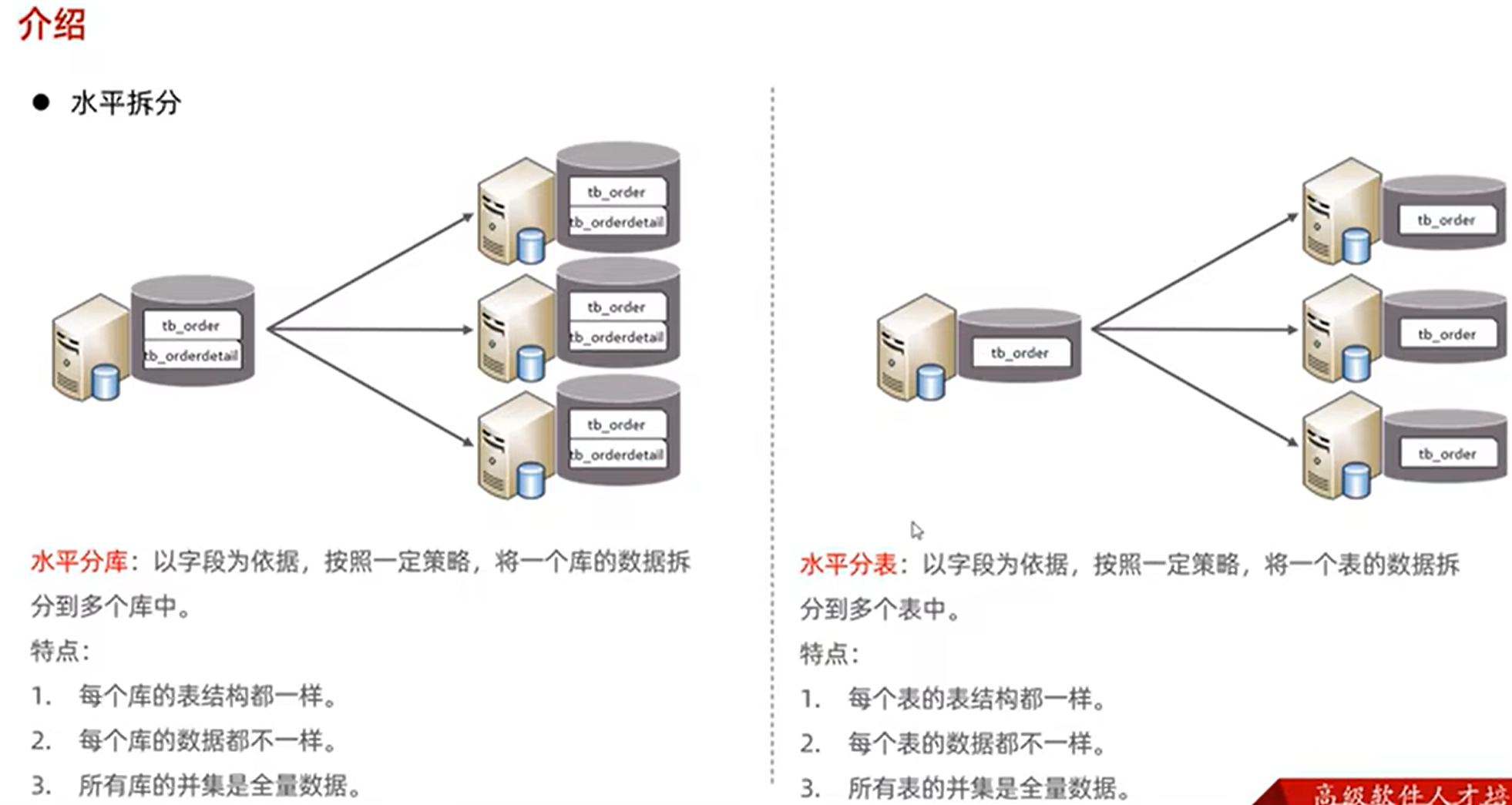

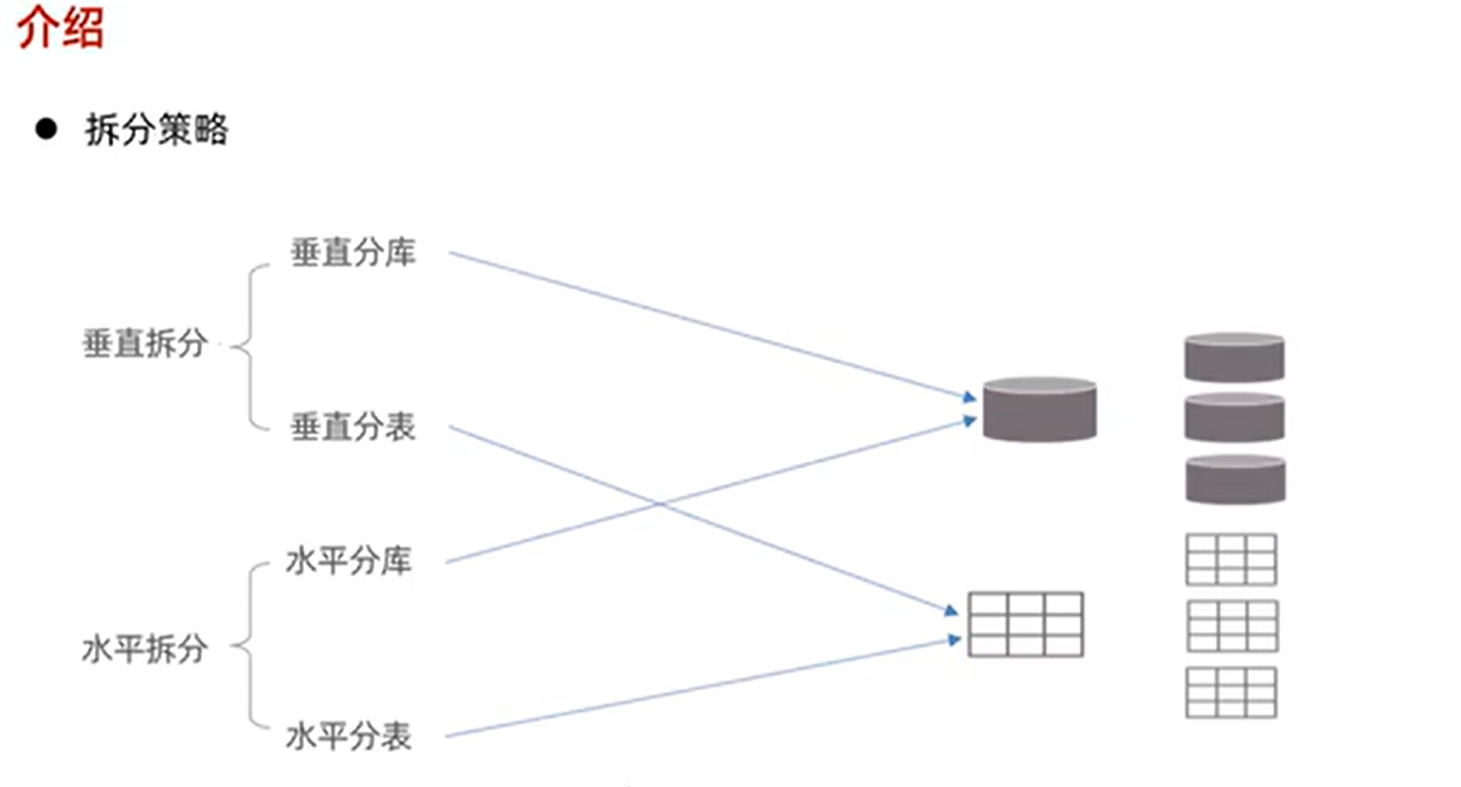

拆分方式：

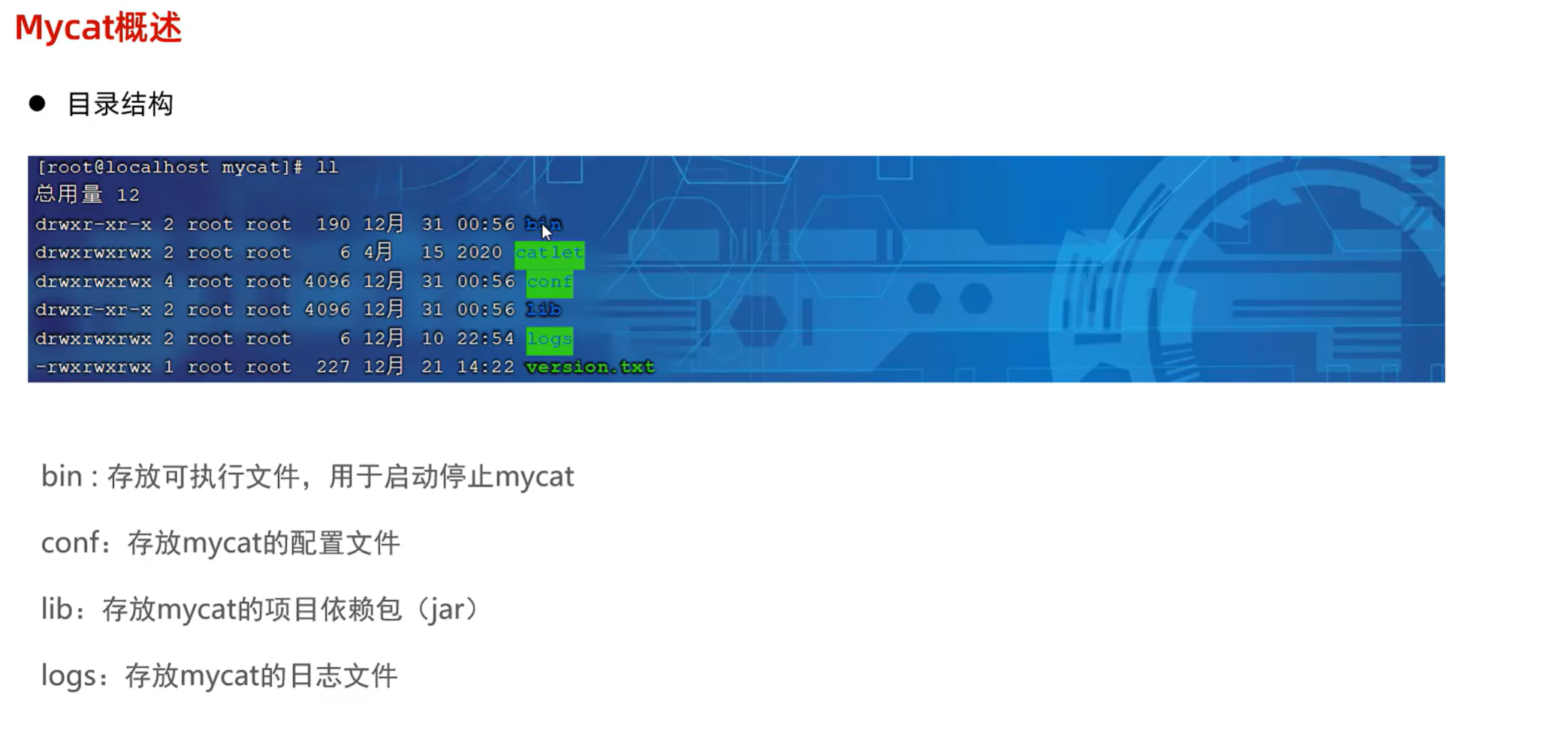

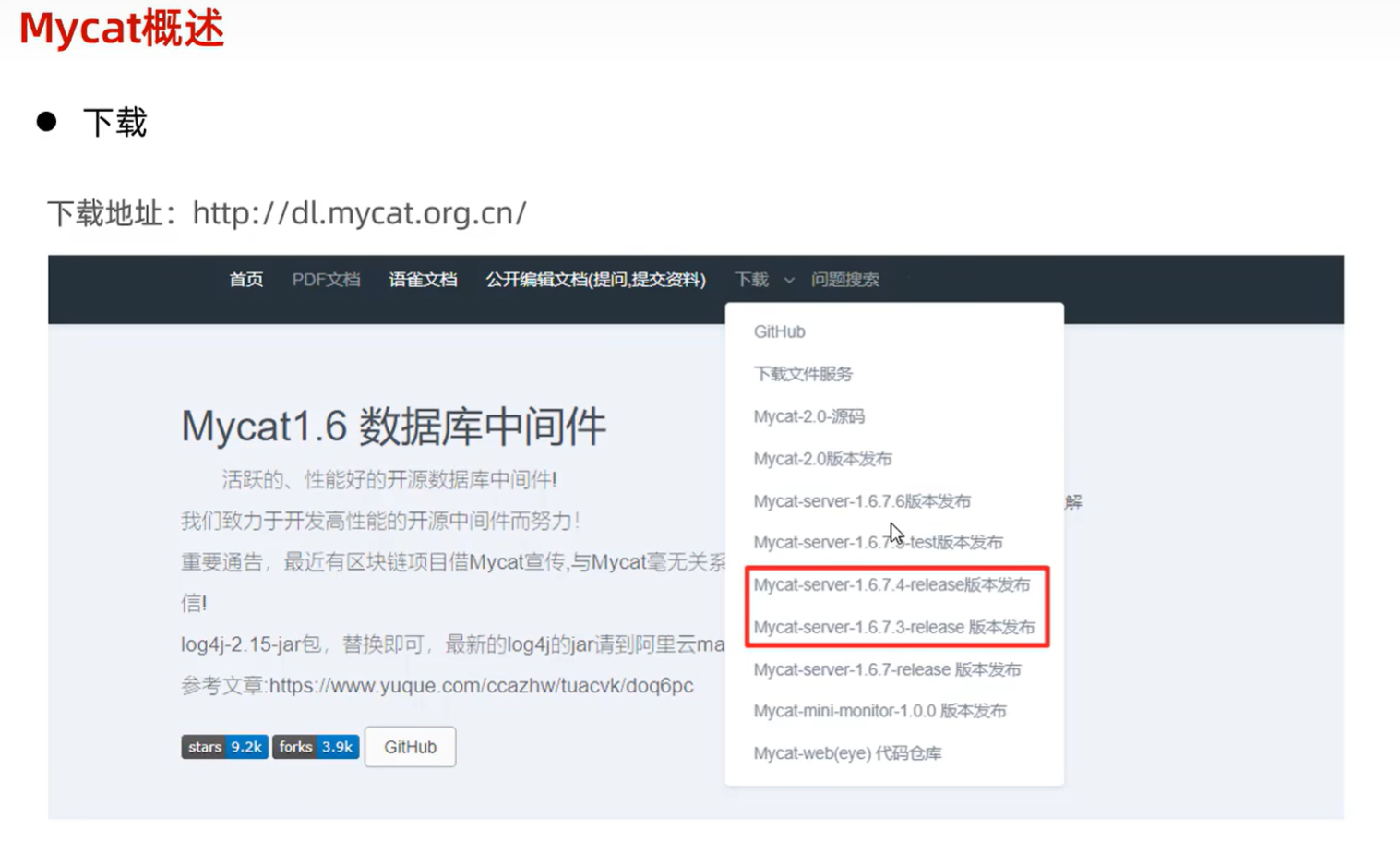

mycat概述：

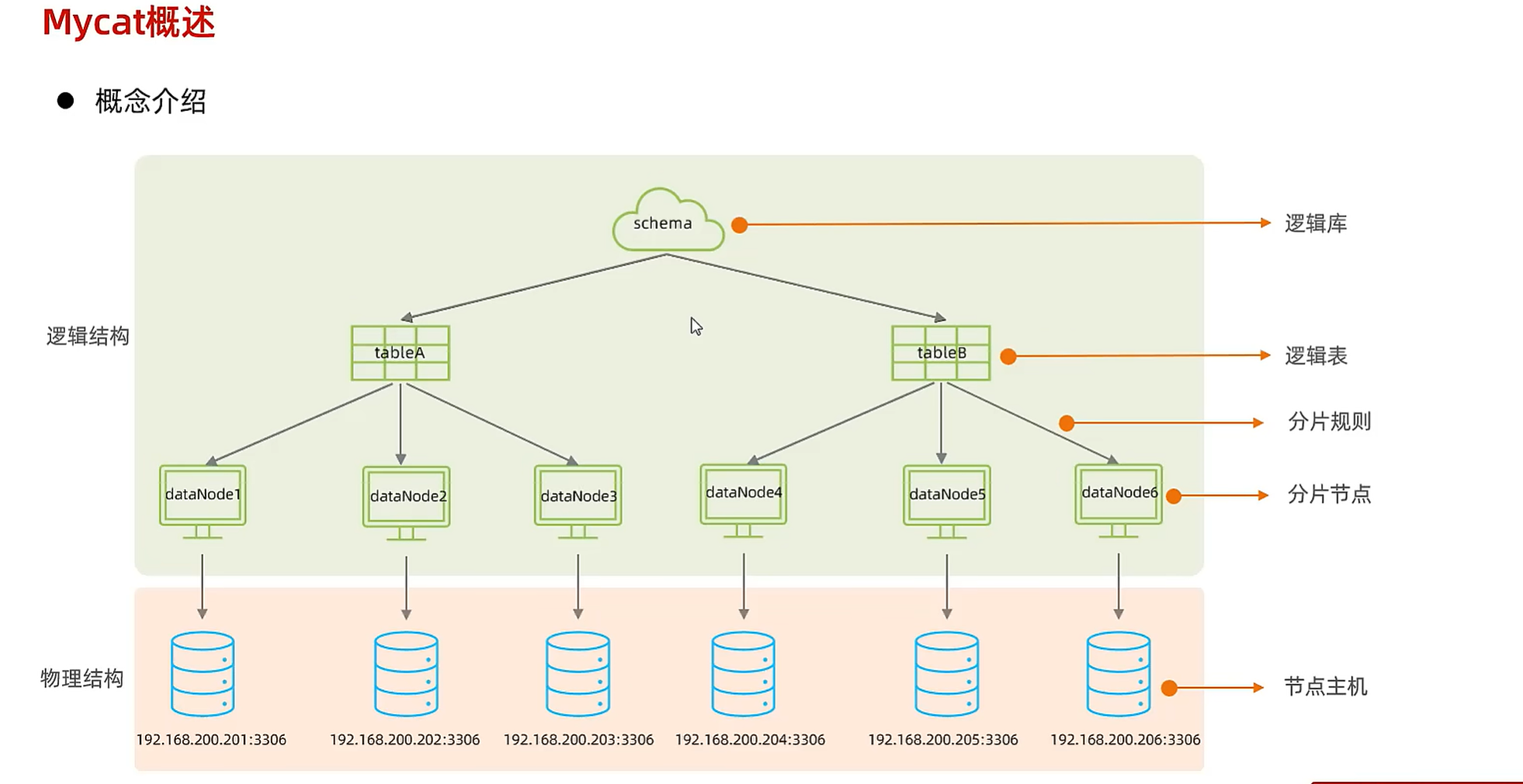

mycat核心概念：

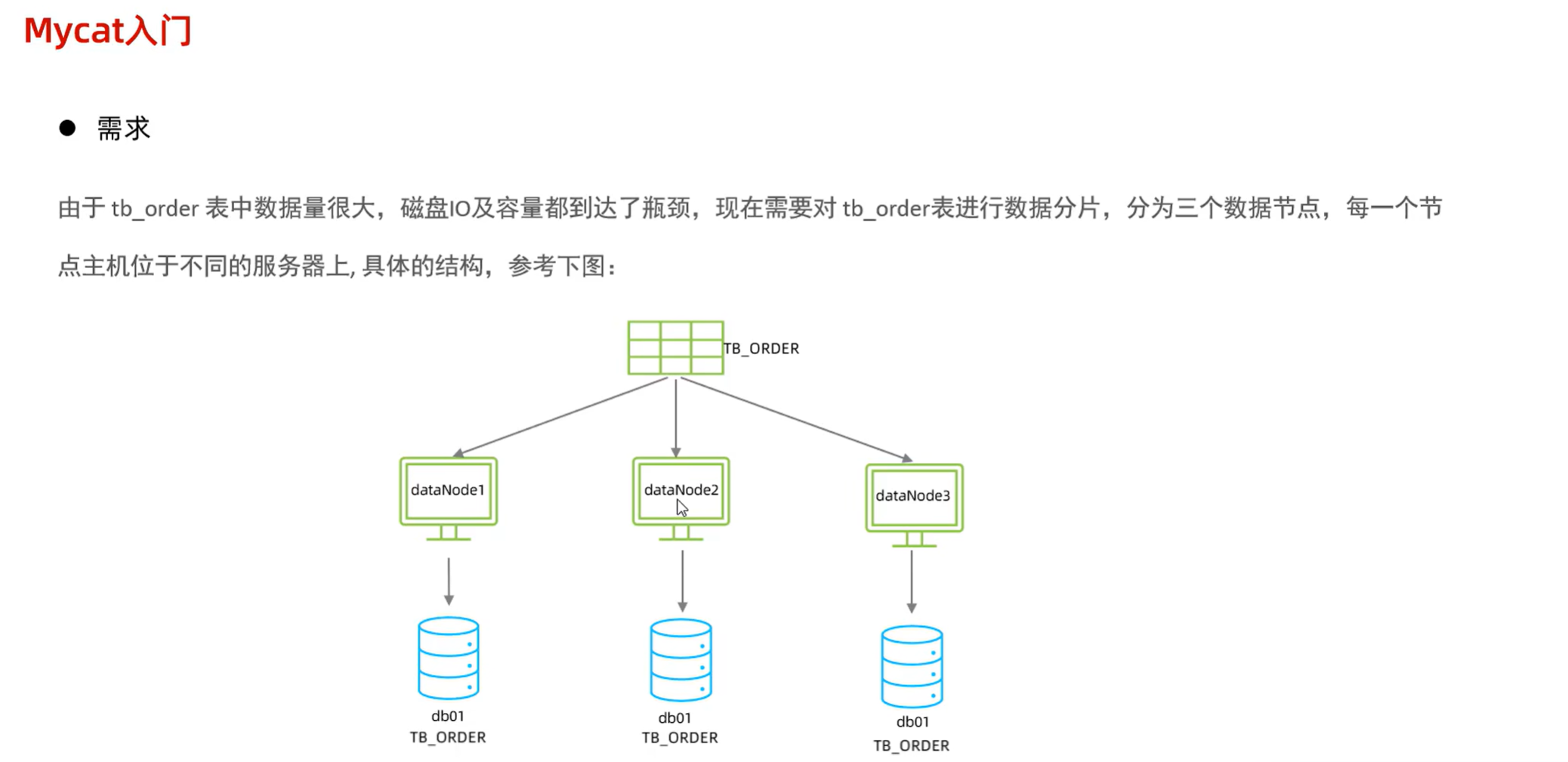

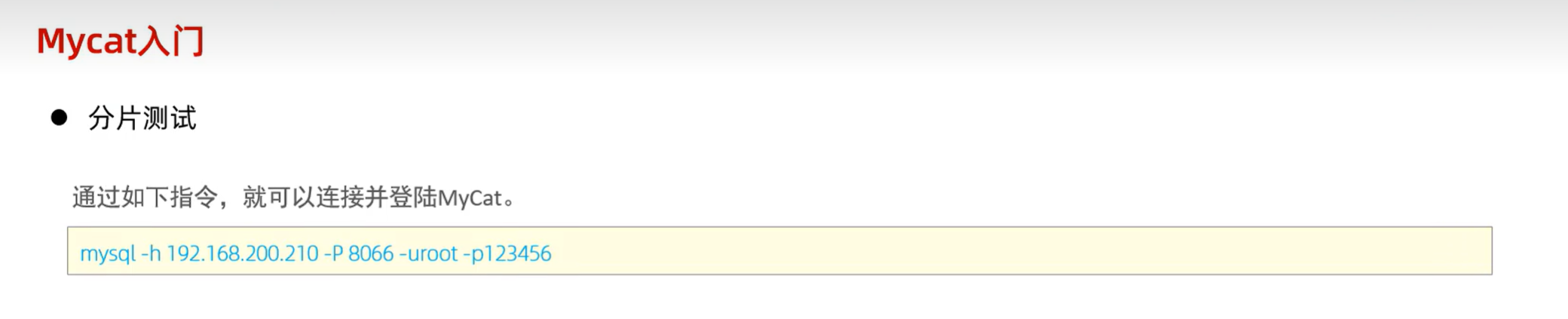

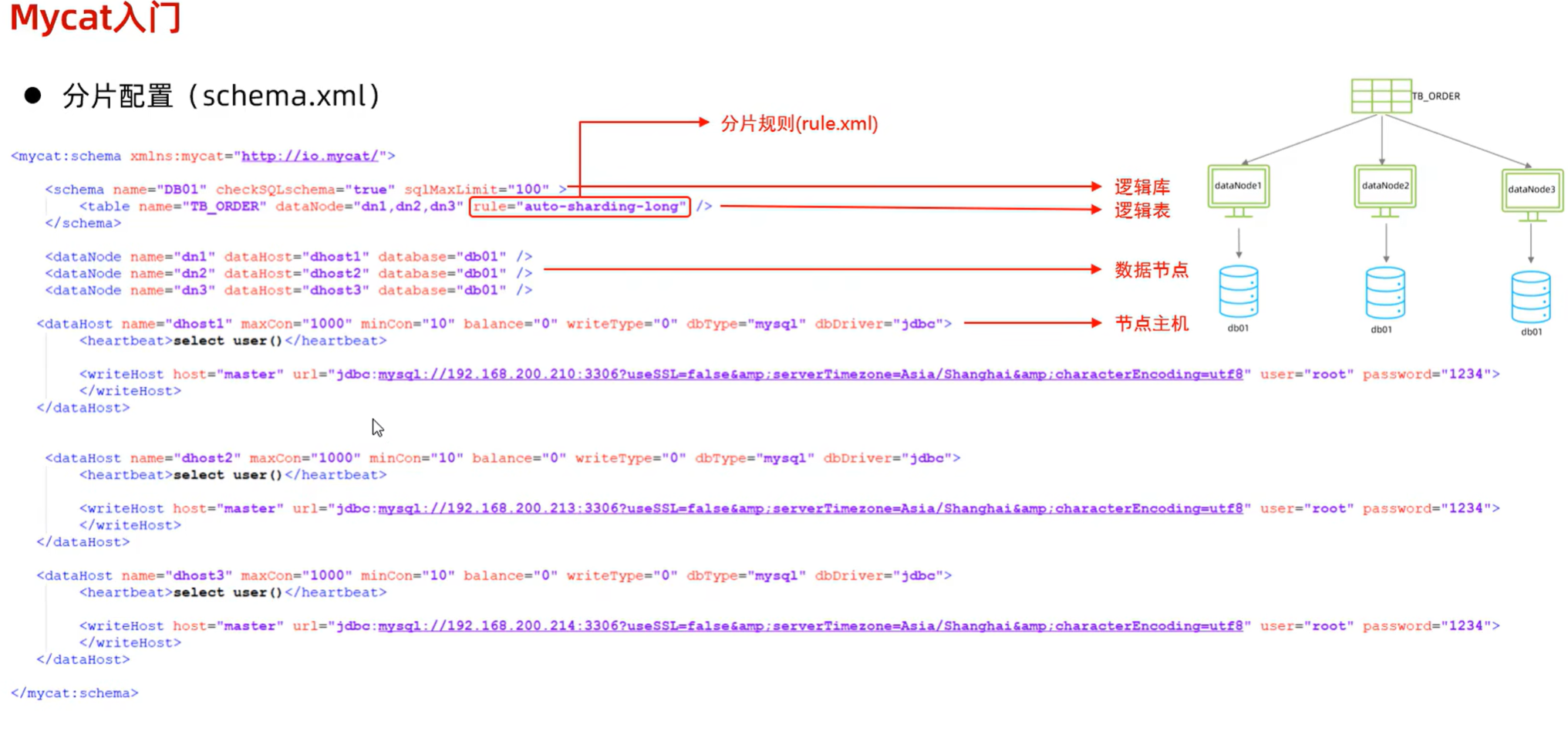

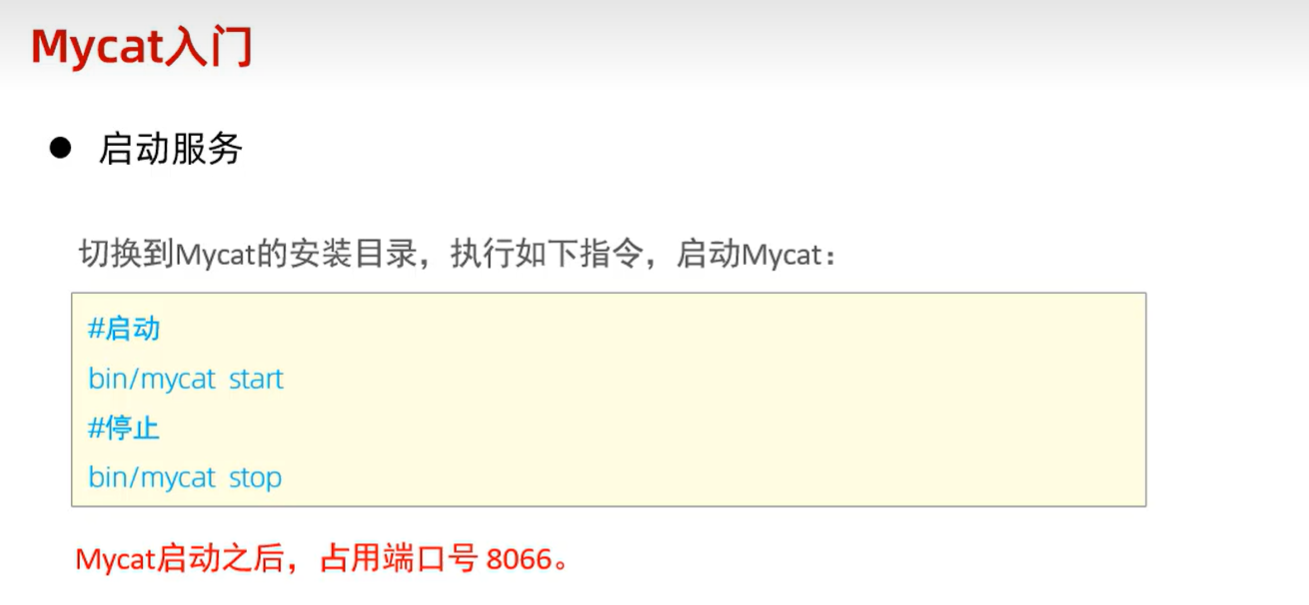

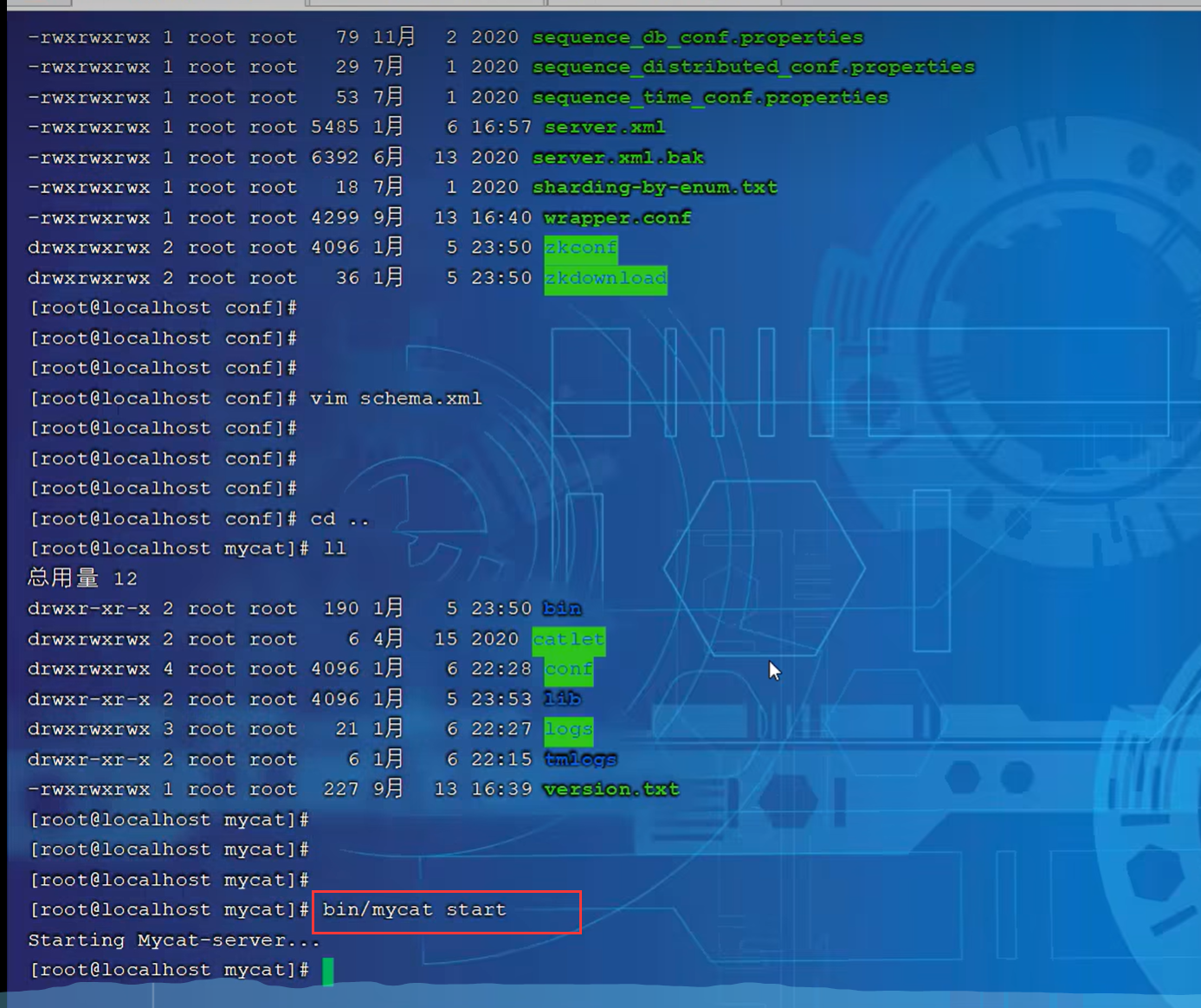

mycat入门：

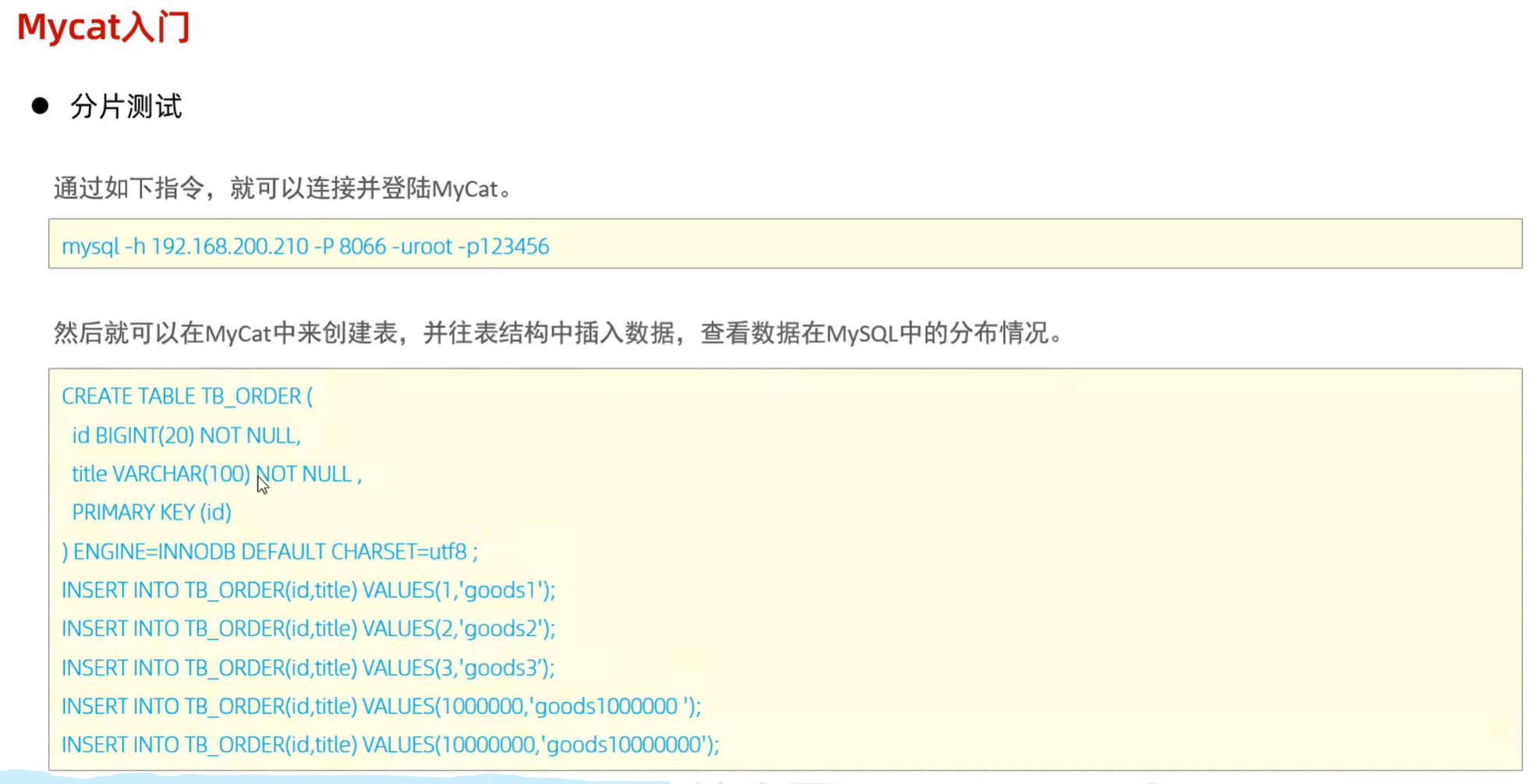

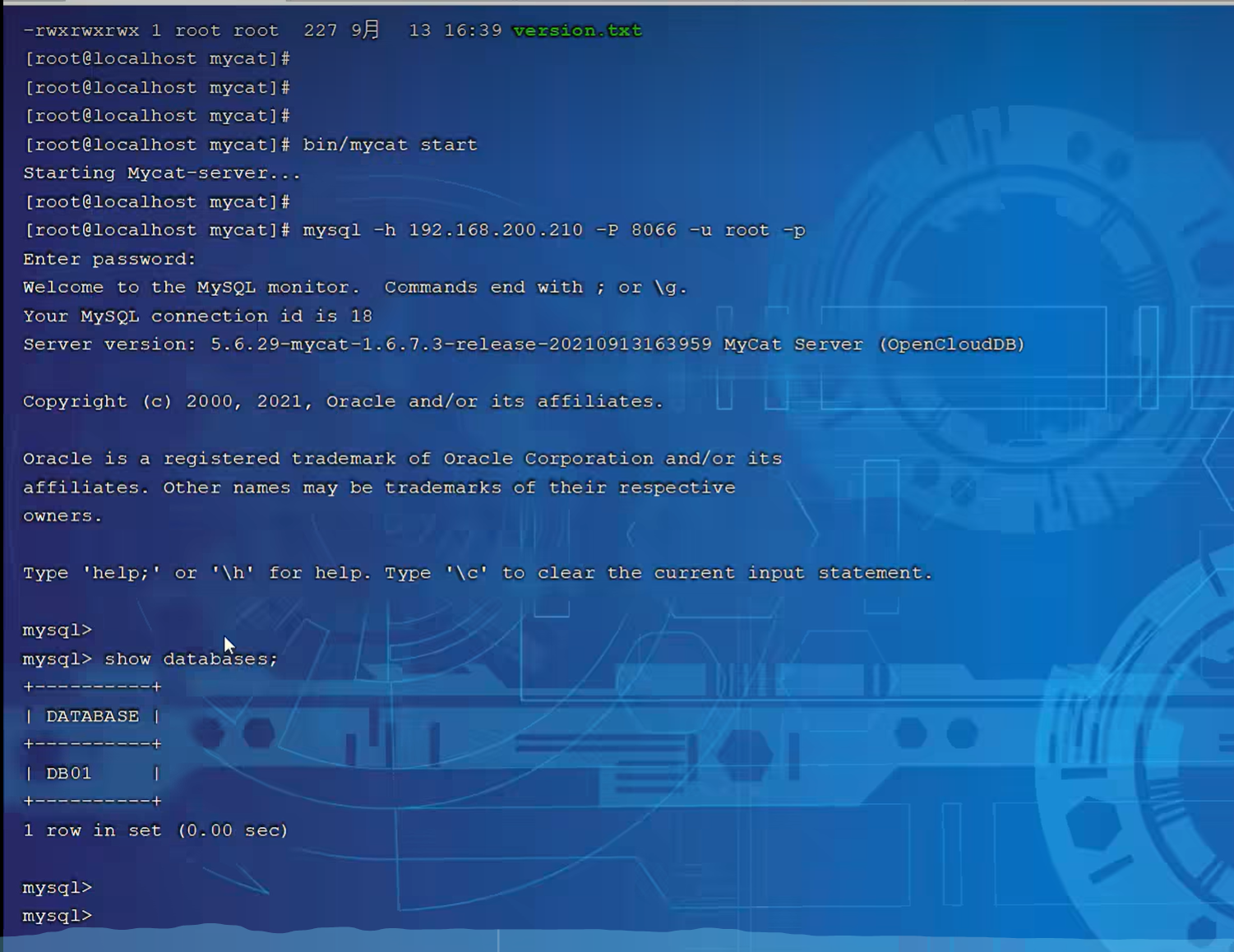

验证测试：

创建表

插入数据，分片

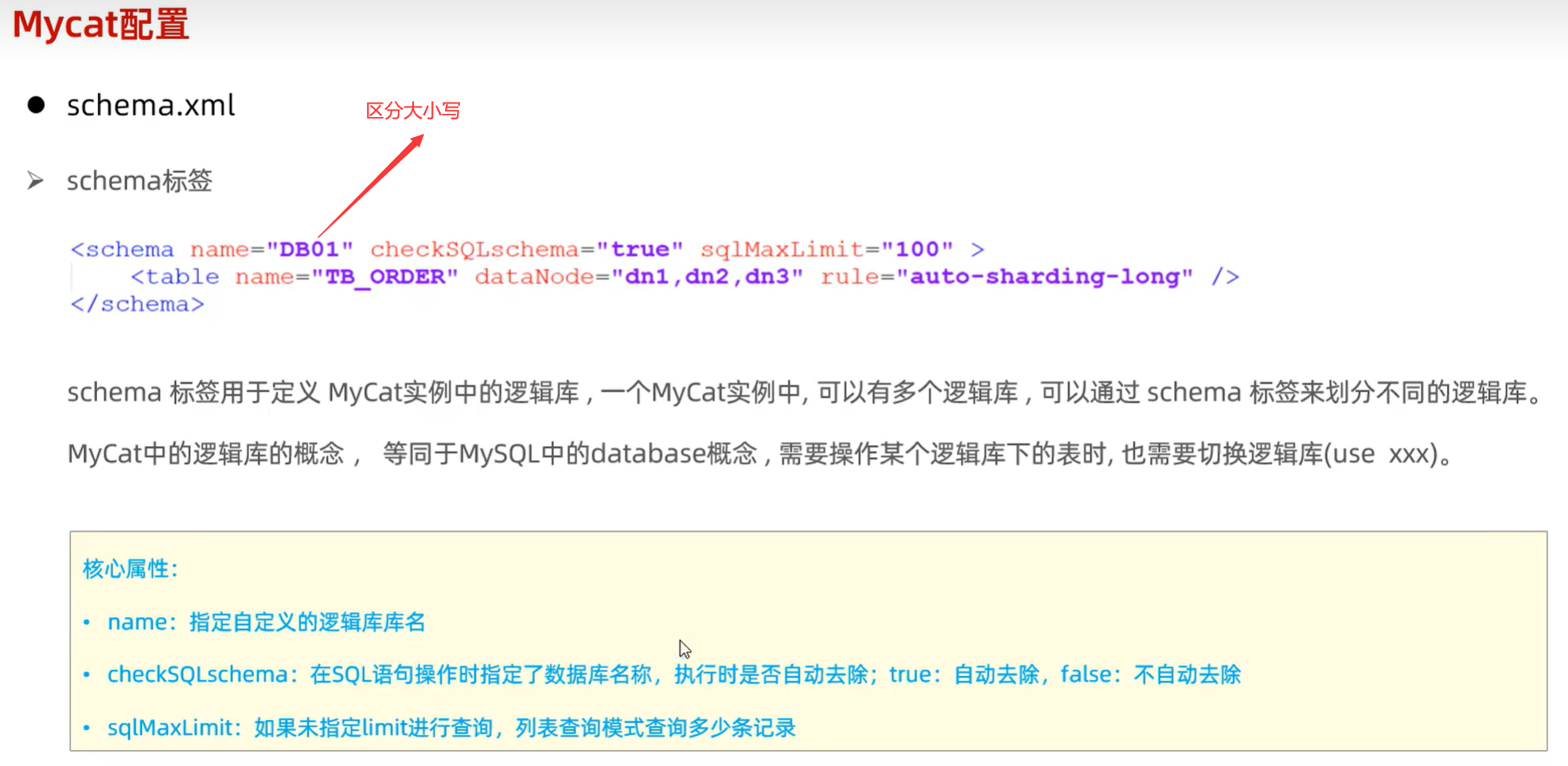

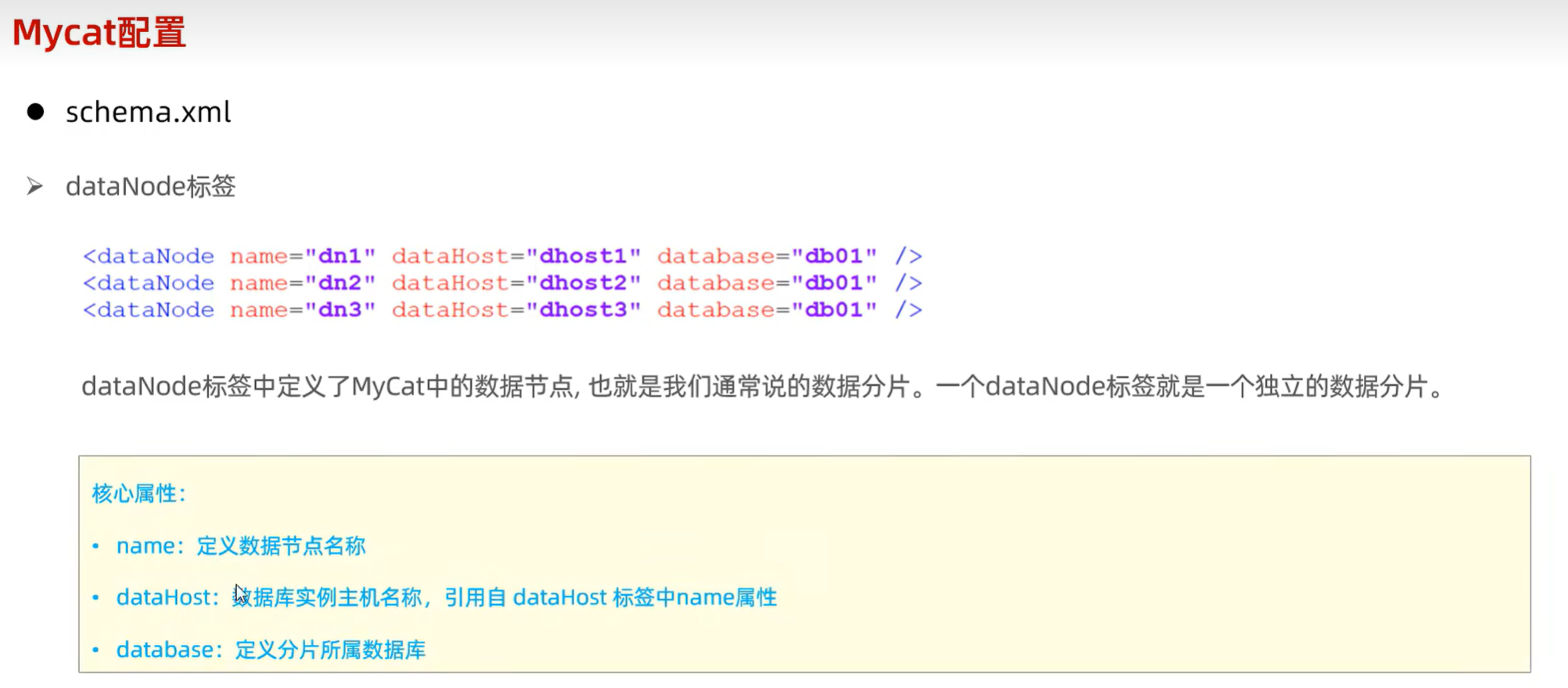

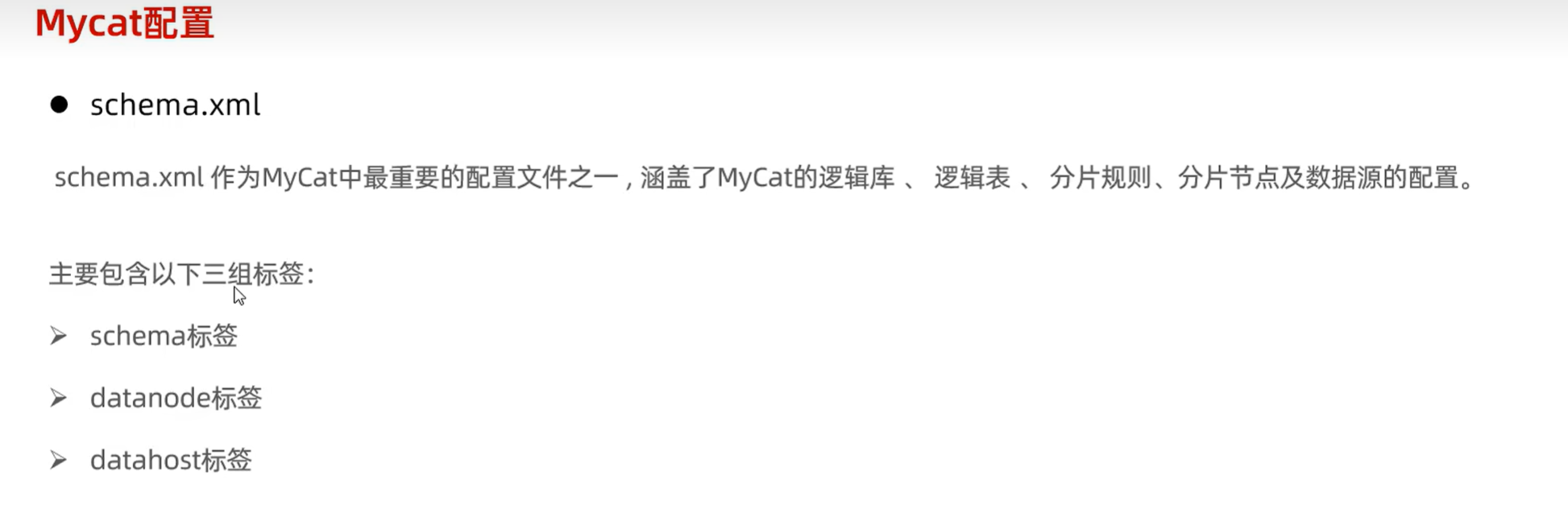

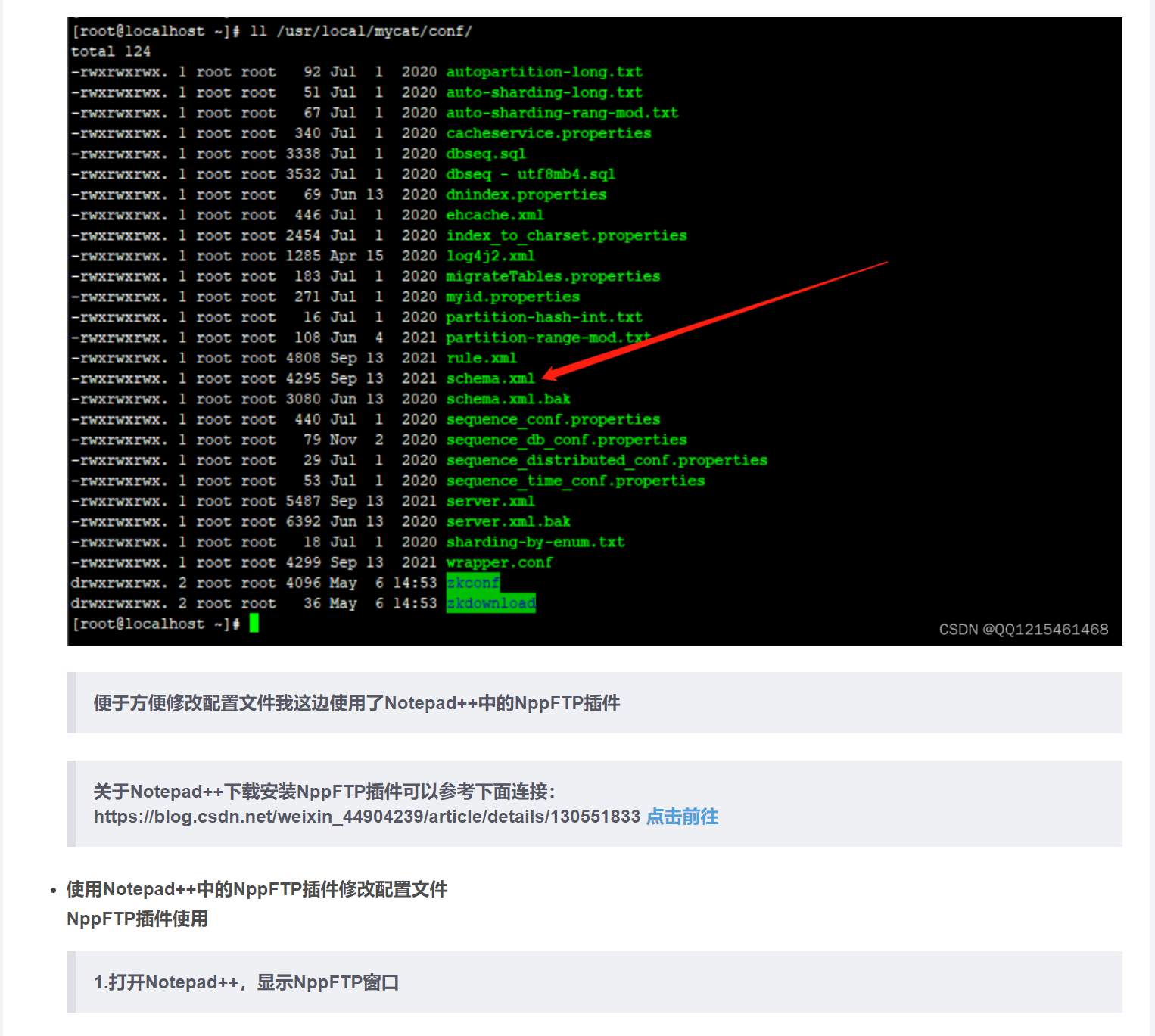

mycat配置：

示例：

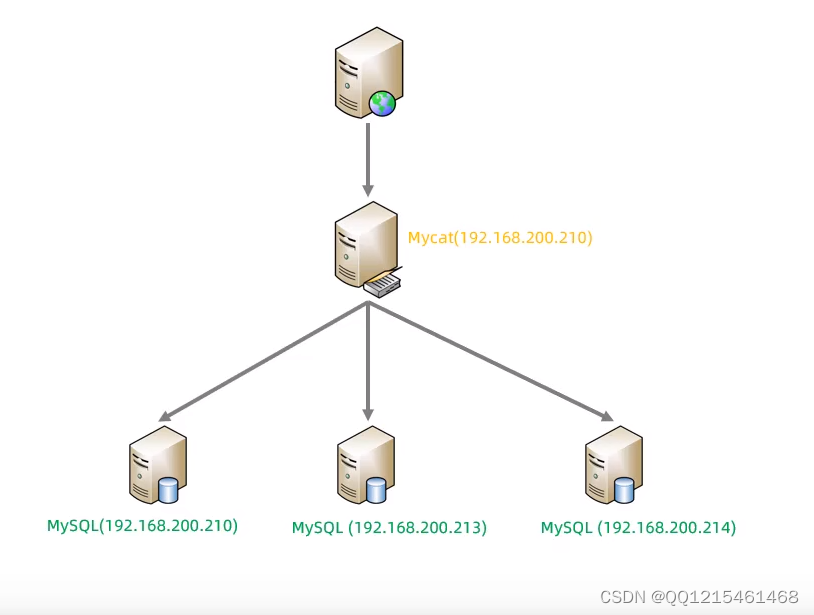

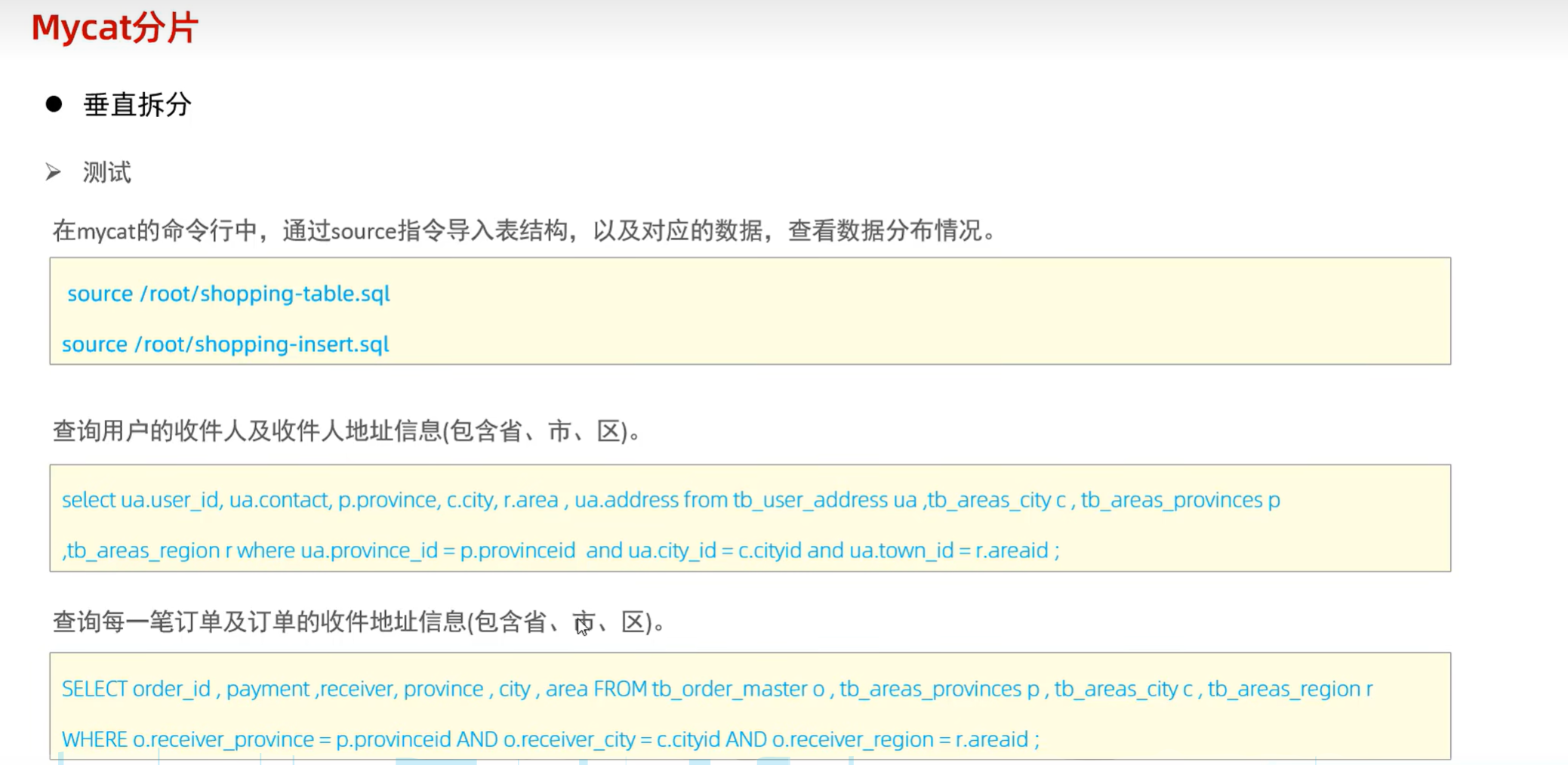

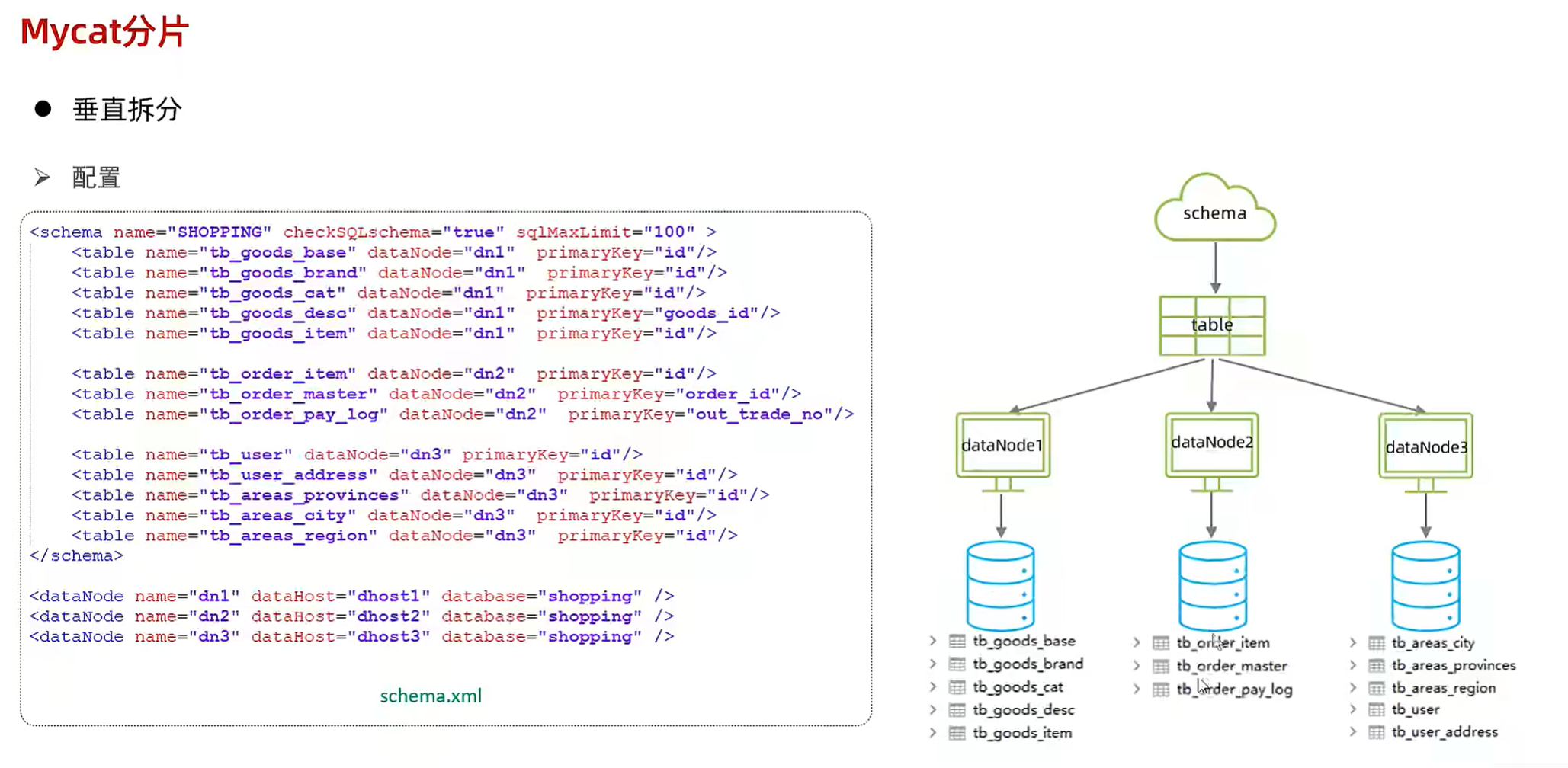

mycat分片——垂直分库：

mycat分片——水平分表：

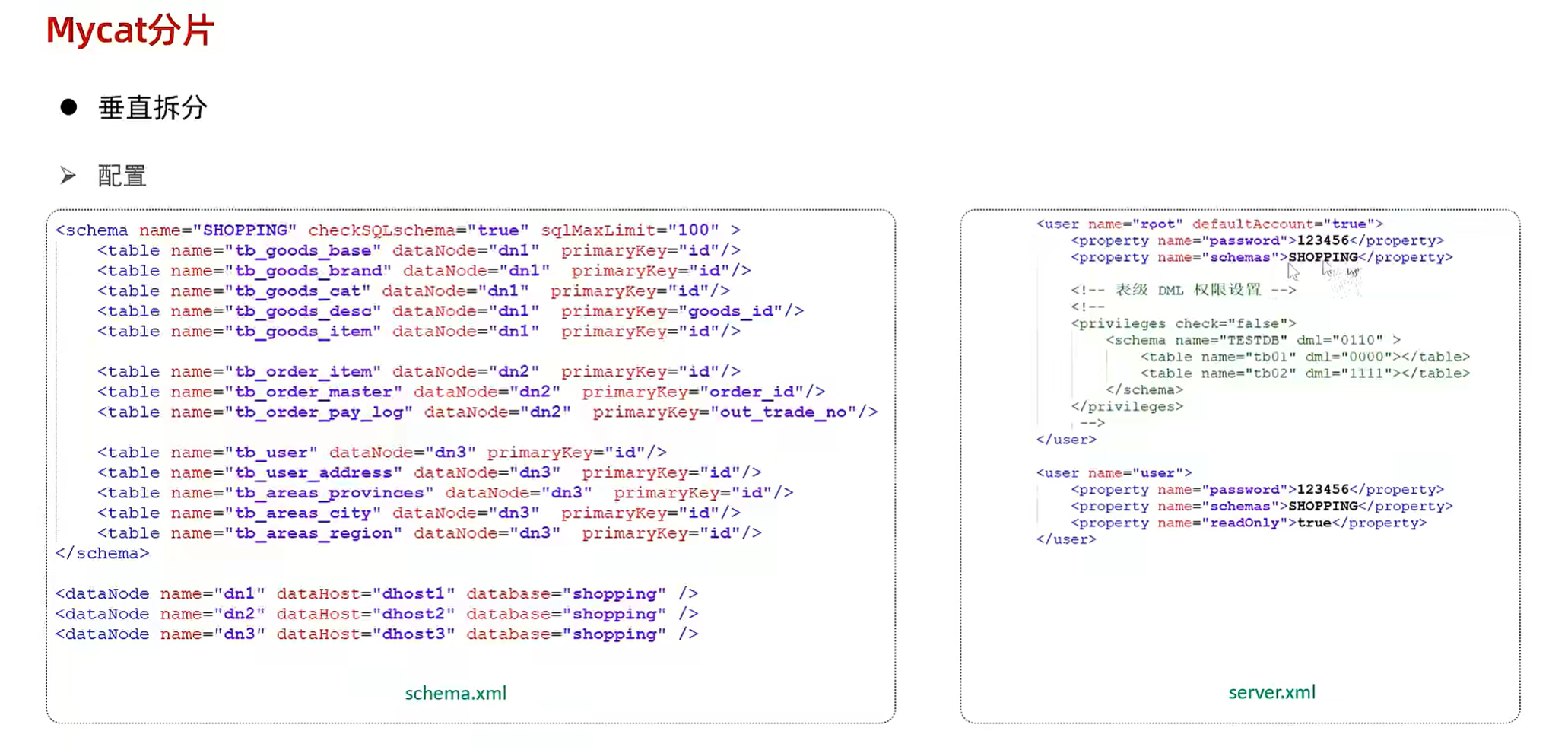

垂直分库的schema.xml文件配置如下：

<?xml version="1.0"?>
<!DOCTYPE mycat:schema SYSTEM "schema.dtd">
<mycat:schema xmlns:mycat="http://io.mycat/">

    <schema name="SHOPPING" checkSQLschema="true" sqlMaxLimit="100">
        <table name="tb_goods_base" dataNode="dn1" primaryKey="id" />
        <table name="tb_goods_brand" dataNode="dn1" primaryKey="id" />
        <table name="tb_goods_cat" dataNode="dn1" primaryKey="id" />
        <table name="tb_goods_desc" dataNode="dn1" primaryKey="id" />
        <table name="tb_goods_item" dataNode="dn1" primaryKey="goods_id" />

        <table name="tb_order_item" dataNode="dn2" primaryKey="id" />
        <table name="tb_order_master" dataNode="dn2" primaryKey="order_id" />
        <table name="tb_order_pay_log" dataNode="dn2" primaryKey="out_trade_no" />

        <table name="tb_user" dataNode="dn3" primaryKey="id" />
        <table name="tb_user_address" dataNode="dn3" primaryKey="id" />
        <table name="tb_areas_provinces" dataNode="dn3" primaryKey="id" />
        <table name="tb_areas_city" dataNode="dn3" primaryKey="id" />
        <table name="tb_areas_region" dataNode="dn3" primaryKey="id" />
    </schema>

    <dataNode name="dn1" dataHost="dhost1" database="shopping" />
    <dataNode name="dn2" dataHost="dhost2" database="shopping" />
    <dataNode name="dn3" dataHost="dhost3" database="shopping" />

    <dataHost name="dhost1" maxCon="1000" minCon="10" balance="0"
              writeType="0" dbType="mysql" dbDriver="jdbc" switchType="1"  slaveThreshold="100">
        <heartbeat>select user()</heartbeat>
        <writeHost host="master" url="jdbc:mysql://192.168.3.248:3306?useSSL=false&amp;serverTimezone=Asia/Shanghai&amp;characterEncoding=utf8" user="root" password="1234" />
    </dataHost>
    <!-- -->
    <dataHost name="dhost2" maxCon="1000" minCon="10" balance="0"
              writeType="0" dbType="mysql" dbDriver="jdbc" switchType="1"  slaveThreshold="100">
        <heartbeat>select user()</heartbeat>
        <writeHost host="master" url="jdbc:mysql://192.168.200.213:3306?useSSL=false&amp;serverTimezone=Asia/Shanghai&amp;characterEncoding=utf8" user="root" password="1234" />
    </dataHost>

    <dataHost name="dhost3" maxCon="1000" minCon="10" balance="0"
              writeType="0" dbType="mysql" dbDriver="jdbc" switchType="1"  slaveThreshold="100">
        <heartbeat>select user()</heartbeat>
        <writeHost host="master" url="jdbc:mysql://192.168.200.214:3306?useSSL=false&amp;serverTimezone=Asia/Shanghai&amp;characterEncoding=utf8" user="root" password="1234" />
    </dataHost>

</mycat:schema>

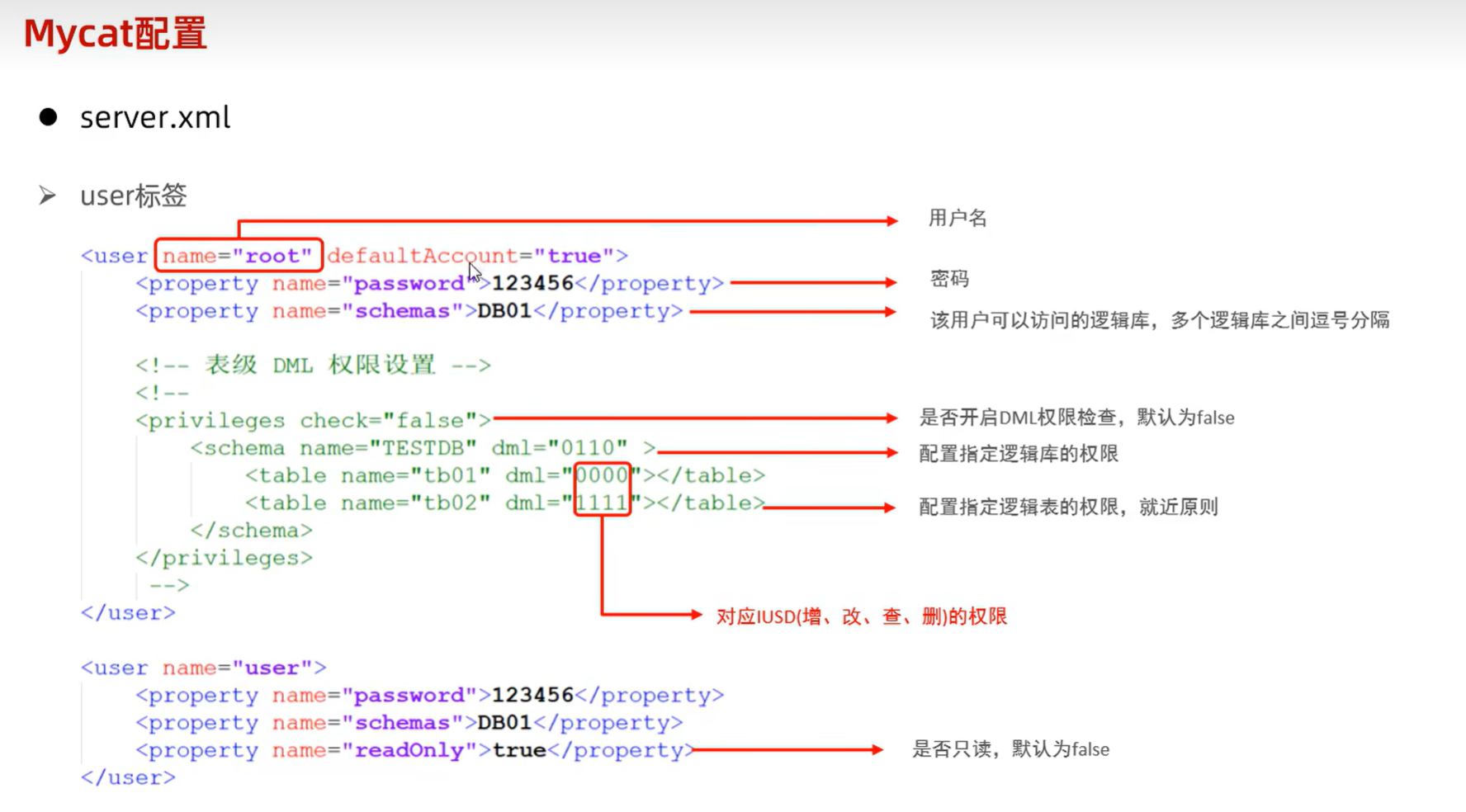

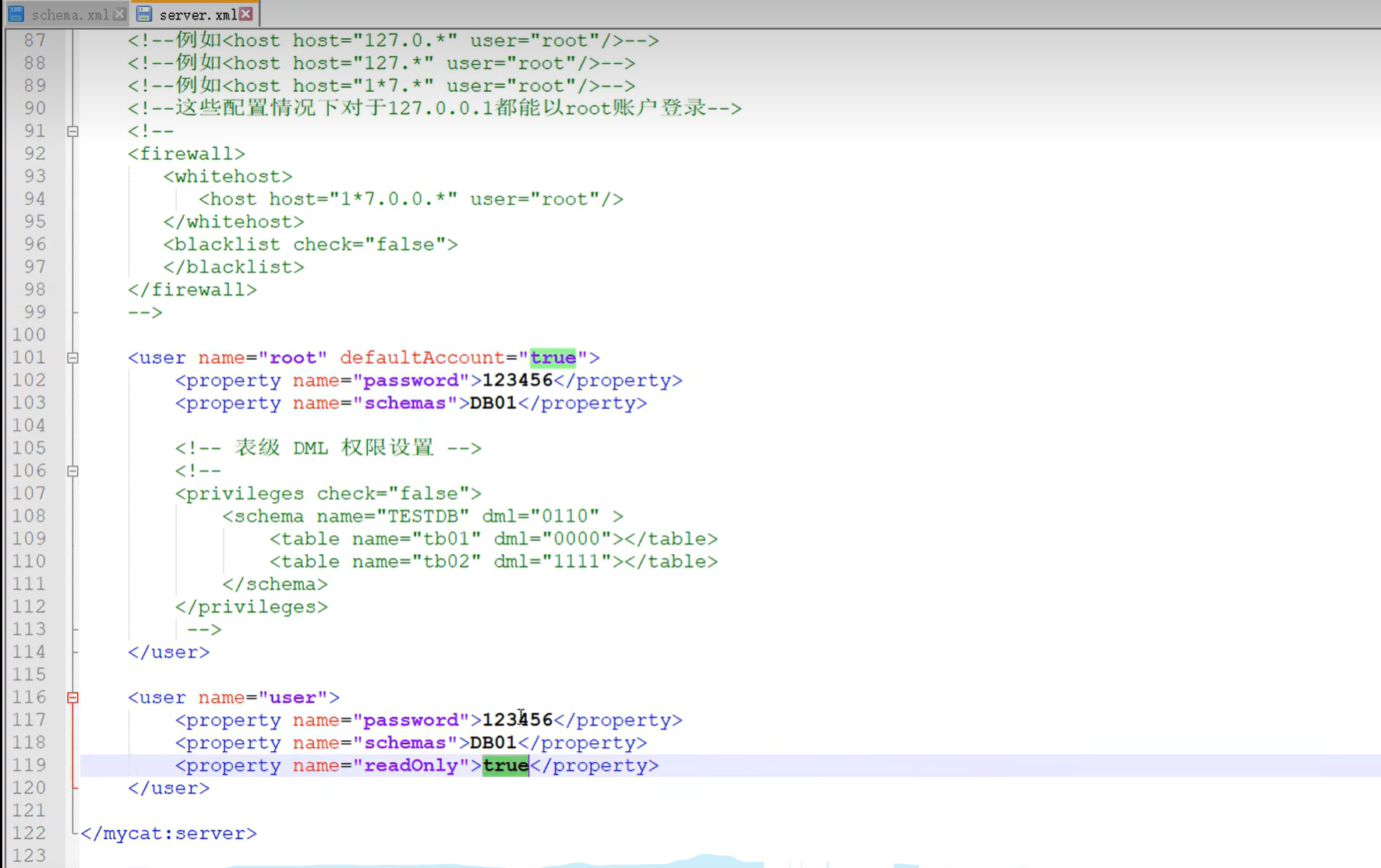

server.xml文件配置如下：

<user name="root" defaultAccount="true">
    <property name="password">123456</property>
    <property name="schemas">SHOPPING</property>

    <!-- 表级 DML 权限设置 -->
    <!--
    <privileges check="false">
        <schema name="TESTDB" dml="0110" >
            <table name="tb01" dml="0000"></table>
            <table name="tb02" dml="1111"></table>
        </schema>
    </privileges>
     -->
</user>

<user name="user">
    <property name="password">123456</property>
    <property name="schemas">SHOPPING</property>
    <property name="readOnly">true</property>
</user>

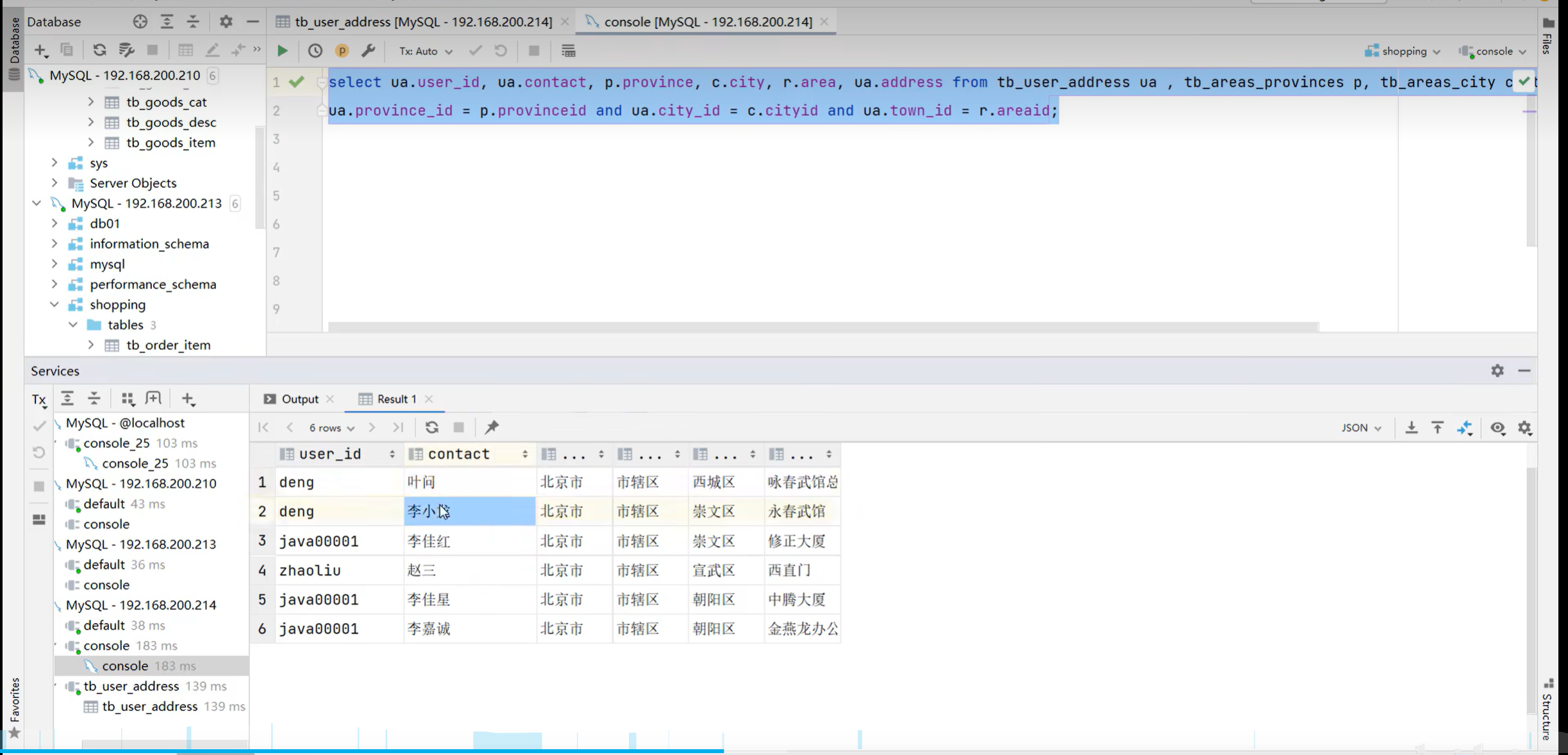

省份表为所有库都存在，则

改MyCat—schema.xml文件配置

schema.xml文件配置如下：

<?xml version="1.0"?>
<!DOCTYPE mycat:schema SYSTEM "schema.dtd">
<mycat:schema xmlns:mycat="http://io.mycat/">

    <schema name="SHOPPING" checkSQLschema="true" sqlMaxLimit="100">

        <table name="tb_goods_base" dataNode="dn1" primaryKey="id" />
        <table name="tb_goods_brand" dataNode="dn1" primaryKey="id" />
        <table name="tb_goods_cat" dataNode="dn1" primaryKey="id" />
        <table name="tb_goods_desc" dataNode="dn1" primaryKey="id" />
        <table name="tb_goods_item" dataNode="dn1" primaryKey="goods_id" />

        <table name="tb_order_item" dataNode="dn2" primaryKey="id" />
        <table name="tb_order_master" dataNode="dn2" primaryKey="order_id" />
        <table name="tb_order_pay_log" dataNode="dn2" primaryKey="out_trade_no" />

        <table name="tb_user" dataNode="dn3" primaryKey="id" />
        <table name="tb_user_address" dataNode="dn3" primaryKey="id" />

        <table name="tb_areas_provinces" dataNode="dn1,dn2,dn3" primaryKey="id" type="global" />
        <table name="tb_areas_city" dataNode="dn1,dn2,dn3" primaryKey="id" type="global" />
        <table name="tb_areas_region" dataNode="dn1,dn2,dn3" primaryKey="id" type="global" />

    </schema>

    <dataNode name="dn1" dataHost="dhost1" database="shopping" />
    <dataNode name="dn2" dataHost="dhost2" database="shopping" />
    <dataNode name="dn3" dataHost="dhost3" database="shopping" />

    <dataHost name="dhost1" maxCon="1000" minCon="10" balance="0"
              writeType="0" dbType="mysql" dbDriver="jdbc" switchType="1"  slaveThreshold="100">
        <heartbeat>select user()</heartbeat>
        <writeHost host="master" url="jdbc:mysql://192.168.3.248:3306?useSSL=false&amp;serverTimezone=Asia/Shanghai&amp;characterEncoding=utf8" user="root" password="1234" />
    </dataHost>
    <!-- -->
    <dataHost name="dhost2" maxCon="1000" minCon="10" balance="0"
              writeType="0" dbType="mysql" dbDriver="jdbc" switchType="1"  slaveThreshold="100">
        <heartbeat>select user()</heartbeat>
        <writeHost host="master" url="jdbc:mysql://192.168.200.213:3306?useSSL=false&amp;serverTimezone=Asia/Shanghai&amp;characterEncoding=utf8" user="root" password="1234" />
    </dataHost>

    <dataHost name="dhost3" maxCon="1000" minCon="10" balance="0"
              writeType="0" dbType="mysql" dbDriver="jdbc" switchType="1"  slaveThreshold="100">
        <heartbeat>select user()</heartbeat>
        <writeHost host="master" url="jdbc:mysql://192.168.200.214:3306?useSSL=false&amp;serverTimezone=Asia/Shanghai&amp;characterEncoding=utf8" user="root" password="1234" />
    </dataHost>

</mycat:schema>

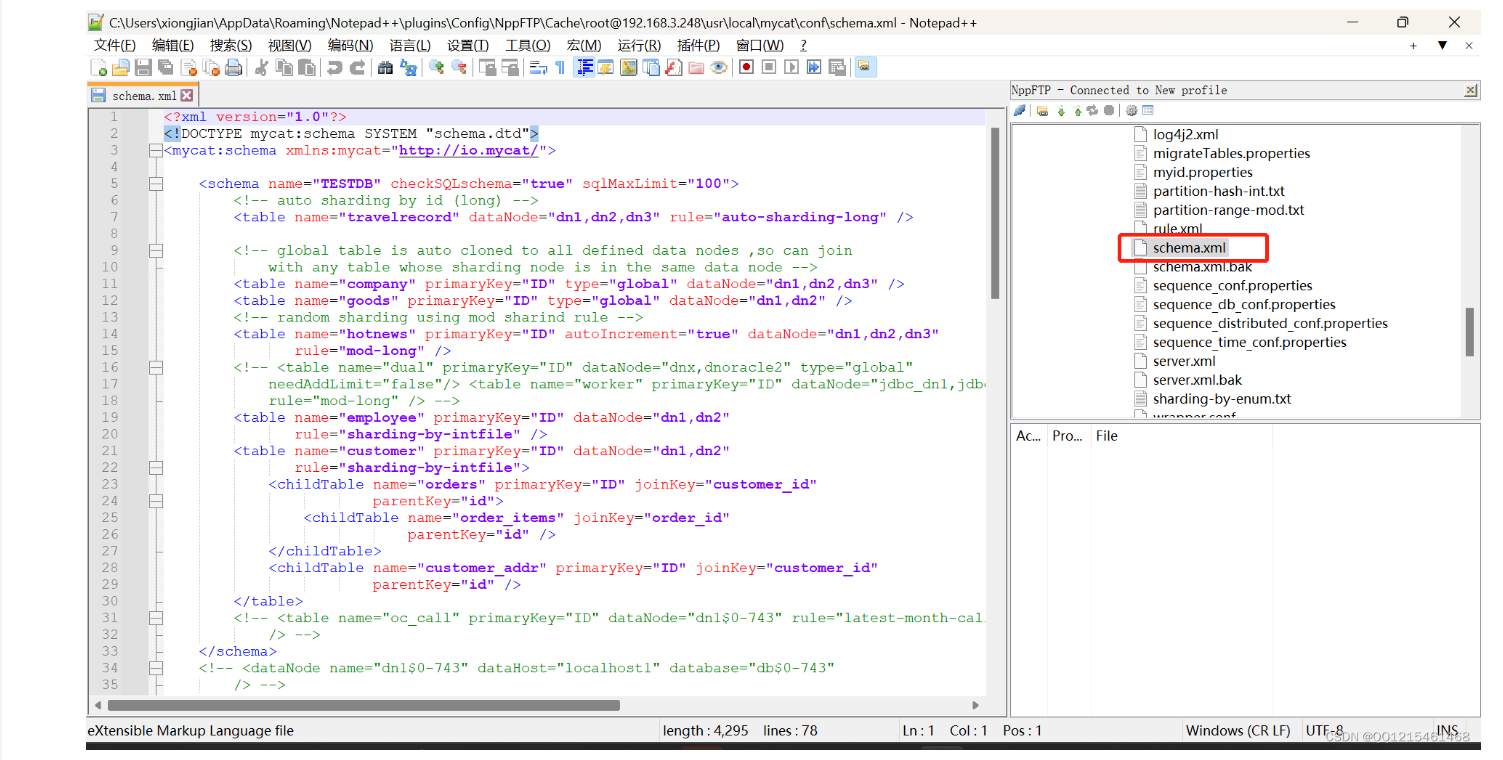

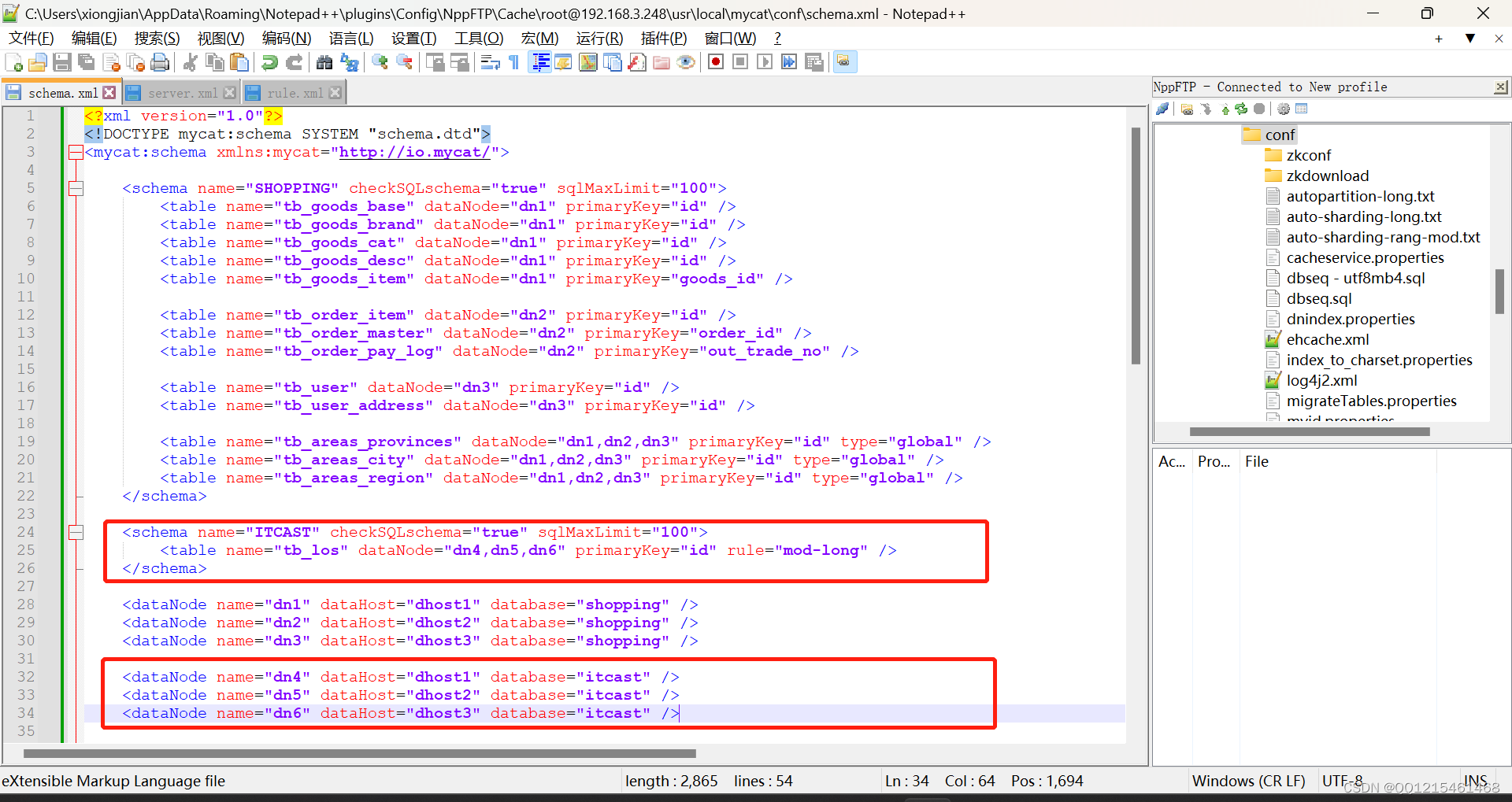

1.MyCat—schema.xml文件配置

schema.xml文件配置如下：（部分主要配置信息展示）

<schema name="ITCAST" checkSQLschema="true" sqlMaxLimit="100">
    <table name="tb_los" dataNode="dn4,dn5,dn6" primaryKey="id" rule="mod-long" />
</schema>

<dataNode name="dn4" dataHost="dhost1" database="itcast" />
<dataNode name="dn5" dataHost="dhost2" database="itcast" />
<dataNode name="dn6" dataHost="dhost3" database="itcast" />

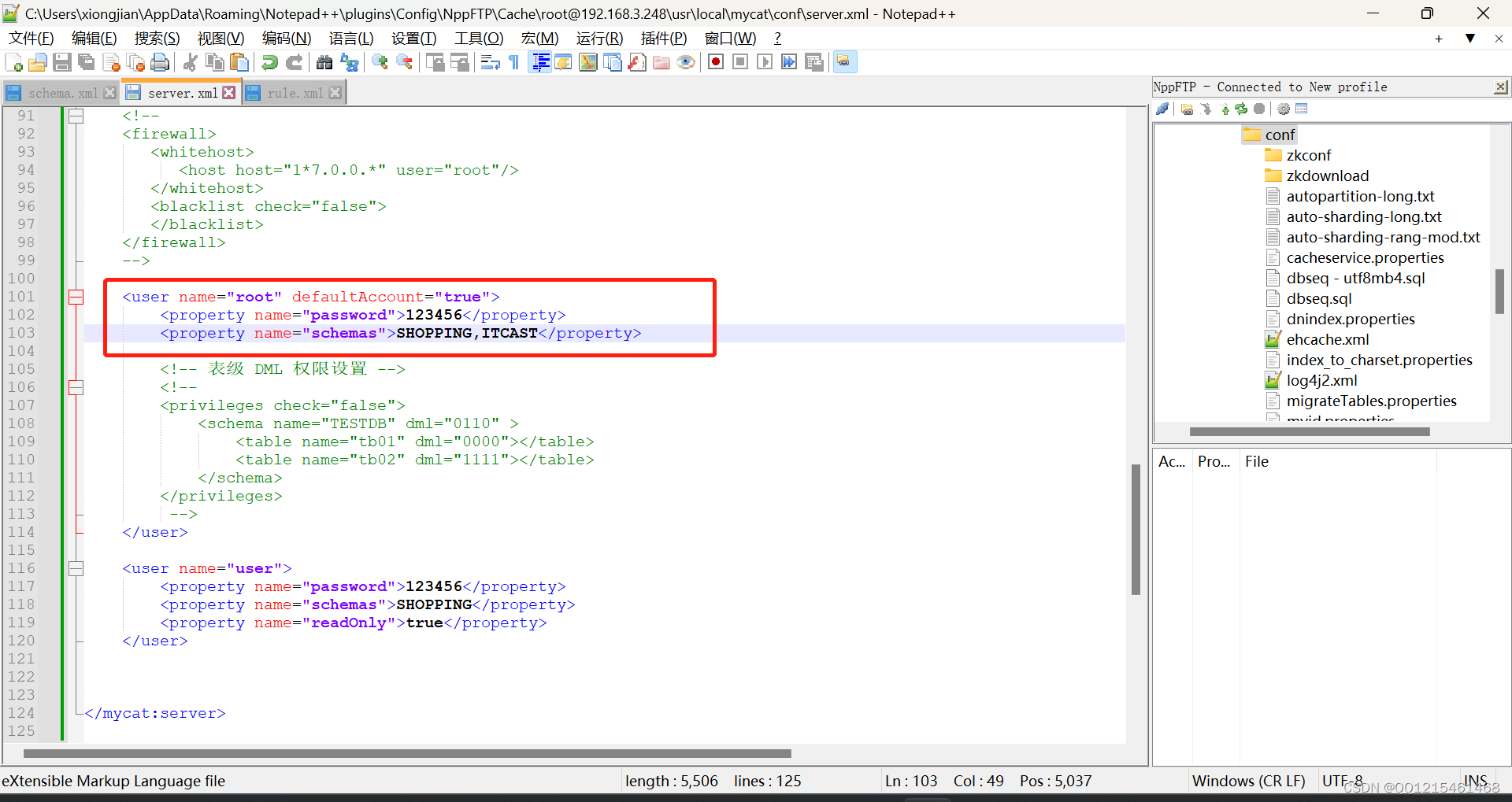

2.MyCat—server.xml文件配置

server.xml文件配置如下：（部分主要配置信息展示）

<user name="root" defaultAccount="true">
    <property name="password">123456</property>
    <property name="schemas">SHOPPING,ITCAST</property>

    <!-- 表级 DML 权限设置 -->
    <!--
    <privileges check="false">
        <schema name="TESTDB" dml="0110" >
            <table name="tb01" dml="0000"></table>
            <table name="tb02" dml="1111"></table>
        </schema>
    </privileges>
     -->
</user>

<user name="user">
    <property name="password">123456</property>
    <property name="schemas">SHOPPING</property>
    <property name="readOnly">true</property>
</user>

csdn：https://blog.csdn.net/weixin_44904239/article/details/130379510
