java——spring boot集成RabbitMQ——如何实现手动ack——topic——路由模式——代码展示

发送方：

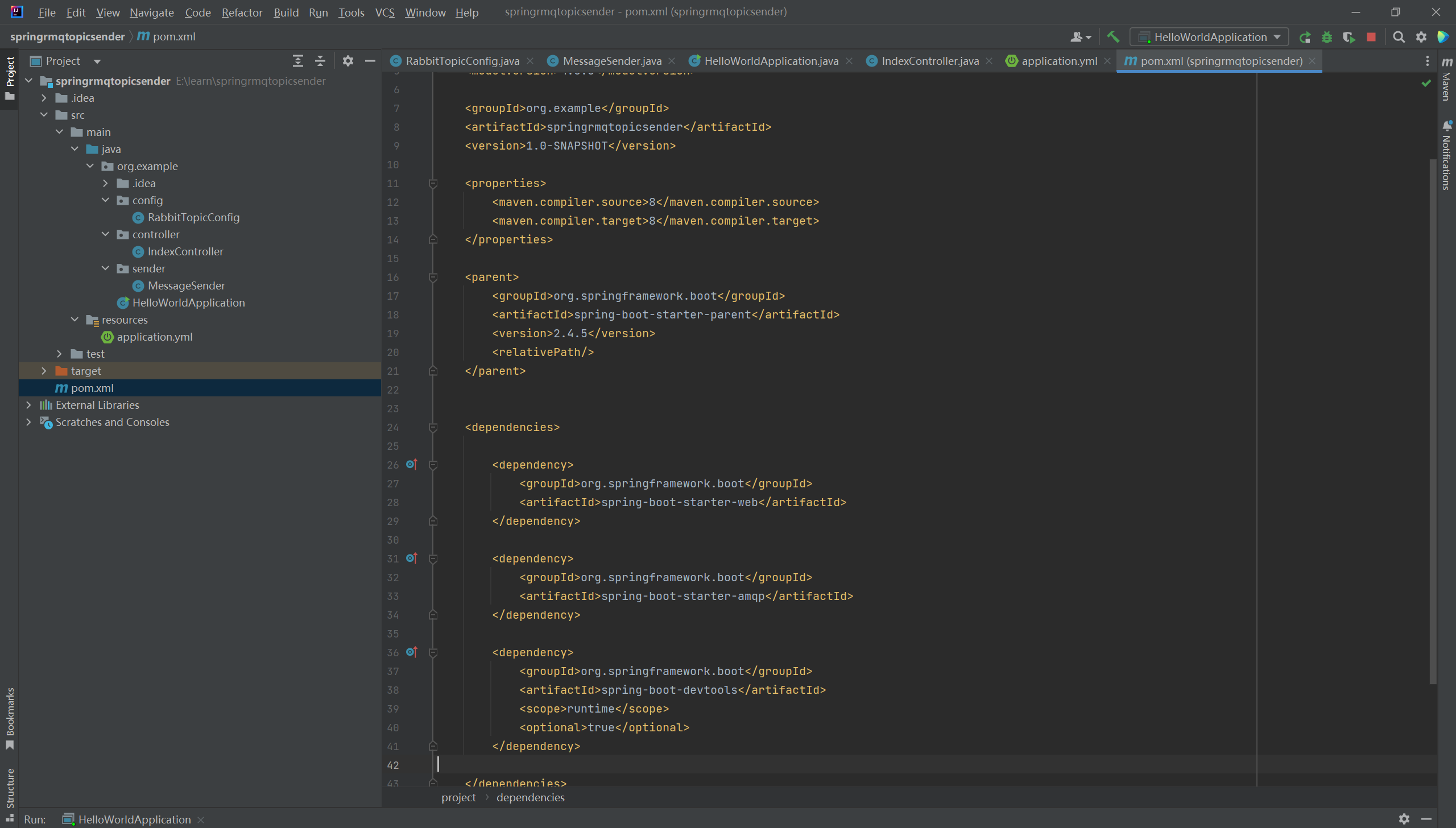

pom文件：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.example</groupId>
    <artifactId>springrmqtopicsender</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.4.5</version>
        <relativePath/>
    </parent>


    <dependencies>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-amqp</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>

    </dependencies>

</project>

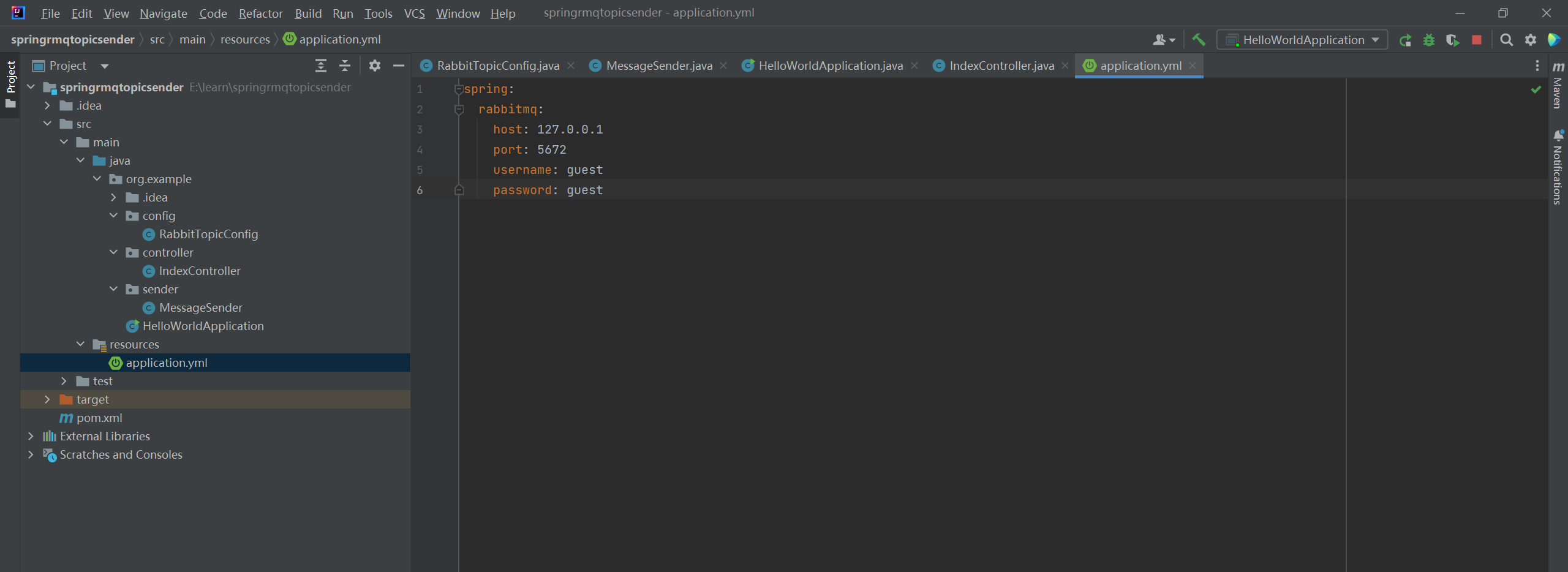

yml配置：

spring:
  rabbitmq:
    host: 127.0.0.1
    port: 5672
    username: guest
    password: guest

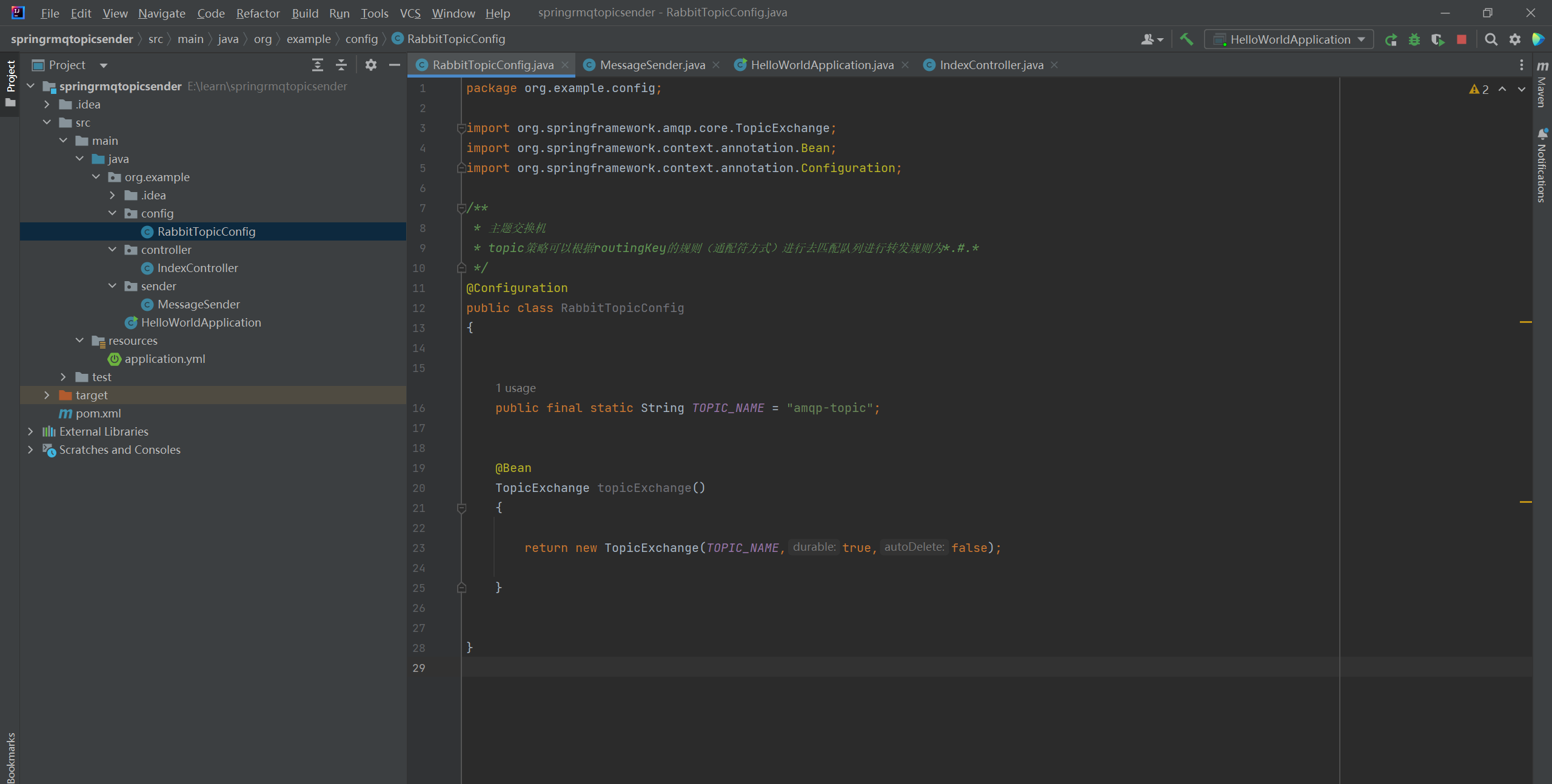

config配置：

package org.example.config;

import org.springframework.amqp.core.TopicExchange;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * 主题交换机
 * topic策略可以根据routingKey的规则（通配符方式）进行去匹配队列进行转发规则为*.#.*
 */
@Configuration
public class RabbitTopicConfig
{


    public final static String TOPIC_NAME = "amqp-topic";


    @Bean
    TopicExchange topicExchange()
    {

        return new TopicExchange(TOPIC_NAME,true,false);

    }


}

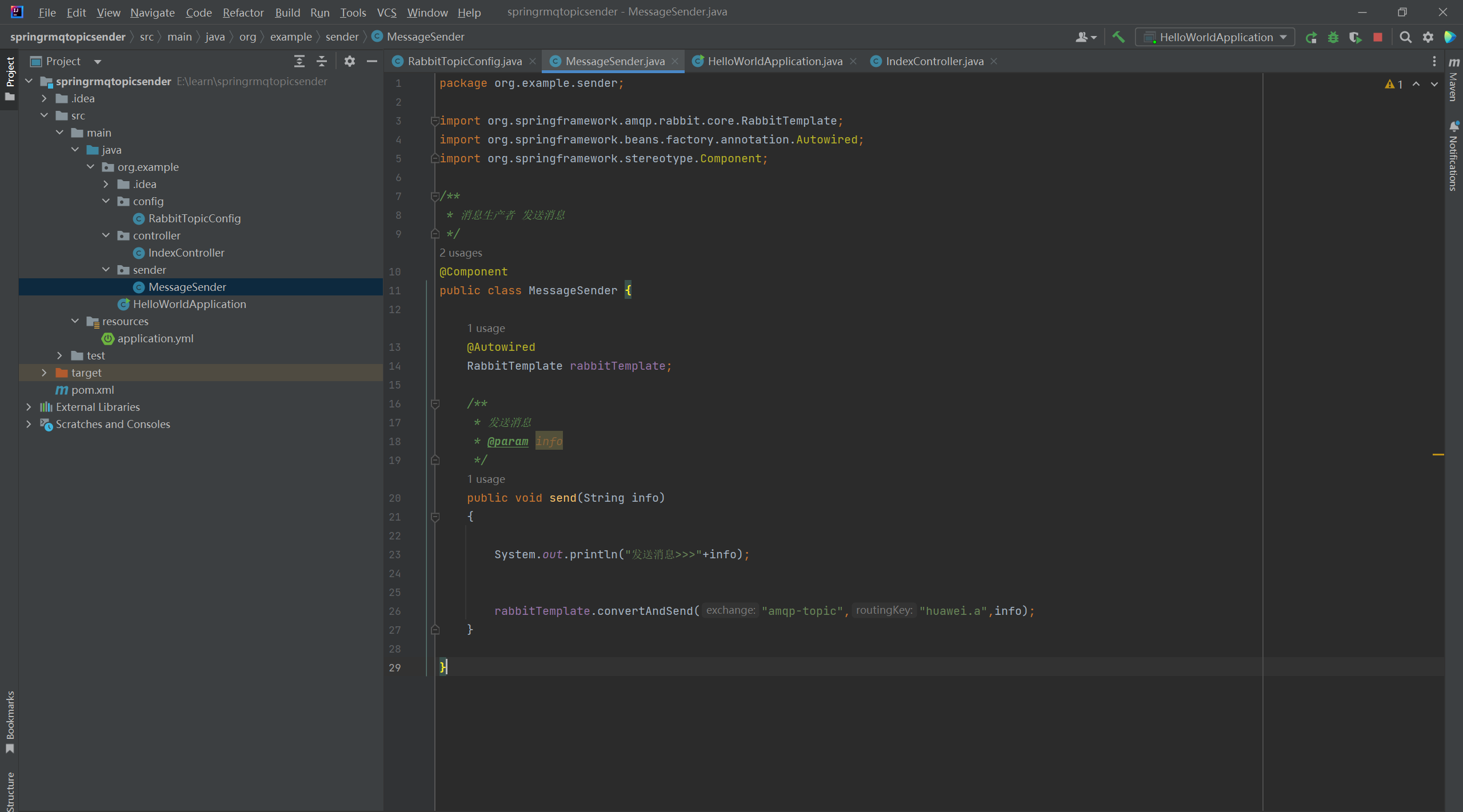

发送代码：

package org.example.sender;

import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

/**
 * 消息生产者 发送消息
 */
@Component
public class MessageSender {

    @Autowired
    RabbitTemplate rabbitTemplate;

    /**
     * 发送消息
     * @param info
     */
    public void send(String info)
    {

        System.out.println("发送消息>>>"+info);


        rabbitTemplate.convertAndSend("amqp-topic","huawei.a",info);
    }

}

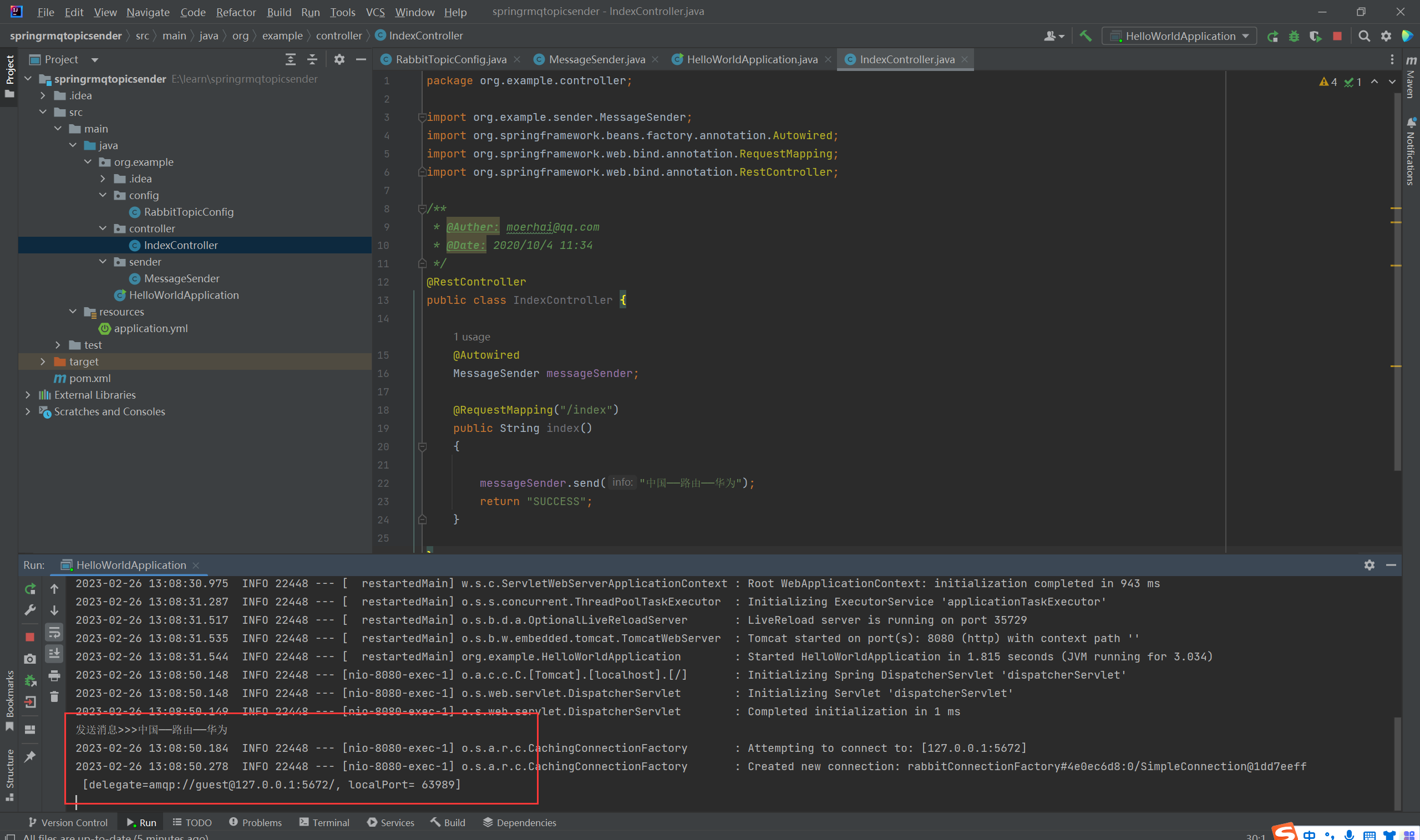

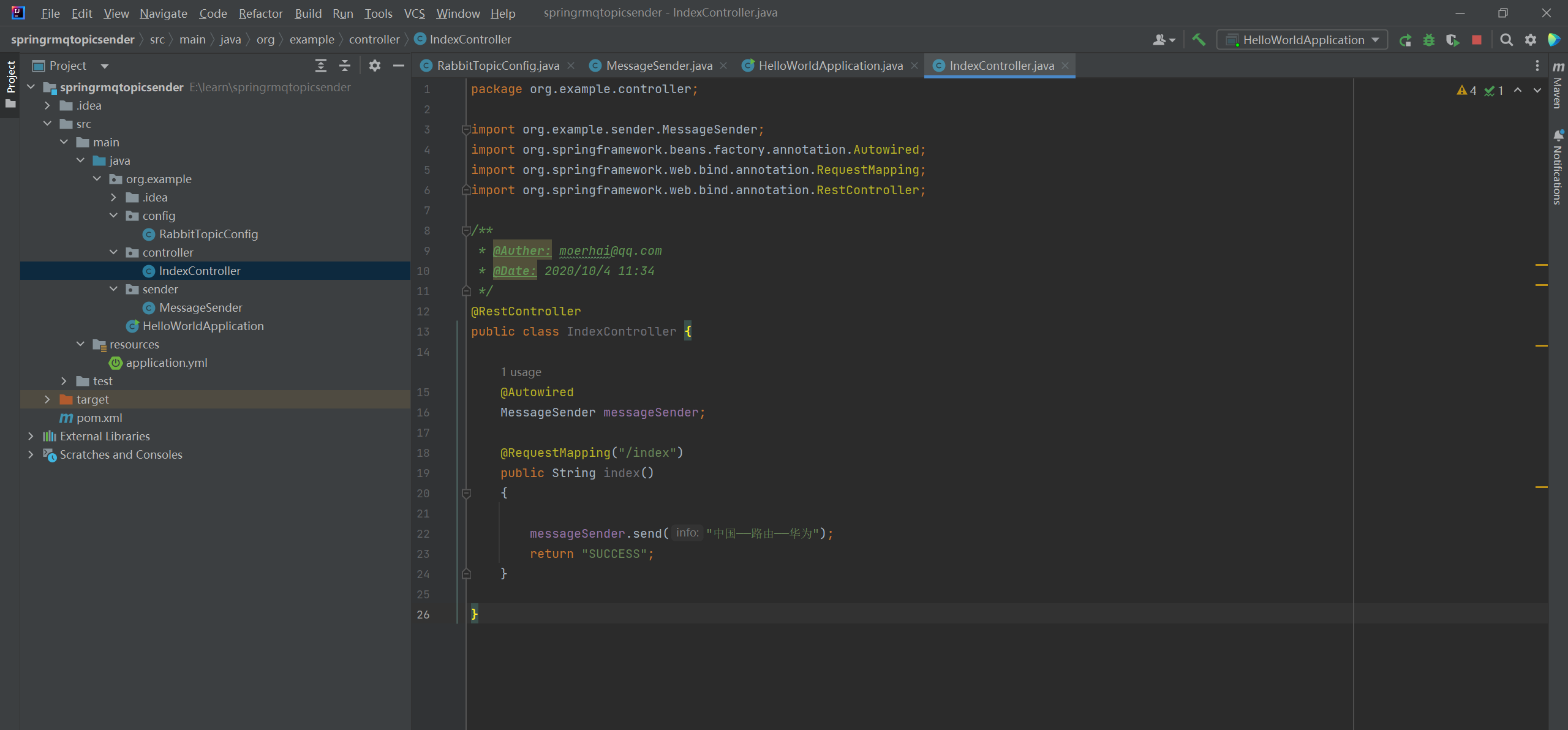

启动服务发送：

package org.example.controller;

import org.example.sender.MessageSender;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @Auther: moerhai@qq.com
 * @Date: 2020/10/4 11:34
 */
@RestController
public class IndexController {

    @Autowired
    MessageSender messageSender;

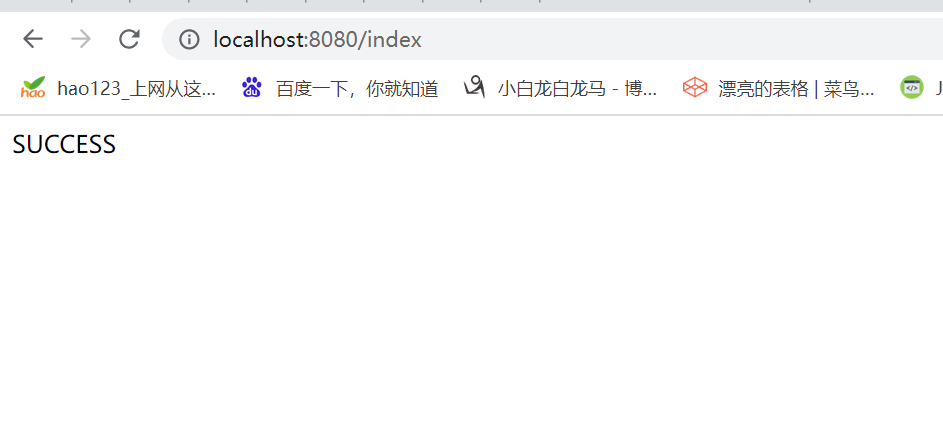

    @RequestMapping("/index")
    public String index()
    {

        messageSender.send("中国——路由——华为");
        return "SUCCESS";
    }

}

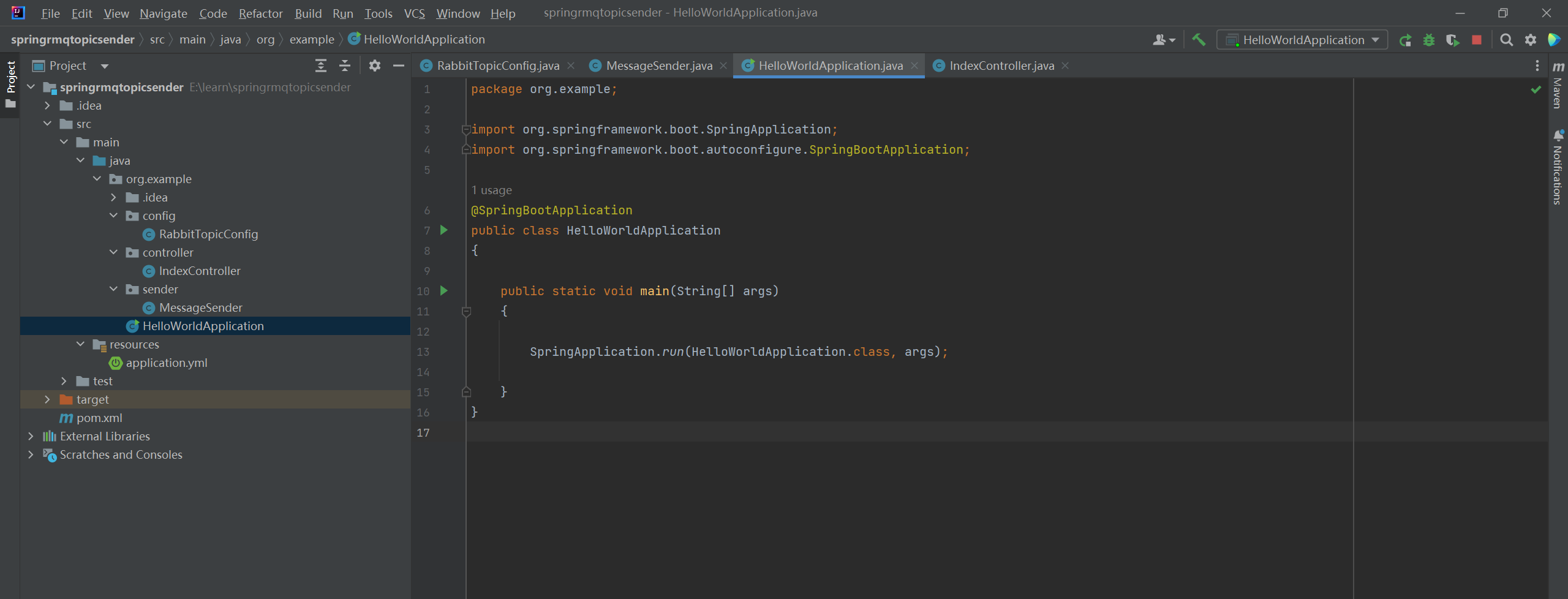

package org.example;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class HelloWorldApplication
{

    public static void main(String[] args)
    {

        SpringApplication.run(HelloWorldApplication.class, args);

    }
}





























































==================================================================



















手动ack：

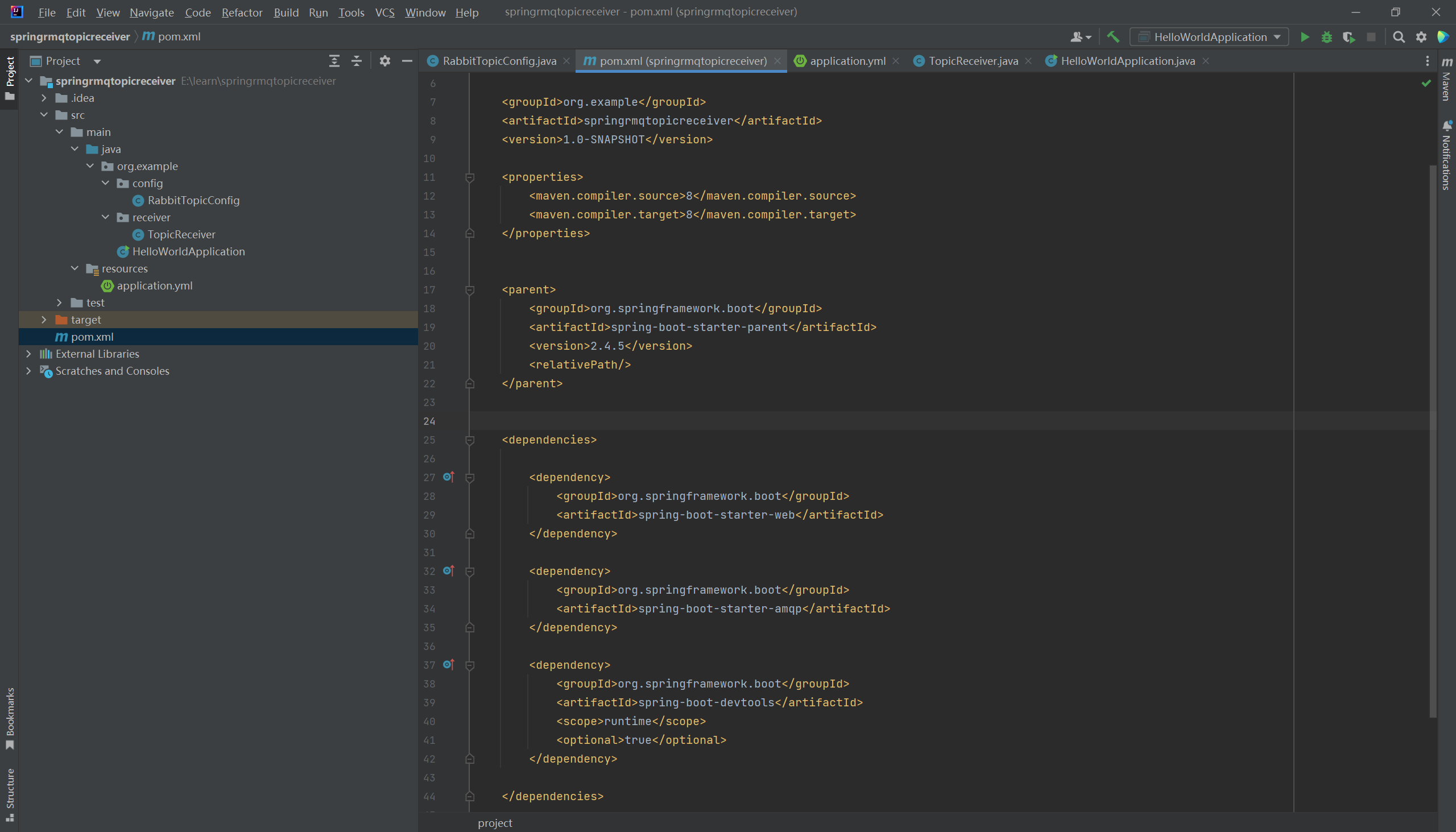

pom文件：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.example</groupId>
    <artifactId>springrmqtopicreceiver</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>


    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.4.5</version>
        <relativePath/>
    </parent>


    <dependencies>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-amqp</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>

    </dependencies>

</project>

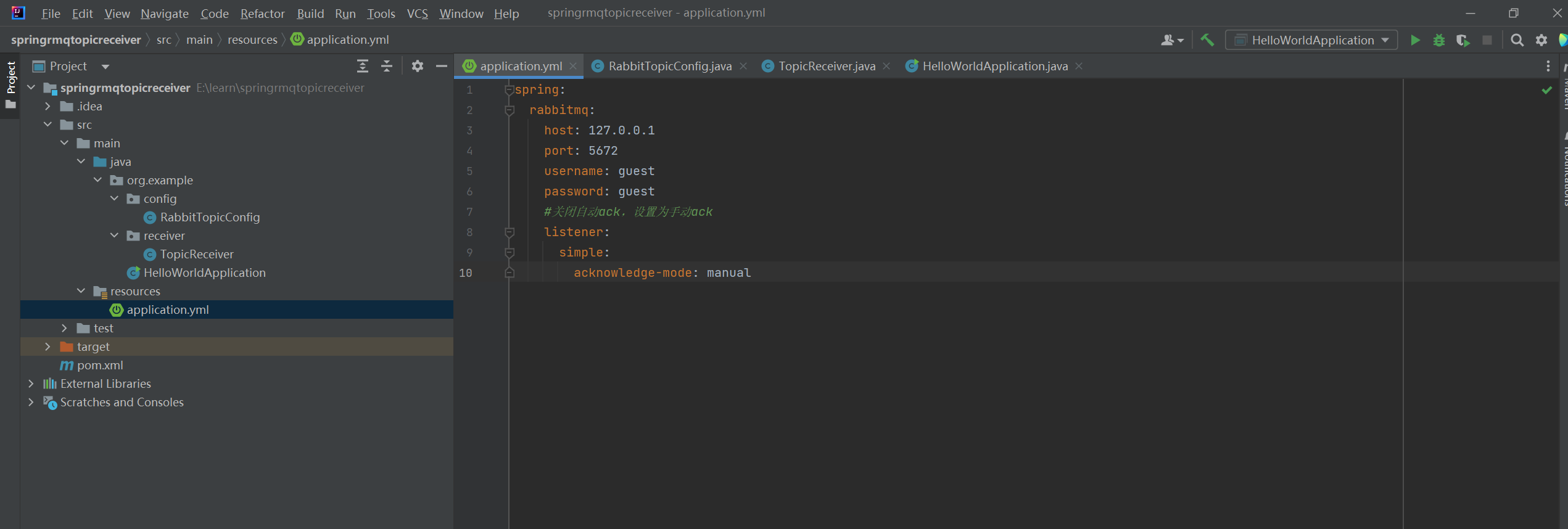

yml文件：

spring:
  rabbitmq:
    host: 127.0.0.1
    port: 5672
    username: guest
    password: guest
    #关闭自动ack，设置为手动ack
    listener:
      simple:
        acknowledge-mode: manual

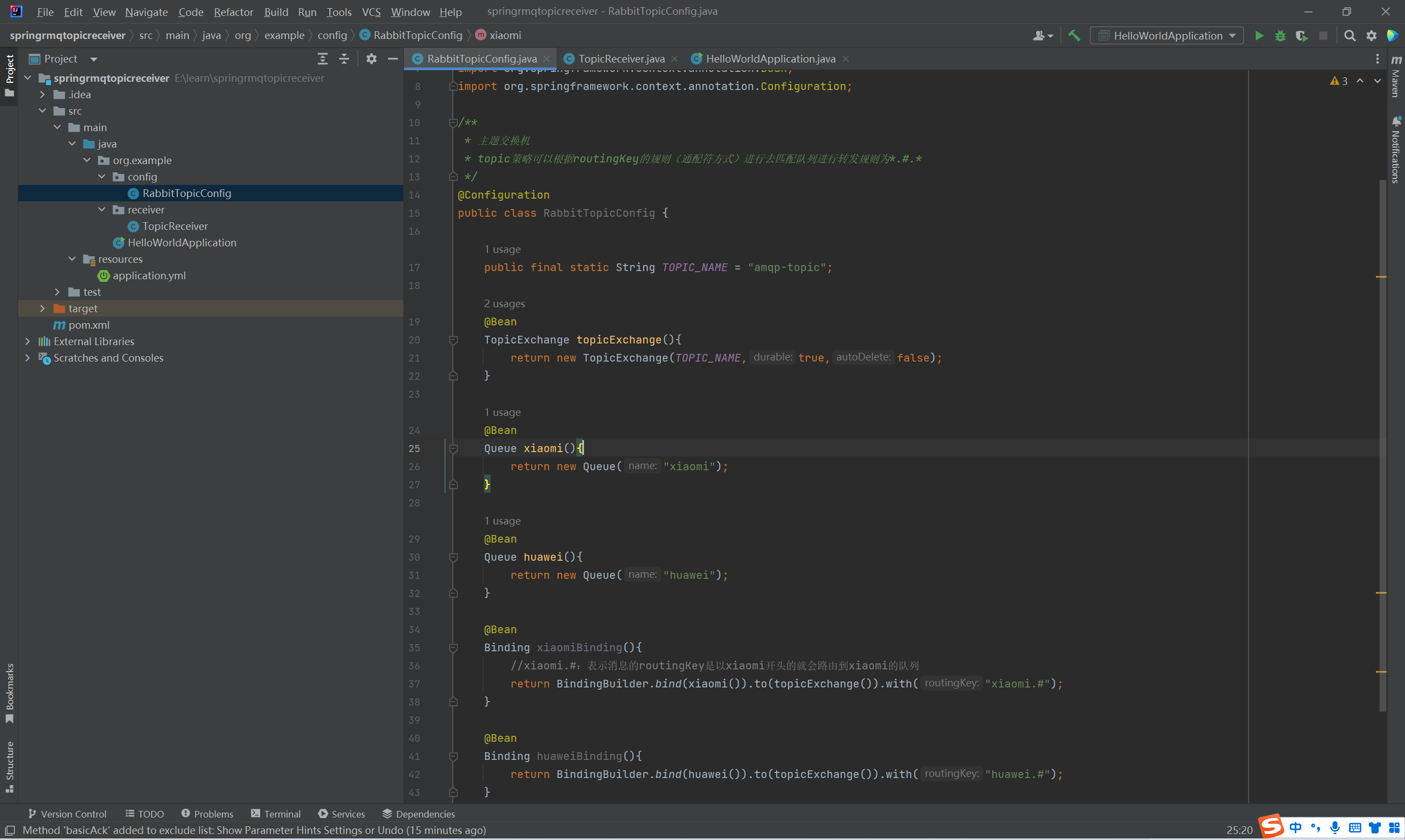

配置文件：

package org.example.config;

import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.Queue;
import org.springframework.amqp.core.TopicExchange;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * 主题交换机
 * topic策略可以根据routingKey的规则（通配符方式）进行去匹配队列进行转发规则为*.#.*
 */
@Configuration
public class RabbitTopicConfig {

    public final static String TOPIC_NAME = "amqp-topic";

    @Bean
    TopicExchange topicExchange(){
        return new TopicExchange(TOPIC_NAME,true,false);
    }

    @Bean
    Queue xiaomi(){
        return new Queue("xiaomi");
    }

    @Bean
    Queue huawei(){
        return new Queue("huawei");
    }

    @Bean
    Binding xiaomiBinding(){
        //xiaomi.#：表示消息的routingKey是以xiaomi开头的就会路由到xiaomi的队列
        return BindingBuilder.bind(xiaomi()).to(topicExchange()).with("xiaomi.#");
    }

    @Bean
    Binding huaweiBinding(){
        return BindingBuilder.bind(huawei()).to(topicExchange()).with("huawei.#");
    }
}

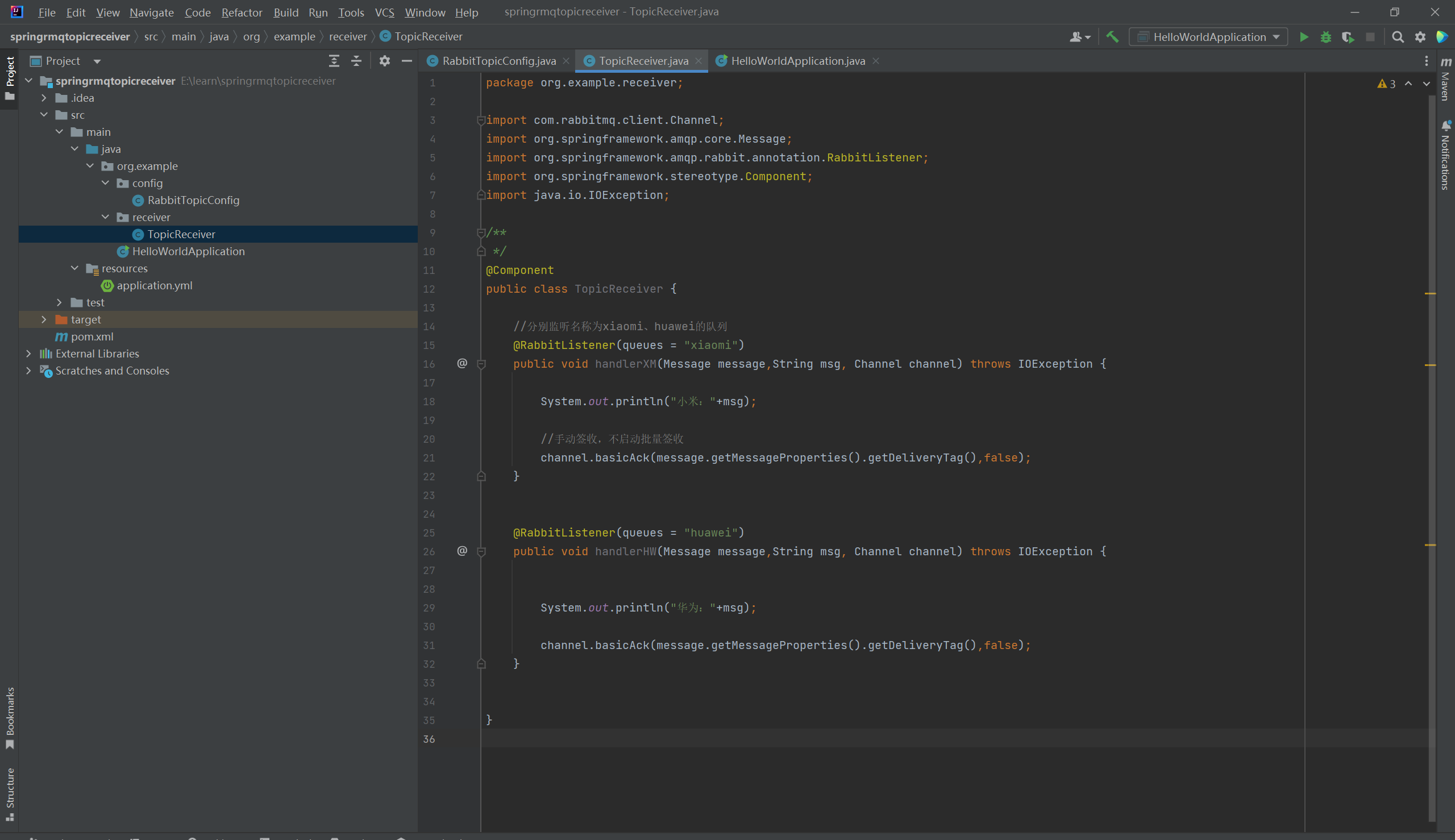

接收信息，并手动签收：

package org.example.receiver;

import com.rabbitmq.client.Channel;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
import java.io.IOException;

/**
 */
@Component
public class TopicReceiver {

    //分别监听名称为xiaomi、huawei的队列
    @RabbitListener(queues = "xiaomi")
    public void handlerXM(Message message,String msg, Channel channel) throws IOException {

        System.out.println("小米："+msg);

        //手动签收，不启动批量签收
        channel.basicAck(message.getMessageProperties().getDeliveryTag(),false);
    }


    @RabbitListener(queues = "huawei")
    public void handlerHW(Message message,String msg, Channel channel) throws IOException {


        System.out.println("华为："+msg);

        channel.basicAck(message.getMessageProperties().getDeliveryTag(),false);
    }


}

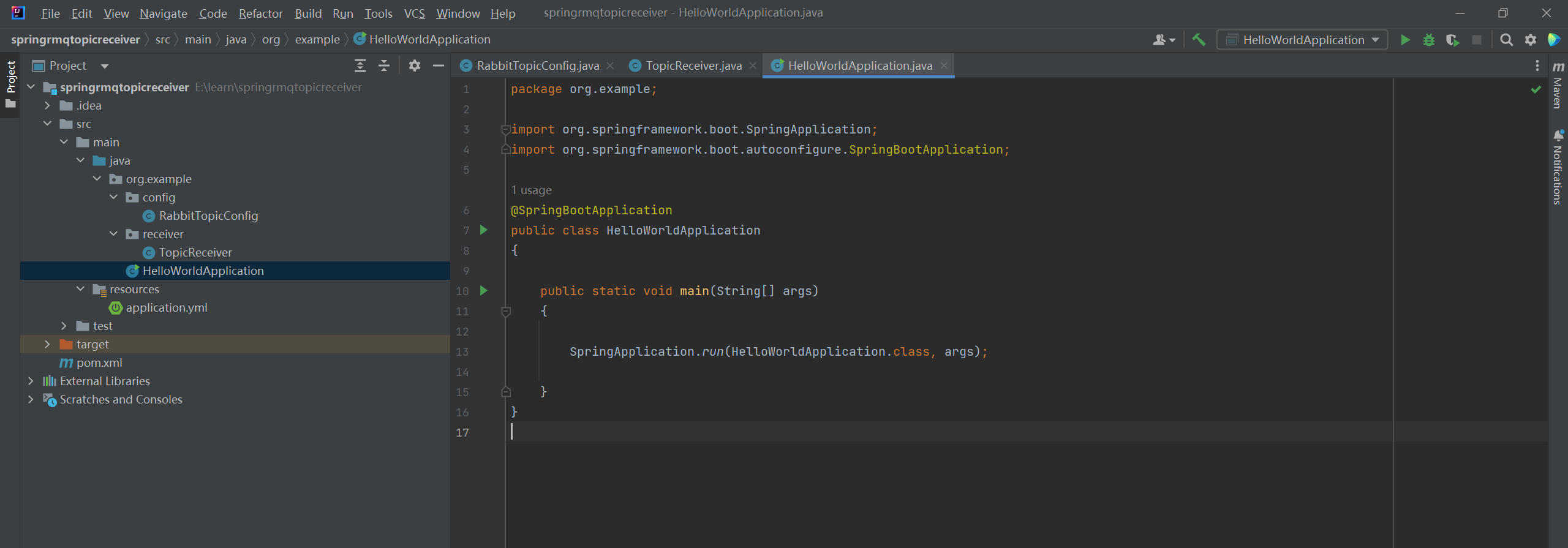

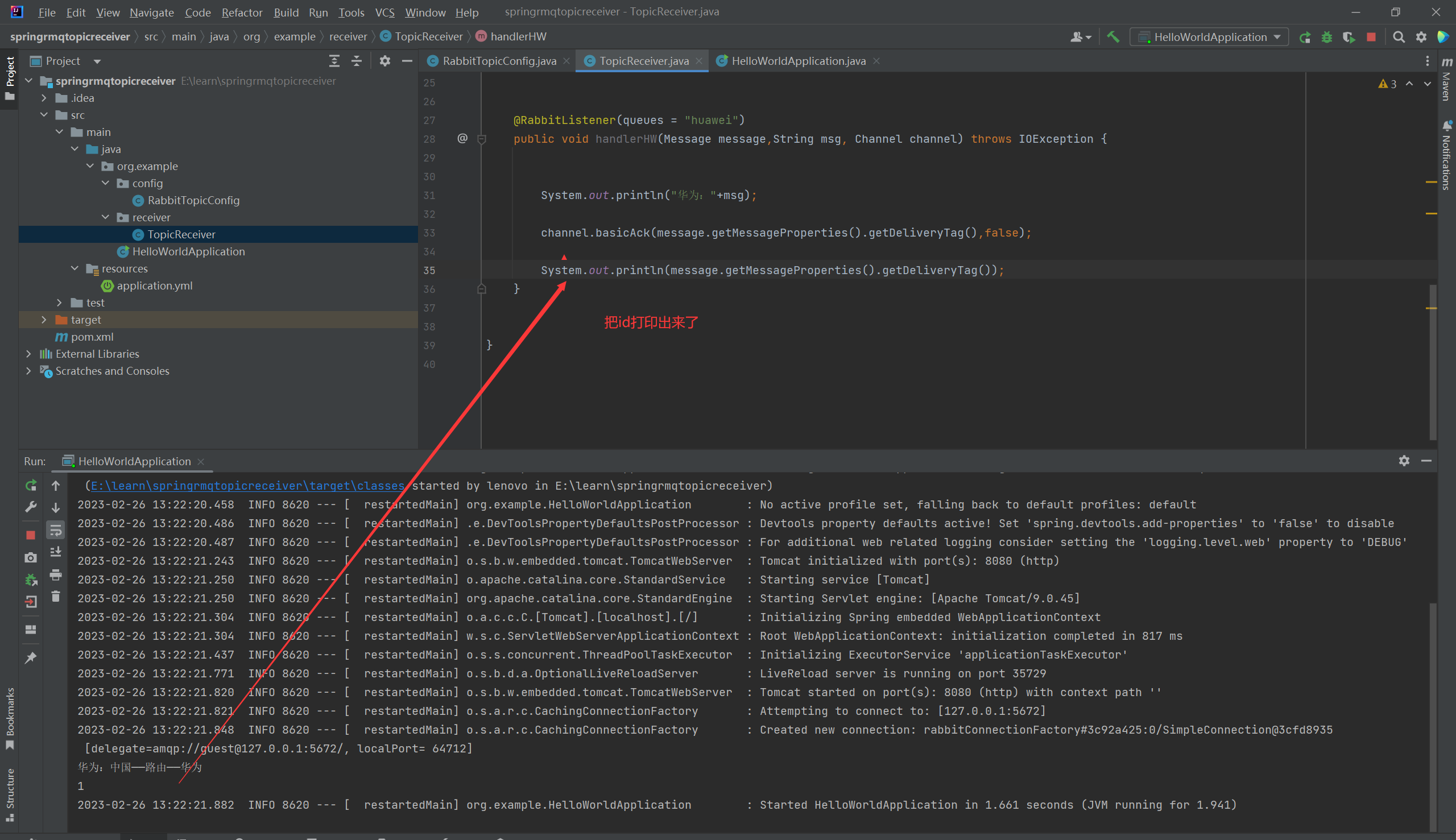

启动服务：

package org.example;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class HelloWorldApplication
{

    public static void main(String[] args)
    {

        SpringApplication.run(HelloWorldApplication.class, args);

    }
}
