20231427田泽航ipsec协议验证

202314273 IPSec协议验证
原创田泽航

****1. 参考云班课课程资源中“ch03 密码技术-协议验证”的“VPN协议验证.pdf”和“ch03 密码技术-10-密码协议验证IPSec.mp4”，对 IPSec 协议进行验证，提交验证过程
第一阶段发起方的验证

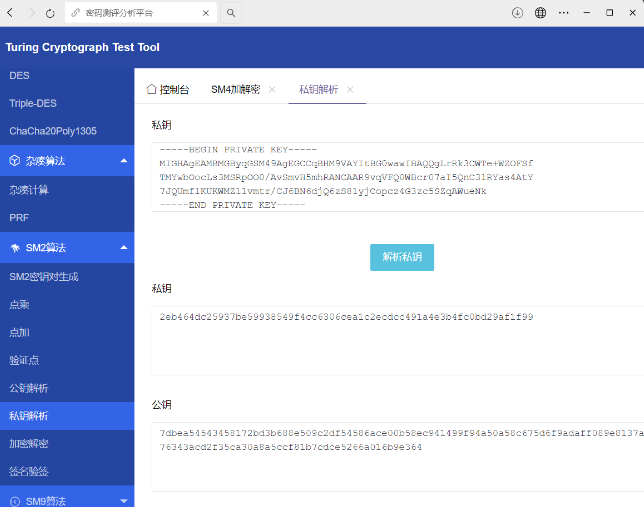

1.使用工具解析发起方加密私钥文件“left_enc.key”，得到发起方加密公私钥对内容

私钥（pem格式）：

-----BEGIN PRIVATE KEY-----
MIGHAgEAMBMGByqGSM49AgEGCCqBHM9VAYItBG0wawIBAQQgLrRk3CWTe+WZOFSf
TMYwbOocLs3MSRpOO0/AvSmvH5mhRANCAAR9vqVFQ0WBcr07aI5QnC31RYas4AtY
7JQUmflKUKWMZ11vmtr/CJ6BN6djQ6zS81yjCopcz4G3zc5SZqAWueNk
-----END PRIVATE KEY-----

解析出来私钥
2eb464dc25937be59938549f4cc6306cea1c2ecdcc491a4e3b4fc0bd29af1f99

解析出来公钥
7dbea54543458172bd3b688e509c2df54586ace00b58ec941499f94a50a58c675d6f9adaff089e8137a76343acd2f35ca30a8a5ccf81b7cdce5266a016b9e364

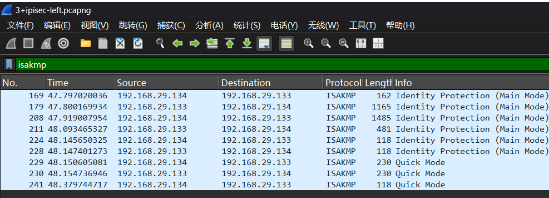

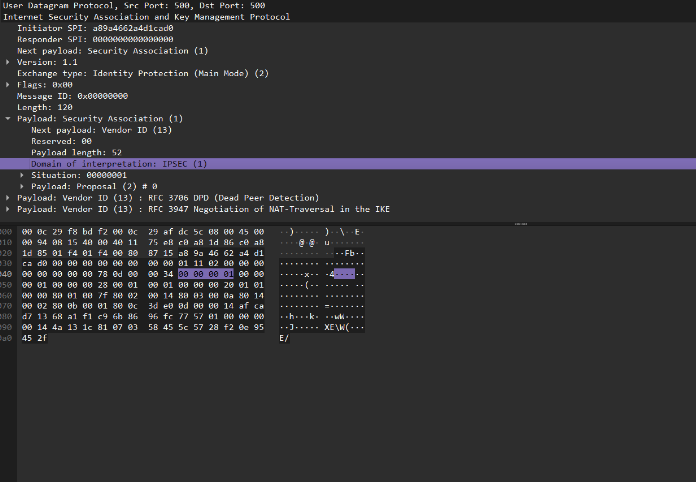

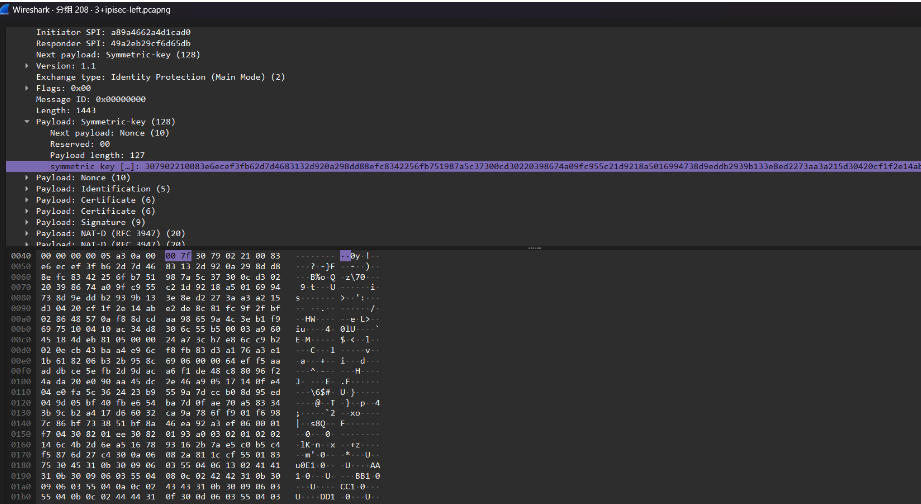

2.在Wireshark中打开“left.pcapng”包，用isakmp协议过滤一下数据包.

导出SKi密文

307902210083e6ecef3fb62d7d4683132d920a298dd88efc8342256fb751987a5c37300cd30220398674a09fc955c21d9218a5016994738d9eddb2939b133e8ed2273aa3a215d30420cf1f2e14abe2de8c81fc9f2fbf028648570af88dcdaa98659a4c3eb1f96975100410ac34d8306c55b50003a96045184deb81

参考“GM/T0009-2023SM2密码算法使用规范”的加密数据的定义，实际的加密值是X||Y||Hash||C。
所以SKi密文X||Y||Hash||C为：83e6ecef3fb62d7d4683132d920a298dd88efc8342256fb751987a5c37300cd3398674a09fc955c21d9218a5016994738d9eddb2939b133e8ed2273aa3a215d3cf1f2e14abe2de8c81fc9f2fbf028648570af88dcdaa98659a4c3eb1f9697510ac34d8306c55b50003a96045184deb81

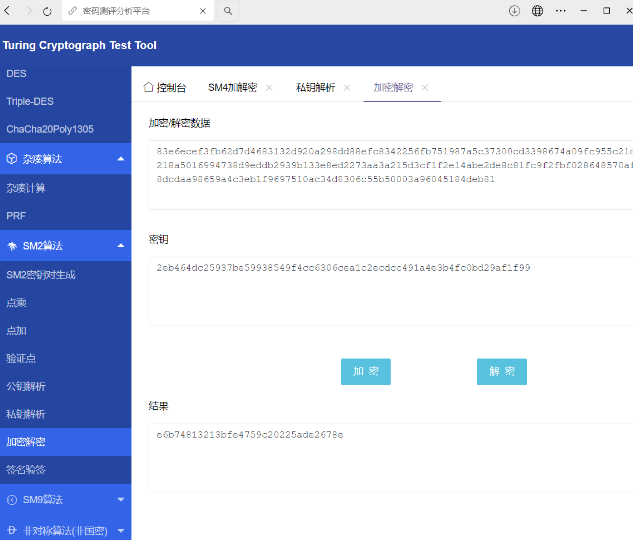

使用工具，用prv_i解密SKi密文得到SKi的明文为

SKi的明文
e6b74813213bfe4759c20225ade2678e

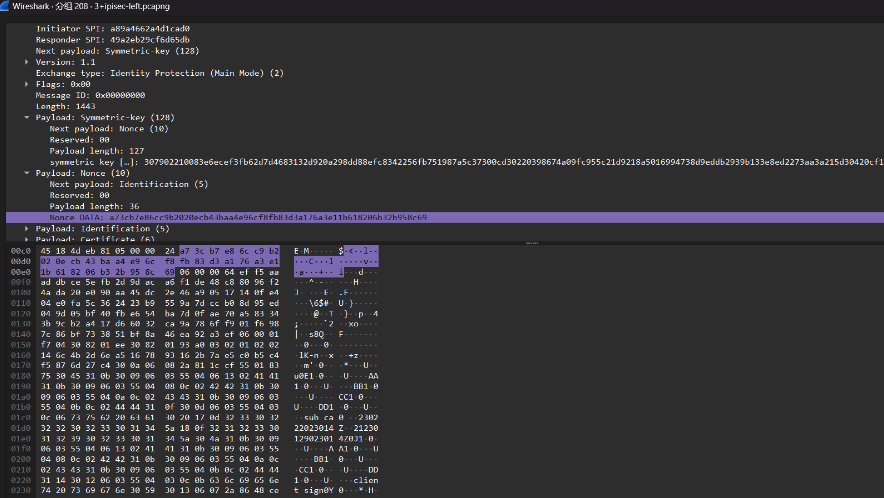

4.在Wireshark中通过导出获取Ni密文

Ni密文

a73cb7e86cc9b2020ecb43baa4e96cf8fb83d3a176a3e11b618206b32b958c69
使用工具解密Ni密文
得到Ni明文:

450be90d637a4c714d129d13e15642370000000000000000000000000000000f

后面的0000000000000000000000000000000f为填充数据，Ni明文为450be90d637a4c714d129d13e1564237

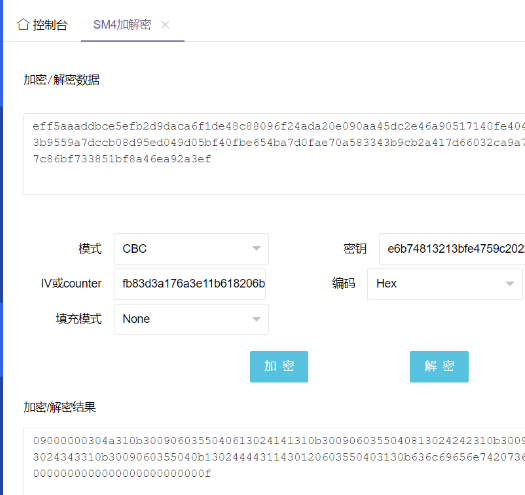

5.在Wireshark中通过导出获取IDi密文
IDi密文：

eff5aaaddbce5efb2d9daca6f1de48c88096f24ada20e090aa45dc2e46a90517140fe404e0fa5c362423

IDi明文：

09000000304a310b3009060355040613024141310b3009060355040813024242310b3009060355040a13024343310b3009060355040b13024444311430120603550403130b636c69656e74207369676e0000000000000000000000000000000f

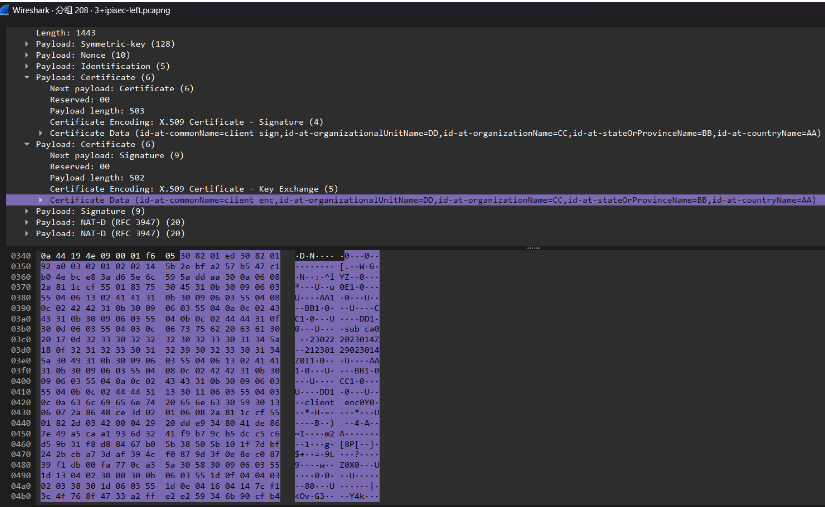

6.在Wireshark中通过导出获取发起方加密证书

CERT_enc_i

05308201ed30820192a00302010202145b2ebfa257b547c1b04ebce83ad65e6c595addaa300a06082a811ccf550183753045310b3009060355040613024141310b300906035504080c024242310b3009060355040a0c024343310b3009060355040b0c024444310f300d06035504030c067375622063613020170d3233303232323032333031345a180f32313233303132393032333031345a3049310b3009060355040613024141310b300906035504080c024242310b3009060355040a0c024343310b3009060355040b0c0244443113301106035504030c0a636c69656e7420656e633059301306072a8648ce3d020106082a811ccf5501822d034200042920dde9348041de867e49a5caa1936d3241f9b79cb5dcc5c6d59b31f8d88467b05b38505b101f7dbf242bcba73daf394cf0879d3f0e8ec08739f1db00fa770ca35a305830090603551d1304023000300b0603551d0f040403020338301d0603551d0e041604147cf13c4f768f4733a2ffe2e259346b90cfb474a8301f0603551d23041830168014ac61eb22806259083e96c8d17fce745c02af3c99300a06082a811ccf550183750349003046022100e2131845079c82d4a4b09b4990b21bc4e281899b83b226c9916d5c5fee12139f022100e7d3e711561a7a0be92392ed9f94f63ca2aa899d9039611f4472488bf14565ea
.得到签名原文SKi||Ni||IDi||CERT_enc_i:
签名原文:
e6b74813213bfe4759c20225ade2678e450be90d637a4c714d129d13e156423709000000304a310b3009060355040613024141310b3009060355040813024242310b3009060355040a13024343310b3009060355040b13024444311430120603550403130b636c69656e74207369676e05308201ed30820192a00302010202145b2ebfa257b547c1b04ebce83ad65e6c595addaa300a06082a811ccf550183753045310b3009060355040613024141310b300906035504080c024242310b3009060355040a0c024343310b3009060355040b0c024444310f300d06035504030c067375622063613020170d3233303232323032333031345a180f32313233303132393032333031345a3049310b3009060355040613024141310b300906035504080c024242310b3009060355040a0c024343310b3009060355040b0c0244443113301106035504030c0a636c69656e7420656e633059301306072a8648ce3d020106082a811ccf5501822d034200042920dde9348041de867e49a5caa1936d3241f9b79cb5dcc5c6d59b31f8d88467b05b38505b101f7dbf242bcba73daf394cf0879d3f0e8ec08739f1db00fa770ca35a305830090603551d1304023000300b0603551d0f040403020338301d0603551d0e041604147cf13c4f768f4733a2ffe2e259346b90cfb474a8301f0603551d23041830168014ac61eb22806259083e96c8d17fce745c02af3c99300a06082a811ccf550183750349003046022100e2131845079c82d4a4b09b4990b21bc4e281899b83b226c9916d5c5fee12139f022100e7d3e711561a7a0be92392ed9f94f63ca2aa899d9039611f4472488bf14565ea

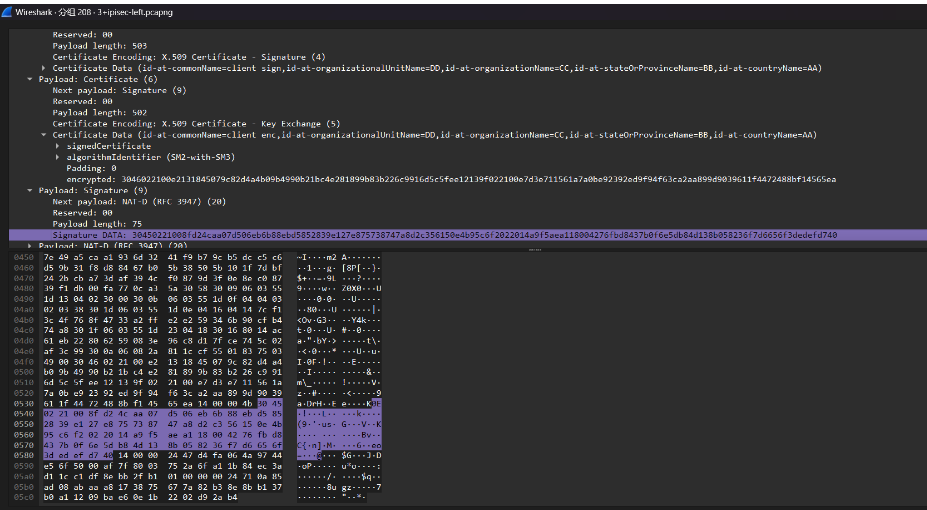

8.在Wireshark中通过导出获取签名值

DER格式签名值：

30 T
45 L
02 T
21 L
00 填充8fd24caa07d506eb6b88ebd5852839e127e875738747a8d2c356150e4b95c6f2 r
02 T
20 L
14a9f5aea118004276fbd8437b0f6e5db84d138b058236f7d6656f3dedefd740 s

签名值
r||s:
8fd24caa07d506eb6b88ebd5852839e127e875738747a8d2c356150e4b95c6f214a9f5aea118004276fbd8437b0f6e5db84d138b058236f7d6656f3dedefd740

9.在Wireshark中通过导出获取发起方签名公钥

去掉04

2d617e74d5586dde23d2490fbd468e30f11d012d50a8f392cd1849b10b167e9a0661f7e3a2a00ee7ec4718ed937b4ab2c50aa0d341d15e4095743b3850af6d3c

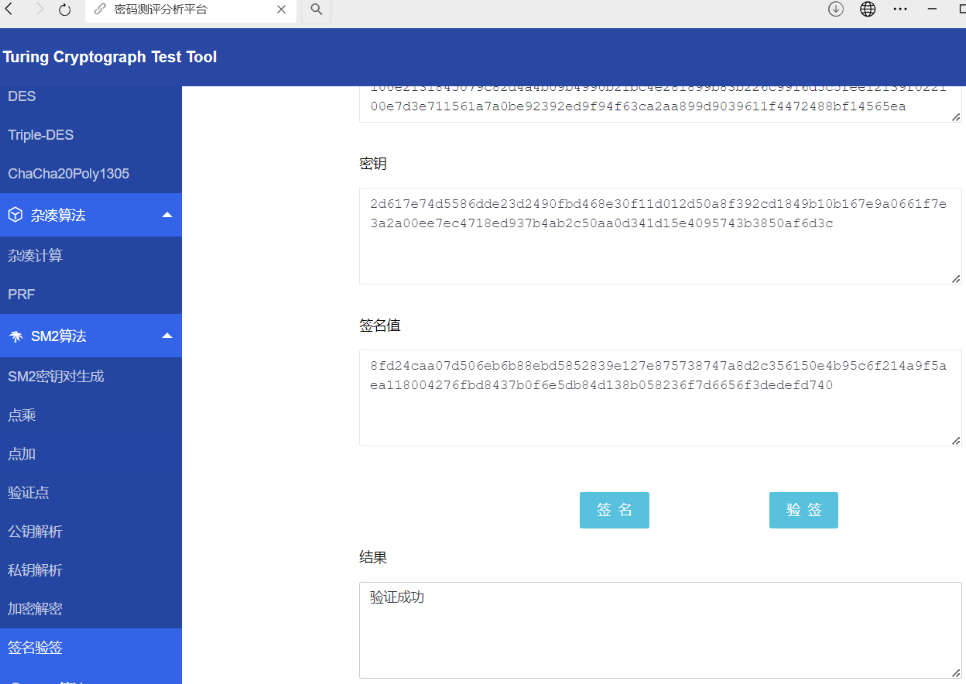

10.使用工具验签成功

****第一阶段响应方的验证

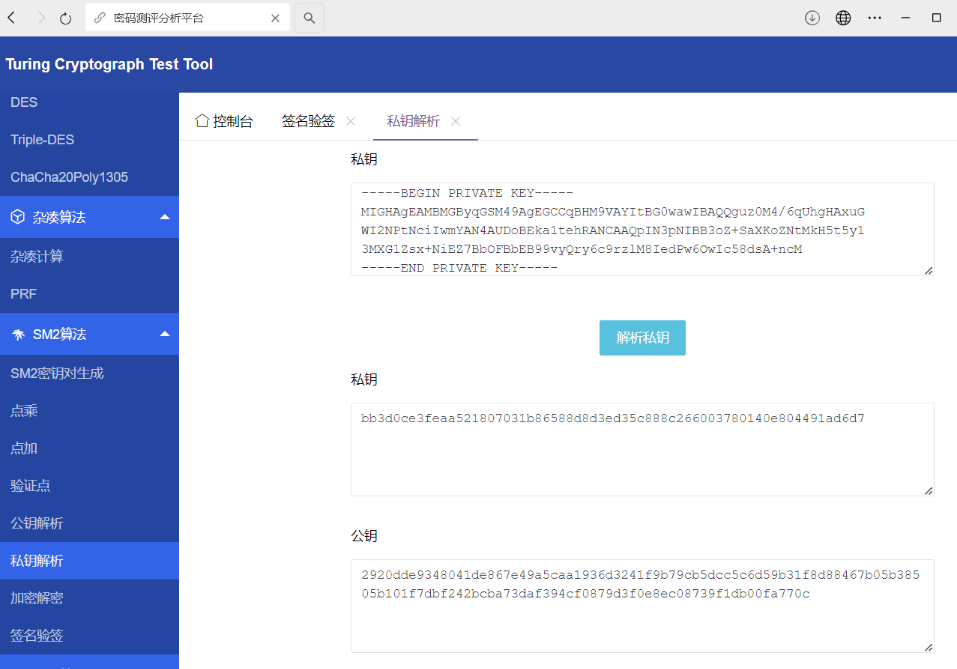

1. 使用工具解析响应方加密私钥文件“right_enc.key”，得到响应方加密公私钥对内容


响应方加密私钥prv_r：

bb3d0ce3feaa521807031b86588d8d3ed35c888c266003780140e804491ad6d7

响应方加密公钥pub_r：

2920dde9348041de867e49a5caa1936d3241f9b79cb5dcc5c6d59b31f8d88467b05b38505b101f7dbf242bcba73daf394cf0879d3f0e8ec08739f1db00fa770c

2.导出SKr密文

参考“GM/T0009-2023SM2密码算法使用规范”的加密数据的定义，实际的加密值是X||Y||Hash||C。
SKr密文包，按TLV分割：

3079
022100
e2fee5b1439937014b7ad1a585f4a62910787a7c885884c1370cd9fb8dadd12c X
0220
1c2f5ab9ba02bc9d9c21cf18afaa6b64f0b0a733bd730508d6567f9faac722aa Y
0420
1c2f5ab9ba02bc9d9c21cf18afaa6b64f0b0a733bd730508d6567f9faac722aa Hash
0410
01734e922fa8c88ad6814c59264e9f21 C

所以SKr密文X||Y||Hash||C为：
e2fee5b1439937014b7ad1a585f4a62910787a7c885884c1370cd9fb8dadd12c1c2f5ab9ba02bc9d9c21cf18afaa6b64f0b0a733bd730508d6567f9faac722aa00376aa46646d90577b5ab0170f97043356acef83504b8a4b9ae159a0e834fc301734e922fa8c88ad6814c59264e9f21

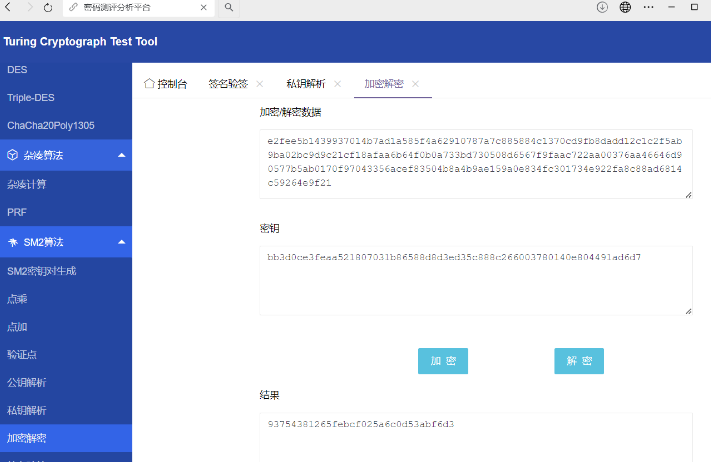

使用工具，用prv_r解密SKr密文得到SKr的明文为：

SKr的明文

93754381265febcf025a6c0d53abf6d3

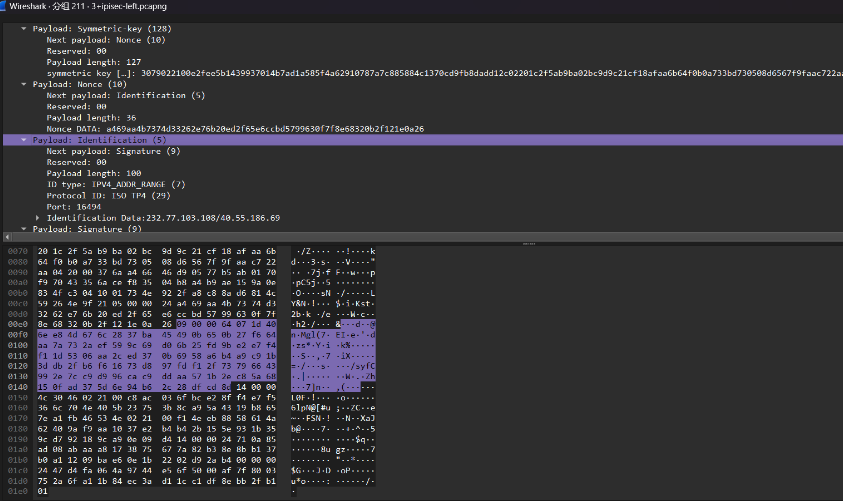

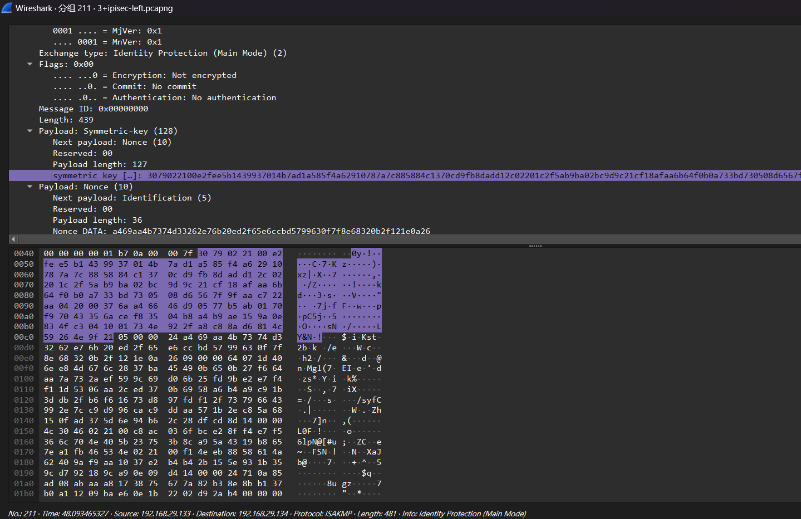

4.在Wireshark中通过导出获取Nr密文

a469aa4b7374d33262e76b20ed2f65e6ccbd5799630f7f8e68320b2f121e0a26

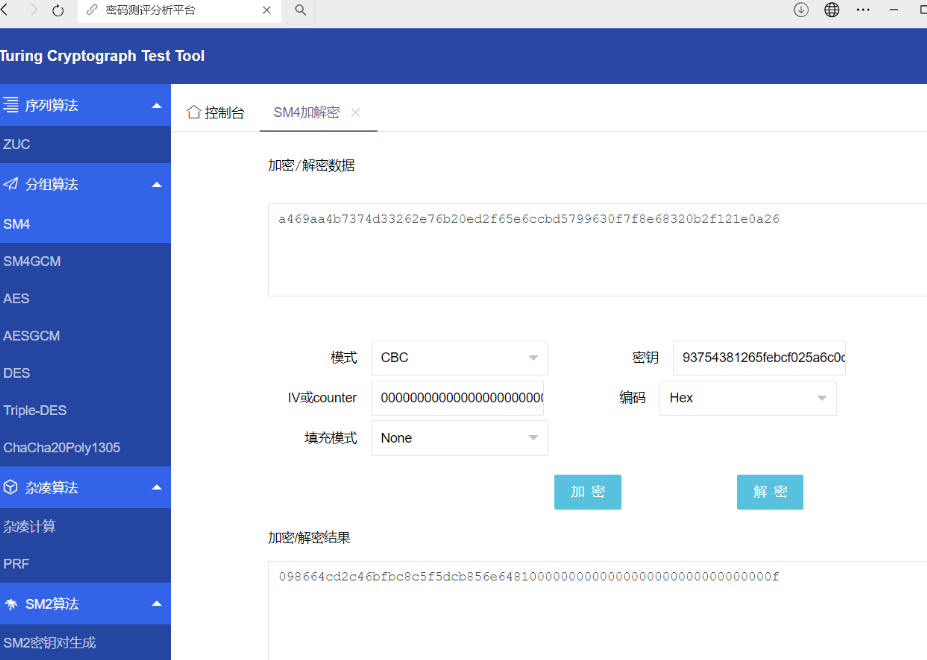

使用工具解密Nr密文

Nr明文为

098664cd2c46bfbc8c5f5dcb856e6481

5.在Wireshark中通过导出获取IDr密文

IDr密文：

071d406ee84d676c2837ba45490b650b27f664aa7a732aef599c69d06b25fd9be2e7f4f11d5306aa2ced370b6958a6b4a9c91b3ddb2fb6f61673d897fdf12f73796643992e7cc9d996cac9ddaa571b2ec85a68150fad375d6e94b62c28dfcd8d

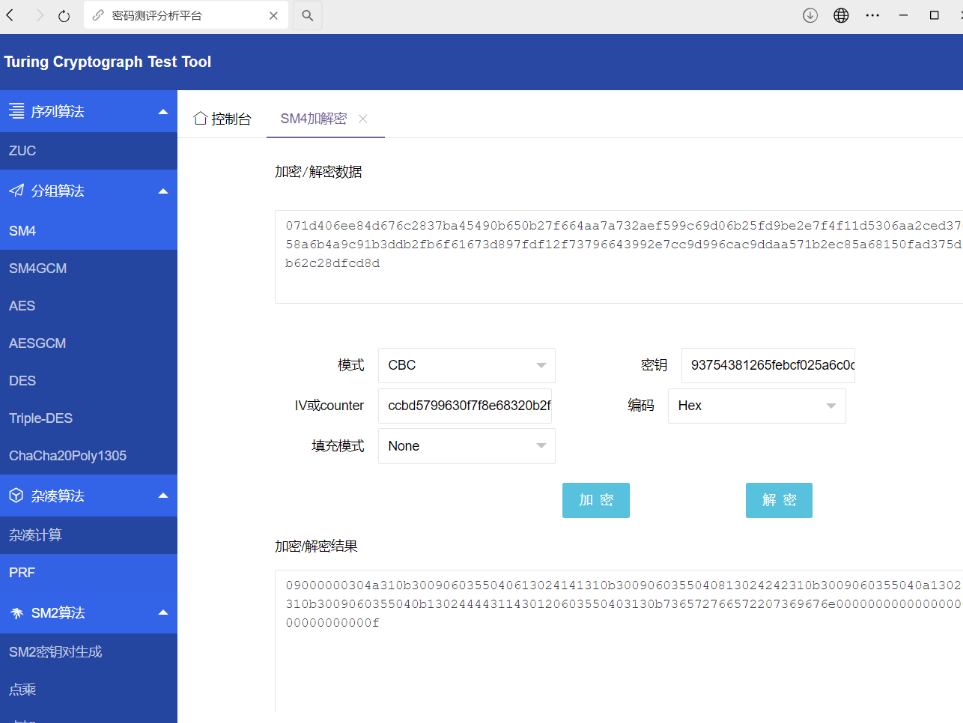

使用工具解密的到IDr明文:

IDr明文：09000000304a310b3009060355040613024141310b3009060355040813024242310b3009060355040a13024343310b3009060355040b13024444311430120603550403130b736572766572207369676e0000000000000000000000000000000f

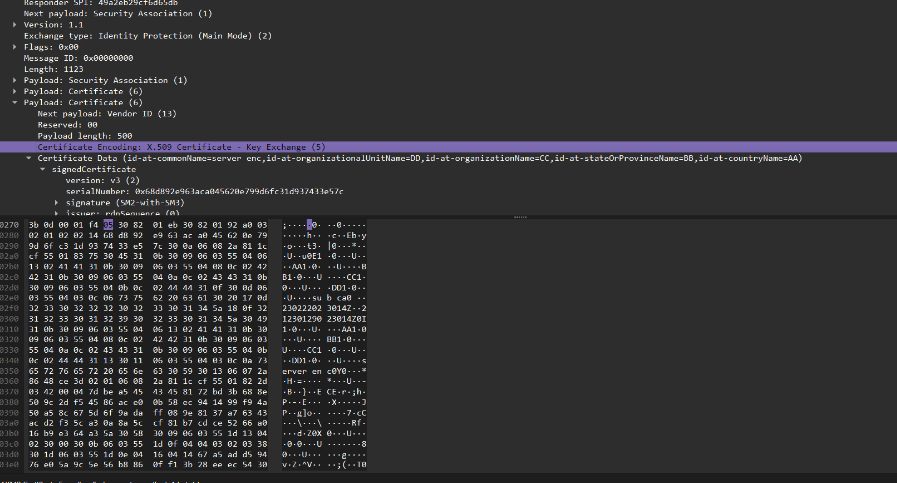

6.在Wireshark中通过导出获取发起方加密证书CERT_enc_r

CERT_enc_r
05308201eb30820192a003020102021468d892e963aca045620e799d6fc31d937433e57c300a06082a811ccf550183753045310b3009060355040613024141310b300906035504080c024242310b3009060355040a0c024343310b3009060355040b0c024444310f300d06035504030c067375622063613020170d3233303232323032333031345a180f32313233303132393032333031345a3049310b3009060355040613024141310b300906035504080c024242310b3009060355040a0c024343310b3009060355040b0c0244443113301106035504030c0a73657276657220656e633059301306072a8648ce3d020106082a811ccf5501822d034200047dbea54543458172bd3b688e509c2df54586ace00b58ec941499f94a50a58c675d6f9adaff089e8137a76343acd2f35ca30a8a5ccf81b7cdce5266a016b9e364a35a305830090603551d1304023000300b0603551d0f040403020338301d0603551d0e0416041467a5add59476e05a9c5e56b8860ff13b28eeec54301f0603551d23041830168014ac61eb22806259083e96c8d17fce745c02af3c99300a06082a811ccf550183750347003044022047593579c4adec8db7df98c4aae1661c1139a5ef1293f22a3aa412d09becd6e602206e57301d177946956fd39cb5ac603902cd17c7517ed8941ecc985ea7db6958c8

7.得到签名原文SKr||Nr||IDr||CERT_enc_r:
签名原文:
93754381265febcf025a6c0d53abf6d3098664cd2c46bfbc8c5f5dcb856e648109000000304a310b3009060355040613024141310b3009060355040813024242310b3009060355040a13024343310b3009060355040b13024444311430120603550403130b736572766572207369676e05308201eb30820192a003020102021468d892e963aca045620e799d6fc31d937433e57c300a06082a811ccf550183753045310b3009060355040613024141310b300906035504080c024242310b3009060355040a0c024343310b3009060355040b0c024444310f300d06035504030c067375622063613020170d3233303232323032333031345a180f32313233303132393032333031345a3049310b3009060355040613024141310b300906035504080c024242310b3009060355040a0c024343310b3009060355040b0c0244443113301106035504030c0a73657276657220656e633059301306072a8648ce3d020106082a811ccf5501822d034200047dbea54543458172bd3b688e509c2df54586ace00b58ec941499f94a50a58c675d6f9adaff089e8137a76343acd2f35ca30a8a5ccf81b7cdce5266a016b9e364a35a305830090603551d1304023000300b0603551d0f040403020338301d0603551d0e0416041467a5add59476e05a9c5e56b8860ff13b28eeec54301f0603551d23041830168014ac61eb22806259083e96c8d17fce745c02af3c99300a06082a811ccf550183750347003044022047593579c4adec8db7df98c4aae1661c1139a5ef1293f22a3aa412d09becd6e602206e57301d177946956fd39cb5ac603902cd17c7517ed8941ecc985ea7db6958c8

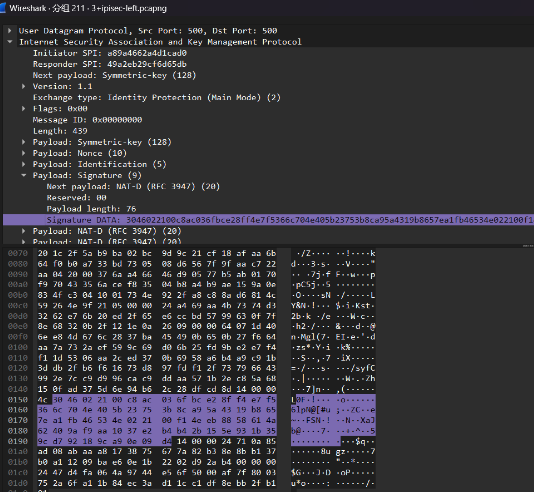

8.在Wireshark中通过导出获取签名值

DER格式签名值：
30 T 46 L 02 T 21 L 00c8ac036fbce28ff4e7f5366c704e405b23753b8ca95a4319b8657ea1fb46534e r 02 21 00 f14eeb8858614a62409af9aa1037e2b4b42b155e931b359cd792189ca90e09d4 s
签名值r||s:
c8ac036fbce28ff4e7f5366c704e405b23753b8ca95a4319b8657ea1fb46534ef14eeb8858614a62409af9aa1037e2b4b42b155e931b359cd792189ca90e09d4

9.在Wireshark中通过导出获取响应方签名公钥

发起方签名公钥，去掉第一字节04
05bffaeec406c8f3f580a6e39c528476c0df2b61065d4a74f476af0fb66890f896acc4b21d8b036d13f17bd4d38234908bedb77f8e3eae870654fc6fa8048d0c

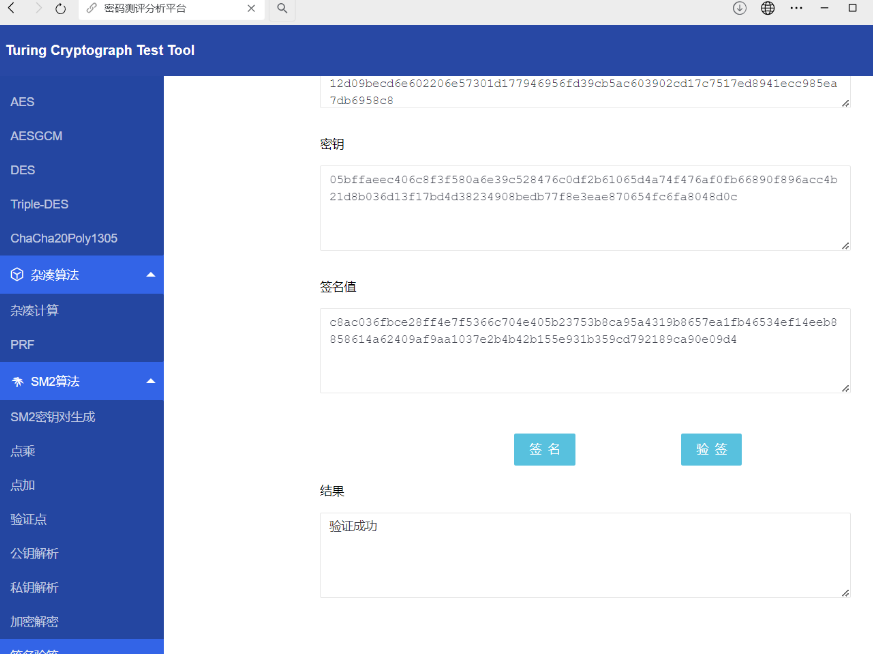

10.使用工具验签成功

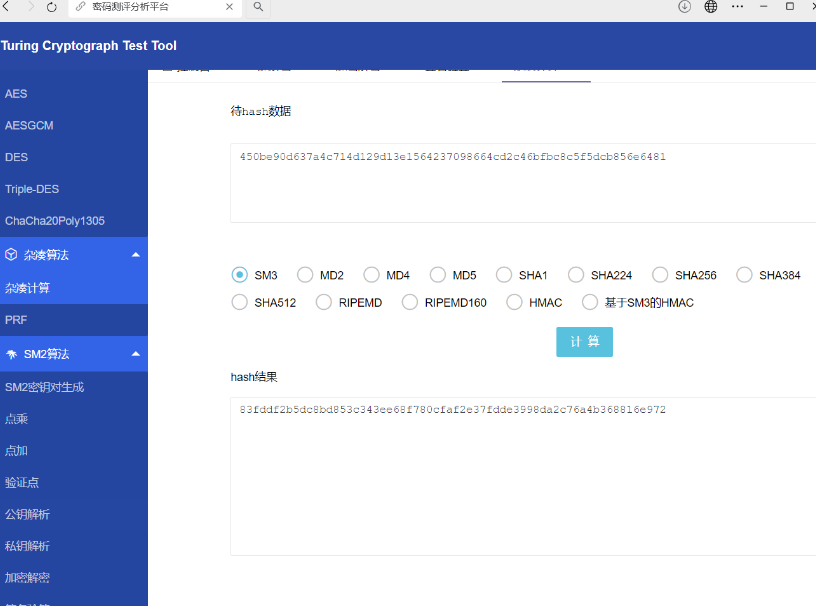

.基于sm3算法计算
HASH(Ni||Nr)Ni||Nr:

450be90d637a4c714d129d13e1564237098664cd2c46bfbc8c5f5dcb856e6481

HASH(Ni||Nr):

83fddf2b5dc8bd853c343ee68f780cfaf2e37fdde3998da2c76a4b368816e972

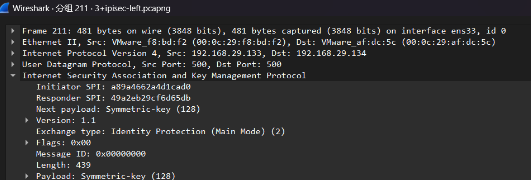

2.在Wireshark中通过导出获取CKY-I||CKY-R

CKY-I||CKY-R:

a89a4662a4d1cad049a2eb29cf6d65db

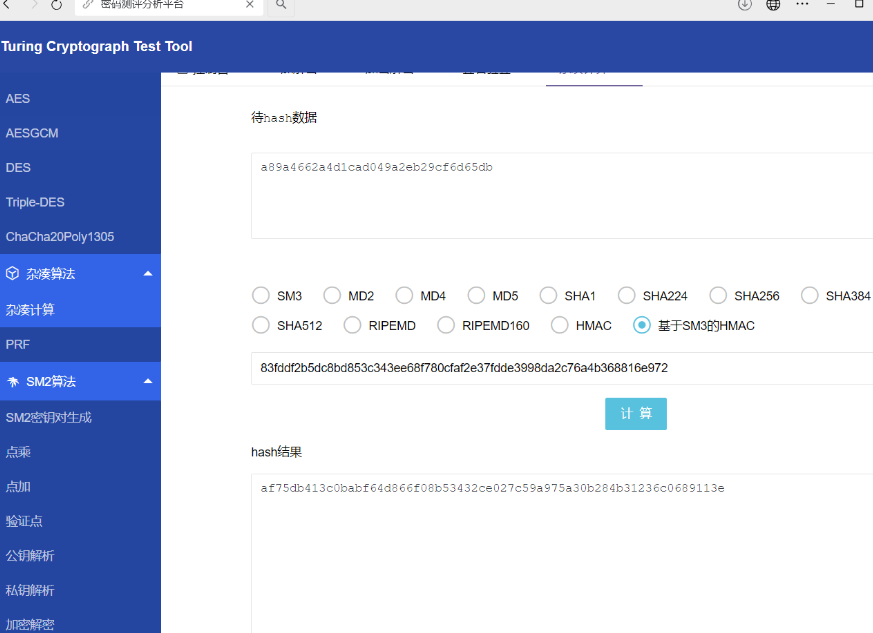

3.使用工具计算SKEYID=PRF(HASH(Ni||Nr),CKY-I|CKY-R

SKEYID
af75db413c0babf64d866f08b53432ce027c59a975a30b284b31236c0689113e

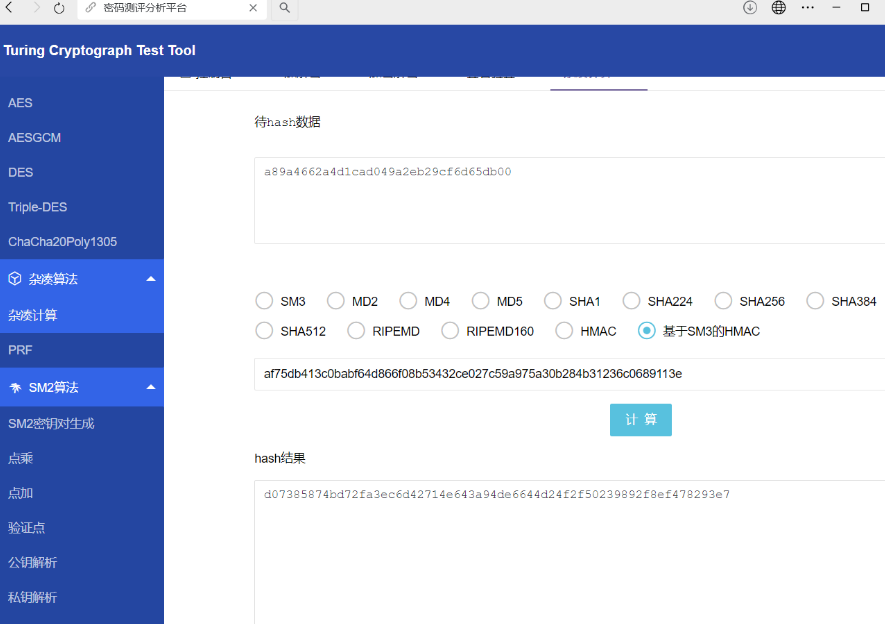

4.使用工具计算SKEYID_d=PRF(SKEYID,CKY-I|CKY-R|0)

SKEYID_d

d07385874bd72fa3ec6d42714e643a94de6644d24f2f50239892f8ef478293e7

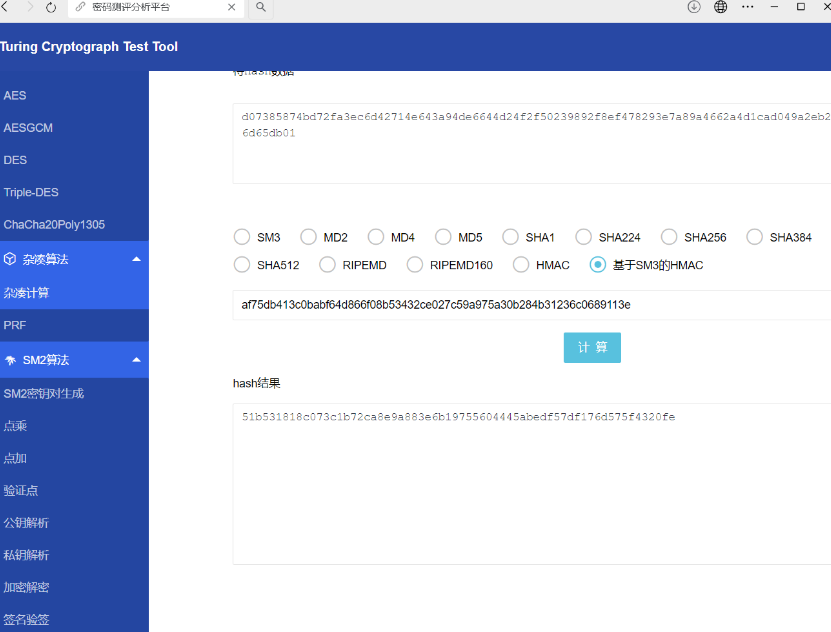

5.使用工具计算SKEYID_a=PRF(SKEYID,SKEYID_d|CKY-I|CKY-R|1)
SKEYID_a

51b531818c073c1b72ca8e9a883e6b19755604445abedf57df176d575f4320fe

6.使用工具计算SKEYID_e=PRF(SKEYID,SKEYID_a|CKY-I|CKY-R|2)

SKEYID_a
51b531818c073c1b72ca8e9a883e6b19755604445abedf57df176d575f4320fe

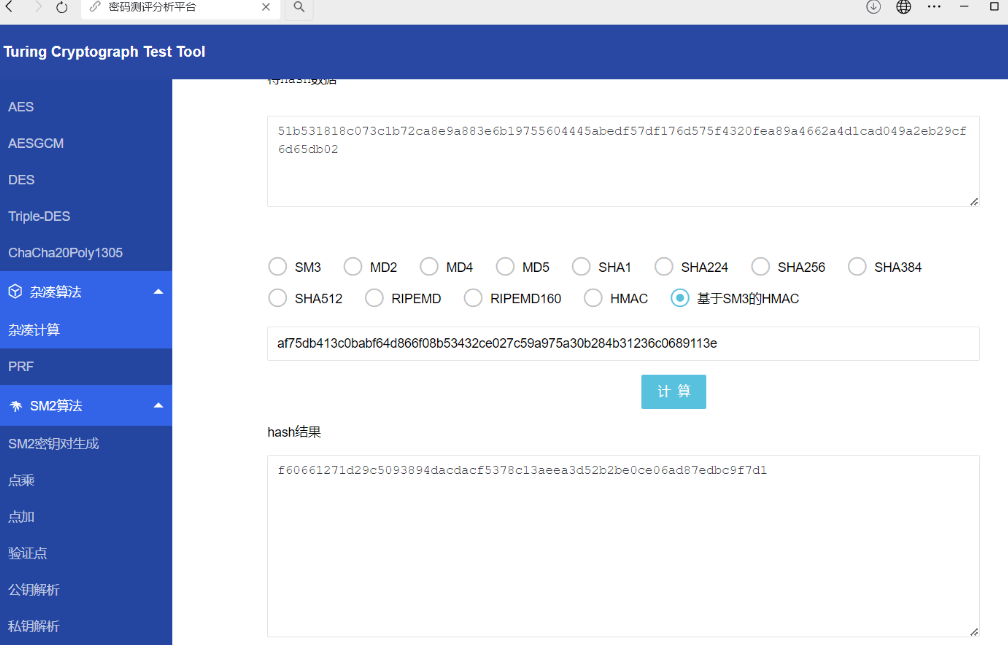

7.使用工具计算SKEYID_e=PRF(SKEYID,SKEYID_a|CKY-I|CKY-R|2)

SKEYID_e f60661271d29c5093894dacdacf5378c13aeea3d52b2be0ce06ad87edbc9f7d1
分成两段：f60661271d29c5093894dacdacf5378c SKEYID_e 13aeea3d52b2be0ce06ad87edbc9f7d1

7.使用工具计算hash(SKi||SKr)
消息5和消息6发起方和响应方鉴别前面的交换过程。这两个消息中传递的信息使用对称密码算法加密。对称密码算法由消息1和消息2确定，密钥使用SKEYID_e。对称密码运算使用CBC模式，初始化向量IV是消息3中的Ski和消息4中的Skr串连起来经过Hash运算得到的，即：

IV=HASH(Ski_b|Skr_b)

Hash算法由消息1和消息2确定。

SKi||SKr
e6b74813213bfe4759c20225ade2678e93754381265febcf025a6c0d53abf6d3

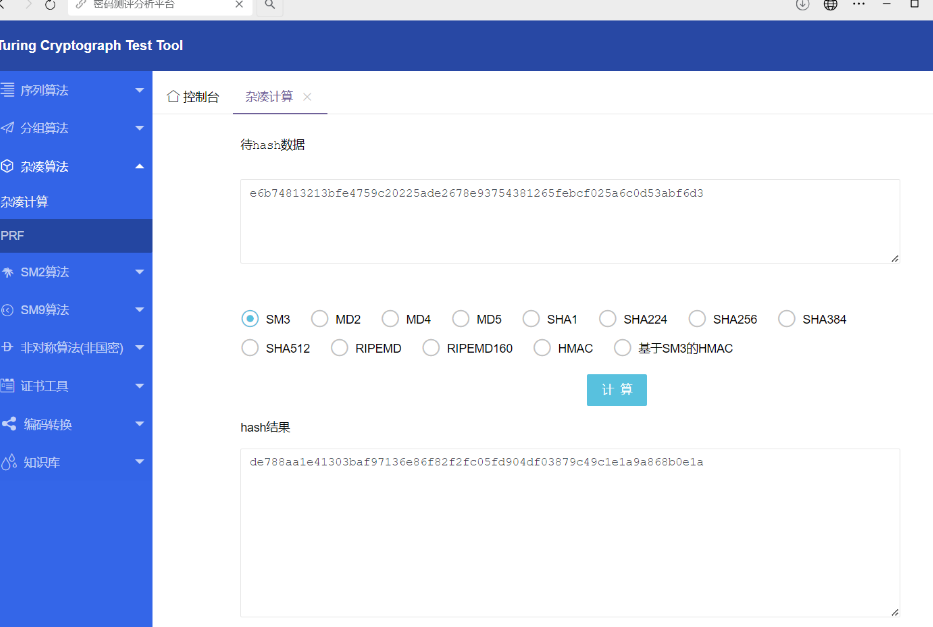

IV=hash(SKi||SKr)
de788aa1e41303baf97136e86f82f2fc IV 05fd904df03879c49c1e1a9a868b0e1a

8.HAHSi密文及解密
加密前的消息应进行填充，使其⻓度等于对称密码算法分组⻓度的整数倍。所有的填充字节的值都是0。报头中的消息⻓度应包括填充字节的⻓度，因为这反映了密文的⻓度。为了鉴别交换，发起方产生HASHi,响应方产生HASHr,计算公式如下：

HASHi=PRF(SKEYID,CKY-I|CKY-R|SAi_b|IDi_b)
HASHr=PRF(SKEYID,CKY-R|CKY-I|SAr_b|IDr_b)

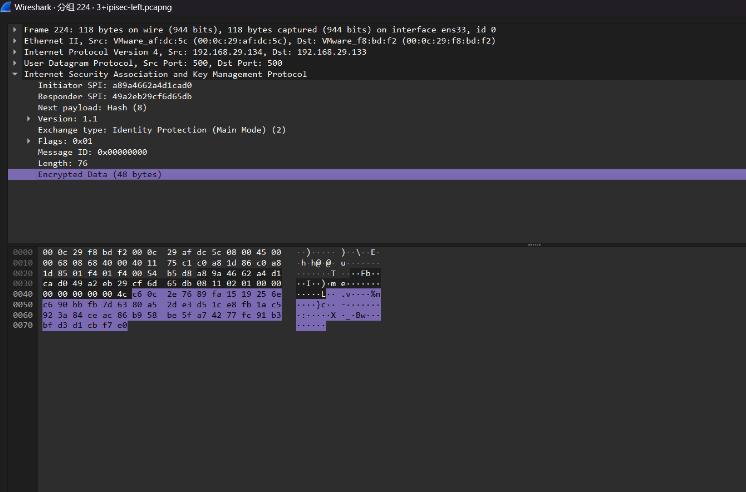

在Wireshark中通过导出获取HAHSi密文

HAHSi密文

c60c2e7689fa1519256ec690bbfb7d6380a52de3d51ce8fb1ac5923a84ceac86b958be5fa74277fc91b3bfd3d1cbf7e0

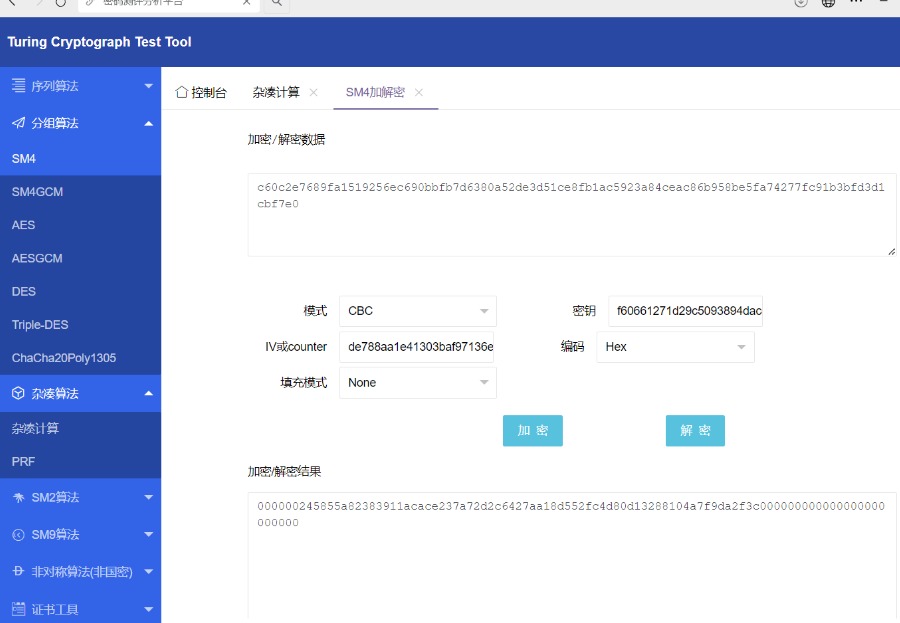

使用工具解密的HASHi包

HASHi明文

000000245855a82383911acace237a72d2c6427aa18d552fc4d80d13288104a7f9da2f3c000000000000000000000000

9.验证HASHi=PRF(SKEYID,CKY-I|CKY-R|SAi_b|IDi_b)

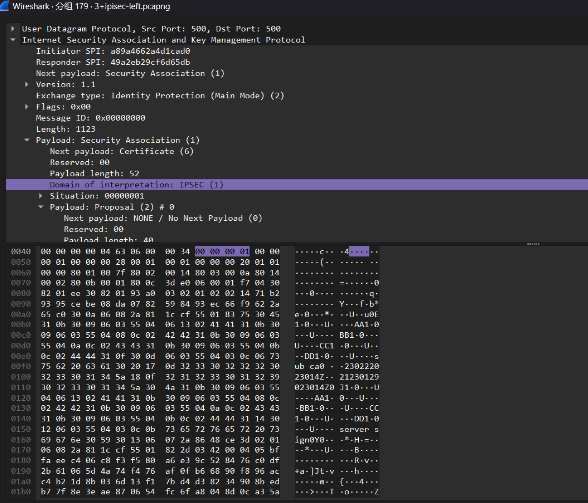

在Wireshark中通过导出获取SAi

SAi

0000000100000001000000280001000100000020010100008001007f800200148003000a80140002800b0001800c3de0

CKY-I||CKY-R||SAi||IDi

a89a4662a4d1cad049a2eb29cf6d65db0000000100000001000000280001000100000020010100008001

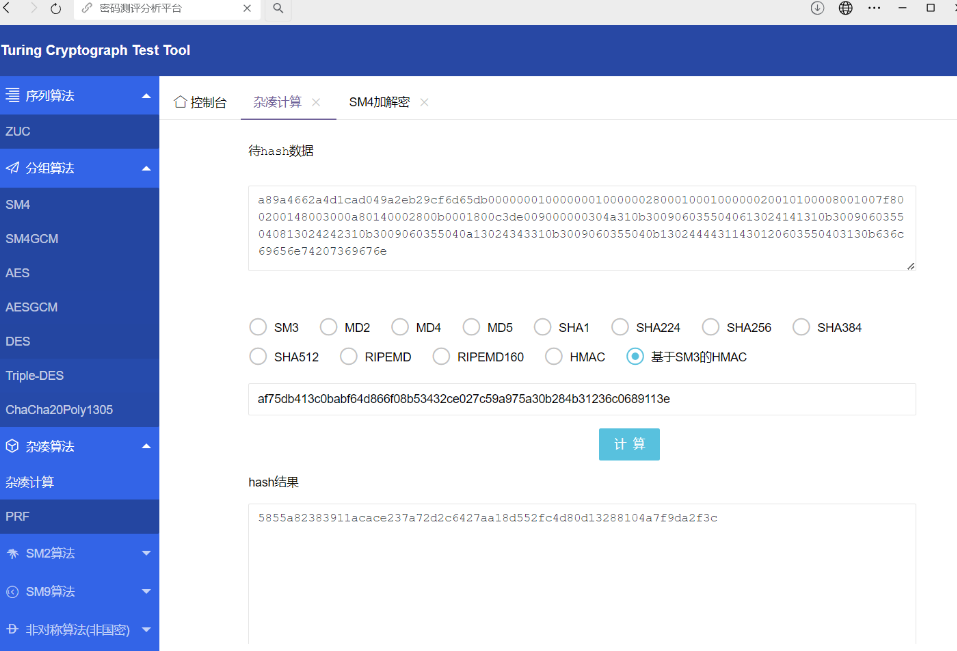

HASHi=PRF(SKEYID,CKY-I|CKY-R|SAi_b|IDi_b)

5855a82383911acace237a72d2c6427aa18d552fc4d80d13288104a7f9da2f3c

与步解密出来的结果一致。

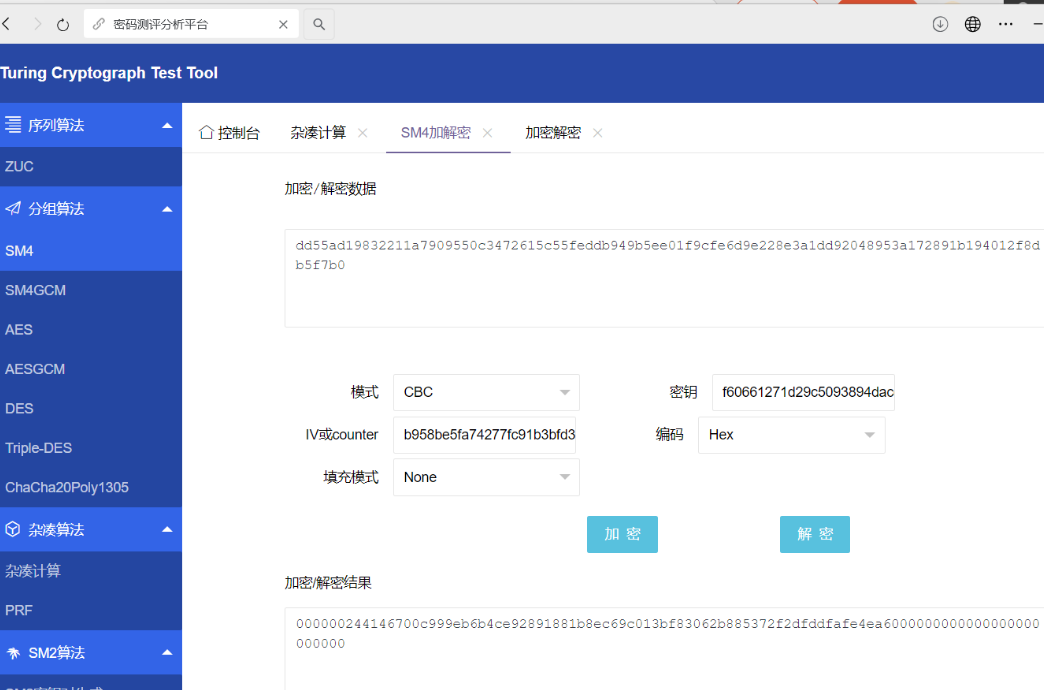

10.HASHr密文及解密

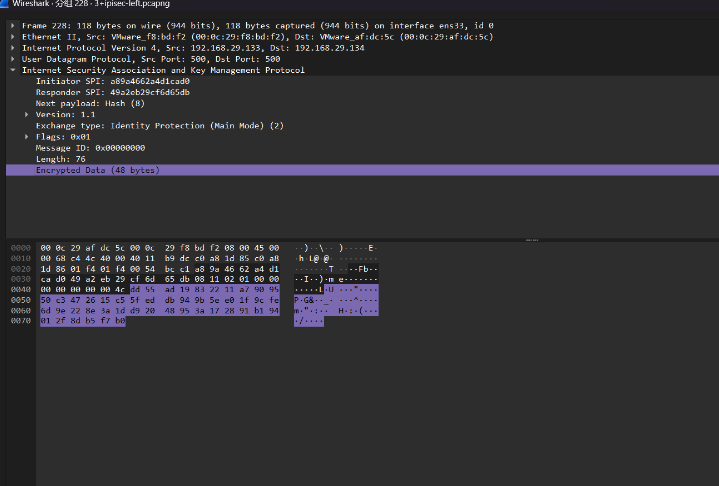

在Wireshark中通过导出获取HASHr密文

HASHr密文dd55ad19832211a7909550c3472615c55feddb949b5ee01f9cfe6d9e228e3a1dd92048953a172891b194012f8db5f7b0

解密的HASHr明文000000244146700c999eb6b4ce92891881b8ec69c013bf83062b885372f2dfddfafe4ea6000000000000000000000000

11.验证HASHr=PRF(SKEYID,CKY-R|CKY-I|SAr_b|IDr_b)
在Wireshark中通过导出获取SAr

SAr

0000000100000001000000280001000100000020010100008001007f800200148003000a80140002800b0001800c3de0
AI写代码
bash
1
CKY-R||CKY-I||SAr||IDr

49a2eb29cf6d65dba89a4662a4d1cad00000000100000001000000280001000100000020010100008001007f800200148003000a80140002800b0001800c3de009000000304a310b3009060355040613024141310b3009060355040813024242310b3009060355040a13024343310b3009060355040b13024444311430120603550403130b736572766572207369676e

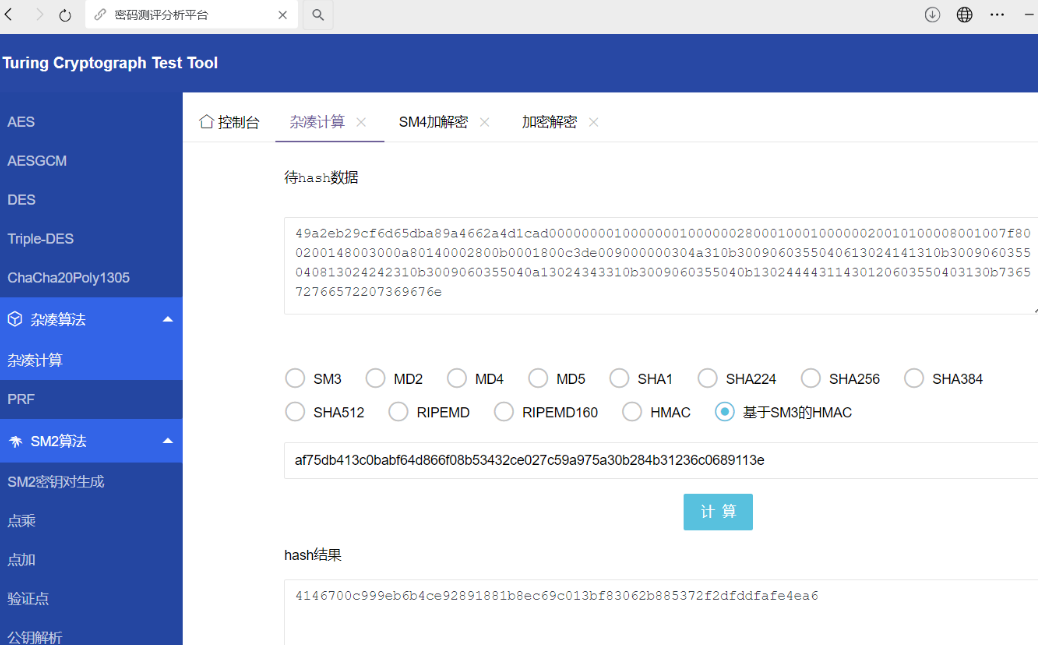

使用工具计算HASHr=PRF(SKEYID,CKY-R|CKY-I|SAr_b|IDr_b)

HASHr:

4146700c999eb6b4ce92891881b8ec69c013bf83062b885372f2dfddfafe4ea6

第二阶段
0.快速模式交换依赖于第一阶段主模式交换，作为IPSecSA协商过程的一部分协商IPSecSA的安全策略并衍生会话密钥。快速模式交换的信息由ISAKMPSA来保护，即除了ISAKMP头外所有的载荷都要加密。在快速模式中，一个Hash载荷应紧跟在ISAKMP头之后，这个Hash用于消息的完整性校验以及数据源身份验证。
1.载荷的加密使用对称密码算法的CBC工作模式，第1个消息的IV是第一阶段的最后一组密文和第二阶段的MsgID进行Hash运算所得到的，即：
IV=HASH(第一阶段的最后一组密文||MsgID)

第一阶段的最后一组密文
dd55ad19832211a7909550c3472615c55feddb949b5ee01f9cfe6d9e228e3a1d
d92048953a172891b194012f8db5f7b0 最后一组

MsgID

cc2d2221

第一阶段的最后一组密文||MsgID

d92048953a172891b194012f8db5f7b0cc2d2221

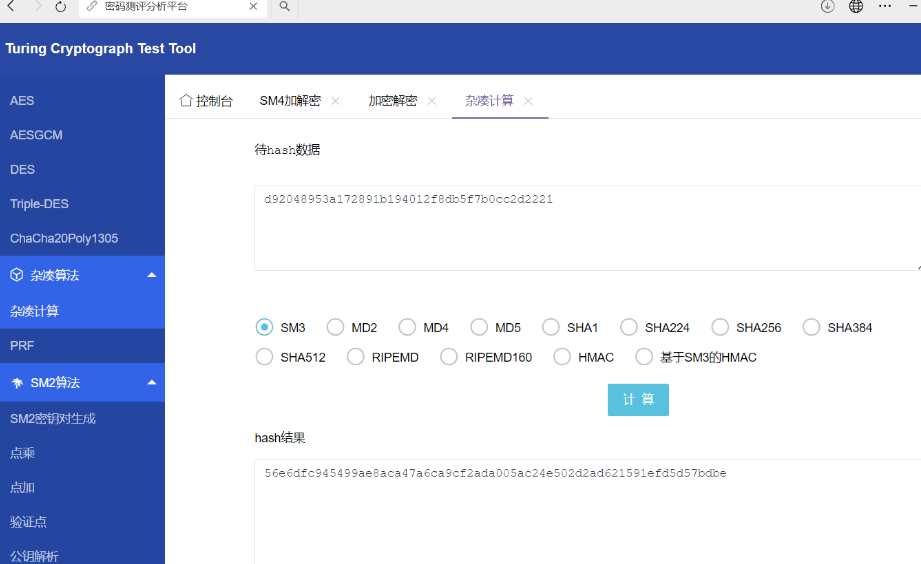

使用工具计算IV

hash

56e6dfc945499ae8aca47a6ca9cf2ada IV
005ac24e502d2ad621591efd5d57bdbe

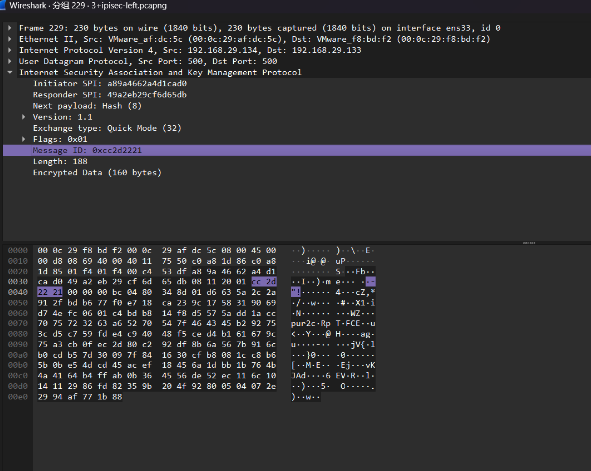

2.在Wireshark中通过导出获取第一个包密文
第一个包密文

0480348d01d6635a2c2a912fbdb677f0e718ca239c1758319069d74efc0601c4bdb814f8d5575add1acc7075723263a65270547f464345b292753cd5c759fde4c94048f5ced4b161679c75a3cb0fec2d80c292df8b6a567b916cb0cdb57d30097f841630cfb8081cc8b65b0be54dcd45acef18456a1dbb1b764b4a4164b4ffab0b364556de52ec116c1014112986fd82

359b204f92800504072e2994af771b88 第二包IV

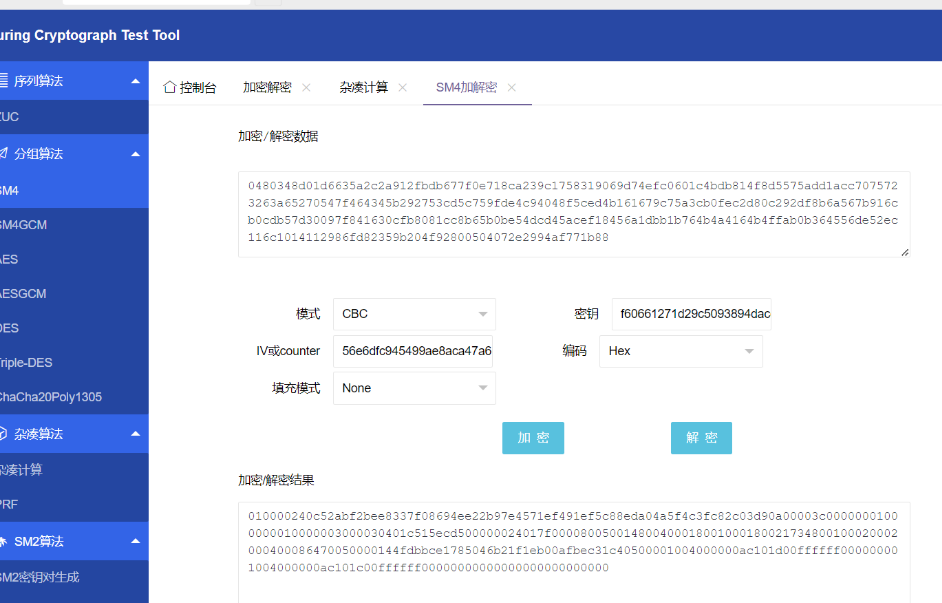

3.第一个包解密:SM4算法，CBC模式，密钥SKEYID_e,IV=HASH(第一阶段的最后一组密文||MsgID)：56e6dfc945499ae8aca47a6ca9cf2ada

第一个包明文：

hash包
01 next payload ：SA
00 保留
0024 ⻓度0c52abf2bee8337f08694ee22b97e4571ef491ef5c88eda04a5f4c3fc82c03d9
SA包
0a nounce包
00
003c
00000001
00000001
建议包
00
00
0030
00
03 协议类型 ESP
04 SPI⻓度
01 子载荷变换数
c515ecd5 变⻓的SPI
变换载荷
00
00
0024
01变换号
7f 变换ID ：127（现在129） SM4
0000
属性载荷
80050014 SM3-HMAC鉴别（20）
80040001 隧道模式封装
80010001 生存类型：秒
80021734 生存期：5940秒=99分钟
80010000002000400086470
nounce包
05 下一载荷：ID
00
0014
4fdbbce1785046b21f1eb00afbec31c4
IDi包
05
00
0010
04000000ac101d00ffffff00
IDr包
00
00
0010
04000000ac101c00ffffff00
000000000000000000000000填充

4.在Wireshark中通过导出获取第二个包密文

第二个包密文

49813dfd83a4c3c3bf2950290904fc4237c90e5e45e4991a60336a91ee6848de0ca5964fbb5af6f0aa607ebcc8188e9774a8ac79f1f93b1a72140625c3588eea7e1e4b137783c948e9bd7a060f8d36821b5198c7e3eb41a5ad4e3f30acf978f80930e47a79e3ddae43fb9d1463c6dbcb45ad9d37ead1eb54fbcf39058a9e9c39f7a9c43c6c1aecc5a1a58522abd59609
20f20261bf78e32847d2f84e7f4cbdb2 第三包IV

5.第二个包解密:SM4算法，CBC模式，密钥SKEYID_e,IV：359b204f92800504072e2994af771b88

第二个包明文：
01000024d90aad574e561b98e0fd9136cc217e7e4c8300cf8c3829aa2c650e8de73e7c210a00003c00000001000000010000003000030401c713ad0600000024017f00008005001480040001800100018002173480010002000200040008647005000014106bcaa925dc5b6d994efc88369d60590500001004000000ac101d00ffffff000000001004000000ac101c00ffffff00000000000000000000000000

6.在Wireshark中通过导出获取第三个包密文

第三个包密文

6017ca492079d1910a3cfbc30aaa2d66c6a003b902799af271b6d87d36555031b2d9d152de3a711963072efa0d2d8012

7.第三个包解密:SM4算法，CBC模式，密钥SKEYID_e,IV：20f20261bf78e32847d2f84e7f4cbdb2
第三个包明文：

00
00
0024
c6125d6cc79a13a4fa8f0806e7fed72ec4280f5a64b5a0a67789bd8e698036c9
000000000000000000000000 填充

2.使用 OpenSSL或者 GmSSL命令进行验证，提交验证过程（选做,加分项目，加20分）
签名验证
发起方验签
将其公钥转化为pem格式
-----BEGIN PUBLIC KEY-----
MFkwEwYHKoZIzj0CAQYIKoEcz1UBgi0DQgAELWF+dNVYbd4j0kkPvUaOMPEdAS1Q
qPOSzRhJsQsWfpoGYffjoqAO5+xHGO2Te0qyxQqg00HRXkCVdDs4UK9tPA==
-----END PUBLIC KEY-----

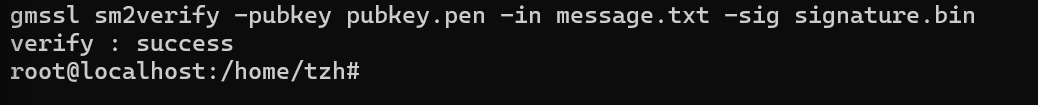

使用gmssl命令验证成功

响应方验签
将其公钥转化为pem格
-----BEGIN PUBLIC KEY-----
MFkwEwYHKoZIzj0CAQYIKoEcz1UBgi0DQgAEBb/67sQGyPP1gKbjnFKEdsDfK2EG
XUp09HavD7ZokPiWrMSyHYsDbRPxe9TTgjSQi+23f44+rocGVPxvqASNDA==
-----END PUBLIC KEY-----

使用gmssl验证成功

HMAC验证
密钥计算HMAC验证
tzh@tzh-VirtualBox:~/tzh/homework/ipsec$ echo -n "a89a4662a4d1cad049a2eb29cf6d65db000000010000000100000028000100010000002001010008001007f800200148003000a80140002800b0001800c3de009000000304a310b3009060355040613024141310b3009060355040813024242310b3009060355040a13024343310b3009060355040b13024444311430120603550403130b636c69656e742073697465" | xxd -r -p > data.hex
tzh@tzh-VirtualBox:~/tzh/homework/ipsec$ gnutls smhmac -key af75db413c0babf64d86f08b53432ce027c59a975a30b284b31236c0689113e -in data.hex -hex
5855a82383911acace237a72d2c6427aa18d552fc4d80d13288104a7f9da2f3c

SM4解密验证
解密HASHr验证：

将十六进制字符串转换为二进制文件HASHr.bin

tzh@tzh-VirtualBox:~/tzh/homework/ipsec$ echo -n "4146700c999eb6b4ce92891881b8ec69c013bf83062b8853372f2dfdfafe4ea6" | xxd -r -p > HASHr.bin

使用OpenSSL的SM4-CBC算法加密文件，输出为output.bin

tzh@tzh-VirtualBox:~/tzh/homework/ipsec$ openssl sm4-cbc -d -k "f60661271d29c5093894daccdacf5378c" -iv "b958be5fa74277fc91b3fdd3d1cb7fe0" -in HASHr.bin -out output.bin -nopad

查看output.bin的十六进制内容

tzh@tzh-VirtualBox:~/tzh/homework/ipsec$ xxd output.bin
00000000: 07d8 0e2c 856a 171b 87ef b9db 0425 5efa ...,.j......%.^.
00000010: 149b f4d3 8882 af63 f211 1c5f c252 966f .......c..._R.o
00000020: 0027 a2a8 c128 110d cbea 3961 1b29 58f4 .'...(....9a.).X.
00000030: ee7b 6d95 6f3b da2d b3d3 d1a1 f4bb 233d .{m.o;.-......#=

再次查看HASHr.bin的十六进制内容（验证源数据）

tzh@tzh-VirtualBox:~/tzh/homework/ipsec$ xxd HASHr.bin
00000000: 3431 3436 3730 3063 3939 3965 6262 3634 4146700c999eb6b4
00000010: 6365 3932 3839 3138 3831 6238 6563 3639 ce92891881b8ec69
00000020: 6330 3133 6266 3833 3036 3262 3838 3533 c013bf83062b8853
00000030: 3337 3266 3264 6664 6661 6665 3465 3636 372f2dfdfafe4ea6
