课下作业：TLCP 协议验证
完成下面任务（99分）
- 参考云班课课程资源中“ch03 密码技术-协议验证”的“VPN协议验证.pdf”和“ch03 密码技术-09-密码协议验证TLCP.mp4”，对 TLCP 协议进行验证，提交验证过程。（79分）

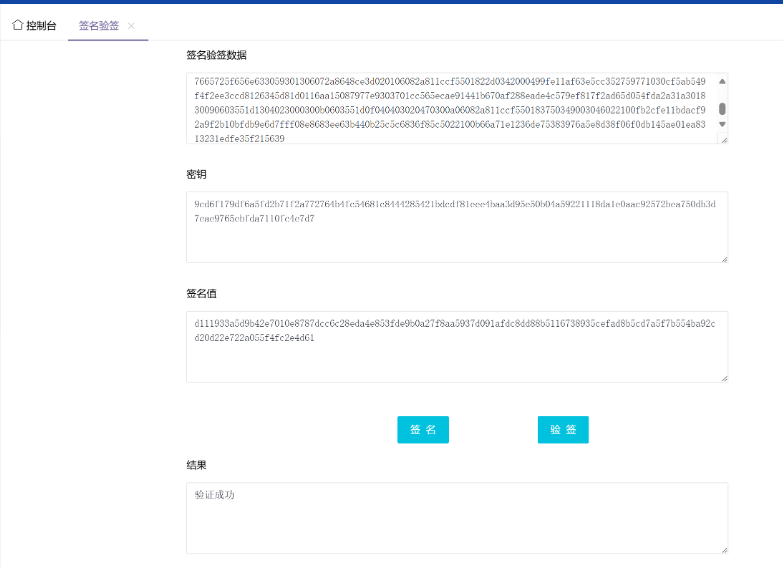

****服务端密钥交换消息验证
签名验签
client hello random
6541f880b28ee1eaea9d5a92679ce16cea85c56df7ede810ffa78d44fb0b944d
server hello random
553c83b288b79abae1841fe1e05ff29d0771d3160314d562444f574e47524400
Sever 加密证书
308201f330820198a00302010202145326ccffbb03ba78b831599da3e085133de83da8300a06082a811ccf550183753068310b300906035504061302434e3111300f06035504080c085368616e646f6e67310f300d060355040a0c0653616e7365633122302006092a864886f70d01090116136e656967686261647340676d61696c2e636f6d3111300f06035504030c08736d325f726f6f74301e170d3230303730323036303030355a170d3330303633303036303030355a306e310b300906035504061302434e3111300f06035504080c085368616e646f6e67310f300d060355040a0c0653616e7365633122302006092a864886f70d01090116136e656967686261647340676d61696c2e636f6d3117301506035504030c0e736d325f7365727665725f656e633059301306072a8648ce3d020106082a811ccf5501822d0342000499fe11af63e5cc352759771030cf5ab549f4f2ee3ccd8126345d81d0116aa15087977e9303701cc565ecae91441b670af288eade4c579ef817f2ad65d054fda2a31a301830090603551d1304023000300b0603551d0f040403020470300a06082a811ccf550183750349003046022100fb2cfe11bdacf92a9f2b10bfdb9e6d7fff08e8683ee63b440b25c5c6836f85c5022100b66a71e1236de75383976a5e8d38f06f0db145ae01ea8313231edfe35f215639
签名原文 = 32位的客户端随机数 + 32位的服务器随机数 + 服务端加密证书
即
前两个 +0001f7+第三个值
得到
签名验签数据(签名原文）
6541f880b28ee1eaea9d5a92679ce16cea85c56df7ede810ffa78d44fb0b944d553c83b288b79abae1841fe1e05ff29d0771d3160314d562444f574e475244000001f7308201f330820198a00302010202145326ccffbb03ba78b831599da3e085133de83da8300a06082a811ccf550183753068310b300906035504061302434e3111300f06035504080c085368616e646f6e67310f300d060355040a0c0653616e7365633122302006092a864886f70d01090116136e656967686261647340676d61696c2e636f6d3111300f06035504030c08736d325f726f6f74301e170d3230303730323036303030355a170d3330303633303036303030355a306e310b300906035504061302434e3111300f06035504080c085368616e646f6e67310f300d060355040a0c0653616e7365633122302006092a864886f70d01090116136e656967686261647340676d61696c2e636f6d3117301506035504030c0e736d325f7365727665725f656e633059301306072a8648ce3d020106082a811ccf5501822d0342000499fe11af63e5cc352759771030cf5ab549f4f2ee3ccd8126345d81d0116aa15087977e9303701cc565ecae91441b670af288eade4c579ef817f2ad65d054fda2a31a301830090603551d1304023000300b0603551d0f040403020470300a06082a811ccf550183750349003046022100fb2cfe11bdacf92a9f2b10bfdb9e6d7fff08e8683ee63b440b25c5c6836f85c5022100b66a71e1236de75383976a5e8d38f06f0db145ae01ea8313231edfe35f215
公钥(在签名证书即"certificate"中的第一个证书中，格式04||x||y)
签名公钥
049cd6f179df6a5fd2b71f2a772764b4fc54681c8444285421bdcdf81eee4baa3d95e50b04a59221118da1e0aac92572bea750db3d7eae9765ebfda7110fc4e7d7
去掉04（类型号）
9cd6f179df6a5fd2b71f2a772764b4fc54681c8444285421bdcdf81eee4baa3d95e50b04a59221118da1e0aac92572bea750db3d7eae9765ebfda7110fc4e7d7
原文的签名值的DER编码(在server发来的"key exchange"中)
3046022100 d111933a5d9b42e7010e8787dcc6c28eda4e853fde9b0a27f8aa5937d091afdc 022100 8dd88b5116738935cefad8b5cd7a5f7b554ba92cd20d22e722a055f4fc2e4d61
解码后得到真实的签名值
d111933a5d9b42e7010e8787dcc6c28eda4e853fde9b0a27f8aa5937d091afdc8dd88b5116738935cefad8b5cd7a5f7b554ba92cd20d22e722a055f4fc2e4d61
****客户端证书和密钥交换验证
整个"client hello"值
0100003c01016541f880b28ee1eaea9d5a92679ce16cea85c56df7ede810ffa78d44fb0b944d00000ae013e011e003e00100ff0100000900230000000f000101
整个"server hello"值0200004d0101553c83b288b79abae1841fe1e05ff29d0771d3160314d562444f574e4752440020f9fd8a5e100eb5f3fb89e091370a8ec0f2a660348bfa82387d9c25c21b6c24f3e013000005ff01000100
server 双证书("Certificate"中的"Handshake Protocol: Certificate"值)
0b0003f20003ef0001f2
30
8201ee
30820194a00302010202145326ccffbb03ba78b831599da3e085133de83da7300a06082a811ccf550183753068310b300906035504061302434e3111300f06035504080c085368616e646f6e67310f300d060355040a0c0653616e7365633122302006092a864886f70d01090116136e656967686261647340676d61696c2e636f6d3111300f06035504030c08736d325f726f6f74301e170d3230303730323036303030355a170d3330303633303036303030355a306a310b300906035504061302434e3111300f06035504080c085368616e646f6e67310f300d060355040a0c0653616e7365633122302006092a864886f70d01090116136e656967686261647340676d61696c2e636f6d3113301106035504030c0a736d325f7365727665723059301306072a8648ce3d020106082a811ccf5501822d034200049cd6f179df6a5fd2b71f2a772764b4fc54681c8444285421bdcdf81eee4baa3d95e50b04a59221118da1e0aac92572bea750db3d7eae9765ebfda7110fc4e7d7a31a301830090603551d1304023000300b0603551d0f0404030205e0300a06082a811ccf550183750348003045022100dd112f544c8699205fb12e35a07065fb916d6e95445f8870de27ad1467aeabf402201b02357965886bdbcf2407ad1c42bc8d4fe9d686c064aea52dc31f1ca931736b0001f7308201f330820198a00302010202145326ccffbb03ba78b831599da3e085133de83da8300a06082a811ccf550183753068310b300906035504061302434e3111300f06035504080c085368616e646f6e67310f300d060355040a0c0653616e7365633122302006092a864886f70d01090116136e656967686261647340676d61696c2e636f6d3111300f06035504030c08736d325f726f6f74301e170d3230303730323036303030355a170d3330303633303036303030355a306e310b300906035504061302434e3111300f06035504080c085368616e646f6e67310f300d060355040a0c0653616e7365633122302006092a864886f70d01090116136e656967686261647340676d61696c2e636f6d3117301506035504030c0e736d325f7365727665725f656e633059301306072a8648ce3d020106082a811ccf5501822d0342000499fe11af63e5cc352759771030cf5ab549f4f2ee3ccd8126345d81d0116aa15087977e9303701cc565ecae91441b670af288eade4c579ef817f2ad65d054fda2a31a301830090603551d1304023000300b0603551d0f040403020470300a06082a811ccf550183750349003046022100fb2cfe11bdacf92a9f2b10bfdb9e6d7fff08e8683ee63b440b25c5c6836f85c5022100b66a71e1236de75383976a5e8d38f06f0db145ae01ea8313231edfe35f215639
client key exchange
1000009e009c30819902210082726f634e53e6c54884ef29ae668e6dd54ee9e32e7aafe5b2fb15ddf5aadd4502206f3b2e27716ea92f4d68b48de9645dc949bfa5da757a0b15f42262ef17c085b30420af9da5257ed27b586587425dc755b7886bdf55d0866da22f56c17d8e7f146874043007194ce4335592c2a674ce3f15914a2ea04f5c64ddf25b796a4cb7df1278b413e31c0266255463b741dddf834188195a
组合数据(规则：clienthello||serverhello||server证书||serverkeyexchange||servercertificaterequest||serverhellodone||client证书||clientkeyexchange)
0100003c01016541f880b28ee1eaea9d5a92679ce16cea85c56df7ede810ffa78d44fb0b944d00000ae013e011e003e00100ff0100000900230000000f0001010200004d0101553c83b288b79abae1841fe1e05ff29d0771d3160314d562444f574e4752440020f9fd8a5e100eb5f3fb89e091370a8ec0f2a660348bfa82387d9c25c21b6c24f3e013000005ff010001000b0003f20003ef0001f2308201ee30820194a00302010202145326ccffbb03ba78b831599da3e085133de83da7300a06082a811ccf550183753068310b300906035504061302434e3111300f06035504080c085368616e646f6e67310f300d060355040a0c0653616e7365633122302006092a864886f70d01090116136e656967686261647340676d61696c2e636f6d3111300f06035504030c08736d325f726f6f74301e170d3230303730323036303030355a170d3330303633303036303030355a306a310b300906035504061302434e3111300f06035504080c085368616e646f6e67310f300d060355040a0c0653616e7365633122302006092a864886f70d01090116136e656967686261647340676d61696c2e636f6d3113301106035504030c0a736d325f7365727665723059301306072a8648ce3d020106082a811ccf5501822d034200049cd6f179df6a5fd2b71f2a772764b4fc54681c8444285421bdcdf81eee4baa3d95e50b04a59221118da1e0aac92572bea750db3d7eae9765ebfda7110fc4e7d7a31a301830090603551d1304023000300b0603551d0f0404030205e0300a06082a811ccf550183750348003045022100dd112f544c8699205fb12e35a07065fb916d6e95445f8870de27ad1467aeabf402201b02357965886bdbcf2407ad1c42bc8d4fe9d686c064aea52dc31f1ca931736b0001f7308201f330820198a00302010202145326ccffbb03ba78b831599da3e085133de83da8300a06082a811ccf550183753068310b300906035504061302434e3111300f06035504080c085368616e646f6e67310f300d060355040a0c0653616e7365633122302006092a864886f70d01090116136e656967686261647340676d61696c2e636f6d3111300f06035504030c08736d325f726f6f74301e170d3230303730323036303030355a170d3330303633303036303030355a306e310b300906035504061302434e3111300f06035504080c085368616e646f6e67310f300d060355040a0c0653616e7365633122302006092a864886f70d01090116136e656967686261647340676d61696c2e636f6d3117301506035504030c0e736d325f7365727665725f656e633059301306072a8648ce3d020106082a811ccf5501822d0342000499fe11af63e5cc352759771030cf5ab549f4f2ee3ccd8126345d81d0116aa15087977e9303701cc565ecae91441b670af288eade4c579ef817f2ad65d054fda2a31a301830090603551d1304023000300b0603551d0f040403020470300a06082a811ccf550183750349003046022100fb2cfe11bdacf92a9f2b10bfdb9e6d7fff08e8683ee63b440b25c5c6836f85c5022100b66a71e1236de75383976a5e8d38f06f0db145ae01ea8313231edfe35f2156390c00004a00483046022100d111933a5d9b42e7010e8787dcc6c28eda4e853fde9b0a27f8aa5937d091afdc0221008dd88b5116738935cefad8b5cd7a5f7b554ba92cd20d22e722a055f4fc2e4d610d00000502010200000e0000000b0003f10003ee0001f2308201ee30820194a00302010202145326ccffbb03ba78b831599da3e085133de83da5300a06082a811ccf550183753068310b300906035504061302434e3111300f06035504080c085368616e646f6e67310f300d060355040a0c0653616e7365633122302006092a864886f70d01090116136e656967686261647340676d61696c2e636f6d3111300f06035504030c08736d325f726f6f74301e170d3230303730323036303030355a170d3330303633303036303030355a306a310b300906035504061302434e3111300f06035504080c085368616e646f6e67310f300d060355040a0c0653616e7365633122302006092a864886f70d01090116136e656967686261647340676d61696c2e636f6d3113301106035504030c0a736d325f636c69656e743059301306072a8648ce3d020106082a811ccf5501822d03420004f1351cf6292f6f4ca4a4b727d81a3285826ce231c169bbb301b552991de5d016fe552ec26aef8260ca85f2007b9ab836be6a61edf3d9c8567dcce1d1394dcfa9a31a301830090603551d1304023000300b0603551d0f0404030205e0300a06082a811ccf550183750348003045022100b8b4f96c8644b8c8ebae6cd333ecc5df783ed7419bf46ad92e51e7257d25670b0220294db4ed04feebeec47f95048c4d2c13781f1ac930e3756a6d8076ffc1352ec80001f6308201f230820198a00302010202145326ccffbb03ba78b831599da3e085133de83da6300a06082a811ccf550183753068310b300906035504061302434e3111300f06035504080c085368616e646f6e67310f300d060355040a0c0653616e7365633122302006092a864886f70d01090116136e656967686261647340676d61696c2e636f6d3111300f06035504030c08736d325f726f6f74301e170d3230303730323036303030355a170d3330303633303036303030355a306e310b300906035504061302434e3111300f06035504080c085368616e646f6e67310f300d060355040a0c0653616e7365633122302006092a864886f70d01090116136e656967686261647340676d61696c2e636f6d3117301506035504030c0e736d325f636c69656e745f656e633059301306072a8648ce3d020106082a811ccf5501822d0342000449bb9eefc8831883173196e6c9de37fefc24251429f3bd5950a11f60fbf016b573bbece3ce92c624b21cb570fb55fe5b1c1e74ccebe871ff7d4503128da4ef7ea31a301830090603551d1304023000300b0603551d0f040403020470300a06082a811ccf550183750348003045022100ddef0028f0e53dd09b7d32b93426045def0b7524725ce025958c96e9a617a167022015e30a9269fa4eecef991a1935837abfe47a6970f95829ad9cc518133997d83c1000009e009c30819902210082726f634e53e6c54884ef29ae668e6dd54ee9e32e7aafe5b2fb15ddf5aadd4502206f3b2e27716ea92f4d68b48de9645dc949bfa5da757a0b15f42262ef17c085b30420af9da5257ed27b586587425dc755b7886bdf55d0866da22f56c17d8e7f146874043007194ce4335592c2a674ce3f15914a2ea04f5c64ddf25b796a4cb7df1278b413e31c0266255463b741dddf834188195a
签名数据(由上面的组合的数据进行sm3 hash计算得到)
c08d85599e2172797add1a3d510b63f3122815b9716e426facd0ca83a36c60cf
获取客户端的签名值的DER编码(“certificate verify”)
30
45
022100
b2e2c924d43aaa5ae11492e34b0c3cb1cfbd4c1742b3eead44a89e7129427a06
0220
652a4550b0bd8f1594c5bc7c8f370539fe6a57d5e1a17e78ff99e0566a1a4a20
解码得到实际签名值
b2e2c924d43aaa5ae11492e34b0c3cb1cfbd4c1742b3eead44a89e7129427a06652a4550b0bd8f1594c5bc7c8f370539fe6a57d5e1a17e78ff99e0566a1a4a20
客户端签名公钥
04
f1351cf6292f6f4ca4a4b727d81a3285826ce231c169bbb301b552991de5d016fe552ec26aef8260ca85f2007b9ab836be6a61edf3d9c8567dcce1d1394dcfa9
****密钥计算
计算预主密钥
- 私钥内容(来自模拟题流量包服务端加密私钥.pem的内容)
-----BEGIN PRIVATE KEY----- MIGTAgEAMBMGByqGSM49AgEGCCqBHM9VAYItBHkwdwIBAQQgb8tUl8wJ17FqiOSp pHwKa1pOgxQhAP0VoPe/EU0cGAqgCgYIKoEcz1UBgi2hRANCAARipb11eBDLluL8 OMWZOfdyOXKsvWMu40pEW2nFdUPxWpRw+akHNz8Aat6Mbr5k9fUiG3gbC/SYG44t d40YCWFb -----END PRIVATE KEY-----

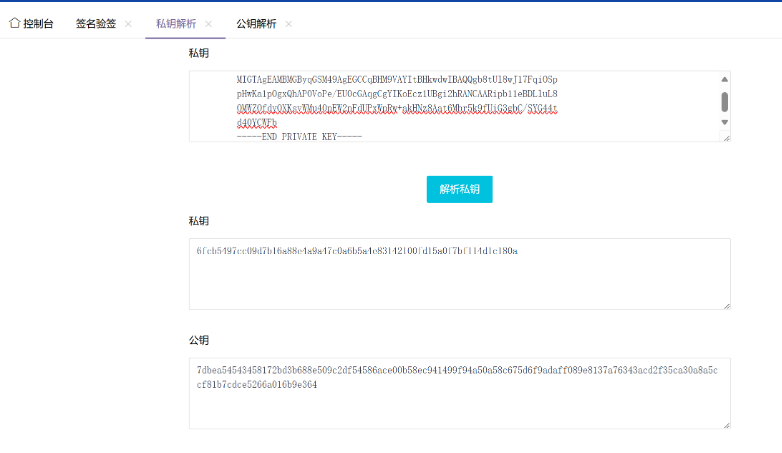

私钥（解析后）
6fcb5497cc09d7b16a88e4a9a47c0a6b5a4e83142100fd15a0f7bf114d1c180a
公钥
62a5bd757810cb96e2fc38c59939f7723972acbd632ee34a445b69c57543f15a9470f9a907373f006ade8c6ebe64f5f5221b781b0bf4981b8e2d778d1809615b
预主密钥
30819802202f1233582f931890b0d6472d39c1729cc20e00d9b26a0ad119c468b8bbbb3e1a0220171274bf57ef071e4d76ee3441f39b31996b2438e5f3334f91533e93aa1c3db90420a1e8b8721d5f922c6e33fb7052a2afb0038d05017e2c0ab5035bf772da2cc2f30430c2ce0c6634f3d7626db03963d8c19d8a98c1c4756659b707547fdf0439505e4c1bca72406c22d6ee62e1811d016b402e
预主密钥验证
- 打开模拟题SSL流量包.pcapng
- 加密的预主密钥的DER编码值(在"Client Key Exchange"找到"Encrypted PreMaster")
经过去掉格式得密文
2f1233582f931890b0d6472d39c1729cc20e00d9b26a0ad119c468b8bbbb3e1a171274bf57ef071e4d76ee3441f39b31996b2438e5f3334f91533e93aa1c3db9a1e8b8721d5f922c6e33fb7052a2afb0038d05017e2c0ab5035bf772da2cc2f3c2ce0c6634f3d7626db03963d8c19d8a98c1c4756659b707547fdf0439505e4c1bca72406c22d6ee62e1811d016b402e

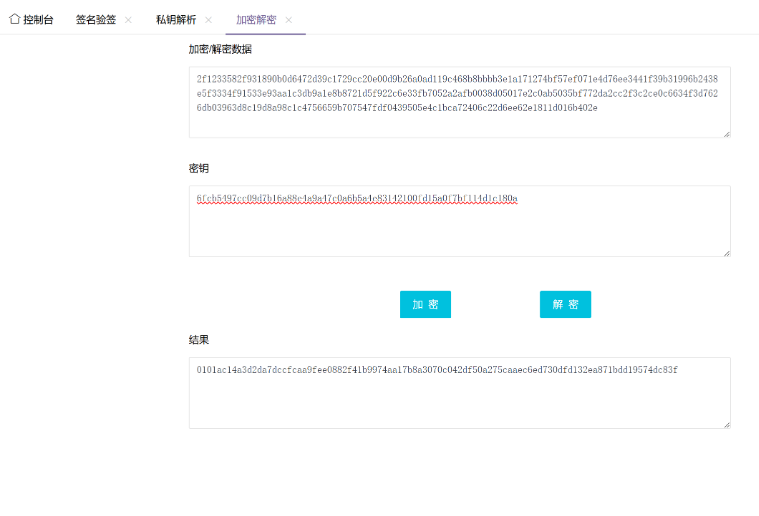

私钥解密
预主密钥明文
0101ac14a3d2da7dccfcaa9fee0882f41b9974aa17b8a3070c042df50a275caaec6ed730dfd132ea871bdd19574dc83f
****计算主密钥
基本信息
主密钥由48个字节组成，用于生成工作密钥
计算公式：master_secret = PRF(pre_master_secret, “master secret”, ClientHello.random + ServerHello.random)[0…47]
其中PRF（伪随机函数）的定义是：PRF(secret, label, seed) = P_hash(secret, label + seed)
这里的P_hash函数是通过HMAC(secret,A(1)+seed)+HMAC(secret,A(2)+seed)+HMAC(secret,A(3)+seed)+…的方式迭代计算的，直到产生所需⻓度的数据。其中，A(0)被定义为seed，而A(i)是通过HMAC(secret,A(i-1))计算得到的。
"master secret"
6d6173746572207365637265
SSL流量包
ClientHello.random
0a359775d8a2c2fd2756261b8ae86767db7b3cd3be532c9665ea432dc260b6d8
ServerHello.random
5423003bf0b79c2a134837d6c560dfb6d11cebdb2ab84e701fafe387b31ac268
A0(seed)
6d6173746572207365637265740a359775d8a2c2fd2756261b8ae86767db7b3cd3be532c9665ea432dc260b6d85423003bf0b79c2a134837d6c560dfb6d11cebdb2ab84e701fafe387b31ac268
A1由A0和预主密钥明文经hash得
75466ba297baa6abf75fa19698b5debdf815d632b98fdaf7c1bf60d8a7724f9e
A2由A1和预主密钥明文经hash得
c7642fabae939cad31063af385648bb48b8fb31e4c94ed97e1cc271208c0e477
A1||seed
75466ba297baa6abf75fa19698b5debdf815d632b98fdaf7c1bf60d8a7724f9e6d6173746572207365637265740a359775d8a2c2fd2756261b8ae86767db7b3cd3be532c9665ea432dc260b6d85423003bf0b79c2a134837d6c560dfb6d11cebdb2ab84e701fafe387b31ac268
ms1
640da76978a5efd6e0953088f015fa20ee810e48e24aa6f19a8900bcff05a3a7
A2||seed
c7642fabae939cad31063af385648bb48b8fb31e4c94ed97e1cc271208c0e4776d6173746572207365637265740a359775d8a2c2fd2756261b8ae86767db7b3cd3be532c9665ea432dc260b6d85423003bf0b79c2a134837d6c560dfb6d11cebdb2ab84e701fafe387b31ac268
ms2
722de36c807e5c7ca912e7e6ffa4965e7db07bef99df8c0f27f29c21237f94c7
主密钥
640da76978a5efd6e0953088f015fa20ee810e48e24aa6f19a8900bcff05a3a7 ||722de36c807e5c7ca912e7e6ffa4965e7db07bef99df8c0f27f29c21237f94c7
取前48位
640da76978a5efd6e0953088f015fa20ee810e48e24aa6f19a8900bcff05a3a7722de36c807e5c7ca912e7e6ffa4965e
****计算工作密钥
基本信息
工作密钥定义：工作密钥包括校验密钥和加密密钥，具体密钥⻓度由选用的密码算法决定。由主密钥、客户端随机数、服务端随机数、常量字符串，经PRF计算生成
计算方法如下：key_block =PRF(SecurityParameters.master_secret,“key expansion”,SecurityParameters.server_random +SecurityParameters.client_random);
直到生成所需⻓度的输出，然后按顺序分割得到所需的密钥：
client_write_MAC_secret[SecurityParameters,hash_size]
server_write_MAC_secret[SecurityParameters,hash_size]
client_write_key[SecurityParameters.key_material_length]
server_write_key[SecurityParameters,key_material_length]
client_write_IV[SecurityParameters.fixed_iv_length]
server_write_IV[SecurityParameters.fixed_iv_length]
注意这些密钥一共需要1024字节（sm3hash_size：256bits;sm4_ey_material_length:128bits;sm4_fixed_iv_length:128bits）,需要四次HMAC计算，下面分别记为A1，A2，A3，A4
计算过程
"key expansion"ASCII码
root@wzy:~# echo -n "key expansion" | od -tc -tx1
0000000 k e y e x p a n s i o n
6b 65 79 20 65 78 70 61 6e 73 69 6f 6e
0000015
server_random
5423003bf0b79c2a134837d6c560dfb6d11cebdb2ab84e701fafe387b31ac268
client_random
0a359775d8a2c2fd2756261b8ae86767db7b3cd3be532c9665ea432dc260b6d8
A0(seed) ： “keyexpansion”||server_random||client_random
6b657920657870616e73696f6e5423003bf0b79c2a134837d6c560dfb6d11cebdb2ab84e701fafe387b31ac2680a359775d8a2c2fd2756261b8ae86767db7b3cd3be532c9665ea432dc260b6d8
A1： A1=HMAC(MS,A0)
6003a5937faa6c9276656bd9cf11e5fc44d1da8cf8916cc3f1a1d9c9c5b2c364
A1||seed
6003a5937faa6c9276656bd9cf11e5fc44d1da8cf8916cc3f1a1d9c9c5b2c3646b657920657870616e73696f6e5423003bf0b79c2a134837d6c560dfb6d11cebdb2ab84e701fafe387b31ac2680a359775d8a2c2fd2756261b8ae86767db7b3cd3be532c9665ea432dc260b6d8
kb1：HMAC(MS,A1||seed)
87e00935dc21b9d87e3e5616179307d817966079a0dea9b9d09a4883cbf0e13d
A2：HMAC(MS,A1)
0a45328c9d23a88ad0b0dfe3656996b979bd4a2730a3f8ede29bc392153b6a6b
A2||seed
0a45328c9d23a88ad0b0dfe3656996b979bd4a2730a3f8ede29bc392153b6a6b6b657920657870616e73696f6e5423003bf0b79c2a134837d6c560dfb6d11cebdb2ab84e701fafe387b31ac2680a359775d8a2c2fd2756261b8ae86767db7b3cd3be532c9665ea432dc260b6d8
kb2=HMAC(MS,A2||seed)
b4b53c3b2acafe5781712816c1a3a2cece09d5837eb3389bdf1e471b06bc8157
A3=HMAC(MS,A2)
fee4db5e22a5e48c3c0e0b88509763940a8e65c4aaf850c00ae7eb72282089cf
A3||seed
fee4db5e22a5e48c3c0e0b88509763940a8e65c4aaf850c00ae7eb72282089cf6b657920657870616e73696f6e5423003bf0b79c2a134837d6c560dfb6d11cebdb2ab84e701fafe387b31ac2680a359775d8a2c2fd2756261b8ae86767db7b3cd3be532c9665ea432dc260b6d8
kb3：HMAC(MS,A3||seed）
022a23065301de9e49aaa0879e4ecbf2622cda5b8994a0bb4496f03b8c13a4cd
A4：HMAC(MS,A3)
8807466c968862f58c17b171b3520ab2a519d5df00c8fc991e9d696244c95437
A4||seed
8807466c968862f58c17b171b3520ab2a519d5df00c8fc991e9d696244c954376b657920657870616e73696f6e5423003bf0b79c2a134837d6c560dfb6d11cebdb2ab84e701fafe387b31ac2680a359775d8a2c2fd2756261b8ae86767db7b3cd3be532c9665ea432dc260b6d8
kb4：HMAC(MS,A4||seed)
145ba093616e5939aae6b59e4bed770145482c297f4c7cc76b497fcb1b2f4a84
工作密钥kb1||kb2||kb3||kb4
87e00935dc21b9d87e3e5616179307d817966079a0dea9b9d09a4883cbf0e13db4b53c3b2acafe5781712816c1a3a2cece09d5837eb3389bdf1e471b06bc8157022a23065301de9e49aaa0879e4ecbf2622cda5b8994a0bb4496f03b8c13a4cd145ba093616e5939aae6b59e4bed770145482c297f4c7cc76b497fcb1b2f4a84
由MAC256bits,key128bits,IV128bits规则分解得到所需的各种密钥
client MAC：87e00935dc21b9d87e3e5616179307d817966079a0dea9b9d09a4883cbf0e13d
server MAC：b4b53c3b2acafe5781712816c1a3a2cece09d5837eb3389bdf1e471b06bc8157
client write key：022a23065301de9e49aaa0879e4ecbf2
server write key：622cda5b8994a0bb4496f03b8c13a4cd
client IV：145ba093616e5939aae6b59e4bed7701
server IV：45482c297f4c7cc76b497fcb1b2f4a84
****2.不使用 “VPN协议验证.pdf”中的商用密码工具，使用 OpenSSL或者 GmSSL命令进行验证，提交验证过程（选做,加分项目，加20分）
使用GmSSL命令验证签名是否正确
验证客户端证书签名
通过在线网站将公钥由HEX格式转换成PEM格式
-----BEGIN PUBLIC KEY-----
MFkwEwYHKoZIzj0CAQYIKoEcz1UBgi0DQgAE8TUc9ikvb0ykpLcn2BoyhYJs4jHB
abuzAbVSmR3l0Bb+VS7Cau+CYMqF8gB7mrg2vmph7fPZyFZ9zOHROU3PqQ==
-----END PUBLIC KEY-----
创建文件（这里的签名值用的是真实值，不是DER编码值，之后会改为DER编码值）
[tzh@LAPTOP-PRC71A0C test3]$ vim public_key.pem
[tzh@LAPTOP-PRC71A0C test3]$ echo -n "c08d85599e2172797add1a3d510b63f3122815b9716e426facd0ca83a36c60cf" | xxd -r -p > message.txt
[tzh@LAPTOP-PRC71A0C test3]$ echo "b2e2c924d43aaa5ae11492e34b0c3cb1cfbd4c1742b3eead44a89e7129427a06652a4550b0bd8f1594c5bc7c8f370539fe6a57d5e1a17e78ff99e0566a1a4a20" | xxd -r -p > signature.bin
[tzh@LAPTOP-PRC71A0C test3]$ gmssl sm2verify -help usage: gmssl sm2verify (-pubkey pem | -cert pem) [-id str] [-in file] -sig file
Options
-pubkey pem Signer's public key file in PEM format
-cert pem Signer's certificate in PEM format
-id str Signer's identity string, '1234567812345678' by default
-in file | stdin Signed file or data
-sig file Signature in binary DER encoding
Examples
$ gmssl sm2keygen -pass P@ssw0rd -out sm2.pem -pubout sm2pub.pem
$ echo -n 'message to be signed' | gmssl sm2sign -key sm2.pem -pass P@ssw0rd -out sm2.sig
$ echo -n 'message to be signed' | gmssl sm2verify -pubkey sm2pub.pem -sig sm2.sig
[tzh@LAPTOP-PRC71A0C test3]$ gmssl sm2verify -help
usage: gmssl sm2verify (-pubkey pem | -cert pem) [-id str] [-in file] -sig file
Options
-pubkey pem Signer's public key file in PEM format
-cert pem Signer's certificate in PEM format
-id str Signer's identity string, '1234567812345678' by default
-in file | stdin Signed file or data
-sig file Signature in binary DER encoding
Examples
$ gmssl sm2keygen -pass P@ssw0rd -out sm2.pem -pubout sm2pub.pem
$ echo -n 'message to be signed' | gmssl sm2sign -key sm2.pem -pass P@ssw0rd -out sm2.sig
$ echo -n 'message to be signed' | gmssl sm2verify -pubkey sm2pub.pem -sig sm2.sig
[tzh@LAPTOP-PRC71A0C test3]$ ls
message.txt public_key.pem signature.bin
[tzh@LAPTOP-PRC71A0C test3]$ gmssl sm2verify -pubkey public_key.pem -in message.txt -sig signature.bin
/home/tzh/GmSSL/src/sm2_sign.c:661:sm2_verify_finish():
gmssl sm2verify: inner error
root@tzh:~/TestInClass/test1029/client-sign# ls
message.txt public_key.pem signature.bin
[tzh@LAPTOP-PRC71A0C test3]$ echo -n "3045022100b2e2c924d43aaa5ae11492e34b0c3cb1cfbd4c1742b3eead44a89e7129427a060220652a4550b0bd8f1594c5bc7c8f370539fe6a57d5e1a17e78ff99e0566a1a4a20" | xxd -r -p > signature.bin
[tzh@LAPTOP-PRC71A0C test3]$ gmssl sm2verify -pubkey public_key.pem -in message.txt -sig signature.bin
verify : success
- 验证服务端证书签名
- 通过在线网站将公钥由HEX格式转换成PEM格式
-----BEGIN PUBLIC KEY-----
MFkwEwYHKoZIzj0CAQYIKoEcz1UBgi0DQgAEnNbxed9qX9K3Hyp3J2S0/FRoHIRE
KFQhvc34Hu5Lqj2V5QsEpZIhEY2h4KrJJXK+p1DbPX6ul2Xr/acRD8Tn1w==
-----END PUBLIC KEY-----
- 验证过程
[tzh@LAPTOP-PRC71A0C test3]$ vim public_key.pem
[tzh@LAPTOP-PRC71A0C test3]$ echo -n "6541f880b28ee1eaea9d5a92679ce16cea85c56df7ede810ffa78d44fb0b944d553c83b288b79abae1841fe1e05ff29d0771d3160314d562444f574e475244000001f7308201f330820198a00302010202145326ccffbb03ba78b831599da3e085133de83da8300a06082a811ccf550183753068310b300906035504061302434e3111300f06035504080c085368616e646f6e67310f300d060355040a0c0653616e7365633122302006092a864886f70d01090116136e656967686261647340676d61696c2e636f6d3111300f06035504030c08736d325f726f6f74301e170d3230303730323036303030355a170d3330303633303036303030355a306e310b300906035504061302434e3111300f06035504080c085368616e646f6e67310f300d060355040a0c0653616e7365633122302006092a864886f70d01090116136e656967686261647340676d61696c2e636f6d3117301506035504030c0e736d325f7365727665725f656e633059301306072a8648ce3d020106082a811ccf5501822d0342000499fe11af63e5cc352759771030cf5ab549f4f2ee3ccd8126345d81d0116aa15087977e9303701cc565ecae91441b670af288eade4c579ef817f2ad65d054fda2a31a301830090603551d1304023000300b0603551d0f040403020470300a06082a811ccf550183750349003046022100fb2cfe11bdacf92a9f2b10bfdb9e6d7fff08e8683ee63b440b25c5c6836f85c5022100b66a71e1236de75383976a5e8d38f06f0db145ae01ea8313231edfe35f215639" | xxd -r -p > message.txt
[wzy@LAPTOP-PRC71A0C test3]$ echo "3046022100d111933a5d9b42e7010e8787dcc6c28eda4e853fde9b0a27f8aa5937d091afdc0221008dd88b5116738935cefad8b5cd7a5f7b554ba92cd20d22e722a055f4fc2e4d61" | xxd -r -p > signature.bin
[tzh@LAPTOP-PRC71A0C test3]$ gmssl sm2verify -pubkey public_key.pem -in message.txt -sig signature.bin
verify : success
使用openssl命令进行私钥解析过程
[tzh@LAPTOP-PRC71A0C test3]$ vim sm2private_key.pem
[tzh@LAPTOP-PRC71A0C test3]$ openssl asn1parse -inform PEM -in sm2private_key.pem
0:d=0 hl=3 l= 147 cons: SEQUENCE
3:d=1 hl=2 l= 1 prim: INTEGER :00
6:d=1 hl=2 l= 19 cons: SEQUENCE
8:d=2 hl=2 l= 7 prim: OBJECT :id-ecPublicKey
17:d=2 hl=2 l= 8 prim: OBJECT :sm2
27:d=1 hl=2 l= 121 prim: OCTET STRING [HEX DUMP]:307702010104206FCB5497CC09D7B16A88E4A9A47C0A6B5A4E83142100FD15A0F7BF114D1C180AA00A06082A811CCF5501822DA1440342000462A5BD757810CB96E2FC38C59939F7723972ACBD632EE34A445B69C57543F15A9470F9A907373F006ADE8C6EBE64F5F5221B781B0BF4981B8E2D778D1809615B
[tzh@LAPTOP-PRC71A0C test3]$ openssl base64 -d -in sm2private_key.pem -out sm2private_key.der
[tzh@LAPTOP-PRC71A0C test3]$ openssl asn1parse -inform DER -in sm2private_key.der
0:d=0 hl=3 l= 147 cons: SEQUENCE
3:d=1 hl=2 l= 1 prim: INTEGER :00
6:d=1 hl=2 l= 19 cons: SEQUENCE
8:d=2 hl=2 l= 7 prim: OBJECT :id-ecPublicKey
17:d=2 hl=2 l= 8 prim: OBJECT :sm2
27:d=1 hl=2 l= 121 prim: OCTET STRING [HEX DUMP]:307702010104206FCB5497CC09D7B16A88E4A9A47C0A6B5A4E83142100FD15A0F7BF114D1C180AA00A06082A811CCF5501822DA1440342000462A5BD757810CB96E2FC38C59939F7723972ACBD632EE34A445B69C57543F15A9470F9A907373F006ADE8C6EBE64F5F5221B781B0BF4981B8E2D778D1809615B
[tzh@LAPTOP-PRC71A0C test3]$ od -tx1 sm2private_key.der
0000000 30 81 93 02 01 00 30 13 06 07 2a 86 48 ce 3d 02
0000020 01 06 08 2a 81 1c cf 55 01 82 2d 04 79 30 77 02
0000040 01 01 04 20 6f cb 54 97 cc 09 d7 b1 6a 88 e4 a9
0000060 a4 7c 0a 6b 5a 4e 83 14 21 00 fd 15 a0 f7 bf 11
0000100 4d 1c 18 0a a0 0a 06 08 2a 81 1c cf 55 01 82 2d
0000120 a1 44 03 42 00 04 62 a5 bd 75 78 10 cb 96 e2 fc
0000140 38 c5 99 39 f7 72 39 72 ac bd 63 2e e3 4a 44 5b
0000160 69 c5 75 43 f1 5a 94 70 f9 a9 07 37 3f 00 6a de
0000200 8c 6e be 64 f5 f5 22 1b 78 1b 0b f4 98 1b 8e 2d
0000220 77 8d 18 09 61 5b
0000226
[tzh@LAPTOP-PRC71A0C test3]$ openssl pkey -in sm2private_key.pem -text -noout
Private-Key: (256 bit)
priv:
6f:cb:54:97:cc:09:d7:b1:6a:88:e4:a9:a4:7c:0a:
6b:5a:4e:83:14:21:00:fd:15:a0:f7:bf:11:4d:1c:
18:0a
pub:
04:62:a5:bd:75:78:10:cb:96:e2:fc:38:c5:99:39:
f7:72:39:72:ac:bd:63:2e:e3:4a:44:5b:69:c5:75:
43:f1:5a:94:70:f9:a9:07:37:3f:00:6a🇩🇪8c:6e:
be:64:f5:f5:22:1b:78:1b:0b:f4:98:1b:8e:2d:77:
8d:18:09:61:5b
ASN1 OID: SM2
提交要求 (1’)
记录实践过程和 AI 问答过程，尽量不要截图，给出文本内容
(选做)推荐所有作业托管到 gitee或 github 上
(必做)提交作业 markdown文档，命名为“学号-姓名-作业题目.md”
(必做)提交作业 markdown文档转成的 PDF 文件，命名为“学号-姓名-作业题目.pdf”
