使用docker部署zabbix 5.4

一、拉取镜像

1.docker pull mysql:8.0
2.docker pull zabbix/zabbix-web-nginx-mysql:alpine-5.4-latest
3.docker pull zabbix/zabbix-agent:alpine-5.4-latest
4.docker pull zabbix/zabbix-server-mysql:alpine-5.4-latest
5.docker pull zabbix/zabbix-java-gateway:alpine-5.4-latest

二、创建docker compose文件，创建文件名 docker-compose-zabbix.yml

version: '3.8'  # 必须声明版本
services:
  mysql-server:
    image: mysql:8.0
    container_name: mysql-server
    environment:
      - MYSQL_DATABASE=zabbix
      - MYSQL_USER=zabbix
      - MYSQL_PASSWORD=zabbix_pwd
      - MYSQL_ROOT_PASSWORD=root_pwd
    volumes:
      - mysql-data:/var/lib/mysql
    command:
      - --character-set-server=utf8
      - --collation-server=utf8_bin
      - --default-authentication-plugin=mysql_native_password
    networks:
      - zabbix-net

  zabbix-server-mysql:
    image: zabbix/zabbix-server-mysql:alpine-5.4-latest
    container_name: zabbix-server-mysql
    ports:
      - "10051:10051"
    environment:
      - DB_SERVER_HOST=mysql-server
      - MYSQL_DATABASE=zabbix
      - MYSQL_USER=zabbix
      - MYSQL_PASSWORD=zabbix_pwd
      - MYSQL_ROOT_PASSWORD=root_pwd
      - ZBX_JAVAGATEWAY_ENABLE=true
      - ZBX_STARTPOLLERS=5
      - ZBX_STARTTRAPPERS=5
      - ZBX_TIMEOUT=4
    volumes:
      - /etc/localtime:/etc/localtime:ro
      - /etc/timezone:/etc/timezone:ro
    networks:
      - zabbix-net
    depends_on:
      - mysql-server

  zabbix-web-nginx-mysql:
    image: zabbix/zabbix-web-nginx-mysql:alpine-5.4-latest
    container_name: zabbix-web-nginx-mysql
    ports:
      - "8080:8080"
    environment:
      - ZBX_SERVER_HOST=zabbix-server-mysql
      - DB_SERVER_HOST=mysql-server
      - MYSQL_DATABASE=zabbix
      - MYSQL_USER=zabbix
      - MYSQL_PASSWORD=zabbix_pwd
      - MYSQL_ROOT_PASSWORD=root_pwd
    volumes:
      - zabbix_web_ssl:/etc/ssl
      - zabbix_web_config:/etc/zabbix
    networks:
      - zabbix-net
    depends_on:
      - mysql-server
      - zabbix-server-mysql

  zabbix-agent:
    image: zabbix/zabbix-agent:alpine-5.4-latest
    container_name: zabbix-agent
    ports:
      - "10050:10050"
    environment:
      - ZBX_HOSTNAME=zabbix-agent
      - ZBX_SERVER_HOST=zabbix-server-mysql
      - ZBX_SERVER_PORT=10051
    networks:
      - zabbix-net
    depends_on:
      - zabbix-server-mysql

  zabbix-java-gateway:
    image: zabbix/zabbix-java-gateway:latest
    container_name: zabbix-java-gateway
    restart: unless-stopped
    ports:
      - "10052:10052"
    environment:
      - ZBX_JAVAGATEWAY_ENABLE=true
      - ZBX_JAVAGATEWAY=0.0.0.0
      - ZBX_JAVAGATEWAYPORT=10052
      - ZBX_STARTJAVAPOLLERS=5
    networks:
      - zabbix-net

volumes:
  mysql-data:
  zabbix_web_ssl:
  zabbix_web_config:

networks:
  zabbix-net:
    driver: bridge

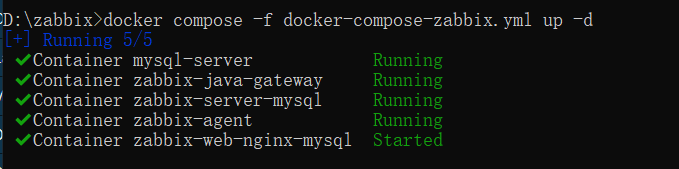

三、在当前文件路径中运行容器

docker compose -f docker-compose-zabbix.yml up -d

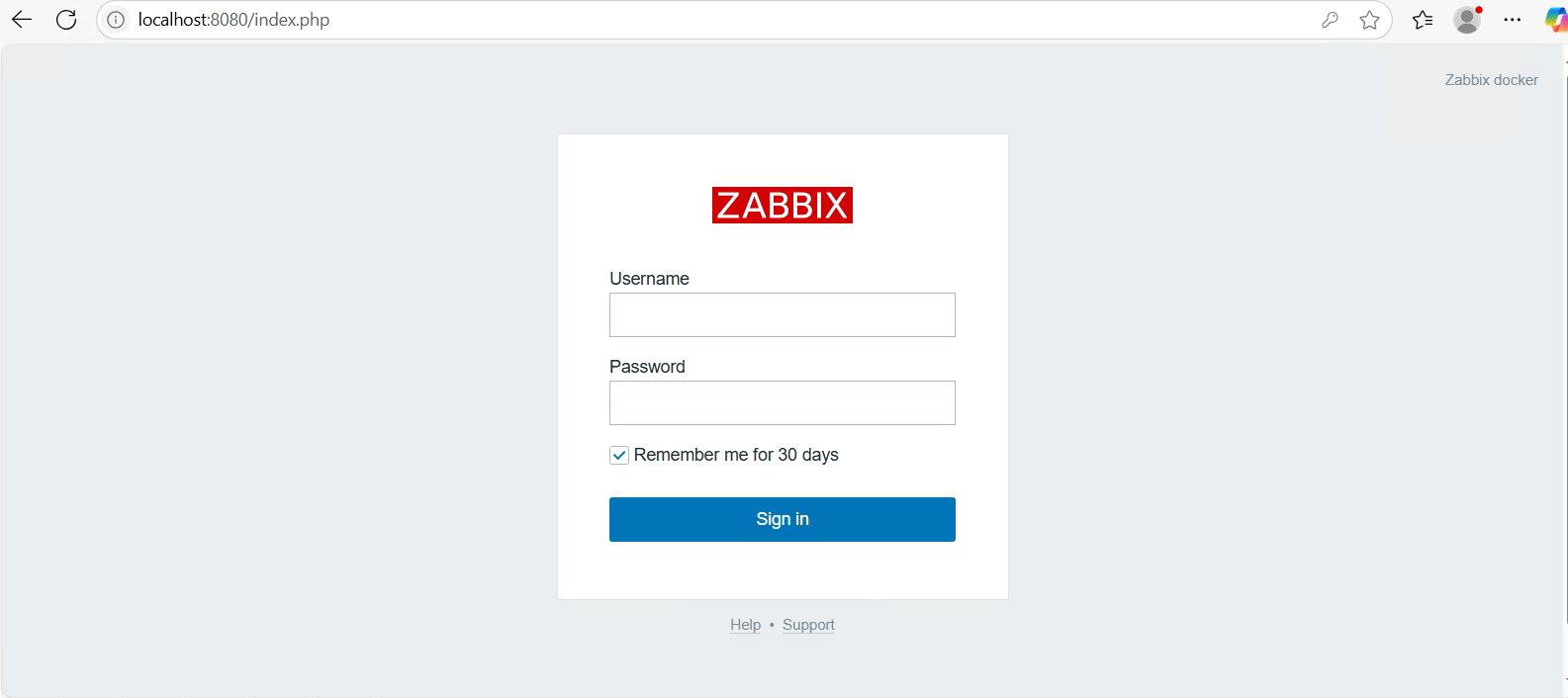

 四、登录网站

• 访问地址：http://localhost:8080/

• 登录账号：Admin

• 登录密码：zabbix

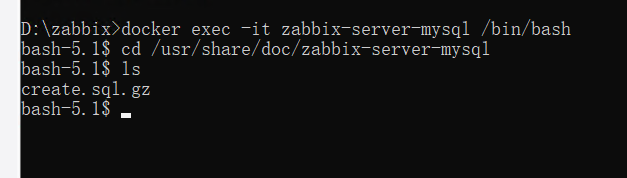

五、初始化数据库，进入 zabbix-server-mysql 容器，在路径/usr/share/doc/zabbix-server-mysql下执行 gunzip < create.sql.gz | mysql -u root -p"root_pwd" zabbix

docker exec -u root -it zabbix-server-mysql /bin/bash
cd /usr/share/doc/zabbix-server-mysql
gunzip < create.sql.gz | mysql -h mysql-server -u root -p"root_pwd" zabbix

六、修改字体

方法一：docker cp graphfont.ttf zabbix-web-nginx-mysql:/usr/share/zabbix/assets/fonts/
方法二：
docker exec -u root -it zabbix-web-nginx-mysql /bin/bash

cp graphfont.ttf /usr/share/zabbix/assets/fonts/
