080_声明式事务

目录

• 回顾事务
• Mybatis-Spring事务管理
  • 编程式事务：需要在代码中进行事务管理
  • 声明式事务：AOP
    • 配置声明式事务

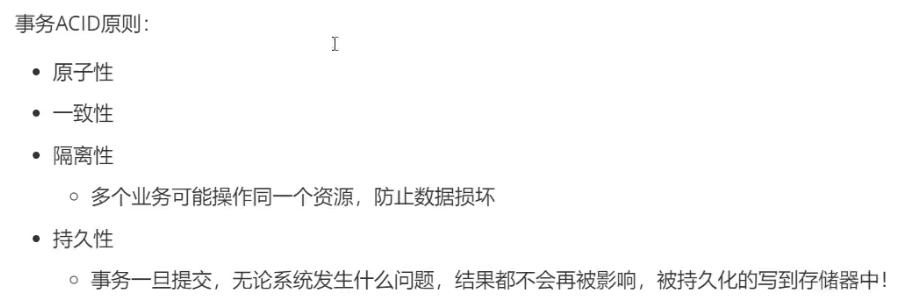

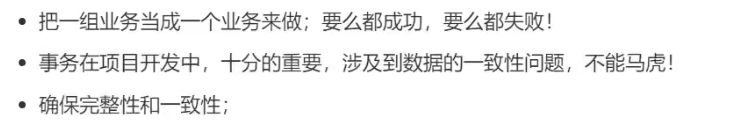

回顾事务

Mybatis-Spring事务管理

编程式事务：需要在代码中进行事务管理

声明式事务：AOP

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>spring-study</artifactId>
        <groupId>com.qing</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>spring-09-transaction</artifactId>

    <dependencies>
        <!-- https://mvnrepository.com/artifact/junit/junit -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.13.2</version>
            <scope>test</scope>
        </dependency>
        <!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.49</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.7</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>5.3.9</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.springframework/spring-jdbc -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>5.3.9</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis-spring -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>2.0.6</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.aspectj/aspectjweaver -->
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
            <version>1.9.7</version>
        </dependency>

    </dependencies>

    <!--配置resources，防止资源导出失败问题-->
    <build>
        <resources>
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>true</filtering>
            </resource>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>true</filtering>
            </resource>
        </resources>
    </build>

</project>

package com.qing.pojo;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@NoArgsConstructor
@AllArgsConstructor
public class User {
    private int id;
    private String name;
    private String pwd;
}

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">

<!--核心配置文件-->
<configuration>
    <settings>
        <setting name="logImpl" value="STDOUT_LOGGING"/>
    </settings>

    <!--别名-->
    <typeAliases>
        <package name="com.qing.pojo"/>
    </typeAliases>

</configuration>

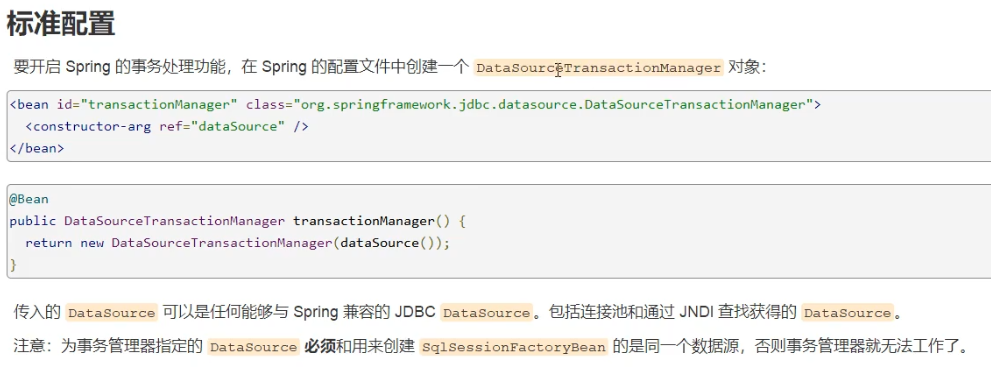

配置声明式事务

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        https://www.springframework.org/schema/beans/spring-beans.xsd

         http://www.springframework.org/schema/aop https://www.springframework.org/schema/aop/spring-aop.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd">

    <!--DataSource：使用Spring的数据源替换Mybatis的配置
        这里使用Spring提供的jdbc
    -->
    <bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
        <property name="driverClassName" value="com.mysql.jdbc.Driver"/>
        <property name="url" value="jdbc:mysql://localhost:3306/mybatis?useSSL=false&amp;useUnicode=true&amp;characterEncoding=UTF-8"/>
        <property name="username" value="root"/>
        <property name="password" value="123456"/>
    </bean>

    <!--sqlSessionFactory-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"/>
        <!--绑定Mybatis配置文件-->
        <property name="configLocation" value="classpath:mybatis-config.xml"/>
        <property name="mapperLocations" value="classpath:com/qing/mapper/*.xml"/>
    </bean>

    <!--sqlSessionTemplate：就是我们使用的sqlSession-->
    <bean id="sqlSessionTemplate" class="org.mybatis.spring.SqlSessionTemplate">
        <!--只能使用构造器注入sqlSessionFactory，因为没有set方法-->
        <constructor-arg index="0" ref="sqlSessionFactory"/>
    </bean>

    <!--配置声明式事务-->
    <bean id="transactionManage" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <constructor-arg ref="dataSource"/>
    </bean>
    <!--结合AOP实现事务的织入-->
    <!--配置事务通知-->
    <tx:advice id="txAdvice" transaction-manager="transactionManage">
        <!--给那些方法配置事务-->
        <!--配置事务的传播特性，默认REQUIRED-->
        <tx:attributes>
            <tx:method name="add" propagation="REQUIRED"/>
            <tx:method name="delete" propagation="REQUIRED"/>
            <tx:method name="*" propagation="REQUIRED"/>
        </tx:attributes>
    </tx:advice>
    <!--配置事务切入-->
    <aop:config>
        <aop:pointcut id="txPointCut" expression="execution(* com.qing.mapper.*.*(..))"/>
        <aop:advisor advice-ref="txAdvice" pointcut-ref="txPointCut"/>
    </aop:config>

</beans>

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        https://www.springframework.org/schema/beans/spring-beans.xsd

         http://www.springframework.org/schema/aop https://www.springframework.org/schema/aop/spring-aop.xsd">

    <import resource="spring-dao.xml"/>

    <bean id="userMapper" class="com.qing.mapper.UserMapperImpl">
        <property name="sqlSessionTemplate" ref="sqlSessionTemplate"/>
    </bean>

</beans>

package com.qing.mapper;

import com.qing.pojo.User;

import java.util.List;

public interface UserMapper {
    List<User> list();

    int add(User user);

    int delete(int id);
}

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<!--命名空间绑定一个对应的接口-->
<mapper namespace="com.qing.mapper.UserMapper">
    <!--查询全部用户-->
    <select id="list" resultType="user">
        select * from mybatis.user
    </select>
    <!--新增用户-->
    <insert id="add" parameterType="user">
        insert into mybatis.user(id, name, pwd) values(#{id},#{name},#{pwd})
    </insert>
    <!--删除用户-->
    <delete id="delete">
        delete from mybatis.user where id=#{id}
    </delete>
</mapper>

package com.qing.mapper;

import com.qing.pojo.User;
import org.mybatis.spring.SqlSessionTemplate;
import org.mybatis.spring.support.SqlSessionDaoSupport;

import java.util.List;

public class UserMapperImpl extends SqlSessionDaoSupport implements UserMapper {

    public List<User> list() {
        UserMapper mapper = getSqlSession().getMapper(UserMapper.class);
        mapper.add(new User(6,"张三","123456"));
        mapper.delete(4);
        return mapper.list();
    }

    public int add(User user) {
        UserMapper mapper = getSqlSession().getMapper(UserMapper.class);
        return mapper.add(new User(5,"张三","123456"));
    }

    public int delete(int id) {
        UserMapper mapper = getSqlSession().getMapper(UserMapper.class);
        return mapper.delete(4);
    }
}

import com.qing.mapper.UserMapper;
import com.qing.pojo.User;
import org.junit.jupiter.api.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

public class MyTest {
    @Test
    public void test01() {
        ApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml");
        UserMapper userMapper = context.getBean("userMapper", UserMapper.class);
        for (User user : userMapper.list()) {
            System.out.println(user);
        }
    }
}
