Springboot+MyIbatisPlus+Mysql整合 - 习惯不习惯的习惯

最近在研究Springboot+MyIbatisPlus+Mysql整合，不足之处，烦请指教，本文采用编辑器为IDEA,目录结构如下.

pom.xml

  1 <?xml version="1.0" encoding="UTF-8"?>
  2 <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  3          xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
  4     <modelVersion>4.0.0</modelVersion>
  5     <parent>
  6         <groupId>org.springframework.boot</groupId>
  7         <artifactId>spring-boot-starter-parent</artifactId>
  8         <version>2.6.2</version>
  9         <relativePath/> <!-- lookup parent from repository -->
 10     </parent>
 11     <groupId>com.example</groupId>
 12     <artifactId>demo</artifactId>
 13     <version>0.0.1-SNAPSHOT</version>
 14     <name>demo</name>
 15     <description>Demo project for Spring Boot</description>
 16     <properties>
 17         <java.version>1.8</java.version>
 18     </properties>
 19     <dependencies>
 20         <dependency>
 21             <groupId>org.springframework.boot</groupId>
 22             <artifactId>spring-boot-starter</artifactId>
 23         </dependency>
 24
 25         <dependency>
 26             <groupId>org.springframework.boot</groupId>
 27             <artifactId>spring-boot-devtools</artifactId>
 28             <scope>runtime</scope>
 29             <optional>true</optional>
 30         </dependency>
 31
 32         <dependency>
 33             <groupId>org.springframework.boot</groupId>
 34             <artifactId>spring-boot-starter-web</artifactId>
 35             <version>2.2.5.RELEASE</version>
 36         </dependency>
 37
 38         <dependency>
 39             <groupId>org.projectlombok</groupId>
 40             <artifactId>lombok</artifactId>
 41             <optional>true</optional>
 42         </dependency>
 43         <dependency>
 44             <groupId>org.springframework.boot</groupId>
 45             <artifactId>spring-boot-starter-test</artifactId>
 46             <scope>test</scope>
 47         </dependency>
 48
 49         <dependency>
 50             <groupId>mysql</groupId>
 51             <artifactId>mysql-connector-java</artifactId>
 52             <version>5.1.35</version>
 53         </dependency>
 54
 55
 56         <dependency>
 57             <groupId>com.fasterxml.jackson.core</groupId>
 58             <artifactId>jackson-core</artifactId>
 59         </dependency>
 60         <dependency>
 61             <groupId>com.fasterxml.jackson.core</groupId>
 62             <artifactId>jackson-databind</artifactId>
 63         </dependency>
 64         <dependency>
 65             <groupId>com.fasterxml.jackson.datatype</groupId>
 66             <artifactId>jackson-datatype-joda</artifactId>
 67         </dependency>
 68         <dependency>
 69             <groupId>com.fasterxml.jackson.module</groupId>
 70             <artifactId>jackson-module-parameter-names</artifactId>
 71         </dependency>
 72         <!-- 分页插件 -->
 73 <!--        <dependency>-->
 74 <!--            <groupId>com.github.pagehelper</groupId>-->
 75 <!--            <artifactId>pagehelper-spring-boot-starter</artifactId>-->
 76 <!--            <version>1.1.2</version>-->
 77 <!--        </dependency>-->
 78         <!-- alibaba的druid数据库连接池 -->
 79         <dependency>
 80             <groupId>com.alibaba</groupId>
 81             <artifactId>druid-spring-boot-starter</artifactId>
 82             <version>1.1.20</version>
 83         </dependency>
 84
 85         <dependency>
 86             <groupId>org.springframework</groupId>
 87             <artifactId>spring-jdbc</artifactId>
 88             <version>5.3.4</version>
 89         </dependency>
 90
 91         <dependency>
 92             <groupId>com.baomidou</groupId>
 93             <artifactId>mybatis-plus-boot-starter</artifactId>
 94             <version>3.2.0</version>
 95         </dependency>
 96
 97         <dependency>
 98             <groupId>com.baomidou</groupId>
 99             <artifactId>mybatis-plus-generator</artifactId>
100             <version>3.2.0</version>
101         </dependency>
102
103         <dependency>
104             <groupId>org.projectlombok</groupId>
105             <artifactId>lombok</artifactId>
106             <optional>true</optional>
107         </dependency>
108     </dependencies>
109
110     <build>
111         <plugins>
112             <plugin>
113                 <groupId>org.springframework.boot</groupId>
114                 <artifactId>spring-boot-maven-plugin</artifactId>
115                 <configuration>
116                     <excludes>
117                         <exclude>
118                             <groupId>org.projectlombok</groupId>
119                             <artifactId>lombok</artifactId>
120                         </exclude>
121                     </excludes>
122                 </configuration>
123             </plugin>
124         </plugins>
125     </build>
126
127 </project>

controller

 1 package com.example.demo.controller;
 2
 3 import com.example.demo.domain.User;
 4 import com.example.demo.service.imp.UserService;
 5 import org.springframework.beans.factory.annotation.Autowired;
 6 import org.springframework.web.bind.annotation.GetMapping;
 7 import org.springframework.web.bind.annotation.RestController;
 8
 9 import java.util.List;
10
11 @RestController
12 /**
13  * DemoApplication class
14  * @author wuliang
    * @date 20点43分
16  */
17 public class UserController {
18
19     @Autowired
20     private UserService userService;
21

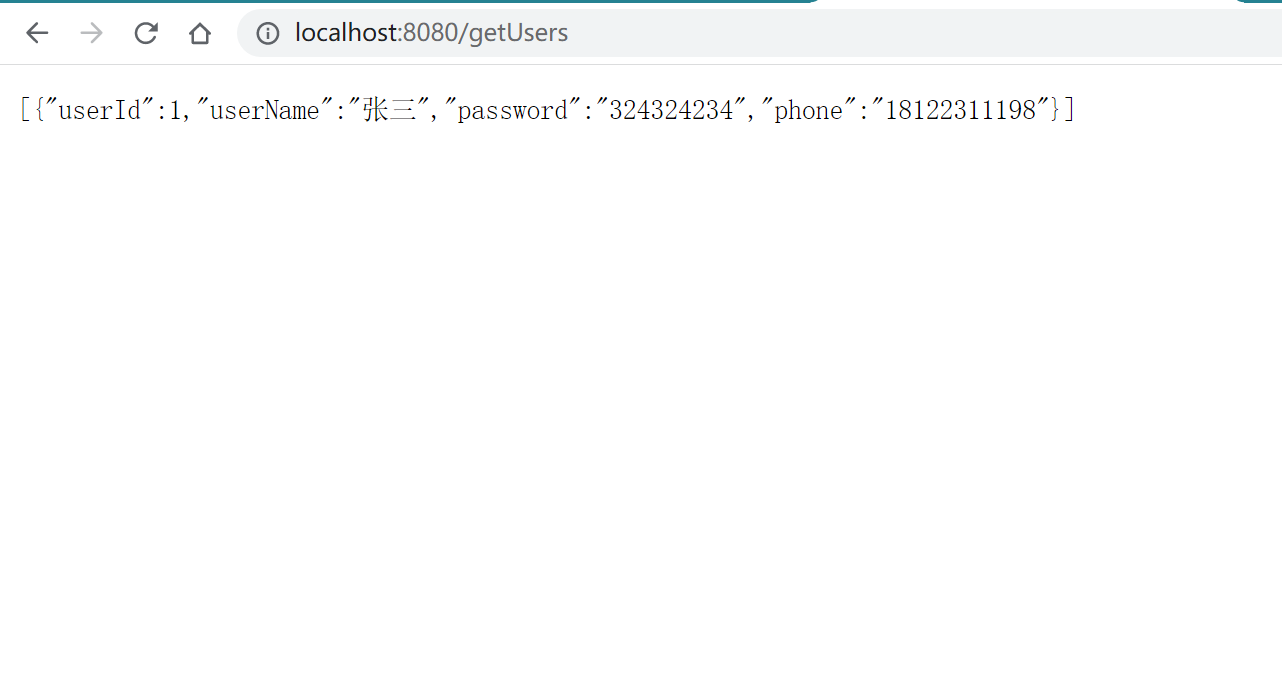

22     @GetMapping(value = "/getUsers")
23     public List<User>  getUsers() {
24         return userService.list();
25     }
26
27
28 }

domain

 1 package com.example.demo.domain;
 2
 3 import com.baomidou.mybatisplus.annotation.IdType;
 4 import com.baomidou.mybatisplus.annotation.TableField;
 5 import com.baomidou.mybatisplus.annotation.TableId;
 6 import com.baomidou.mybatisplus.annotation.TableName;
 7 import java.io.Serializable;
 8 import lombok.AllArgsConstructor;
 9 import lombok.Builder;
10 import lombok.Data;
11 import lombok.NoArgsConstructor;
12
13 @Data
14 @Builder
15 @AllArgsConstructor
16 @NoArgsConstructor
17 @TableName(value = "t_user")
18 /**
19  * DemoApplication class
20  * @author wuliang
21  * @date 20点43分
22  */
23 public class User implements Serializable {
24     @TableId(value = "user_id", type = IdType.AUTO)
25     private Integer userId;
26
27     @TableField(value = "user_name")
28     private String userName;
29
30     @TableField(value = "password")
31     private String password;
32
33     @TableField(value = "phone")
34     private String phone;
35
36     private static final long serialVersionUID = 1L;
37
38     public static final String COL_USER_ID = "user_id";
39
40     public static final String COL_USER_NAME = "user_name";
41
42     public static final String COL_PASSWORD = "password";
43
44     public static final String COL_PHONE = "phone";
45 }

service

 1 package com.example.demo.service.imp;
 2
 3 import com.example.demo.domain.User;
 4 import com.baomidou.mybatisplus.extension.service.IService;
 5 /**
 6  * DemoApplication class
 7  * @author wuliang
 8  * @date 20点43分
 9  */
10 public interface UserService extends IService<User>{
11
12
13 }

serviceimp

 1 package com.example.demo.service;
 2
 3 import org.springframework.stereotype.Service;
 4 import javax.annotation.Resource;
 5 import java.util.List;
 6 import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
 7 import com.example.demo.domain.User;
 8 import com.example.demo.mapper.UserMapper;
 9 import com.example.demo.service.imp.UserService;
10 @Service
11 /**
12  * DemoApplication class
13  * @author wuliang
14  * @date 20点43分
15  */
16 public class UserServiceImpl extends ServiceImpl<UserMapper, User> implements UserService{
17
18 }

DemoApplication启动类

 1 package com.example.demo;
 2
 3 import org.mybatis.spring.annotation.MapperScan;
 4 import org.springframework.boot.SpringApplication;
 5 import org.springframework.boot.autoconfigure.SpringBootApplication;
 6
 7 @SpringBootApplication
 8 @MapperScan("com.example.demo.mapper")
 9 /**
10  * DemoApplication class
11  * @author wuliang
12  * @date 20点43分
13  */
14 public class DemoApplication {
15
16     public static void main(String[] args) {
17         SpringApplication.run(DemoApplication.class, args);
18     }
19
20 }

UserMapper.xml文件

 1 <?xml version="1.0" encoding="UTF-8"?>
 2 <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
 3 <mapper namespace="com.example.demo.mapper.UserMapper">
 4   <resultMap id="BaseResultMap" type="com.example.demo.domain.User">
 5     <!--@mbg.generated-->
 6     <!--@Table t_user-->
 7     <id column="user_id" jdbcType="INTEGER" property="userId" />
 8     <result column="user_name" jdbcType="VARCHAR" property="userName" />
 9     <result column="password" jdbcType="VARCHAR" property="password" />
10     <result column="phone" jdbcType="VARCHAR" property="phone" />
11   </resultMap>
12   <sql id="Base_Column_List">
13     <!--@mbg.generated-->
14     user_id, user_name, `password`, phone
15   </sql>
16 </mapper>

application.yml

server:
  port: 8080

spring:
  datasource:
    name: test
    url: jdbc:mysql://localhost:3306/springboot?useSSL=false&characterEncoding=UTF-8&?useUnicode=true
    username: root
    password: root
    # 使用druid数据源
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: com.mysql.jdbc.Driver
    filters: stat
    maxActive: 20
    initialSize: 1
    maxWait: 60000
    minIdle: 1
    timeBetweenEvictionRunsMillis: 60000
    minEvictableIdleTimeMillis: 300000
    validationQuery: select 'x'
    testWhileIdle: true
    testOnBorrow: false
    testOnReturn: false
    poolPreparedStatements: true
    maxOpenPreparedStatements: 20

## 该配置节点为独立的节点，有很多同学容易将这个配置放在spring的节点下，导致配置无法被识别
mybatis:
  mapper-locations: classpath:mapper/*.xml  #注意：一定要对应mapper映射xml文件的所在路径
  type-aliases-package: com.example.demo.domain  #注意：对应实体类的路径
mybatis-plus:
  configuration:
    log-impl: org.apache.ibatis.logging.stdout.StdOutImpl

  #pagehelper分页插件pagehelper:
#  helperDialect: mysql
#  reasonable: true
#  supportMethodsArguments: true
#  params: count=countSql

mysql 表结构

 1 /*
 2  Navicat Premium Data Transfer
 3
 4  Source Server         : localhost-root
 5  Source Server Type    : MySQL
 6  Source Server Version : 50731
 7  Source Host           : localhost:3306
 8  Source Schema         : springboot
 9
10  Target Server Type    : MySQL
11  Target Server Version : 50731
12  File Encoding         : 65001
13
14  Date: 08/01/2022 21:10:29
15 */
16
17 SET NAMES utf8mb4;
18 SET FOREIGN_KEY_CHECKS = 0;
19
20 -- ----------------------------
21 -- Table structure for t_user
22 -- ----------------------------
23 DROP TABLE IF EXISTS `t_user`;
24 CREATE TABLE `t_user`  (
25   `user_id` int(11) NOT NULL AUTO_INCREMENT,
26   `user_name` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
27   `password` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
28   `phone` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
29   PRIMARY KEY (`user_id`) USING BTREE
30 ) ENGINE = InnoDB AUTO_INCREMENT = 1000 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;
31
32 -- ----------------------------
33 -- Records of t_user
34 -- ----------------------------
35 INSERT INTO `t_user` VALUES (1, '张三', '324324234', '18122311198');
36
37 SET FOREIGN_KEY_CHECKS = 1;

访问地址：http://localhost:8080/getUsers

效果截图

posted on 2022-01-08 21:16 习惯不习惯的习惯阅读(260) 评论(0) 收藏举报

刷新页面返回顶部
