springboot学习 之 web开发-webjars & 静态资源映射

web开发-webjars & 静态资源映射

springboot 对静态资源的映射规则

@ConfigurationProperties(
        prefix = "spring.resources",
        ignoreUnknownFields = false
    )
public class ResourceProperties {
    private static final String[] CLASSPATH_RESOURCE_LOCATIONS = new String[]{"classpath:/META-INF/resources/", "classpath:/resources/", "classpath:/static/", "classpath:/public/"};
    //可以设置和静态资源有关的参数


public void addResourceHandlers(ResourceHandlerRegistry registry) {
    if (!this.resourceProperties.isAddMappings()) {
        logger.debug("Default resource handling disabled");
    } else {
        Duration cachePeriod = this.resourceProperties.getCache().getPeriod();
        CacheControl cacheControl = this.resourceProperties.getCache().getCachecontrol().toHttpCacheControl();
        if (!registry.hasMappingForPattern("/webjars/**")) {
            this.customizeResourceHandlerRegistration(registry.addResourceHandler(new String[]{"/webjars/**"}).addResourceLocations(new String[]{"classpath:/META-INF/resources/webjars/"}).setCachePeriod(this.getSeconds(cachePeriod)).setCacheControl(cacheControl));
        }

        String staticPathPattern = this.mvcProperties.getStaticPathPattern();
        if (!registry.hasMappingForPattern(staticPathPattern)) {
            this.customizeResourceHandlerRegistration(registry.addResourceHandler(new String[]{staticPathPattern}).addResourceLocations(getResourceLocations(this.resourceProperties.getStaticLocations())).setCachePeriod(this.getSeconds(cachePeriod)).setCacheControl(cacheControl));
        }

    }
}

// 配置欢迎页映射
@Bean
public WelcomePageHandlerMapping welcomePageHandlerMapping(ApplicationContext applicationContext) {
    return new WelcomePageHandlerMapping(new TemplateAvailabilityProviders(applicationContext), applicationContext, this.getWelcomePage(), this.mvcProperties.getStaticPathPattern());
}
​
// 配置喜欢的图标

@Configuration
@ConditionalOnProperty(
    value = {"spring.mvc.favicon.enabled"},
    matchIfMissing = true
)
public static class FaviconConfiguration implements ResourceLoaderAware {
    private final ResourceProperties resourceProperties;
    private ResourceLoader resourceLoader;

    public FaviconConfiguration(ResourceProperties resourceProperties) {
        this.resourceProperties = resourceProperties;
    }

    public void setResourceLoader(ResourceLoader resourceLoader) {
        this.resourceLoader = resourceLoader;
    }

    @Bean
    public SimpleUrlHandlerMapping faviconHandlerMapping() {
        SimpleUrlHandlerMapping mapping = new SimpleUrlHandlerMapping();
        mapping.setOrder(-2147483647);
        mapping.setUrlMap(Collections.singletonMap("**/favicon.ico", this.faviconRequestHandler()));
        return mapping;
    }

    @Bean
    public ResourceHttpRequestHandler faviconRequestHandler() {
        ResourceHttpRequestHandler requestHandler = new ResourceHttpRequestHandler();
        requestHandler.setLocations(this.resolveFaviconLocations());
        return requestHandler;
    }

    private List<Resource> resolveFaviconLocations() {
        String[] staticLocations = WebMvcAutoConfiguration.WebMvcAutoConfigurationAdapter.getResourceLocations(this.resourceProperties.getStaticLocations());
        List<Resource> locations = new ArrayList(staticLocations.length + 1);
        Stream var10000 = Arrays.stream(staticLocations);
        ResourceLoader var10001 = this.resourceLoader;
        var10001.getClass();
        var10000.map(var10001::getResource).forEach(locations::add);
        locations.add(new ClassPathResource("/"));
        return Collections.unmodifiableList(locations);
    }
}

（1）所有 /webjars/**，都去 classpath:/META-INF/resources/webjars/ 找资源；

webjars：以 jar 包的方式引入静态资源；www.webjars.org

http://localhost:8080/webjars/jquery/3.3.1/jquery.js

<!--引入jquery-webjars--> 在访问的时候只需要写webjars下面资源的名称即可

   　　　<dependency>
            <groupId>org.webjars</groupId>
            <artifactId>jquery</artifactId>
            <version>3.3.1</version>
        </dependency>

（2）"/**" 访问当前项目的任何资源（静态资源的文件夹）

"classpath:/META-INF/resources/",
"classpath:/resources/",
"classpath:/static/",
"classpath:/public/"
"/":当前项目的根路径

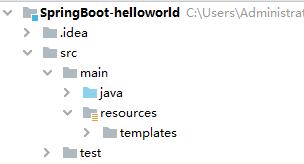

文件夹java 及 resources 都是类路径的根路径

（3）欢迎页：静态资源文件夹下所有index.html页面；被 “/**” 映射；

local host:8080/ 找index页面

（4） 所有的**/favicon.ico 都是在静态资源文件夹下找
