安装 部署 K8S 笔记
安装Docker
安装yum工具
$ yum install -y yum-utils
device-mapper-persistent-data
lvm2
然后设置阿里云仓库
$ yum-config-manager
--add-repo
http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
查看可选版本
$ yum list docker-ce.x86_64 --showduplicates | sort -r
安装docker
$ yum install docker-ce docker-ce-cli containerd.io
或者
$ yum install -y docker-ce-18.09.9 docker-ce-cli-18.09.9 containerd.io
启动docker
service docker start
修改docker 仓库地址
$ vi /etc/docker/daemon.json
{
"registry-mirrors": ["http://hub.c.163.com/"]
}
保存后重启docker
service docker restart
卸载docker
$ yum list installed |grep docker
containerd.io.x86_64 1.4.3-3.1.el7 @docker-ce-stable
docker-ce-cli.x86_64 1:20.10.3-3.el7 @docker-ce-stable
$ yum -y remove docker.x86_64
删除目录
$ rm -rf /var/lib/docker
安装Kubernetes工具
$ vi /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=0
$yum install -y kubectl.x86_64
$yum install -y kubeadm
同步时间
$yum install ntpdate
$ntpdate cn.pool.ntp.org
$hwclock --systohc
关闭swap
$ swapoff -a
$ vi /etc/fstab 注释有swap那行就永久关闭
关闭防火墙
$ iptables -F
修改IP地址
如果是VirtualBox虚拟机就在vb设置里面将第一块网卡设置NET，第二块设置桥接即可。跳过一下配置
先查看ip地址
$ ip addr
第二块enp0s3就是网卡，接着修改对应的ip地址
$ vi /etc/sysconfig/network-scripts/ifcfg-enp0s3
TYPE="Ethernet"
PROXY_METHOD="static"
BROWSER_ONLY="no"
BOOTPROTO="dhcp"
DEFROUTE="yes"
IPV4_FAILURE_FATAL="no"
IPV6INIT="yes"
IPV6_AUTOCONF="yes"
IPV6_DEFROUTE="yes"
IPV6_FAILURE_FATAL="no"
IPV6_ADDR_GEN_MODE="stable-privacy"
NAME="enp0s3"
UUID="6a104c04-1109-4b64-81e1-3e7f9ba045f2"
DEVICE="enp0s3"
ONBOOT="yes"
IPADDR="192.168.141.110"
NETMASK="255.255.255.0"
GATEWAY="192.168.141.254"
DNS1="202.100.199.8"
DNS2="8.8.4.4"
修改主机名称
$vi /etc/hostname
k8s-master
$vi /etc/sysconfig/network
HOSTNAME=k8s-master
其他主机k8s-node1,k8s-node2
安装kubernetes集群
初始化集群
$ kubeadm reset
$ rm -f
$ cd /usr/local/
$ mkdir kubernets
$ mkdir cluster
$ kubeadm config print init-defaults --kubeconfig ClusterConfiguration > kubeadm.yml
修改配置
$ vi kubeadm.yml
apiVersion: kubeadm.k8s.io/v1beta2
bootstrapTokens:
- groups:
- system:bootstrappers:kubeadm:default-node-token
token: abcdef.0123456789abcdef
ttl: 24h0m0s
usages:
- signing
- authentication
kind: InitConfiguration
localAPIEndpoint:
advertiseAddress: 192.168.21.226 #修改master节点ip
bindPort: 6443
nodeRegistration:
criSocket: /var/run/dockershim.sock
name: k8s-master
taints:
- effect: NoSchedule
key: node-role.kubernetes.io/master
---
apiServer:
timeoutForControlPlane: 4m0s
apiVersion: kubeadm.k8s.io/v1beta2
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controllerManager: {}
dns:
type: CoreDNS
etcd:
local:
dataDir: /var/lib/etcd
imageRepository: registry.aliyuncs.com/google_containers #改成阿里云仓库
kind: ClusterConfiguration
kubernetesVersion: v1.20.1 #改成安装的kubernetes版本
networking:
dnsDomain: cluster.local
podSubnet: "10.244.0.0/16" #新增pot网络配置
serviceSubnet: 10.96.0.0/12
scheduler: {}
查看需要安装那些镜像
$ kubeadm config images --list --config kubeadm.yml
拉取镜像
$ kubeadm config images pull --config kubeadm.yml
安装主节点
$ kubeadm init --config=kubeadm.yml --upload-certs | tee kubeadm-init.log
成功后返回以下内容：
Your Kubernetes control-plane has initialized successfully!
To start using your cluster, you need to run the following as a regular user:
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
Alternatively, if you are the root user, you can run:
export KUBECONFIG=/etc/kubernetes/admin.conf
You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
https://kubernetes.io/docs/concepts/cluster-administration/addons/
Then you can join any number of worker nodes by running the following on each as root:
kubeadm join 192.168.21.226:6443 --token abcdef.0123456789abcdef \
--discovery-token-ca-cert-hash sha256:1a30805571c5d7de92e9b51bbc0a265968969590cb5fcf9dcd7d334a5b6cff9a
然后执行返回的命令，如果是root用户执行前面2句
$ mkdir -p $HOME/.kube
$ sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
安装从节点
将上面最后一条命令复制出来粘贴到从节点里面执行
$ kubeadm join 192.168.21.226:6443 --token abcdef.0123456789abcdef
--discovery-token-ca-cert-hash sha256:1a30805571c5d7de92e9b51bbc0a265968969590cb5fcf9dcd7d334a5b6cff9a
若返回以下错误
[ERROR FileContent--proc-sys-net-bridge-bridge-nf-call-iptables]: /proc/sys/net/bridge/bridge-nf-call-iptables contents are not set to 1
执行：
$ echo "1" >/proc/sys/net/bridge/bridge-nf-call-iptables
====
[ERROR FileContent--proc-sys-net-ipv4-ip_forward]: /proc/sys/net/ipv4/ip_forward contents are not set to 1
执行：
$ echo "1" > /proc/sys/net/ipv4/ip_forward
成功到master执行
$ kubectl get node 返回
NAME STATUS ROLES AGE VERSION
k8s-master NotReady control-plane,master 8m46s v1.20.4
k8s-node1 NotReady <none> 71s v1.20.4
k8s-node2 NotReady <none> 79s v1.20.4
[kubelet-check] Initial timeout of 40s passed.
error execution phase kubelet-start: error uploading crisocket: timed out waiting for the condition
To see the stack trace of this error execute with --v=5 or higher
$ kubeadm reset
$ systemctl daemon-reload
$ systemctl restart kubelet
配置网络
$ kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml
完成后查看状态， status 是ready表示成功了
$ kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-master NotReady control-plane,master 35m v1.20.4
k8s-node1 Ready <none> 25m v1.20.4
k8s-node2 Ready <none> 27m v1.20.4
查看状态 kubectl get cs
Warning: v1 ComponentStatus is deprecated in v1.19+
NAME STATUS MESSAGE ERROR
scheduler Healthy ok
controller-manager Healthy ok
etcd-0 Healthy {"health":"true"}
kubeadm安装k8s 组件controller-manager 和scheduler状态 Unhealthy

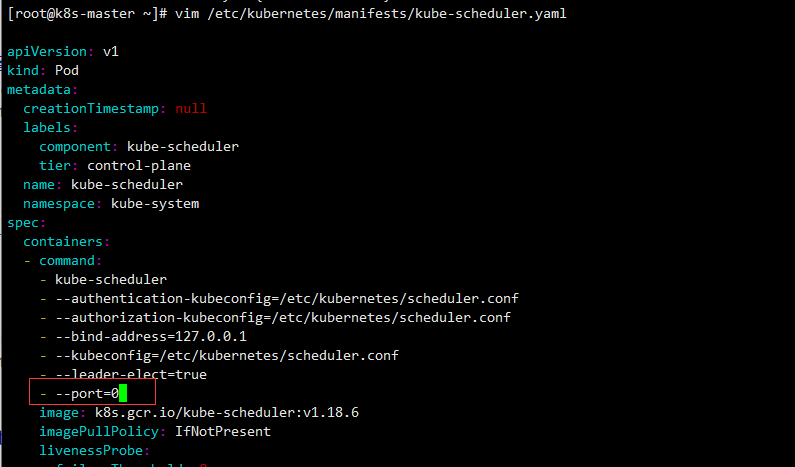

检查kube-scheduler和kube-controller-manager组件配置是否禁用了非安全端口
vi /etc/kubernetes/manifests/kube-scheduler.yaml
vi /etc/kubernetes/manifests/kube-controller-manager.yaml
将port=0去掉
然后systemctl restart kubelet
再检查集群组件状态已正常
检查 Master 状态
$ kubectl cluster-info
查看节点状态
$ kubectl get nodes
运行Nginx容器
# API 版本号
apiVersion: apps/v1
# 类型，如：Pod/ReplicationController/Deployment/Service/Ingress
kind: Deployment
metadata:
# Kind 的名称
name: nginx
spec:
selector:
matchLabels:
# 容器标签的名字，发布 Service 时，selector 需要和这里对应
app: nginx
# 部署的实例数量
replicas: 2
template:
metadata:
labels:
app: nginx
spec:
# 配置容器，数组类型，说明可以配置多个容器
containers:
# 容器名称
- name: nginx
# 容器镜像
image: nginx:1.17
# 只有镜像不存在时，才会进行镜像拉取
imagePullPolicy: IfNotPresent
ports:
# Pod 端口
- containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
name: nginx-http
spec:
selector:
name: nginx
type: LoadBalancer
ports:
- port: 80
targetPort: 80
nodePort: 31234
创建
$ kubectl apply -f nginx.yml
查看Pods状态
$ kubectl get pods
如果status是ContainerCreating，可以输入
$ kubectl describe pod nginx
查看日志
删除节点
$ kubectl delete -f pod_nginx.yml
$ kubectl create -f pod_nginx.yml
查看部署
$ kubectl get deployment
服务发布 如果yml里面有了Service 就不需要这一步
$ kubectl expose deployment nginx --port=80 --type=LoadBalancer
查看服务
$ kubectl get services
$ kubectl describe service nginx
删除已经部署的服务
$ kubectl delete deployment nginx
删除已发布的服务
$ kebectl delete service nginx
