第九届工业信息安全技能大赛-枫叶杯-密码应用安全①初赛

题目1

1. 已知某分组算法分组长度 32比特，采用CBC 分组算法工作模式，初始向量为 IV=0x12345678，
四组明文消息和密文分别是[11223344 aaaaaaaa 14725836 11335577]，和 [be91835a 03ec3058 370606ae f1e58037]。
请构建另一组明文消息，采用同样的密钥加密，初始向量IV_1 为 ffffffff，加密后密文为：[03ec3058 be91835a f1e58037 370606ae]。
则新的明文是？（格式为16进制）。

CBC 加密流程回顾

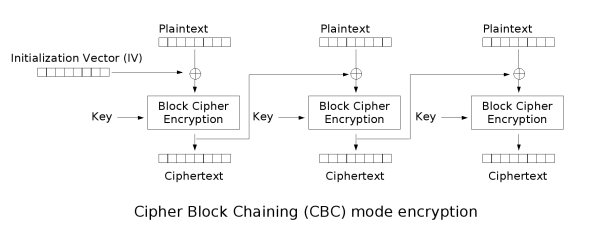

Crypto_cbc_encryption

C[0] = Enc(P[0] ^ IV)
C[1] = Enc(P[1] ^ C[0])
C[2] = Enc(P[2] ^ C[1])
C[3] = Enc(P[3] ^ C[2])

所以：

P[0] = Dec(C[0]) ^ IV
P[1] = Dec(C[1]) ^ C[0]
P[2] = Dec(C[2]) ^ C[1]
P[3] = Dec(C[3]) ^ C[2]

解密流程：

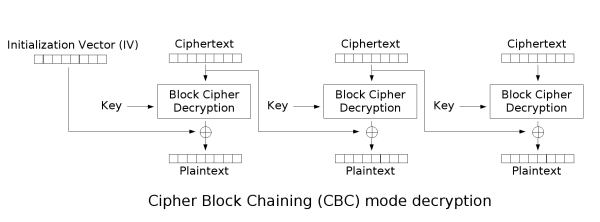

Crypto_cbc_decryption

lst = [(0x11223344 ^ 0x12345678),
       (0xaaaaaaaa ^ 0xbe91835a),
       (0x14725836 ^ 0x03ec3058),
       (0x11335577 ^ 0x370606ae)]
print([f'0x{x:08x}' for x in lst])
# [0x0316653c, 0x143b29f0, 0x179e686e, 0x263553d9]
""" 映射表
Enc(0x0316653c) = be91835a
Enc(0x143b29f0) = 03ec3058
Enc(0x179e686e) = 370606ae
Enc(0x263553d9) = f1e58037
"""
# 求 [03ec3058 be91835a f1e58037 370606ae]
# 根据映射表 异或后输入值为 0x143b29f0 0x0316653c 0x263553d9 0x179e686e
iv1 = 0xffffffff
p1 = 0x143b29f0 ^ iv1
p2 = 0x0316653c ^ 0xbe91835a
p3 = 0x263553d9 ^ 0xf1e58037
p4 = 0x179e686e ^ 0x370606ae
print(' '.join(f"{x:08x}" for x in [p1, p2, p3, p4]))
# ebc4d60f bd87e666 d7d0d3ee 20986ec0

2. 在加密通讯中，随机数是保障安全性的核心要素之一，其作用贯穿密钥生成、协议设计、身份验证等多个环节。某系统中的一台设备随机数发生器出现故障，在DH交换时私钥全为0xCC，造成私钥泄露。现采集其通讯数据（见附件），请分析：

附件：

1).密钥交换算法是？ (15/分）
Diffie-Hellman (DH)
2).IKE的数据完整性校验算法是？ (15/分）

从Frame 1和Frame 2的Security Association payload中可以看到
Transform Type: Integrity Algorithm (INTEG) (3)
Transform ID (INTEG): AUTH_HMAC_SHA1_96 (2)

AUTH_HMAC_SHA1_96

3).是通讯发起方设备还是响应方设备出现故障（填写"发起方"或“响应方”） (20/分）

响应方

4).DH共享密钥值是（十六进制方式） (30/分）

0582a72064aed69a5729c3cd84055feb9eecf2bb14bae26a26f0e322e667d174554fc11c06b204469de0650178ecd53d56a0ad8e016e93e66288f9e997a868488334ec61f0cbf35d6314f081e9555ef34cfb6021cbb68f97eaea0b66fc44dccb97fe2f64bd9cf02bf648f88bbccea0053b26007ac9b1fd82c616d14b1805ae4eb2e2e0c55fd0fc1e9f0ee6451120c1e8c6962755cb417776e3ef1f9da896110930f8551189a29dfa940bcf3d1bdbd05d4b5924922c7655c3224c9f4cb792f86b44f22bc95f5c42cca76d2e063a03e651f3eb4bae75c13499ce6891680114cab502b50541ca76895e55c4984e60adb899d1bd2deb5e3b06aff634b53d00f20883

5).密钥种子SKEYSEED是（十六进制方式） (30/分）

95c58ae7ff1554186e450f94c3f70a31d64fbb8c

6).发起方的IKE加密密钥SK_ei是： (40/分）

# AES-CBC-256 , key 为 32Bytes
from Crypto.Hash import HMAC, SHA
import binascii

SPIi = binascii.a2b_hex('e0b156c9f61def4b')
SPIr = binascii.a2b_hex('c56eb49736d476d3')

SKEYSEED = bytes.fromhex('95c58ae7ff1554186e450f94c3f70a31d64fbb8c')
K = SKEYSEED

Ni = bytes.fromhex('76e1dbf5a2fd251d663c8f10103bb876c9f02eb6807168b3bea0f5b6a314565b')
Nr = bytes.fromhex('6c8fe3ce8951c4ebce5e9b167b00c02e684fa26ebc4487226f349b52ea34fb78')
S = Ni + Nr + SPIi + SPIr
T = b''
TotalKey = b''
for i in range(1, 10):  # 10 次循环足够生成所需密钥
    count_byte = binascii.a2b_hex('%02d' % i)  # 0x01 0x02 0x03 ...
    data = T + S + count_byte
    T = HMAC.new(K, data, SHA).hexdigest()
    T = binascii.a2b_hex(T)
    TotalKey += T

SK_d = TotalKey[0:20]
SK_ai = TotalKey[20:20 + 20]
SK_ar = TotalKey[40:40 + 20]
SK_ei = TotalKey[60:60 + 32]
SK_er = TotalKey[92:92 + 32]
SK_pi = TotalKey[124:124 + 20]
SK_pr = TotalKey[144:144 + 20]

# 打印结果
print(f'SK_d  = {SK_d.hex()}')
print(f'SK_ai = {SK_ai.hex()}')
print(f'SK_ar = {SK_ar.hex()}')
print(f'SK_ei = {SK_ei.hex()} (长度: {len(SK_ei)} 字节)')
print(f'SK_er = {SK_er.hex()} (长度: {len(SK_er)} 字节)')
print(f'SK_pi = {SK_pi.hex()}')
print(f'SK_pr = {SK_pr.hex()}')

# 453d6774c0eaf163864c1340b05fd7c219cc17cf7492ac716f6be2318b9f8f2c

7).由于密钥泄露，可以解密数据，解密ESP后，可以得到ESP明文，是UDP数据包，内容格式如下：
45 00 00 3c b6 ed 00 00 80 11 00 00 c0 a8 03 15
c0 a8 02 30 03 e8 07 d0 00 28 86 cf 73 65 6e 64
20 6d 73 67 20 3d 20 7b 30 31 32 33 34 35 36 37
38 39 30 31 32 33 34 35 36 7d 0d 0a
分析可以发现UDP报文数据类似“send msg = {01234567890123456}”，请解密实际数据，填写解密后UDP报文数据中大括号内的字符串： (50/分）

学了一天才学会。

73047882172936819

# https://www.rfc-editor.org/rfc/rfc3526.html
# g = 2, p_hex 是 2048-bit MODP Group 用到的标准质数 g ^ d % p = pow(g,d,p)
# ESP 格式 https://datatracker.ietf.org/doc/html/rfc4303#section-3.1
import hashlib
import hmac

from Cryptodome.Cipher import AES
import re

print(f'{" Q3 ":-^30}')
p_hex = "FFFFFFFFFFFFFFFFC90FDAA22168C234C4C6628B80DC1CD129024E088A67CC74020BBEA63B139B22514A08798E3404DDEF9519B3CD3A431B302B0A6DF25F14374FE1356D6D51C245E485B576625E7EC6F44C42E9A637ED6B0BFF5CB6F406B7EDEE386BFB5A899FA5AE9F24117C4B1FE649286651ECE45B3DC2007CB8A163BF0598DA48361C55D39A69163FA8FD24CF5F83655D23DCA3AD961C62F356208552BB9ED529077096966D670C354E4ABC9804F1746C08CA18217C32905E462E36CE3BE39E772C180E86039B2783A2EC07A28FB5C55DF06F4C52C9DE2BCBF6955817183995497CEA956AE515D2261898FA051015728E5A8AACAA68FFFFFFFFFFFFFFFF"
p = int(p_hex, 16)

g = 2

priv_key_faulty_hex = "cc" * 256
priv_key_faulty = int(priv_key_faulty_hex, 16)

result = pow(g, priv_key_faulty, p)
h = hex(result)

if '1119cf0e23' in h:
    print('发起方')
if '1b2f22ea5e' in h:
    print('响应方')
# 响应方

print(f'{" Q4 ":-^30}')
# K = (发起方的公钥 A) ^ (响应方的故障私钥 b) mod p
pub_key_i = 0x1119cf0e2342bc9dd981e34e345ea68e363ef54cf4328afa40b2d55a9e473736d16d2a824d18be5ee395149d785de49178725f55368cffa26d6c67927fe7d540e5e17cc6ce22c7481a873a28035371ca1427745eb9975686d0774342533d2d469a422f28bdb2ba0684521fd5eeadcec18c240de35308b594390513cdba65246a3aa6cbdd506822086d2a733864198a46290fc32687f183d26a81cc8ebf0bb0e6d2f52ee8db3980207cbe266bf6d8b080d6a9c1ed1b4fcf1936bb54e0eb173fcaec4869d97b1a9917e31d20de3328ff4c8d6258d5be699c7d69e4e59768c4d152fa4bdcc0be4fb6b981fb16675fd197878fd5384ab4d9f9c1a7d690eb23b13b98
priv_key_r_faulty = priv_key_faulty
shared_key = pow(pub_key_i, priv_key_r_faulty, p)
shared_key_hex = f'{shared_key:0{256 * 2}x}'
print(f"DH共享密钥值是: {shared_key_hex}")
# 0582a72064aed69a5729c3cd84055feb9eecf2bb14bae26a26f0e322e667d174554fc11c06b204469de0650178ecd53d56a0ad8e016e93e66288f9e997a868488334ec61f0cbf35d6314f081e9555ef34cfb6021cbb68f97eaea0b66fc44dccb97fe2f64bd9cf02bf648f88bbccea0053b26007ac9b1fd82c616d14b1805ae4eb2e2e0c55fd0fc1e9f0ee6451120c1e8c6962755cb417776e3ef1f9da896110930f8551189a29dfa940bcf3d1bdbd05d4b5924922c7655c3224c9f4cb792f86b44f22bc95f5c42cca76d2e063a03e651f3eb4bae75c13499ce6891680114cab502b50541ca76895e55c4984e60adb899d1bd2deb5e3b06aff634b53d00f20883

print(f'{" Q5 ":-^30}')
# Ni: Initiator's Nonce，发起方生成的、本次会话使用的一次性随机数。
# Nr: Responder's Nonce，响应方生成的、本次会话使用的一次性随机数。
"""
tshark -r capture.pcap -T fields -e isakmp.nonce
76e1dbf5a2fd251d663c8f10103bb876c9f02eb6807168b3bea0f5b6a314565b
6c8fe3ce8951c4ebce5e9b167b00c02e684fa26ebc4487226f349b52ea34fb78
"""
bh = lambda x: bytes.fromhex(x)
Ni = bh('76e1dbf5a2fd251d663c8f10103bb876c9f02eb6807168b3bea0f5b6a314565b')
Nr = bh('6c8fe3ce8951c4ebce5e9b167b00c02e684fa26ebc4487226f349b52ea34fb78')
nonce_concat = Ni + Nr
g_ir_bytes = shared_key.to_bytes(256, 'big')
# tshark -r capture.pcap -V | grep PRF  , PRF_HMAC_SHA1
SKEYSEED = hmac.new(nonce_concat, g_ir_bytes, hashlib.sha1).digest()
print(f"密钥种子SKEYSEED是: {SKEYSEED.hex()}")
# 9ec82c13e5f2beb1c7af21f6873e113ba04c47fda57fce06c3e0f5141d2fc452

print(f'{" Q6 ":-^30}')
# --- Q4: Initiator's IKE Encryption Key (SK_ei) ---
SPIi = bytes.fromhex('e0b156c9f61def4b')  # frame1_payload_hex[:16]
SPIr = bytes.fromhex('c56eb49736d476d3')  # frame2_payload_hex[16:32])
seed = Ni + Nr + SPIi + SPIr
s = seed
t1 = hmac.new(SKEYSEED, s + b'\x01', hashlib.sha1).digest()
t2 = hmac.new(SKEYSEED, t1 + s + b'\x02', hashlib.sha1).digest()
t3 = hmac.new(SKEYSEED, t2 + s + b'\x03', hashlib.sha1).digest()
t4 = hmac.new(SKEYSEED, t3 + s + b'\x04', hashlib.sha1).digest()
t5 = hmac.new(SKEYSEED, t4 + s + b'\x05', hashlib.sha1).digest()
TotalKey = t1 + t2 + t3 + t4 + t5
"""
SK_d  (用于派生更多密钥 20字节)
SK_ai (发起方认证密钥，20字节)
SK_ar (响应方认证密钥，20字节)
SK_ei (发起方加密密钥，32字节)
SK_er (响应方加密密钥，32字节)
SK_pi (发起方身份伪随机函数密钥，32字节)
SK_pr (响应方身份伪随机函数密钥，32字节)
"""
SK_d = TotalKey[0:20]
SK_ai = TotalKey[20:20 + 20]
SK_ar = TotalKey[40:40 + 20]
SK_ei = TotalKey[60:60 + 32]
print(f"发起方的IKE加密密钥SK_ei是: {SK_ei.hex()}")

print(f'{" Q7 ":-^30}')
# --- Q5: Decrypt ESP ---

seed_child = Ni + Nr
keymat_t1 = hmac.new(SK_d, seed_child + b'\x01', hashlib.sha1).digest()
keymat_t2 = hmac.new(SK_d, keymat_t1 + seed_child + b'\x02', hashlib.sha1).digest()
keymat_t3 = hmac.new(SK_d, keymat_t2 + seed_child + b'\x03', hashlib.sha1).digest()
keymat_t4 = hmac.new(SK_d, keymat_t3 + seed_child + b'\x04', hashlib.sha1).digest()
keymat_t5 = hmac.new(SK_d, keymat_t4 + seed_child + b'\x05', hashlib.sha1).digest()
keymat = keymat_t1 + keymat_t2 + keymat_t3 + keymat_t4 + keymat_t5

# ESP_KEY_ei: Starts at 0, length 32.  --> [0:32]
# ESP_KEY_ai: Starts at 32, length 20. --> [32:52]
# ESP_KEY_er: Starts at 52, length 32. --> [52:84]
# ESP_KEY_ar: Starts at 84, length 20. --> [84:104]

ESP_KEY_ei = keymat[0: 32]
ESP_KEY_ai = keymat[32: 52]
ESP_KEY_er = keymat[52: 84]
ESP_KEY_ar = keymat[84: 104]

key_len_esp_encr = 32
SK_ei_esp = keymat[0:key_len_esp_encr]
esp_hex = "cf867ae800000001b9cc1fd530becf6aefbe19ec41c6e23cfa86f899a99e8b64180de9858e06977a8a91553a741f930845228caf0604b8b0c9169d641406ce7c1415ffe0fd6fca58815177f46e515dd9ccb5102625afb41c1f883c943933d75260b1ba82"
esp_data = bytes.fromhex(esp_hex)

# ESP_Payload = SPI (4B) + Seq (4B) + IV (16B) + Ciphertext (可变) + ICV (12B)
spi, seq, esp_iv, esp_ciphertext, icv = esp_data[:4], esp_data[4:8], esp_data[8:8 + 16], esp_data[24:-12], esp_data[-12:]

# 响应方发包用 ESP_KEY_er 解，请求方发包用 ESP_KEY_ei 解
cipher = AES.new(ESP_KEY_er, AES.MODE_CBC, esp_iv)
plaintext_padded = cipher.decrypt(esp_ciphertext)

result = re.findall(rb'\{(.*)\}', plaintext_padded)[0].decode()
print(f"Decrypted Data: {result}")
# 73047882172936819
