今日学习笔记
flask框架相比Django比较轻量级，相对比较灵活，符合初学者要求

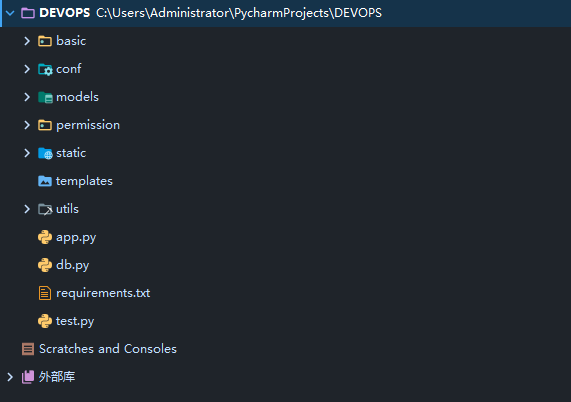

一、项目目录设计
basic：主要存放项目基础或通用功能的蓝图及功能实现文件
conf：存放项目的配置文件
models：存放SQLAlchemy的model文件
permission：存放权限管理模块的蓝图及功能实现文件
static:存放静态文件
utils:存放通用的方法以供项目调用
app.py:项目启动文件
db.py:数据库初始化文件
requirements.text:
autopep8==1.5
certifi==2019.11.28
chardet==3.0.4
Click==7.0
docopt==0.6.2
Flask==1.1.1
Flask-Cors==3.0.8
Flask-JWT-Extended==3.24.1
flask-redis==0.4.0
Flask-SQLAlchemy==2.4.1
idna==2.9
itsdangerous==1.1.0
Jinja2==2.11.1
MarkupSafe==1.1.1
mysqlclient==1.4.6
pipreqs==0.4.10
pycodestyle==2.5.0
PyJWT==1.7.1
pywin32==227
PyYAML==5.3
redis==3.4.1
requests==2.23.0
six==1.14.0
SQLAlchemy==1.3.13
urllib3==1.25.8
Werkzeug==1.0.0
WMI==1.4.9
yarg==0.1.9
二、配置文件
在conf文件夹下新建conf.py，该文件是项目的配置文件，配置数据库连接等信息
# !/usr/bin/python3
# -*- coding: utf-8 -*-
"""
@Author : Huguodong
@Version :
------------------------------------
@File : config.py
@Description :
@CreateTime : 2020/3/7 14:36
------------------------------------
@ModifyTime :
"""
# 日志
LOG_LEVEL = "DEBUG"
LOG_DIR_NAME = "logs"
# mysql
MYSQL = {"HOST": "192.168.68.133",
'PORT': "3306",
'USER': "root",
'PASSWD': "root",
'DB': "devops"}
REDIS = {
'HOST': '192.168.68.133',
'PORT': 6379,
'PASSWD': '',
'DB': 0,
"EXPIRE": 60000
}
# token
SECRET_KEY = "jinwandalaohu"
EXPIRES_IN = 9999
# 上传文件
UPLOAD_HEAD_FOLDER = "static/uploads/avatar"
app_url = "http://localhost:5000"
三、日志封装
日志是每个项目必不可少的，这里对logger做个简单的封装。
1.utils文件夹下新建conf_log.py文件
# !/usr/bin/python3
# -*- coding: utf-8 -*-
"""
@Author : Huguodong
@Version :
------------------------------------
@File : log_conf.py
@Description : log配置，实现日志自动按日期生成日志文件
@CreateTime : 2020/3/7 19:17
------------------------------------
@ModifyTime :
"""
import os
import time
import logging
from conf import config
def make_dir(make_dir_path):
"""
文件生成
:param make_dir_path:
:return:
"""
path = make_dir_path.strip()
if not os.path.exists(path):
os.makedirs(path)
return path
log_dir_name = config.LOG_DIR_NAME # 日志文件夹
log_file_name = 'logger-' + time.strftime('%Y-%m-%d', time.localtime(time.time())) + '.log' # 文件名
log_file_folder = os.path.abspath(
os.path.join(os.path.dirname(__file__), os.pardir, os.pardir)) + os.sep + log_dir_name
make_dir(log_file_folder)
log_file_str = log_file_folder + os.sep + log_file_name # 输出格式
log_level = config.LOG_LEVEL # 日志等级
handler = logging.FileHandler(log_file_str, encoding='UTF-8')
handler.setLevel(log_level)
logging_format = logging.Formatter(
'%(asctime)s - %(levelname)s - %(filename)s - %(funcName)s - %(lineno)s - %(message)s')
handler.setFormatter(logging_format)
2.app.py初始化
# 加载日志
app.logger.addHandler(handler)
3.想要使用日志只要引入current_app 就行了
from flask import current_app as app
app.logger.error("xxxxx")
三、flask-sqlalchemy封装
1.新建db.py
# !/usr/bin/python3
# -*- coding: utf-8 -*-
from flask_sqlalchemy import SQLAlchemy
db = SQLAlchemy()
2.models文件夹下新建BaseModel.py,这样后面所有的model就可以继承这个基类，不用每个model再写单独的新增修改删除方法
# !/usr/bin/python3
# -*- coding: utf-8 -*-
"""
@Author : Huguodong
@Version :
------------------------------------
@File : BaseModel.py
@Description : ORM封装
@CreateTime : 2020/3/8 15:13
------------------------------------
@ModifyTime :
"""
from sqlalchemy import func
from db import db
class BaseModel(db.Model):
__abstract__ = True ## 声明当前类为抽象类，被继承，调用不会被创建
id = db.Column(db.Integer, primary_key=True, autoincrement=True)
create_by = db.Column(db.String(64), comment="创建者")
created_at = db.Column(db.TIMESTAMP(True), comment="创建时间", nullable=False, server_default=func.now())
update_by = db.Column(db.String(64), comment="更新者")
updated_at = db.Column(db.TIMESTAMP(True), comment="更新时间", nullable=False, server_default=func.now(),
onupdate=func.now())
remark = db.Column(db.String(500), comment="备注")
def save(self):
'''
新增数据
:return:
'''
db.session.add(self)
db.session.commit()
def update(self):
'''
更新数据
:return:
'''
db.session.merge(self)
db.session.commit()
def delete(self):
'''
删除数据
:return:
'''
db.session.delete(self)
db.session.commit()
def save_all(self, data):
'''
保存多条数据
:param data:
:return:
'''
db.session.execute(
self.__table__.insert(),
data
)
db.session.commit()
3.初始化数据库
app.config['SQLALCHEMY_DATABASE_URI'] = 'mysql://{}:{}@{}:{}/{}'.format(config.MYSQL['USER'],
config.MYSQL['PASSWD'],
config.MYSQL['HOST'],
config.MYSQL['PORT'], config.MYSQL['DB'])
app.config['SQLALCHEMY_TRACK_MODIFICATIONS'] = False # 跟踪对象的修改，在本例中用不到调高运行效率，所以设置为False
# app.config['SQLALCHEMY_ECHO'] = True
db.init_app(app)
四、redis封装
1.在utils文件夹下新建redis_utils.py
# !/usr/bin/python3
# -*- coding: utf-8 -*-
"""
@Author : Huguodong
@Version :
------------------------------------
@File : redis_utils.py
@Description : 封装redis类
@CreateTime : 2020/3/23 22:04
------------------------------------
@ModifyTime :
"""
import pickle
import redis
from flask import current_app as app
class Redis(object):
"""
redis数据库操作
"""
@staticmethod
def _get_r():
host = app.config['REDIS_HOST']
port = app.config['REDIS_PORT']
db = app.config['REDIS_DB']
passwd = app.config['REDIS_PWD']
r = redis.StrictRedis(host=host, port=port, db=db, password=passwd)
return r
@classmethod
def write(self, key, value, expire=None):
"""
写入键值对
"""
# 判断是否有过期时间，没有就设置默认值
if expire:
expire_in_seconds = expire
else:
expire_in_seconds = app.config['REDIS_EXPIRE']
r = self._get_r()
r.set(key, value, ex=expire_in_seconds)
@classmethod
def write_dict(self, key, value, expire=None):
'''
将内存数据二进制通过序列号转为文本流，再存入redis
'''
if expire:
expire_in_seconds = expire
else:
expire_in_seconds = app.config['REDIS_EXPIRE']
r = self._get_r()
r.set(pickle.dumps(key), pickle.dumps(value), ex=expire_in_seconds)
@classmethod
def read_dict(self, key):
'''
将文本流从redis中读取并反序列化，返回
'''
r = self._get_r()
data = r.get(pickle.dumps(key))
if data is None:
return None
return pickle.loads(data)
@classmethod
def read(self, key):
"""
读取键值对内容
"""
r = self._get_r()
value = r.get(key)
return value.decode('utf-8') if value else value
@classmethod
def hset(self, name, key, value):
"""
写入hash表
"""
r = self._get_r()
r.hset(name, key, value)
@classmethod
def hmset(self, key, *value):
"""
读取指定hash表的所有给定字段的值
"""
r = self._get_r()
value = r.hmset(key, *value)
return value
@classmethod
def hget(self, name, key):
"""
读取指定hash表的键值
"""
r = self._get_r()
value = r.hget(name, key)
return value.decode('utf-8') if value else value
@classmethod
def hgetall(self, name):
"""
获取指定hash表所有的值
"""
r = self._get_r()
return r.hgetall(name)
@classmethod
def delete(self, *names):
"""
删除一个或者多个
"""
r = self._get_r()
r.delete(*names)
@classmethod
def hdel(self, name, key):
"""
删除指定hash表的键值
"""
r = self._get_r()
r.hdel(name, key)
@classmethod
def expire(self, name, expire=None):
"""
设置过期时间
"""
if expire:
expire_in_seconds = expire
else:
expire_in_seconds = app.config['REDIS_EXPIRE']
r = self._get_r()
r.expire(name, expire_in_seconds)
2.app.py初始化
app.config['REDIS_HOST'] = config.REDIS['HOST']
app.config['REDIS_PORT'] = config.REDIS['PORT']
app.config['REDIS_DB'] = config.REDIS['DB']
app.config['REDIS_PWD'] = config.REDIS['PASSWD']
app.config['REDIS_EXPIRE'] = config.REDIS['EXPIRE']
3.调用
from utils.redis_utils import Redis
#写
Redis.write(f"token_{user.user_name}", token)
#读
redis_token = Redis.read(key)
五、枚举类
前端请求之后，后端接受前端请求并返回状态码，那么这些状态码可以用一个枚举类保存起来同意管理
在utils文件夹下新建code_enum.py
# !/usr/bin/python3
# -*- coding: utf-8 -*-
"""
@Author : Huguodong
@Version :
------------------------------------
@File : code_enum.py
@Description : 返回码枚举类
@CreateTime : 2020/3/7 19:48
------------------------------------
@ModifyTime :
"""
import enum
class Code(enum.Enum):
# 成功
SUCCESS = 0
# 获取信息失败
REQUEST_ERROR = 400
# 504错误
NOT_FOUND = 404
# 500错误
INTERNAL_ERROR = 500
# 登录超时
LOGIN_TIMEOUT = 50014
# 无效token
ERROR_TOKEN = 50008
# 别的客户端登录
OTHER_LOGIN = 50012
# 权限不够
ERR_PERMISSOM = 50013
# 更新数据库失败
UPDATE_DB_ERROR = 1000
# 更新数据库失败
CREATE_DB_ERROR = 1001
# 更新数据库失败
DELETE_DB_ERROR = 1002
# 不能为空
NOT_NULL = 1003
# 缺少参数
NO_PARAMETER = 1004
# 用户密码错误
ERR_PWD = 1005
# 数据不存在
ID_NOT_FOUND = 1006
# 参数错误
PARAMETER_ERROR = 1007
# 文件不存在
FILE_NO_FOUND = 1008
# 无效的格式
ERROR_FILE_TYPE = 1009
# 超出文件限制
OVER_SIZE = 1010
# 上传失败
UPLOAD_FAILD = 1011
六、公共方法
在utils文件夹里面新建common.py，可以供全局调用的方法一般放在这里面，比如返回给前端的方法。
# !/usr/bin/python3
# -*- coding: utf-8 -*-
"""
@Author : Huguodong
@Version :
------------------------------------
@File : common.py
@Description :
@CreateTime : 2020/3/7 19:01
------------------------------------
@ModifyTime :
"""
# 导入依赖包
import functools
import hashlib
from flask import request, jsonify, current_app as app
from itsdangerous import TimedJSONWebSignatureSerializer as Serializer
from conf import config
from utils.code_enum import Code
def create_token(user_id, user_name, role_list):
'''
生成token
:param api_user:用户id
:return: token
'''
# 第一个参数是内部的私钥，这里写在共用的配置信息里了，如果只是测试可以写死
# 第二个参数是有效期(秒)
s = Serializer(config.SECRET_KEY, expires_in=config.EXPIRES_IN)
# 接收用户id转换与编码
token = None
try:
token = s.dumps({"id": user_id, "name": user_name, "role": role_list}).decode("ascii")
except Exception as e:
app.logger.error("获取token失败:{}".format(e))
return token
def verify_token(token):
'''
校验token
:param token:
:return: 用户信息 or None
'''
# 参数为私有秘钥，跟上面方法的秘钥保持一致
s = Serializer(config.SECRET_KEY)
try:
# 转换为字典
data = s.loads(token)
return data
except Exception as e:
app.logger.error(f"token转换失败:{e}")
return None
def login_required(*role):
def decorator(func):
@functools.wraps(func)
def wrapper(*args, **kw):
try:
# 在请求头上拿到token
token = request.headers["Authorization"]
except Exception as e:
# 没接收的到token,给前端抛出错误
return jsonify(code=Code.NO_PARAMETER.value, msg='缺少参数token')
s = Serializer(config.SECRET_KEY)
try:
user = s.loads(token)
if role:
# 获取token中的权限列表如果在参数列表中则表示有权限，否则就表示没有权限
user_role = user['role']
result = [x for x in user_role if x in list(role)]
if not result:
return jsonify(code=Code.ERR_PERMISSOM.value, msg="权限不够")
except Exception as e:
return jsonify(code=Code.LOGIN_TIMEOUT.value, msg="登录已过期")
return func(*args, **kw)
return wrapper
return decorator
def model_to_dict(result):
'''
查询结果转换为字典
:param result:
:return:
'''
from collections import Iterable
# 转换完成后，删除 '_sa_instance_state' 特殊属性
try:
if isinstance(result, Iterable):
tmp = [dict(zip(res.__dict__.keys(), res.__dict__.values())) for res in result]
for t in tmp:
t.pop('_sa_instance_state')
else:
tmp = dict(zip(result.__dict__.keys(), result.__dict__.values()))
tmp.pop('_sa_instance_state')
return tmp
except BaseException as e:
print(e.args)
raise TypeError('Type error of parameter')
def construct_page_data(data):
'''
分页需要返回的数据
:param data:
:return:
'''
page = {"page_no": data.page, # 当前页数
"page_size": data.per_page, # 每页显示的属性
"tatal_page": data.pages, # 总共的页数
"tatal_count": data.total, # 查询返回的记录总数
"is_first_page": True if data.page == 1 else False, # 是否第一页
"is_last_page": False if data.has_next else True # 是否最后一页
}
# result = menu_to_dict(data.items)
result = model_to_dict(data.items)
data = {"page": page, "list": result}
return data
def construct_menu_data(data):
'''
菜单分页需要返回的数据
:param data:
:return:
'''
page = {"page_no": data.page, # 当前页数
"page_size": data.per_page, # 每页显示的属性
"tatal_page": data.pages, # 总共的页数
"tatal_count": data.total, # 查询返回的记录总数
"is_first_page": True if data.page == 1 else False, # 是否第一页
"is_last_page": False if data.has_next else True # 是否最后一页
}
# result = menu_to_dict(data.items)
result = menu_to_dict(data.items)
data = {"page": page, "list": result}
return data
def SUCCESS(data=None):
return jsonify(code=Code.SUCCESS.value, msg="ok", data=data)
def NO_PARAMETER(msg="未接收到参数!"):
return jsonify(code=Code.NO_PARAMETER.value, msg=msg)
def PARAMETER_ERR(msg="参数错误!"):
return jsonify(code=Code.NO_PARAMETER.value, msg=msg)
def OTHER_LOGIN(msg="其他客户端登录!"):
return jsonify(code=Code.OTHER_LOGIN.value, msg=msg)
def AUTH_ERR(msg="身份验证失败!"):
return jsonify(code=Code.ERROR_TOKEN.value, msg=msg)
def TOKEN_ERROR(msg="Token校验失败!"):
return jsonify(code=Code.ERROR_TOKEN.value, msg=msg)
def REQUEST_ERROR(msg="请求失败!"):
return jsonify(code=Code.REQUEST_ERROR.value, msg=msg)
def ID_NOT_FOUND(msg="数据不存在!"):
return jsonify(code=Code.ID_NOT_FOUND.value, msg=msg)
def CREATE_ERROR(msg="创建失败!"):
return jsonify(code=Code.CREATE_DB_ERROR.value, msg=msg)
def UPDATE_ERROR(msg="更新失败!"):
return jsonify(code=Code.UPDATE_DB_ERROR.value, msg=msg)
def DELETE_ERROR(msg="删除失败"):
return jsonify(code=Code.DELETE_DB_ERROR.value, msg=msg)
def FILE_NO_FOUND(msg="请选择文件!"):
return jsonify(code=Code.FILE_NO_FOUND.value, msg=msg)
def ERROR_FILE_TYPE(msg="无效的格式!"):
return jsonify(code=Code.ERROR_FILE_TYPE.value, msg=msg)
def UPLOAD_FAILD(msg="上传失败!"):
return jsonify(code=Code.UPLOAD_FAILD.value, msg=msg)
def OVER_SIZE(msg="文件大小超出限制!"):
return jsonify(code=Code.OVER_SIZE.value, msg=msg)
def get_diff(old_list, new_list):
# 计算old_list比new_list多的
less_list = list(set(old_list) - set(new_list))
# 计算new_list比old_list多的
add_list = list(set(new_list) - set(old_list))
return add_list, less_list
def create_passwd(passwd):
# 创建md5对象
m = hashlib.md5()
b = passwd.encode(encoding='utf-8')
m.update(b)
str_md5 = m.hexdigest()
return str_md5
def md5_sum(strs):
m = hashlib.md5()
b = strs.encode(encoding='utf-8')
m.update(b)
str_md5 = m.hexdigest()
return str_md5
七、app.py
from flask import Flask, jsonify
from flask_cors import CORS
from db import db
from conf import config
from permission import dict_data, menu, user, dict, post, dept, role, configs
from basic import upload
from utils.code_enum import Code
from utils.conf_log import handler
def create_app():
app = Flask(__name__)
# 设置返回jsonify方法返回dict不排序
app.config['JSON_SORT_KEYS'] = False
# 设置返回jsonify方法返回中文不转为Unicode格式
app.config['JSON_AS_ASCII'] = False
# 配置跨域
CORS(app, resources={r"/api/*": {"origins": "*"}})
# 注册蓝图
register_blueprints(app)
# 加载数据库
init_db(app)
# 加载redis配置
init_redis(app)
# 加载日志
app.logger.addHandler(handler)
return app
def register_blueprints(app):
'''
创建蓝图
:param app:
:return:
'''
app.register_blueprint(user.user, url_prefix='/api/user')
app.register_blueprint(menu.menu, url_prefix='/api/menu')
app.register_blueprint(dict.dict, url_prefix='/api/dict')
app.register_blueprint(dict_data.dictData, url_prefix='/api/dictData')
app.register_blueprint(post.post, url_prefix='/api/post')
app.register_blueprint(dept.dept, url_prefix='/api/dept')
app.register_blueprint(role.role, url_prefix='/api/role')
app.register_blueprint(configs.configs, url_prefix='/api/configs')
app.register_blueprint(upload.upload, url_prefix='/api/upload')
def init_db(app):
'''
加载数据库
:param app:
:return:
'''
app.config['SQLALCHEMY_DATABASE_URI'] = 'mysql://{}:{}@{}:{}/{}'.format(config.MYSQL['USER'],
config.MYSQL['PASSWD'],
config.MYSQL['HOST'],
config.MYSQL['PORT'], config.MYSQL['DB'])
app.config['SQLALCHEMY_TRACK_MODIFICATIONS'] = False # 跟踪对象的修改，在本例中用不到调高运行效率，所以设置为False
# app.config['SQLALCHEMY_ECHO'] = True
db.init_app(app)
def init_redis(app):
'''
加载redis
:param app:
:return:
'''
app.config['REDIS_HOST'] = config.REDIS['HOST']
app.config['REDIS_PORT'] = config.REDIS['PORT']
app.config['REDIS_DB'] = config.REDIS['DB']
app.config['REDIS_PWD'] = config.REDIS['PASSWD']
app.config['REDIS_EXPIRE'] = config.REDIS['EXPIRE']
app = create_app()
@app.errorhandler(Exception)
def handle_error(err):
"""自定义处理错误方法"""
# 这个函数的返回值会是前端用户看到的最终结果
try:
if err.code == 404:
app.logger.error(err)
return jsonify(code=Code.NOT_FOUND.value, msg="服务器异常,404")
elif err.code == 400:
app.logger.error(err)
return jsonify(code=Code.REQUEST_ERROR.value, msg="服务器异常,400")
elif err.code == 500:
app.logger.error(err)
return jsonify(code=Code.INTERNAL_ERROR.value, msg="服务器异常,500")
else:
return jsonify(code=err.code, msg=f"服务器异常,{err.code}")
except:
return jsonify(code=Code.INTERNAL_ERROR.value, msg=f"服务器异常,{err}")
if __name__ == '__main__':
app.run(host='0.0.0.0', port=5000)
浙公网安备 33010602011771号
