task list SAP_BASIS_CONFIG_OSS_COMM

30.11.2022 - Document updated to match latest configuration (Short: instead of SSL Client (Standard), SSL Client (Anonymous) is used)



For releases SAP ABAP lower than 7.40 SP SP08:

(Mitigation for releases 7.00 to 7.31: still old RFC SAPOSS destination can be used, but the destination must be switched to technical S-User (sm59, select destination, change user/password))



This document explains in detail what several task of the of task list SAP_BASIS_CONFIG_OSS_COMM are doing automatically that they can be performed manually in the system.

The automated configuration is all about enabling the system for SSL and create three https destinations:

• SAP Support Portal (SAP-SUPPORT_PORTAL - Type H)

• SAP Parcel Download (SAP-SUPPORT_PARCELBOX - Type G)

• SAP Note Download (SAP-SUPPORT_NOTE_DOWNLOAD - Type G)

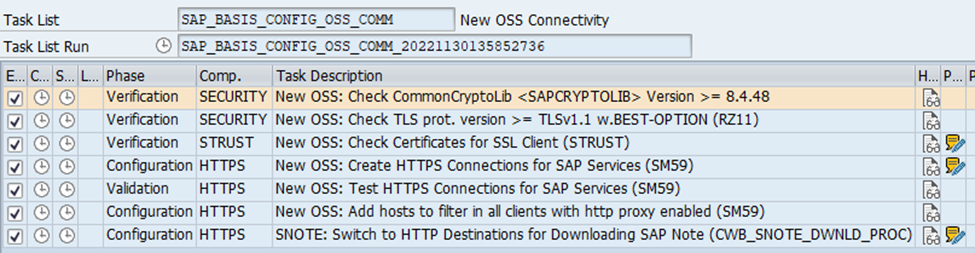

Task list overview





Task 1: New OSS: Check CommonCryptoLib <SAPCRYPTOLIB> Version >= 8.4.48

Checks for correct cryptolib version that you can enable ssl at all on your system

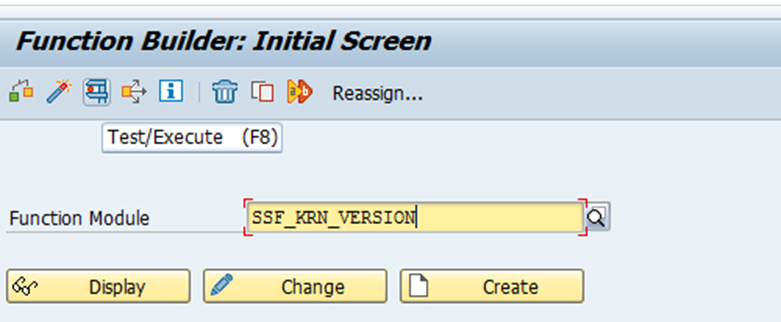

Start transaction: SE37 - Function Builder

Enter function module: SSF_KRN_VERSION

Execute



Leave import parameter empty and execute again



Check that version is above or equal 8.4.48





In case version of SAPcryptolib is too low, follow SAP Note 2450794 - How to update CommonCryptoLib in a NetWeaver ABAP system



Task 2: New OSS: Check TLS prot. version >= TLSv1.1 w.BEST-OPTION (RZ11)

Checks if the profile parameter ssl/client_ciphersuites is set correctly to enable ssl (TLSv1.2)

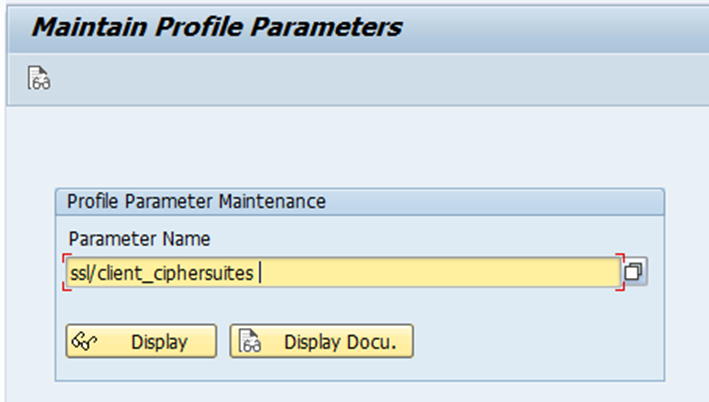

Start transaction: RZ11

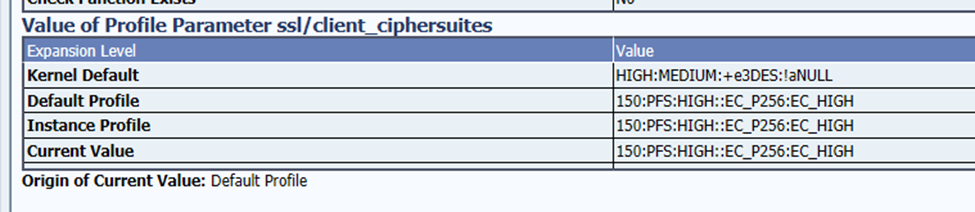

Enter parameter name: ssl/client_ciphersuites

Click Display





Check for the values that TLSv1.2 is enabled

• ssl/client_ciphersuites = 150:PFS:HIGH::EC_P256:EC_HIGH recommended for standard ABAP systems
• ssl/client_ciphersuites = 918:PFS:HIGH::EC_P256:EC_HIGH recommended for Solutionmanager





In case the parameter is not set start transaction rz10 and set the profile parameter.

More details about setting TLS version, can be found in SAP Note 510007 - Setting up SSL on Application Server ABAP



Task 3: New OSS: Check Certificates for SSL Client (STRUST)

Checks if all necessary certificates for SSL Client (Anonymous) is in the list

Start transaction: STRUST

Double Click on: SSL Client SSL Client (Anonymous)

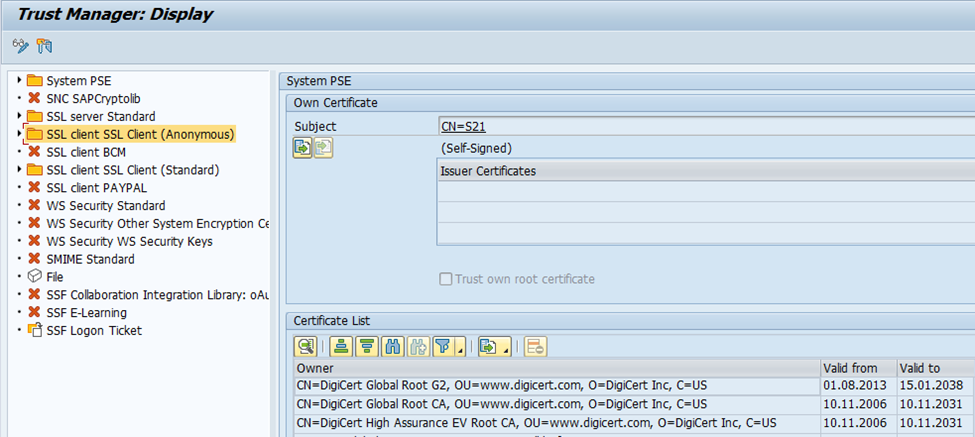

Check in the certificate list that the following certificates are available and valid:

• DigiCert Global Root CA
• DigiCert Global Root G2
• DigiCert High Assurance EV Root CA

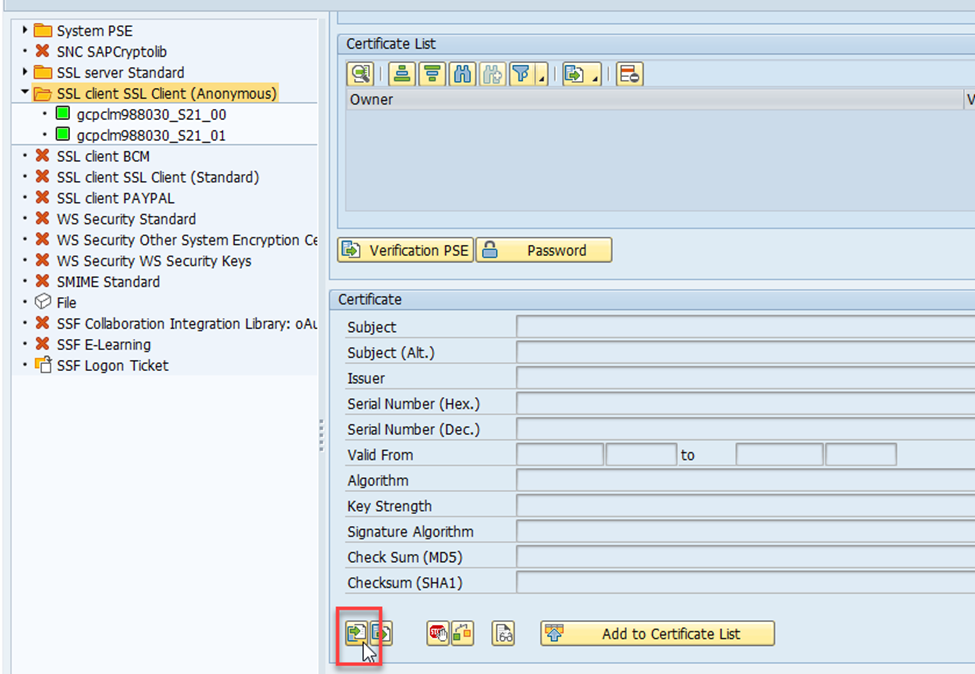

In case the entry SSL Client SSL Client (Anonymous) is not created andcertificates are not available:

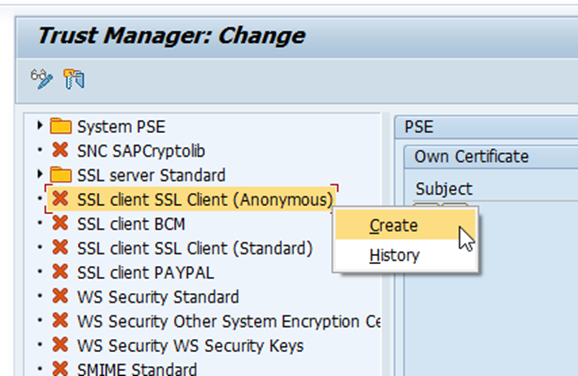

1. Select the PSE, right clicking and press create







1. Download the certificates

• DigiCert Global Root CA
• DigiCert Global Root G2
• DigiCert High Assurance EV Root CA

https://www.digicert.com/digicert-root-certificates.htm





1. Upload the certificate









1. Add certificate to the list

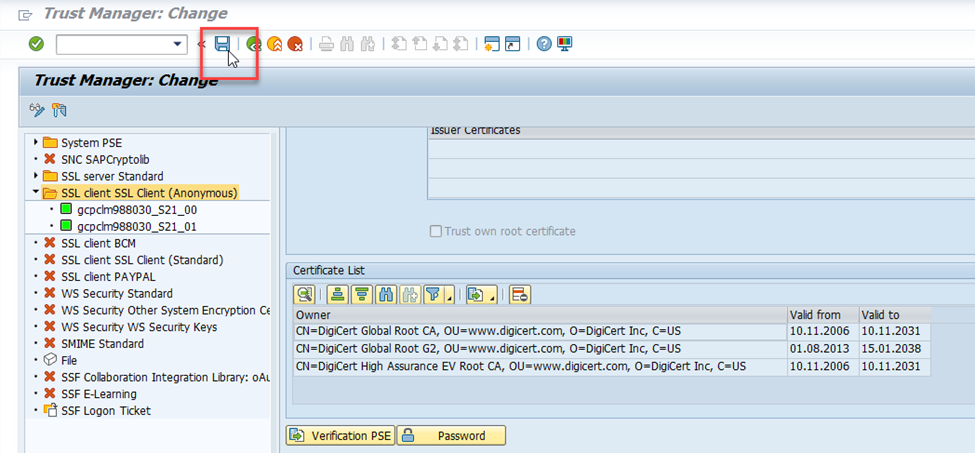

1. Repeat this for every certificate and press save







Task 4: New OSS: Create HTTPS Connections for SAP Services (SM59)

Create and test destinations

• SAP Support Portal (SAP-SUPPORT_PORTAL - Type H)

• SAP Parcel Download (SAP-SUPPORT_PARCELBOX - Type G)

• SAP Note Download (SAP-SUPPORT_NOTE_DOWNLOAD - Type G)



Start transaction: SM59

Click on: Create

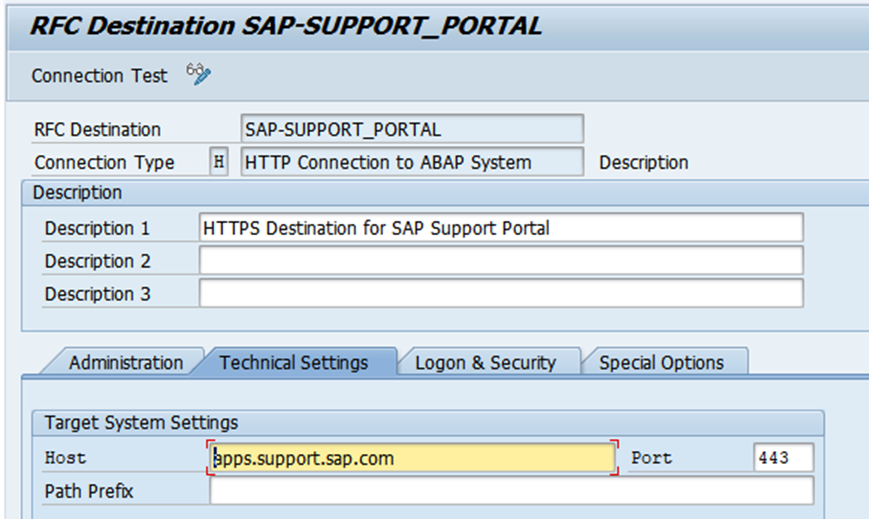

Destination: SAP Support Portal (SAP-SUPPORT_PORTAL - Type H)

Enter the following values



RFC Destination: SAP-SUPPORT_PORTAL

Connection Type: H

Description 1: HTTPS Destination for SAP Support Portal

Host: apps.support.sap.com

(in case of using a proxy add it in front of the host e.g.  /H/<SR@CUST>/S/3299/H/<SR@SAP>/S/3299/H/apps.support.sap.com)

Port: 443

Language: EN

Client: 001

User: SXXXXXXX (Technical S-User)

Password: <your password>

SSL: Active

SSL Certificate: DFAULT SSL Client (Anonymous)

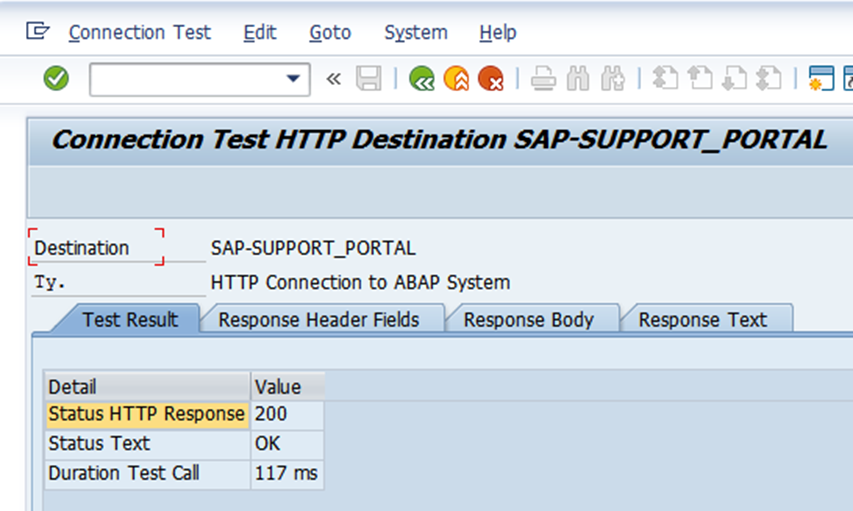

Click on the Connection Test button and check that Status HTTP Response 200 is displayed

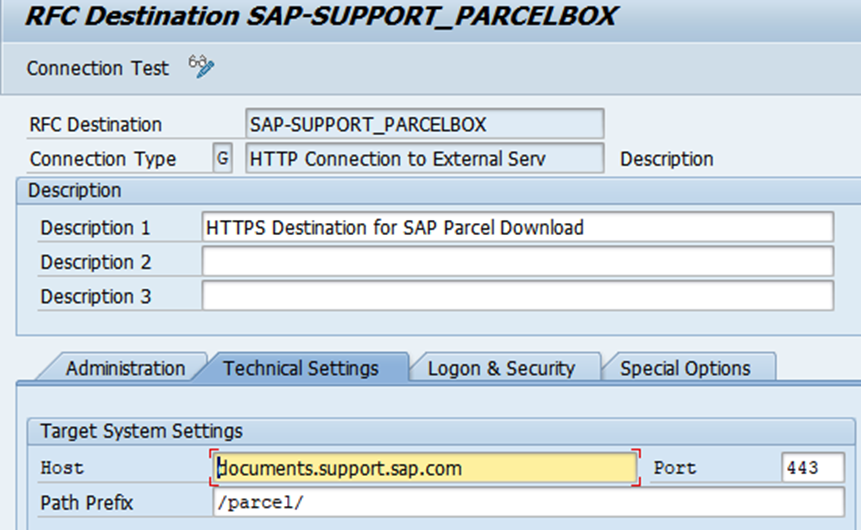

Destination:  SAP Parcel Download (SAP-SUPPORT_PARCELBOX - Type G)

Enter the following values

RFC Destination: SAP-SUPPORT_PARCELBOX

Connection Type: G

Description 1: HTTPS Destination for SAP Parcel Download

Host: documents.support.sap.com

(in case of using a proxy add it in front of the host e.g.  /H/<SR@CUST>/S/3299/H/<SR@SAP>/S/3299/H/documents.support.sap.com)

Port: 443

Path Prefix: /parcel/

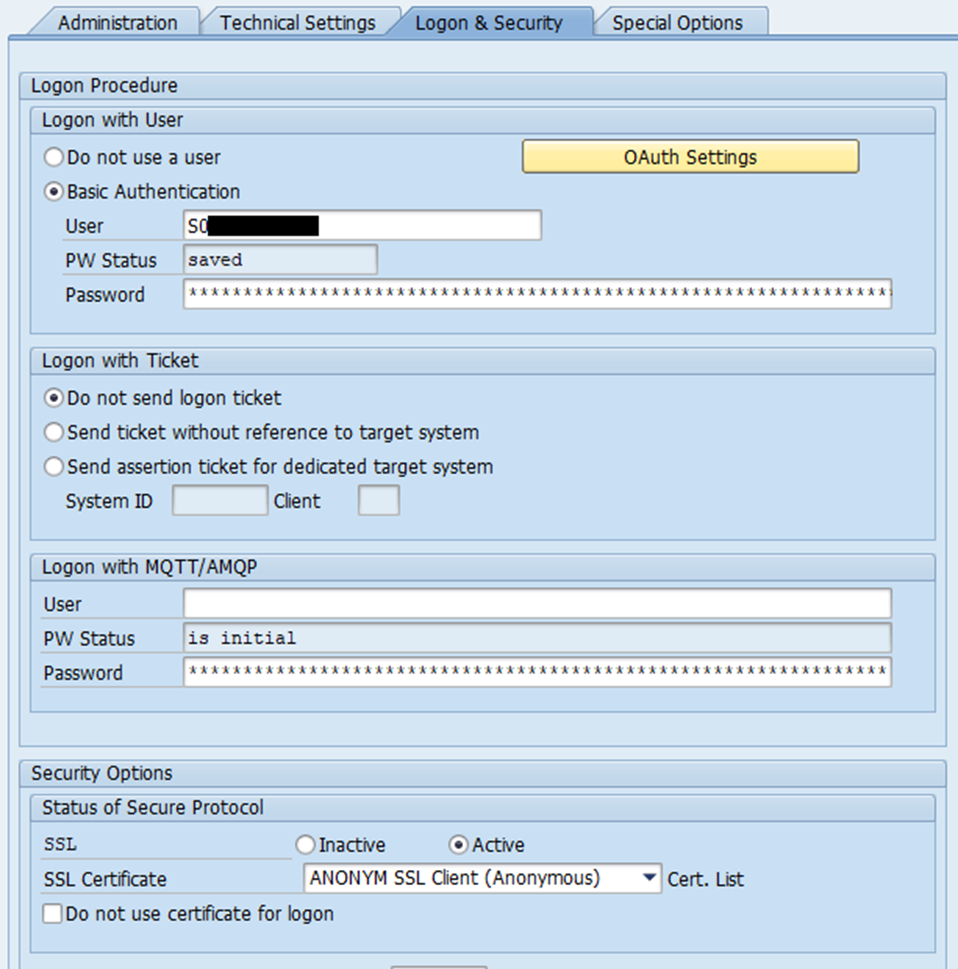

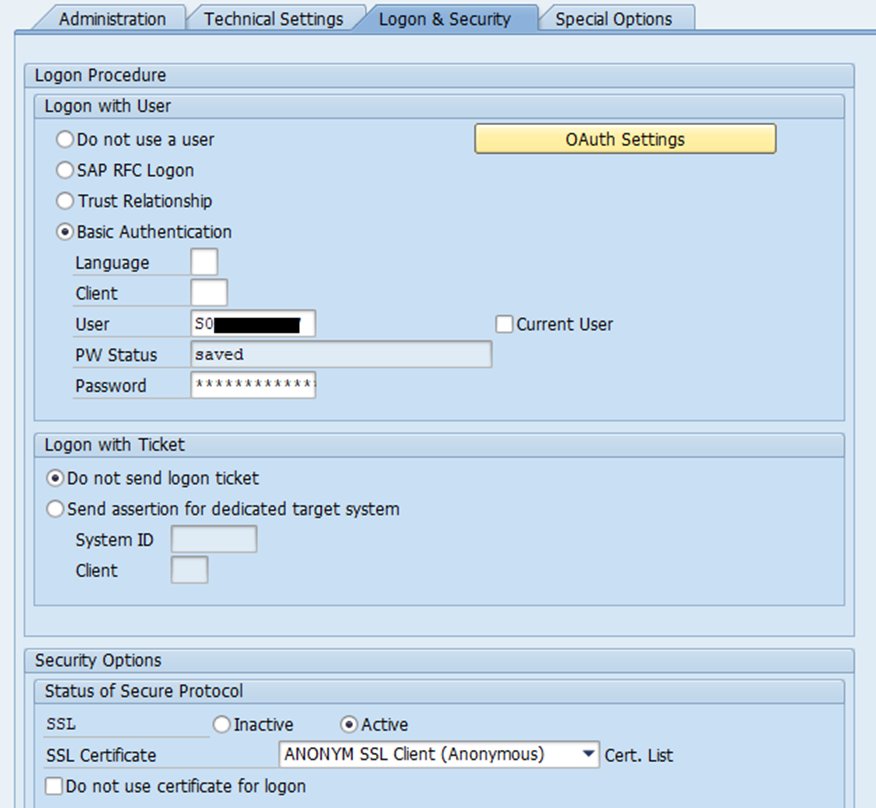

Logon with User: Basic Authentication

User: SXXXXXXX (Technical S-User)

Password: <your password>

SSL: Active

SSL Certificate: DFAULT SSL Client (Anonymous)







Click on the Connection Test button and check that Status HTTP Response 200 is displayed

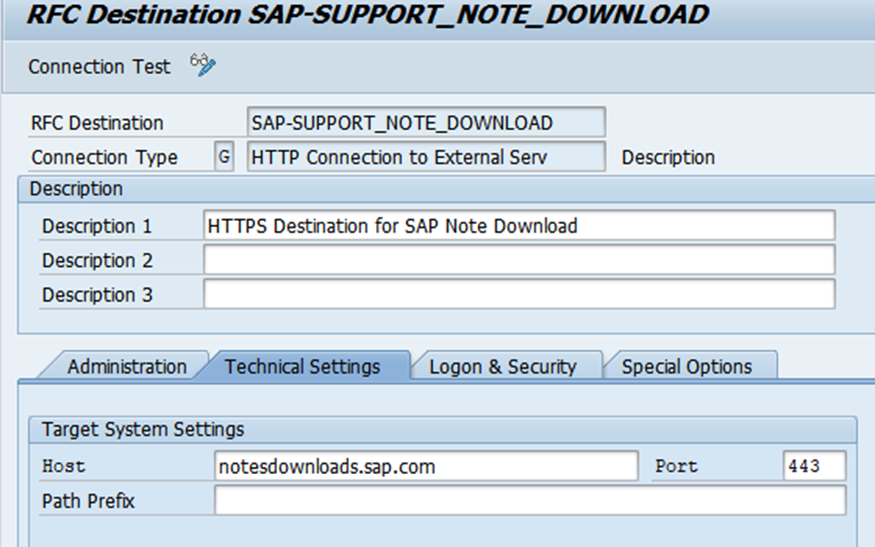

Destination:  SAP Note Download (SAP-SUPPORT_NOTE_DOWNLOAD - Type G)

Enter the following values

RFC Destination: SAP-SUPPORT_NOTE_DOWNLOAD

Connection Type: G

Description 1: HTTPS Destination for SAP Note Download

Host: notesdownloads.sap.com

(in case of using a proxy add it in front of the host e.g.  /H/<SR@CUST>/S/3299/H/<SR@SAP>/S/3299/H/notesdownloads.sap.com)

Port: 443

Logon with User: Basic Authentication

User: SXXXXXXX (Technical S-User)

Password: <your password>

SSL: Active

SSL Certificate: DFAULT SSL Client (Anonymous)

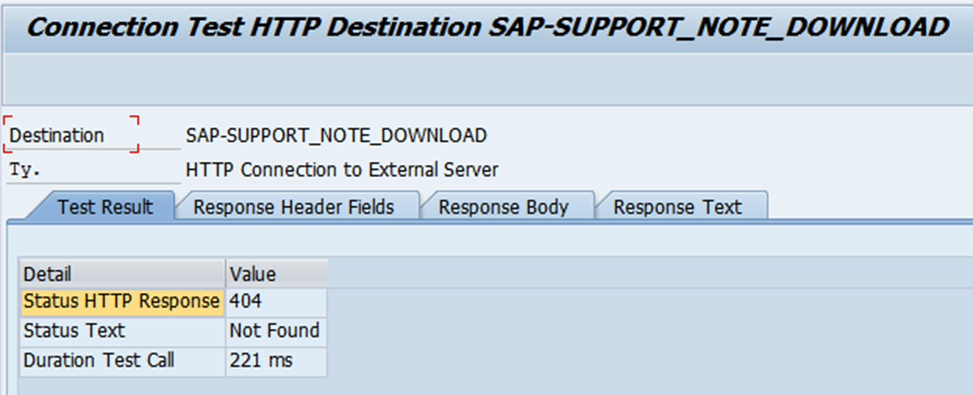

Click on the Connection Test button and check that Status HTTP Response 404 is displayed



The 404 response is ok. When in SNOTE a note is downloaded the path to the note is added to the request like /note/0040000000874972019.

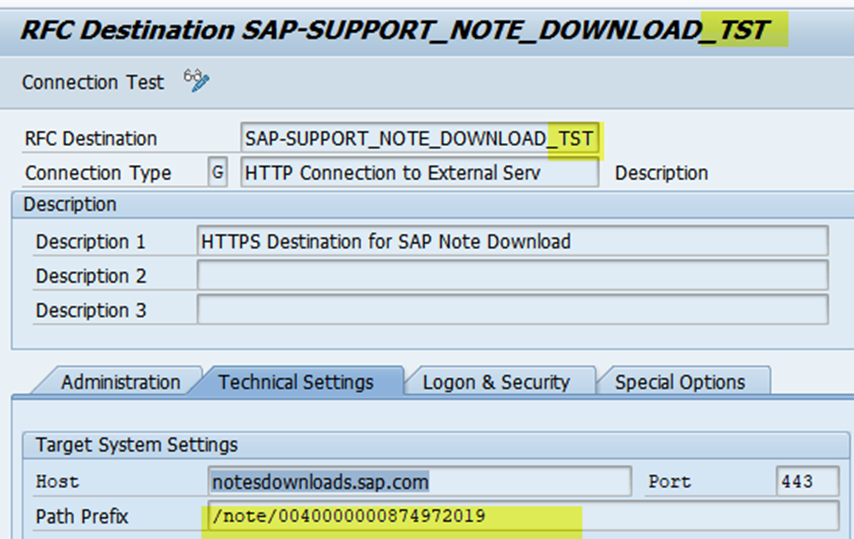

For a 200 response you can copy the created destination and enter the string to the Path Prefix field and perform a connection test.

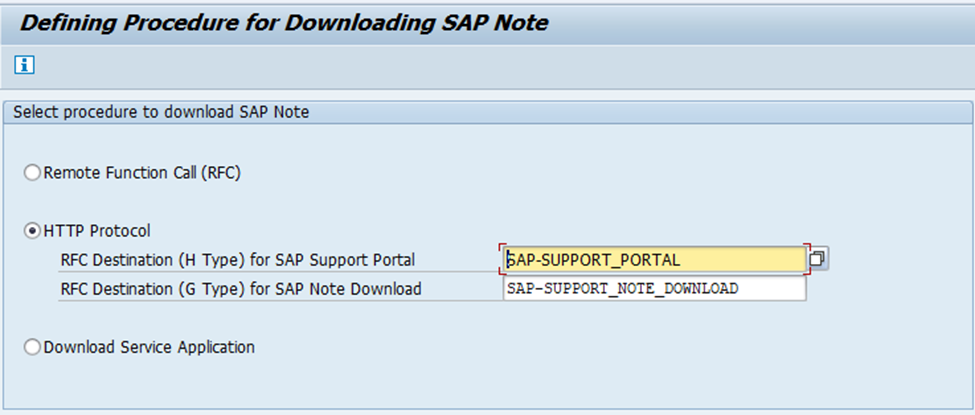

With latest update a new task in task list was introduced that enables SNOTE to use the created destinations. This can be checked/set by executing transaction: CWB_SNOTE_DWNLD_PROC and select HTTP Protocol





Troubleshooting:



Connection issues:

• in case you experience connection issues, the ICM trace (TA: SMICM) can give valuable information;
• contact your network admin that the https requests can get out of your company network (router, port settings, whitelist, blacklists in firewall, etc.)
• in case you are using a sap router string in front of the host and you have the SM59 https proxy setting active (check in menu of SM59), you must add the host in the filter list; in this case the host contains already the route it should NOT go the global proxy again; on top of that the https proxy setting is client independent



Authentication issues:

• The standard S-User will not work for the OSS connections, you need to use a technical S-User. You can request a technical user here: https://apps.support.sap.com/technical-user/index.html
• If you are using a technical S-User and still get authentication issues, it could be that the user is locked. In this case contact Support that they can unlock the technical S-User



Further resources:

• How to test https connection for SAP Note download after the execution of task list SAP_BASIS_CONFIG_OSS_COMM: https://launchpad.support.sap.com/#/notes/2836996
