How to access Kubernetes Dashboard

Deploying the Dashboard UI

The Dashboard UI is not deployed by default. To deploy it, run the following command:

kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.0-beta8/aio/deploy/recommended.yaml

Command line proxy

You can access Dashboard using the kubectl command-line tool by running the following command:

kubectl proxy

Kubectl will make Dashboard available at http://localhost:8001/api/v1/namespaces/kubernetes-dashboard/services/https:kubernetes-dashboard:/proxy/.

Kubernetes Dashboard Authentication

Above link asks for authentication. Use below commands to get token

Create the dashboard service account

kubectl create serviceaccount dashboard-admin-sa

This will create a service account named dashboard-admin-sa in the default namespace

Get Naresh Kancharla’s stories in your inbox

Join Medium for free to get updates from this writer.

Subscribe

Remember me for faster sign in



Next bind the dashboard-admin-service-account service account to the cluster-admin role

kubectl create clusterrolebinding dashboard-admin-sa
--clusterrole=cluster-admin --serviceaccount=default:dashboard-admin-sa

When we created the dashboard-admin-sa service account Kubernetes also created a secret for it.

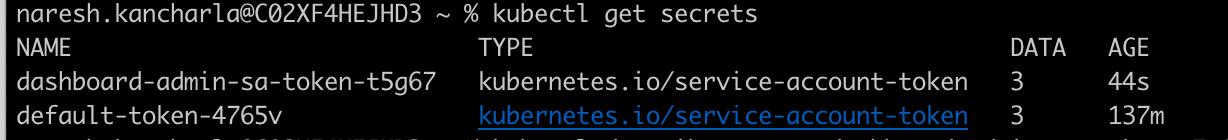

List secrets using:

kubectl get secrets

Press enter or click to view image in full size

Get Token

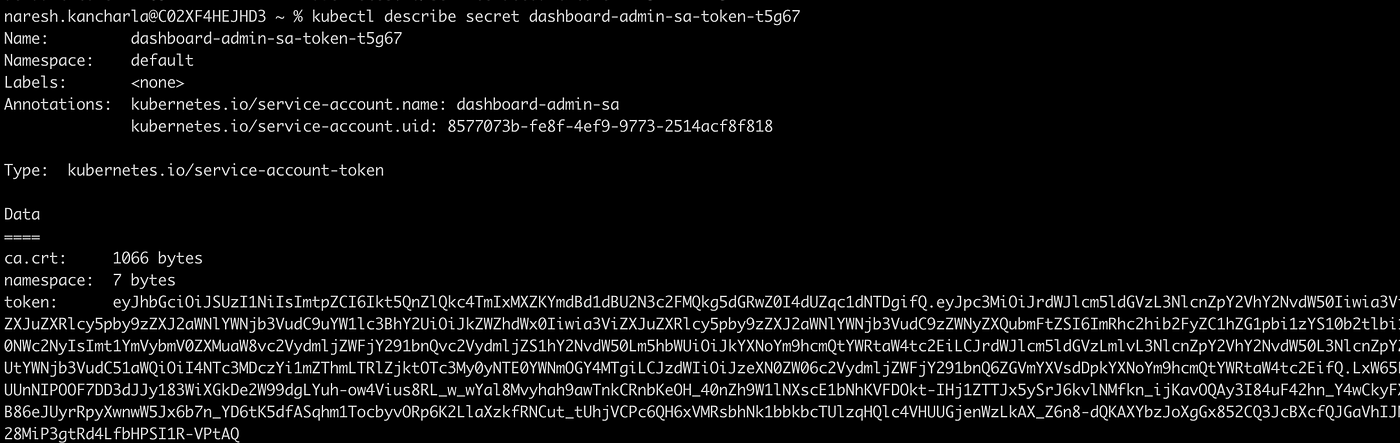

Use kubectl describe to get the access token:

kubectl describe secret dashboard-admin-sa-token-t5g67

Press enter or click to view image in full size

Copy the token and enter it into the token field on the Kubernetes dashboard login page.
