19 lvs操作执行步骤

1 在lvs主机master 上配置虚拟ip

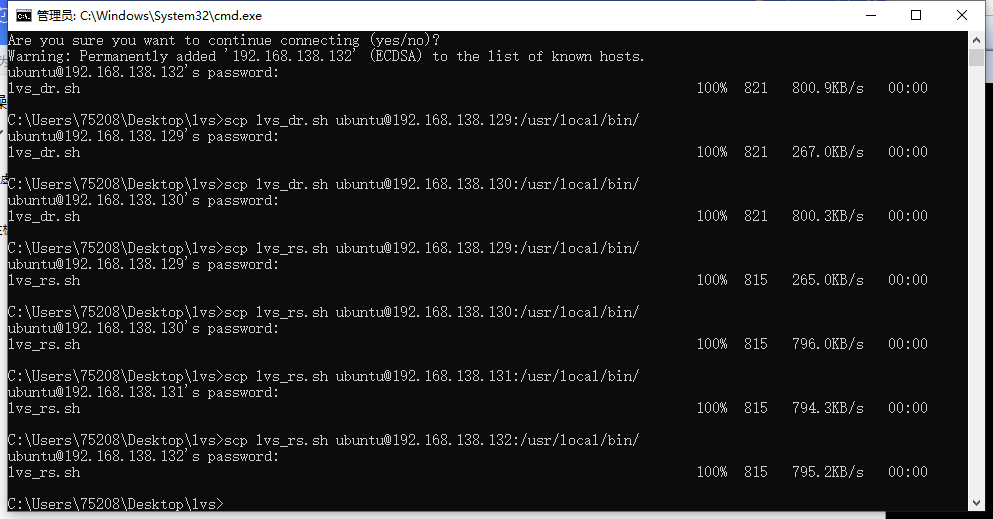

1 将编写好的lvs_dr.sh 以及lvs_rs.sh都发送到两台lv主机以及real server上 (错误的做法，在window上编写的shell脚本很有可能在UNIX上无法执行
scp lvs_dr.sh ubuntu@192.168.138.129:/usr/local/bin/
scp lvs_rs.sh ubuntu@192.168.138.129:/usr/local/bin/
2 在lvs主机上执行
cd /usr/local/bin/
sudo sh ./lvs_dr.sh start

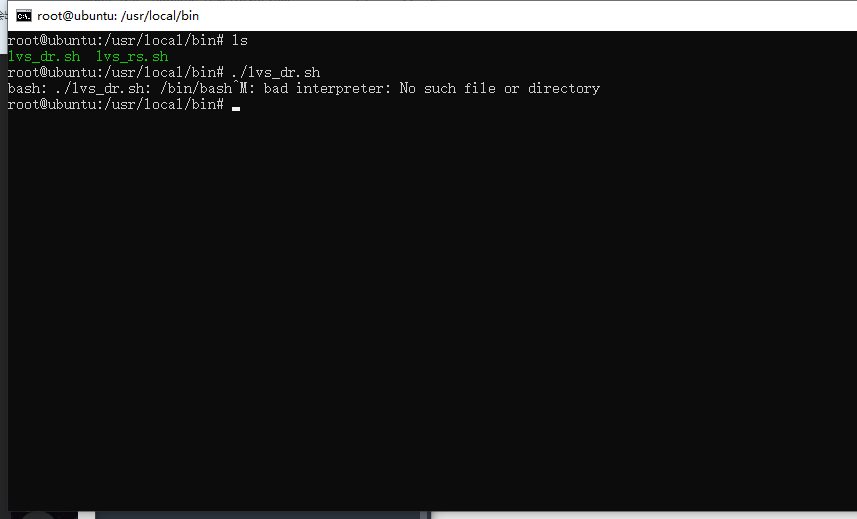

bash: ./lvs_dr.sh: /bin/bash^M: bad interpreter: No such file or directory
shell脚本报错/bin/bash^M: bad interpreter: No such file or directory，通过查阅资料得知，shell脚本格式必须是unix才行，但我这个脚本是在windows上编写完成传到Linux服务器上的，所以一执行就报错：
https://blog.csdn.net/weixin_39309402/article/details/99732688
因此，删掉重新来吧
cd /usr/local/bin
rm -f lvs_dr.sh
vi lvs_dr.sh

#! /bin/bash
echo 1 > /proc/sys/net/ipv4/ip_forward
ipv=/sbin/ipvsadm
vip=192.168.138.138
rs1=192.168.138.131
rs2=192.168.138.132
case $1 in
start)
    echo "Start LVS"
    ifconfig ens33:0 $vip broadcast $vip netmask 255.255.255.255 up #添加虚拟网卡
    route add -host $vip dev ens33:0          #添加到虚拟主机的路由
    $ipv -A -t $vip:80 -s lc                 #添加虚拟服务器，-s：调度算法
    $ipv -a -t $vip:80 -r $rs1:80 -g -w 1    #添加真实服务器，-g：DR，-w：权重
    $ipv -a -t $vip:80 -r $rs2:80 -g -w 1
;;
stop)
    echo "Stop LVS"
    route del -host $vip dev ens33:0  #删除虚拟网卡
    ifconfig ens33:0 down             #删除路由
    $ipv -C                          #删除虚拟主机
;;
*)
echo "Usage:$0 {start|stop}"
exit 1
esac

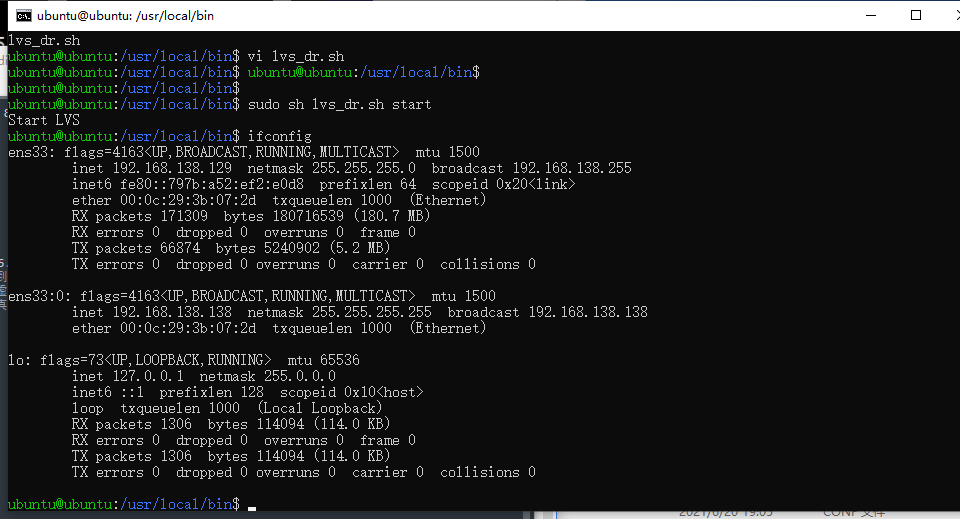

然后启动
sudo sh /usr/local/bin/lvs_dr.sh start

2 在real server中配置

sudo vi /usr/local/bin/lvs_rs.sh

#!/bin/bash
vip=192.168.138.138
case $1 in
start)
    echo "Start LVS"
    ifconfig ens33:0 $vip broadcast $vip netmask 255.255.255.255 up
    route add -host $vip dev ens33:0
    echo "1" > /proc/sys/net/ipv4/conf/lo/arp_ignore
    echo "2" > /proc/sys/net/ipv4/conf/lo/arp_announce
    echo "1" > /proc/sys/net/ipv4/conf/all/arp_ignore
    echo "2" > /proc/sys/net/ipv4/conf/all/arp_announce
    sysctl -p > /dev/null 2>&1
;;
stop)
    echo "Stop LVS"
    route del -host $vip dev ens33:0
    /sbin/ifconfig ens33:0 down
    echo "0" > /proc/sys/net/ipv4/conf/lo/arp_ignore
    echo "0" > /proc/sys/net/ipv4/conf/lo/arp_announce
    echo "0" > /proc/sys/net/ipv4/conf/all/arp_ignore
    echo "0" > /proc/sys/net/ipv4/conf/all/arp_announce
    sysctl -p > /dev/null 2>&1
;;
*)
echo "Usage:$0 {start|stop}"
exit 1
esac

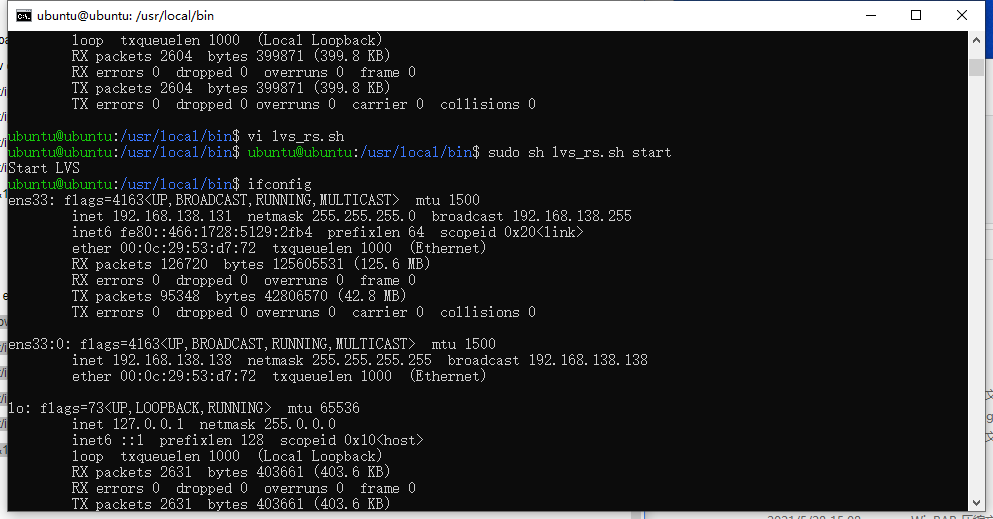

然后启动
sudo sh lvs_rs.sh start

3 回到lvs master主机，即129主机上查看配置的路由

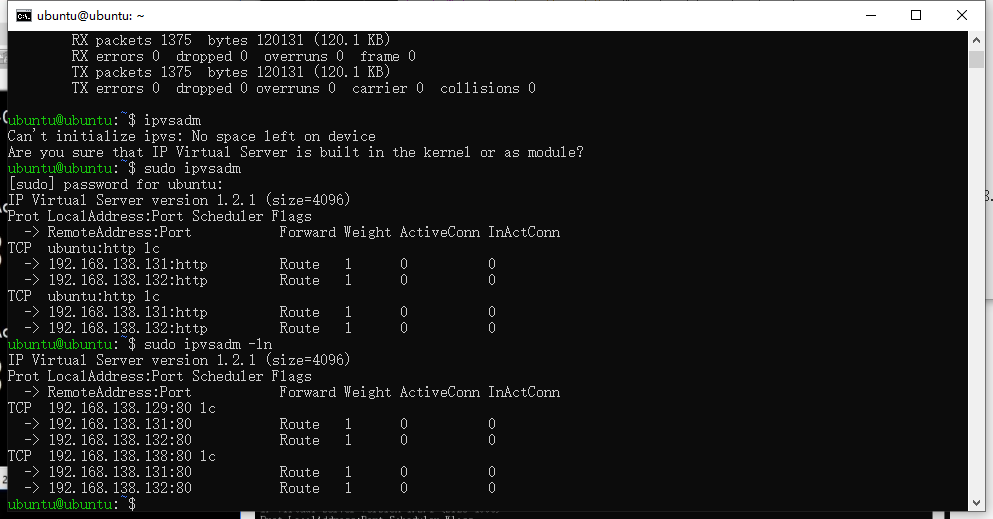

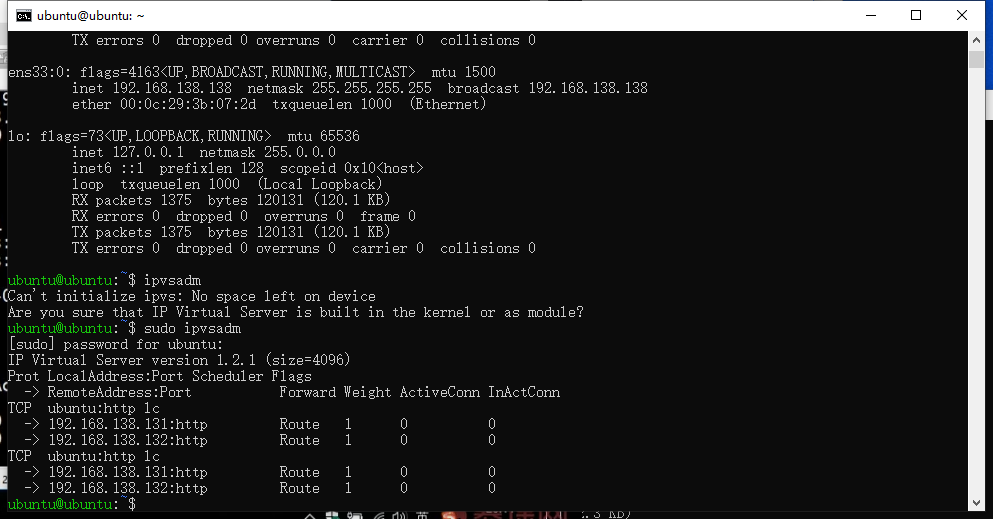

sudo ipvsadm
sudo ipvsadm -ln

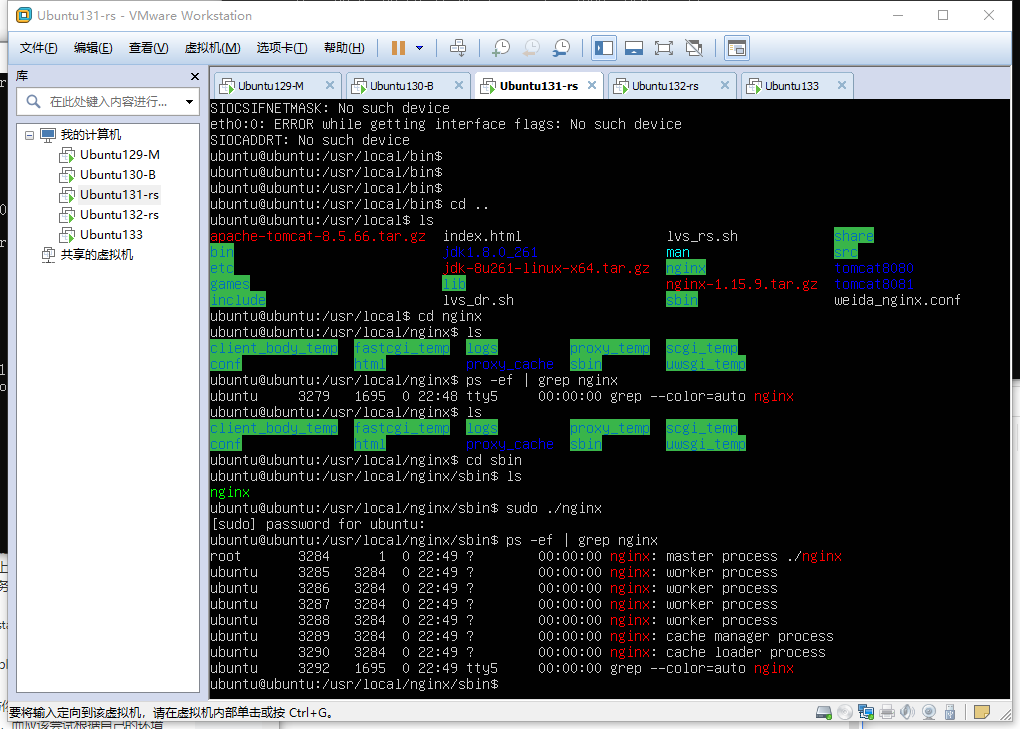

4 去real server(192.168.138.131)中开启nginx和tomcat

ssh ubuntu@192.168.138.131
cd /usr/local/nginx/sbin
sudo ./nginx

sudo sh /usr/local/tomcat8080/bin/shutdown.sh

sudo sh /usr/local/tomcat8080/bin/startup.sh

sudo sh /usr/local/tomcat8081/bin/shutdown.sh

sudo sh /usr/local/tomcat8081/bin/startup.sh
ps -ef | grep nginx

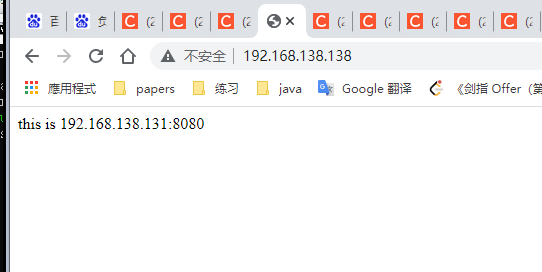

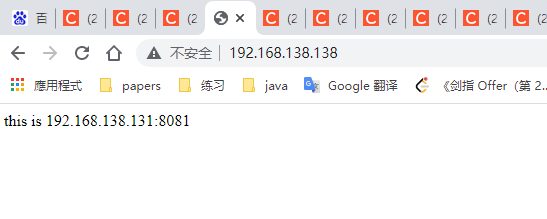

5 测试一下我们配的虚拟ip 192.168.138.138能不能将请求发送给192.168.138.131

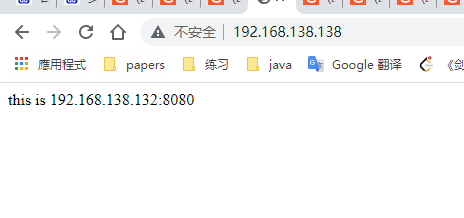

可以看到在131的两台tomcat都有被访问到

这样子看好像太麻烦了，于是我们去每一台tomcat上这样子将自己的信息写死

ssh ubuntu@192.168.138.131
sudo vi /usr/local/tomcat8080/webapps/ROOT/index.html
 #添加         this is 192.168.138.131:8080


sudo vi /usr/local/tomcat8081/webapps/ROOT/index.html
 #添加         this is 192.168.138.131:8081


# 重启一下tomcat
sudo sh /usr/local/tomcat8080/bin/shutdown.sh
sudo sh /usr/local/tomcat8080/bin/startup.sh
sudo sh /usr/local/tomcat8081/bin/shutdown.sh
sudo sh /usr/local/tomcat8081/bin/startup.sh
# 启动nginx
cd /usr/local/nginx/sbin
sudo ./nginx
sduo /usr/local/nginx/sbin/nginx -s reload

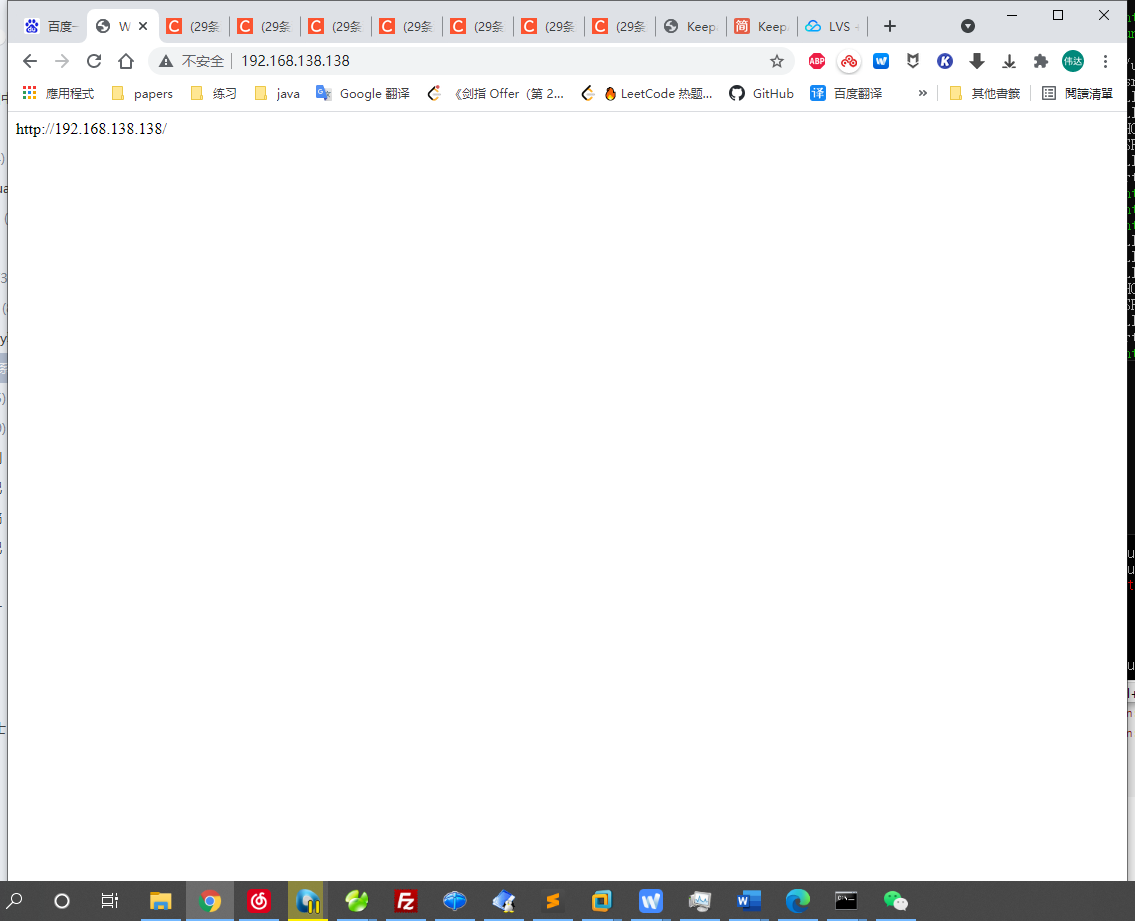

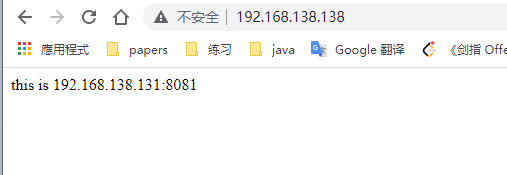

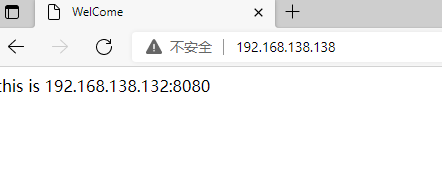

效果

5 使用keepalive, 配置master

备份 ./etc/keepalived/keepalived.conf

# master
cd /usr/local/keepalived
sudo mv ./etc/keepalived/keepalived.conf ./etc/keepalived/keepalived.conf.backup
sudo vim ./etc/keepalived/keepalived.conf

# master
global_defs {
   notification_email {
         Joshua@163.com # 发送给谁
   }
   notification_email_from admin@163.com # 由谁发送出来
   smtp_server 220.181.12.11
   smtp_connect_timeout 30
   router_id LVS_DEVEL  # 起名字
}


vrrp_instance VI_1 {
    state MASTER
    interface ens33 # 本地的网卡
    virtual_router_id 51  # id号 主从必须一致
    priority 100  #优先级，选举master用
    advert_int 1    #master与backup节点间同步检查的时间间隔，单位为秒
    authentication {#验证类型和验证密码，通常使用PASS类型，同一vrrp实例MASTER与BACKUP使用相同的密码才能正常通信
        auth_type PASS
        auth_pass 123
    }
    virtual_ipaddress { # vip
        192.168.138.138
    }
}
virtual_server 192.168.138.138 80 {
        delay_loop 6 ##每隔 6 秒查询RealServer状态
        lb_algo rr   #负载均衡算法
        lb_kind DR    #DR转发模式
        persistence_timeout 10 #会话保持时间
        protocol TCP
        real_server 192.168.138.131 80 { #RS
                weight 1
                TCP_CHECK {
                        connect_timeout 10
                        connect_port 80
                }
        }
        real_server 192.168.138.132 80 {
                weight 1
                TCP_CHECK {
                        connect_timeout 10
                        connect_port 80
                }
        }
}

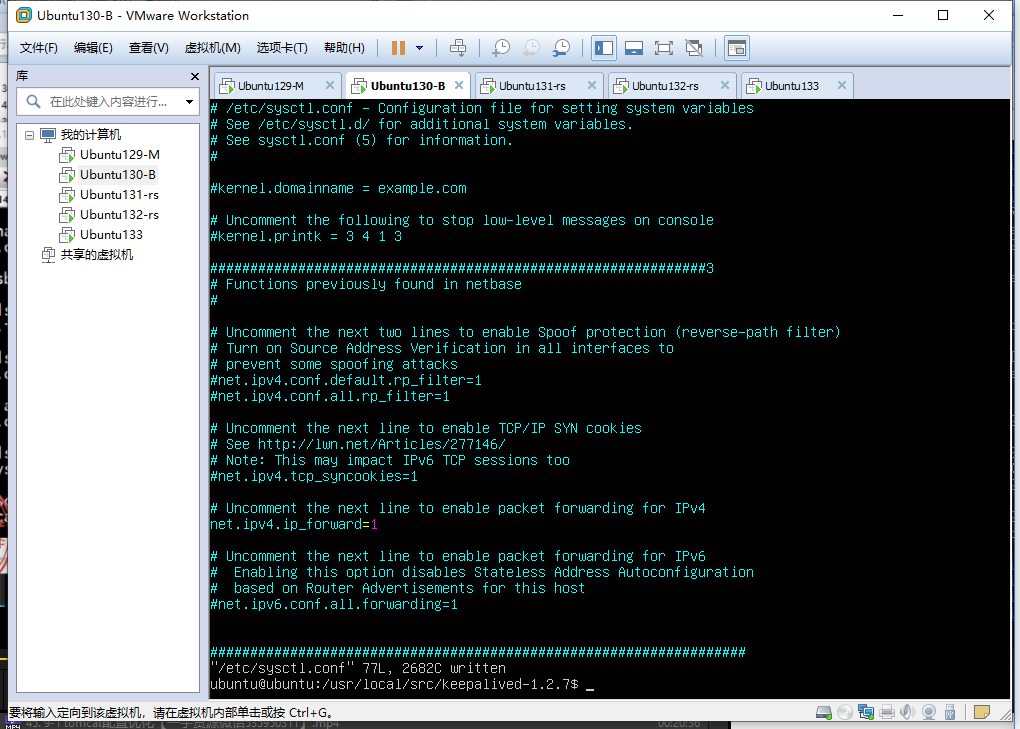

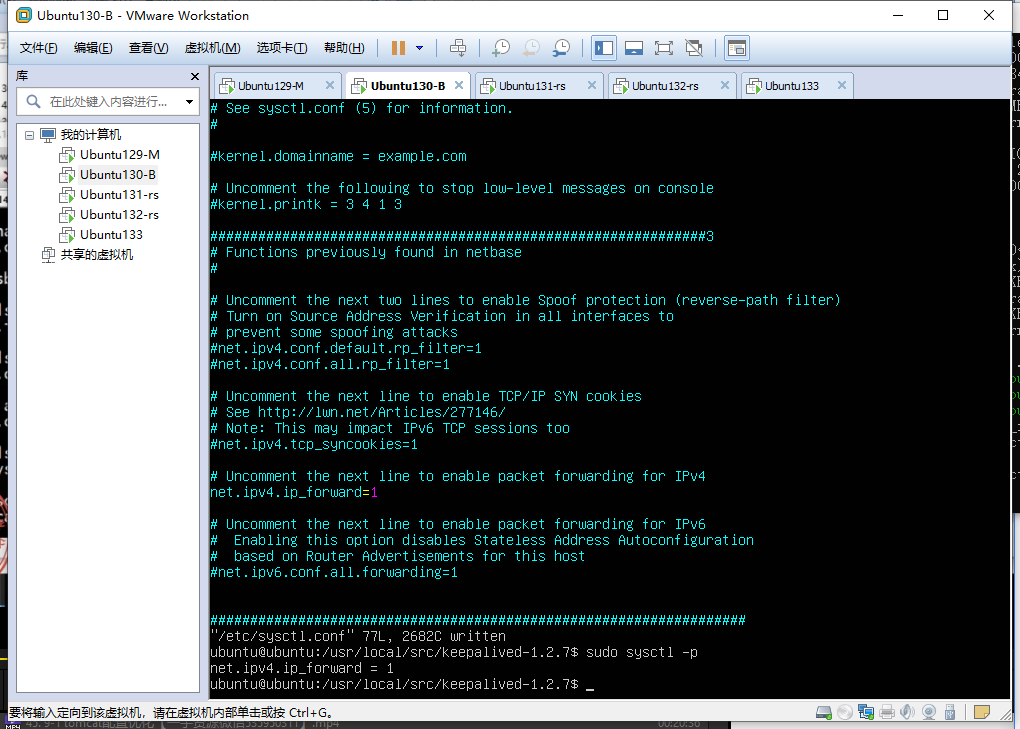

6 在lvs master和backup都设置内核参数，开启ip转发

sudo vim /etc/sysctl.conf
net.ipv4.ip_forward = 1

检查一下
sudo sysctl -p
关闭防火墙
sudo iptables -F

7 启动keepalive

cd /usr/local/keepalived
./sbin/keepalived --help：列出所有的选项

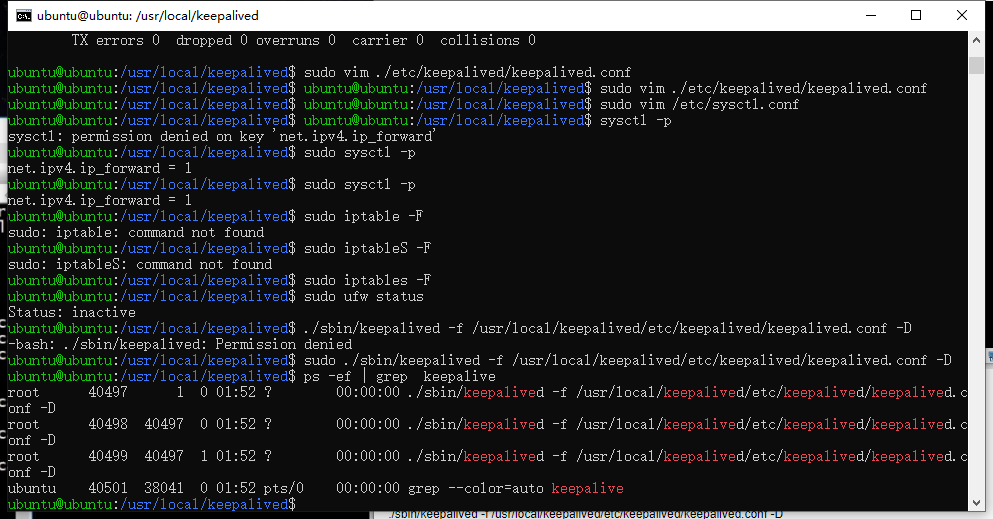

sudo ./sbin/keepalived -f /usr/local/keepalived/etc/keepalived/keepalived.conf -D
# 查看进程
ps -ef | grep  keepalive
# 查看日志
# sudo tail -f /var/log/messages
# 查看 ipvsadm

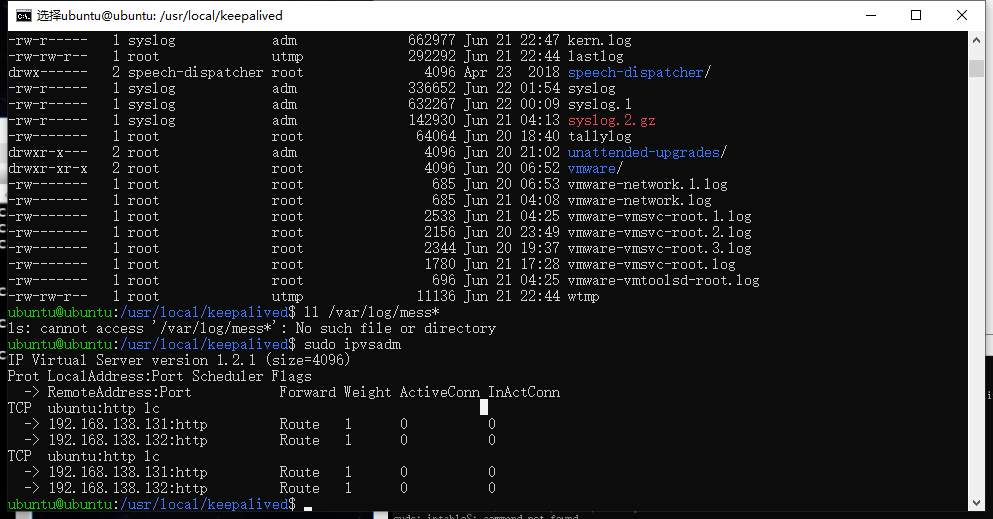

sudo ipvsadm
- ip a
- watch ipvsadm -L -n -c

查看进程 ps -ef | grep keepalive
sudo ipvsadm

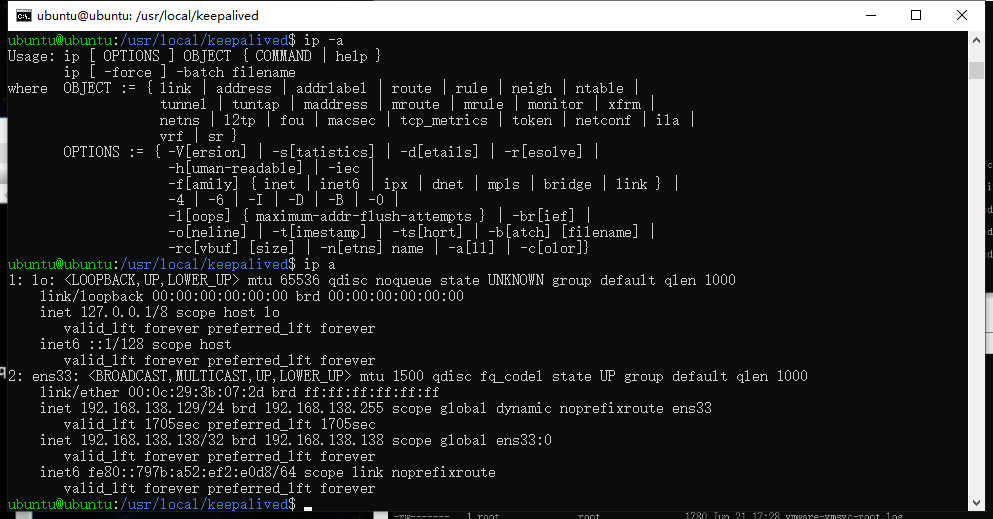

ip a

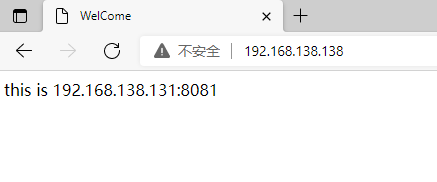

查看浏览器输出
watch ipvsadm -L -n -c

8 使用keepalive, 配置backup

cd /usr/local/keepalived
sudo mv ./etc/keepalived/keepalived.conf ./etc/keepalived/keepalived.conf.backup
sudo vim ./etc/keepalived/keepalived.conf

# backup
global_defs {
   notification_email {
         Joshua@163.com # 发送给谁
   }
   notification_email_from admin@163.com # 由谁发送出来
   smtp_server 220.181.12.11
   smtp_connect_timeout 30
   router_id LVS_DEVEL  # 起名字
}


vrrp_instance VI_1 {
    state BACKUP # ========
    interface ens33 # 本地的网卡
    virtual_router_id 51  # id号 主从必须一致
    priority 80  #优先级，选举BACKUP用
    advert_int 1    #master与backup节点间同步检查的时间间隔，单位为秒
    authentication {#验证类型和验证密码，通常使用PASS类型，同一vrrp实例MASTER与BACKUP使用相同的密码才能正常通信
        auth_type PASS
        auth_pass 123
    }
    virtual_ipaddress { # vip
        192.168.138.138
    }
}
virtual_server 192.168.138.138 80 {
        delay_loop 6 ##每隔 6 秒查询RealServer状态
        lb_algo rr   #负载均衡算法
        lb_kind DR    #DR转发模式
        persistence_timeout 10 #会话保持时间
        protocol TCP
        real_server 192.168.138.131 80 { #RS
                weight 1
                TCP_CHECK {
                        connect_timeout 10
                        connect_port 80
                }
        }
        real_server 192.168.138.132 80 {
                weight 1
                TCP_CHECK {
                        connect_timeout 10
                        connect_port 80
                }
        }
}

启动keepalive

cd /usr/local/keepalived
./sbin/keepalived --help：列出所有的选项
sudo ./sbin/keepalived -f /usr/local/keepalived/etc/keepalived/keepalived.conf -D
# 查看进程
ps -ef | grep  keepalive
# 查看日志
# sudo tail -f /var/logs/messages
# 查看 ipvsadm
sudo ipvsadm
- ip a

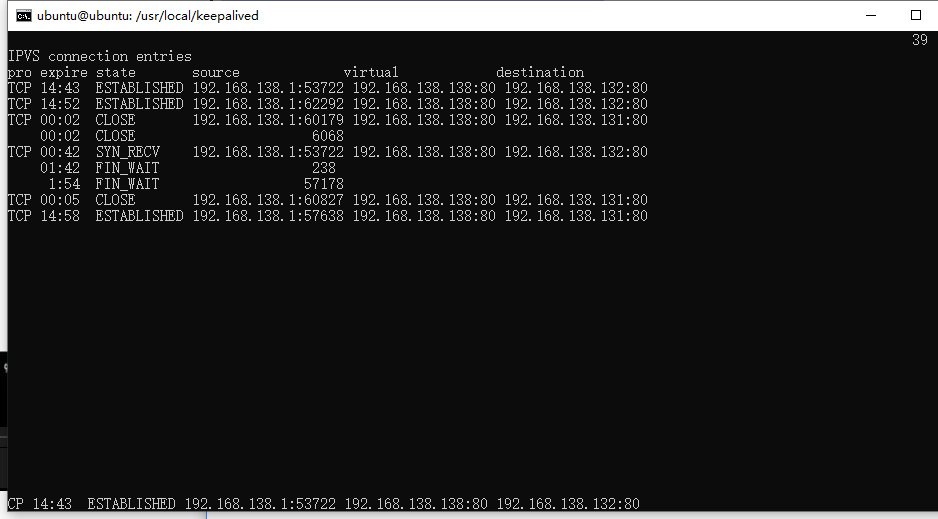

- watch -n 0.1 sudo ipvsadm -L -n  -c
<img src="2a47f830-26f3-43dd-b9b9-2fc12c398d76_files/fc66ece1-b5d4-4fe7-b78d-a35ff0a0ced1.png" style="vertical-align: bottom; max-width: 100%;">


### 9 查看进程
<img src="2a47f830-26f3-43dd-b9b9-2fc12c398d76_files/1e887b58-750a-4655-b61d-585f2a01949b.png" style="vertical-align: bottom; max-width: 100%;">
可以看出，这些请求都发送到了master主机上了

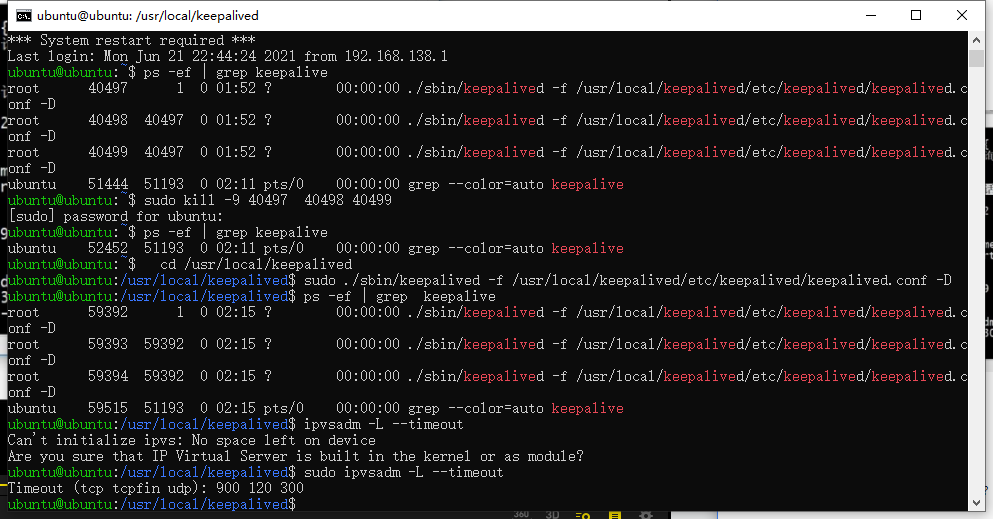

### 10 将master主机的keepalive进程杀掉，看看能不能将进程打回给bakcup上


ps -ef | grep keepalive
<img src="2a47f830-26f3-43dd-b9b9-2fc12c398d76_files/7367b3e4-1967-42d0-8012-696863d42c6f.png" style="">
kill -9 pid
<img src="2a47f830-26f3-43dd-b9b9-2fc12c398d76_files/5ab320a7-791c-4510-9656-2843b96647e7.jpg" style="vertical-align: bottom; max-width: 100%;">


- 在master中重新启动keepalive，发现请求又打回去给master了（master优先级更高）

cd /usr/local/keepalived
sudo ./sbin/keepalived -f /usr/local/keepalived/etc/keepalived/keepalived.conf -D

<img src="2a47f830-26f3-43dd-b9b9-2fc12c398d76_files/70d8b428-299f-45c8-aa3a-be526750bfd5.png" style="vertical-align: bottom; max-width: 100%;">


### 11 负载均衡


可以控制会话时间的配置有


- 1  /usr/local/keepalived/etc/keepalived/keepalived.conf

cd /usr/local/keepalived
sudo vim /usr/local/keepalived/etc/keepalived/keepalived.conf

```
persistence_timeout 10

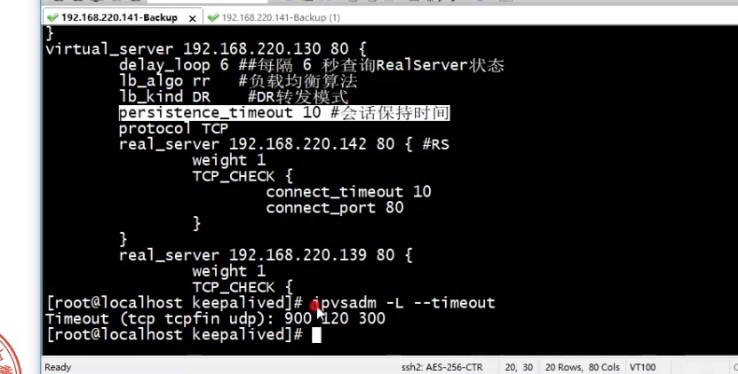

2 sudo ipvsadm -L --timeout
3 设置ipvsadm会话过期时间
sudo ipvsadm --set 1 2 1
4 nginx 配置
cd /usr/local/nginx/conf
sudo vi nginx.conf

里面： keepalive_timeout 65s # 长连接的超时时间

重启

cd /usr/local/nginx/
sudo ./sbin/nginx -s reload

NOTE: lvs 8 种负载均衡算法，3中转发模式？？？

8.测试双机热备高可用
两台DR，同样的VIP：
state MASTER | BACKUP
priority 100 | 80
