playbook布置lamp 最新

准备4台主机，其中一台装ansible，其余三台分别部署apache、mysql、php，实现lamp架构

主控机ip:192.168.170.20    wang     ansible
受控机ip: 192.168.170.134  apache   apache
         192.168.170.135  mysql    mysql
         192.168.170.136  php      php



结构图



[root@wang project]# tree .
.
└── modules
    ├── apps
    │   └── php
    │       ├── install.yml
    │       └── vars
    │           └── var.yml
    ├── database
    │   └── mysql
    │       ├── files
    │       ├── install.yml
    │       ├── mysql-5.7.31-linux-glibc2.12-x86_64.tar.gz
    │       ├── templates
    │       │   ├── my.cnf.j2
    │       │   └── mysqld.service.j2
    │       └── vars
    │           └── var.yml
    ├── lamp
    │   └── vars
    │       └── mysql.yml
    ├── web
    │   └── apache
    │       ├── apr-1.7.0.tar.gz
    │       ├── apr-util-1.6.1.tar.gz
    │       ├── files
    │       │   └── httpd.service
    │       ├── httpd-2.4.46.tar.bz2
    │       ├── install.yml
    │       ├── scripts
    │       │   └── install.sh
    │       └── vars
    │           └── var.yml
    └── yum
        ├── files
        │   ├── CentOS6-Base.repo
        │   ├── CentOS7-Base.repo
        │   ├── CentOS8-Base.repo
        │   ├── epel-6.repo
        │   ├── epel-7.repo
        │   ├── epel-8.repo
        │   └── epel-release-latest-8.noarch.rpm
        └── main.yml

18 directories, 23 files



配置yum源

下载centos源

[root@wang modules]# wget -O yum/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-8.repo

[root@wang modules]# curl -o yum/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-7.repo

[root@wang modules]# wget -O yum/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-6.repo

[root@wang modules]# sed -i -e '/mirrors.cloud.aliyuncs.com/d' -e '/mirrors.aliyuncs.com/d' /project/modules/yum/*.repo

[root@wang modules]# sed -i 's|$releasever|6|' /project/modules/yum/files/CentOS6-Base.repo

[root@wang modules]# sed -i 's|$releasever|7|' /project/modules/yum/files/CentOS7-Base.repo

[root@wang modules]# sed -i 's|$releasever|8|' /project/modules/yum/files/CentOS8-Base.repo

下载epel源

[root@wang modules]# wget -O /project/modules/yum/files/epel-6.repo http://mirrors.aliyun.com/repo/epel-6.repo

[root@wang modules]# wget -O /project/modules/yum/files/epel-7.repo http://mirrors.aliyun.com/repo/epel-7.repo

[root@wang modules]# wget -O /project/modules/yum/files/epel-release-latest-8.noarch.rpm https://mirrors.aliyun.com/epel/epel-release-latest-8.noarch.rpm

[root@wang modules]# rpm -ivh /project/modules/yum/files/epel-release-latest-8.noarch.rpm

[root@wang modules]# mv /etc/yum.repos.d/epel.repo /project/modules/yum/files/epel-8.repo

[root@wang modules]# sed -i 's|$releasever|8|' /project/modules/yum/files/epel-8.repo

[root@wang modules]# sed -i 's|^#baseurl=https://download.fedoraproject.org/pub|baseurl=https://mirrors.aliyun.com|' /project/modules/yum/files/epel-8.repo

[root@wang modules]# sed -i 's|^metalink|#metalink|' /project/modules/yum/files/epel-8.repo

设置gpgcheck=0

[root@wang modules]# sed -i 's|^gpgcheck=1|gpgcheck=0|' /project/modules/yum/files/*.repo

yum配置
[root@wang modules]# vim yum/main.yml
[root@wang modules]# cat yum/main.yml
---
- hosts: all
  tasks:
    - name: yum base
      copy:
        src: files/centos{{ ansible_facts['distribution_major_version'] }}-base.repo
        dest:  /etc/yum.repos.d/centos-base.repo
      when: ansible_facts['distribution'] == 'RedHat'
    - name: yum epel
      copy:
        src: files/epel-{{ ansible_facts['distribution_major_version'] }}.repo
        dest: /etc/yum.repos.d/epel.repo




配置apache变量

[root@wang apache]# mkdir vars
[root@wang apache]# vim vars/var.yml
[root@wang apache]# cat vars/var.yml
depend_pkg:
  - "@Development Tools"
  - openssl-devel
  - pcre-devel
  - expat-devel
  - libxml2-devel
  - libtool
  - gcc
  - gcc-c++
  - bzip2
  - make

创建service文件

[root@wang apache]# vim files/httpd.service
[root@wang apache]# cat files/httpd.service
[Unit]
Description=Start httpd
[Service]
Type=simple
EnvironmentFile=/etc/httpd24/httpd.conf
ExecStart=/usr/local/apache/bin/httpd -k start -DFOREGROUND
ExecReload=/usr/local/apache/bin/httpd -k graceful
ExecStop=/bin/kill -WINCH ${MAINPID}
[Install]
WantedBy=multi-user.target

配置文件

[root@wang apache]# mkdir scripts
[root@wang apache]# vim scripts/install.sh
[root@wang apache]# cat scripts/install.sh
#!/bin/bash
if [ ! -d /usr/local/apache ];then
rm -rf /usr/local/apr*
cd /usr/src
tar xf apr-1.7.0.tar.gz
tar xf apr-util-1.6.1.tar.gz
tar xf httpd-2.4.46.tar.bz2
cd apr-1.7.0
sed -i '/$RM "$cfgfile"/d' configure
./configure --prefix=/usr/local/apr && make && make install && \
cd ../apr-util-1.6.1
./configure --prefix=/usr/local/apr-util --with-apr=/usr/local/apr && \
make && make install && \
cd ../httpd-2.4.46
./configure --prefix=/usr/local/apache \
--sysconfdir=/etc/httpd24 \
--enable-so \
--enable-ssl \
--enable-cgi \
--enable-rewrite \
--with-zlib \
--with-pcre \
--with-apr=/usr/local/apr \
--with-apr-util=/usr/local/apr-util/ \
--enable-modules=most \
--enable-mpms-shared=all \
--with-mpm=prefork && \
make && make install
echo 'export PATH=/usr/local/apache/bin:$PATH' > /etc/profile.d/apache.sh
cd /usr/src
mv /usr/src/httpd.service /usr/lib/systemd/system/httpd.service
rm -rf apr-1.7.0 apr-util-1.6.1 httpd-2.4.46
fi

 编写apache的playbook

[root@wang apache]# vim install.yml
[root@wang apache]# cat install.yml
---
- hosts: webservers
  vars_files:
    - vars/var.yml
  tasks:
    - name: install depend on apache
      yum:
        name: "{{ depend_pkg }}"
        state: present
    - name: create user apache
      user:
        name: apache
        shell: /sbin/nologin
        create_home: false
        system: yes
    - name: packages
      copy:
        src: files/
        dest: /usr/src
    - name: install apache
      script: scripts/install.sh
    - name: reload daemon for httpd
      command: systemctl daemon-reload




安装mysq
[root@wang modules]# cd database/mysql/
[root@wang mysql]# mkdir files
[root@wang mysql]# wget https://downloads.mysql.com/archives/get/p/23/file/mysql-5.7.31-linux-glibc2.12-x86_64.tar.gz /project/modules/databases/mysql/files

配置变量

[root@wang mysql]# mkdir vars
[root@wang mysql]# vim vars/var.yml
[root@wang mysql]# cat vars/var.yml
basedir: /usr/local
datadir: /opt/data
depend_pkg: ncurses-compat-libs

创建模板文件

[root@wang mysql]# mkdir templates
[root@wang mysql]# vim templates/my.cnf.j2
[root@wang mysql]# cat templates/my.cnf.j2
[mysqld]
basedir = /usr/local/mysql
datadir = /opt/data
socket = /tmp/mysql.sock
port = 3306
pid-file = /opt/data/mysql.pid
user = mysql
skip-name-resolve

创建service文件

[root@wang mysql]# vim templates/mysqld.service.j2
[root@wang mysql]# cat templates/mysqld.service.j2
[Unit]
Description=MySQL Server
Documentation=man:mysqld(8)
Documentation=http://dev.mysql.com/doc/refman/en/using-systemd.html
After=network.target
After=syslog.target
[Install]
WantedBy=multi-user.target
[Service]
User=mysql
Group=mysql
Type=forking
PIDFile={{ datadir }}/mysqld.pid
TimeoutSec=0
PermissionsStartOnly=true
ExecStart={{ basedir }}/mysql/bin/mysqld --daemonize --pid-file={{ datadir }}/mysqld.pid $MYSQLD_OPTS
LimitNOFILE = 5000
Restart=on-failure
RestartPreventExitStatus=1
PrivateTmp=false

编写MySQL的playbook

[root@wang mysql]# vim install.yml
[root@wang mysql]# cat install.yml
---
- hosts: databases
   ignore_errors: yes
   vars_files:
     - vars/var.yml
   tasks:
     - name: install mysql
       yum:
         name: "{{ depend_pkg }}"
         state: present
     - name: create mysql
       user:
         name: mysql
         system: yes
         create_home: fales
         shell: /sbin/nologin
         state: present
     - name: umpack mysql
       unarchive:
         src: files/mysql-5.7.31-linux-glibc2.12-x86_64.tar.gz
         dest: '{{ basedir }}/'
         owner: mysql
         group: mysql
     - name: create mysql
       shell: echo 'export PATH={{ basedir }}/mysql/bin:$PATH' > /etc/profile.d/mysql.sh
     - name: create link
       file:
         src: '{{ basedir }}/mysql-5.7.31-linux-glibc2.12-x86_64'
         dest: '{{ basedir }}/mysql'
         owner: mysql
         group: mysql
         state: link
     - name: create datadir
       file:
         path: '{{ datadir }}'
         owner: mysql
         group: mysql
         state: directory
     - name: initialize mysql
       command: '{{ basedir }}/mysql/bin/mysqld --initialize-insecure --user=mysql --datadir={{ datadir }}/'
     - name: probides file
       template:
         src: templates/my.cnf.j2
         dest: /etc/my.cnf
     - name: probides service file
       template:
         src: templates/mysqld.service,j2
         dest: /usr/lib/systemd/mysqld.service
     - name: reload mysql
       command: systemctl daemon-reload



安装php
配置变量

[root@wang php]# mkdir vars
[root@wang php]# vim vars/var.yml
[root@wang php]# catvars/var.yml
-bash: catvars/var.yml: 没有那个文件或目录
[root@wang php]# cat vars/var.yml
packages:
  - '@Development Tools'
  - libxml2
  - libxml2-devel
  - openssl
  - openssl-devel
  - bzip2
  - bzip2-devel
  - libcurl
  - libcurl-devel
  - libicu-devel
  - libjpeg
  - libjpeg-devel
  - libpng
  - libpng-devel
  - openldap-devel
  - pcre-devel
  - freetype
  - freetype-devel
  - gmp
  - gmp-devel
  - libmcrypt
  - libmcrypt-devel
  - readline
  - readline-devel
  - libxslt
  - libxslt-devel
  - mhash
  - mhash-devel
  - php-mysqlnd
  - 'php-*'

编写php的playbook

[root@wang php]# vim install.yml
[root@wang php]# cat install.yml
---
- hosts: apps
  vars_files:
    - vars/var.yml
  tasks:
    - name: install php
      yum:
        name: "{{ packages }}"
        state: present
    - name: config php-fpm
      lineinfile:
        path: /etc/php-fpm.d/www.conf
        regex: '^listen = /run/php-fpm/www.sock'
        line: 'listen=0.0.0.0:9000'
        state: present




创建lamp模板
//配置变量
[root@wang modules]# mkdir -p lamp/vars
[root@wang modules]# vim lamp/vars/mysql.yml
[root@wang modules]# cat lamp/vars/mysql.yml
depend_mysql_on_lamp:
  - ncurses-devel
  - openssl-devel
  - openssl
  - cmake
  - mariadb-devel


//创建lamp模板
[root@wang] vim /project/modules/lamp/main.yml
---
- name: config apache for lamp
  hosts: webservers
  tasks:
    - name: enable module(1)
      lineinfile:
        path: /etc/httpd24/httpd.conf
        regexp: '^#LoadModule proxy_module'
        line: LoadModule proxy_module modules/mod_proxy.so

    - name: enable module(2)
      lineinfile:
        path: /etc/httpd24/httpd.conf
        regexp: '^#LoadModule proxy_fcgi_module'
        line: LoadModule proxy_fcgi_module modules/mod_proxy_fcgi.so

    - name: add index.php
      lineinfile:
        path: /etc/httpd24/httpd.conf
        regexp: '^    DirectoryIndex'
        line: '    DirectoryIndex index.php index.html'

    - name: add type
      lineinfile:
        path: /etc/httpd24/httpd.conf
        regexp: '^    AddType application/x-gzip .gz .tgz'
        line: "    AddType application/x-gzip .gz .tgz\n    AddType application/x-httpd-php .php\n    AddType application/x-httpd-php-source .phps\n"

    - name: add virtualhost
      lineinfile:
        path: /etc/httpd24/httpd.conf
        regexp: '<VirtualHost *:80>'
        line: |
          <VirtualHost *:80>
              DocumentRoot "/usr/local/apache/htdocs/"
              ServerName wangming.com
              ProxyRequests Off
              ProxyPassMatch ^/(.*\.php)$ fcgi://192.168.170.136:9000/var/www/html/$1
              <Directory "/usr/local/apache/htdocs/">
                  Options none
                  AllowOverride none
                  Require all granted
              </Directory>
          </VirtualHost>
        state: present

- name: config mysql for lamp
  hosts: databases
  vars_files:
    - vars/mysql.yml
  tasks:
    - name: install depend mysql on lamp
      yum:
        name: "{{ depend_mysql_on_lamp }}"
        state: present

- name: config php for lamp
  hosts: apps
  tasks:
    - name: mkdir index.php
      file:
        path: /var/www/html/index.php
        owner: apache
        group: apache
        state: touch

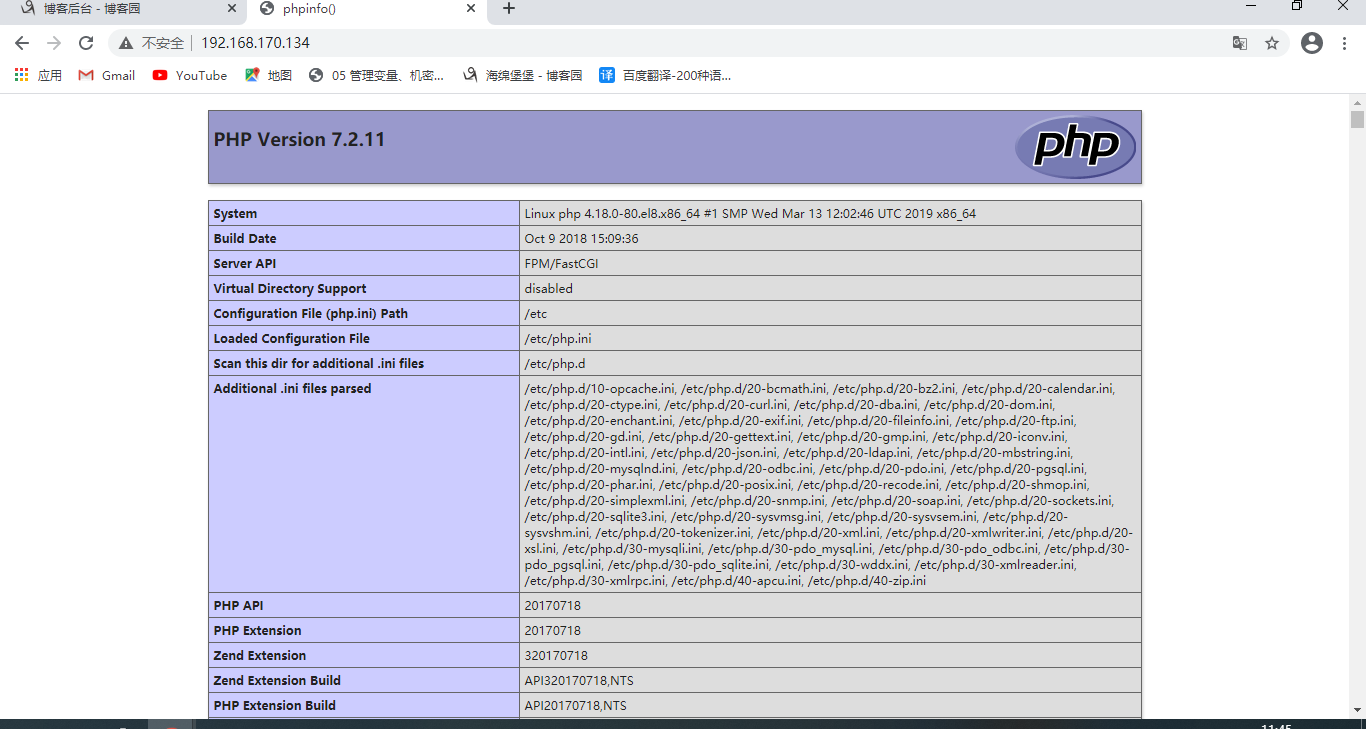

    - name: index.php config
      lineinfile:
        path: /var/www/html/index.php
        line: "<?php\n\tphpinfo();\n?>"
        state: present

    - name: change web address
      lineinfile:
        path: /etc/php-fpm.d/www.conf
        regexp: '^listen.allowed_clients = 127.0.0.1'
        line: "listen.allowed_clients = 192.168.170.134"

修改mysql密码并加密
//编写修改密码剧本
[root@wang]# vim /project/wangming/secret.yml
---
- name: config mysql for lamp
  hosts: databases
  tasks: vim
    - name: set password for mysql
      shell: /usr/local/mysql/bin/mysql -uroot -e "set password = password(\"123456\");"

//加密修改密码剧本
[root@wang]# ansible-vault encrypt /project/wangming/secret.yml
New Vault password: wangming123
Confirm New Vault password: wangming123;
Encryption successful

//记录加密密码
[root@wang]# echo 'wangming' > /project/wangming/.mypass

//修改权限只允许root读写
[root@wang]# chmod 600 /project/wangming/.mypass

//使用加密密码查看加密剧本
[root@wang]# ansible-vault view --vault-password-file=/project/wangming/.mypass /project/wangming/secret.yml


创建lamp模板
//配置变量
[root@ansible ~] mkdir -p /project/modules/lamp/vars
[root@ansible ~] vim /project/modules/lamp/vars/mysql.yml
depend_mysql_on_lamp:
  - ncurses-devel
  - openssl-devel
  - openssl
  - cmake
  - mariadb-devel

//创建lamp模板
[root@ansible ~] vim /project/modules/lamp/main.yml
---
- name: import yum
  import_playbook: ../yum/main.yml

- name: import apache
  import_playbook: ../webservers/apache/install.yml

- name: import mysql
  import_playbook: ../databases/mysql/install.yml

- name: import php
  import_playbook: ../apps/php/install.yml

- name: config apache for lamp
  hosts: webservers
  tasks:
    - name: enable module(1)
      lineinfile:
        path: /etc/httpd24/httpd.conf
        regexp: '^#LoadModule proxy_module'
        line: LoadModule proxy_module modules/mod_proxy.so

    - name: enable module(2)
      lineinfile:
        path: /etc/httpd24/httpd.conf
        regexp: '^#LoadModule proxy_fcgi_module'
        line: LoadModule proxy_fcgi_module modules/mod_proxy_fcgi.so

    - name: add index.php
      lineinfile:
        path: /etc/httpd24/httpd.conf
        regexp: '^    DirectoryIndex'
        line: '    DirectoryIndex index.php index.html'

    - name: add type
      lineinfile:
        path: /etc/httpd24/httpd.conf
        regexp: '^    AddType application/x-gzip .gz .tgz'
        line: "    AddType application/x-gzip .gz .tgz\n    AddType application/x-httpd-php .php\n    AddType application/x-httpd-php-source .phps\n"

    - name: add virtualhost
      lineinfile:
        path: /etc/httpd24/httpd.conf
        regexp: '<VirtualHost *:80>'
        line: |
          <VirtualHost *:80>
              DocumentRoot "/usr/local/apache/htdocs/"
              ServerName yuqinghao.com
              ProxyRequests Off
              ProxyPassMatch ^/(.*\.php)$ fcgi://192.168.100.4:9000/var/www/html/$1
              <Directory "/usr/local/apache/htdocs/">
                  Options none
                  AllowOverride none
                  Require all granted
              </Directory>
          </VirtualHost>
        state: present

- name: config mysql for lamp
  hosts: databases
  vars_files:
    - vars/mysql.yml
  tasks:
    - name: install depend mysql on lamp
      yum:
        name: "{{ depend_mysql_on_lamp }}"
        state: present

- name: config php for lamp
  hosts: apps
  tasks:
    - name: mkdir index.php
      file:
        path: /var/www/html/index.php
        owner: apache
        group: apache
        state: touch

    - name: index.php config
      lineinfile:
        path: /var/www/html/index.php
        line: "<?php\n\tphpinfo();\n?>"
        state: present

    - name: change web address
      lineinfile:
        path: /etc/php-fpm.d/www.conf
        regexp: '^listen.allowed_clients = 127.0.0.1'
        line: "listen.allowed_clients = 192.168.100.2"
在项目中搭建lamp
//创建项目文件夹
[root@ansible ~] mkdir -p /project/yuqinghao

//在项目yuqinghao中搭建lamp
[root@ansible ~] vim /project/yuqinghao/main.yml
---
- name: import lamp
  import_playbook: ../modules/lamp/main.yml

- name: config apache for lamp
  hosts: webservers
  tasks:
    - name: start httpd service
      service:
        name: httpd
        state: started
        enabled: yes

- name: config mysql for lamp
  hosts: databases
  tasks:
    - name: start mysql on lamp
      service:
        name: mysqld
        state: started
        enabled: yes

    - name: set password for mysql
      import_playbook: ./secret.yml

- name: config php for lamp
  hosts: apps
  tasks:
    - name: start php service
      service:
        name: php-fpm
        state: started
        enabled: yes
修改mysql密码并加密
//编写修改密码剧本
[root@ansible ~]# vim /project/yuqinghao/secret.yml
---
- name: config mysql for lamp
  hosts: databases
  tasks: vim
    - name: set password for mysql
      shell: /usr/local/mysql/bin/mysql -uroot -e "set password = password(\"123456\");"

//加密修改密码剧本
[root@ansible ~]# ansible-vault encrypt /project/yuqinghao/secret.yml
New Vault password: yuqinghao123!
Confirm New Vault password: yuqinghao123!
Encryption successful

//记录加密密码
[root@ansible ~]# echo 'yuqinghao123!' > /project/yuqinghao/.mypass

//修改权限只允许root读写
[root@ansible ~]# chmod 600 /project/yuqinghao/.mypass

//使用加密密码查看加密剧本
[root@ansible ~]# ansible-vault view --vault-password-file=/project/yuqinghao/.mypass /project/yuqinghao/secret.yml
